    Hi all,
    I have a Canopus DVStorm RT that was previously working from a friend's old XP machine. I have a dual boot Win7(x64)/XP(x86) machine which detects the device as a multimedia controller (in both OSes) but cannot find drivers for it. I know that x64 drivers are not available for the device. The device's HardwareID (from both OSes) is "PCI/VEN_1131&DEV_7146&SUBSYS_00000000&REV_01" which doesn't seem right to me.

    Has anyone have experience with this card and can give insight on compatible systems with this card? As for starters my PC is from 2011.
    Thanks in advance.
    Quote Quote
  2. 1) Go to http://www.grassvalley.com
    2) Sign Up and Login

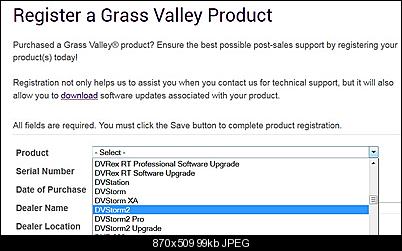

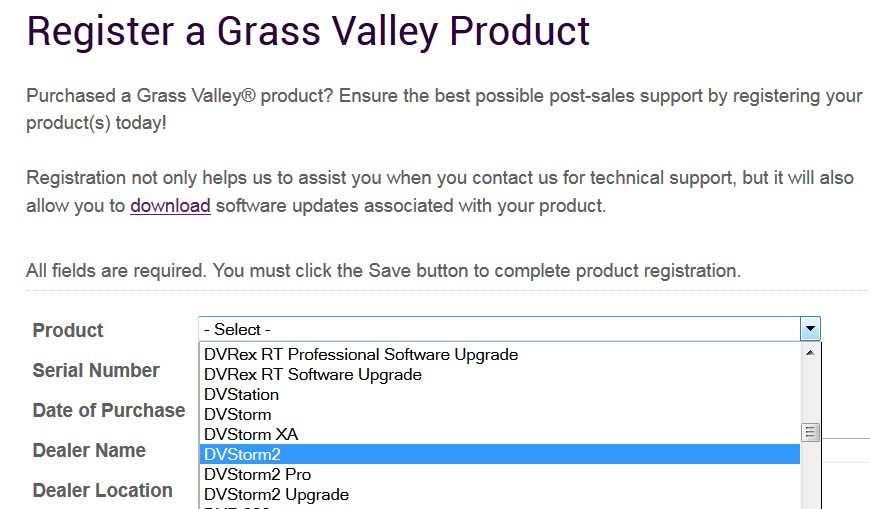

    3) Click on Register a Product and fill info, serial number and other info not supposed to be right
    you can type anything:
    Click image for larger version

Name:	Clipboard-1.jpg
Views:	3771
Size:	98.6 KB
ID:	32157

    4) click on Save
    5) Click on View Registered Products and download drivers

    Drivers supported for XP 32bit
    Quote Quote
  3. Member
    Join Date
    Aug 2006
    Location
    United States
    Search Comp PM
    Originally Posted by AVCHDfreak View Post
    Hi all,
    I have a Canopus DVStorm RT that was previously working from a friend's old XP machine. I have a dual boot Win7(x64)/XP(x86) machine which detects the device as a multimedia controller (in both OSes) but cannot find drivers for it. I know that x64 drivers are not available for the device. The device's HardwareID (from both OSes) is "PCI/VEN_1131&DEV_7146&SUBSYS_00000000&REV_01" which doesn't seem right to me.

    Has anyone have experience with this card and can give insight on compatible systems with this card? As for starters my PC is from 2011.
    Thanks in advance.
    Contact Grass Valley Support and see if they can help you find XP drivers. http://www.grassvalley.com/support/contact
    Quote Quote
  4. Member
    Join Date
    Dec 2013
    Location
    England
    Search Comp PM
    Originally Posted by roma_turok View Post
    1) Go to http://www.grassvalley.com
    2) Sign Up and Login
    3) Click on Register a Product and fill info, serial number and other info not supposed to be right
    you can type anything:
    [Attachment 32157 - Click to enlarge]


    4) click on Save
    5) Click on View Registered Products and download drivers

    Drivers supported for XP 32bit
    Hi roma_turok,
    I have done so but could only find the "Canopus DV Driver" (CanopusDVDriver07.zip) which I have already tried multiple times with no luck, whenever I try to uninstall the driver it says that it can't find a compatible device (because the HardwareID doesn't match). Every time this or an earlier driver is installed, the card remains as a "Multimedia Controller" in unknown devices in Device Manager.
    Quote Quote
  5. Try insert card to other PCI slot and install driver again
    Quote Quote
  6. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    I still have that card and at one time had the original install discs. Will check my library to see if I still do...

    Scott

    <edit>NOPE!
    If I still have them, they'll have been in (literal) cold storage out of the country... Sorry.
    Last edited by Cornucopia; 12th Jun 2015 at 20:31.
    Quote Quote
  7. Member
    Join Date
    Dec 2013
    Location
    England
    Search Comp PM
    My PC has 2 PCI slots, both are functional because they detect another working PCI card (Xonar DG sound card). I have tried both slots with no luck, they returned the same HardwareId. I'm thinking that the card might be shot or it's a hardware compatibility issue (the card seems to have attained its own IRQ (12) though).

    Just out of curiosity, would changing the HardwareId in the driver's INF file to match the device's reported HardwareId help? I would not think of it being that simple though...
    Last edited by AVCHDfreak; 12th Jun 2015 at 19:13.
    Quote Quote
  8. Member
    Join Date
    Dec 2013
    Location
    England
    Search Comp PM
    Originally Posted by Cornucopia View Post
    I still have that card and at one time had the original install discs. Will check my library to see if I still do...

    Scott

    <edit>NOPE!
    If I still have them, they'll have been in (literal) cold storage out of the country... Sorry.
    That's alright, I'll need to find another computer to test the card anyway. My friend didn't expect that something costing him thousands of dollars would be unused after just under a year, the card has been stored in its original packaging for a long time.
    Quote Quote
  9. Member Krispy Kritter's Avatar
    Join Date
    Jul 2003
    Location
    St Louis, MO USA
    Search Comp PM
    Grass Valley also have their own forums: http://forum.grassvalley.com/forum/index.php
    Google is your Friend
    Quote Quote
  10. Member
    Join Date
    Dec 2013
    Location
    England
    Search Comp PM
    Originally Posted by Krispy Kritter View Post
    Grass Valley also have their own forums: http://forum.grassvalley.com/forum/index.php
    Hi Krispy Kritter,
    Thanks, I have opened a thread there, but it seems the card is too old for anyone's interest these days.
    Quote Quote
  11. Member Krispy Kritter's Avatar
    Join Date
    Jul 2003
    Location
    St Louis, MO USA
    Search Comp PM
    Personally I'd use it as a reason to upgrade to a current gen card. Not as much of an issue for you as you dual boot, but driver issues aside, I wouldn't be surprised if there were other software related issues as well once it was installed.
    Google is your Friend
    Quote Quote
  12. Member
    Join Date
    Dec 2013
    Location
    England
    Search Comp PM
    Originally Posted by Krispy Kritter View Post
    Personally I'd use it as a reason to upgrade to a current gen card. Not as much of an issue for you as you dual boot, but driver issues aside, I wouldn't be surprised if there were other software related issues as well once it was installed.
    Don't think I could find a current-gen card that captures analog and converts to DV, cards these days capture to MPEG1/2/4 and they take more processing to decode during editing. The main reason for the DVStorm not working was because my motherboard was missing some PCI settings like latency adjustment.
    Quote Quote
  13. Member
    Join Date
    Aug 2006
    Location
    United States
    Search Comp PM
    Originally Posted by AVCHDfreak View Post
    Originally Posted by Krispy Kritter View Post
    Personally I'd use it as a reason to upgrade to a current gen card. Not as much of an issue for you as you dual boot, but driver issues aside, I wouldn't be surprised if there were other software related issues as well once it was installed.
    Don't think I could find a current-gen card that captures analog and converts to DV, cards these days capture to MPEG1/2/4 and they take more processing to decode during editing. The main reason for the DVStorm not working was because my motherboard was missing some PCI settings like latency adjustment.
    If you can't get your current device to work there is another option, the Canopus ADVC110, which is still being made, captures analog and converts to DV. It has a FireWire/IEEE 1394 interface, so you would need to install a PCI or PCI-e FireWire card if the PC does not have an existing FireWire port.
    Quote Quote
  14. Member
    Join Date
    Dec 2013
    Location
    England
    Search Comp PM
    Originally Posted by usually_quiet View Post
    If you can't get your current device to work there is another option, the Canopus ADVC110, which is still being made, captures analog and converts to DV. It has a FireWire/IEEE 1394 interface, so you would need to install a PCI or PCI-e FireWire card if the PC does not have an existing FireWire port.
    Thanks, I have been thinking about the Canopus ADVC series of devices, though the rarity of such devices in my area drives prices up to prohibitive levels as well as buying overseas where shipping costs five times or more than the price of the item. I have a Matrox RTX card and a few other capture cards coming in, will see if I manage to get them functional.
    Quote Quote
