  1. I have downloaded two videos from youtube

    I want to lighten it up , darken/lighten the color .

    Should I use brightness and contrast FX tool or Colour Correction Tools ?

    Could anyone please teach me how to adjust it ?

    Here are the videos

    https://mega.co.nz/#F!2851jZZI!LwtDPrKWJc9g-py_ffR47A

    Thanks

    [ SOLVED ]
    Last edited by kwanami; 16th May 2015 at 22:15.
    Quote Quote

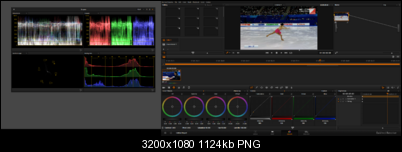

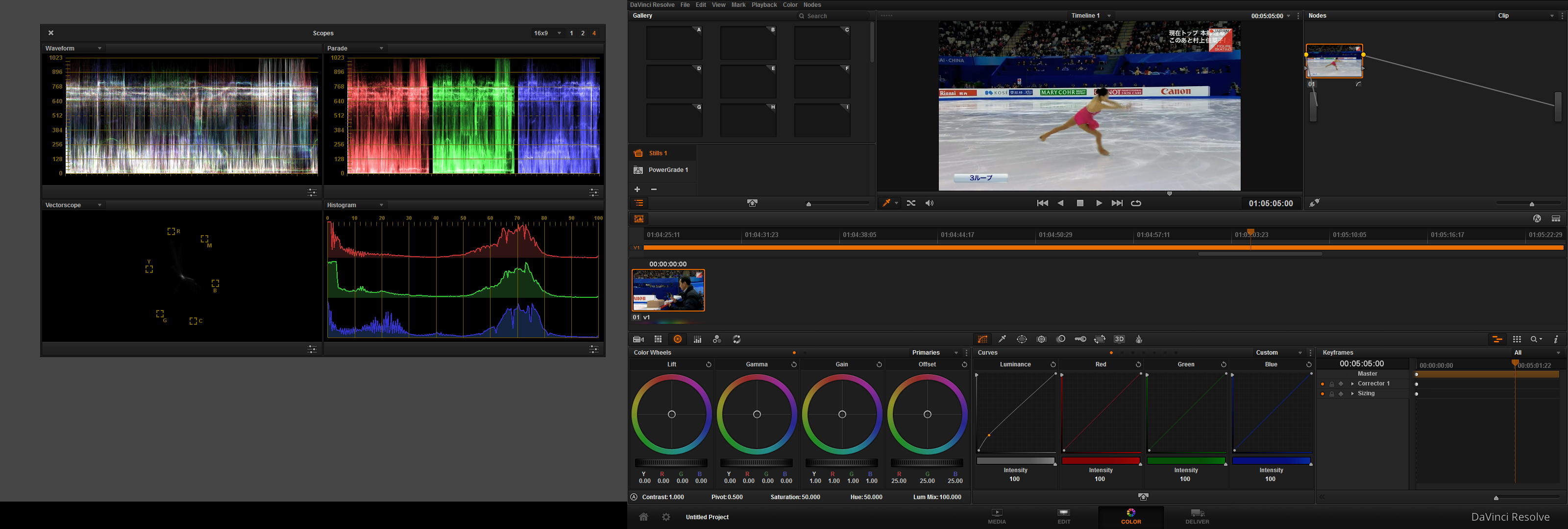

  2. I downloaded your first clip and brought it into Resolve Lite (free, BTW.)

    First -- there is nothing technically wrong with your file. It is a good, full-range broadcast legal image.

    So any changes you want to make are a matter of personal taste. The skater is slightly underexposed, which is normal as a compromise against white ice.

    I pulled up the shadows a bit here with the luma curve tool. Vegas has something similar -- color curves. But you are going to have to do this on a shot by shot basis without destroying the blacks -- which are fine, and the whites -- which are also fine as-is.

    Click image for larger version

Name:	skater.png
Views:	704
Size:	1.10 MB
ID:	31717

    There are a LOT of Vegas color-correction tutorials on the web.
    https://www.moviestudiozen.com/free-tutorials/sony-vegas-pro/526-colour-correction-too...sony-vegas-pro
    Last edited by smrpix; 16th May 2015 at 07:08.
    Quote Quote
  3. If you find those videos too dark or lacking in contrast maybe your graphics card and monitor aren't set up correctly.
    Last edited by jagabo; 16th May 2015 at 12:29.
    Quote Quote
  4. Member
    Join Date
    May 2014
    Location
    Memphis TN, US
    Search PM
    I agree with msrpix, you should correct the YUV luma levels first for the fujitv 720p video. As he says, some of the camera shots will need slightly different filter settings -- even HD broadcast is seldom uniform from start to finish. Like jagabo, I see that smaller clip as far too dark, and the colors are wrecked. I would avoid "Brightness" and "Contrast" filters. They're too crude and hardly ever give you what you want. The 720p has too many compression artifacts -- 2000kbps is just too miserly for 720p action video. If you do manage to raise the dark levels in that clip, you're going to find a lot of noise in that area that will be difficult to clean.

    I'm not sure what you want to do with the better video, which is the SBS 1920x1080. If you were thinking of authoring this to BluRay disc, 1920x1080 at 50p is not valid for BluRay. You can keep 50p if you resize to 1280x720, which would be BluRay compliant. I did that, and found a number of compression artifacts but not anything that can't be fixed. There are some soft edges, color bleed, some halos, which I didn't try to fix.

    The 1080p doesn't need more contrast. Luma is okay, but despite the muddy look of the colors, most chroma exceeds RGB 255. Using typical brightness and contrast filters would be the wrong path to take. What you should learn to use are filters to correct gamma, midtones, and saturation of specific colors. Especially, the image below shows that the video is too blue. I suspect a color matrix problem somewhere, but even though it looks blue (skin tones look bad, almost grayed out with cyan) red is not only turning violet but the bright end is too extended.

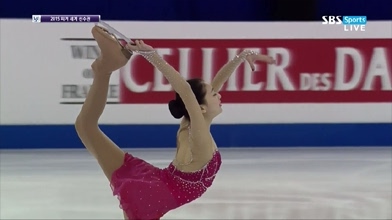

    The image below is frame 19051 from the 1080p video. If it doesn't look blue to you, you need to calibrate your monitor. The blue cast is obvious, and so are the inappropriate saturation and midtone levels.

    Name:  SBS 19051 original.jpg
Views: 9625
Size:  23.4 KB

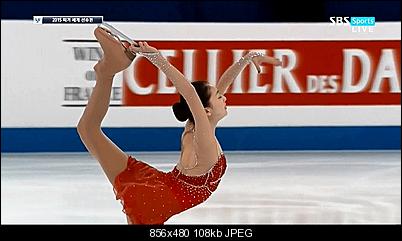

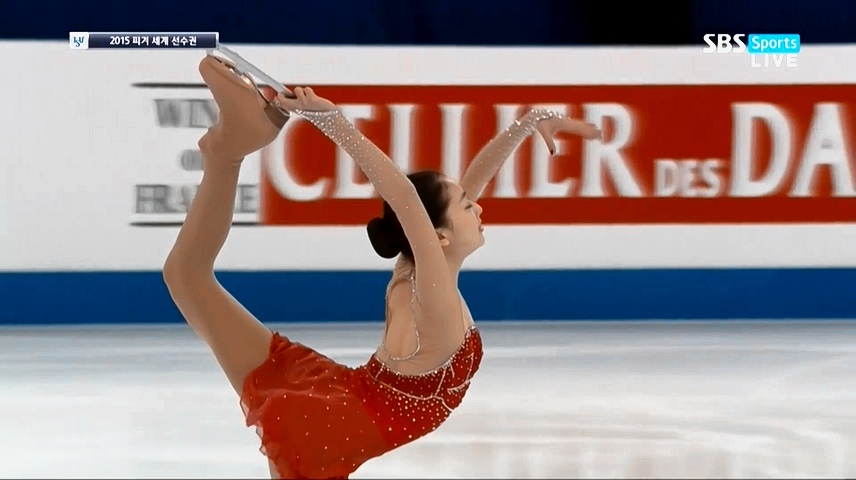

    Below, the same frame 19051 after correction with Hue, gamma Levels, and curves filters. Brightness and Contrast were not used:

    Click image for larger version

Name:	SBS 19051.jpg
Views:	291
Size:	108.3 KB
ID:	31725

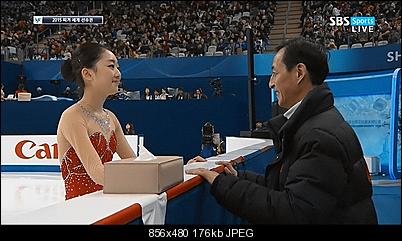

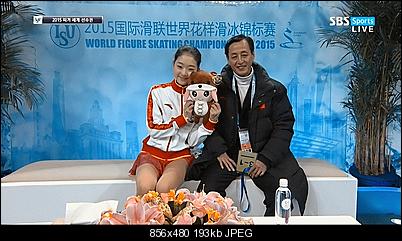

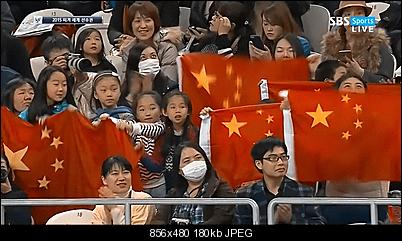

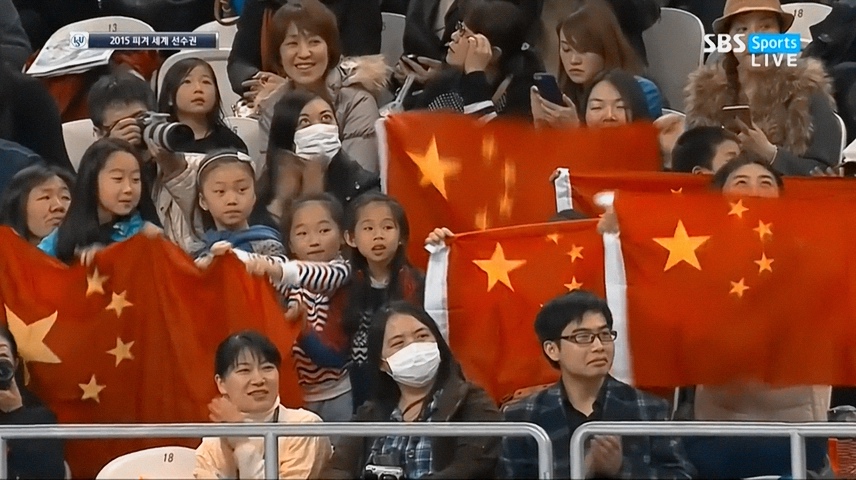

    Here are three more frames from the same video using the same filters with slightly different settings to suit each scene:

    frame 100:
    Click image for larger version

Name:	SBS 100.jpg
Views:	270
Size:	175.8 KB
ID:	31726

    frame 958:
    Click image for larger version

Name:	SBS 958.jpg
Views:	317
Size:	179.6 KB
ID:	31727

    frame 21689:
    Click image for larger version

Name:	SBS - 21689.jpg
Views:	278
Size:	192.9 KB
ID:	31728

    I made these corrections in Rec709 RGB in AfterEffects. The first filter I loaded was a Hue filter to tame blue saturation and turn the color spectrum toward Red/Yellow. But few people can afford AE or the ColorFinesse plugin that comes with it, so I interpolated all the settings to Avisynth and VirtualDub filters (ColorMill, Levels, and Curves) and got pretty much the same results. Vegas has similar tools. Yes, color balance is of course a personal preference. But some things are just not correct, such as the crushed darks and burned-out color in your 720p original.

    You also have to learn to use histograms, pixel samplers, and a few other tools. There are many web tutorials on histograms and what they tell you about an image. A site that I was referred to from videohelp several years ago is one that I found to be very helpful. It's a Photoshop site that talks about camera histograms, but keep in mind that the principles of color and tonal contrast for still photos and video are the same.
    Understanding histograms Part 1: http://www.cambridgeincolour.com/tutorials/histograms1.htm
    Understanding histograms Part 2: http://www.cambridgeincolour.com/tutorials/histograms2.htm
    Last edited by LMotlow; 19th May 2015 at 12:10.
    - My sister Ann's brother
    Quote Quote
  5. Thanks smrpix the tutorials are useful

    Thanks LMotlow It's too difficult for me...........You are professional Cameraman ?

    Anyway , thanks LMotlow , thanks smrpix , you are a warm persons
    Quote Quote
  6. Member
    Join Date
    May 2014
    Location
    Memphis TN, US
    Search PM
    Originally Posted by kwanami View Post
    Thanks smrpix the tutorials are useful

    Thanks LMotlow It's too difficult for me...........You are professional Cameraman ?

    Anyway , thanks LMotlow , thanks smrpix , you are a warm persons
    I'm a hobbyist like yourself, not a professional. I started in video where everyone starts, with no idea about what I was doing until I did lots of reading, observing, and practice. Like others, I learned much from this forum and several members who no longer visit here. I'm still learning. Free internet tutorials are very helpful, including many free Photoshop and AfterEffects color correction sites, and tutorials for Vegas and other products I don't use.

    DaVinci Resolve Lite is nice, but too complicated for beginners. But Vegas can also get complicated as you learn more. Give yourself time.

    And, you're welcome.


    The color pictures in the link to the web tutorial given below aren't rendered very well, but it's a lesson in how to use the Vegas Levels FX filter instead of brightness and contrast: http://users.wowway.com/~wvg/tutorial-1.htm

    I corrected the basic color balance using a simple Hue control, which you can find in most apps like Vegas, Premiere, AfterEffects, etc., and even Avisynth and VirtualDub. General Hue filters don't always work in all situations, but it was effective in this case.
    Last edited by LMotlow; 17th May 2015 at 06:39.
    - My sister Ann's brother
