Avisynth - Overlay on certain colors

[Ninelpienel]

Hey, I have 2 almost identical videos. The first video has a great quality, but there are subtitles burned in. The second video has not so good quality, but no subtitles. I have trim the second video exactly like the firtst video. Now I want to overlay the second video where in the first video are subtitles.

Here is an example from the first video: https://mega.co.nz/#!QMQS0JTb!fGXNL3swyRv65K4YzdNRyk1K8tWT9XYZfpF7tb5GQac

Greeting

[pandy]

http://avisynth.nl/index.php/Layer
http://avisynth.nl/index.php/Overlay
ColorKeyMask

[Ninelpienel]

http://avisynth.nl/index.php/Layer
http://avisynth.nl/index.php/Overlay
ColorKeyMask

Sorry, but this is still a bit too high for me.

[pandy]

Follow links, search for examples, understand them, modify and use.

Or at least upload few pictures with examples of video with subs.

You can generate few pictures with mosaic with ffmpeg and bellow example.
Enter sensitivity coefficient (i would propose something around 0.5 - 0.25 - lower value increase sensitivity and produce more pictures).
Probably few pictures will be created, select one most representative in your opinion to show subtitles.

@set /p sens=Enter Scene Detection Sensitivity (0..1 e.g 0.25):

@ffmpeg -threads %NUMBER_OF_PROCESSORS%*1.5 -i %1 -vf "select='gt(scene\,%sens%)',tile=4x5" -vsync 0 %1_%%03d.png

[Ninelpienel]

Or at least upload few pictures with examples of video with subs.

Here is an example from the first video: https://mega.co.nz/#!QMQS0JTb!fGXNL3swyRv65K4YzdNRyk1K8tWT9XYZfpF7tb5GQac

Pictures: http://a.pomf.se/yxgkik.7z

[jagabo]

ffVideoSource("test.mkv") # good source video with subs
second = BlankClip(last, color=$ff0000) # second video
sub_mask = mt_binarize(threshold=253).mt_expand().mt_expand().mt_expand().mt_expand().mt_expand().mt_expand().Blur(1.0).Blur(1.0)
Overlay(last, second, mask=sub_mask)
ColorYUV(gain_y=-25, off_y=13)

You didn't supply the second video so I used a red video to show where the overlay will be applied. You might need to add another mt_expand() or two to fully cover the black outlines. You should also limit the overlay to the subtitle area by adding another mask for that area. Note that the subs will still be readable if your overlay video doesn't perfectly match levels and colors.

Note that your video has levels outside the standard 16-235 range. The ColorYUV() filter was used to fix the levels.

[Ninelpienel]

What should I do if I want to replace the red video with my second video?

[jagabo]

Open a second video.

second = ffVideoSource("video2.mkv")

[pandy]

Or at least upload few pictures with examples of video with subs.

Here is an example from the first video: https://mega.co.nz/#!QMQS0JTb!fGXNL3swyRv65K4YzdNRyk1K8tWT9XYZfpF7tb5GQac

Pictures: http://a.pomf.se/yxgkik.7z

My point was to not load movie (even sample) but few pictures.

Those pictures are from movie with subtitles or video? (assuming that You trying to overlay subs from one video to another).

Please provide same scenes but from second video too.

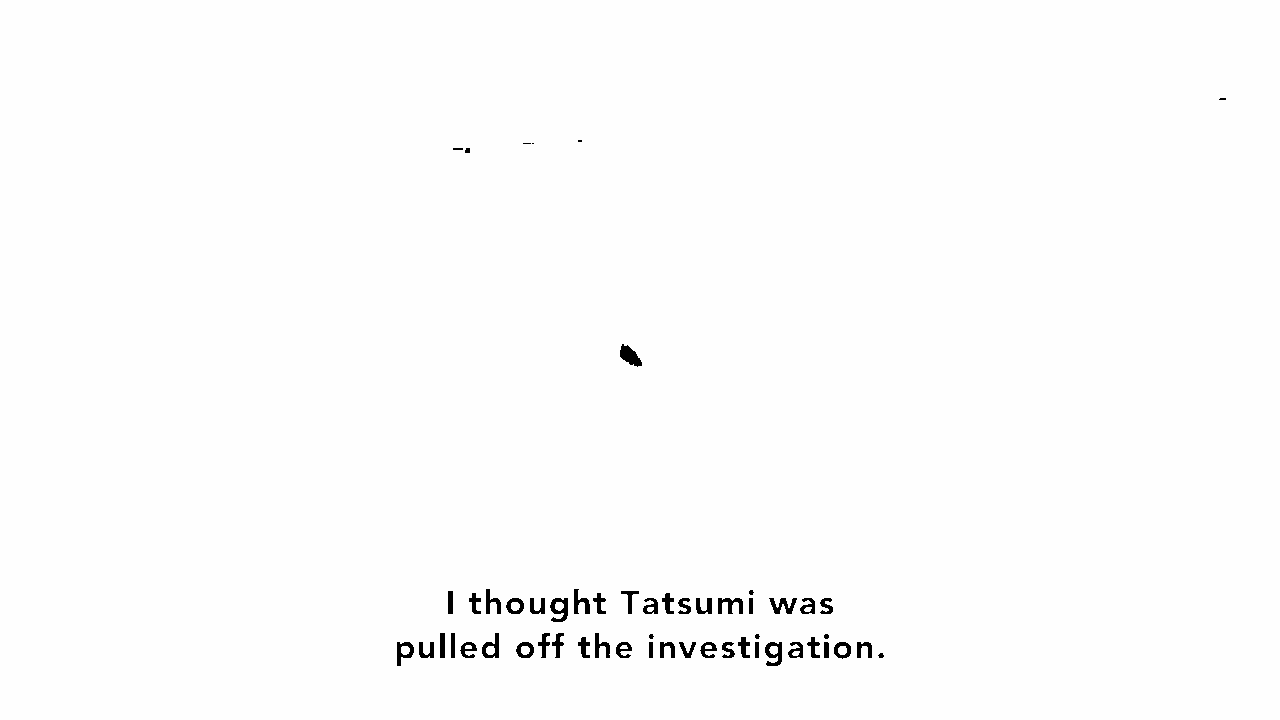

Side info - i've try to extract subs from sample pictures but it is not perfect - as pointed by jagabo not only subs have same color and result may be not as expected also subs edges can be not nice (can be improved but...).


[Attachment 31206 - Click to enlarge]

[Ninelpienel]

Two problems:

I need to change the level previously, since the other video has normal level. Thereafter, the subtitles are no longer recognized.

I have the second video repeatedly trim, how do I put it to you?

ffVideoSource("H:\dot-heaven\Projekte\Death Parade\Folge 08\01. wraw\[HorribleSubs] Death Parade - 08 [1080p].mkv").Trim(154, 33378).Levels(0, 1, 255, 16, 235)
second = DGDecode_MPEG2Source("H:\Encoding\death_parade08v2_ntv.d2v", cpu=0).AnimeIVTC(mode=1,precision=3).Spline16Resize(1920, 1080).Trim(4958, 9582) ++ Trim(12457, 24582) ++ Trim(27446, 43556)
sub_mask = mt_binarize(threshold=253).mt_expand().mt_expand().mt_expand().mt_expand().mt_expand().mt_expand().Blur(1.0).Blur(1.0)
Overlay(last, second, mask=sub_mask)

With

.Trim(4958, 9582) ++ Trim(12457, 24582) ++ Trim(27446, 43556)

only the first trim is applied.

My point was to not load movie (even sample) but few pictures.

Those pictures are from movie with subtitles or video? (assuming that You trying to overlay subs from one video to another).

Please provide same scenes but from second video too.

This was the first video, with subtitles: http://a.pomf.se/yxgkik.7z
This is the second video, without subtitles: http://a.pomf.se/mnwoqr.7z

[jagabo]

I need to change the level previously, since the other video has normal level. Thereafter, the subtitles are no longer recognized.

Change the threshold value in mt_binarize().

I have the second video repeatedly trim

second = DGDecode_MPEG2Source("H:\Encoding\death_parade08v2_ntv.d2v", cpu=0).AnimeIVTC(mode=1,precision=3).Spline16Resize(1920, 1080)
second = second.Trim(4958, 9582) ++ second.Trim(12457, 24582) ++ second.Trim(27446, 43556)

[poisondeathray]

The one without subs actually looks better overall to me in the screenshots that you've provided. All the shadow detail has been obliterated and clipped in the one with subs - unless that was your improper screenshot taking method ? That is one reason you should provide native video samples

[Ninelpienel]

The one without subs actually looks better overall to me in the screenshots that you've provided. All the shadow detail has been obliterated and clipped in the one with subs - unless that was your improper screenshot taking method ? That is one reason you should provide native video samples

That was the wrong colorspace. I have fix this now.

[sambat]

I remember a reading about something similar where two broadcast recordings were combined to eliminate one of those logos that TV stations insist on putting on screen.
Cutting off the bottom of one and the top of the other then stacking.

a=avisource("aa.avi").crop(0,0,0,-62) #62 off bottom, leave top.
b=avisource("bb.avi").crop(0,258,0,0) #258 off top, leave bottom.
stackvertical(a,b)
