Using ProjectX to demux DVB-T MPEG2

[jangai]

Hello everyone,
Newbie using ProjectX V 0.91.0 to demux MPEG2 TS files containing several audio streams and several SD video streams (French DVB-T captured by "Golden Media Multibox")

ProjectX demux all audio streams always and only one video stream despite the "Write all video data" selected in the Output tab of the Pre-settings dialog...

I am not competent enough to interpret all the messages contained into log ...

Is here a ProjectX user able to help me ?

Many thanks in advance

[Baldrick]

Post the log?
And maybe also a mediainfo report from the ts file(view->text in mediainfo).

[jangai]

Post the log?
And maybe also a mediainfo report from the ts file(view->text in mediainfo).

OK I'll try :

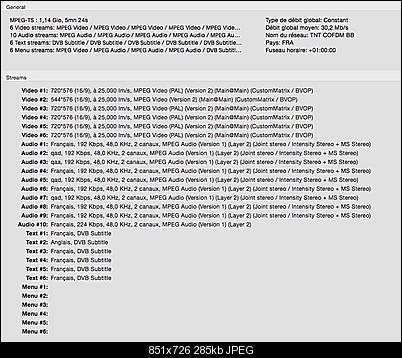

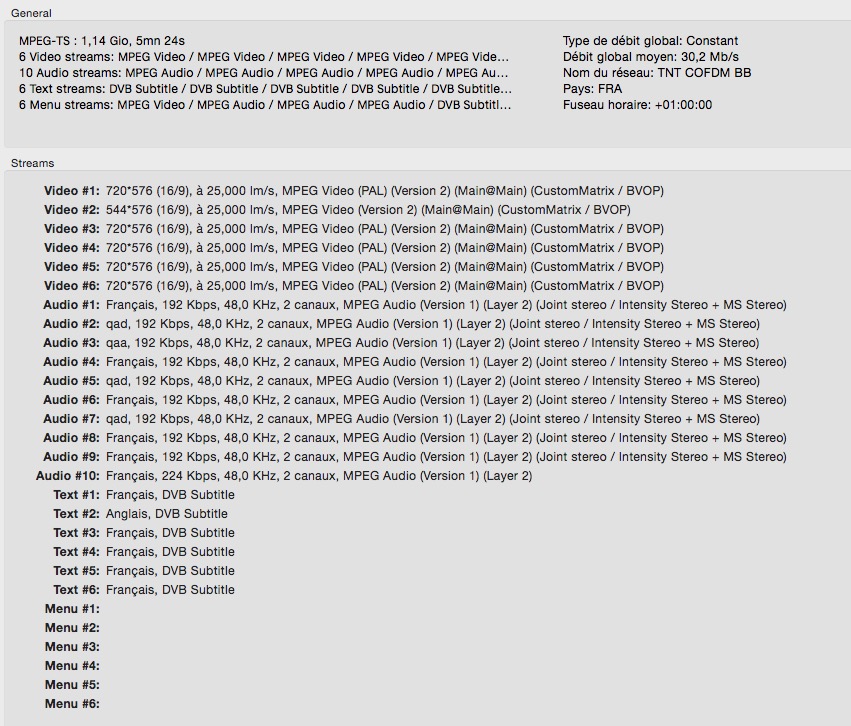

Mediainfo for input file and log file attached




Thank you for your help

[netmask56]

Have a look in the ProjectX install folder on your PC for a file called X.ini It is a text file so you can simply select all copy and paste in a post here. This will show just what all your settings are.

I've been using ProjectX for about 7 years and certainly know about as far as Australian TV is concerned although we don't do multiple video transmissions so not much help there. If you post your ini file I'll have a look and see if anything stands out.

Alternatively if you speak German as well, then there is a ProjectX thread on the forum DVBTechnics http://forum.dvbtechnics.info/forumdisplay.php?f=16 the author used to hang out there.

[jangai]

Have a look in the ProjectX install folder on your PC for a file called X.ini It is a text file so you can simply select all copy and paste in a post here. This will show just what all your settings are.

Running Project X on a Macintosh, I don't find anywhere an "X.ini" file but into ProjectX folder, among all compilation files, I only have a "ProjectX Demux log" which seems the same thing that I have posted earlier... Important extracts concerning videostreams copied further...

Alternatively, if you speak German as well, then there is a ProjectX thread on the forum DVBTechnics http://forum.dvbtechnics.info/forumdisplay.php?f=16 the author used to hang out there.

Alas, I don't speak German, but perhaps I 'll try to post with "google traduction help"...

extract log :FileSegments:
* (0) /Volumes/XFER_BIG/[TS]2015-01-28.23.47.41-France 2-20/000.ts
second. Files:
* ---

+> Input File 0: '/Volumes/XFER_BIG/[TS]2015-01-28.23.47.41-France 2-20/000.ts' (1*224*857*600 bytes)
-> Filetype is TS (generic PES Container)
-> demux
-> Service ID 0x0113
-> PMT 0x00D2 refers to these usable streams:
Video:
PID: 0x00DC(MPEG-2)
Audio:
PID: 0x00E6{fra}(Mpg1)
PID: 0x00E7{qad}(Mpg1)
Teletext:
n/a
Subpict.:
PID: 0x00F0(fra_0x20_p1_a1 )

-> special PIDs for searching defined: { 0x78 0x82 0x83 0x84 0xDC 0xE6 0xE7 0xF0 0x140 0x14A 0x14B 0x208 0x212 0x21C 0x26C 0x276 0x2D0 0x2DA }
ok> PID 0x00E6 has PES-ID 0xC0 (MPEG Audio) (26320 #141)
ok> PID 0x00E7 has PES-ID 0xC2 (MPEG Audio) (30644 #164)
ok> PID 0x02D0 has PES-ID 0xE0 (MPEG Video) (39480 #211)
ok> PID 0x0276 has PES-ID 0xC0 (MPEG Audio) (83284 #444)
ok> PID 0x026C has PES-ID 0xE0 (MPEG Video)-> ignored (87796 #468)
ok> PID 0x0208 has PES-ID 0xE0 (MPEG Video)-> ignored (98136 #523)
!> PID 0x021C (payload: 00 00 01 BE 00 01 FF 47 ..) (165440 #881) -> ignored
ok> PID 0x0084 has PES-ID 0xC4 (MPEG Audio) (191008 #1017)
ok> PID 0x0212 has PES-ID 0xC0 (MPEG Audio) (262448 #1397)
ok> PID 0x00DC has PES-ID 0xE0 (MPEG Video)-> ignored (300424 #1599)
ok> PID 0x014B has PES-ID 0xC2 (MPEG Audio) (313208 #1667)
ok> PID 0x0078 has PES-ID 0xE0 (MPEG Video)-> ignored (325804 #1734)
ok> PID 0x0083 has PES-ID 0xC2 (MPEG Audio) (347424 #1849)
ok> PID 0x02DA has PES-ID 0xC0 (MPEG Audio) (391980 #2086)
ok> PID 0x00F0 has PES-ID 0xBD (private stream 1) (SubID 0x20) (429392 #2285)
ok> PID 0x014A has PES-ID 0xC0 (MPEG Audio) (486544 #2589)
ok> PID 0x0082 has PES-ID 0xC0 (MPEG Audio) (532416 #2833)
ok> PID 0x0140 has PES-ID 0xE0 (MPEG Video)-> ignored (544448 #2897)

other extract :

++> Mpg Video: PID 0x02D0 / PesID 0xE0 / SubID 0x00 :
-> Video: fr-ct-1p-cg-og-dg -> 8084-0-0-316-0-0
-> Video length: 8084 frames @ 00:05:23.360
-> GOP summary: min. 18, max. 72 fields; contains interlaced & progressive frames
-> avg. nom. bitrate 2815221bps (min/max: 2416400/4577600)
---> new File: /Volumes/XFER_BIG/Outputs/000.m2v
!> further videostream found (PID 0x26C / ID 0x1E0) -> ignored
!> further videostream found (PID 0x208 / ID 0x1E0) -> ignored
!> further videostream found (PID 0xDC / ID 0x1E0) -> ignored
!> further videostream found (PID 0x78 / ID 0x1E0) -> ignored
!> further videostream found (PID 0x140 / ID 0x1E0) -> ignored


I do not understand the reason for these messages "ignored" for videostreams other than the first one ...
Some ideas for new tests to do today (like changing input TS file name actually "000.ts")...

[netmask56]

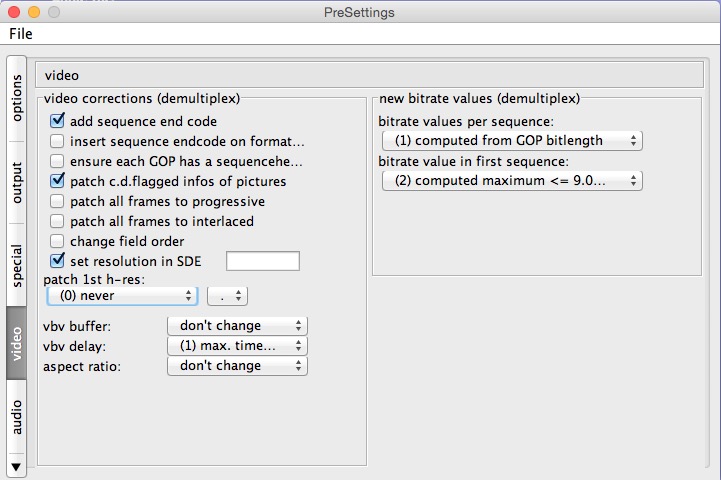

I had a G4 years ago but I'm afraid I don't remember where the MAC OS puts the ini file, it has to be there somewhere as it contains the selections you make under the Presettings tab. Could you make a screen shot of your Presettings Video tab ?

Also what are these extra video streams when you are watching TV? Next Monday I am visiting a friend who has a G5 and does have ProjectX so if I have a chance I will take a look.

[jangai]

I had a G4 years ago but I'm afraid I don't remember where the MAC OS puts the ini file, it has to be there somewhere as it contains the selections you make under the Presettings tab. Could you make a screen shot of your Presettings Video tab ?

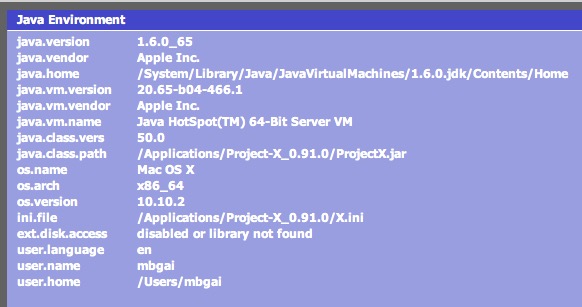

I just see that, at startup, ProjectX give an "environment panel" into which it gives the X.ini path : just into ProjectX folder ... But unfortunately, I don't see any X.ini file into this folder ? Perhaps X.ini has "invisible status", I am going to search this way..

Also what are these extra video streams when you are watching TV? Next Monday I am visiting a friend who has a G5 and does have ProjectX so if I have a chance I will take a look.

These extra videostreams are simply other TV channels... For french TNT (terrestrial Numeric Television), every 8 Mhz UHF channel contains till 6 MPEG2 SD muxed channels or 3 MPEG4 HD muxed channels...
I am posting 2 of my MPEG2 muxed sample files on Mega server and I'll post links here as soon as possible (rather big files : 0,43 and 1,2 GB)

UL finished : here are TS files DL links :
https://mega.co.nz/#!7xZBXKxJ!45Iy4-cWgjFyyOq1S5bpDP4zqQK7rNAdS81pkS0BuOw
https://mega.co.nz/#!b4wyDT5J!2qIT8YCiKFAFnG1rnJtpsNawJ2ynW5Bg2c-bqQ6m4RA

[poisondeathray]

ffmpeg was able to demux all 6 video streams

[jangai]

ffmpeg was able to demux all 6 video streams

Thank you for the proposal, but ffmpeg is a binary under command line and I do not control it all enough to use it... It could be the very last solution for me... The only serious GUI I found on Macintosh for ffmpeg (iFFmpeg), if it scans well muxed streams does not seem to have accessible command "demux". But I have to deepen more ...

Note: For MPEG4 HD DVB-T mux : MKVToolnix Mac 7.1 seems to do the job very well ...

[poisondeathray]

The older tsmuxer (1.10.6) can demux all 6 (at least the windows version can, so the mac version should be able as well) . For some reason the newer versions (2.6.12) cannot

[jangai]

The older tsmuxer (1.10.6) can demux all 6 (at least the windows version can, so the mac version should be able as well) . For some reason the newer versions (2.6.12) cannot

Strange, so strange... Must be the season of the witch ?

In fact, Demux operation succeed only with Win version 1.10.6 of tsMuxeR (not Mac 1.10.6) that I ran in a virtual Windows 7 on my Mac and produce all mpv and mpa files of channels contained into original DVB-T stream..

Same thing : to remux video and audio in MKV container, only old Mac version "MKVmerge 2.0" accept input files and produce a valid mkv file (with light audio video offset which can be corrected during mkv muxing). Last release of MKVToolnix does'nt accept these files as input : it seems made only for HD and MPEG4 since it runs good with DVB-T HD MPEG4 streams... World is abandoning SD for HD and soon, it will be looking only for H265 and UHD...

Anyway, thanks a lot to all people who has given to me time and ideas to help me in this thread to realize these unusuals conversions...

[netmask56]

Another Windows program that also demuxes all the streams, albeit, one at a time is the demux tool in Womble. Demuxes and pops the video and audio track in the time line - save it and then back to demux tool and select the next one etc etc.. Glad to see it's sorted


I've not heard the expression "Must be the season of the witch ?" Must purloin it

[jangai]

I've not heard the expression "Must be the season of the witch ?" Must purloin it

It's a very old story (like me ) : I think your ears will know...
https://www.youtube.com/watch?v=h_kmIsmw2fc


Thanks for Womble... I'll try it, because usually, I need only to keep one stream among the mux...
