Bitstreaming DTS-HD MA with lav filter / potplayer

[imhh1]

Hi ,

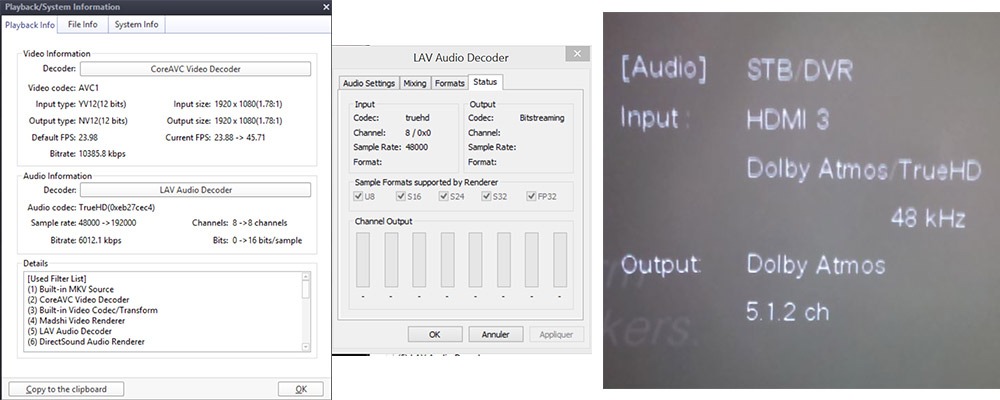

I.m having trouble bitstreaming DTS-HD MA audio track to my receiver. It looks like it's detected as a regular DTS. (see picture)
Dolby TrueHD Atmos 7.1 works perfectly, so i dont get why i cant see the DTS-HD MA logo in my receiver .
also when i play 7.1 dts-hd MA track , its detected as 5.1
any idea why. ..... Am I doing something wrong ?



dts-hd MA mediainfo:

Audio #1
ID : 4352 (0x1100)
Menu ID : 1 (0x1)
Format : DTS
Format/Info : Digital Theater Systems
Format profile : MA / Core
Mode : 16
Format settings, Endianness : Big
Muxing mode : Stream extension
Codec ID : 134
Duration : 1h 27mn
Bit rate mode : Variable
Bit rate : Unknown / 1 509 Kbps
Channel(s) : 6 channels
Channel positions : Front: L C R, Side: L R, LFE
Sampling rate : 48.0 KHz
Bit depth : 16 bits
Compression mode : Lossless / Lossy

[usually_quiet]

Have you checked to see if your sound card supports bitstreaming DTS-HD MA? Go to Control Panel->Sound->Manage Audio Devices. Click on the digital output device and then click "Properties". Select the "Supported Formats" tab.

[imhh1]

thanks for your reply.
yes my sound card support dts-hd ma .
it seems to be a problem with my configuration of potplayer because I just tried MPC-HC and everything works.

[usually_quiet]

I'm afraid I'm out of suggestions then. I set up PotPlayer to bitstream AC3 audio to my TV via HDMI some time ago, but can't try configuring PotPlayer to bitstream DTS-HD MA because nothing I own can decode it.

[Robbo74]

You have to uncheck DTS and DTS-HD in the LAV audio decoder properties "Audio Settings" panel so that your computer can decode the audio stream to PCM, then set your AVR to Multichannel NeoX or DTS. You may or may not get the lights lit up on your AVR bcuz you are not bitstreaming the audio anymore and it probably wont read DTS Master Audio as well. You can check to see that you're using the Arcsoft DLL by going to the "status" panel on the LAV audio decoder properties dohickee. It should read DTS-HD MA, if it reads DCA you're still using the libacodec. Good Luck.

[AllisOne]

Nevcairiel (the LAV filters developer) has introduced some changes to DTS decoding recently. You can read about it here: http://forum.doom9.org/showthread.php?t=156191 . There's conversation about them in the last posts (quite a few back).

You can try nightly builds:
- by Nevcairiel: http://files.1f0.de/lavf/nightly/
or
- by Astrataro: http://tmod.nmm-hd.org/LAVFilters/
(here is the description of his mod: https://astrataro.wordpress.com/2014/10/22/lavfilters-tmod/ )

Edit:

I'm not too familiar with DTS problems. but they mention ATMOS too from this point: http://forum.doom9.org/showthread.php?p=1713611#post1713611

[saminjapan]

I had the same issue as you. If you open the preferences menu...filter control and disable both of the following boxes
Use built-in audio processing filter (recommended)
Use built-in audio stream switcher

You should be able to bitstream both DTS-HD and True HD (as long as you have them activated in the LAV audio filters...)

Hope that works for you.

[hwoarang5]

I had the same issue as you. If you open the preferences menu...filter control and disable both of the following boxes
Use built-in audio processing filter (recommended)
Use built-in audio stream switcher

You should be able to bitstream both DTS-HD and True HD (as long as you have them activated in the LAV audio filters...)

Hope that works for you.

OHHHH MY GOOOODNESS I REFORMATED MY PC AND I CANT GET THE BITSTREAMING TO WORK, THANKS TO YOU , HOW IDIOTIC OF THEM TO ENABLE THOSE TWO, I JUST DISABLE THEM IN MEDIA PLAYER CLASSIC

for those looking for it here are the guide

go to media player classic \ option
OUTPUT - audio renderer - system default
Internal Filters \ audio switcher \ disable enable built in audi switcher filter

restart media player classic
