  1. I used Pinnacle 18 to edit some HD footage (.m2ts format) and then exported it at 1920x1080 (12,000 kbps) using H264 MP4. Pre-Processing was set to Automatic in the Advanced Settings.

    The playback on my Samsung Smart TVs is smooth but the picture is too contrasty. Everyone's eyes in the video also seemed dark.
    Any suggestions for a better export file format for use on my TVs? Disk space is not an issue, image quality is preferred.
    Quote Quote
  2. Don't use automatic. Adjust the levels then make your own preset and save it out.
    Use that preset on all subsequent conversions. It's not the format.
    Quote Quote
  3. I experimented with exporting as MPEG-2 instead (with automatic adjustment off) and it looked much better than the MPEG-4 (even with automatic adjustment off) so I think I'll be taking that route.

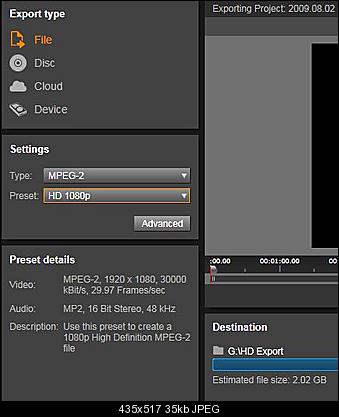

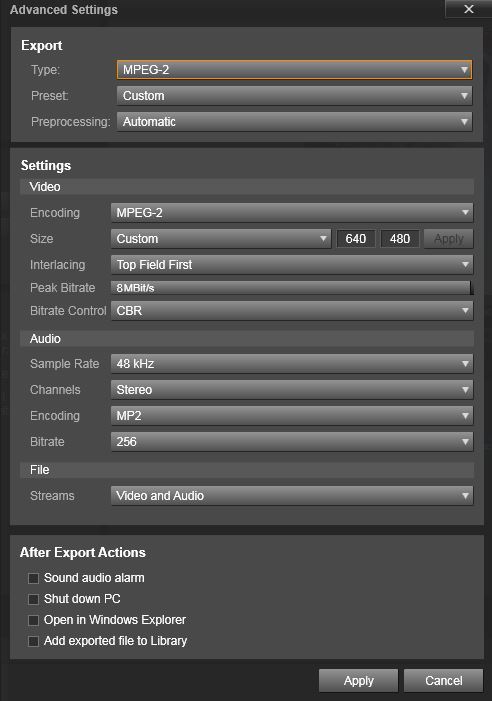

    On a related topic, I've tried the MPEG-2 vs. MPEG-4 experiment using SD footage (source files are Sony DV AVI) and I noticed that the MPEG-2 was out of focus for the 1 minute clip whereas the MPEG-4 has a lot of artifacts and just looked awful. The footage was shot outdoors in well lit conditions. I don't understand why the MPEG-2 had focus issues. Neither had automatic adjustment enabled. My settings for the MPEG-2 (via the advanced menu) were as follows:

    Click image for larger version

Name:	export.JPG
Views:	195
Size:	54.2 KB
ID:	29832
    Quote Quote

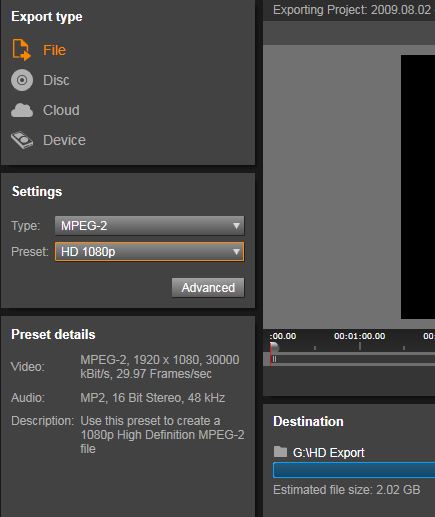

  4. Also rather interesting and unexpected...the HD MPEG-2 files that looked fantastic on the TV are actually larger in size than my source files. For an ~8 min video clip the combined file sizes of the .m2ts files is about 1.5 GB whereas the exported MPEG4 output file is 2.1 GB. Is this Pinnacle Preset (see below) overkill? Any suggestions to customize? I want my exported file to be no larger than all of the source file clips combined.

    Click image for larger version

Name:	export2.JPG
Views:	198
Size:	34.6 KB
ID:	29833
    Quote Quote

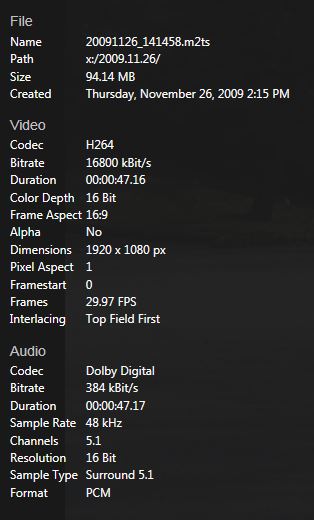

  5. Should I be using export settings as close to my source settings as possible?
    My source settings are:

    Click image for larger version

Name:	source.JPG
Views:	187
Size:	34.1 KB
ID:	29834
    Quote Quote
  6. I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date
    Aug 2000
    Location
    Sweden
    Search Comp PM
    Maybe try another h264 encoder. Export to some lossless format or mpeg-2 with very high bitrate and then shrink again with a x264 encoder like vidcoder.
    Quote Quote
  7. Originally Posted by njitgrad View Post
    Disk space is not an issue, image quality is preferred.
    Originally Posted by njitgrad View Post
    I want my exported file to be no larger than all of the source file clips combined.
    First, make up your mind.

    I suspect the contrast issue is because your camera source files are in the rec 709 color space (16-235 RGB) and your export is expanded to the RGB color space (0-255 RGB.) No idea if Pinnacle's exporter allows you not to make the conversion. This is also assuming your monitor and TV are correctly set up.
    Quote Quote
  8. Originally Posted by smrpix View Post
    Originally Posted by njitgrad View Post
    Disk space is not an issue, image quality is preferred.
    Originally Posted by njitgrad View Post
    I want my exported file to be no larger than all of the source file clips combined.
    First, make up your mind.

    I suspect the contrast issue is because your camera source files are in the rec 709 color space (16-235 RGB) and your export is expanded to the RGB color space (0-255 RGB.) No idea if Pinnacle's exporter allows you not to make the conversion. This is also assuming your monitor and TV are correctly set up.
    To clarify things that have transpired since my OP.....

    1) The contrast issue with the HD footage is no longer an issue when I uncheck "automatic pre-processing" in export options. Case closed.

    2) Disk space is not an issue HOWEVER exported footage IMHO should NEVER exceed my source footage for the simple reason that it is shorter due to the video editing process. The only reason I realized it was exceeding it was because the bit rate selected by the Pinnacle 18 export preset "HD1080p" was 30000 kb/s and my source footage was only encoded at 16800 kb/s.....so that seems to be the reason why the files were larger than I expected.

    3) Last night while I was continuing the HD footage experiment I produced very good MPEG-4 quality once I changed Pinnacle's default MPEG-4 encoder from MPEG to H264 AND tweaked all of the advanced settings to match the original footage from my Panasonic HD camcorder (H264, 16800 kb/s, top field first, etc). The MPEG-4 actually looked better than the MPEG-2, especially during panning and recording non-stationary objects. So I think I have the solution for my HD footage at least.

    4) So now the only issue now remains is how best to export my SD footage (for viewing on a Samsung Smart TV)? As I wrote earlier in this thread, an exported MPEG-2 seems out of focus (to the point that it is not watchable). However the MPEG-4 doesn't look much better (I just have to check today if I used the default MPEG encoder or the H264 encoder).
    Last edited by njitgrad; 21st Jan 2015 at 10:34.
    Quote Quote
  9. It may help to see a short sample of your original SD footage and a short sample of your encoded SD footage to determine what the problem is.
    Quote Quote
  10. Originally Posted by smrpix View Post
    It may help to see a short sample of your original SD footage and a short sample of your encoded SD footage to determine what the problem is.
    How do you suggest I go about doing that? If I upload to YT, the format gets converted anyway.
    Quote Quote
  11. Click "Upload files/Manage attachments" at the bottom of the message box. It will add a downloadable link directly in your post. I believe the limit is 100mb, but most of us would appreciate something smaller.
    Quote Quote
  12. You can upload samples to this website. There is an "upload files/manage attachments" button
    Quote Quote
  13. Member
    Join Date
    May 2014
    Location
    Memphis TN, US
    Search PM
    Originally Posted by smrpix View Post
    Click "Upload files/Manage attachments" at the bottom of the message box. It will add a downloadable link directly in your post. I believe the limit is 100mb, but most of us would appreciate something smaller.
    The limit is 500 MB. But, yeah, who needs a 500 MB sample? 10 seconds or so of encoded video would be far less than that!
    - My sister Ann's brother
    Quote Quote
  14. Great! I will definitely do this later tonight.
    Quote Quote
