  1. Im trying to achieve an RPG dialog style box for a video. I have a video file which contains the box with a nice animation that appears and dissapears. Now I just need to put the text on top, appearing on the classic RPG fashion, example:



    How could I make the text appear typewrited like that? I only own Camtasia, I don't have enough money to afford After Effects or Vegas. Do I really need these to create this simple effect?

    Oh btw, when I mean transparent, I dont mean that the box has to be transparent, I mean that I just want the white letters appearing under a transparent background, I don't know if you get what I mean. For example, take this:

    http://wigflip.com/minifesto/

    If I could get this but instead of a black background, transparent so I can add it on top of my dialogue box on my video, I would speed it up a bit and that would be it. It's a pretty shitty workaround tho, because when you scale it it gets a bit blurry since the original size is so small.

    Anyway, what ideas you have to do what i need? thanks.
    Quote Quote
  2. Those aren't "real" typewritter effects in the YT video, because whole words - or several - are revealed at once. But I get the general idea of what you're trying to do

    It's possible with free software like AVIUTL, using a mask reveal; or another approach is to use subtitles e.g. aegisub . Just google "aegisub typewritter effect" there should be many tutorials
    Quote Quote
  3. Member racer-x's Avatar
    Join Date
    Mar 2003
    Location
    3rd Rock from the Sun
    Search Comp PM
    Aviutl can do that typewriter text effect and it is a free video/effects editor.

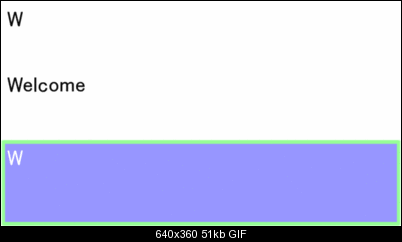

    Image Attached Thumbnails Click image for larger version

Name:	text_effect.gif
Views:	3425
Size:	6.0 KB
ID:	28351

    Last edited by racer-x; 3rd Nov 2014 at 19:36.
    Got my retirement plans all set. Looks like I only have to work another 5 years after I die........
    Quote Quote
  4. Originally Posted by racer-x View Post
    Aviutl can do that typewriter text effect and it is a free video/effects editor.
    hi, can you explain how is it done? I cant find the option to do it.
    Quote Quote
  5. Member racer-x's Avatar
    Join Date
    Mar 2003
    Location
    3rd Rock from the Sun
    Search Comp PM
    Originally Posted by rocco123 View Post
    Originally Posted by racer-x View Post
    Aviutl can do that typewriter text effect and it is a free video/effects editor.
    hi, can you explain how is it done? I cant find the option to do it.
    Watch my 1st tutorial on basic editing. https://forum.videohelp.com/threads/360967-AviUtl-video-tutorial?p=2288628#post2288628

    Basically you just need to adjust "vDisplay" in the text properties. You can set the speed you want.
    Last edited by racer-x; 4th Nov 2014 at 10:05.
    Got my retirement plans all set. Looks like I only have to work another 5 years after I die........
    Quote Quote
  6. Thanks, will try later.
    Quote Quote
  7. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    BluffTitler. Easy. Output can have alpha, too.

    Scott
    Quote Quote
  8. Originally Posted by racer-x View Post
    Originally Posted by rocco123 View Post
    Originally Posted by racer-x View Post
    Aviutl can do that typewriter text effect and it is a free video/effects editor.
    hi, can you explain how is it done? I cant find the option to do it.
    Watch my 1st tutorial on basic editing. https://forum.videohelp.com/threads/360967-AviUtl-video-tutorial?p=2288628#post2288628

    Basically you just need to adjust "vDisplay" in the text properties. You can set the speed you want.
    I got it working nicely. But, i've noticed on the letters Aviutl is somewhat making everything seem a bit smooth and it isn't as sharp looking as in camtasia for some reason. Why is this? I have no filters applied afaik.
    Quote Quote
  9. Originally Posted by rocco123 View Post
    Originally Posted by racer-x View Post
    Originally Posted by rocco123 View Post
    Originally Posted by racer-x View Post
    Aviutl can do that typewriter text effect and it is a free video/effects editor.
    hi, can you explain how is it done? I cant find the option to do it.
    Watch my 1st tutorial on basic editing. https://forum.videohelp.com/threads/360967-AviUtl-video-tutorial?p=2288628#post2288628

    Basically you just need to adjust "vDisplay" in the text properties. You can set the speed you want.
    I got it working nicely. But, i've noticed on the letters Aviutl is somewhat making everything seem a bit smooth and it isn't as sharp looking as in camtasia for some reason. Why is this? I have no filters applied afaik.
    Does this refer to white text on black backgound (or vice versa) ? or colored ?

    If you refer to colored text, then it's probably because of chroma subsampling 4:2:0 . You would need to encode in RGB, or YUV444
    http://en.wikipedia.org/wiki/Chroma_subsampling
    Quote Quote
  10. It is possible with AviUtl to make "(chuncky) typewriter" effect without mask.
    The key is using the inline tags like
    <w0.1> :wait 0.1s
    <w*0.1> : wait for (no. of char*0.1)s
    <c0.1> : clear text after 0.1s

    The smoothing, or anti-alias, can be switched off in the [Detail] button at the right edge of the Text Object dialog box.

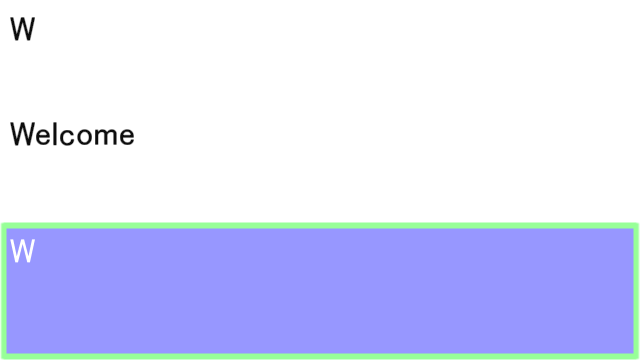

    Click image for larger version

Name:	typewriter_x3demo.gif
Views:	696
Size:	51.2 KB
ID:	28383

    This zip file is the AviUtl project file that generate the above GIF.
    Image Attached Files
    Stopping development until someone save me from poverty or get me out of Hong Kong...
    Twitter @MaverickTse
