Virtualdub: 50P to 25i problem (please enter cats only thanks)

[marcorocchini]

to precisate: ALL this in avisynth is done by the "generic routine": when is not possible to transcode all .mxf file with vitualdub, the batch use avisynth

:Make_File_generic <VCF_FILENAME> <AVS_FILENAME> <FILENAME> <ORG_FILENAME>

echo inizio routine generic

pause

        rem *** TRY extract audio from .MXF IMX SD FILE ***
        Set "TokenS=0"
        IF "%~x4"==".MXF" Set "TokenS=1"
        IF "%~x4"==".mxf" Set "TokenS=1"
        If "%TokenS%"=="1" (if "%V_Width%"=="720" (v:\automazioneclip\core\ffmpeg.exe -loglevel fatal -y -i %4 -map_channel 0.1.0 -map_channel 0.1.1 -af "volume=volume=9dB:precision=fixed" "%DestFolder%\%~n1_SD.wav"))
        If "%TokenS%"=="1" (if "%V_Width%"=="720" (v:\automazioneclip\core\ffmpeg.exe -loglevel fatal -y -i %4 -map_channel 0.1.2 -map_channel 0.1.3 -af "volume=volume=9dB:precision=fixed" "%DestFolder%\%~n1ch3ch4_SD.wav"))

        rem *** TRY extract audio from .MXF XDCAM-HD 4:2:2 FILE ***
        Set "TokenS=0"
        IF "%~x4"==".MXF" Set "TokenS=1"
        IF "%~x4"==".mxf" Set "TokenS=1"
        If "%TokenS%"=="1" (if "%V_Width%"=="1920" (v:\automazioneclip\core\ffmpeg.exe  -y -i %4 -filter_complex "[0:1] [0:2] amerge,volume=1.5" -c:a pcm_s16le "%DestFolder%\%~n1_SD.wav"))
        If "%TokenS%"=="1" (if "%V_Width%"=="1920" (v:\automazioneclip\core\ffmpeg.exe  -y -i %4 -filter_complex "[0:3] [0:4] amerge,volume=1.5" -c:a pcm_s16le "%DestFolder%\%~n1ch3ch4_SD.wav"))

        rem *** TRY extract audio from .MXF DVCAM ***
        Set "TokenS=0"
        IF "%~x4"==".MXF" Set "TokenS=1"
        IF "%~x4"==".mxf" Set "TokenS=1"
        If "%TokenS%"=="1" (if "%dvcam%"=="1" (v:\automazioneclip\core\ffmpeg.exe  -y -i %4 -filter_complex "[0:1] [0:2] amerge,volume=1.5" -c:a pcm_s16le "%DestFolder%\%~n1_SD.wav"))
        If "%TokenS%"=="1" (if "%dvcam%"=="1" (v:\automazioneclip\core\ffmpeg.exe  -y -i %4 -filter_complex "[0:3] [0:4] amerge,volume=1.5" -c:a pcm_s16le "%DestFolder%\%~n1ch3ch4_SD.wav"))

        rem *** TRY extract audio from GOPRO MP4 file ***
        Set "TokenS=0"
        IF "%~x4"==".MP4" Set "TokenS=1"
        IF "%~x4"==".mp4" Set "TokenS=1"
        If "%TokenS%"=="1" (v:\automazioneclip\core\ffmpeg.exe  -y -i %4 -filter_complex "[0:1] volume=1.5" -c:a pcm_s16le "%DestFolder%\%~n1_SD.wav")

        rem *** TRY extract audio from .MP4 OTHER TYPE ***
        Set "TokenS=0"
        IF "%~x4"==".MP4" Set "TokenS=1"
        IF "%~x4"==".mp4" Set "TokenS=1"
        If "%TokenS%"=="1" (v:\automazioneclip\core\ffmpeg.exe  -y -i %4 -filter_complex "[0:0] volume=1.5" -c:a pcm_s16le "%DestFolder%\%~n1_SD.wav")

        echo *** from various format to MorganMJPEG AVI SD 720x576i@25fps using Avisynth+Virtualdub ***

        rem ***Make The .vcf Script File***
	echo VirtualDub.audio.SetSource^(0^);>%1cho VirtualDub.audio.SetMode^(0^);>>%1 VirtualDub.audio.SetInterleave^(1,500,1,0,0^);>>%1 VirtualDub.audio.SetClipMode^(1,1^);>>%1 VirtualDub.audio.SetEditMode^(1^);>>%1 VirtualDub.audio.SetConversion^(0,0,0,0,0^);>>%1 VirtualDub.audio.SetVolume^(^);>>%1 VirtualDub.audio.SetCompression^(^);>>%1 VirtualDub.audio.EnableFilterGraph^(0^);>>%1 VirtualDub.video.SetInputFormat^(0^);>>%1 VirtualDub.video.SetOutputFormat^(11^);>>%1   echo VirtualDub.video.SetMode^(1^);>>%1   echo VirtualDub.video.SetSmartRendering^(0^);>>%1 VirtualDub.video.SetPreserveEmptyFrames^(0^);>>%1 VirtualDub.video.SetFrameRate2^(0,0,1^);>>%1 VirtualDub.video.SetIVTC^(0, 0, 0, 0^);>>%1
	echo VirtualDub.video.SetCompression^(0x6a6d7674,0,10000,0^);>>%1 VirtualDub.video.SetCompData^(28,"TUpQRxgAAAAAAAAAAgAAAAgAAAACAAAAAQAAAA=="^);>>%1VirtualDuVirtualDub.video.filters.Clear^(^);>>%1   echo VirtualDub.video.filters.Add^("deinterlace"^);>>%1ViVirtualDub.video.filters.instance[0].Config^(0,1,1^);>>%1
        echo VirtualDub.video.filters.Add^("resize"^);>>%1ViVirtualDub.video.filters.instance[1].Config^(720,576,0,4,3,0,320,240,4,3,0,135,1,0x000000^);>>%1
        echo VirtualDub.video.filters.Add^("interlace"^);>>%1ViVirtualDub.video.filters.instance[2].Config^(0, 0^);>>%1
        echo VirtualDub.audio.filters.Clear^(^);>>%1
        echo VirtualDub.audio.filters.Clear^(^);>>%1   if NOT "%TimeCode%"=="" echo VirtualDub.project.ClearTextInfo^(^);>>%1
        if NOT "%TimeCode%"=="" echo VirtualDub.project.AddTextInfo^("ISMP", "%TIMECODE%"^);>>%1
	echo VirtualDub.SaveAVI^("%DestFolder%\\%~n1_SD.avi"^);>>%1
	echo VirtualDub.Close^(^);>>%1m ***Make The .avs Script File***

        echo Import("C:\Program Files\AviSynth\plugins\IResize.avsi")>%2 echo FFVideoSource^(%4^)>>%2
        echo ConvertToYUY2^(interlaced=true^)>>%2
        if "%dvcam%"=="1" echo ReverseFieldDominance^(^)>>%2
        echo src = last >>%2
        echo src = src.width==720^&^&src.height==608?src.crop^(0,32,0,0^):src >>%2
        echo src = src.width==1920 ^&^& src.height==1088 ? src.crop^(0,0,1920,1080^): src >>%2
        echo src = src.width^>720^| src.height^>608?src.ColorMatrix^(mode="Rec.709->Rec.601: src >>%2
        echo src.width!=720 ^|^| src.height!=576 ? src.IResize^(720,576^): src >>%2
        if "%Frame_Rate%" == "50/1" echo src.framerate^<26 ? AssumeTFF^(^).SeparateFields^(^).SelectEvery^(4,0,3^).Weave^(^) >>%2
        echo AssumeFPS^(25^)>>%2

        echo processing source file %4

        rem ***Call VirtualDub***
	if NOT EXIST %VD_LOC% (
		echo  Um, where the hell is VirtualDubMod?
		pause
	)

        %VD_LOC% /min %2 /s %1


	for %%v in ("%DestFolder%\\%~n1_SD.avi") do (
		if %%~zv LSS 128 (
			echo  ERROR!!!  Extra Small File Size Detected!!!
			pause
		)
	)

       v:\automazioneclip\virtualdub\cfourcc.exe -i "%CD%\%~n1_SD.avi" -u MJPG -d MJPG

       DEL "%DestFolder%\*.ffindex"
       DEL "%DestFolder%\*.VCF"
       rem DEL "%DestFolder%\*.avs"
       DEL "%DestFolder%\unicodefile.txt"
       DEL "%DestFolder%\mediainfo.txt"

       v:\automazioneclip\virtualdub\cfourcc.exe -i "%CD%\%~n1_SD.avi" -u MJPG -d MJPG

       goto :eof

and all is ok

But the only problem of avisynth is the time wasted for the indexing process of the ffms2. To load a 45GB .mxf file, virtualdub (with the ffmpeg plugin) employs 3 seconds. Avisynth employs 15 minutes due to the indexing.

What I should try to do is a batch that use, if possible, virtualdub in all possible cases, and avisynth for all the rest because of the indexing problem of avisynth

[marcorocchini]

and this can convert all .mxf files into fullHD (but IResize is already a little slow)

        echo Import("C:\Program Files\AviSynth\plugins\IResize.avsi")>%2
        echo FFVideoSource^(%4^)>>%2
        echo ConvertToYUY2^(interlaced=true^)>>%2
        if "%dvcam%"=="1" echo ReverseFieldDominance^(^)>>%2
        echo src = last >>%2
        echo src = src.width==720^&^&src.height==608?src.crop^(0,32,0,0^):src >>%2
        echo src = src.width==1920 ^&^& src.height==1088 ? src.crop^(0,0,1920,1080^): src >>%2
        echo src = src.width^<721 ^|^| src.height^<609?src.ColorMatrix^(mode="Rec.601->Rec.709"^): src >>%2
        echo src.width!=1920 ^|^| src.height!=1080 ? src.IResize^(1920,1080^): src >>%2
        if "%Frame_Rate%" == "50/1" echo src.framerate^<26 ? AssumeTFF^(^).SeparateFields^(^).SelectEvery^(4,0,3^).Weave^(^) >>%2
        echo AssumeFPS^(25^)>>%2
  echo processing source file %4

        rem ***Call VirtualDub***
	if NOT EXIST %VD_LOC% (
		echo  Um, where the hell is VirtualDubMod?
		pause
	)

        %VD_LOC% /min %2 /s %1


	for %%v in ("%DestFolder%\\%~n1_HD.avi") do (
		if %%~zv LSS 128 (
			echo  ERROR!!!  Extra Small File Size Detected!!!
			pause
		)
	)

       v:\automazioneclip\virtualdub\cfourcc.exe -i "%CD%\%~n1_HD.avi" -u MJPG -d MJPG

       DEL "%DestFolder%\*.ffindex"
       DEL "%DestFolder%\*.VCF"
       DEL "%DestFolder%\*.avs"
       DEL "%DestFolder%\unicodefile.txt"
       DEL "%DestFolder%\mediainfo.txt"
       set "dvcam=0"
       v:\automazioneclip\virtualdub\cfourcc.exe -i "%CD%\%~n1_HD.avi" -u MJPG -d MJPG

       goto :eof

[marcorocchini]

We are talking about fundamental properties of digital video: too sharp = aliasing. There's no difference between VirtualDub and AviSynth in this respect. Don't you have the ability to take what you learned in one place and apply it in another?

sorry jagabo, what I have to do?

when camera works @ 50P I set the detail = 0

however the problem of aliasing I think is resolvible. The problem that I cannot resolve is that:

using the "interlaced" filter in virtualdub as .vcf (because I have to batch automate) causes an abnormal duplication of the original time duration. If you load manually the filter and save the avi, all is ok
If you do it via .vcf / batch automate the problem is presenting.

clear about the resize procedure, it remains to understand why it happens this in virtualdub

[marcorocchini]

I try to explain the problem:

please download the source (1280x720/50fps it have duration of 7,5 seconds):

https://www.dropbox.com/s/l44obigzqyhfwua/C0030.MXF?dl=0

I have load it on virtualdub 1.10.04 with the ffmpeg plugin v0.8.1.4

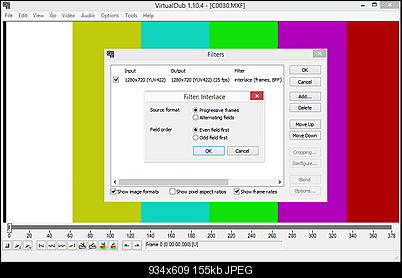

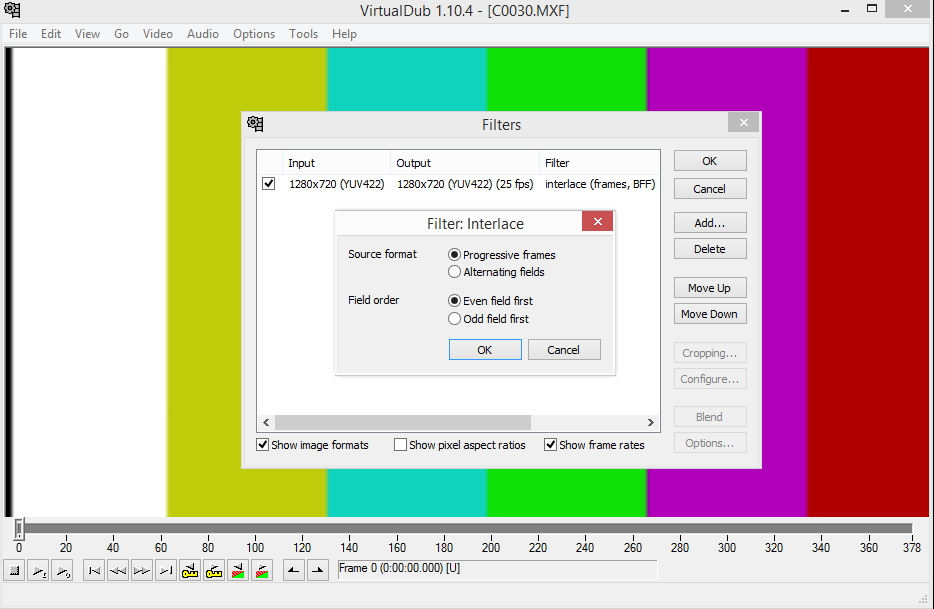

and insert the only "interlace" filter so that


---> SAVE AVI file and all is ok

Now in virtualdub I "save the processing settings" into the cat.vcf

close virtualdub and reopen it, -->open the C0030.mxf and load the cat.vcf

--> save avi ... but it do a file that have duration doubled (15 seconds) and video, of course, plays only until the half of the entire file and the freeze at the half: this is the problem

https://www.dropbox.com/s/o7yutkar1ucbfhj/c0030.mp4?dl=0

summarizing: when the interlace filter is manually set in virtualdub all is ok. When it where load by a .vcf file (for batch automation) do the problem

Is there a way to remediate? thanks

[jagabo]

I had no such problem with your earlier c0016.mxf. So you probably have a source plugin issue.

[marcorocchini]

mhh are you sure?

- so have you saved the cat.vcf (cat.vdscript), closed VD --> reopen VD, load C0016.mxf and apply cat.vdscript using the "load processing settings" and saved all as avi file? and the saved avi file is really ok?

- what version of virtualdub do you have?

- what version of the ffmpeg plugin to open the c0016.mxf have?

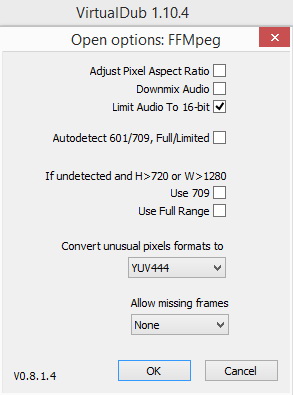

I do all proof with this configuration of the plugin:



thanks

[jagabo]

I don't use the ffmpeg source plugin -- it causes too many problems. I used the MPEG2 source plugin. But that does corrupt the MXF picture here and there so it's not a solution for you.

[marcorocchini]

I have try also opening the .mxf with DirectShow plugin for Virtualdub == same problem

so I have try opening the .mxf with avisynth == same problem

I try to understand if the problem is virtualdub or the plugin that opens the .mxf file

[marcorocchini]

I don't use the ffmpeg source plugin -- it causes too many problems. I used the MPEG2 source plugin. But that does corrupt the MXF picture here and there so it's not a solution for you.

so in your test don't you see the problem?

[jagabo]

so in your test don't you see the problem?

Why do you think I said "I had no such problem"???

I was able to duplicate the problem with an AVI file though (and the internal AVI reader).

[marcorocchini]

you sayd: I don't use the ffmpeg source plugin -- it causes too many problems. I used the MPEG2 source plugin. But that does corrupt the MXF picture here and there so it's not a solution for you.

so I'm wondering: but can you see the problem of duration o not?
because in the previous post you sayd

I had no such problem with your earlier c0016.mxf. So you probably have a source plugin issue.

jagabo: I'm a soft cat, perhaps I cannot translate very well english

[jagabo]

Since it happens with AVI files it's probably a bug in VirtualDub. Contact the author for a fix. For the time being, a workaround is to load the vdscript first, then open the video.

[marcorocchini]

so we 5 cats have try to understand:

problem maybe that in vfc has been write the total leght / 2 due to the 25 interlaced e.g my brother cat C0016.mxf have 2982 frames. When adding the "interlace" filter, due to the 25 interlace mode, the duration become decimate (?) by 2, or 1491 frames

When saved a .vfc script that recognize the correct duration of my cat (when adding the filter interlace" it write in the vcf that my brother have a duration of 1491 frames

VirtualDub.subset.Clear();
VirtualDub.subset.AddRange(0,1491);
VirtualDub.video.SetRange();

so that that seems to me that a batch have to calculate the total frames / 2 (2982 / 2 = 1491 frames)

To do this ffprobe can recognize in .mxf files the total number of frames with this procedure:

for /f "tokens=1,2 delims=^=" %%g in ('v:\automazioneclip\virtualdub\FFProbe -hide_banner -loglevel fatal -pretty -select_streams v:0 -show_streams -show_entries stream^=codec_type^,r_frame_rate^,width^,height^,sample_aspect_ratio:stream_disposition^=:format_tags^=timecode^,company_name^,product_name^,product_version "%~1" 2^>^&1') DO (
		 if "%%~g"=="TAG:company_name" set "T_Company_Name=%%~h"
		 if "%%~g"=="TAG:product_name" set "T_Product_Name=%%~h"
		 if "%%~g"=="TAG:product_version" set "T_Product_Version=%%~h"
		 if "%%~g"=="TAG:timecode" set "TIMECODE=%%~h"
                 if "%%~g"=="r_frame_rate" set "Frame_Rate=%%~h"
		 if "%%~g"=="width" set "V_Width=%%~h"
		 if "%%~g"=="height" set "V_Height=%%~h"
                 if "%%~g"=="sample_aspect_ratio" set "V_PAR=%%~h"
		 if "%%~g"=="codec_type" if "%%~h"=="audio" set /a AUCount+=1
	)

        for /f "tokens=1,2 delims=^=" %%g in ('v:\automazioneclip\virtualdub\FFProbe -hide_banner -loglevel fatal -pretty -select_streams v:0 -show_streams "%~1"') DO (
		 if "%%~g"=="duration_ts" set "NumberOfFrame=%%~h")

        echo the variabile T_Company_Name assume this value "%T_Company_Name%"
        echo the variabile T_Product_Name assume this value "%T_Product_Name%"
        echo the variabile T_Product_Version assume this value "%T_Product_Version%"
        echo the variabile TIMECODE assume this value "%TIMECODE%"
        echo the variabile Frame_Rate assume this value "%Frame_Rate%"
        echo the variabile V_Width assume this value "%V_Width%"
        echo the variabile V_Height assume this value "%V_Height%"
        echo the variabile V_PAR assume this value "%V_PAR%"

        set /a "forVirtualDubAddRangeWhenDoubleFrameRate"=%NumberOfFrame%/2
        echo the variabile NumberOfFrame assume this value "%NumberOfFrame%" so the half is echo  "%forVirtualDubAddRangeWhenDoubleFrameRate%"

	if "%V_Width%"=="" (
		echo  ERROR: Video Width NOT FOUND!
		pause
		goto :eof
	)
	if "%V_Height%"=="" (
		echo  ERROR: Video Height NOT FOUND!
		pause
		goto :eof
	)
        if "%Frame_Rate%"=="" (
		echo  ERROR: Frame_Rate NOT FOUND!
		)
	if "%V_PAR%"=="" (
		echo  ERROR: Video PAR NOT FOUND!
		pause
		goto :eof
	)
	rem Set "V_Q=UD"
	rem if %V_Width% LEQ 1920 if %V_Height% LEQ 1120 \\
	Set "V_Q=HD"
	rem if %V_Width% LEQ 1280 if %V_Height% LEQ 752 Set "V_Q=MD"
	if %V_Width% LEQ 1024 if %V_Height% LEQ 608 Set "V_Q=SD"
       	echo  Using %V_Q% Mode
	echo  PAR = %V_PAR%
        echo  Frame_Rate = %Frame_Rate%
	if "%TimeCode%"=="" echo Warning! no TimeCode Found!
	if NOT "%TimeCode%"=="" echo Timecode= %TIMECODE%

and during the .vcf building should enough adding the 3 lines that define the correct lenght:

         echo VirtualDub.audio.SetSource^(0^);>%1
         echo VirtualDub.audio.SetMode^(0^);>>%1
         echo VirtualDub.audio.SetInterleave^(1,500,1,0,0^);>>%1
         echo VirtualDub.audio.SetClipMode^(1,1^);>>%1
         echo VirtualDub.audio.SetEditMode^(1^);>>%1
         echo VirtualDub.audio.SetConversion^(0,0,0,0,0^);>>%1
         echo VirtualDub.audio.SetVolume^(^);>>%1
         echo VirtualDub.audio.SetCompression^(^);>>%1
         echo VirtualDub.audio.EnableFilterGraph^(0^);>>%1
         echo VirtualDub.video.SetInputFormat^(0^);>>%1
         echo VirtualDub.video.SetOutputFormat^(11^);>>%1
         echo VirtualDub.video.SetMode^(3^);>>%1
         echo VirtualDub.video.SetSmartRendering^(0^);>>%1
         echo VirtualDub.video.SetPreserveEmptyFrames^(0^);>>%1
         echo VirtualDub.video.SetFrameRate2^(0,0,1^);>>%1
         echo VirtualDub.video.SetIVTC^(0, 0, 0, 0^);>>%1
         echo VirtualDub.video.SetCompression^(0x6a6d7674,0,10000,0^);>>%1
         echo VirtualDub.video.SetCompData^(28,"TUpQRxgAAAAAAAAAAgAAAAgAAAACAAAAAQAAAA=="^);>>%1
         echo VirtualDub.video.filters.Clear^(^);>>%1
         echo VirtualDub.video.filters.Add^("alias format"^);>>%1
         echo VirtualDub.video.filters.instance[0].Config^(2, 0^);>>%1
         echo VirtualDub.video.filters.Add^("resize"^);>>%1
         echo VirtualDub.video.filters.instance[1].Config^(720,576,0,4,3,0,320,240,4,3,0,135,1,0x000000^);>>%1
         echo VirtualDub.video.filters.Add^("interlace"^);>>%1
         echo VirtualDub.video.filters.instance[2].Config^(0, 0^);>>%1
         echo VirtualDub.video.filters.Add^("convert format"^);>>%1
         echo VirtualDub.video.filters.instance[3].Config^(32^);>>%1
         echo VirtualDub.audio.filters.Clear^(^);>>%1
         if "%doubleframrate%"=="1" echo VirtualDub.subset.Clear^(^);>>%1
         if "%doubleframrate%"=="1" echo VirtualDub.subset.AddRange^(0,%forVirtualDubAddRangeWhenDoubleFrameRate%^);>>%1
         if "%doubleframrate%"=="1" echo VirtualDub.video.SetRange^(^);>>%1
         if NOT "%TimeCode%"=="" echo VirtualDub.project.ClearTextInfo^(^);>>%1
         if NOT "%TimeCode%"=="" echo VirtualDub.project.AddTextInfo^("ISMP", "%TIMECODE%"^);>>%1
	 echo VirtualDub.SaveAVI^("%DestFolder%\\%~n1_SD.avi"^);>>%1
	 echo VirtualDub.Close^(^);>>%1

 %VD_LOC% /min %4 /s %1
    	 for %%v in ("%DestFolder%\\%~n1_SD.avi") do (
		if %%~zv LSS 128 (
			echo  ERROR!!!  Extra Small File Size Detected!!!
			pause
		)
	)

       v:\automazioneclip\virtualdub\cfourcc.exe -i "%CD%\%~n1_SD.avi" -u MJPG -d MJPG
       rem DEL "%DestFolder%\*.VCF"
       DEL "%DestFolder%\unicodefile.txt"
       DEL "%DestFolder%\mediainfo.txt"
       v:\automazioneclip\virtualdub\cfourcc.exe -i "%CD%\%~n1_SD.avi" -u MJPG -d MJPG


 goto :eof

So the final code of the .vcf should be become:

VirtualDub.audio.SetSource(0);
VirtualDub.audio.SetMode(0);
VirtualDub.audio.SetInterleave(1,500,1,0,0);
VirtualDub.audio.SetClipMode(1,1);
VirtualDub.audio.SetEditMode(1);
VirtualDub.audio.SetConversion(0,0,0,0,0);
VirtualDub.audio.SetVolume();
VirtualDub.audio.SetCompression();
VirtualDub.audio.EnableFilterGraph(0);
VirtualDub.video.SetInputFormat(0);
VirtualDub.video.SetOutputFormat(11);
VirtualDub.video.SetMode(3);
VirtualDub.video.SetSmartRendering(0);
VirtualDub.video.SetPreserveEmptyFrames(0);
VirtualDub.video.SetFrameRate2(0,0,1);
VirtualDub.video.SetIVTC(0, 0, 0, 0);
VirtualDub.video.SetCompression(0x6a6d7674,0,10000,0);
VirtualDub.video.SetCompData(28,"TUpQRxgAAAAAAAAAAgAAAAgAAAACAAAAAQAAAA==");
VirtualDub.video.filters.Clear();
VirtualDub.video.filters.Add("alias format");
VirtualDub.video.filters.instance[0].Config(2, 0);
VirtualDub.video.filters.Add("resize");
VirtualDub.video.filters.instance[1].Config(720,576,0,4,3,0,320,240,4,3,0,135,1,0x000000);
VirtualDub.video.filters.Add("interlace");
VirtualDub.video.filters.instance[2].Config(0, 0);
VirtualDub.video.filters.Add("convert format");
VirtualDub.video.filters.instance[3].Config(32);
VirtualDub.audio.filters.Clear();
VirtualDub.subset.Clear();
VirtualDub.subset.AddRange(0,1491);
VirtualDub.video.SetRange();
VirtualDub.project.ClearTextInfo();
VirtualDub.project.AddTextInfo("ISMP", "00:05:04:40");

I'm not shure if the "duration_ts" of the ffprobe is suitable to di this, but seems working with .mxf file (not with .mp4 files, I don't know why) hoewver at the moment my cat seems play "fine"

[LMotlow]

Hm, that's a ton of code you've been posting. You're probably as confused as the rest of us. Seems to be a difficult way of doing it.

I used the C0016.XMF sample from an earlier post. Sorry to be late with this, I had some learning to do with this. HD to SD is always painful. C0016,MXF had a few problems anyway, with some of the twitter already present along with over exposure, over saturation, and over sharpening. The linked mkv below has the line twitter (aliasing) smoothed ...well, most of it, without too much damage. Processed with Avisynth. See what you think. Ciao.

C0016MXF_NDi.mkv, 25fps PAL interlaced, 720x576, 16:9 DAR, ~45MB
https://www.mediafire.com/?o8tb9m6i3df1rvn

[marcorocchini]

Hm, that's a ton of code you've been posting. You're probably as confused as the rest of us. Seems to be a difficult way of doing it.

I used the C0016.XMF sample from an earlier post. Sorry to be late with this, I had some learning to do with this. HD to SD is always painful. C0016,MXF had a few problems anyway, with some of the twitter already present along with over exposure, over saturation, and over sharpening. The linked mkv below has the line twitter (aliasing) smoothed ...well, most of it, without too much damage. Processed with Avisynth. See what you think. Ciao.

C0016MXF_NDi.mkv, 25fps PAL interlaced, 720x576, 16:9 DAR, ~45MB
https://www.mediafire.com/?o8tb9m6i3df1rvn

thanks, so what script of avisynth have you used?
over sharpen is guilty of the camcorder that do this artifacts when use the 1280x720/50P. Unfortunately don't do the 1080p

If you want to see my brother at 1920x1080 25P:
https://www.dropbox.com/s/instjq4dpq4ue7t/C0018.MXF?dl=0

TMPGEnc Video Mastering Works 5 can encode in 422?

[LMotlow]

thanks, so what script of avisynth have you used?
over sharpen is guilty of the camcorder that do this artifacts when use the 1280x720/50P. Unfortunately don't do the 1080p

TMPGEnc Video Mastering Works 5 can encode in 422?

TVMW5 encodes to standard BluRay, AVCHD, and DVD, all of which are encoded as YV12. You can encode the losssless AVI from Avisynth into whatever format and colorspace you use for broadcast, using the encoder for 4:2:2 that you use now, whatever it is. To change the colorspace of the AVI, use this if necessary:

for interlaced video:

ConvertToYUY2(interlaced=true)

for progressive video:

ConvertToYUY2(interlaced=false)

The Avisynth script I used for C0016.MXF:

ffvideosource("drive:\path\to\C0016.MXF")
ColorMatrix(mode="Rec.709->Rec.601")
ColorYUV(off_y=-8)
Tweak(coring=false,sat=0.8)
Blur(0,1).Blur(0,1.5).Blur(0,1.5)
Spline36Resize(720,288)  ##### <- extra resize step to help repair over sharpening effects
Spline36Resize(720,576)
Sharpen(0.3, 0.2)
AssumeTFF().SeparateFields().SelectEvery(4,0,3).Weave()

[marcorocchini]

interesting but I have some question:

"Tweak" need of an .avsi?
the "(off_y=-8)" what are?
the sat=0.8 is specific only for this video of my cat or it be applyable for all?
Spline36resize is the IResize?

the ConvertYUY2(interlace=?) is intended for the format of the input or output
because the output have to be interlaced, so I think the correct convertToYUY2 is the convertToYUY2(interlaced=true) that have to be putted at the end of the script or at the beginning? or just below the ffvideosource?

[ndjamena]

I'm not sure if the "duration_ts" of the ffprobe is suitable to do this, but seems working with .mxf file (not with .mp4 files, I don't know why) however at the moment my cat seems play "fine"

If my files are any indication nb_frames may actually work with the MP4s, or else you could try dividing duration_ts by 1000.

If neither of those work the mp4s may be small enough for -count_frames/nb_read_frames to be an option.


-Edit- In MKVs the Duration_TS field seem to be full of useless junk.

-Edit2- OK then, if I take Duration_TS, multiply it by the frame rate then divide that number by 1000 I get a pretty good estimation of the number of frames in the stream.

[marcorocchini]

thanks, so what script of avisynth have you used?
over sharpen is guilty of the camcorder that do this artifacts when use the 1280x720/50P. Unfortunately don't do the 1080p

TMPGEnc Video Mastering Works 5 can encode in 422?

TVMW5 encodes to standard BluRay, AVCHD, and DVD, all of which are encoded as YV12. You can encode the losssless AVI from Avisynth into whatever format and colorspace you use for broadcast, using the encoder for 4:2:2 that you use now, whatever it is. To change the colorspace of the AVI, use this if necessary:

for interlaced video:

ConvertToYUY2(interlaced=true)

for progressive video:

ConvertToYUY2(interlaced=false)

The Avisynth script I used for C0016.MXF:

ffvideosource("drive:\path\to\C0016.MXF")
ColorMatrix(mode="Rec.709->Rec.601")
ColorYUV(off_y=-8)
Tweak(coring=false,sat=0.8)
Blur(0,1).Blur(0,1.5).Blur(0,1.5)
Spline36Resize(720,288)  ##### <- extra resize step to help repair over sharpening effects
Spline36Resize(720,576)
Sharpen(0.3, 0.2)
AssumeTFF().SeparateFields().SelectEvery(4,0,3).Weave()

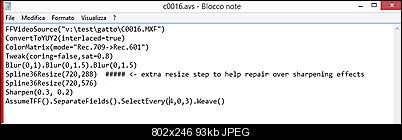

FFVideoSource("v:\test\gatto\C0016.MXF")
ConvertToYUY2(interlaced=true)
ColorMatrix(mode="Rec.709->Rec.601")
Tweak(coring=false,sat=0.8)
Blur(0,1).Blur(0,1.5).Blur(0,1.5)
Spline36Resize(720,288)  ##### <- extra resize step to help repair over sharpening effects
Spline36Resize(720,576)
Sharpen(0.3, 0.2)
AssumeTFF().SeparateFields().SelectEvery(4,0,3).Weave()

This seems work well only I don't know if is right the ConvertToYUY2(interlaced=true) and if have to be putted below the ffvideosource line

[marcorocchini]

I'm not sure if the "duration_ts" of the ffprobe is suitable to do this, but seems working with .mxf file (not with .mp4 files, I don't know why) however at the moment my cat seems play "fine"

If my files are any indication nb_frames may actually work with the MP4s, or else you could try dividing duration_ts by 1000.

If neither of those work the mp4s may be small enough for -count_frames/nb_read_frames to be an option.


-Edit- In MKVs the Duration_TS field seem to be full of useless junk.

-Edit2- OK then, if I take Duration_TS, multiply it by the frame rate then divide that number by 1000 I get a pretty good estimation of the number of frames in the stream.

thanks ndjamena, I try to do many proof

[LMotlow]

thanks, so what script of avisynth have you used?
over sharpen is guilty of the camcorder that do this artifacts when use the 1280x720/50P. Unfortunately don't do the 1080p

TMPGEnc Video Mastering Works 5 can encode in 422?

TVMW5 encodes to standard BluRay, AVCHD, and DVD, all of which are encoded as YV12. You can encode the losssless AVI from Avisynth into whatever format and colorspace you use for broadcast, using the encoder for 4:2:2 that you use now, whatever it is. To change the colorspace of the AVI, use this if necessary:

for interlaced video:

ConvertToYUY2(interlaced=true)

for progressive video:

ConvertToYUY2(interlaced=false)

The Avisynth script I used for C0016.MXF:

ffvideosource("drive:\path\to\C0016.MXF")
ColorMatrix(mode="Rec.709->Rec.601")
ColorYUV(off_y=-8)
Tweak(coring=false,sat=0.8)
Blur(0,1).Blur(0,1.5).Blur(0,1.5)
Spline36Resize(720,288)  ##### <- extra resize step to help repair over sharpening effects
Spline36Resize(720,576)
Sharpen(0.3, 0.2)
AssumeTFF().SeparateFields().SelectEvery(4,0,3).Weave()

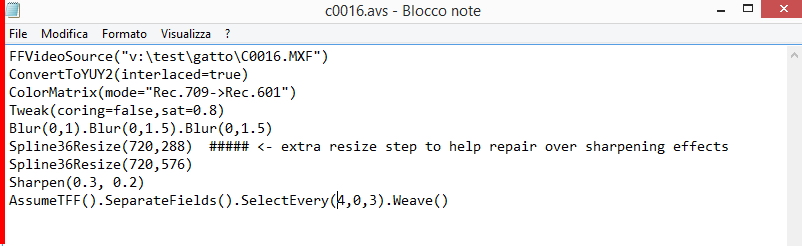

FFVideoSource("v:\test\gatto\C0016.MXF")
ConvertToYUY2(interlaced=true)
ColorMatrix(mode="Rec.709->Rec.601")
Tweak(coring=false,sat=0.8)
Blur(0,1).Blur(0,1.5).Blur(0,1.5)
Spline36Resize(720,288)  ##### <- extra resize step to help repair over sharpening effects
Spline36Resize(720,576)
Sharpen(0.3, 0.2)
AssumeTFF().SeparateFields().SelectEvery(4,0,3).Weave()

This seems work well only I don't know if is right the ConvertToYUY2(interlaced=true) and if have to be putted below the ffvideosource line

[Attachment 27796 - Click to enlarge]

CC016.MXF is not interlaced and is already YUY2. You don't need that conversion. The code in that script executes in YUY2. And "interlaced=true" is not correct in this case. You use interlaced=true or interlaced=false depending on the current state of the video at the point in the processing chain where that conversion is made. When CC0016 is first opened, it's progressive YUY2. When the script ends, the output video is interlaced YUY2.

[marcorocchini]

Ahh exactly in fact I had come to doubt to mistake using the true ^^

[marcorocchini]

LMotlow can I ask you another thing?

supposing the video clip can have a framerate different, e.g. 48fps or 100 fps or 60fps if is a ntsc (but however more of 25fps) can I include a routine that adapt the framerate using motion interpolation to made output in all cases a 50i (this actual framerate)?

[LMotlow]

It takes a while to grow accustomed to some of this.

So far, you haven't encountered some AVisynth plugins that work only in YV12, which includes many of them. Handle that when you come to it. I always try to work as much as possible in the same color space and convert only when needed. It's not always in the cards that you can do it that way, but try to avoid back-and-forth conversions when possible. Sometimes you just don't have a choice.

[marcorocchini]

I understand, this thing should be evaluated from time to time depending on the source because the results can be different right or wrong so it is necessary evaluate each time the results . Anyway, thank you cat ^^
