You didn't answer the questions about the final format goal. Why are you re-importing this into premiere? What do you plan to do with it? It MP4 still the final destination and where will it be played? Answer the questions because you might be doing this for nothing , or might encounter other problems later (eg. when you or someone else (e.g. youtube) convert back to 4:2:0 edges will become more blurry)
If you keep it in lossless RGB, yes it will remain the same, but the filesize will be much larger than the original subsampled YUV 4:2:0 recording. Lossless YUV (as the original colorspace )will be smaller in filesize. Some of the differences you are seeing in the shifting is from the different algorithms used to upsample the chroma to RGB for display. I guess in that respect if you keep it RGB, you have control over the algorithm used.
Your original recording did not have a 1.333:1 aspect ratio, it was slightly wider 704x512 so 1.375:1 AR. It looks like you cropped the left & right then scaled to 1440x1080 for 1.333:1 AR
You can do this in 1 minute or less with ffmpeg. Probably the version of huffyuv you 're using isn't compatible with premiere (there are about a dozen different variants).
Use ut video codec, it's compatible with premiere, offers multiple colorspace options, and you can encode right out of ffmpeg. It offers better compression and decoding speed than huffyuv
edited video.avi (huffyuv RGB) - 225MB
utvideo 15fps RGB - 135MB
utvideo 16fps RGB - 144MB (duplicate frames)
It's not a good idea to change the rate to 16. You just introduce duplicates or blends. File size will be larger, and it won't be any smoother playback. I would keep the original 15FPS
(The ffmpeg to ffmpeg pipe is required, because ffmpeg does the nearest neighbor slightly differently with the U, V planes when working on YUV. And for some reason, a linear chain of converting to rgb first didn't work - It's basically a workaround to get sharp pixels)Code:ffmpeg -i "original video.mp4" -vf crop=w=704:h=512:x=368:y=194 -an -pix_fmt rgb24 -f rawvideo - | ffmpeg -f rawvideo -pix_fmt rgb24 -r 15 -s 704x512 -i - -vf scale=w=2112:h=1536:flags=neighbor,crop=w=2048:h=1536:x=32:y=0,scale=w=1440:h=1080:flags=neighbor -c:v utvideo -an ut_rgb.avi
There are slight differences in the point sampling algorithms and how you cropped. In some frames it might be better, others might be worse. For example, in the first frame, your version (on the left), has 2 pixels in the guy's right eye, whereas the ffmpeg version is even. This might reverse in other frames
+ Reply to Thread
Results 31 to 44 of 44
-
-
-
It worked!Originally Posted by LigH.de
Thank You!
It's for YouTube. I am aware of the risks, and decided to take a chance. If I later find I've been wasting my time—lesson learned.Originally Posted by poisondeathray
I don't know how to record in RGB using OBS.Originally Posted by poisondeathray
I changed the aspect ratio when I decreased the canvas size. Is that what you mean?Originally Posted by poisondeathray
I struggle using FFmpeg. Usually all the tutorials assume you already know what you're doing, and thus are written in what I would considerOriginally Posted by poisondeathray
complete and utter jargon.
I'm lucky I've gotten this far.
I found a single comprehensive FFmpeg tutorial for beginners, and it was behind a paywall.
I recently managed to import HuffYUV into Premiere, but I'll give this a try.Originally Posted by poisondeathray
Yeah, I'll remember this next time I record.Originally Posted by poisondeathray
The issue for me is, I cannot comprehend what most of that code actually means.Originally Posted by poisondeathray
I'm hoping to create a system of production wherein I record and process videos for later YouTube use. I might start a channel where I play
pixel games or something.
I'm sure the above code might solve my problem this time. But what about the next time? And the next?
If I use expert opinion as a crutch now, I'll never learn to walk on my own.
Many might find the process I've used thus far both elaborate and tangled. But for me, at least I understand it. At least it's something I
can repeat again and again if necessary.
I noticed this too. If I knew how to fix it, I would.Originally Posted by poisondeathray

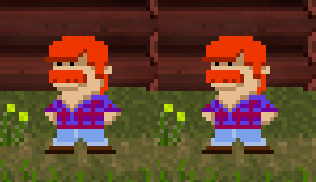

There are slight differences in the point sampling algorithms and how you cropped. In some frames it might be better, others might be worse. For example, in the first frame, your version (on the left), has 2 pixels in the guy's right eye, whereas the ffmpeg version is even. This might reverse in other frames
[Attachment 27502 - Click to enlarge]
I would just like to reiterate that FFmpeg has eclipsed my own understanding.Originally Posted by pandy
If anyone knows of a simple yet comprehensive FFmpeg manual, I'd read through it. -
Since the ultimate destination is YT. That conversion to RGB , and back to YUV will make the borders / color edges more blocky, than if you had kept YUV 4:2:0 all the way through even to youtube . Each colorspace conversion is lossy , each trip makes the edges worse and worse, even if you use a lossless codec (no additional losses from compression, but the losses are from colorspace conversions)Originally Posted by TheUninformed
Larger filesizes, AND worse quality. It's not a win-win. It's a loss-loss.
Apparently you can't. There are other free options like camstudio. You can use a lossless RGB codec like lagarith, ut video etc...
I don't know how to record in RGB using OBS.
That's what I mean. You cropped some pixels off and adjusted the AR slightly
I changed the aspect ratio when I decreased the canvas size. Is that what you mean?Originally Posted by poisondeathray
I struggle using FFmpeg. Usually all the tutorials assume you already know what you're doing, and thus are written in what I would considerOriginally Posted by poisondeathray
complete and utter jargon.
I'm lucky I've gotten this far.
I found a single comprehensive FFmpeg tutorial for beginners, and it was behind a paywall.
The issue for me is, I cannot comprehend what most of that code actually means.
I'm hoping to create a system of production wherein I record and process videos for later YouTube use. I might start a channel where I play
pixel games or something.
I'm sure the above code might solve my problem this time. But what about the next time? And the next?
If I use expert opinion as a crutch now, I'll never learn to walk on my own.
Many might find the process I've used thus far both elaborate and tangled. But for me, at least I understand it. At least it's something I
can repeat again and again if necessary.
That's part of the reason of using ffmpeg. How long did it take you to waste converting it to png, processing in photoshop, etc...? How much extra HDD space did you need? That clip actually took about 30 seconds to process, I just doubled the estimate since you said your computer was slow . You can even batch process with ffmpeg - eg. process all the clips in a directory automatically
For example, if all your recordings are the same format , with the same black border 704x512, etc...all you have to do is setup a batch file that you just double click and it will batch process all the files in a directory. Myself or someone here can do that for you. And you can learn what the commands actually do at another time at your own pace
ut video is actually the recommended codec of choice on the Adobe forums. It's faster (especially decoding speed), and more compressed. Win-Win
I recently managed to import HuffYUV into Premiere, but I'll give this a try.Originally Posted by poisondeathray
And if you don't need mathematically lossless (e.g. upload to youtube), use something visuallly lossless like x264. Even in RGB mode, it compresses much better than intraframe formats (it uses temporal compression) . But it's not compatible in programs like premiere, and so compressed that it would be difficult to edit anyway
x264 lossless RGB 12.3MB
x264 visually lossless RGB CRF15 4.98MB
I noticed this too. If I knew how to fix it, I would.Originally Posted by poisondeathray
There are slight differences in the point sampling algorithms and how you cropped. In some frames it might be better, others might be worse. For example, in the first frame, your version (on the left), has 2 pixels in the guy's right eye, whereas the ffmpeg version is even. This might reverse in other frames
[Attachment 27502 - Click to enlarge]
It's alternating (not just buggy eyes, other parts of the picture) because you're not scaling by even multiples, and because of your other cropping adjustments. So you "fix" it by scaling 2x exactly, or 4x exactly. That's how nearest neighbor works best. Not to 1440x1080. 1408x1024 because you started with 704x512. That doesn't help you with your goal of YT unless you have it letter and pillarboxed. Can your game do other display dimensions ?
Also it's not clear what you are using premiere for ?
It doesn't make sense to upscale then do the edits in premiere. e.g If your computer is old/slow, it will just become slower when you deal with a higher resolution video, especially with the large bitrates when using lossless codecs . So cropping , convert to RGB, encoding to ut video codec in ffmpeg is fine, then import at 704x512 into premiere for farther editing, export then upscale. Upscaling before premiere doesn't make a whole lot of sense, unless you have some overlays etc... but there are other better ways to do thatLast edited by poisondeathray; 16th Sep 2014 at 19:31.
-
It has a Nearest Neighbor (aka Point Resize) option, just like you've been using in other software.Originally Posted by TheUninformed
I had previously tried VirtualDub several days ago. I didn't appreciate the way it scaled the pixels.Originally Posted by LigH.de
-
I'll probably be recording many games with various different frame complexities, meaning I'll have to know how to use FFmpeg to an efficient degree.Originally Posted by poisondeathray
I simply do not have the necessary information to effectively wield it.
At present, what you've seen is the very best I'm capable of.
Three days. Sixty gigabytes.Originally Posted by poisondeathray
What clip? Did you upload something?Originally Posted by poisondeathray
That's fine I guess. I will at some point have to learn the commands though.Originally Posted by poisondeathray
Like I mentioned, I plan to create a system that works for me. If I just do something without actually learning anything, I will inevitably find myself in
a similar predicament when I decide to record another video later on.
I'm a little confused. I told Photoshop to constrain the picture proportions. Shouldn't that make a difference? When I magnified the image, it scaled to 1485x1080, not 1440x1080. It was only after I cropped the canvas slightly that became its final 1440x1080. I wouldn't think cropping the canvas would change absolute pixel position at all.Originally Posted by poisondeathray
Technically yes, but I think I'd have to rip it from the website.Originally Posted by poisondeathray
I covered this earlier. I have a series of 29 videos that have I recorded and spliced together in Premiere Pro.Originally Posted by poisondeathray
The frame dimension I'm working with is 1440x1080. My plan is to carefully crop and scale all 29 videos and switch them with
their original counterparts already loaded in Pro.
It makes perfect sense to me. My editing in Pro is technically already done.Originally Posted by poisondeathray
Why would I want to import a series of videos with tiny frames into Premiere Pro? Once I export from Pro, it's off to YouTube!Originally Posted by poisondeathray
For now I think I'll stick with FFmpeg. It's been good to me so far. If things don't work out I'll keep this in mind, though.Originally Posted by jagabo
-
That's learning the hard way !Originally Posted by TheUninformed
Three days. Sixty gigabytes.Originally Posted by poisondeathray
No I didn't upload it, the UT RGB version was 135MB and I didn't feel like uploading it.
What clip? Did you upload something?Originally Posted by poisondeathray
Just copy & paste the commandline. You used ffmpeg for converting to PNG, so I assumed earlier you knew how to at least use it on a basic level
For this particular project, if you wanted to re-assemble the PNG's and encode to ut video, or huffyuv or some other codec, you could use ffmpeg as well
All I can say is just work through the commands, look at the documentation. It's tough and poorly documented, that's why many people learn by examples, asking questionsThat's fine I guess. I will at some point have to learn the commands though.Originally Posted by poisondeathray
Like I mentioned, I plan to create a system that works for me. If I just do something without actually learning anything, I will inevitably find myself in
a similar predicament when I decide to record another video later on.

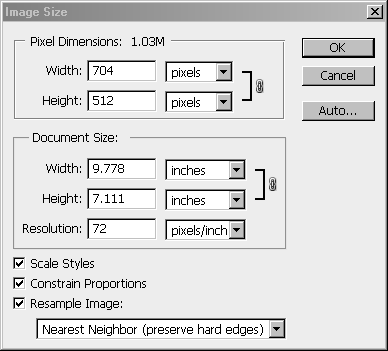

I'm a little confused. I told Photoshop to constrain the picture proportions. Shouldn't that make a difference? When I magnified the image, it scaled to 1485x1080, not 1440x1080. It was only after I cropped the canvas slightly that became its final 1440x1080. I wouldn't think cropping the canvas would change absolute pixel position at all.Originally Posted by poisondeathray

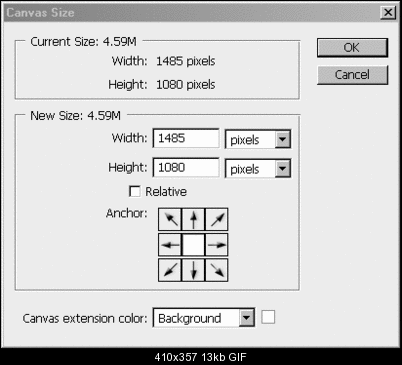

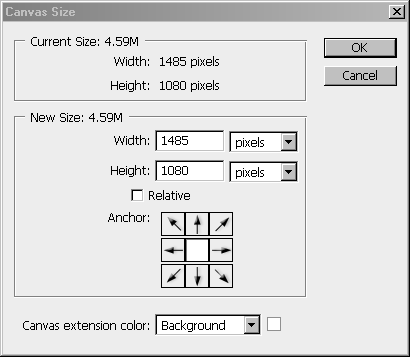

It's because 704x512 is 1.375 AR, not 1.33 . That's why photoshop gave you 1485x1080 (1485/1080 = 1.375)
When you crop in RGB, how are you going to crop 0.5 pixels ? You have an odd number. Three of the right, two of the left? vice versa? How do you decide to do it ? Subpixel scaling or non unit pixel scaling with interpolation will give you blurrier edges . That's the point of using "nearest neighbor". (And if you were doing this in YV12 4:2:0, you're not allowed to crop by single pixels , only by 2's, because the planes containing color information are 1/4. 1/2 in each dimension)
The pixel interpolation is nearest neighbor, so some pixels will get doubled, some won't, unless you do it exactly 2x, 4x, 8x. That's why you get the "double wide eye" phenomenon on some frames. If you have exactly 2x, 4x,... etc... scaling, that means you have 1:1 representation. If you scale by 1/3 or some weird amount or fractional ratio, you don't have 1:1 representation of pixels - does that make sense? So on some frames, some pixels will be doubled, but others they won't be. Other interpolation methods other than "nearest neighbor" use various averaging and math formulas so you don't get that effect with different fractional ratios, but nearest neighbor preserves full pixels. Also, "nearest neighbor" isn't always "exactly" the same, because the scaling center might be "top left" in some programs, or "centered" in others, and the effect of doing it in different color spaces /subsampling has a major effect for different results ( the U, V planes aren't full resolution) -
Point resize scaling to non-integer multiples will result in obvious "seams" during slow panning shots. This is what poisondeathray is referring to. Compare:
-
Damn. . . that's perfect!Originally Posted by poisondeathray
May I ask how it was done? -
Originally Posted by TheUninformed
Damn. . . that's perfect!Originally Posted by poisondeathray
May I ask how it was done?
It was done with ffmpeg.
Just break down the commands
You already know the basic ffmpeg syntax -i is input file
-vf crop is drumroll......you guessed it....crop
. "-vf" in ffmpeg means video filter "-af" means audio filter
https://www.ffmpeg.org/ffmpeg-filters.html#crop
How did I know to use those values for crop ?
w= final width, so 704 , h= final height, so 512. The x, and y values might be more confusing. They mean the origin of the area of interest. So x=368 because that's where 0,0 or top left corner is for the "video in the middle" . Or if you like math, (1440-704)/2 = 368 . Or another way of saying it is 368 pixels are cropped from the right and left. Same logic for height. 900px heigh starting width, 512 pixels is the value of the "video box" (900-512)/2 = 194 , or 194px each of top and bottom cropped
-an means no audio
-pix_fmt rgb24 means RGB24 colorspace
-f rawvideo is for the raw video pipe , the " | " is the pipe. Notice there is a "-" before the pipe. Pipe means sending data to other programs. In this case it's a rawvideo, RGB pipe, to another ffmpeg instance. (I already explained why you had to pipe to itself, it doesn't make entire sense but you have to do it because a linear filter chain didn't work properly for some reason). When recieving a raw pipe, you always need to specify the pixel format, frame rate, and dimensions. That's what -pix_fmt, -r, and -s are for respectively
The -i is input (you already knew that), but notice there is a "-" after that, that is to recieve the piped data
-vf scale is scaling, but there are many options and arguments. It actually can be a very complex filter in ffmpegland
https://www.ffmpeg.org/ffmpeg-filters.html#scale-1
w, and h are self evident (width, height), flags=neighbor signals the scaling kernal (nearest neighbor, or point scaling)
https://www.ffmpeg.org/ffmpeg-scaler.html#scaler_005foptions
In this example I chose to scale to 2112x1536 , because it was an integer 3x number, and 2048x1536 is 1.333333 (or 4/3) exactly, so it's easy to crop 32px off each of left and right. In the photoshop example, recall the odd numbered pixels. In the end it won't make a big difference. Especially on youtube. For example, you can do it even faster by using 682x512 =~ 1.33203 AR (not 4/3 exactly) because you don't scale as high , but with slightly off AR (you 'll get slightly different results but they still might be acceptable to you)
-c:v means video codec , in this case utvideo means ut video. The old syntax of using it was -vcodec something . ffmpeg has many codecs available, if you want to print out a list of what's available for encoding, and decoding useCode:-vf crop=w=682:h=512:x=11:y=0,scale=w=1440:h=1080:flags=neighbor
Code:ffmpeg -codecs 1>ffmpeg_codecs.txt
Last edited by poisondeathray; 16th Sep 2014 at 23:45.
-
Well, everything is looking good! Thanks, everyone!
I know some of you might want to see this. . .
And it's not even half of the full load. -
Yep.Originally Posted by poisondeathray
That's learning the hard way !Originally Posted by TheUninformed
Three days. Sixty gigabytes.Originally Posted by poisondeathray
This resizing business is a headache. I keep asking why the original mp4 is 1440x900 and the original image is 1.375:1 aspect ratio. I don't use game consoles, but shouldn't the image be 4:3 to begin with? Don't know the O.P.'s software, though, and no time for gaming.
In Avisynth I tried both resizing methods from poisondeathray, below:
#1:#2:Originally Posted by poisondeathray
Yep, I got some 2-pixel eyes on some frames, not on others. So I tried it in ffmpeg and got the same thing (only my second time out with ffmpeg, so maybe I did something wrong. No surprise).Originally Posted by poisondeathray
Two 2-pixel eyes show up in the attached video_newAR.mp4, which used #2 above.
Since I don't care to alter image aspect ratios by chopping off pieces of 'em, I ran a similar Avisynth script but kept the entire original image intact and resized 2x with PointResize. Of course that meant I had to add some borders to get a 4:3 1440x1080 with the original 1.375:1 image inside it (attached video_OriginalAR_LB.mp4). On the other hand, nothing is lost from the original and it looks sharper (IMO). I realize people don't like borders, but you'll get some anyway on displays wider than 4:3. The script avoided YUV-RGB-YUV conversion. Original YV12 all the way, with help from the ColorMatrix plugin.
Took maybe an hour to make several test versions -- nowhere near 3 days. Thanks to poisondeathray for good and useful notes on this project, and to jagabo for the cool panning demo.- My sister Ann's brother -
You can specify which FFV version should be used - new version provide support for more than 8 bit per component.
https://trac.ffmpeg.org/wiki/Encode/FFV1 -
In fact documentation in ffmpeg itself is way better, for some problems still you can ask on videhelp but also on Zeranoe ffmpeg forum http://ffmpeg.zeranoe.com/forum/Originally Posted by TheUninformed
in worse case read ffmpeg source...
I believe that any payed manual for ffmpeg will be quickly outdated - don't waste time - use decent forum and site https://trac.ffmpeg.org/wiki
