  1. i just wanted to ask how would i go about getting blocking out of dark areas and
    basically just what is causing the blocking in the dark areas

    the rip is raw i remuxed it into mkv with megui and it's 1080p
    and the encode is going to 720p

    Im using xvid4psp 5.10.330.0

    settings are
    btw it's crf 2 pass there was no difference in crf and 2 pass quality

    Encoding settings : cabac=1 / ref=8 / deblock=1:-4:-4 / analyse=0x3:0x133 / me=umh / subme=9 / psy=1 / psy_rd=1.00:0.60 / mixed_ref=1 / me_range=20 / chroma_me=1 / trellis=2 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=0 / chroma_qp_offset=-12 / threads=12 / lookahead_threads=3 / sliced_threads=0 / nr=0 / decimate=0 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=8 / b_pyramid=2 / b_adapt=2 / b_bias=0 / direct=2 / weightb=1 / open_gop=0 / weightp=2 / keyint=250 / keyint_min=23 / scenecut=40 / intra_refresh=0 / rc_lookahead=60 / rc=2pass / mbtree=1 / bitrate=5040 / ratetol=1.0 / qcomp=0.80 / qpmin=0 / qpmax=69 / qpstep=4 / cplxblur=20.0 / qblur=0.5 / vbv_maxrate=20000 / vbv_bufsize=25000 / nal_hrd=none / ip_ratio=1.40 / aq=1:1.00

    i'm trying to keep it as ps3 compatablity

    quality is really great in light scenes,the blocking isn't really noticable on the 60" just on the pc moniter.

    i've done mutiple encodes with different ranges and me algorithms but not much difference in terms of quality,
    just wanted to know if i could get rid of the blocking at all.

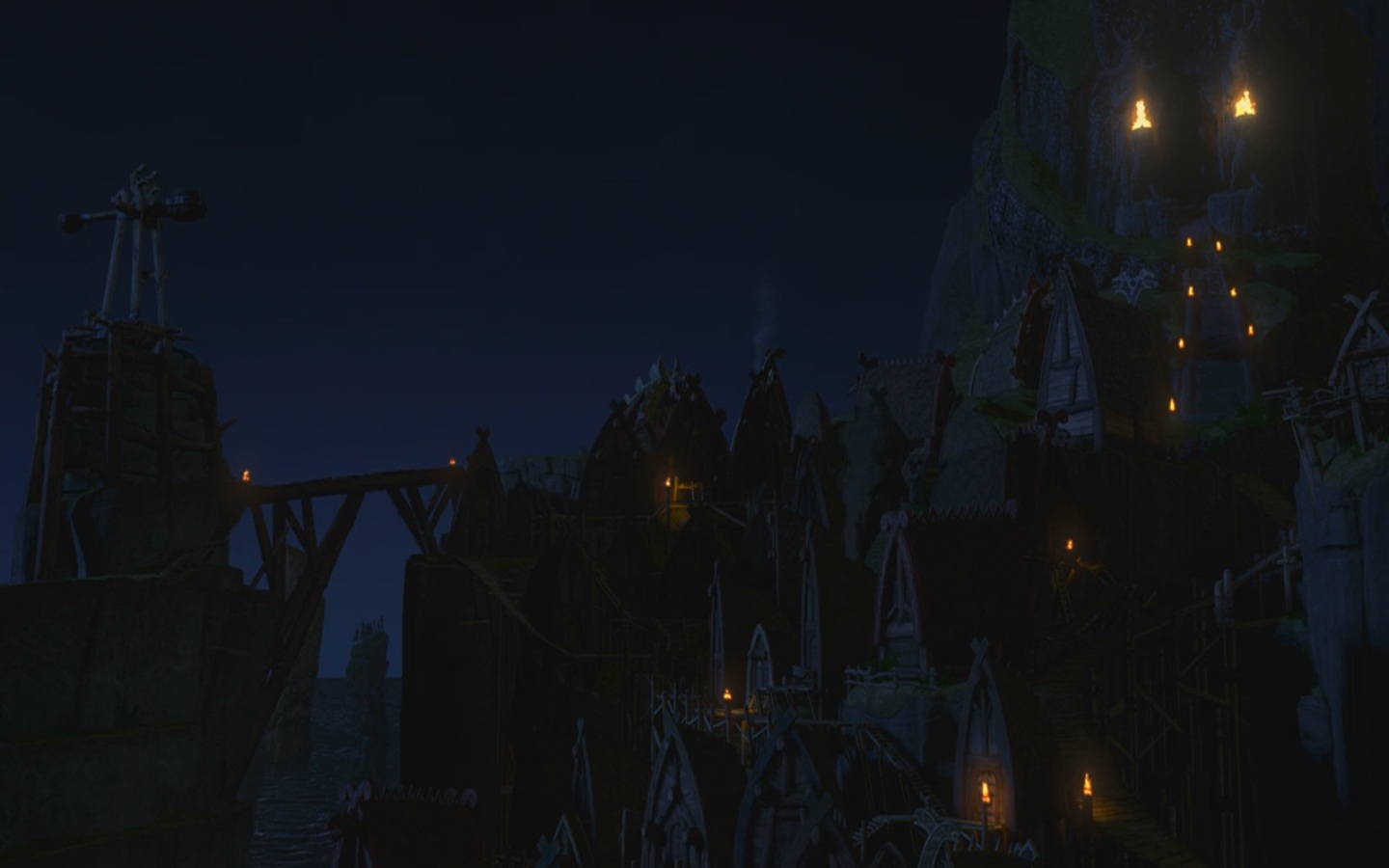

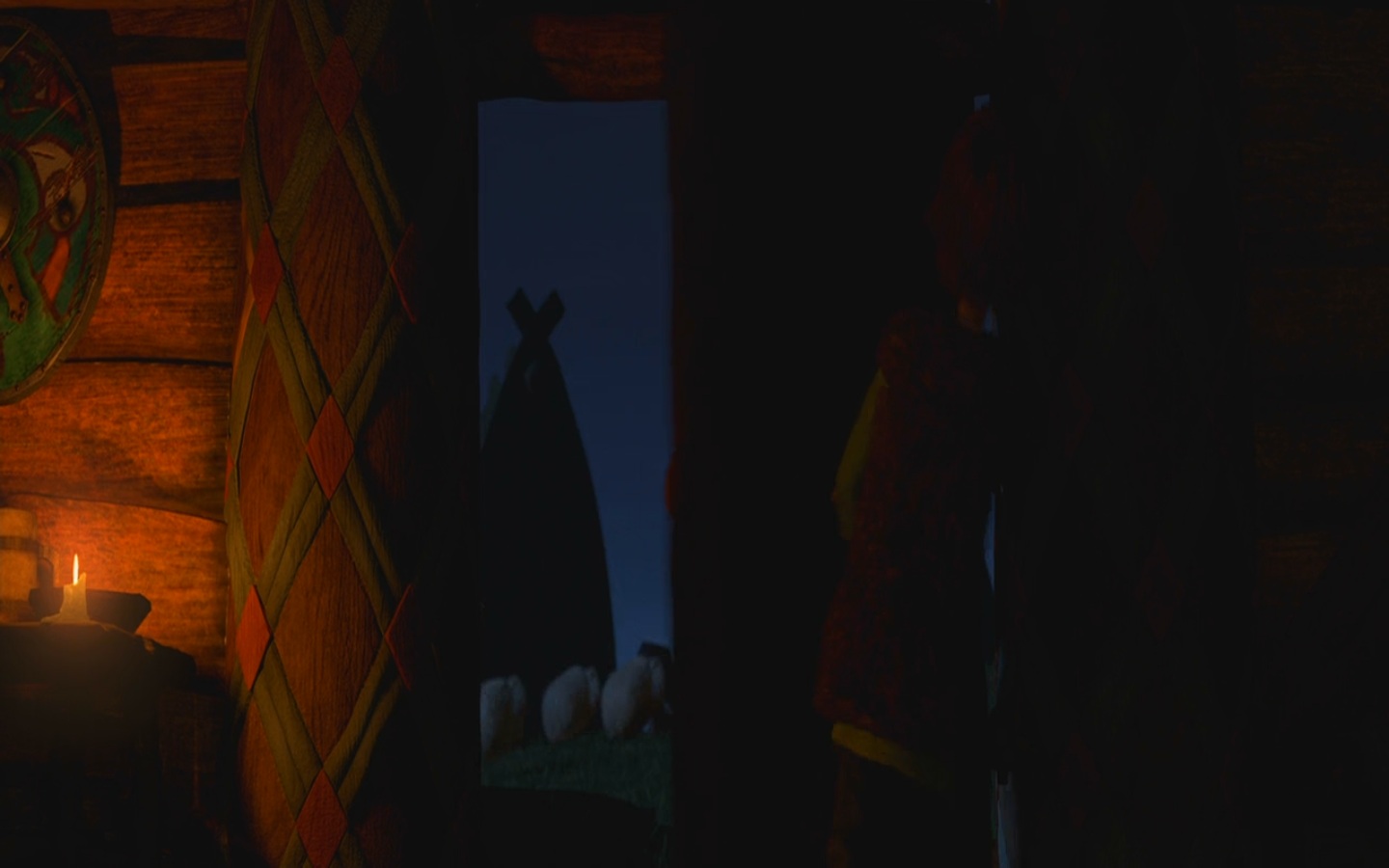

    Image Attached Thumbnails Click image for larger version

Name:	how to train 1.jpg
Views:	135
Size:	132.5 KB
ID:	25411

    Click image for larger version

Name:	how to train 2.jpg
Views:	141
Size:	119.2 KB
ID:	25412

    Quote Quote
  2. I'm a Super Moderator johns0's Avatar
    Join Date
    Jun 2002
    Search Comp PM
    Does the original rip have any blocking?If it doesn't then use a cq of 16 so no blocking shows up,if the original rip has blocking then there's nothing you can do to get rid of what i call moire effect due to low bitrates in black scenery.
    I think,therefore i am a hamster.
    Quote Quote
  3. Member
    Join Date
    May 2014
    Down the road, last house on the right
    Search Comp PM
    You could try decimate=1, file size will increase though. Another possibility is bump up the aq a little at a time.
