Format Factory MKV to MP4 problem with video

[NerkoJVG]

Hello to all I am new to this forum becaus I can't find the solution for problem. Please HELP MEEE
I want to encode video with .ass in Format factory from mkv to Mp4.

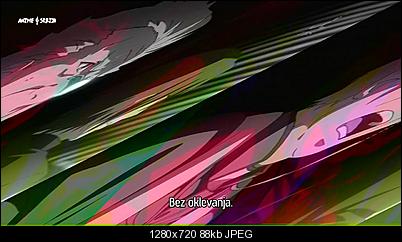

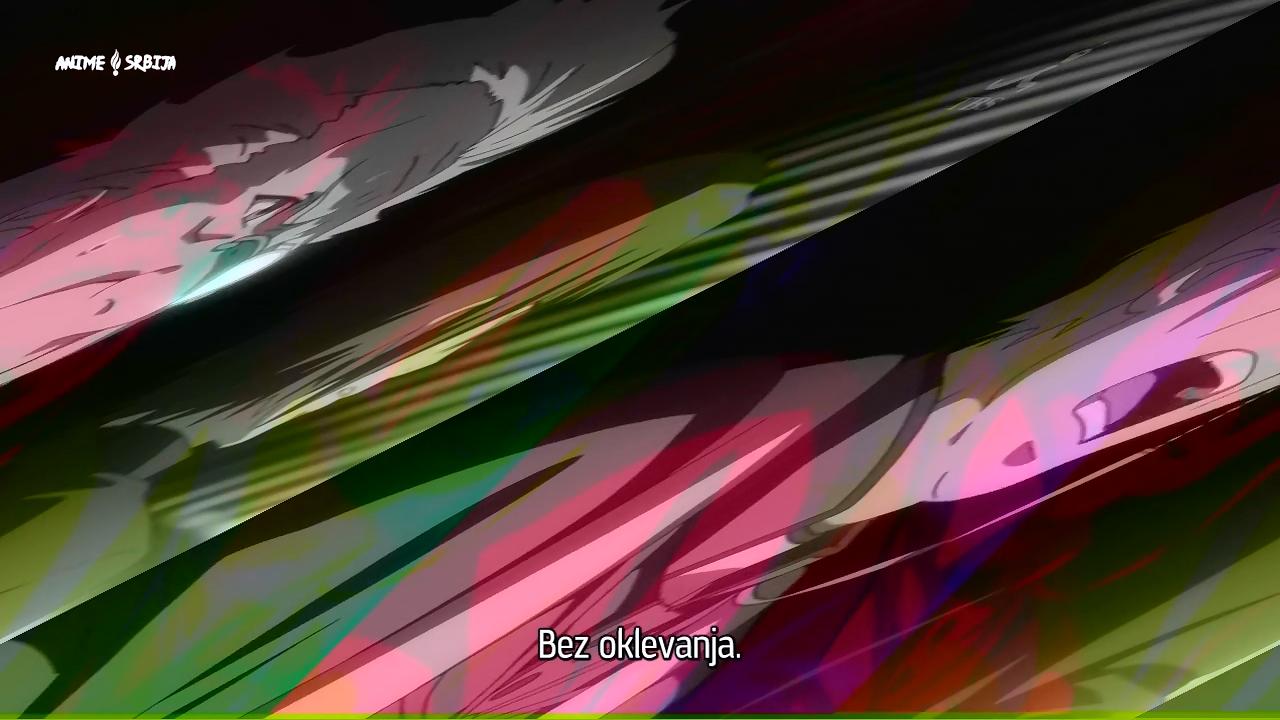

Problem is this:


And this is the output settings: [IMG] http://pokit.org/get/img/e6fd809c9cc91386390bca3547ae2651.jpg [/IMG]

This is the .avs file:

try{SetMemoryMax(144)
F=DirectShowSource("D:\Torrents\Video.mkv",24.000,convertfps=true)
F=TextSub(F,"D:\Torrents\Video.ass")
F=LanczosResize(F,1280,720)
F=ConvertToRGB32(F)
F_Img=ImageSource("D:\AnimeSrbija\HD.png",pixel_type="rgb32")
F=Layer(F,F_Img,x=44,y=44)
F=ConvertToYV12(F)
return F
}catch(err_msg){BlankClip(0,1,1)}

And her you go the Video File media info:

General
Unique ID                                : 223135924698580929357607902752090600286 (0xA7DE6A78B8866E27BD955310B16BB35E)
Complete name                            : D:\Torrents\Video.mkv
Format                                   : Matroska
Format version                           : Version 4 / Version 2
File size                                : 394 MiB
Duration                                 : 24mn 15s
Overall bit rate                         : 2 274 Kbps
Encoded date                             : UTC 2014-04-18 21:16:59
Writing application                      : mkvmerge v6.9.1 ('Blue Panther') 64bit built on Apr 18 2014 18:23:38
Writing library                          : libebml v1.3.0 + libmatroska v1.4.1
Attachment                               : Yes / Yes / Yes

Video
ID                                       : 2
Format                                   : AVC
Format/Info                              : Advanced Video Codec
Format profile                           : High@L4.1
Format settings, CABAC                   : Yes
Format settings, ReFrames                : 8 frames
Codec ID                                 : V_MPEG4/ISO/AVC
Duration                                 : 24mn 15s
Nominal bit rate                         : 2 014 Kbps
Width                                    : 1 270 pixels
Height                                   : 710 pixels
Display aspect ratio                     : 16:9
Frame rate mode                          : Constant
Frame rate                               : 23.976 fps
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Scan type                                : Progressive
Bits/(Pixel*Frame)                       : 0.093
Writing library                          : x264 core 114 r1924 08d04a4
Encoding settings                        : cabac=1 / ref=8 / deblock=1:0:0 / analyse=0x3:0x113 / me=hex / subme=7 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=0 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=6 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / constrained_intra=0 / bframes=3 / b_pyramid=2 / b_adapt=1 / b_bias=0 / direct=1 / weightb=1 / open_gop=0 / weightp=2 / keyint=250 / keyint_min=23 / scenecut=40 / intra_refresh=0 / rc_lookahead=40 / rc=2pass / mbtree=1 / bitrate=2014 / ratetol=1.0 / qcomp=0.60 / qpmin=10 / qpmax=51 / qpstep=4 / cplxblur=20.0 / qblur=0.5 / ip_ratio=1.40 / aq=1:1.00
Default                                  : No
Forced                                   : No

Audio
ID                                       : 1
Format                                   : AAC
Format/Info                              : Advanced Audio Codec
Format profile                           : LC
Codec ID                                 : A_AAC
Duration                                 : 24mn 15s
Channel count                            : 2 channels
Channel positions                        : Front: L R
Sampling rate                            : 48.0 KHz
Compression mode                         : Lossy
Default                                  : No
Forced                                   : No

Menu #1
00:00:00.000                             : en:Prologue
00:01:55.115                             : en:Main_Dialouge
00:22:30.100                             : en:Ending
00:24:01.775                             : en:Preview

Menu #2
00:00:00.000                             : en:Prologue
00:01:55.115                             : en:Main_Dialouge
00:22:30.100                             : en:Ending
00:24:01.775                             : en:Preview

[poisondeathray]

Height : 710 pixels

Likely that is the problem

Try using at least mod4, mod8 or mod16 dimensions (evenly divisible by 4,8, or 16)

I'm not sure where you changed that in format factory, maybe "video size" Autox720, try changing it to 1280x720

[NerkoJVG]

I put the resolution 1270x710 And it is the same problem

try{SetMemoryMax(144)
F=DirectShowSource("D:\Torrents\Video.mkv",24.000,convertfps=true)
F=TextSub(F,"D:\Torrents\Video.ass")
F=LanczosResize(F,1270,710)
F=ConvertToRGB32(F)
F_Img=ImageSource("D:\AnimeSrbija\HD.png",pixel_type="rgb32")
F=Layer(F,F_Img,x=43,y=43)
F=ConvertToYV12(F)
return F
}catch(err_msg){BlankClip(0,1,1)}

I don't know what are you meaning with this:
Try using at least mod4, mod8 or mod16 dimensions (evenly divisible by 4,8, or 16)
And it is the same like Autox720 like 1280x720

[poisondeathray]

710 is the problem.

If that mediainfo is the source video, your directshow decoder probably cannot handle 710 as height

Try another decoder like FFVideoSource
https://code.google.com/p/ffmpegsource/

try{SetMemoryMax(144)
F=FFVideoSource("D:\Torrents\Video.mkv")
F=TextSub(F,"D:\Torrents\Video.ass")
F=LanczosResize(F,1270,720)
F=ConvertToRGB32(F)
F_Img=ImageSource("D:\AnimeSrbija\HD.png",pixel_type="rgb32")
F=Layer(F,F_Img,x=43,y=43)
F=ConvertToYV12(F)
return F
}catch(err_msg){BlankClip(0,1,1)}

[NerkoJVG]

Thank you for a quick reply
I will tell you if this is solved thread

[NerkoJVG]

I found the way...the problem is the resolution
1270x710 it's not suported what I did I encoded video again to resize it 1280x720 and it's working now

P.S. if there is a resolution 706x468 it is also problem to encode

This can go to [SOLVED]

[hello_hello]

You still don't seem to understand the cause. Your particular workflow (ie blame DirectShow) doesn't like mod2 video. The culprit is usually the width (not the height, but it could be both). If the width isn't evenly divisible by four (ie mod4), you'll possibly have that problem. It's not a decoding/encoding issue, it's a limitation of a Windows API, as far as I know. By resizing to 1280x720 you made the width mod16 (evenly divisible by 16) which means it's also mod4.
