    Video started out as analog 8mm, captured to DV avi via passthrough using a Digital8 camcorder. These stairstep "jaggies" appear in certain areas, typically curves and straight edges that go at an angle. They're more pronounced after deinterlacing, noise reduction and sharpening however I also see them when playing the original interlaced video with an analog camcorder through my HD TV, I wonder if it's an artifact of digital conversion?

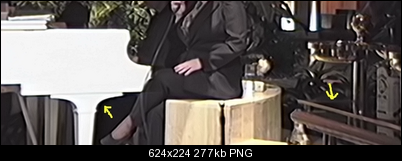

    Screen shot from a frame that's been deinterlaced with QTGMC and denoised with NeatVideo. Thanks for all input.

    Click image for larger version

Name:	jaggies.png
Views:	480
Size:	177.2 KB
ID:	23678
    Quote Quote
  2. Don't sharpen so much along the vertical axis. Otherwise, some aliasing is normal for all digital video. If your player or TV doesn't scale well get a better player or TV. Or upscale to a higher resolution in software.
    Quote Quote
  3. You can use an antialiasing filter, and/or better QTGMC settings
    Quote Quote
  4. Santaig() or AAA(), for example.
    Quote Quote
  5. Member brassplyer's Avatar
    Join Date
    Apr 2008
    Location
    United States
    Search Comp PM
    Originally Posted by poisondeathray View Post
    You can use an antialiasing filter, and/or better QTGMC settings
    What would be a better QTGMC setting? This particular video was at slower. I don't see any difference between slower and medium as far as the effect on aliasing.
    Quote Quote
  6. There won't be much difference in terms of aliasing between "medium" and "slower" presets. There will be with some the faster presets which might use bob or yadif for the edimode .

    The other suggestions are still valid (don't sharpen as much, add an AA filter)
    Quote Quote
  7. Member brassplyer's Avatar
    Join Date
    Apr 2008
    Location
    United States
    Search Comp PM
    Originally Posted by jagabo View Post
    Is that with the default setting?
    Quote Quote
  8. Originally Posted by brassplyer View Post
    Originally Posted by jagabo View Post
    Is that with the default setting?
    Yes.
    Quote Quote
  9. Member budwzr's Avatar
    Join Date
    Apr 2007
    Location
    City Of Angels
    Search Comp PM

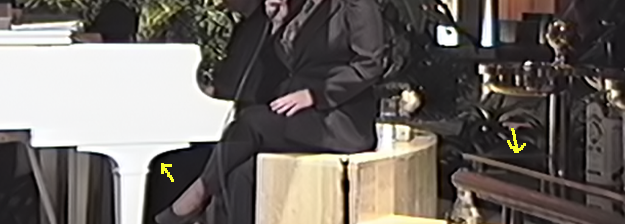

    Yeah, that looks much better.
