    I'll continue to edit these posts to add more stuff over the next while.

    [Explanation of methods goes here]

    Issues/features chart

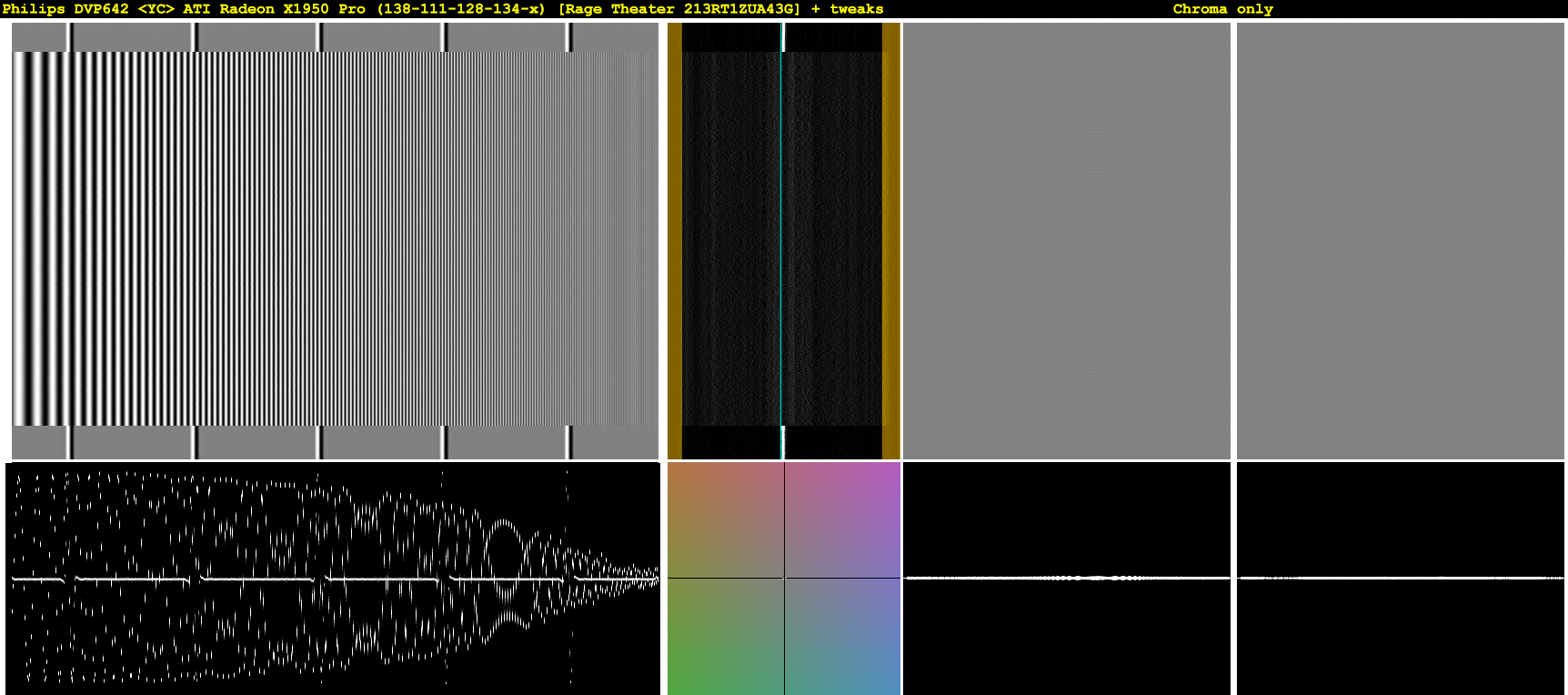

    The pictures are huge (1724x764) because of all the scopes I included. I recommend opening each in its own tab at full-size and flipping back and forth between them to easily see the difference. I use Firefox with the Tab Wheel Scroll extension set to the reverse direction from default so that I can just flip the wheel a bit instead of having to move the mouse and click.

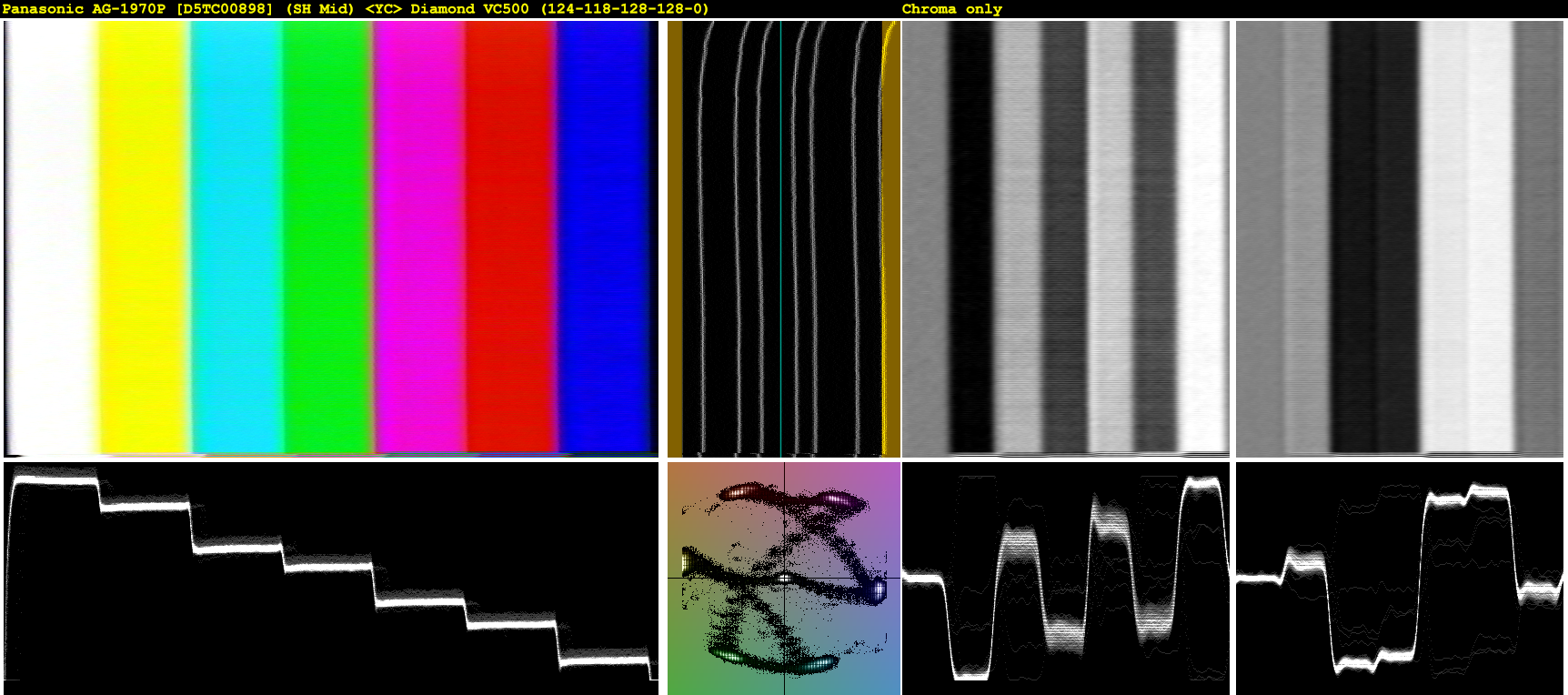

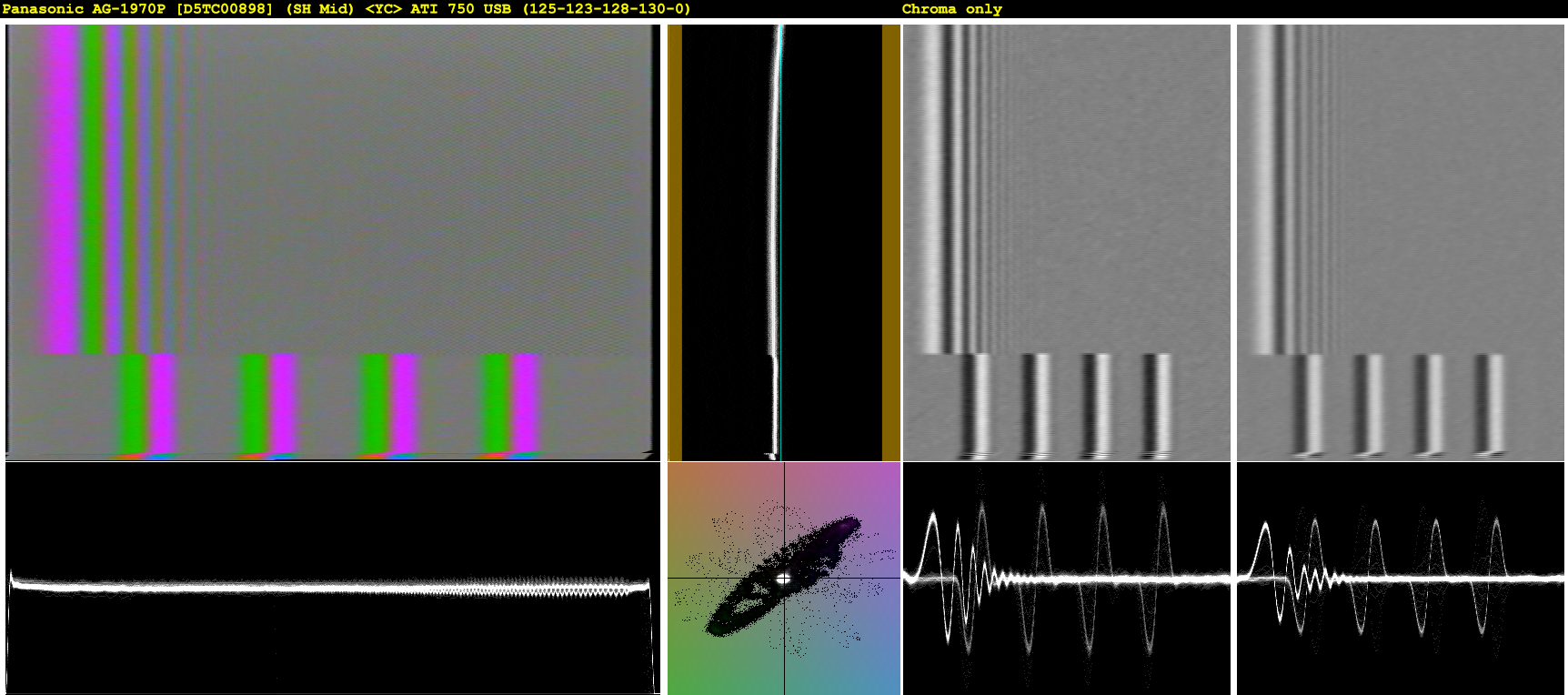

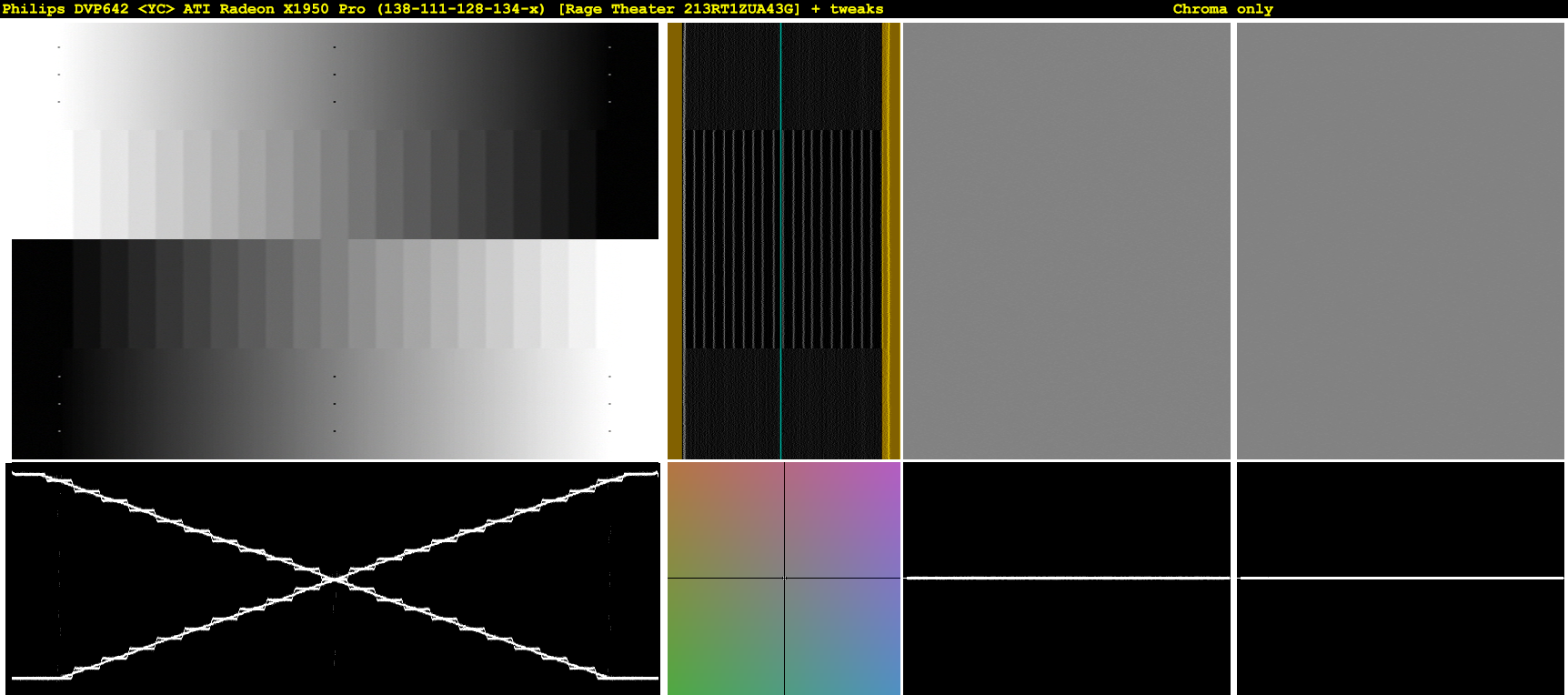

    The idea here is that you compare the images marked Reference to the images captured from each device. The most "accurate" device is whichever is most similar to the reference.

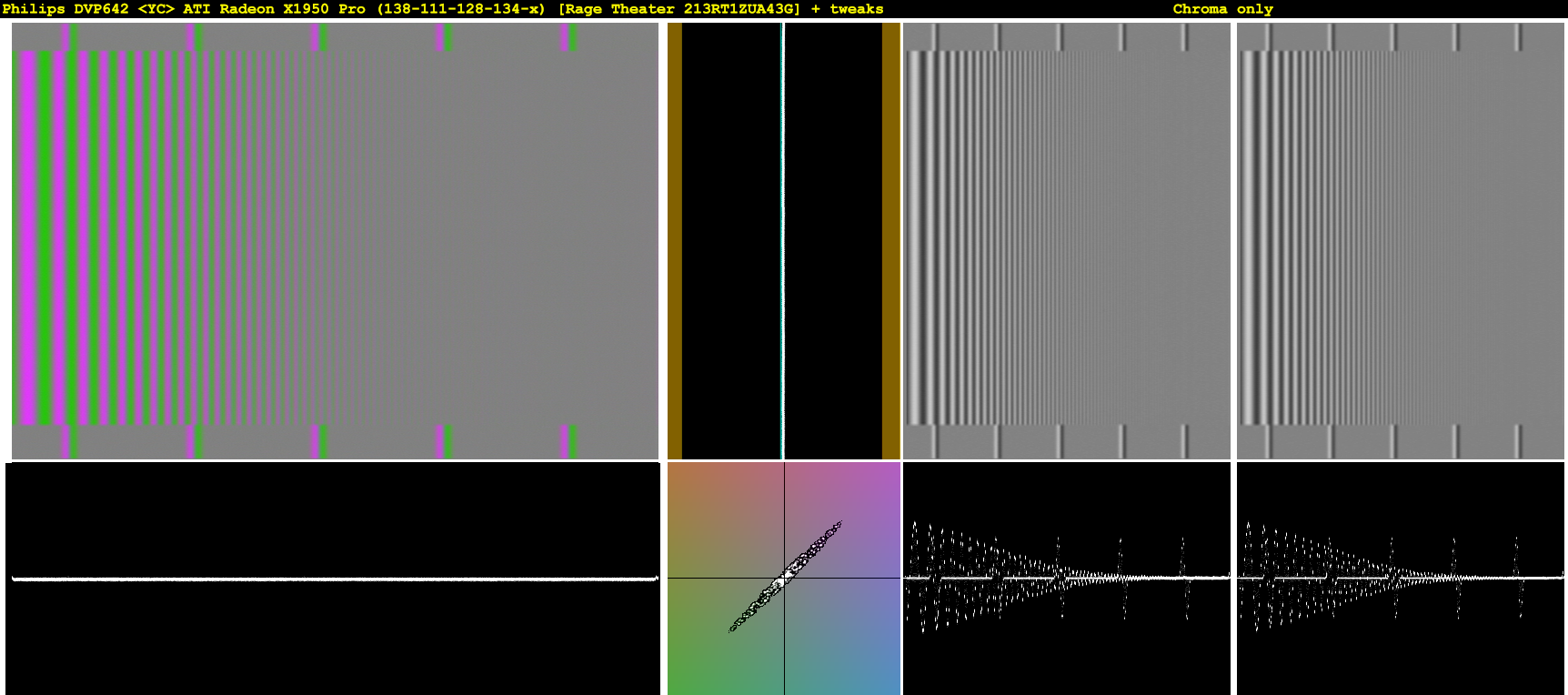

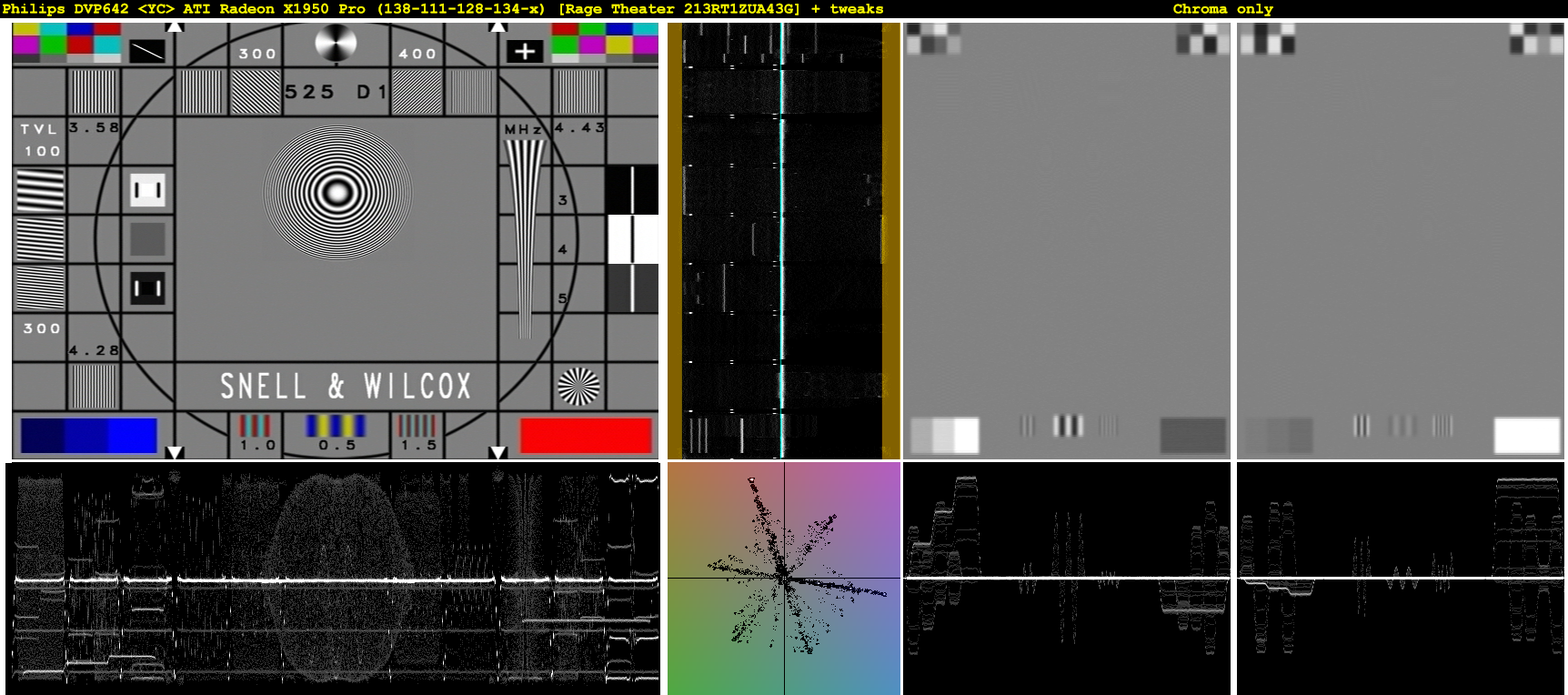

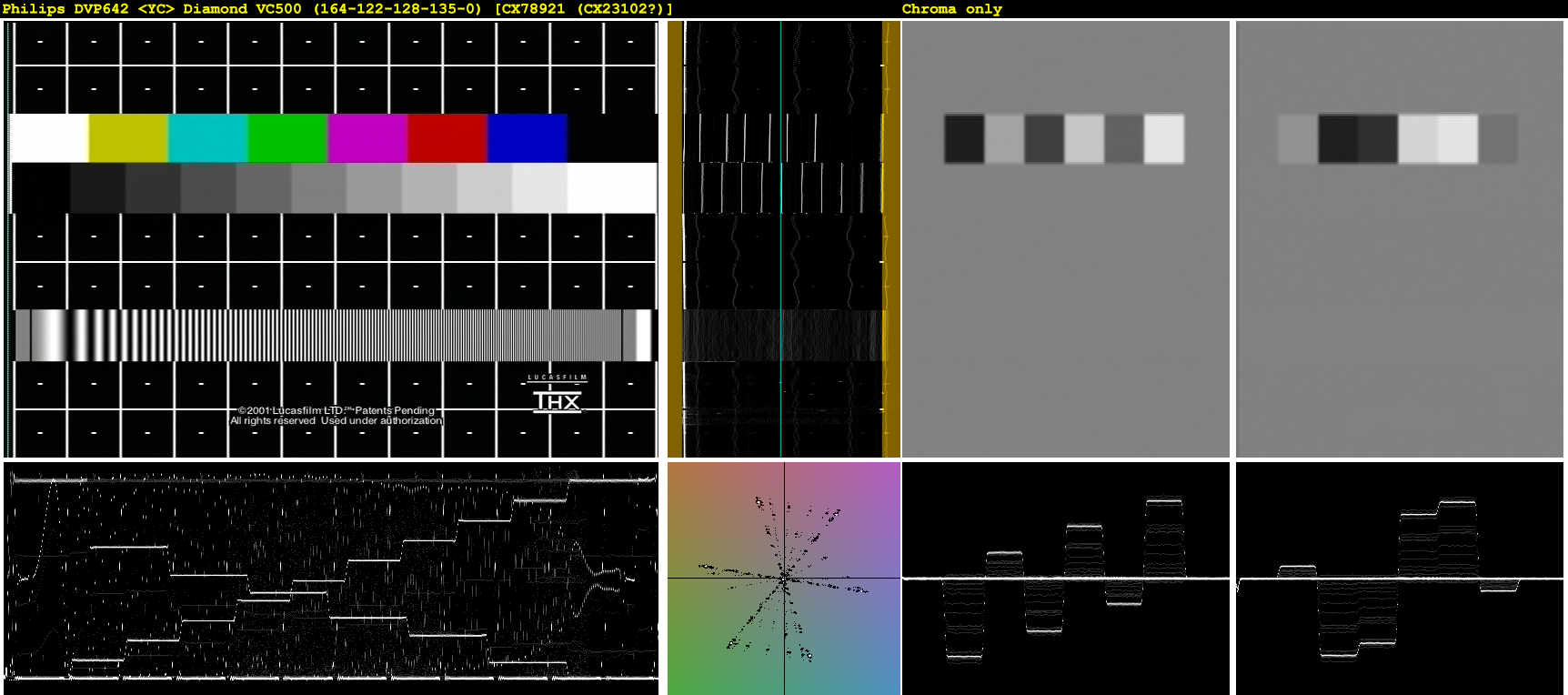

    The Philips DVP642 player that I used for the DVD patterns unfortunately clips superblacks and the very top superwhites.

    I added white borders around the images to align them rather than cropping, so you can see the area that each device captures. Some of them start at NTSC line 22, most at line 23, and the ATI 750 has the stupidest line range of them all because it starts at line 24. That means it captures the bottom half-line (525), and then extends outside the active picture area -- the bottom row of pixels is always superblack mixed with garbage chroma data!

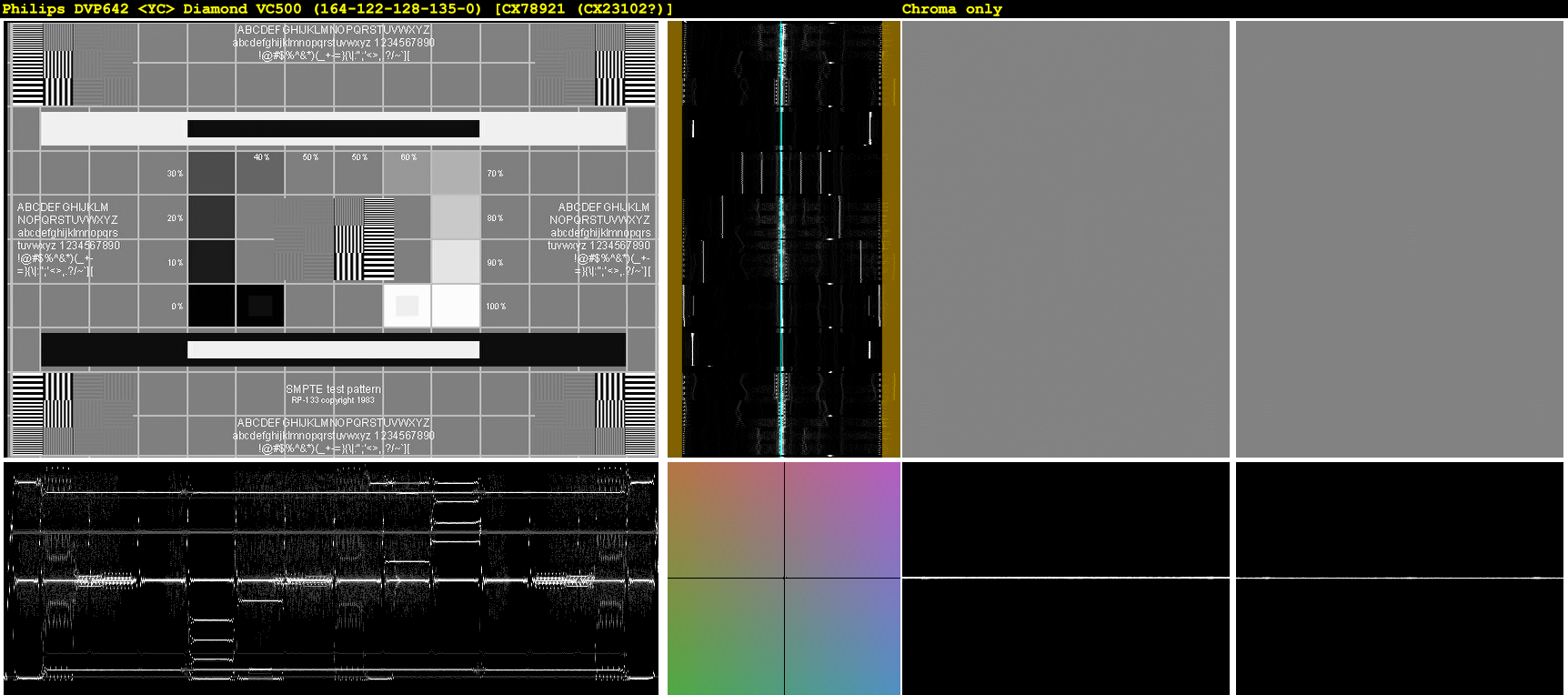

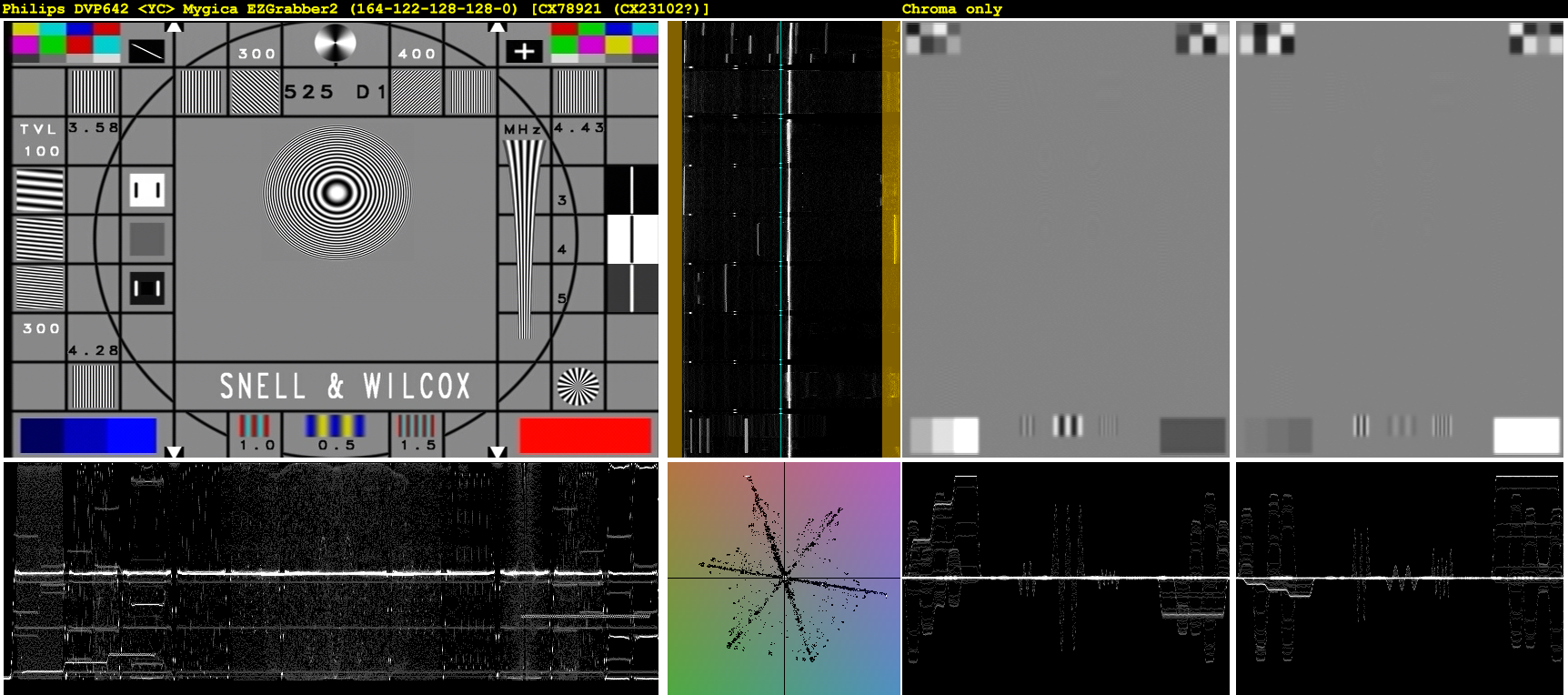

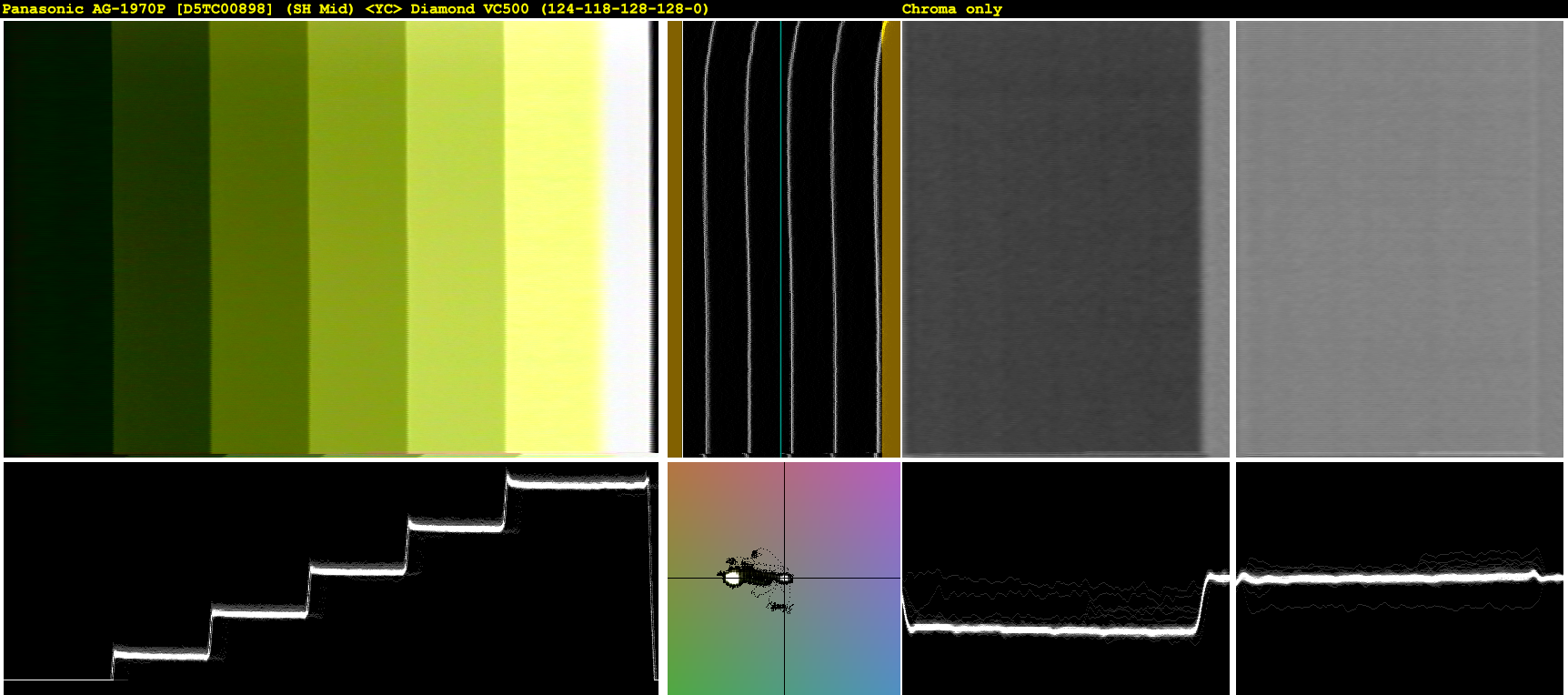

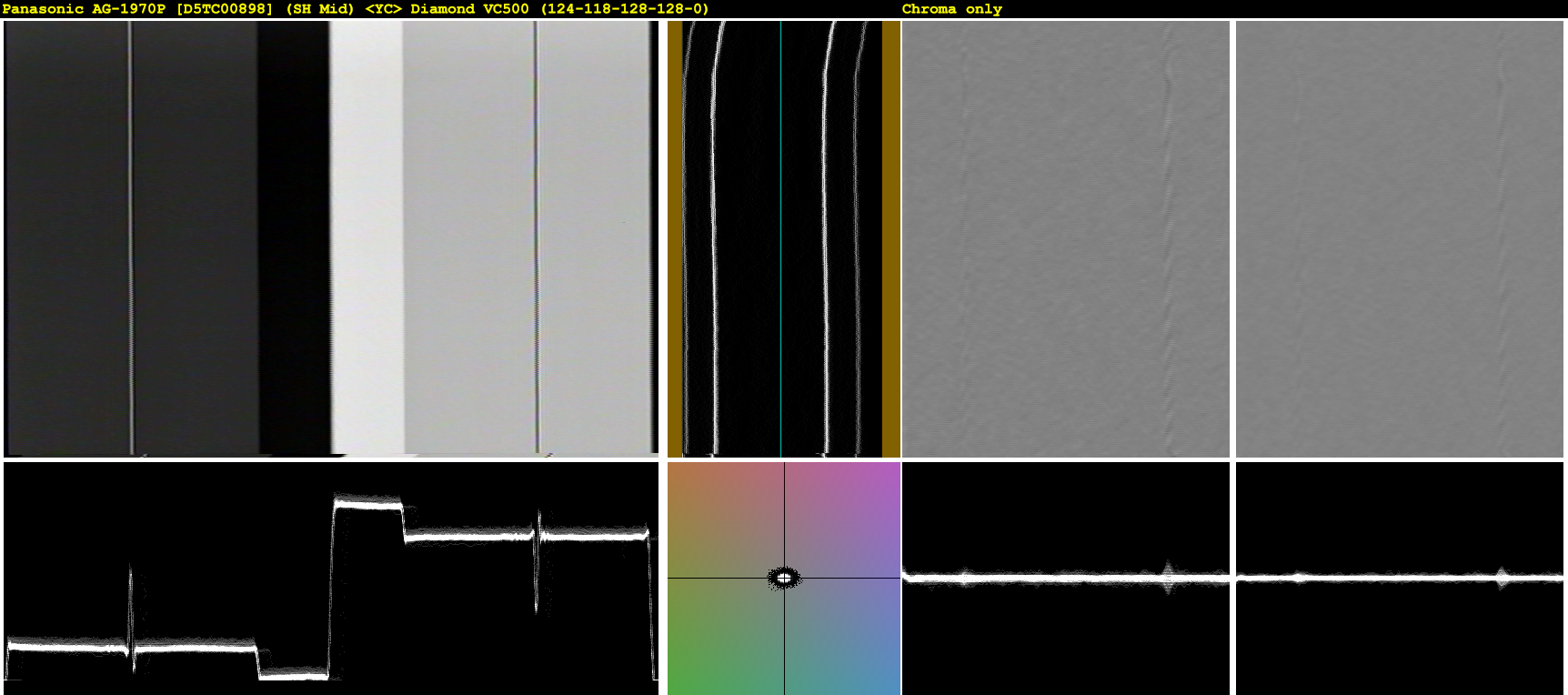

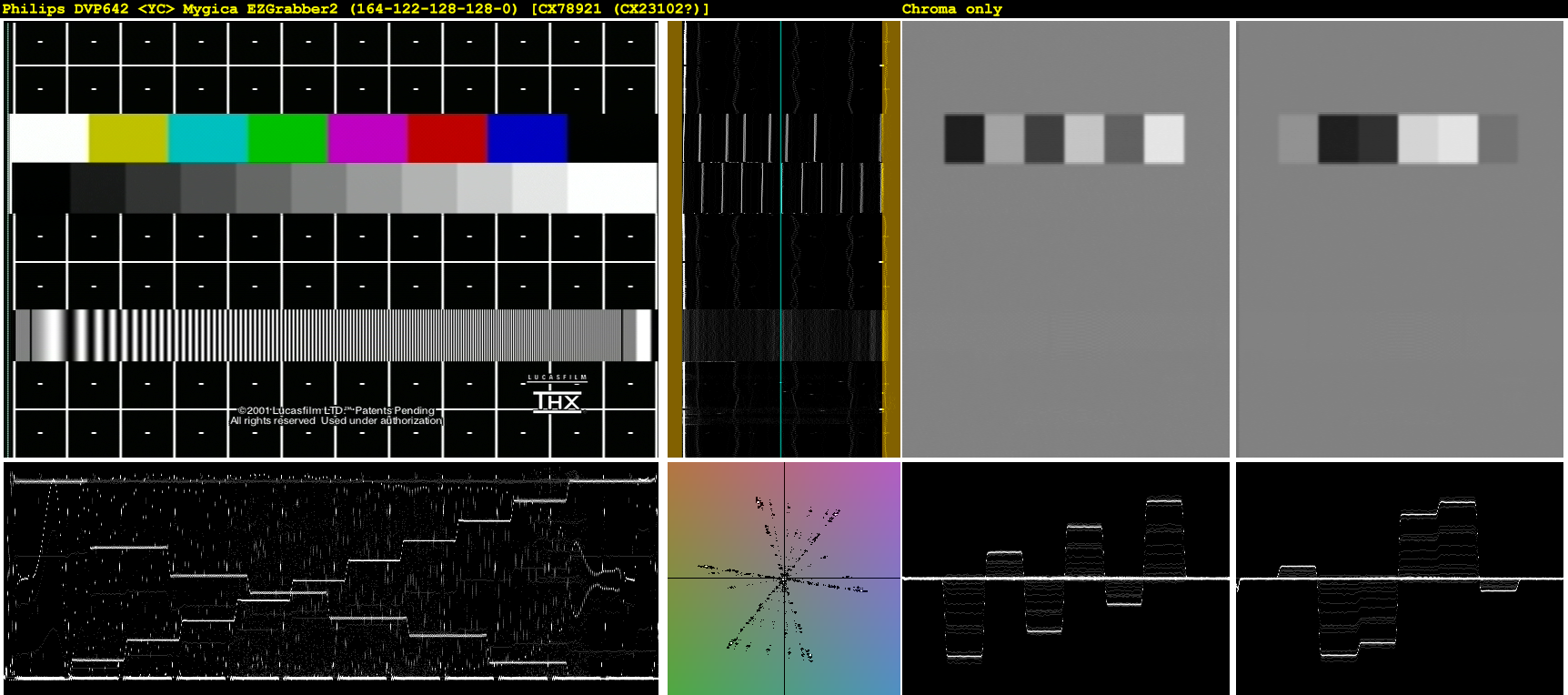

    Hmm. The VC500 & EZGrabber2 appear to have some issue with intraframe levels (that's my attempt at distilling the problem to two words). For example: when calibrated for DVD shot 3, the levels are wrong in DVD shot 1, and vice-versa.

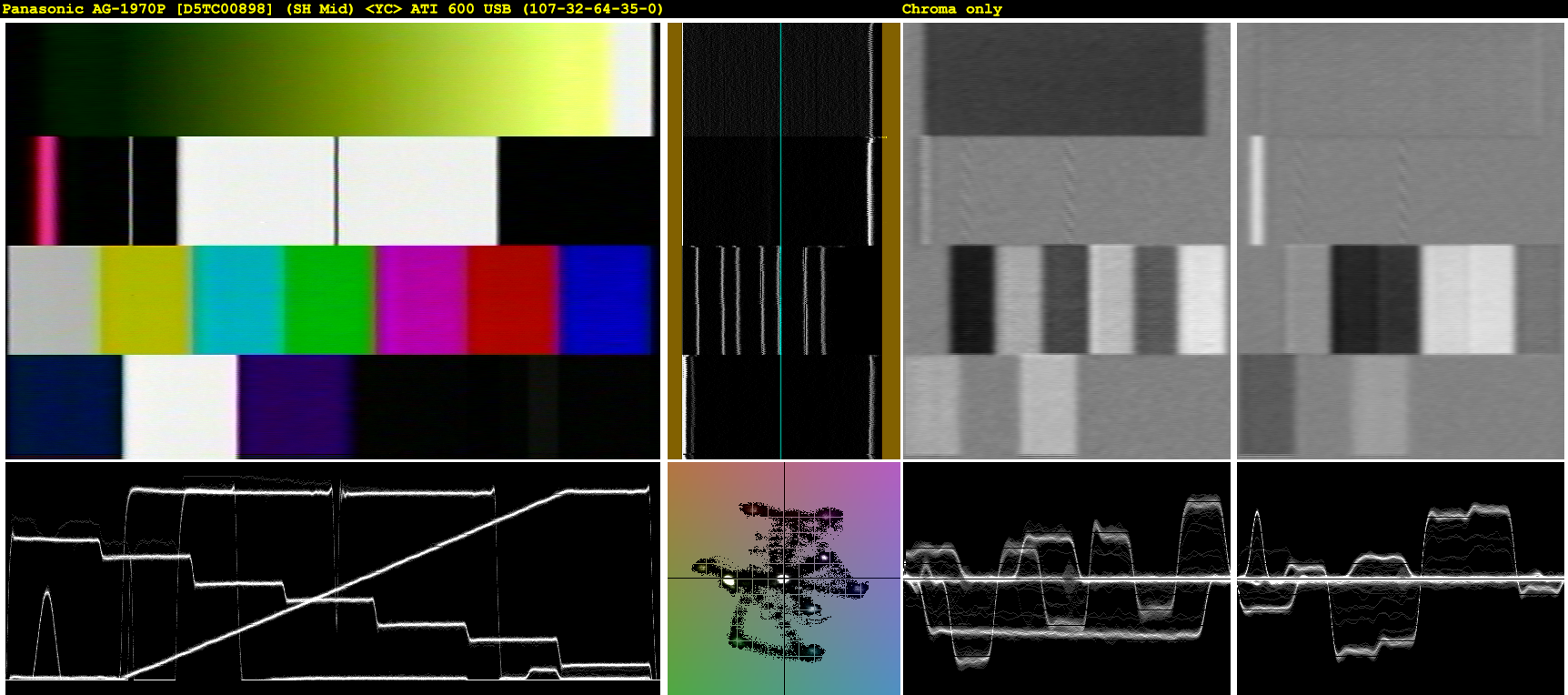

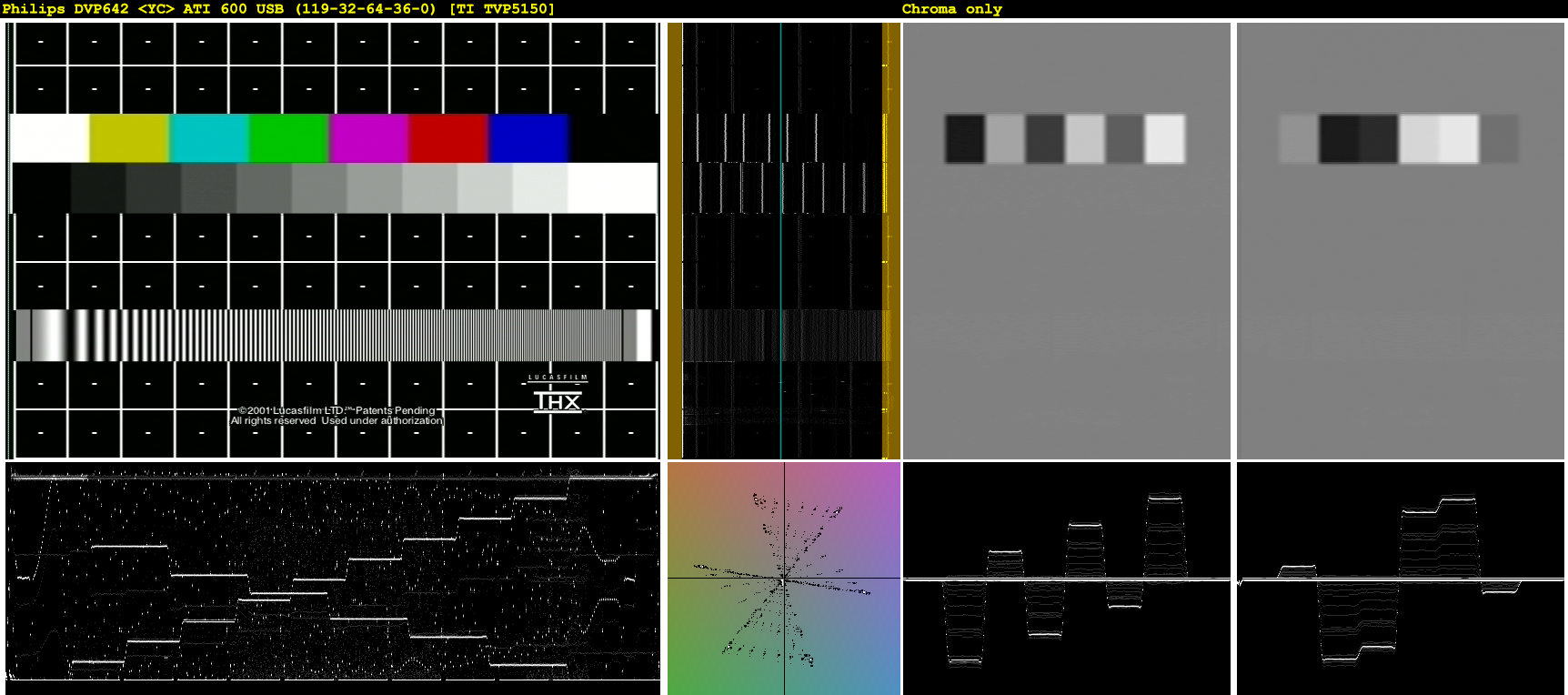

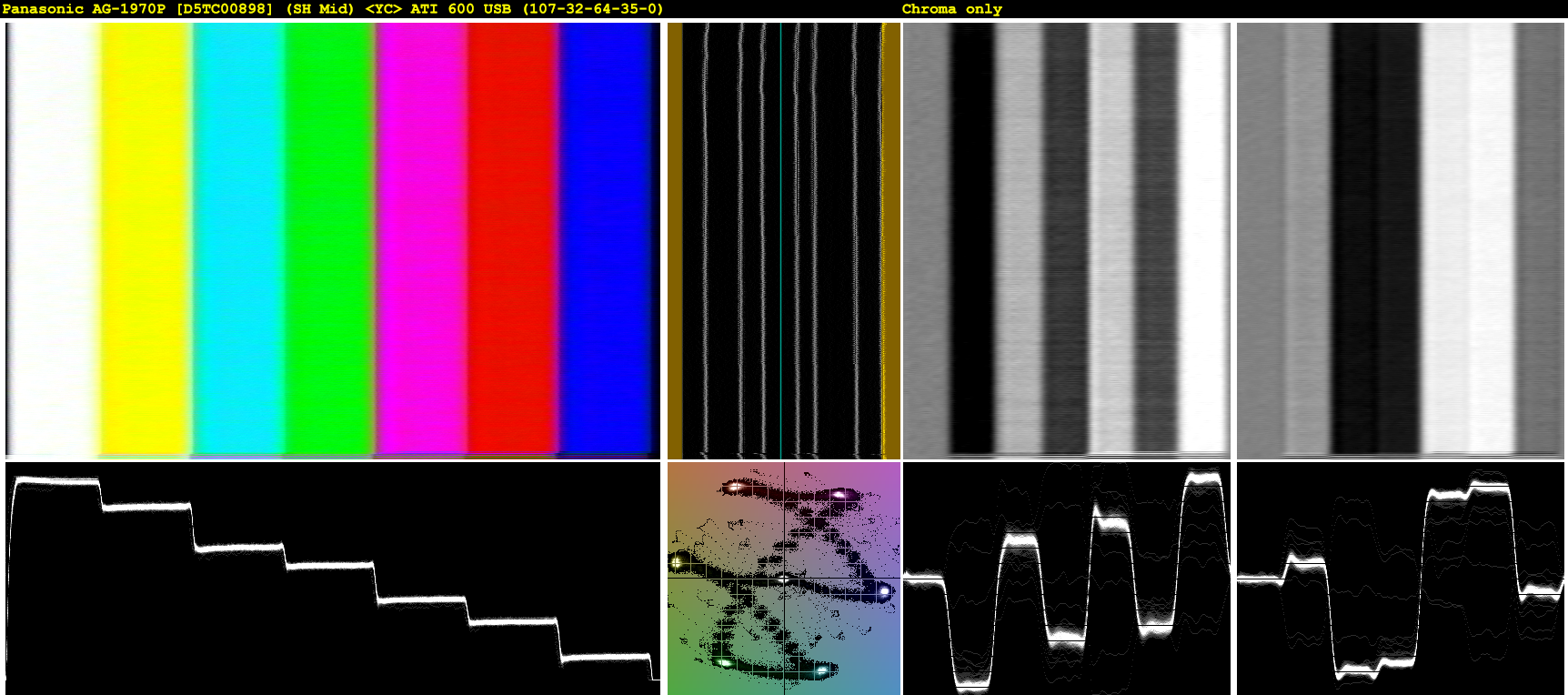

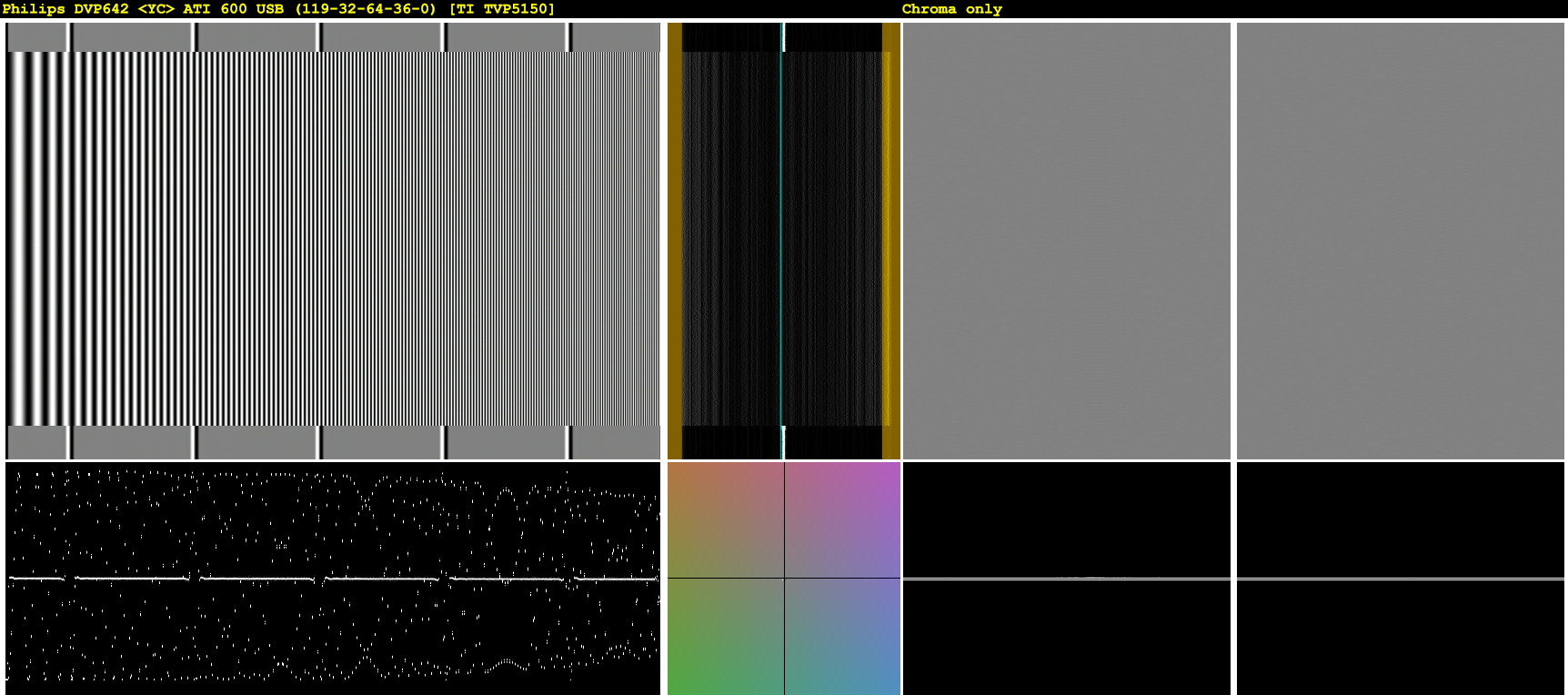

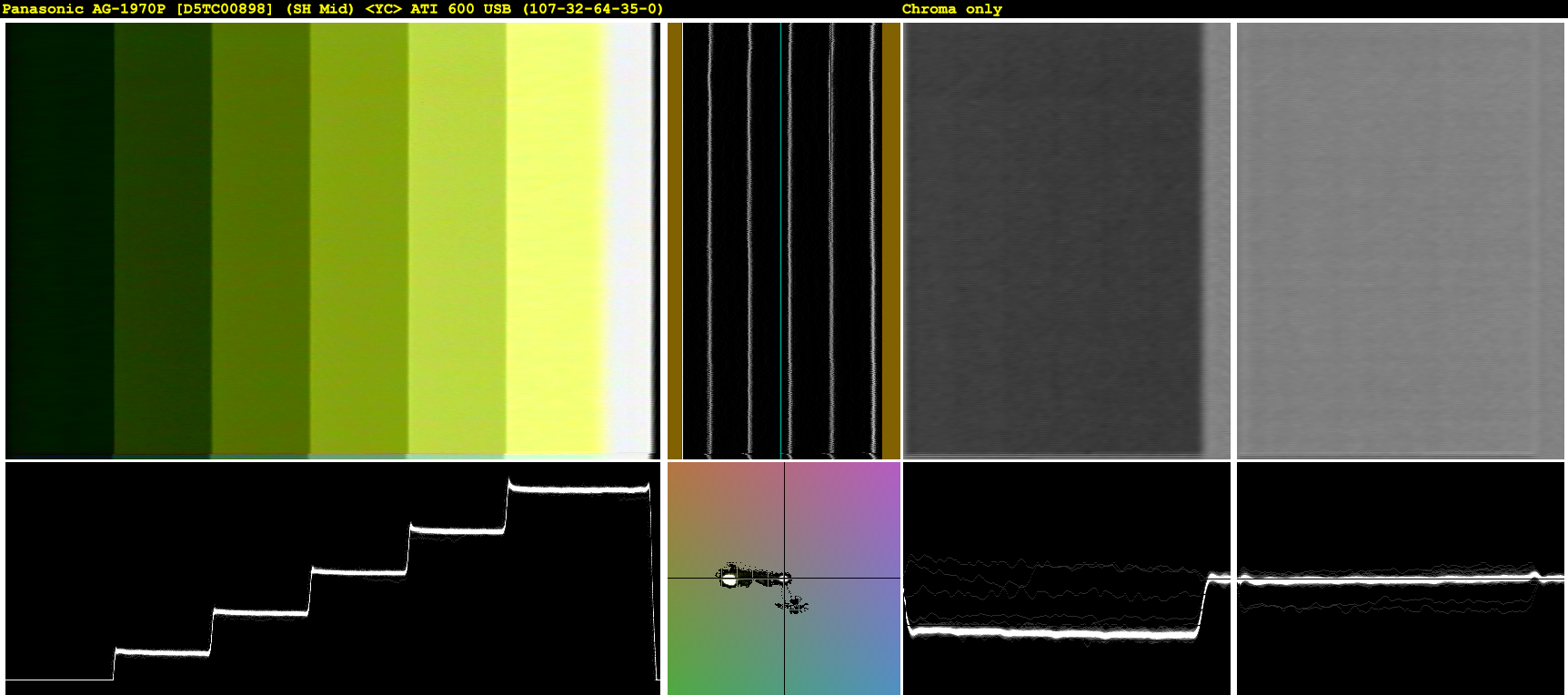

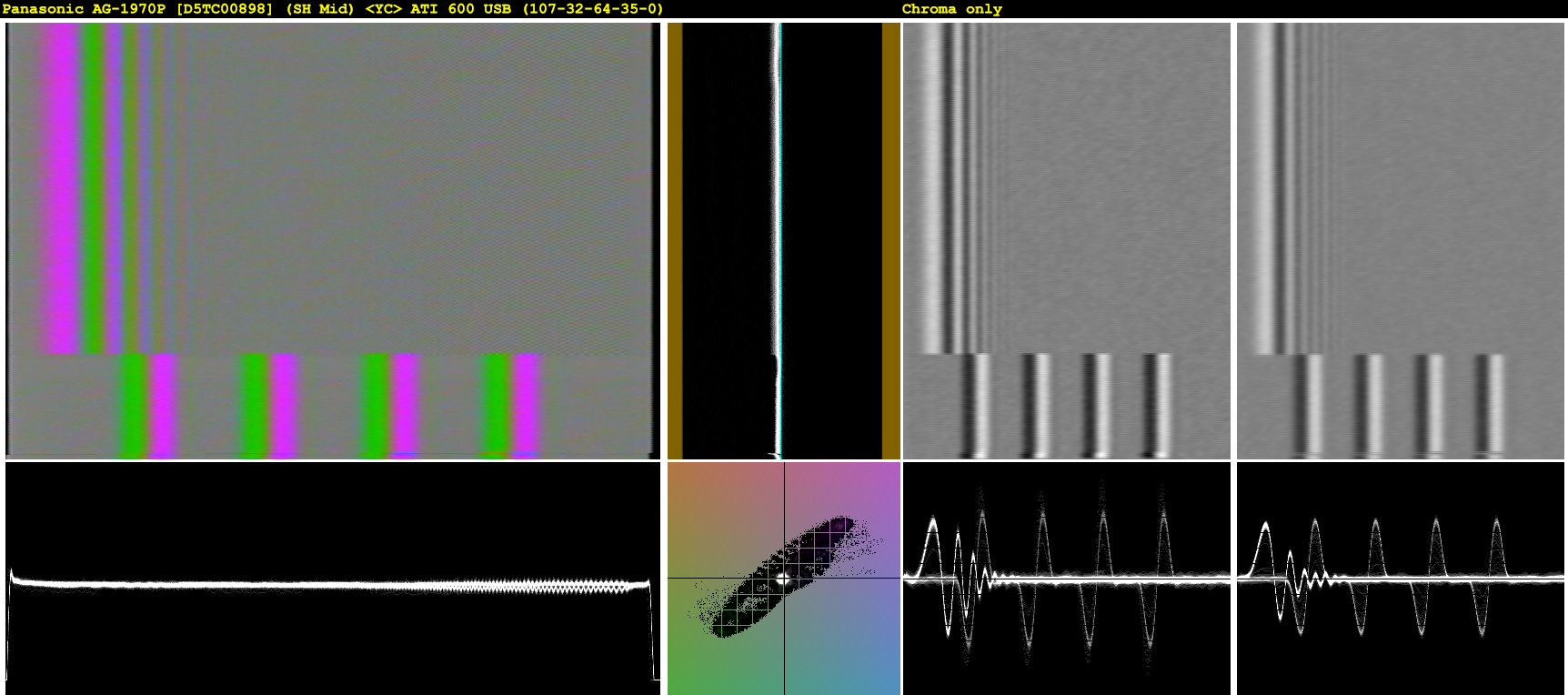

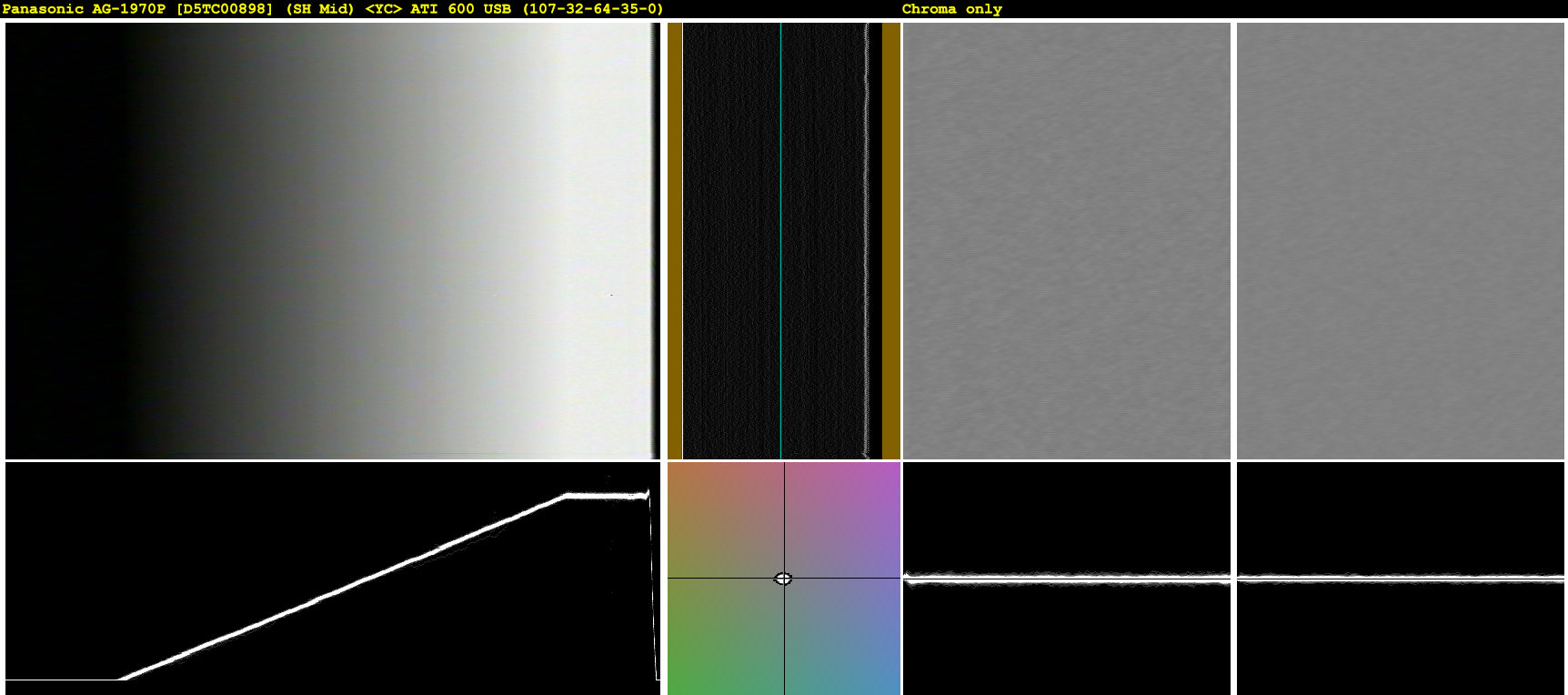

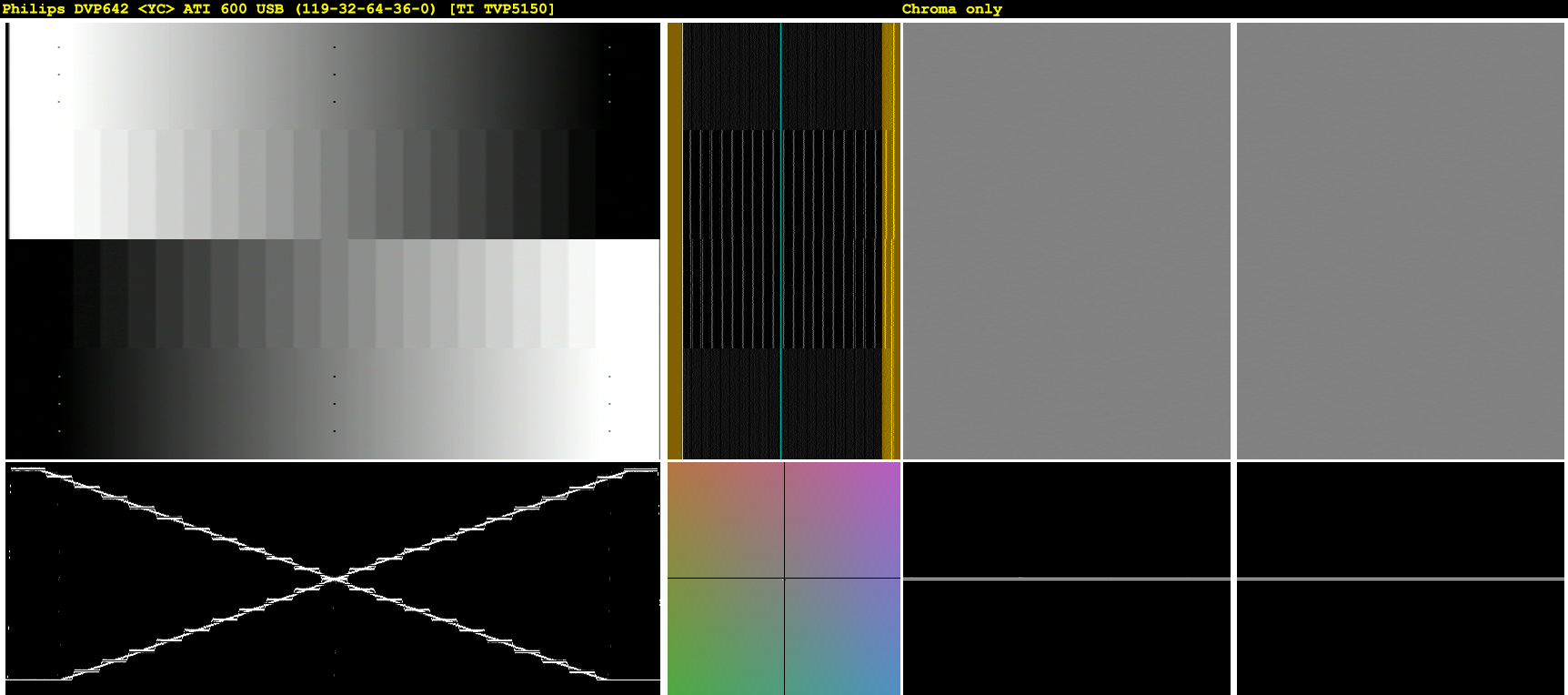

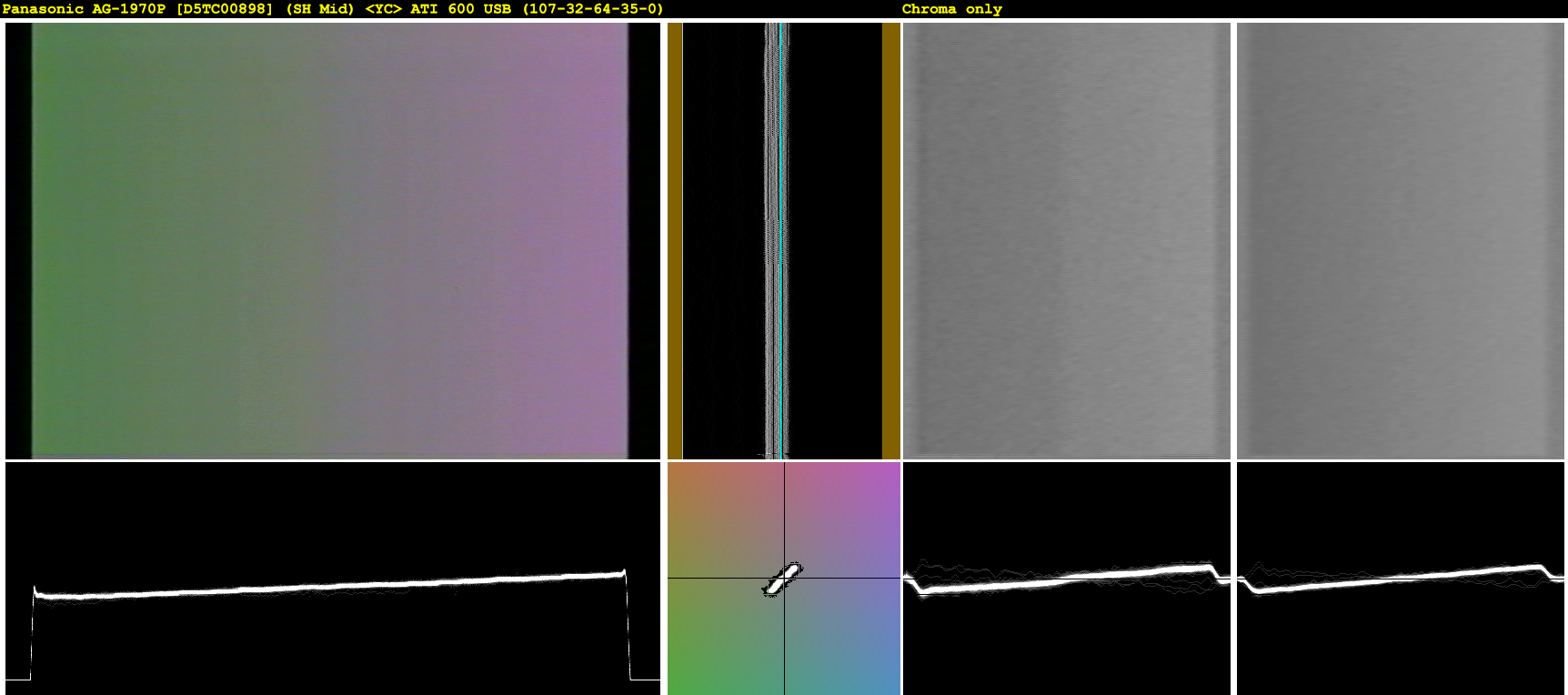

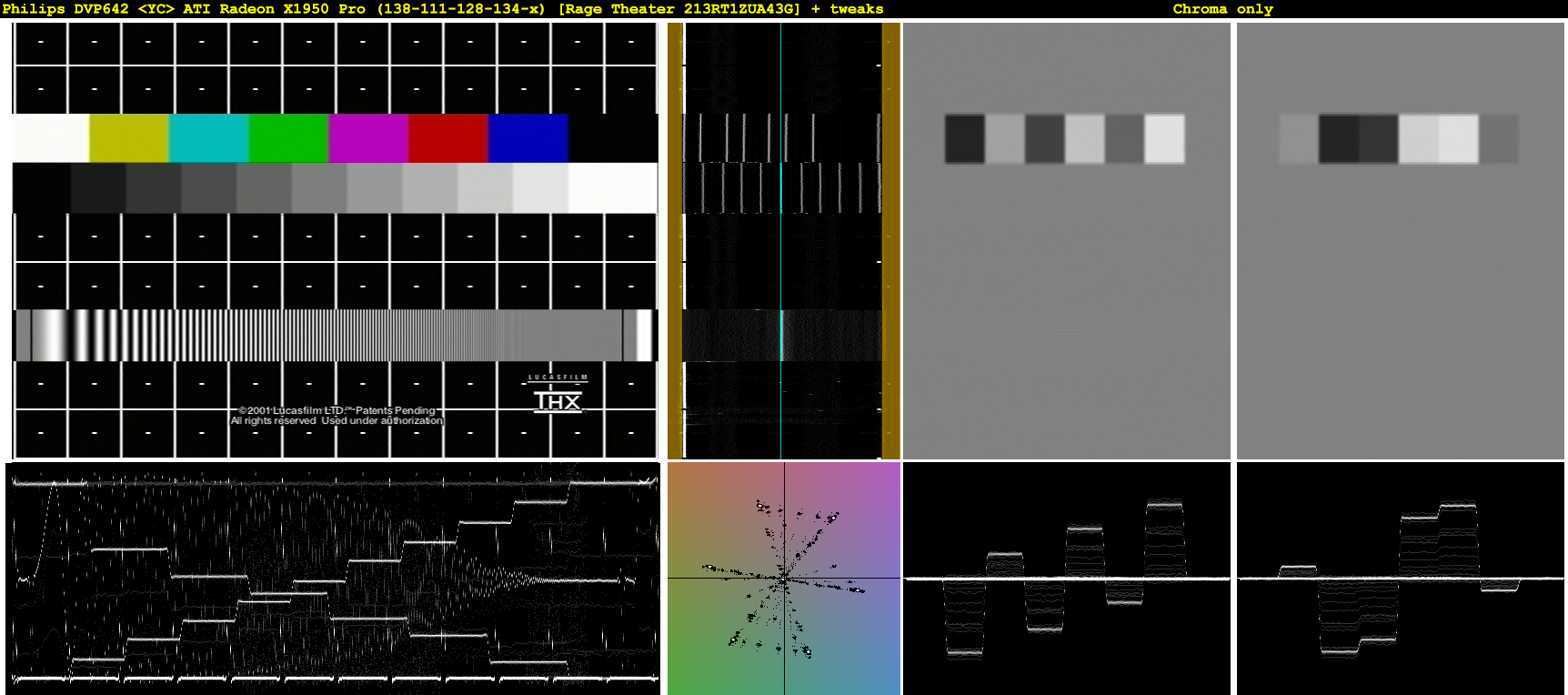

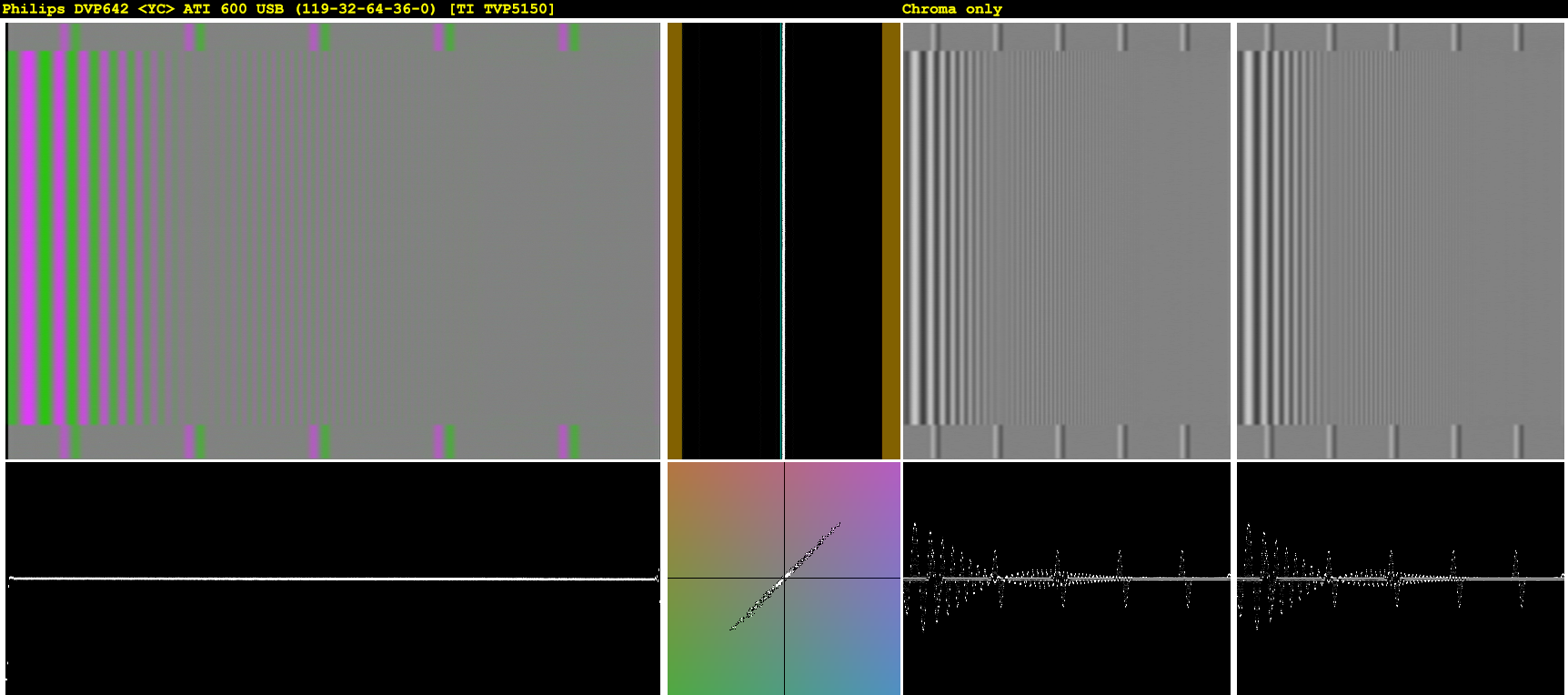

    The ATI 600 adds a slight green tint to everything, including greyscale patterns. The ATI 750 adds a slight orange tint to colors.

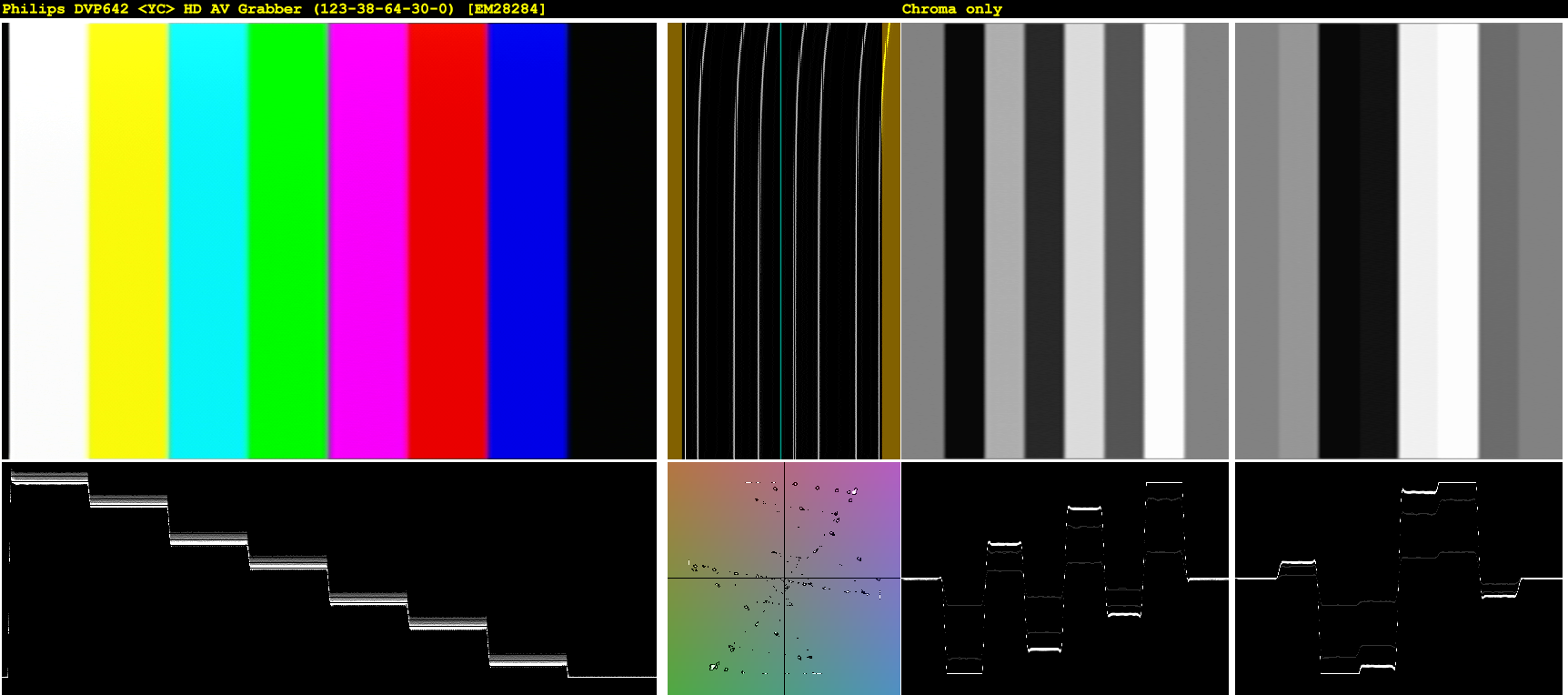

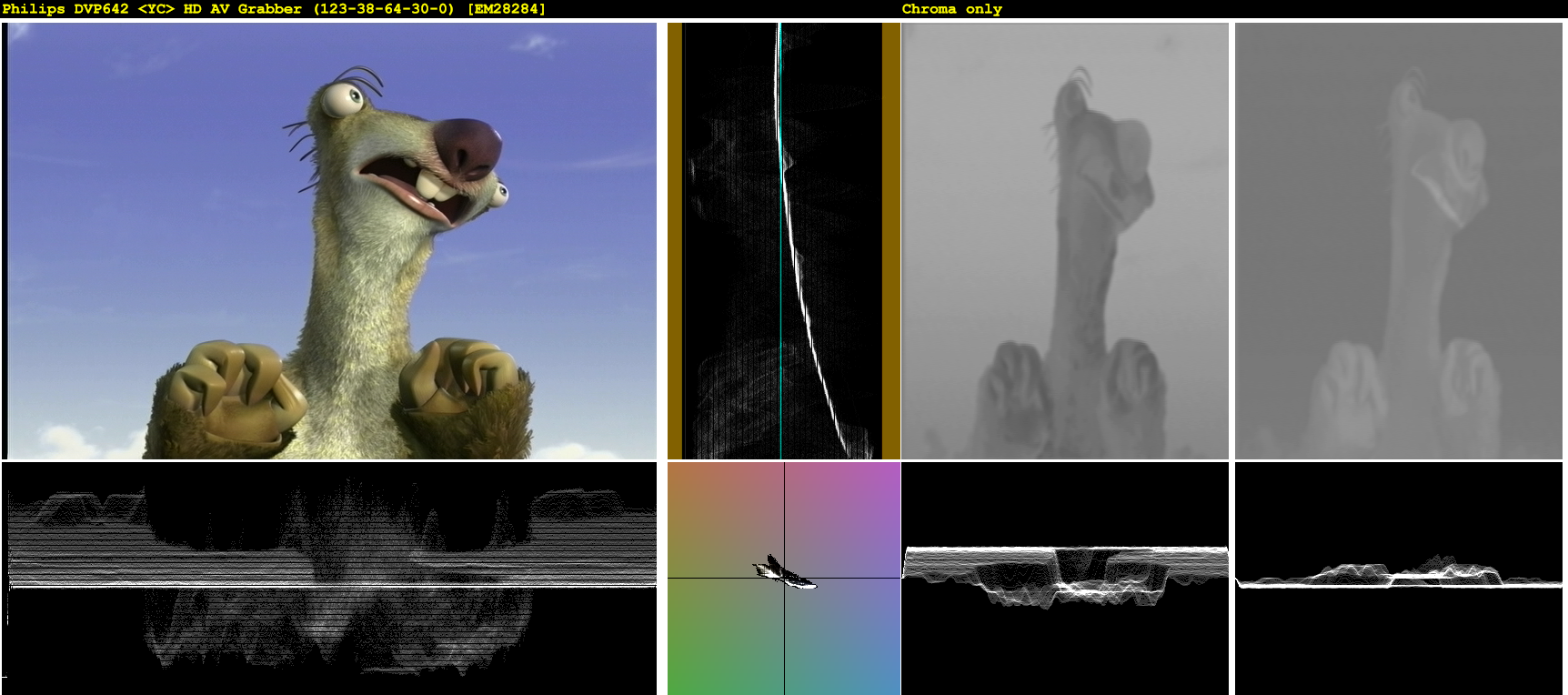

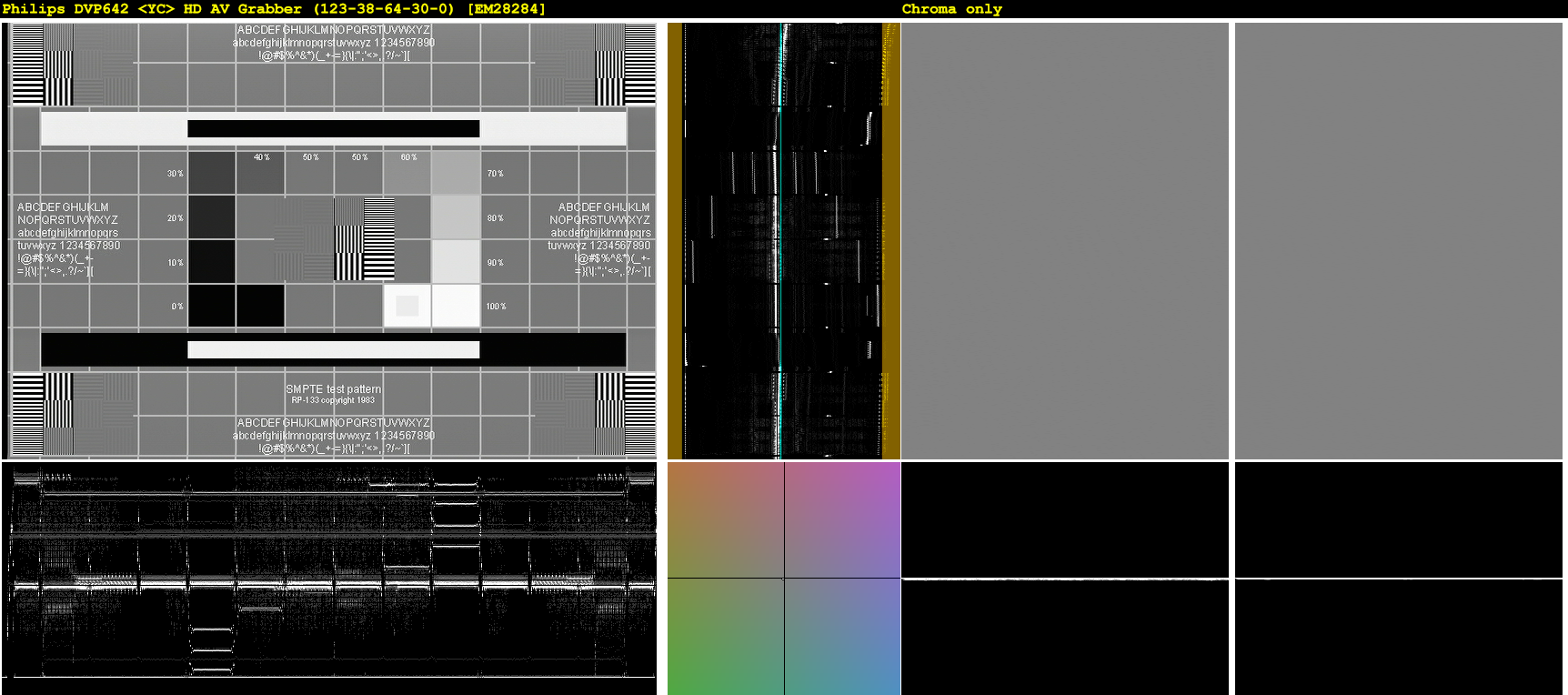

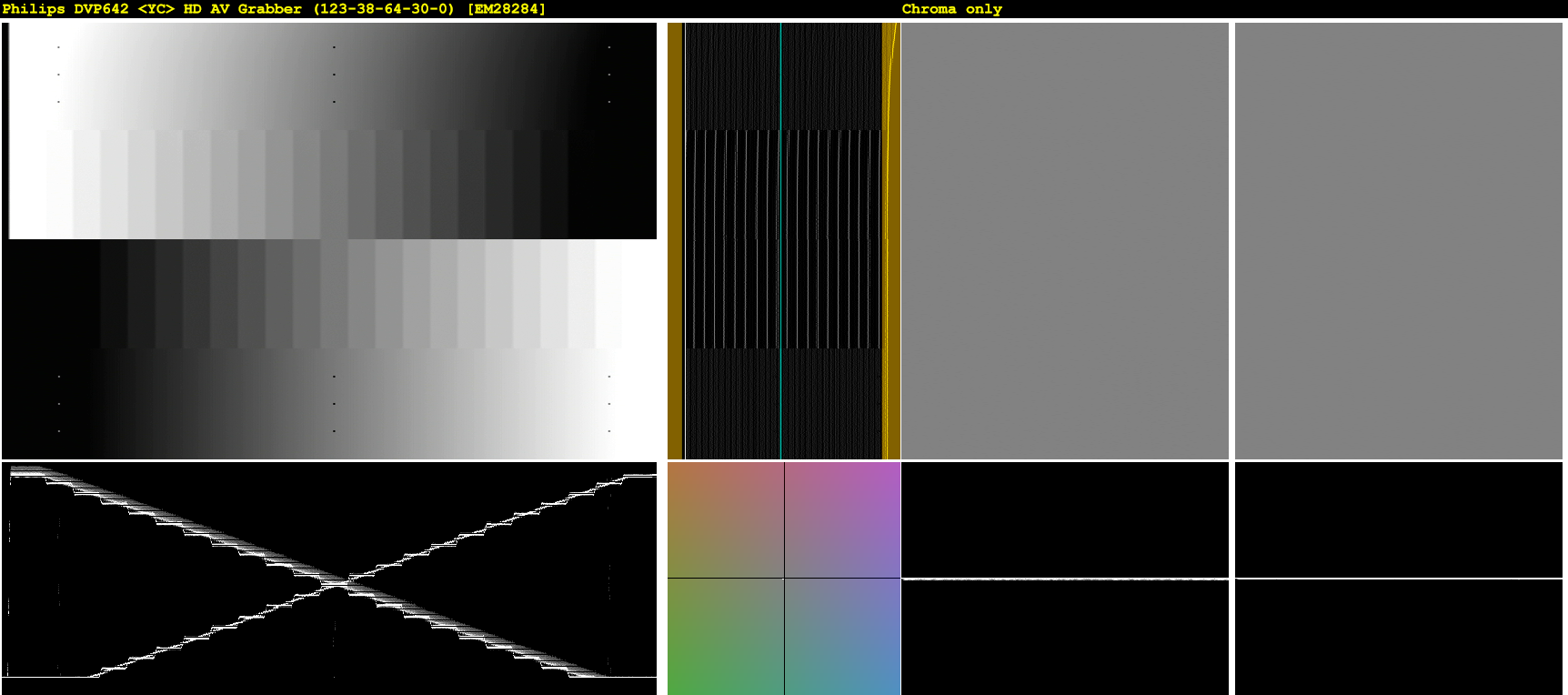

    The HD AV Grabber is pure garbage.
    Image Attached Files
    Last edited by Brad; 31st Aug 2014 at 09:51.
    Quote Quote
  2. Formerly 'vaporeon800' Brad's Avatar
    Join Date
    Apr 2001
    Location
    Vancouver, Canada
    Search PM
    Reserved1... missed posting on the 3-year anniversary by seconds on the west coast. Shouldn't have doddled.

    [Non-VHS screenshots go here]

    For the simpler patterns, the PNG filesizes offer some measurement of how losslessly-compressible the videos are, relative to noise levels (DNR has been disabled, where possible -- some amount may still be in effect; need a good test). All were created with VirtualDubMod's built-in PNG save feature.

    Source: DPS-470AV "10-bit Test Signal Generator" mode

    SDI 10-bit → VirtualDub 8-bit
    Click image for larger version

Name:	DPS-470AV_VDubYUY2_1.png
Views:	3415
Size:	18.3 KB
ID:	21602

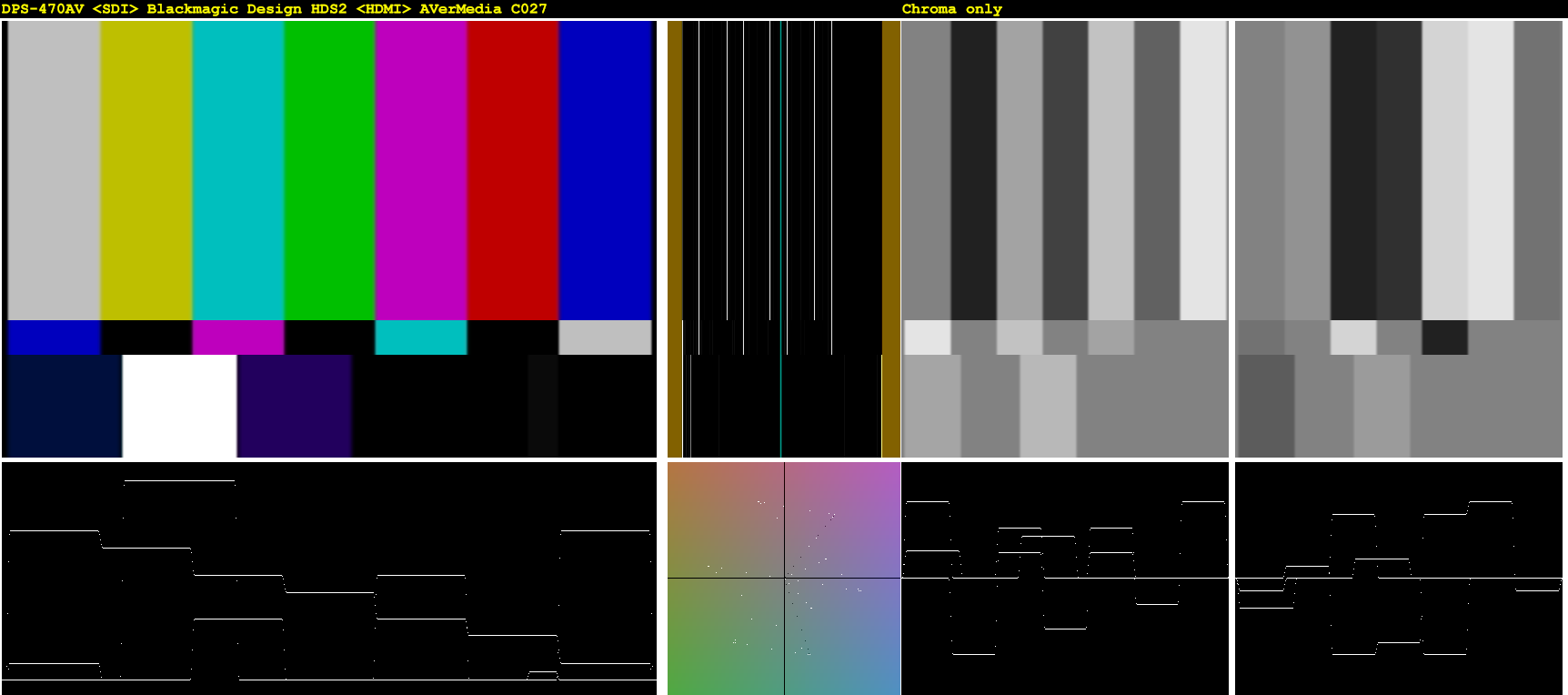

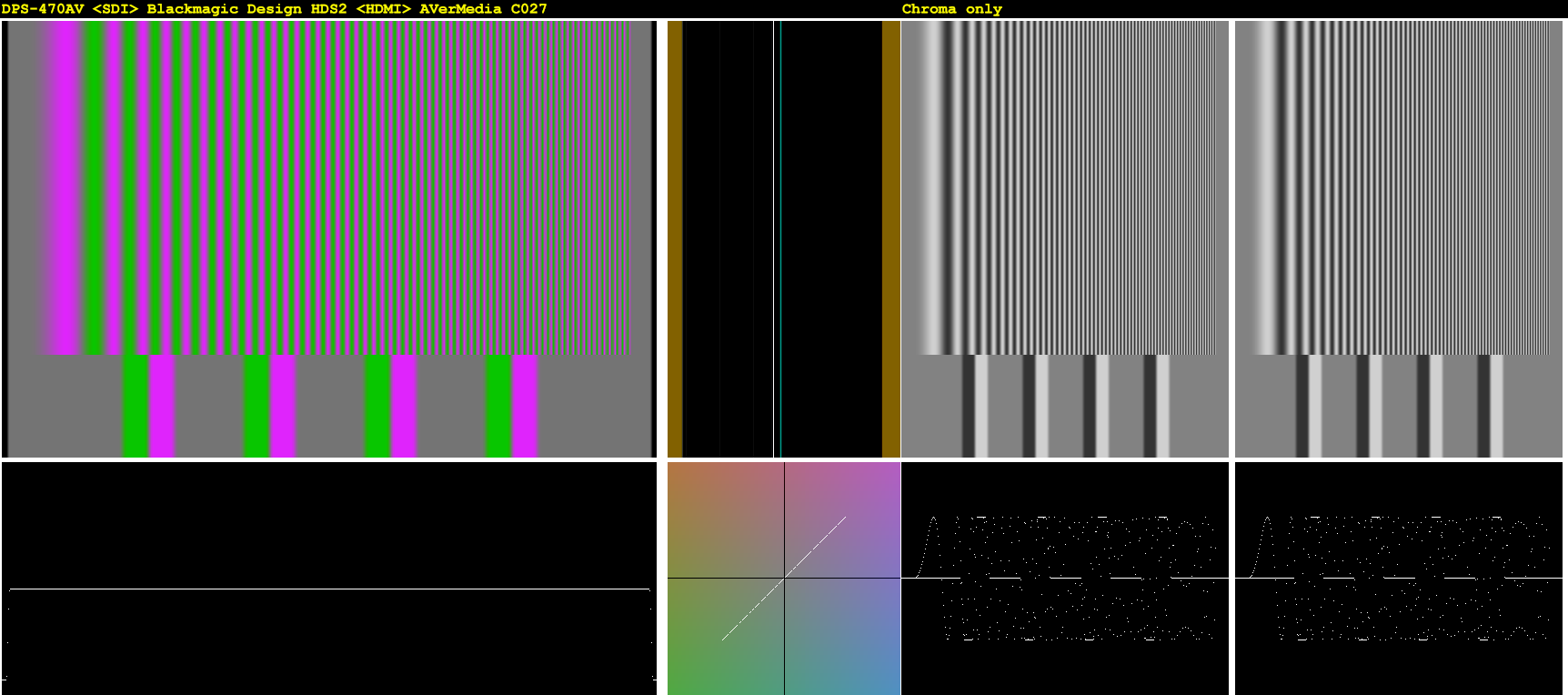

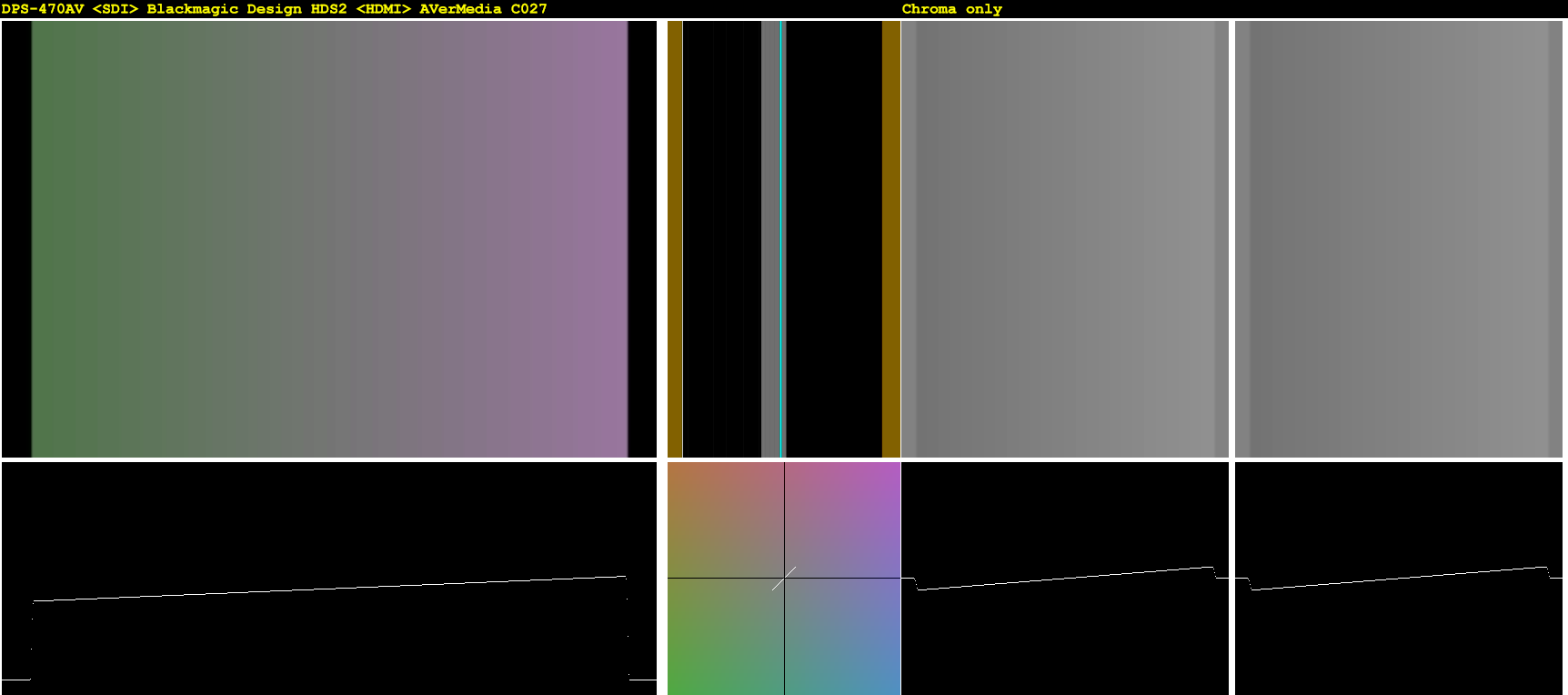

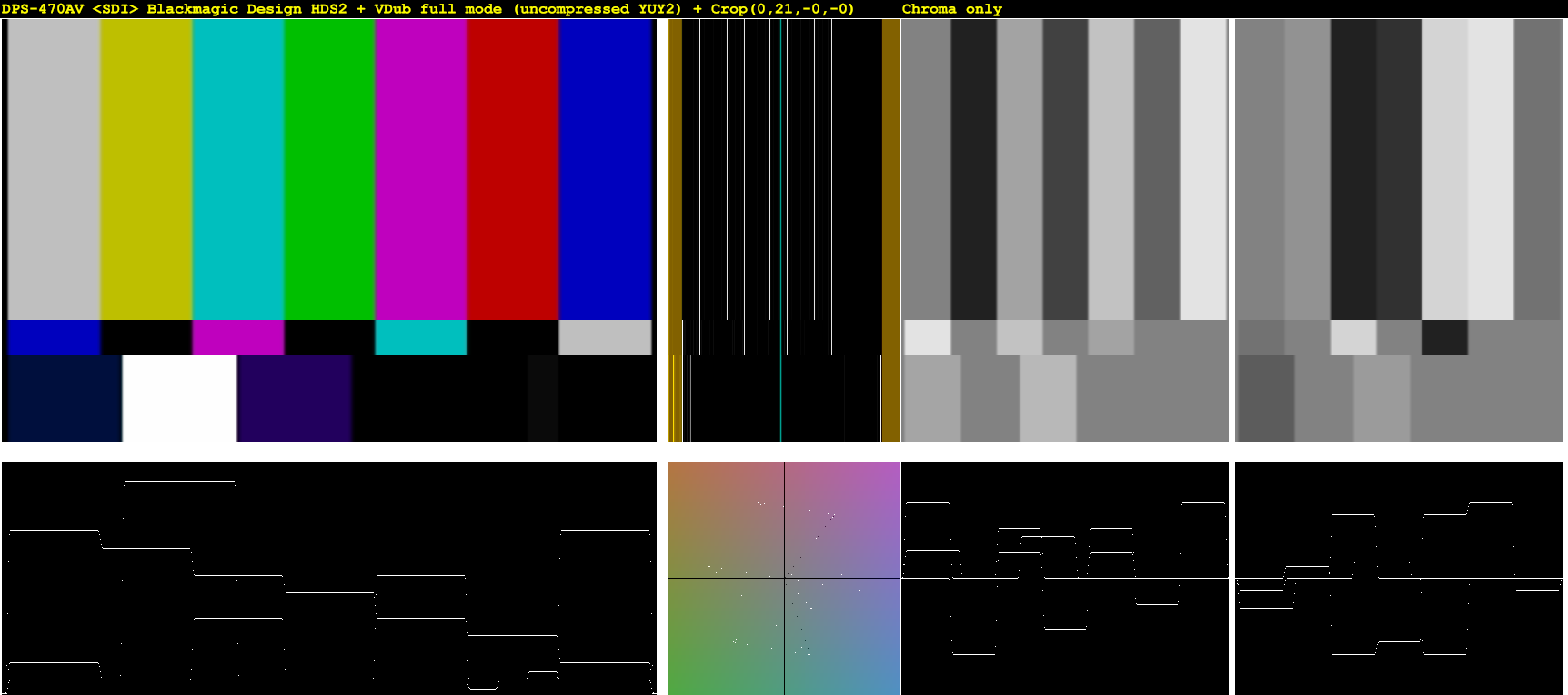

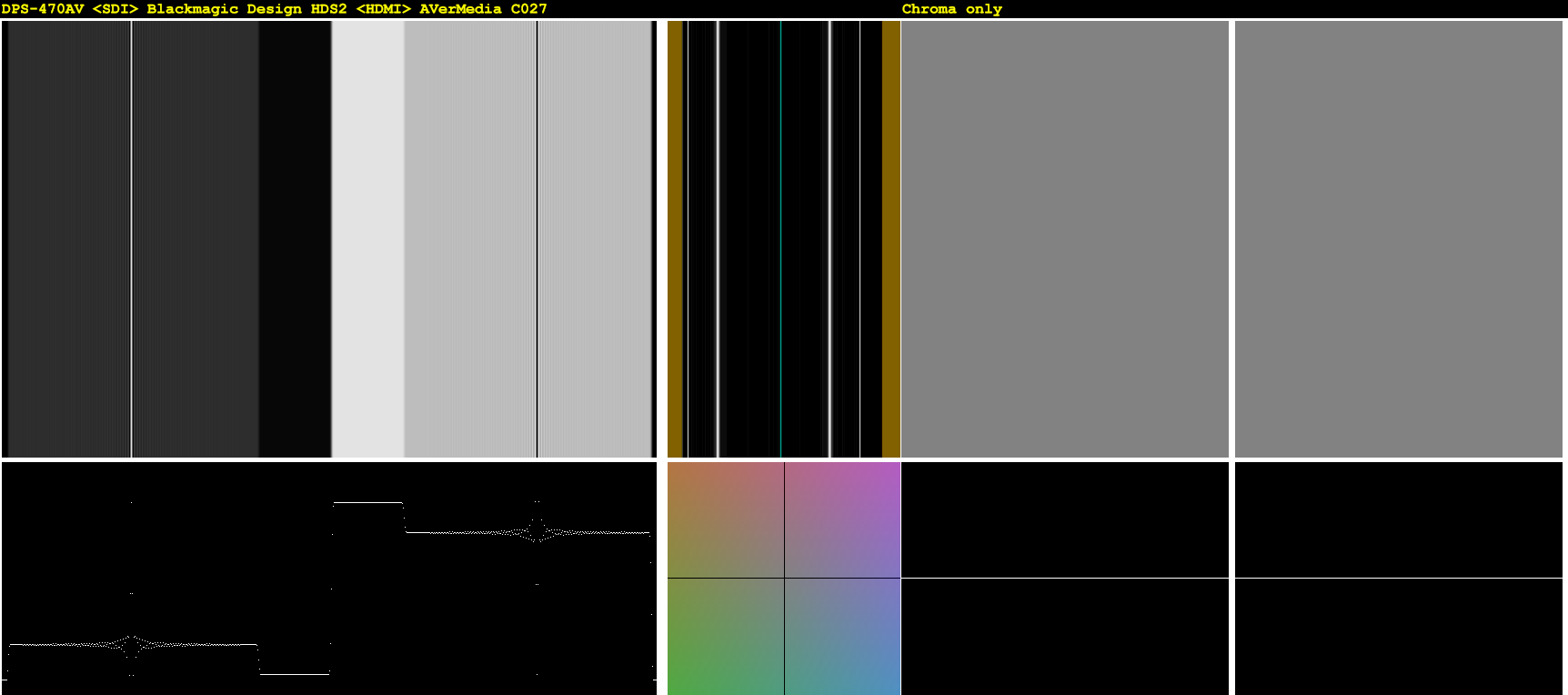

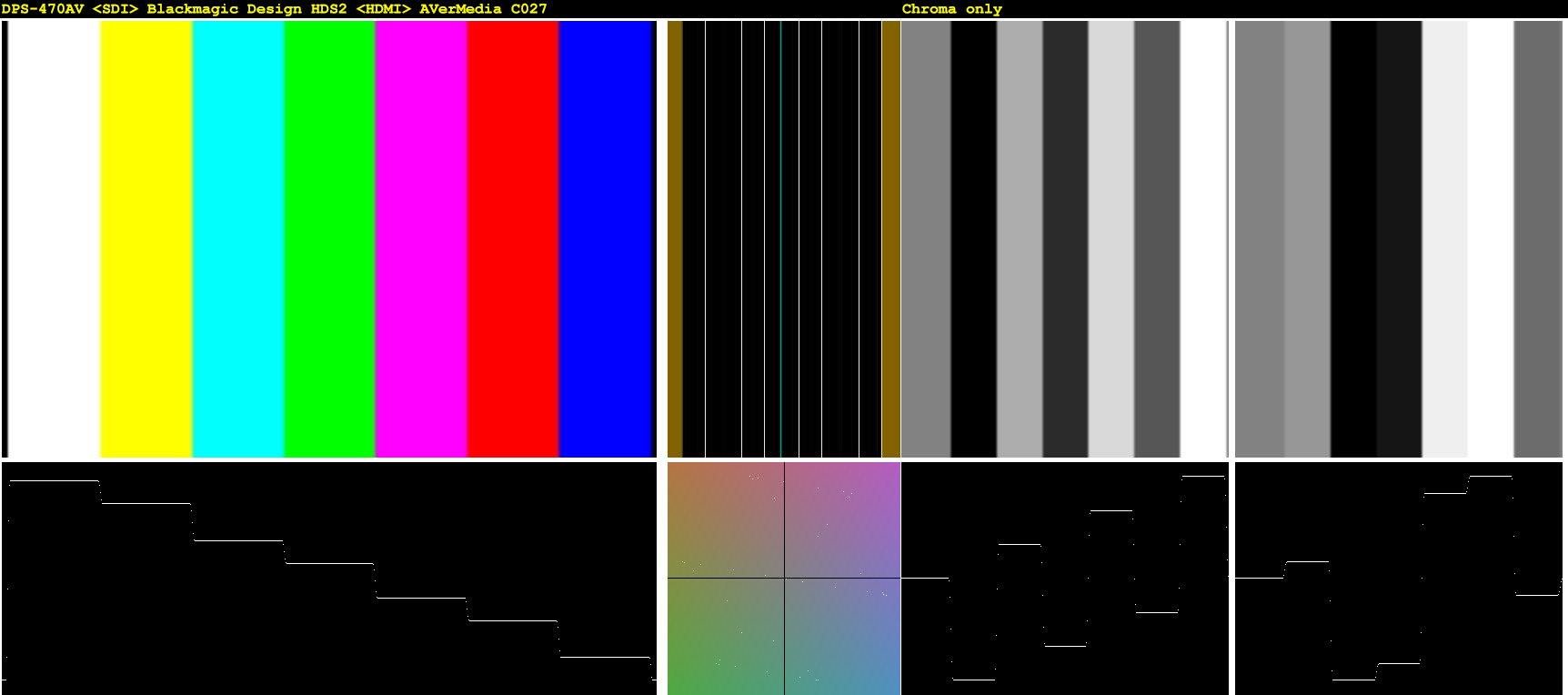

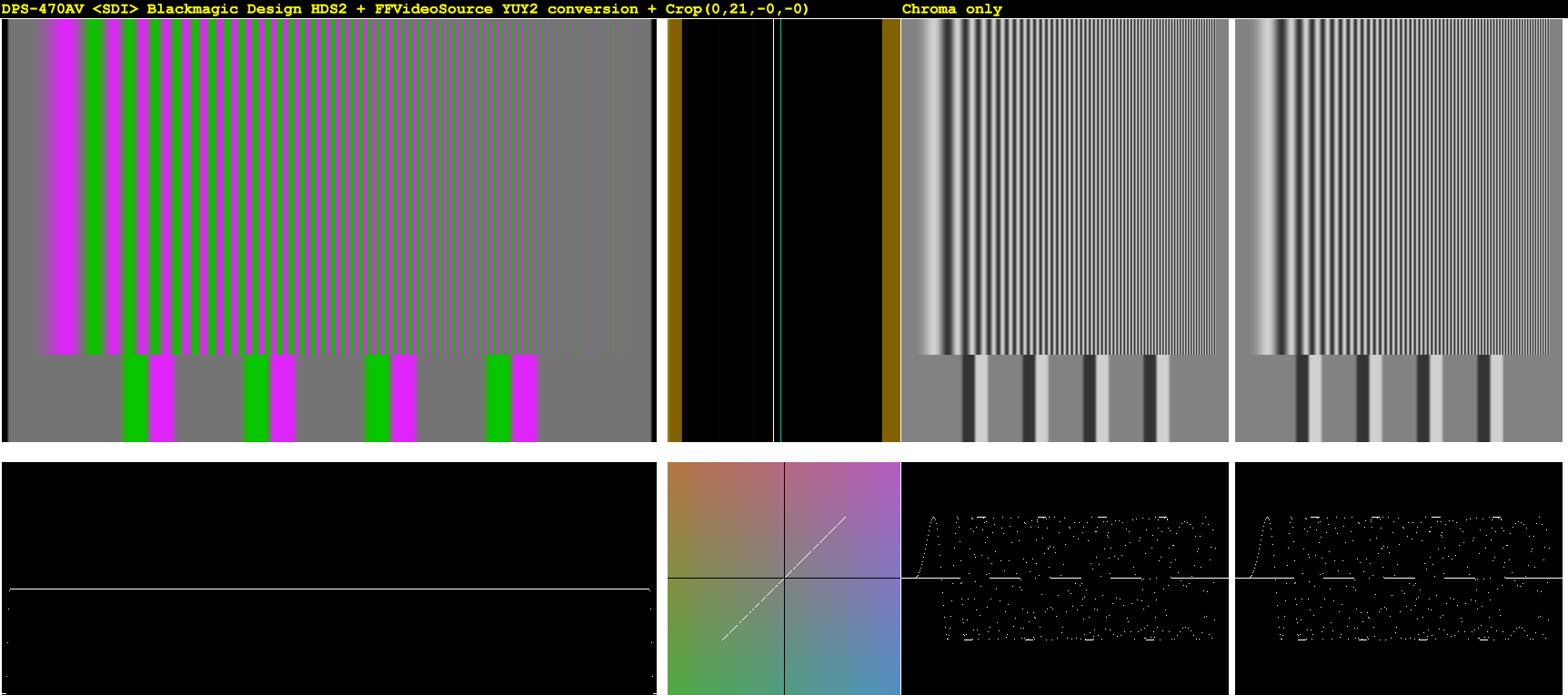

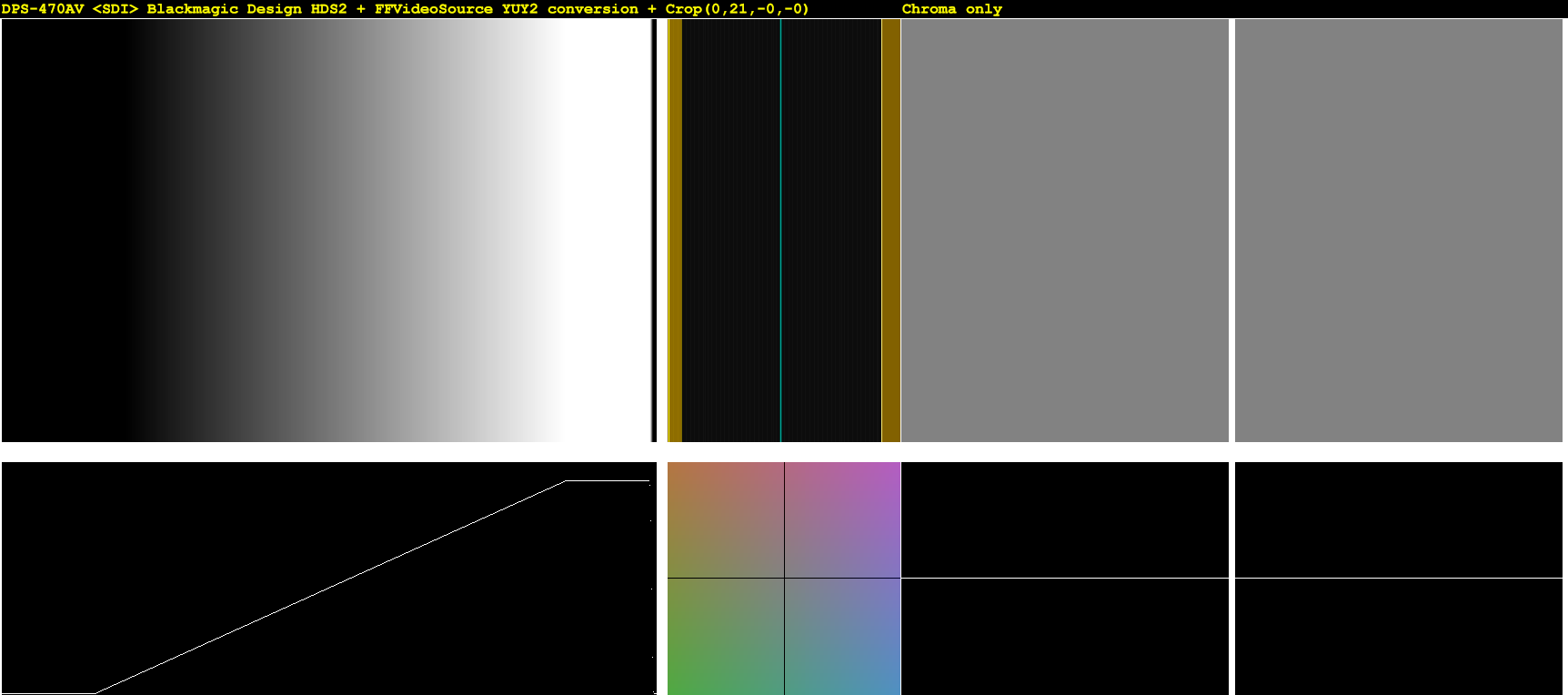

    SDI → HDMI 8-bit (superblacks were clipped by the HyperDeck Shuttle 2's HDMI conversion; that's annoying)
    Click image for larger version

Name:	DPS-470AV_HDS2_C027_1.png
Views:	3330
Size:	17.0 KB
ID:	21600 Click image for larger version

Name:	DPS-470AV_HDS2_C027_4.png
Views:	3179
Size:	13.4 KB
ID:	21987 Click image for larger version

Name:	DPS-470AV_HDS2_C027_5.png
Views:	3170
Size:	13.8 KB
ID:	21988 Click image for larger version

Name:	DPS-470AV_HDS2_C027_8.png
Views:	3191
Size:	14.6 KB
ID:	21989 Click image for larger version

Name:	DPS-470AV_HDS2_C027_3.png
Views:	3191
Size:	13.6 KB
ID:	21986 Click image for larger version

Name:	DPS-470AV_HDS2_C027_9.png
Views:	3271
Size:	17.6 KB
ID:	21990 Click image for larger version

Name:	DPS-470AV_HDS2_C027_6.png
Views:	3273
Size:	19.6 KB
ID:	21612 Click image for larger version

Name:	DPS-470AV_HDS2_C027_7.png
Views:	3256
Size:	21.0 KB
ID:	21608 Click image for larger version

Name:	DPS-470AV_HDS2_C027_2.png
Views:	3324
Size:	14.9 KB
ID:	21991

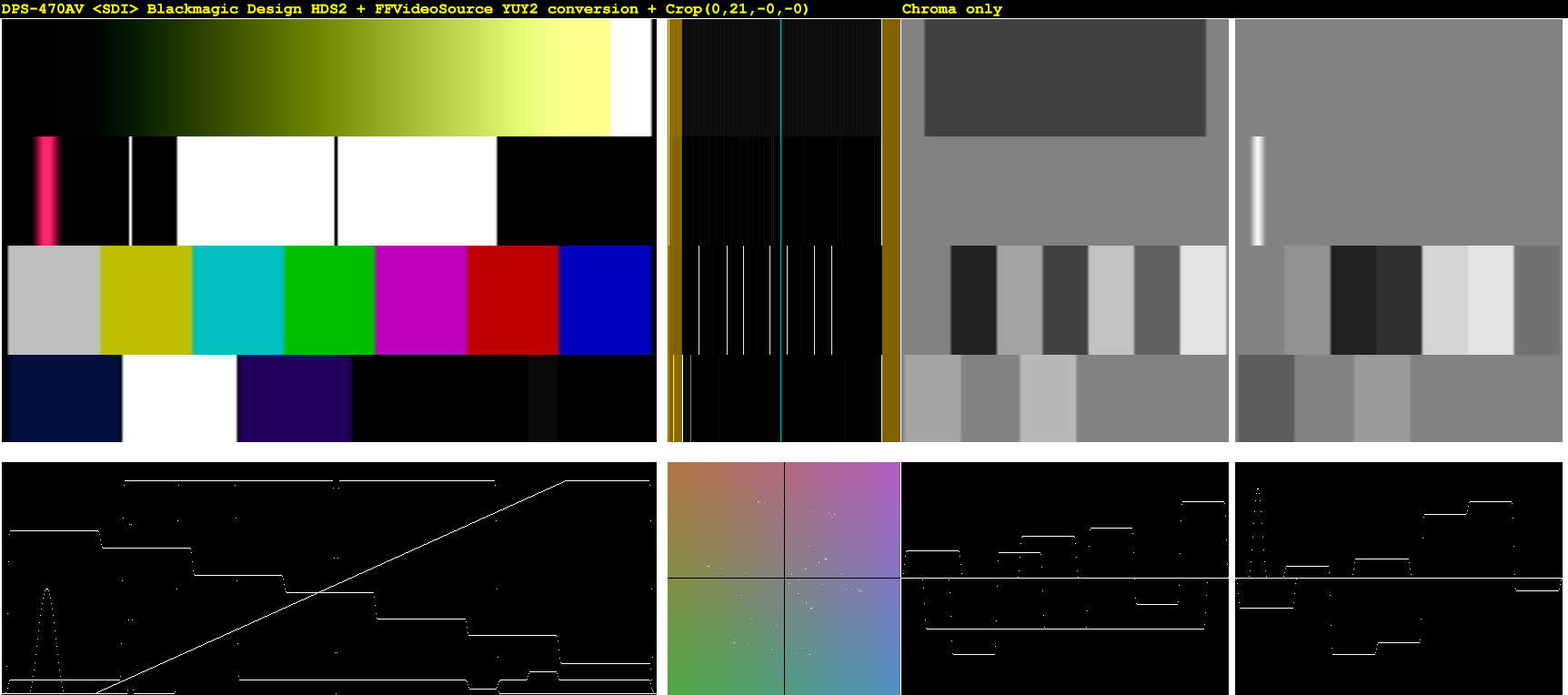

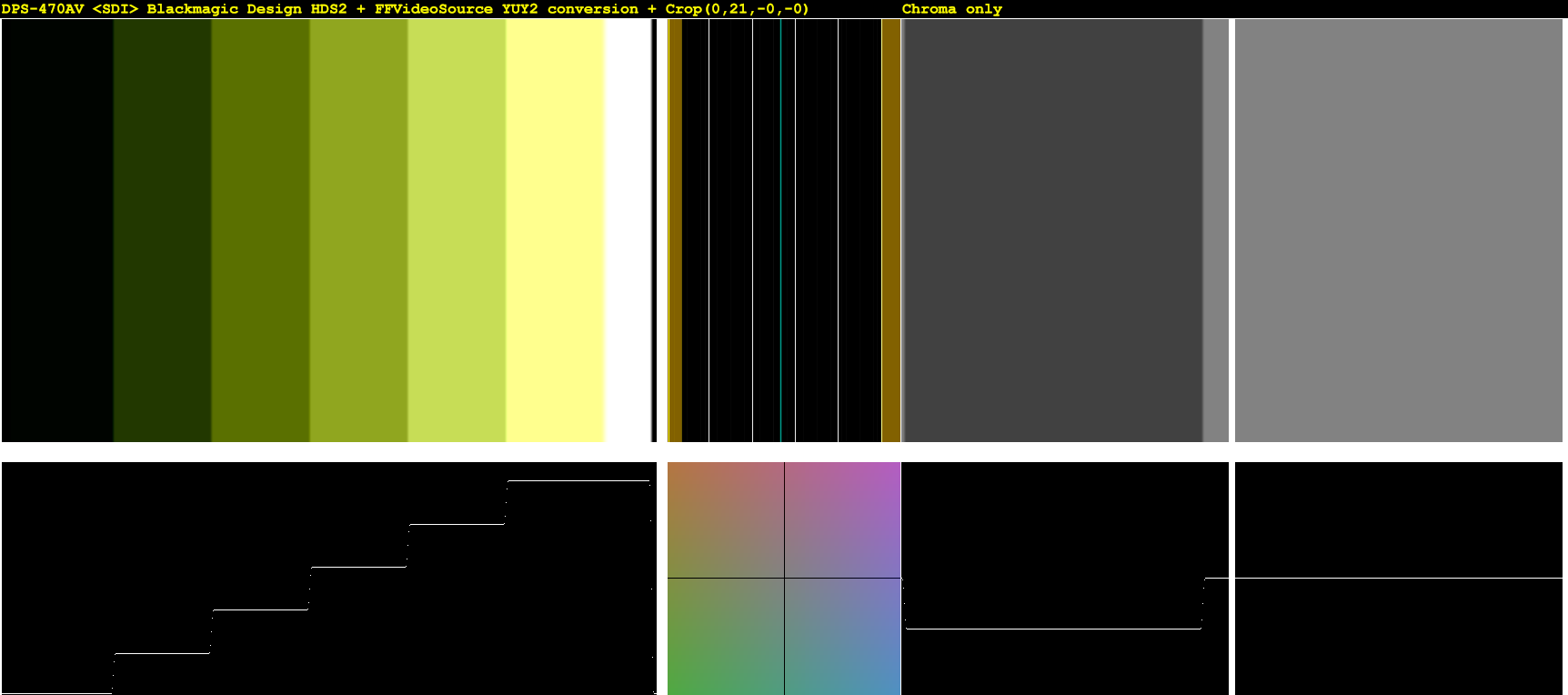

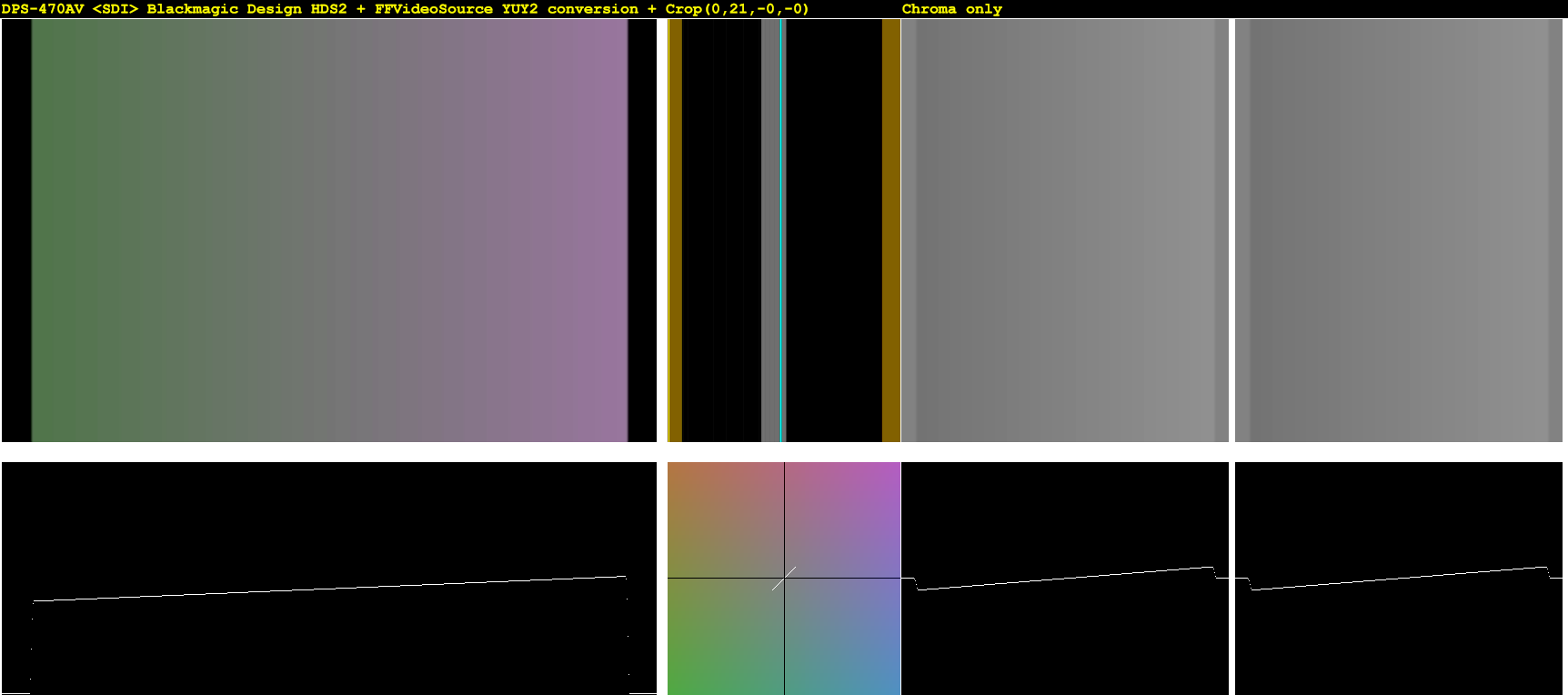

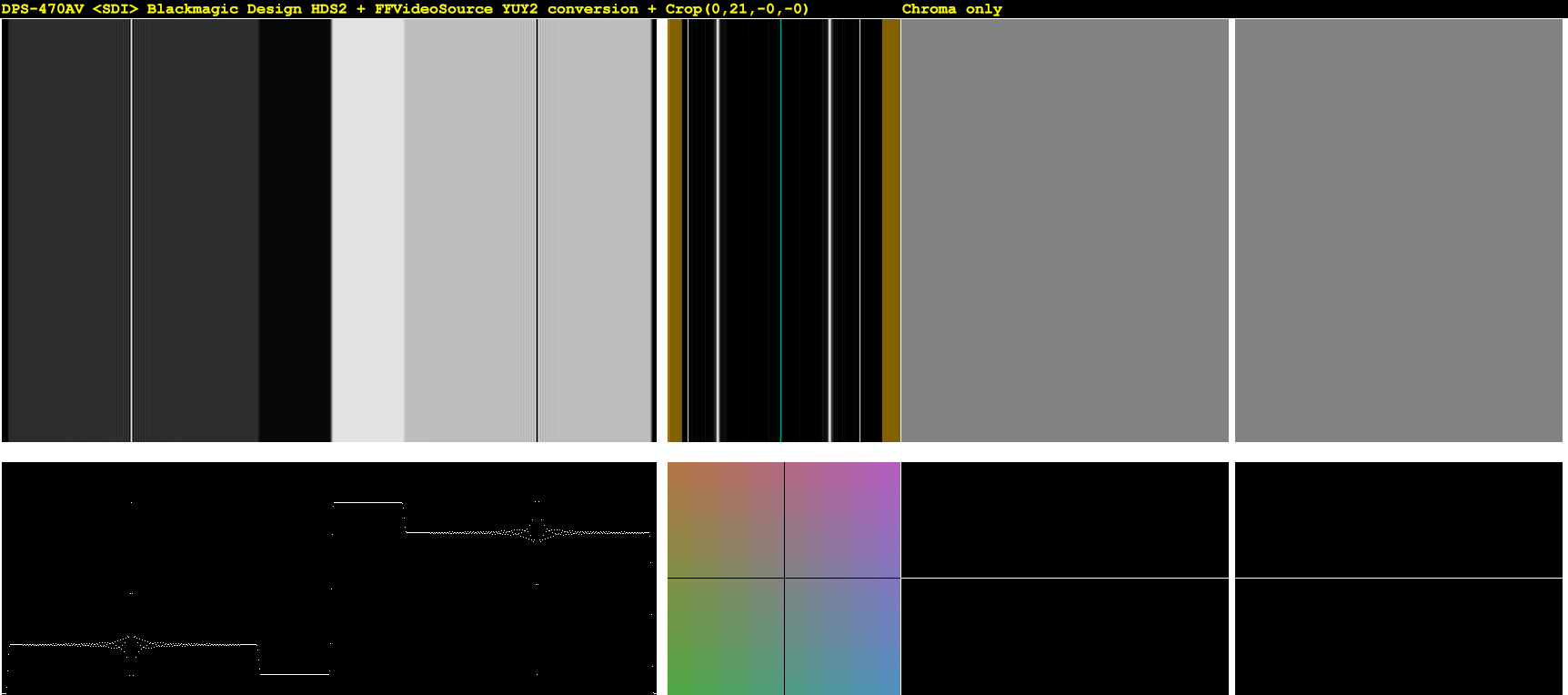

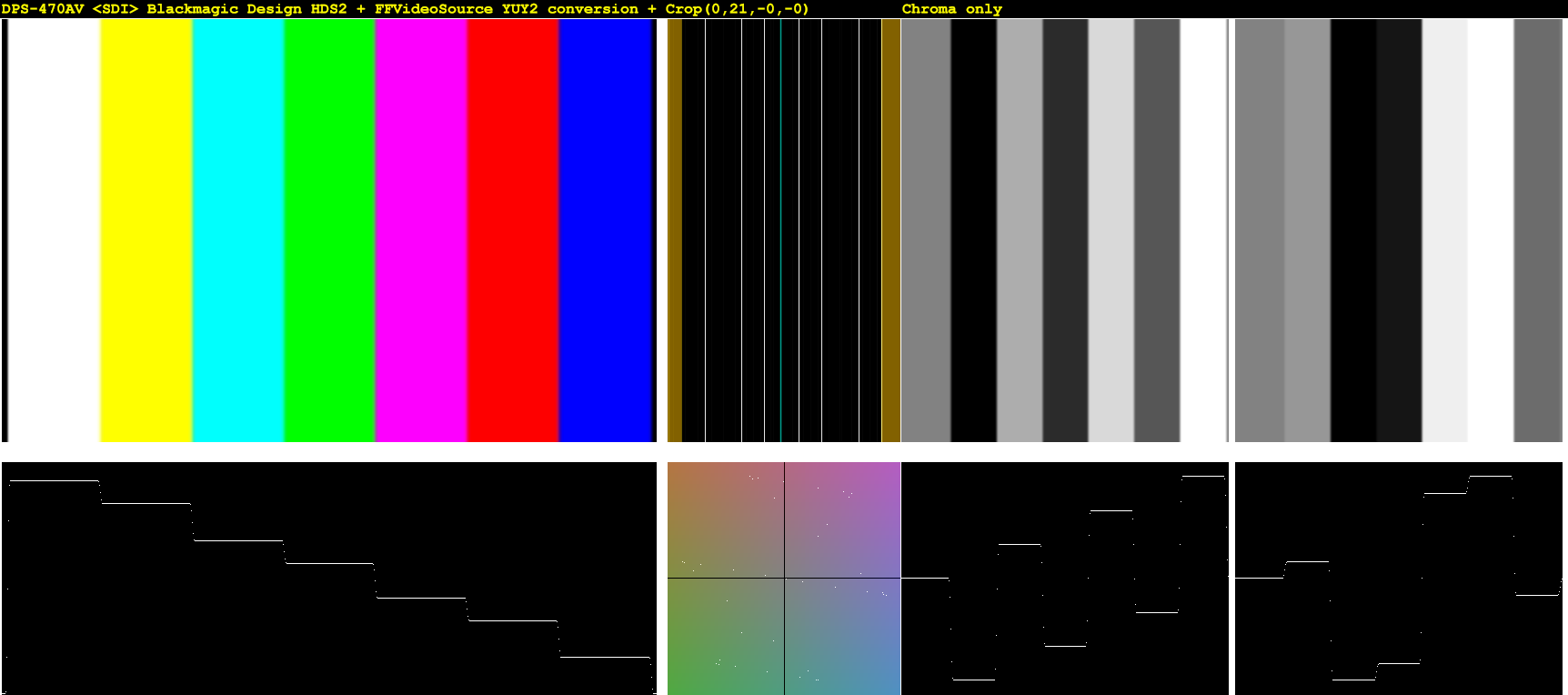

    Reference: SDI 10-bit FFVideoSource 8-bit
    Click image for larger version

Name:	DPS-470AV_FFVideoYUY2_1.png
Views:	3316
Size:	18.2 KB
ID:	21621 Click image for larger version

Name:	DPS-470AV_FFVideoYUY2_4.png
Views:	3180
Size:	14.4 KB
ID:	21970 Click image for larger version

Name:	DPS-470AV_FFVideoYUY2_5.png
Views:	3142
Size:	14.7 KB
ID:	21968 Click image for larger version

Name:	DPS-470AV_FFVideoYUY2_8.png
Views:	3314
Size:	15.6 KB
ID:	21982 Click image for larger version

Name:	DPS-470AV_FFVideoYUY2_3.png
Views:	3446
Size:	14.6 KB
ID:	21971 Click image for larger version

Name:	DPS-470AV_FFVideoYUY2_9.png
Views:	3188
Size:	18.9 KB
ID:	21983 Click image for larger version

Name:	DPS-470AV_FFVideoYUY2_6.png
Views:	3264
Size:	20.6 KB
ID:	21623 Click image for larger version

Name:	DPS-470AV_FFVideoYUY2_7.png
Views:	3208
Size:	22.1 KB
ID:	21622 Click image for larger version

Name:	DPS-470AV_FFVideoYUY2_2.png
Views:	3268
Size:	15.9 KB
ID:	21969

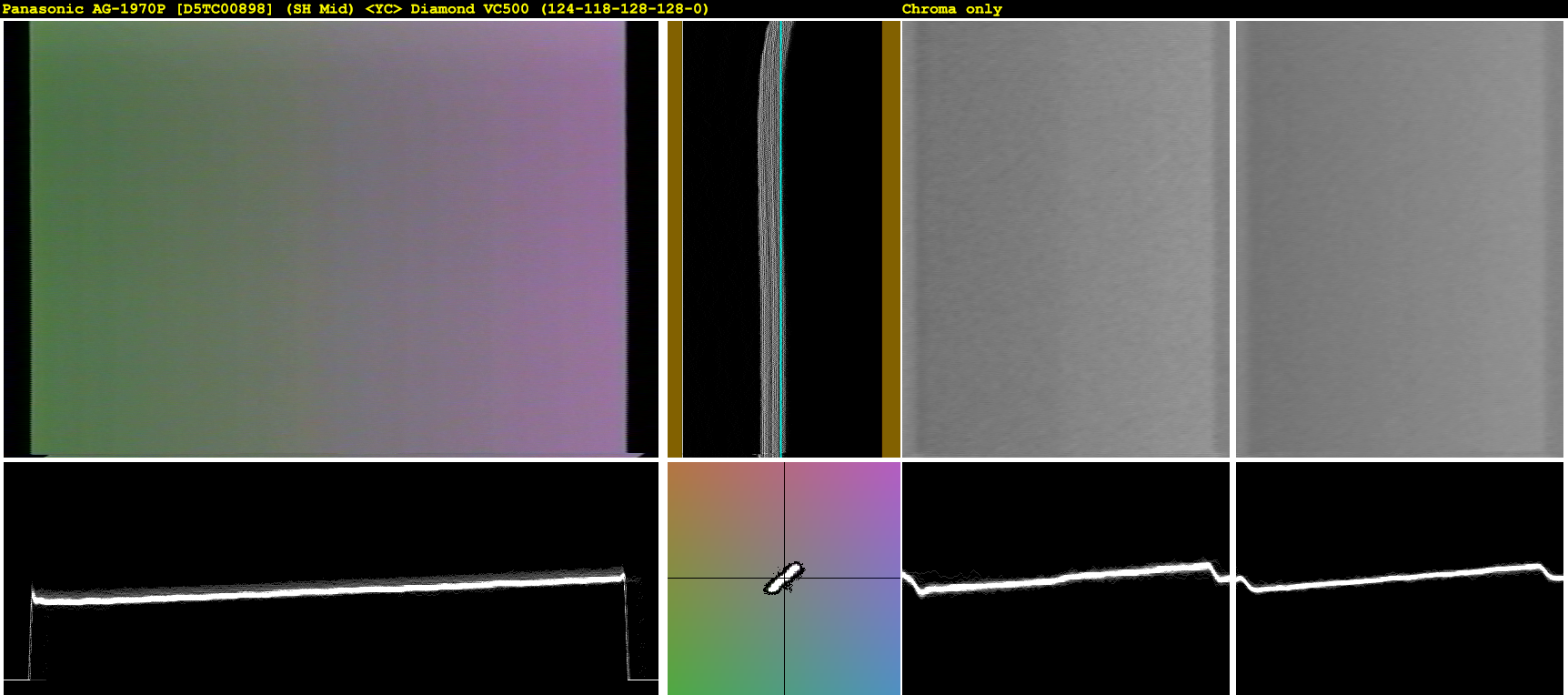

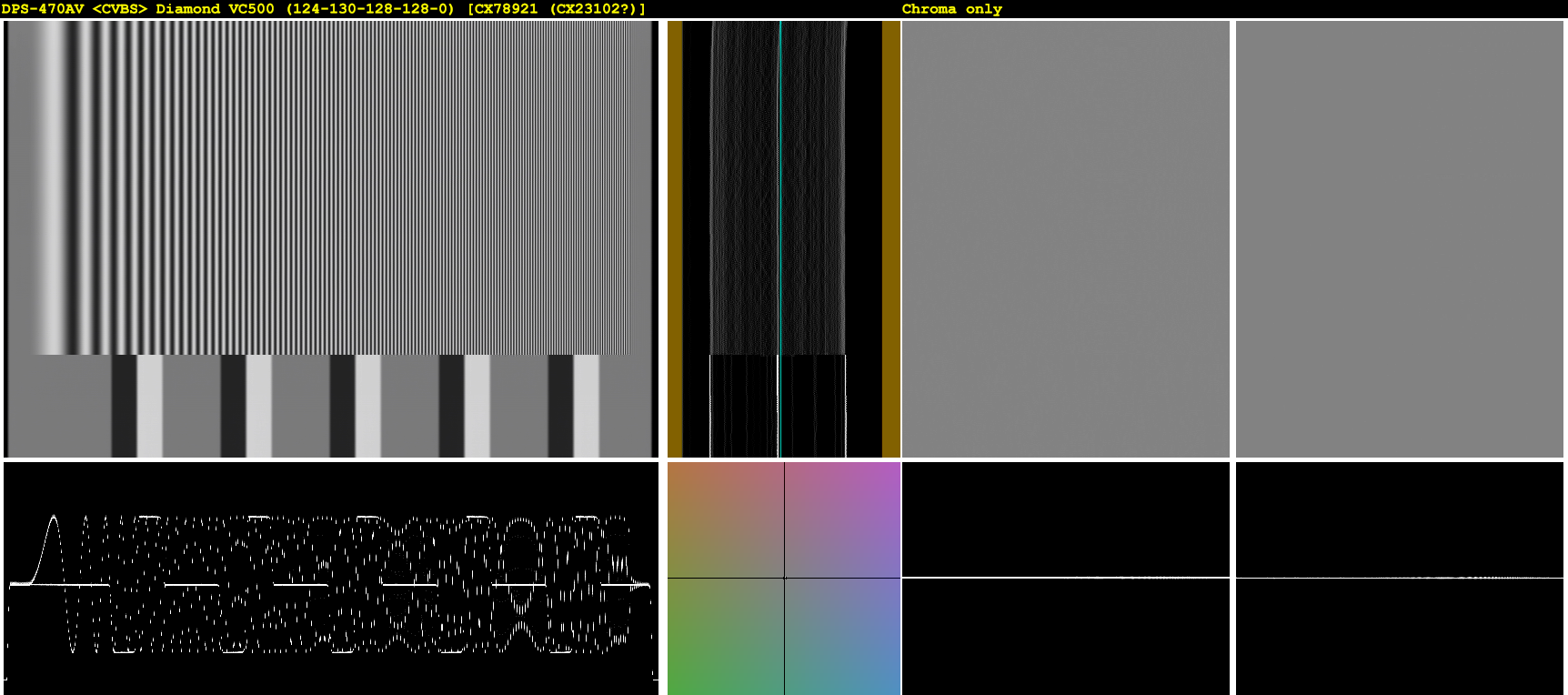

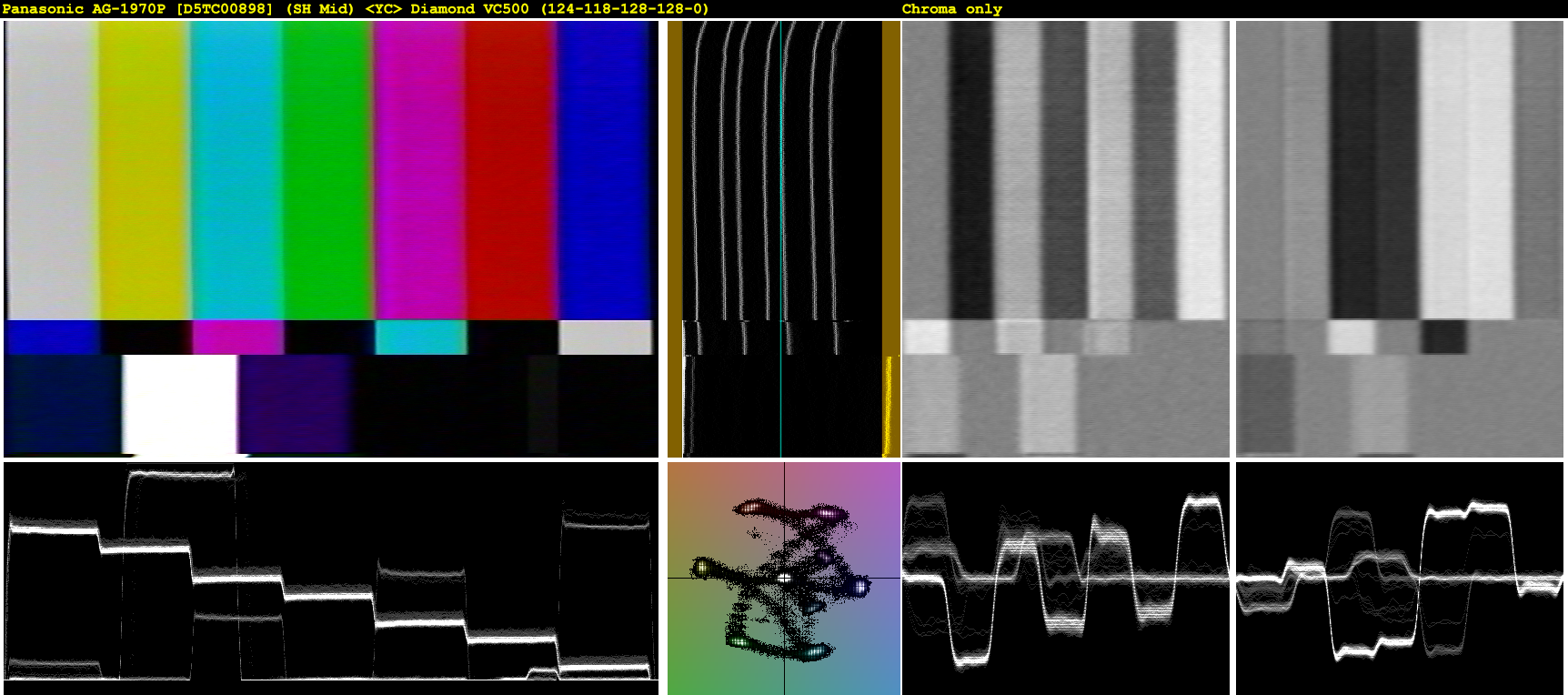

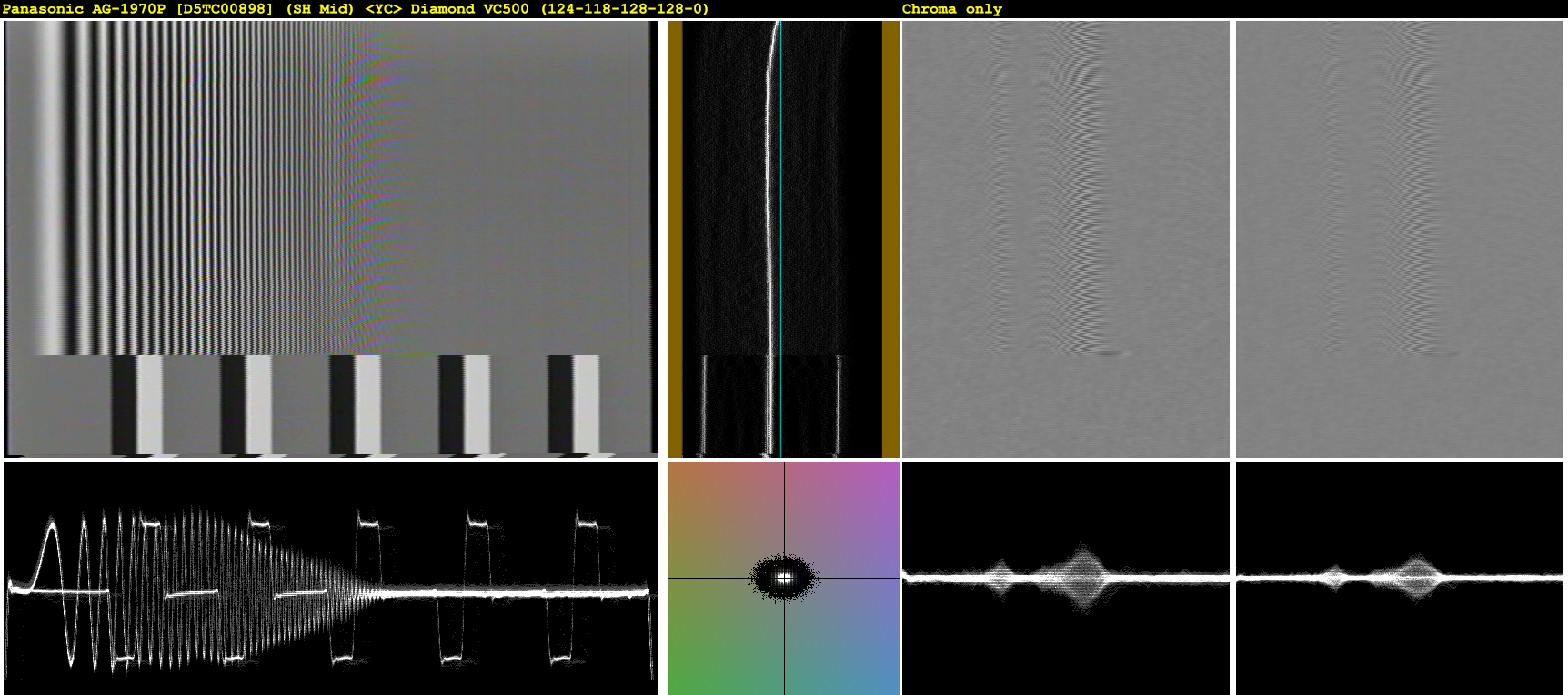

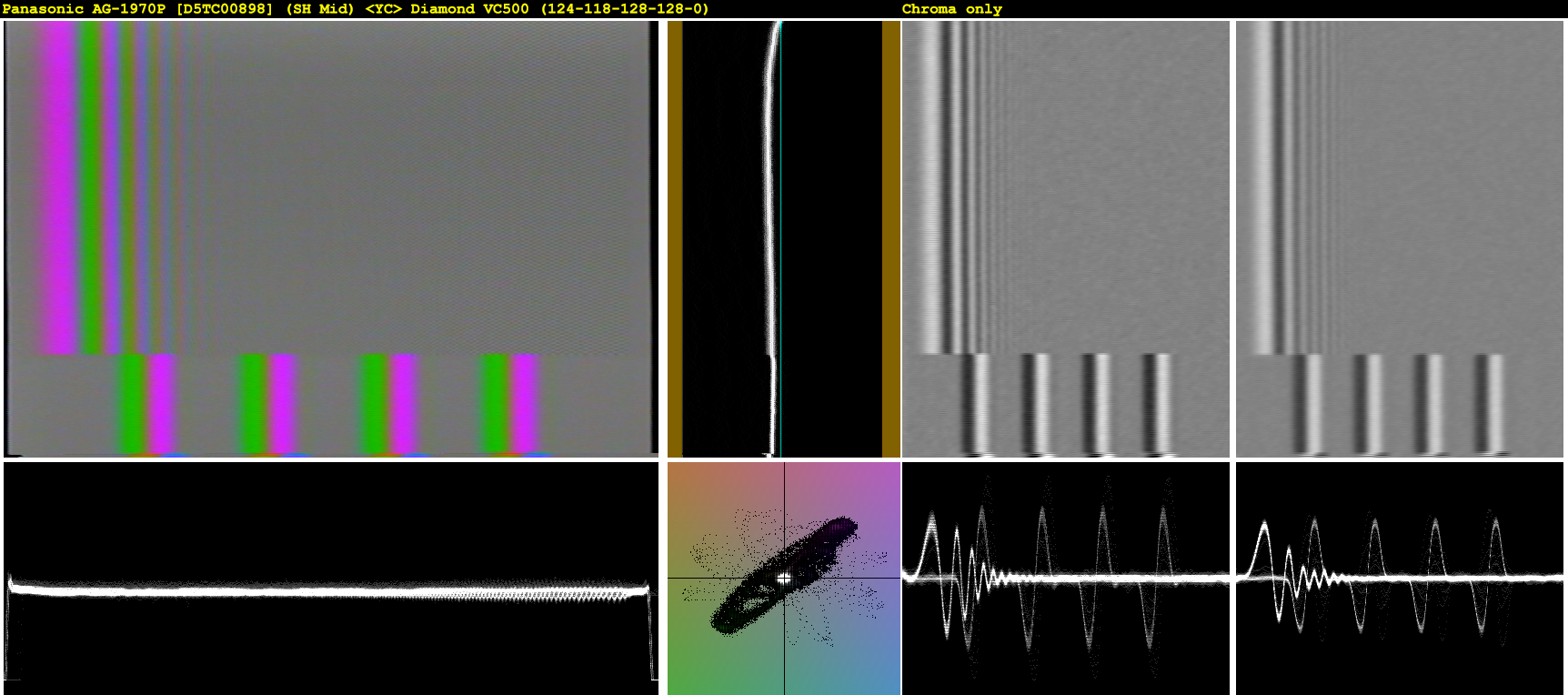

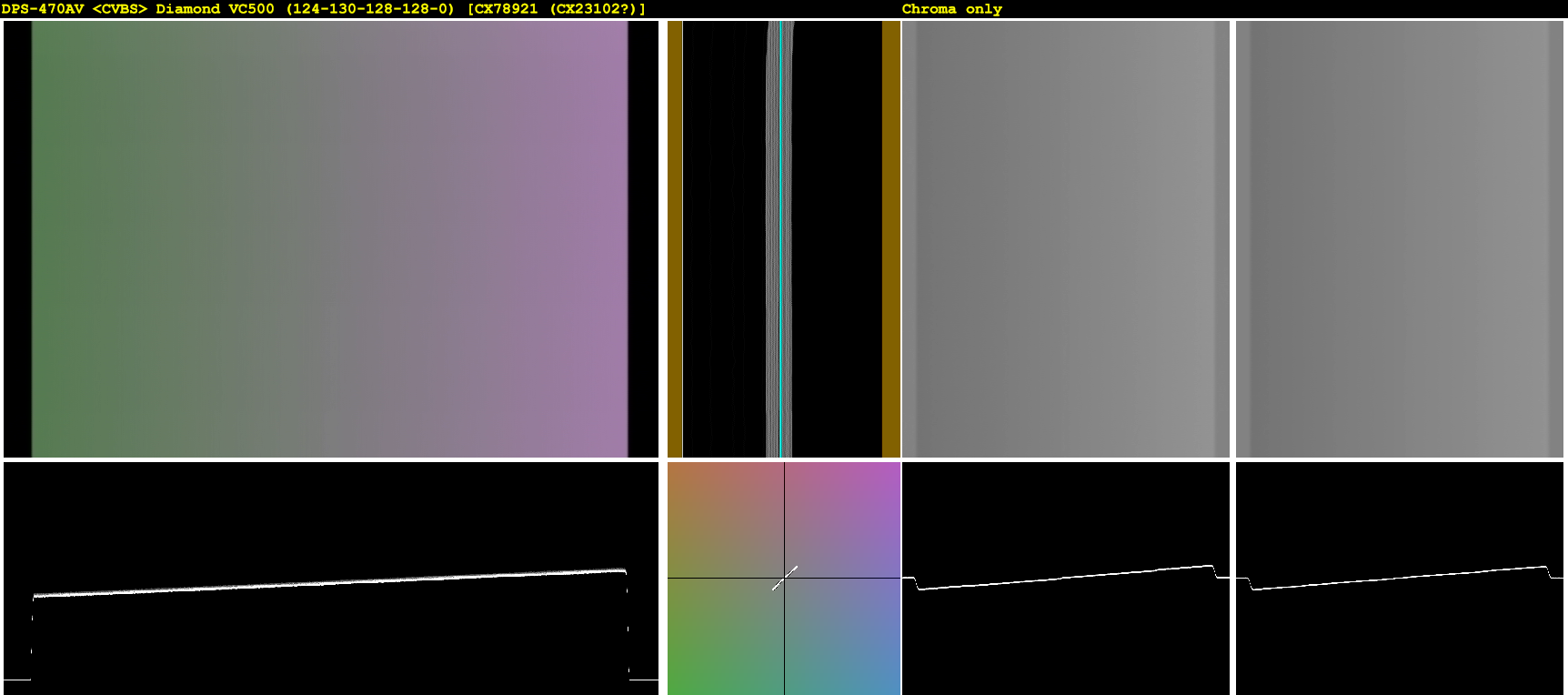

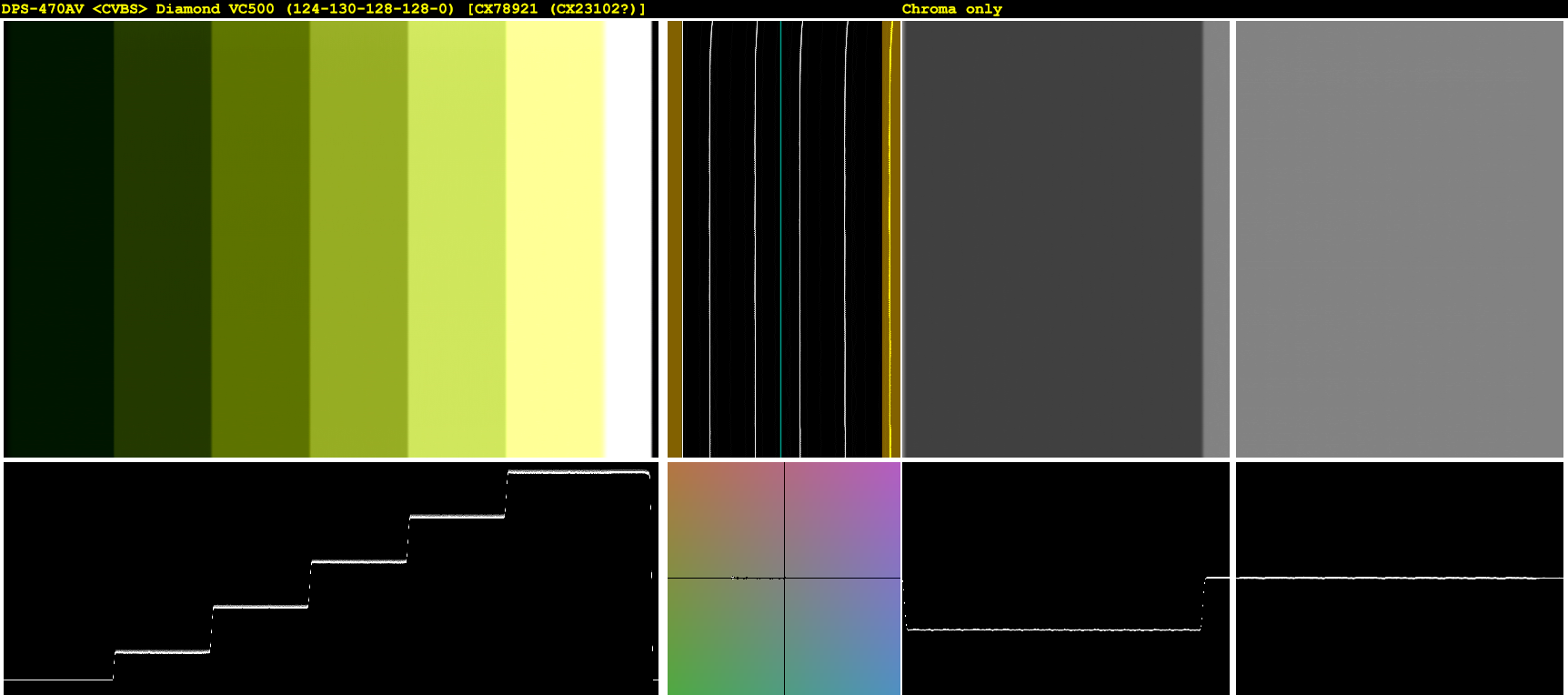

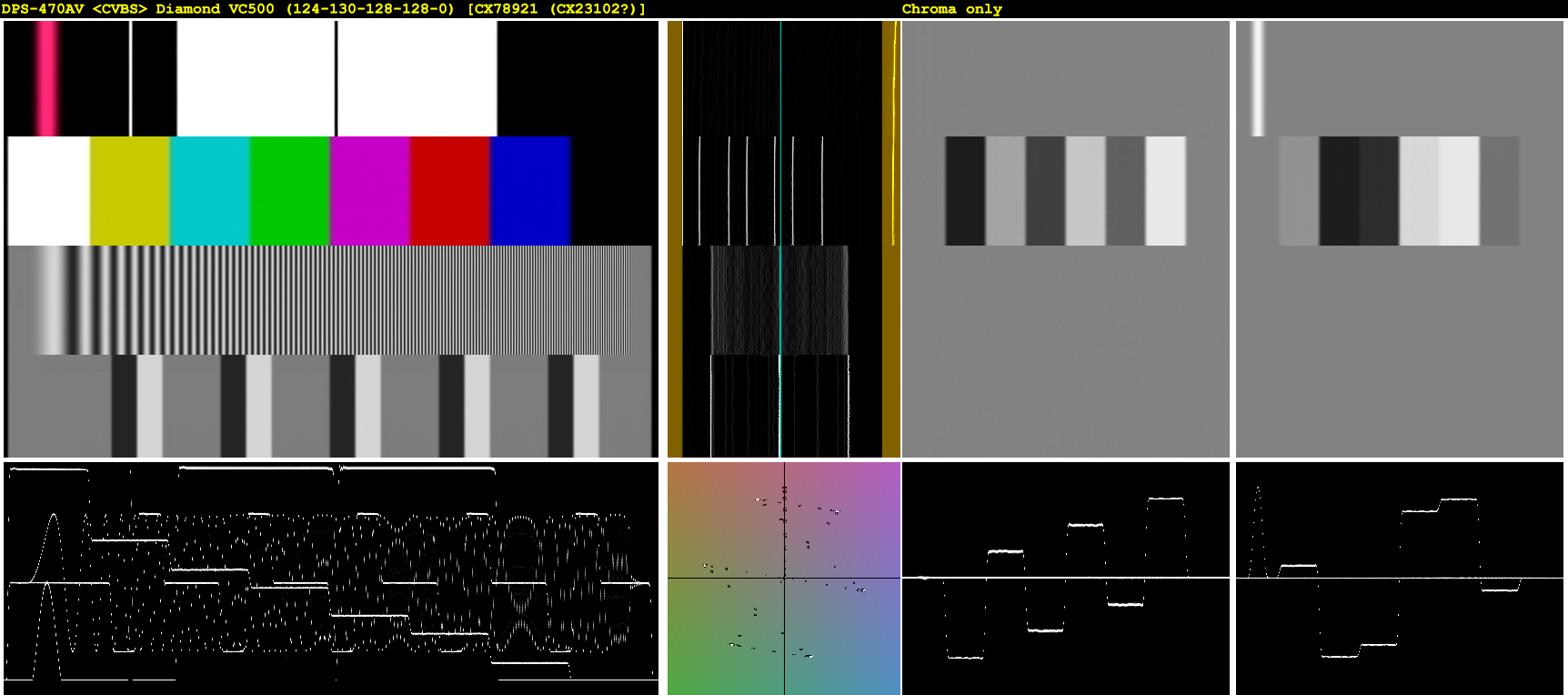

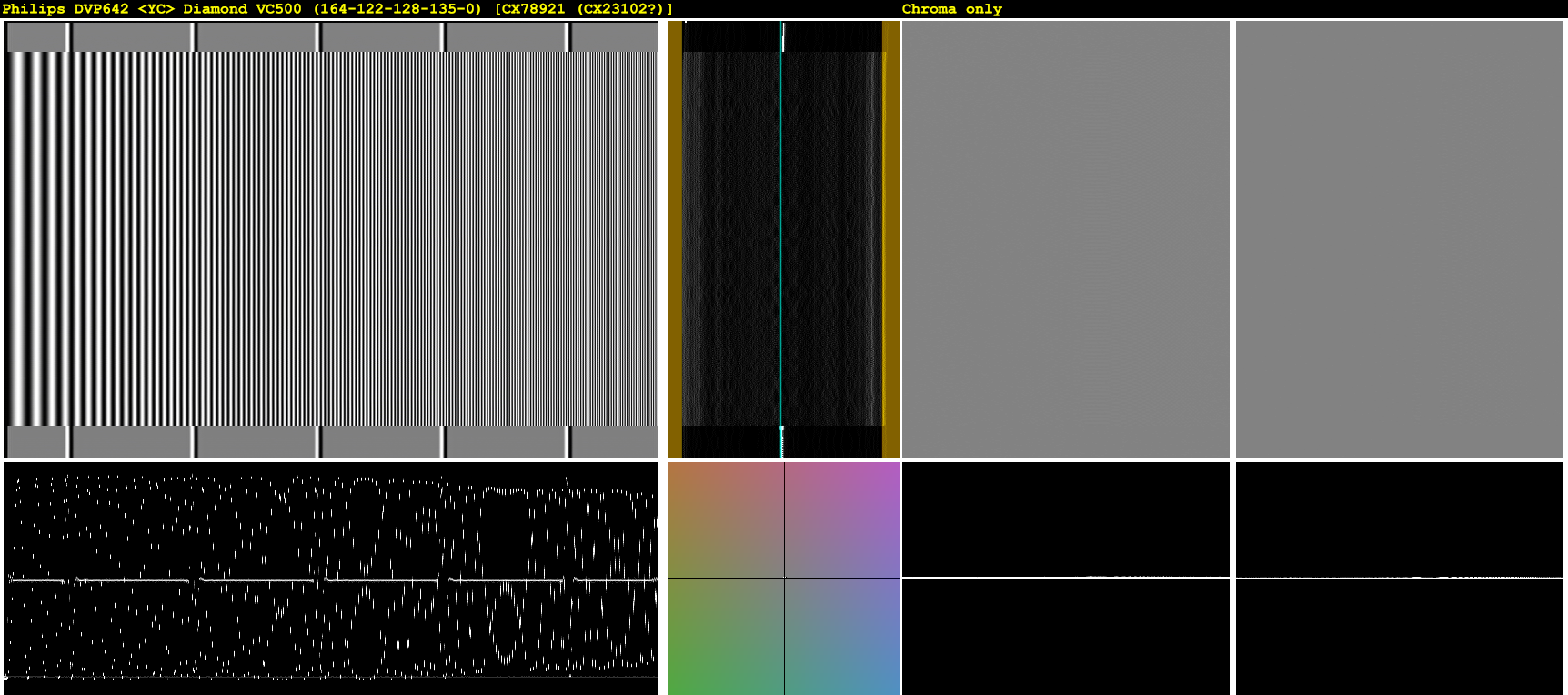

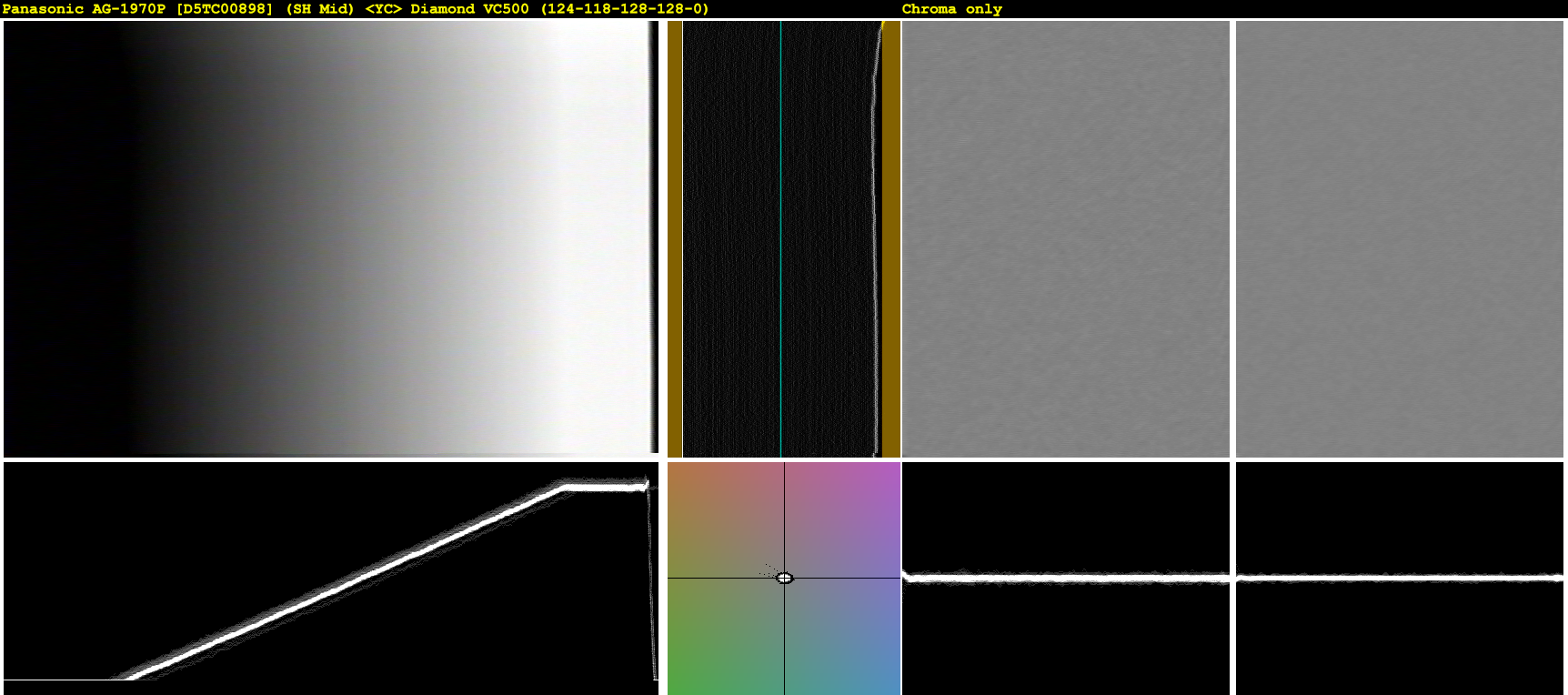

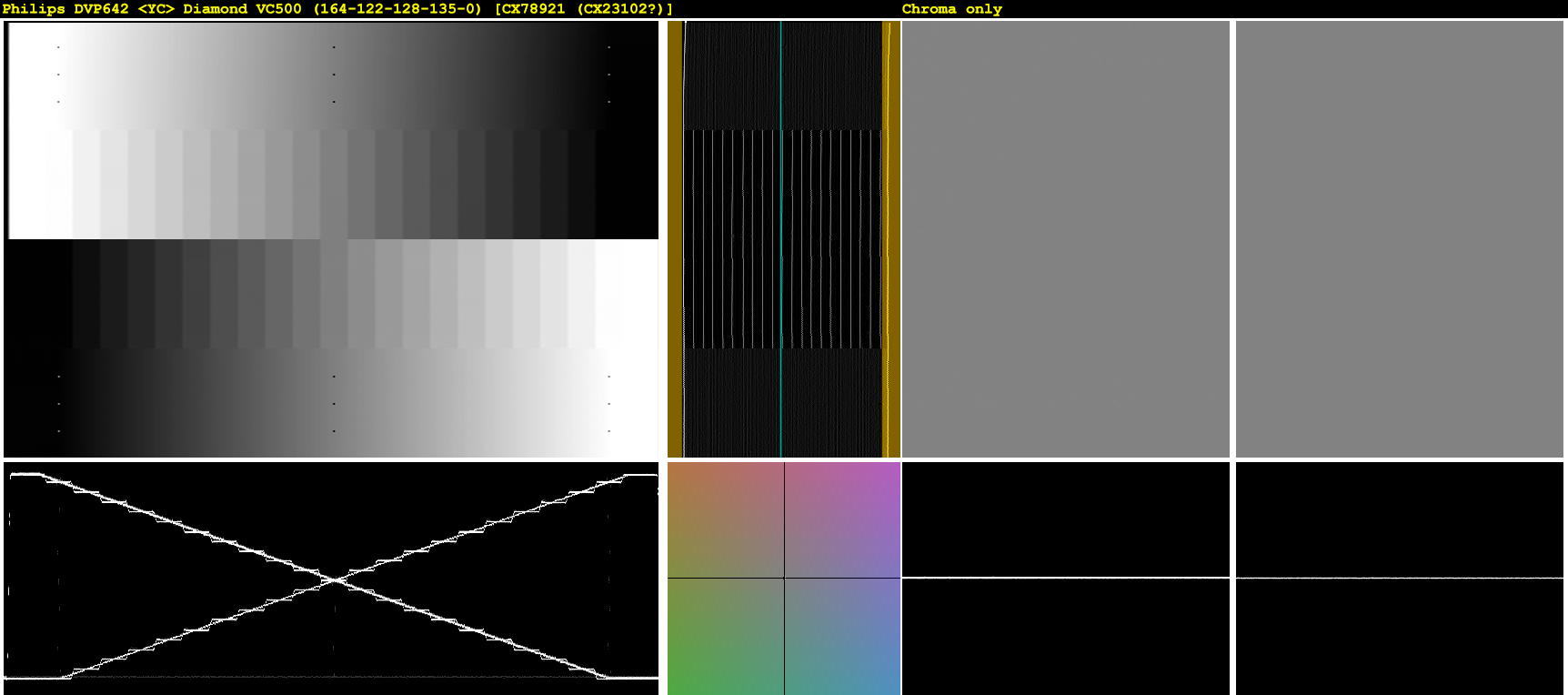

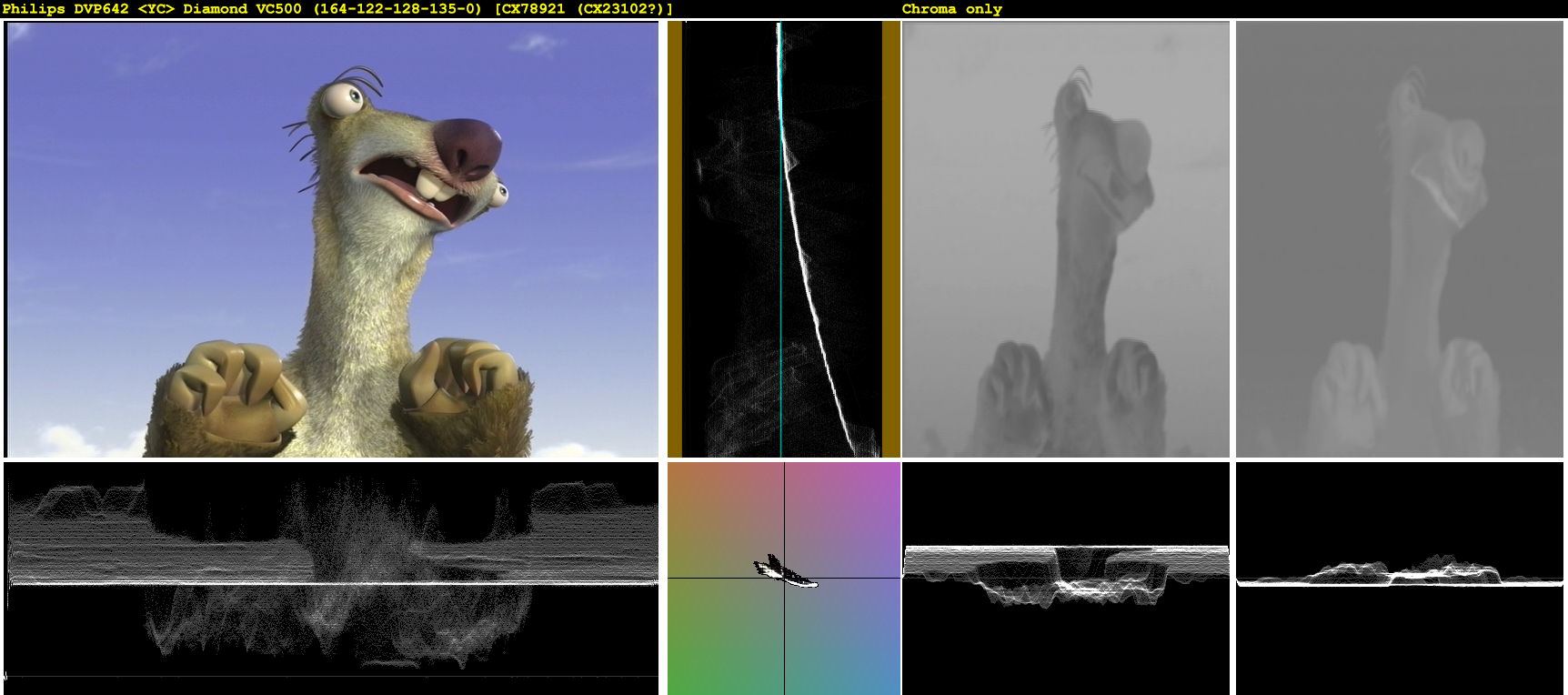

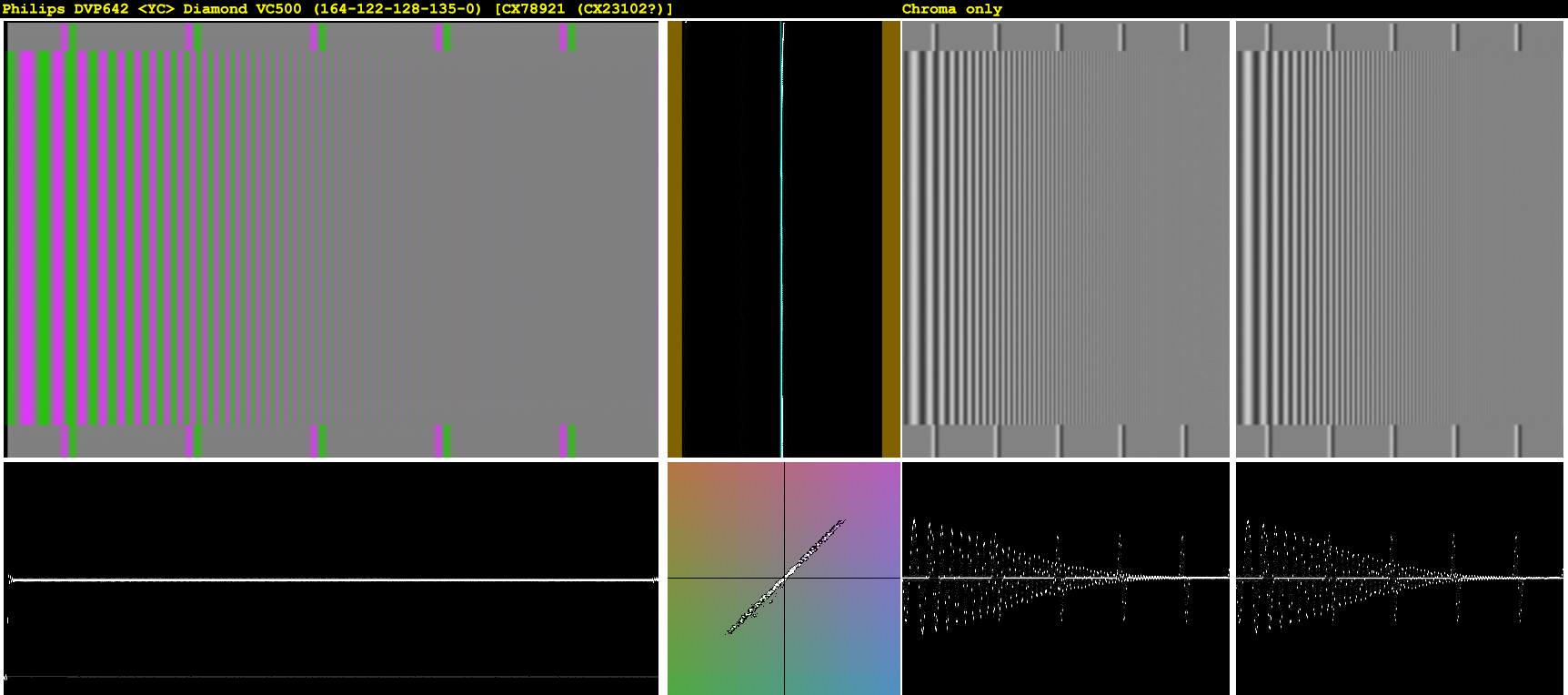

    Diamond VC500
    Click image for larger version

Name:	DPS-470AV_VC500_1.png
Views:	3336
Size:	369.6 KB
ID:	21595 Click image for larger version

Name:	DPS-470AV_VC500_4.png
Views:	3206
Size:	221.0 KB
ID:	22002 Click image for larger version

Name:	DPS-470AV_VC500_5.png
Views:	3214
Size:	355.5 KB
ID:	21999 Click image for larger version

Name:	DPS-470AV_VC500_8.png
Views:	3118
Size:	333.6 KB
ID:	22003 Click image for larger version

Name:	DPS-470AV_VC500_3.png
Views:	3136
Size:	274.5 KB
ID:	21998 Click image for larger version

Name:	DPS-470AV_VC500_9.png
Views:	3232
Size:	379.4 KB
ID:	22001 Click image for larger version

Name:	DPS-470AV_VC500_6.png
Views:	3302
Size:	482.9 KB
ID:	21607 Click image for larger version

Name:	DPS-470AV_VC500_7.png
Views:	3059
Size:	593.9 KB
ID:	21616 Click image for larger version

Name:	DPS-470AV_VC500_2.png
Views:	3194
Size:	457.5 KB
ID:	22000

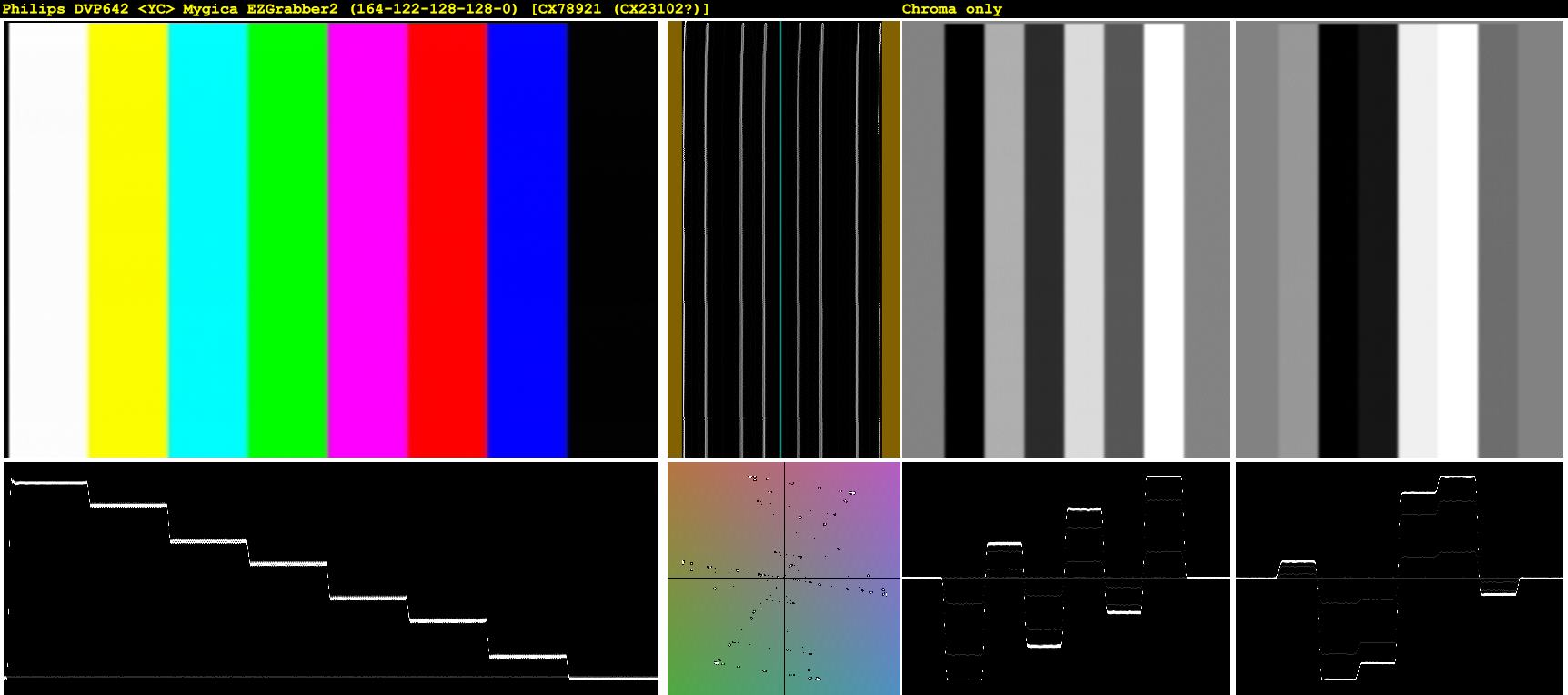

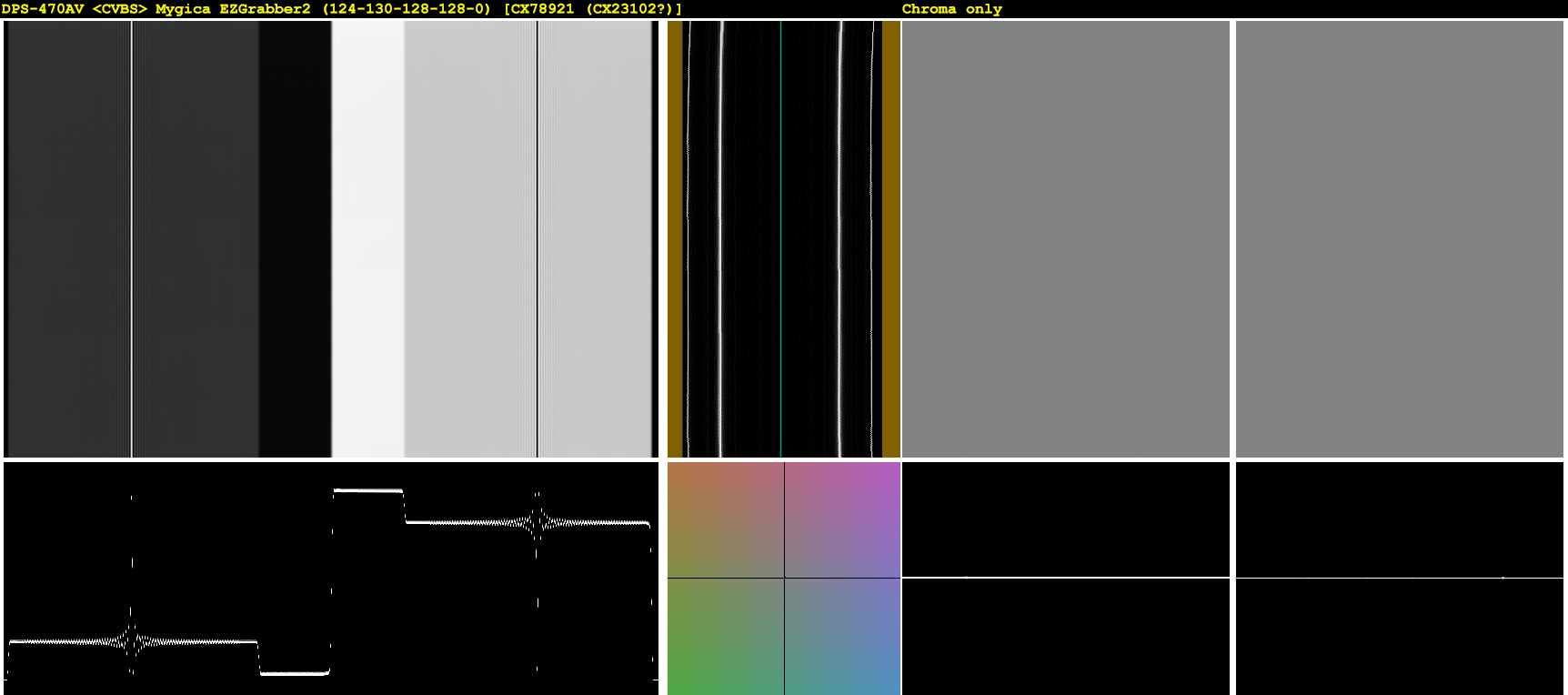

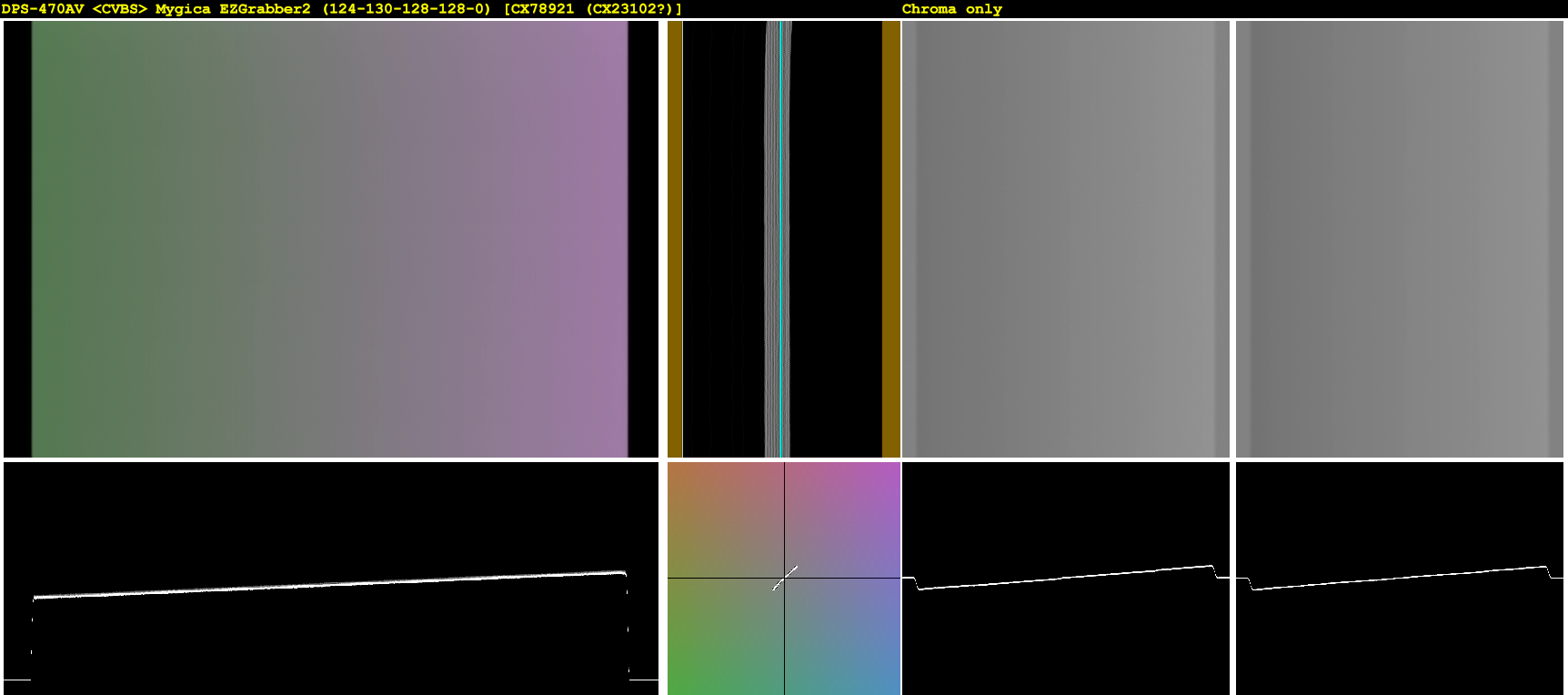

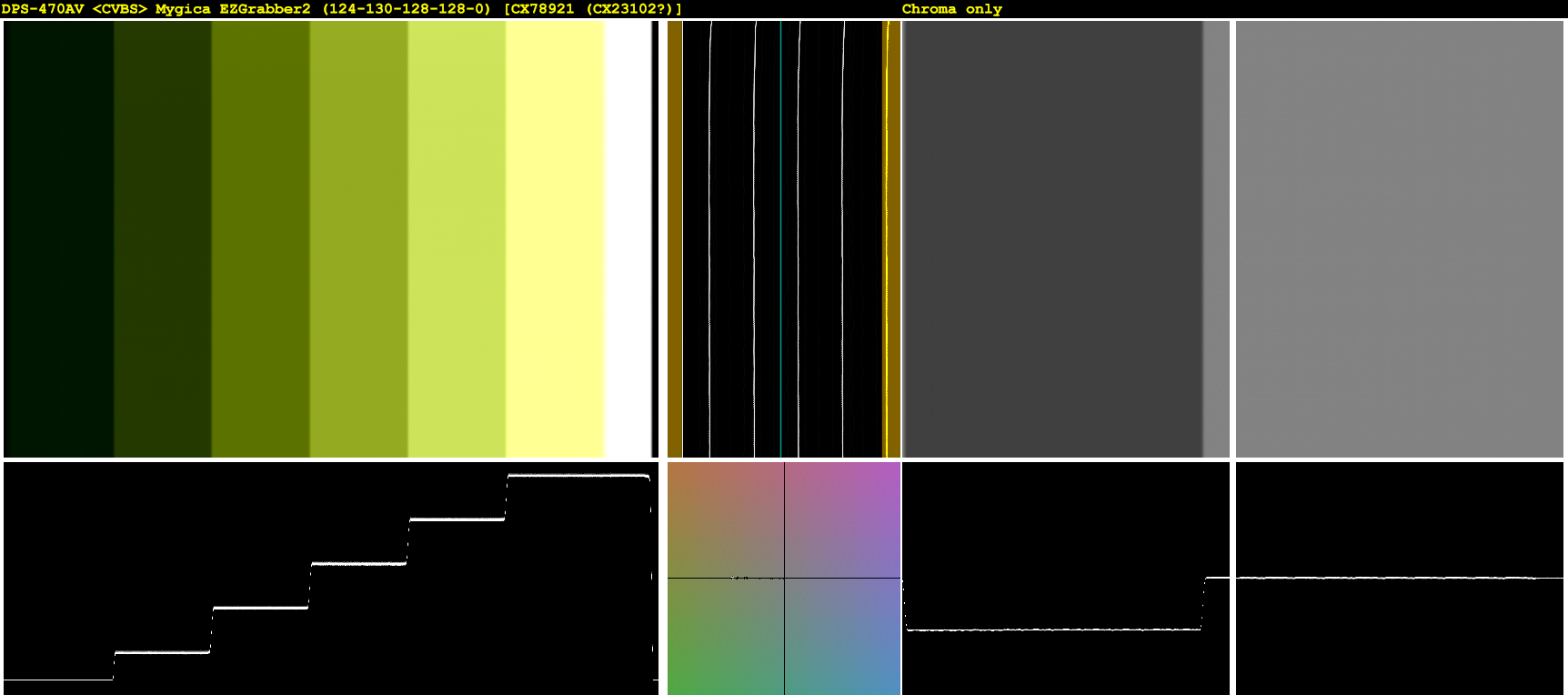

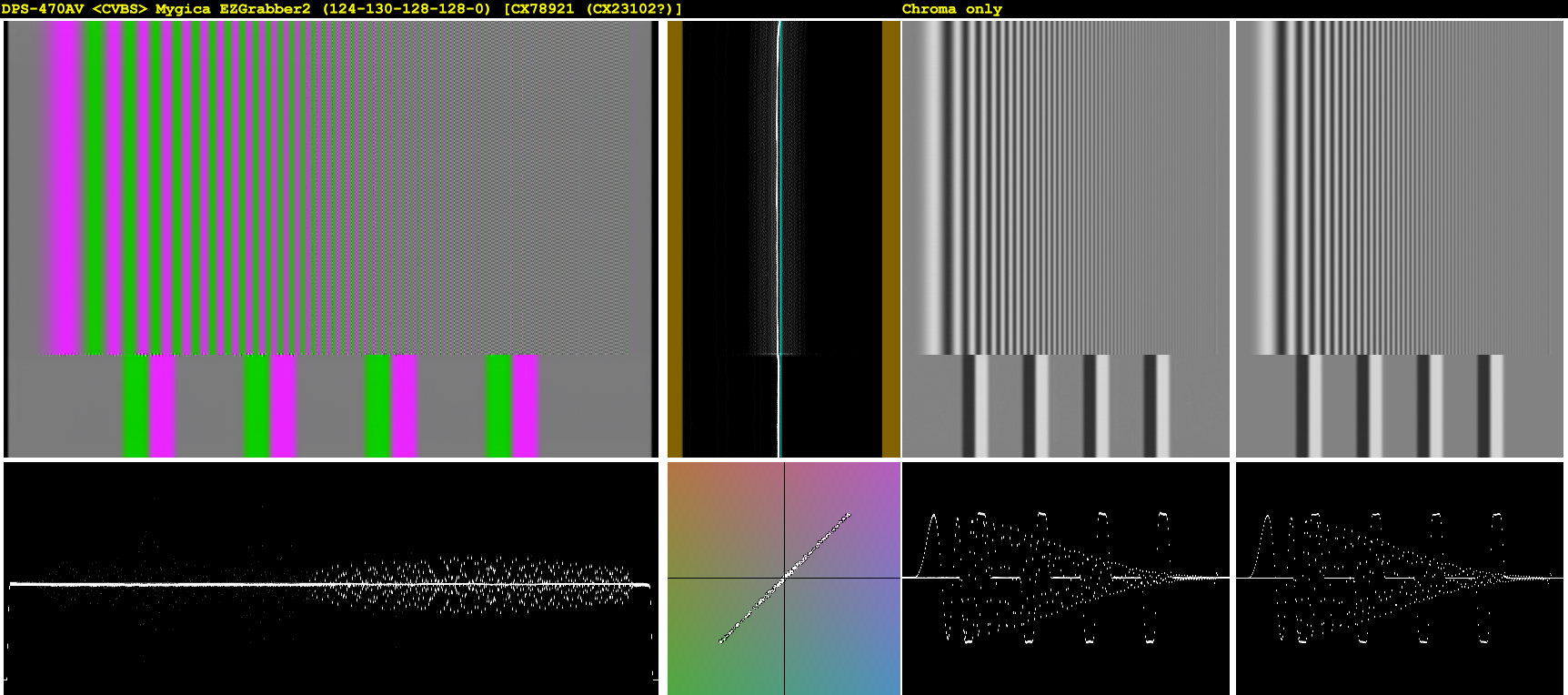

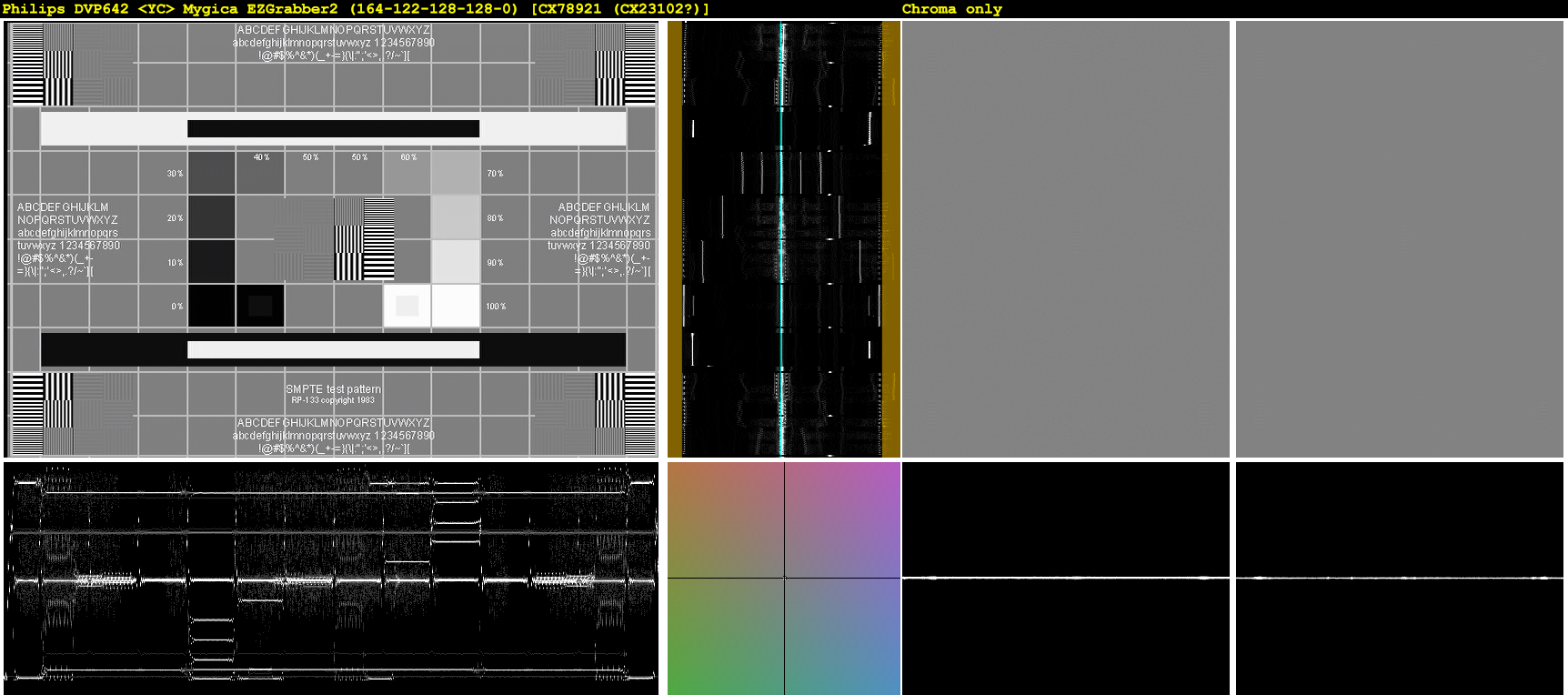

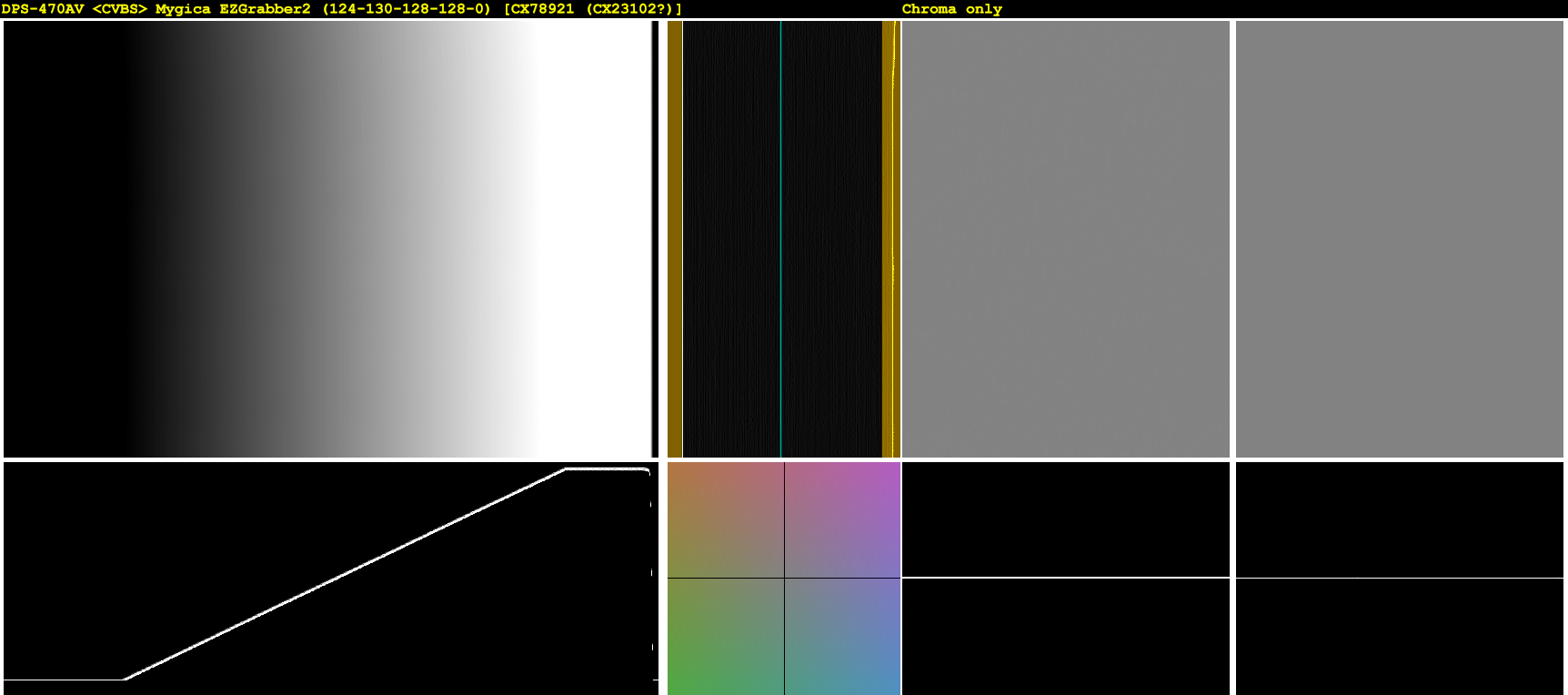

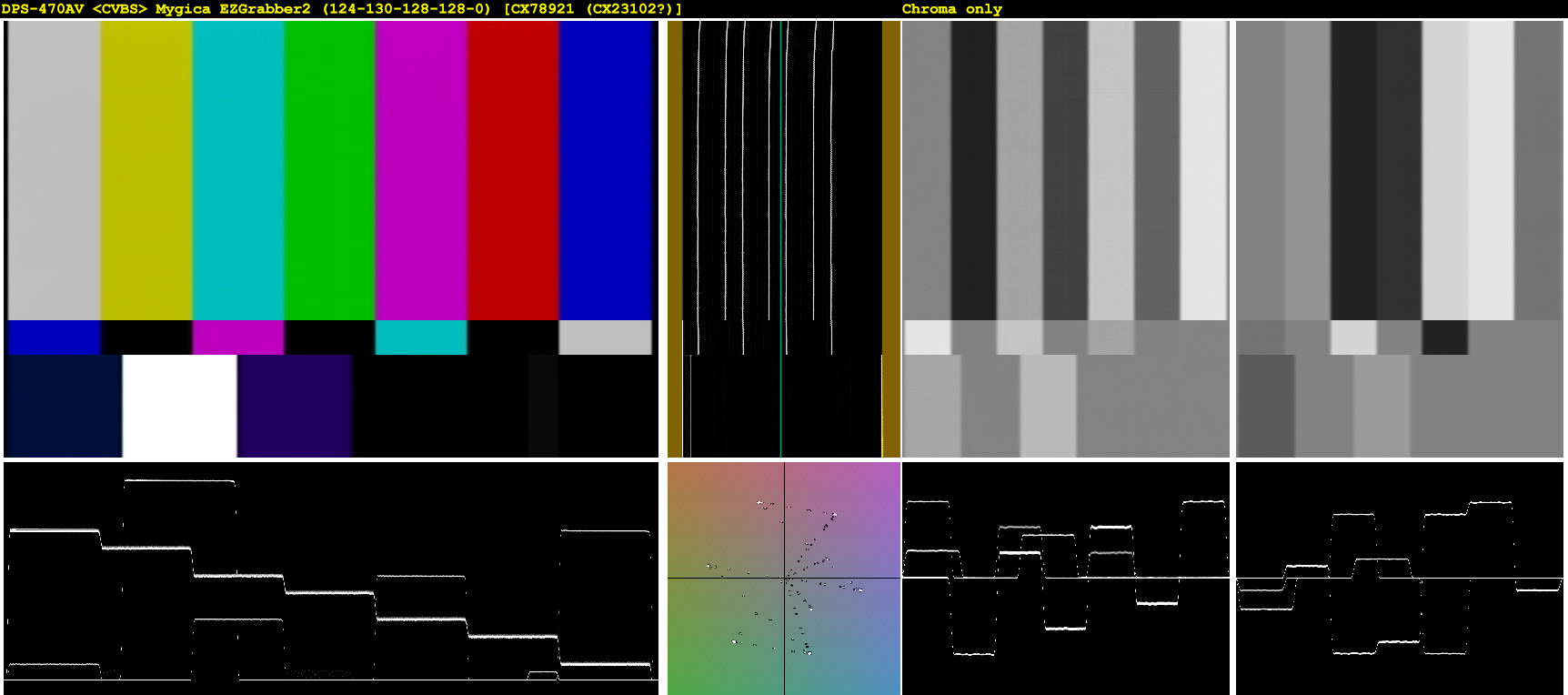

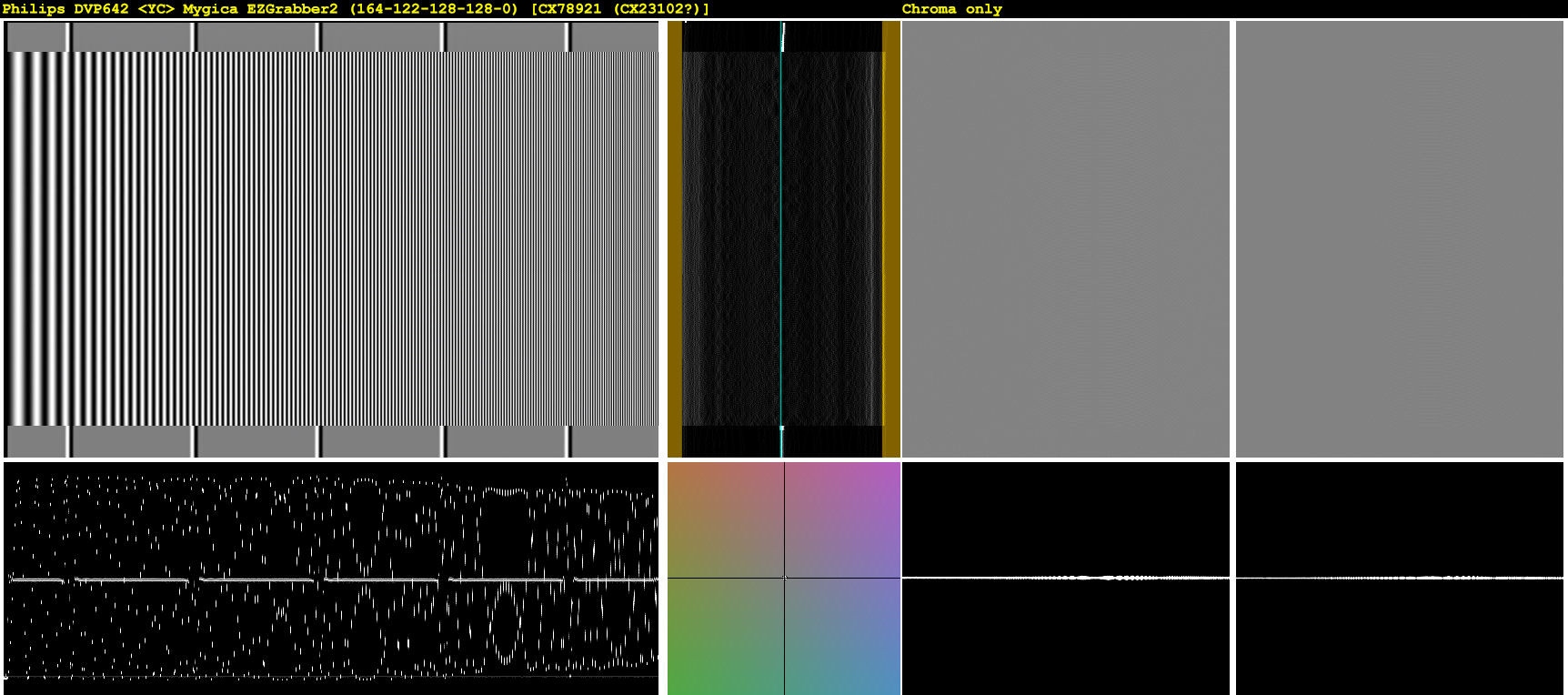

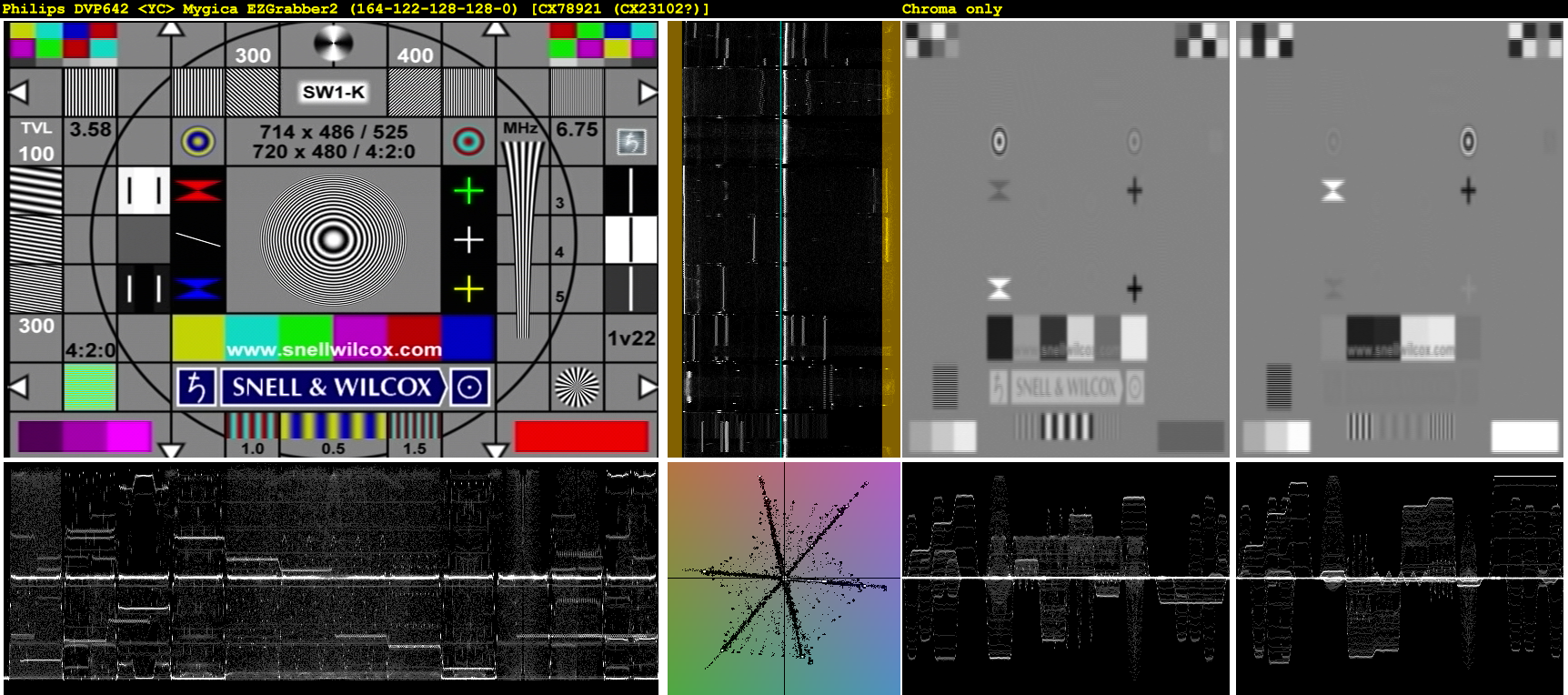

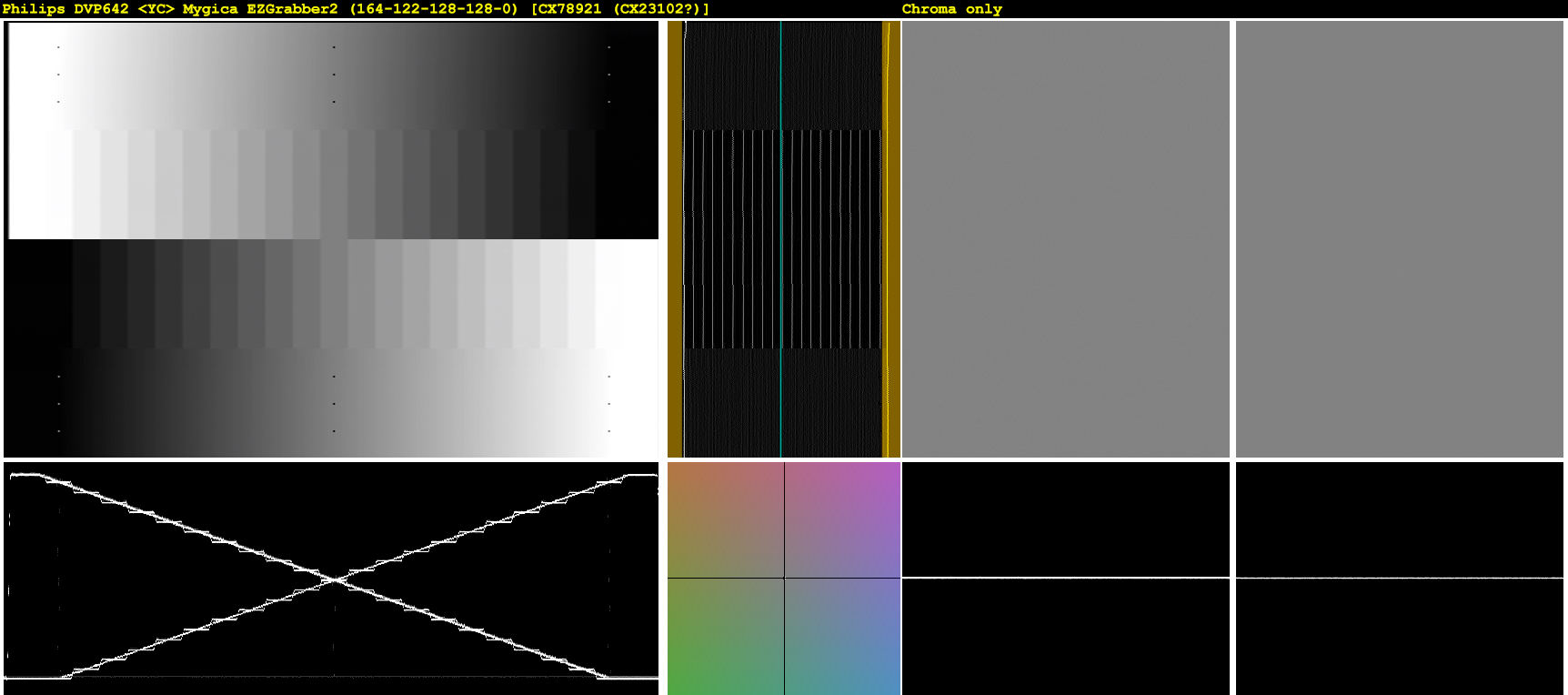

    Mygica EZGrabber2
    Click image for larger version

Name:	DPS-470AV_EZGrabber2_1.png
Views:	3255
Size:	326.3 KB
ID:	21596 Click image for larger version

Name:	DPS-470AV_EZGrabber2_4.png
Views:	3182
Size:	242.5 KB
ID:	21967 Click image for larger version

Name:	DPS-470AV_EZGrabber2_5.png
Views:	3102
Size:	342.0 KB
ID:	21964 Click image for larger version

Name:	DPS-470AV_EZGrabber2_8.png
Views:	3105
Size:	316.0 KB
ID:	21980 Click image for larger version

Name:	DPS-470AV_EZGrabber2_3.png
Views:	3114
Size:	269.9 KB
ID:	21965 Click image for larger version

Name:	DPS-470AV_EZGrabber2_9.png
Views:	3070
Size:	291.0 KB
ID:	21981 Click image for larger version

Name:	DPS-470AV_EZGrabber2_6.png
Views:	3114
Size:	470.0 KB
ID:	21611 Click image for larger version

Name:	DPS-470AV_EZGrabber2_7.png
Views:	3021
Size:	581.6 KB
ID:	21617 Click image for larger version

Name:	DPS-470AV_EZGrabber2_2.png
Views:	3111
Size:	338.6 KB
ID:	21966

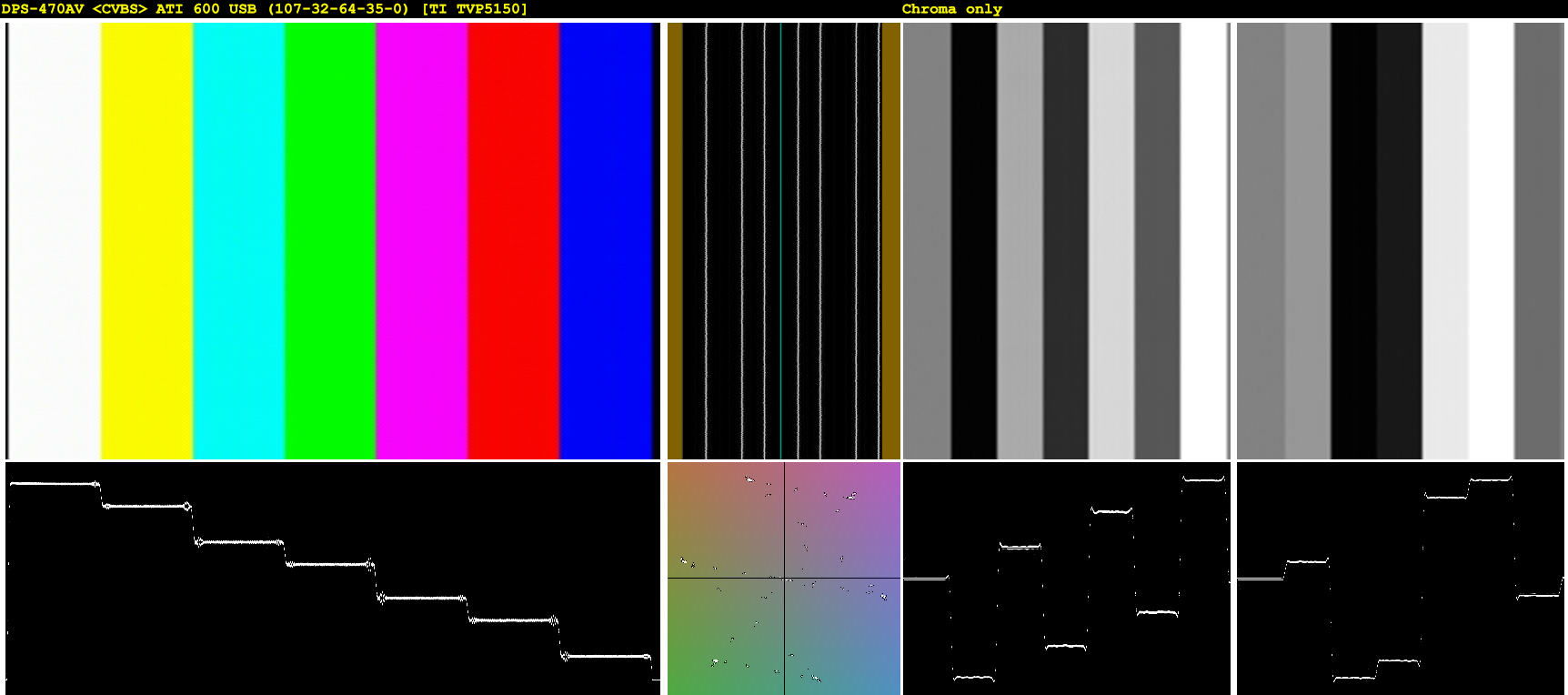

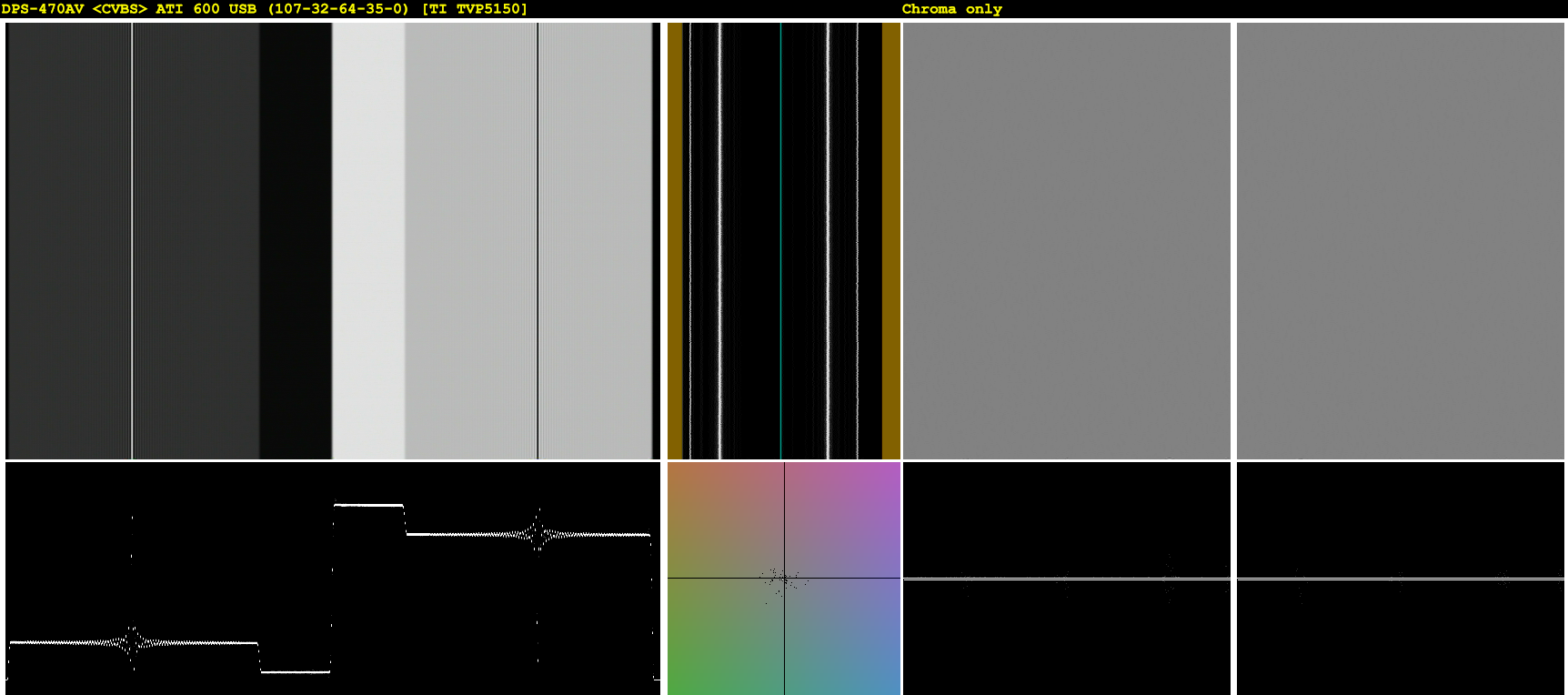

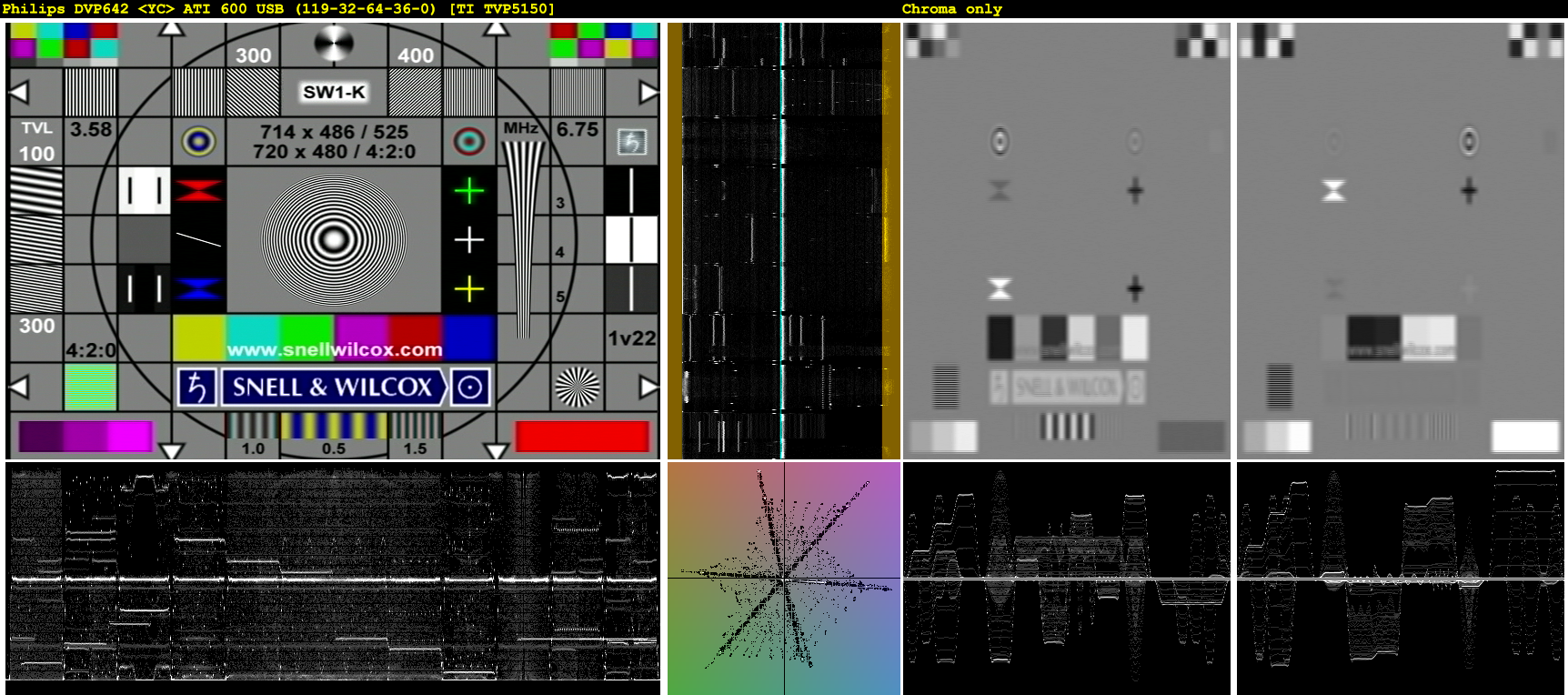

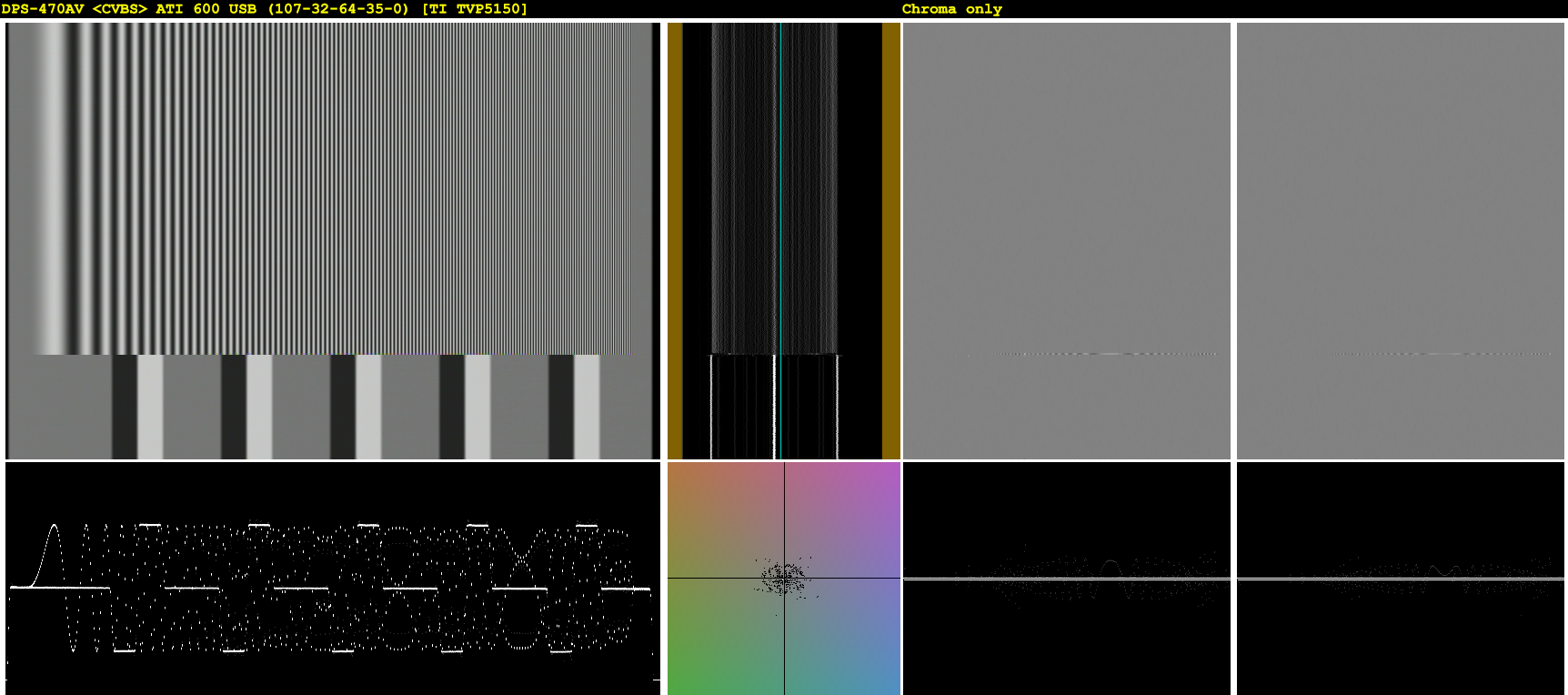

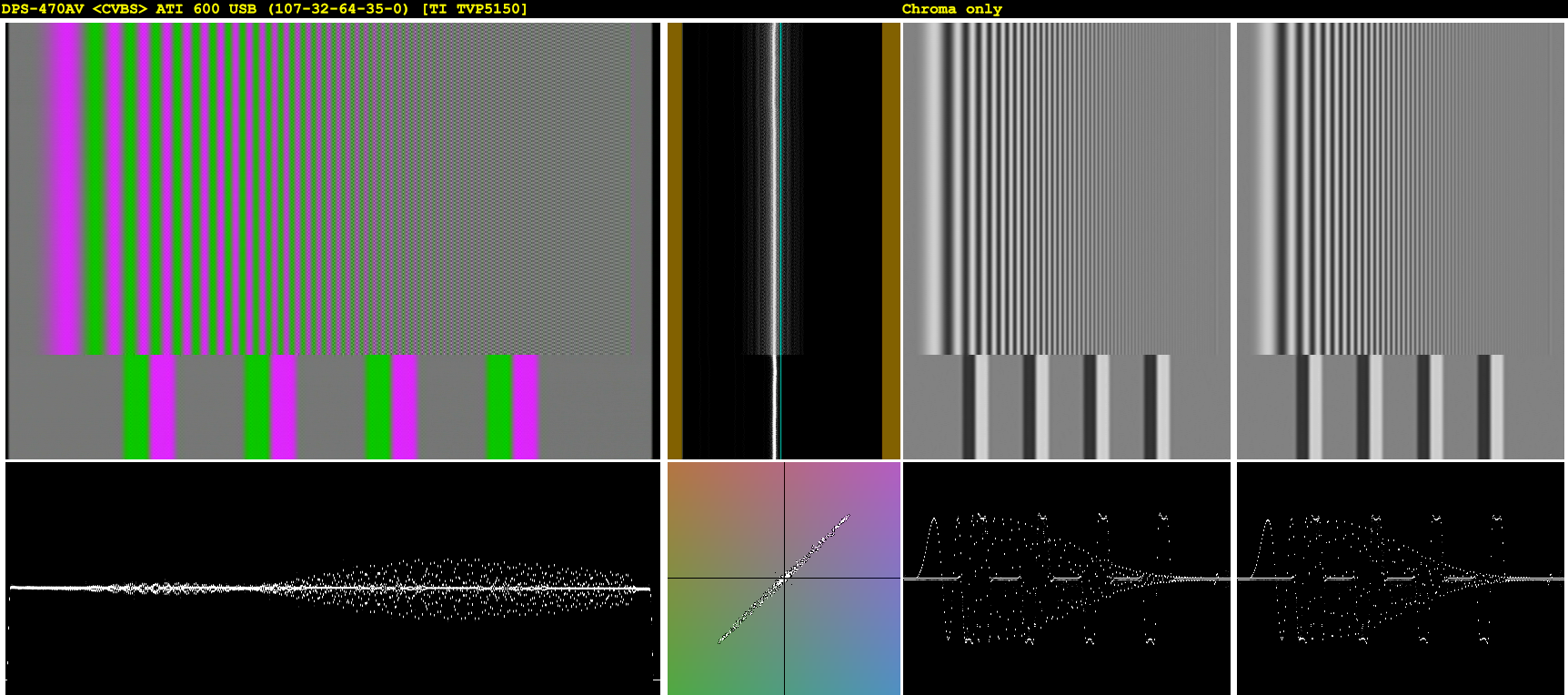

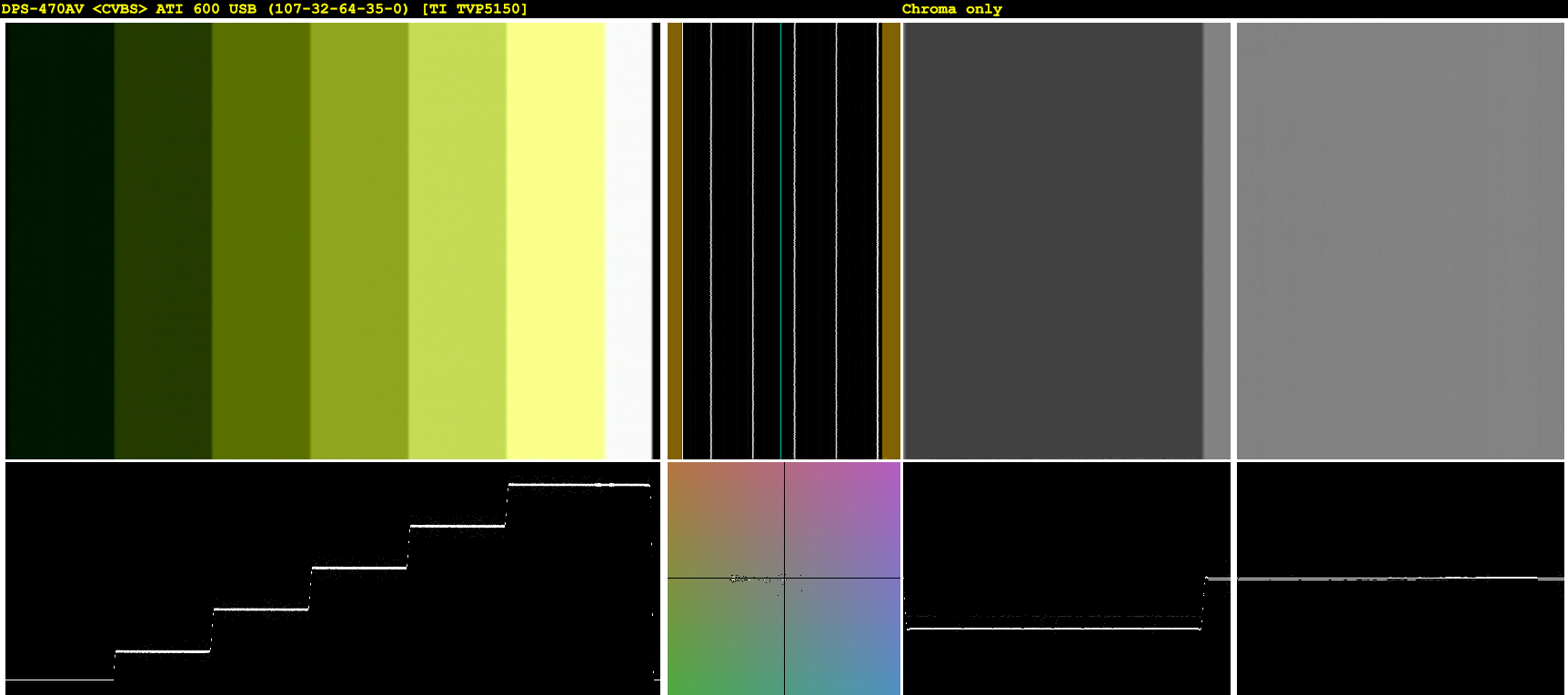

    ATI 600 USB
    Click image for larger version

Name:	DPS-470AV_ATI600_1.png
Views:	3271
Size:	505.0 KB
ID:	21598 Click image for larger version

Name:	DPS-470AV_ATI600_4.png
Views:	3078
Size:	405.4 KB
ID:	21958 Click image for larger version

Name:	DPS-470AV_ATI600_5.png
Views:	3053
Size:	415.5 KB
ID:	21956 Click image for larger version

Name:	DPS-470AV_ATI600_8.png
Views:	2972
Size:	495.7 KB
ID:	21976 Click image for larger version

Name:	DPS-470AV_ATI600_3.png
Views:	2984
Size:	482.7 KB
ID:	21959 Click image for larger version

Name:	DPS-470AV_ATI600_9.png
Views:	2995
Size:	477.8 KB
ID:	21977 Click image for larger version

Name:	DPS-470AV_ATI600_6.png
Views:	3080
Size:	532.1 KB
ID:	21618 Click image for larger version

Name:	DPS-470AV_ATI600_7.png
Views:	3069
Size:	709.7 KB
ID:	21610 Click image for larger version

Name:	DPS-470AV_ATI600_2.png
Views:	3051
Size:	531.5 KB
ID:	21957

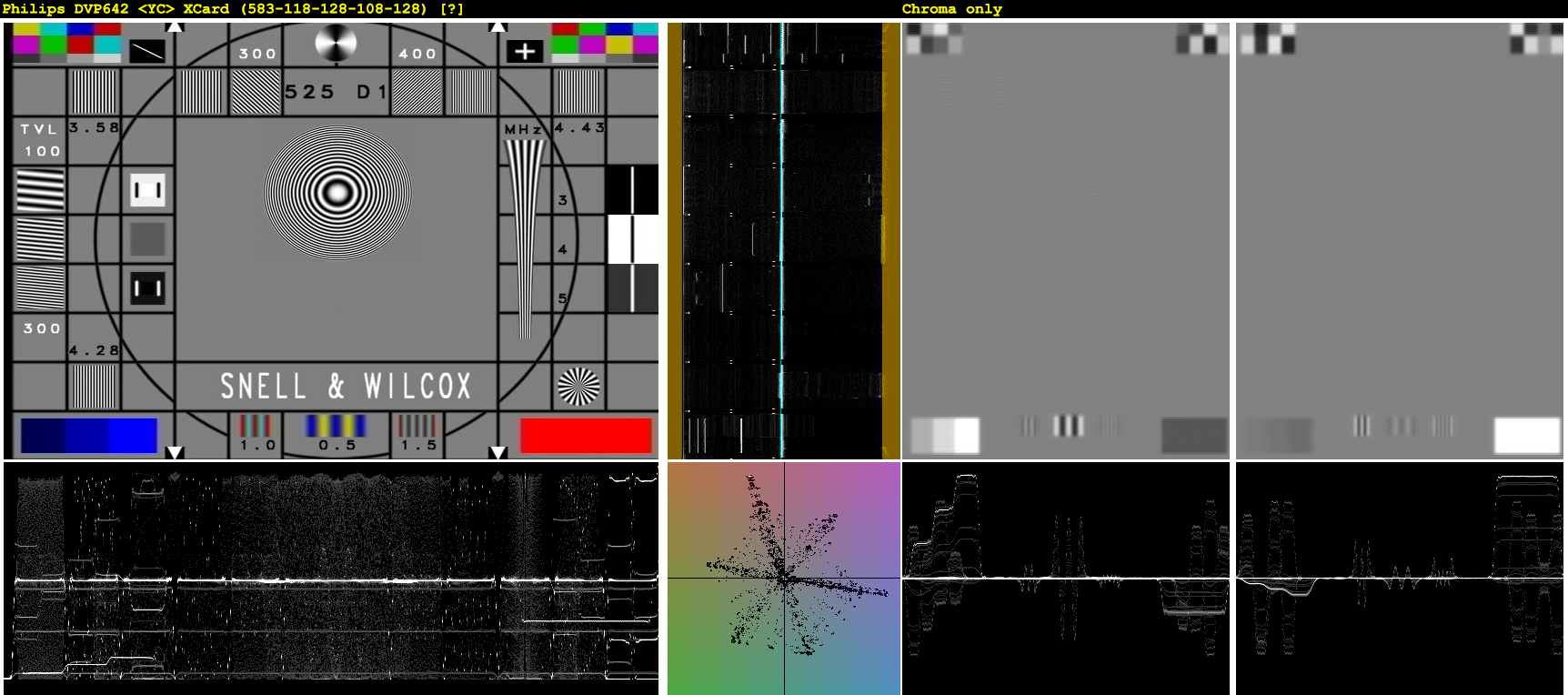

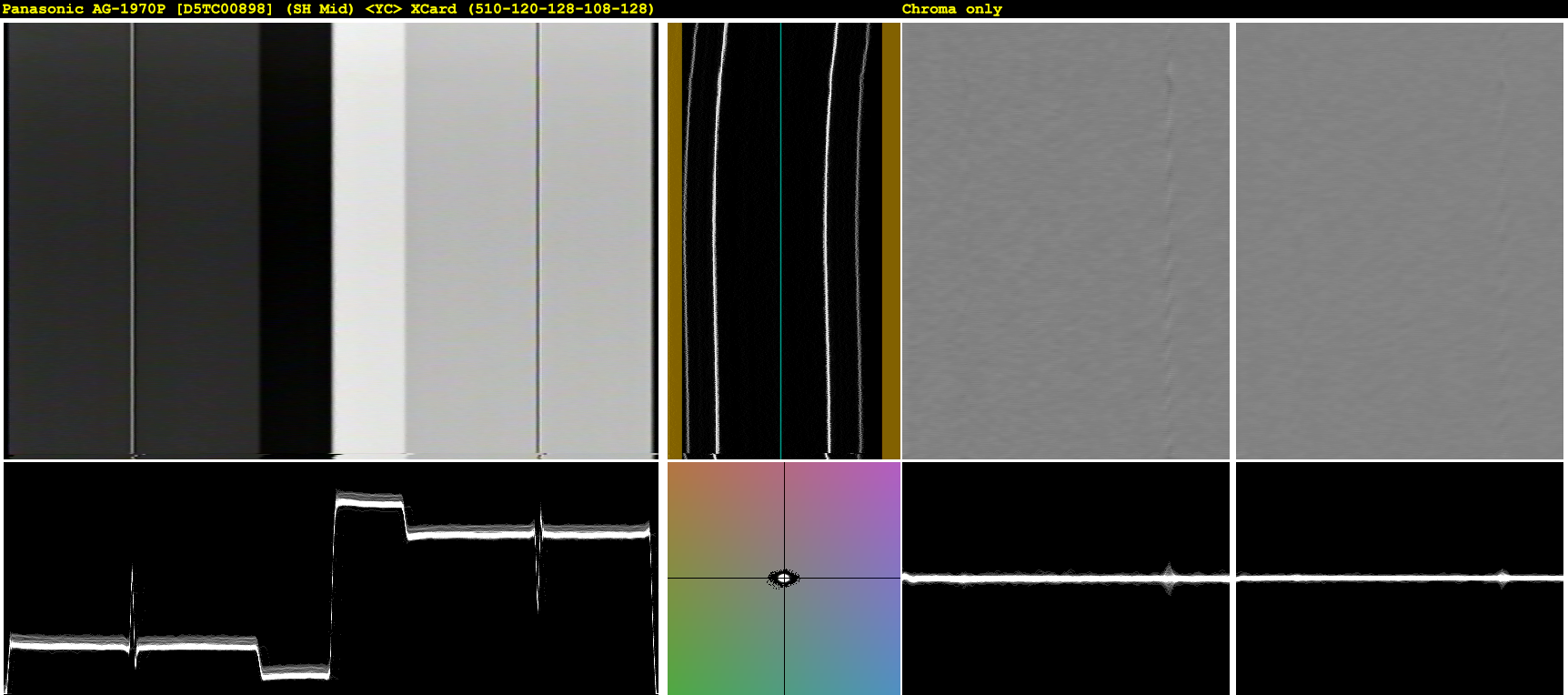

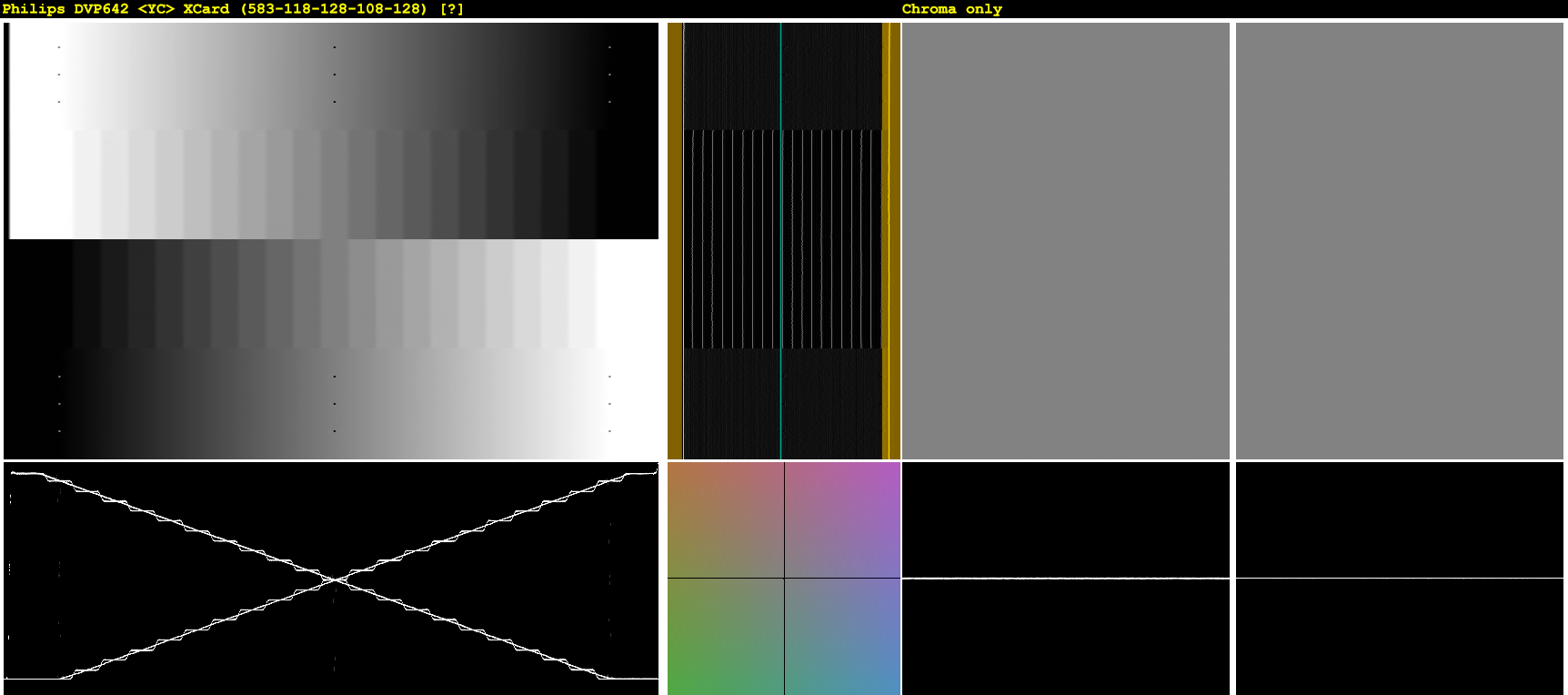

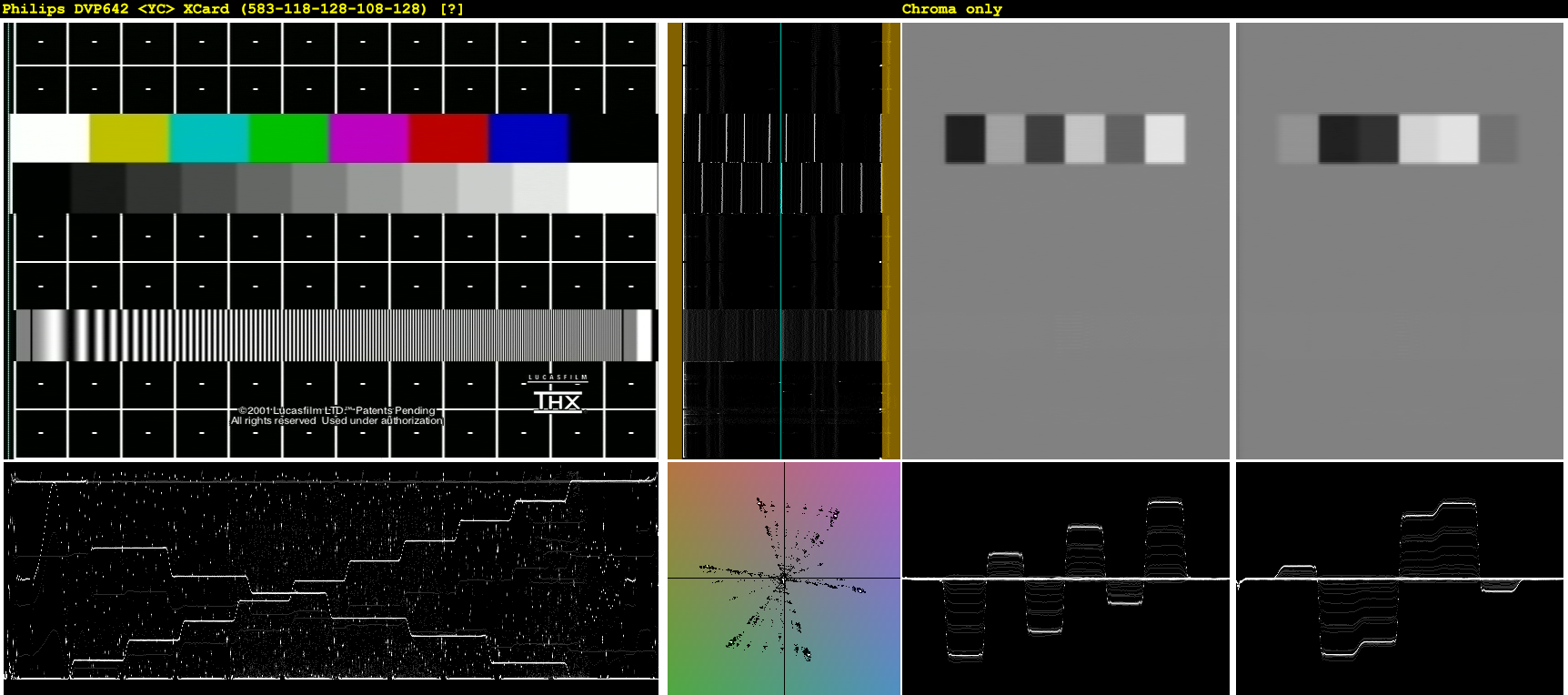

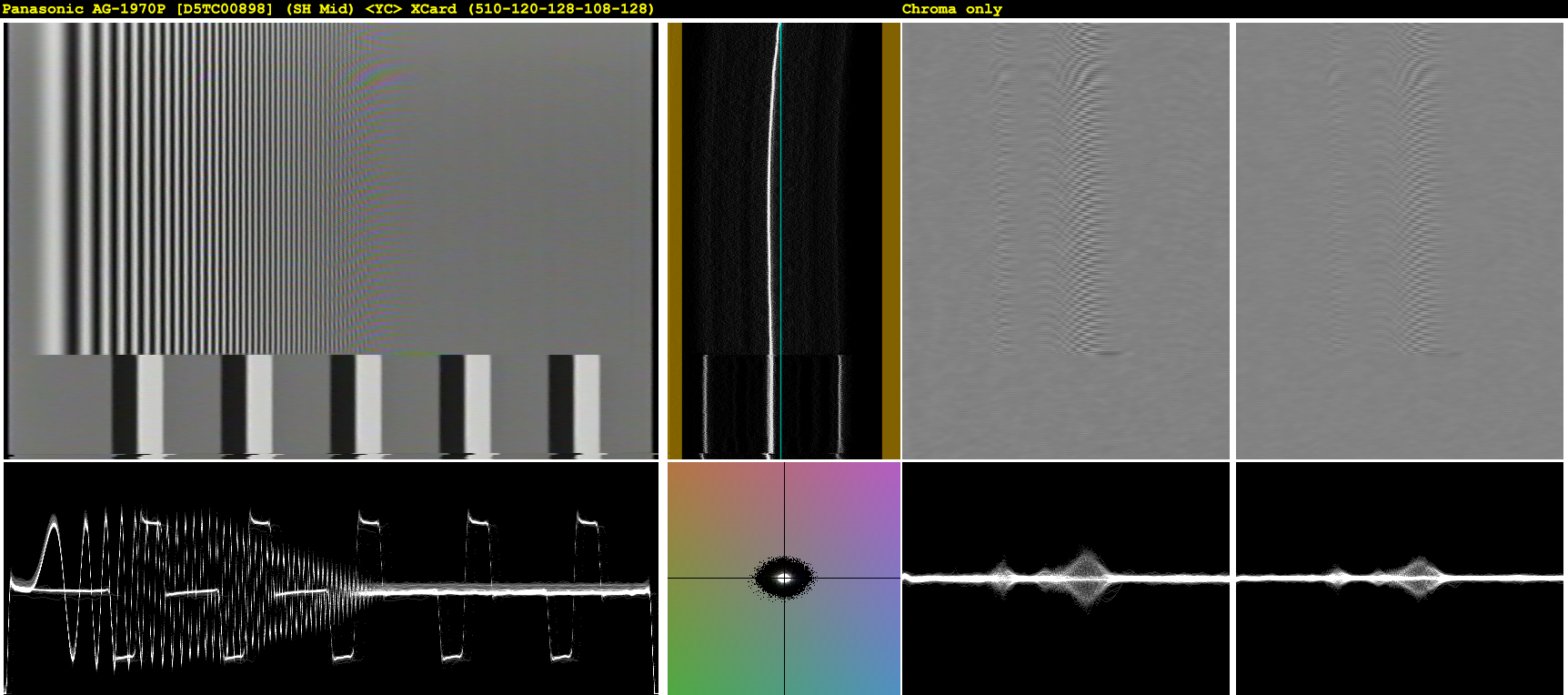

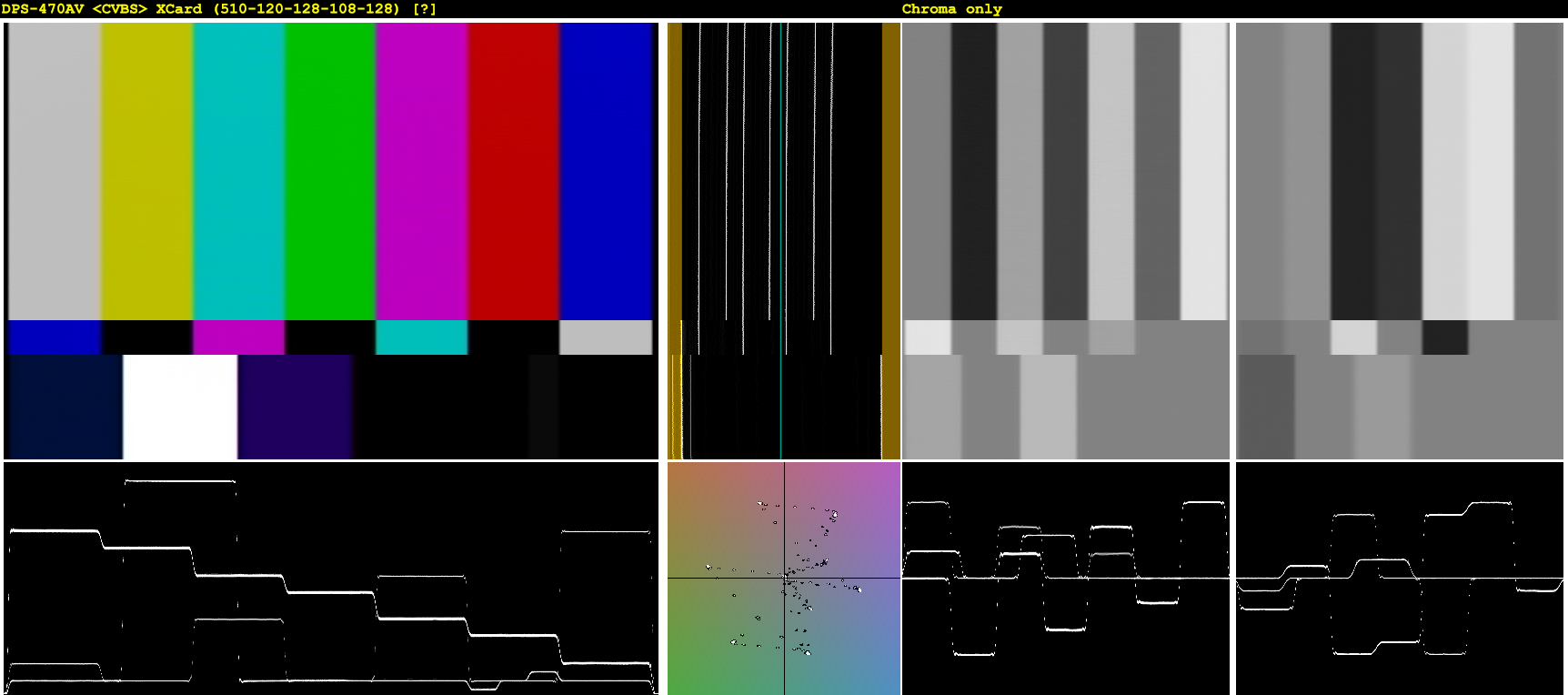

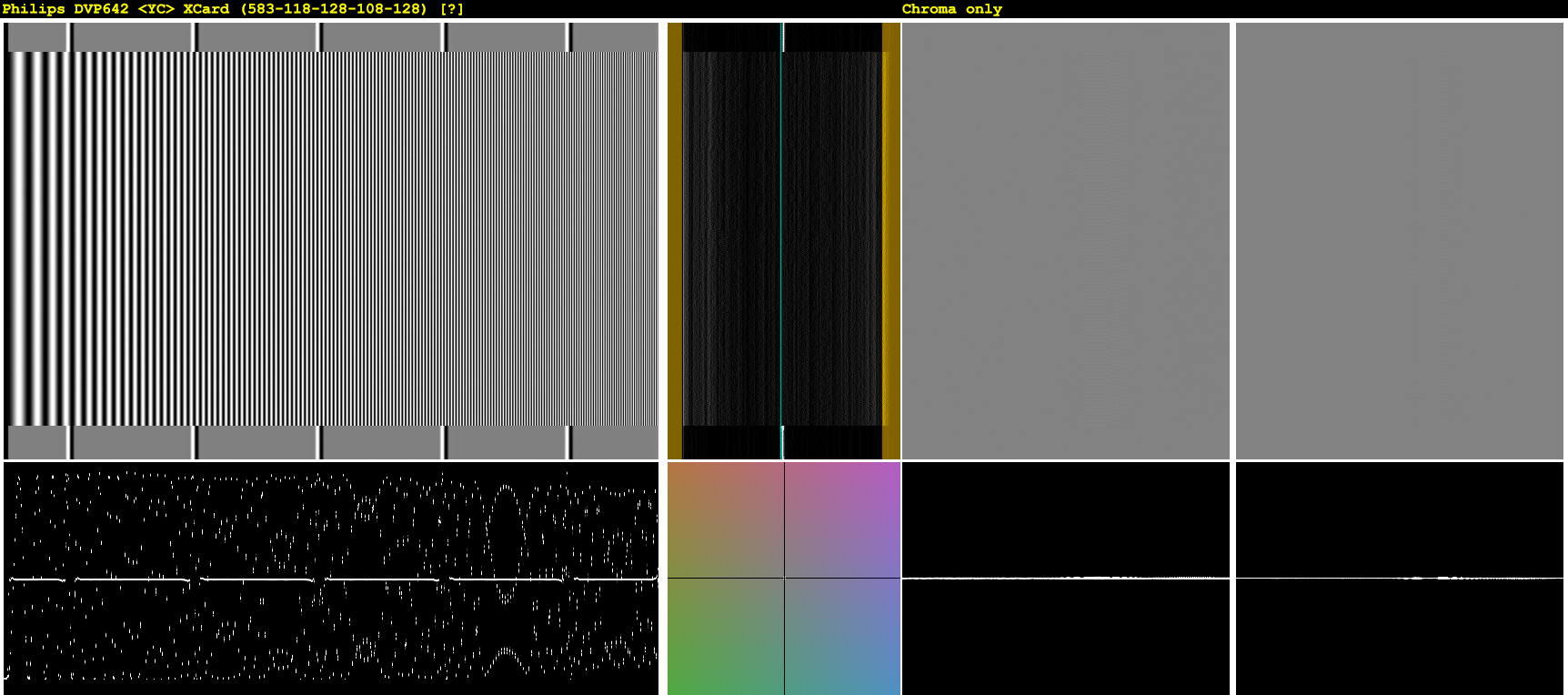

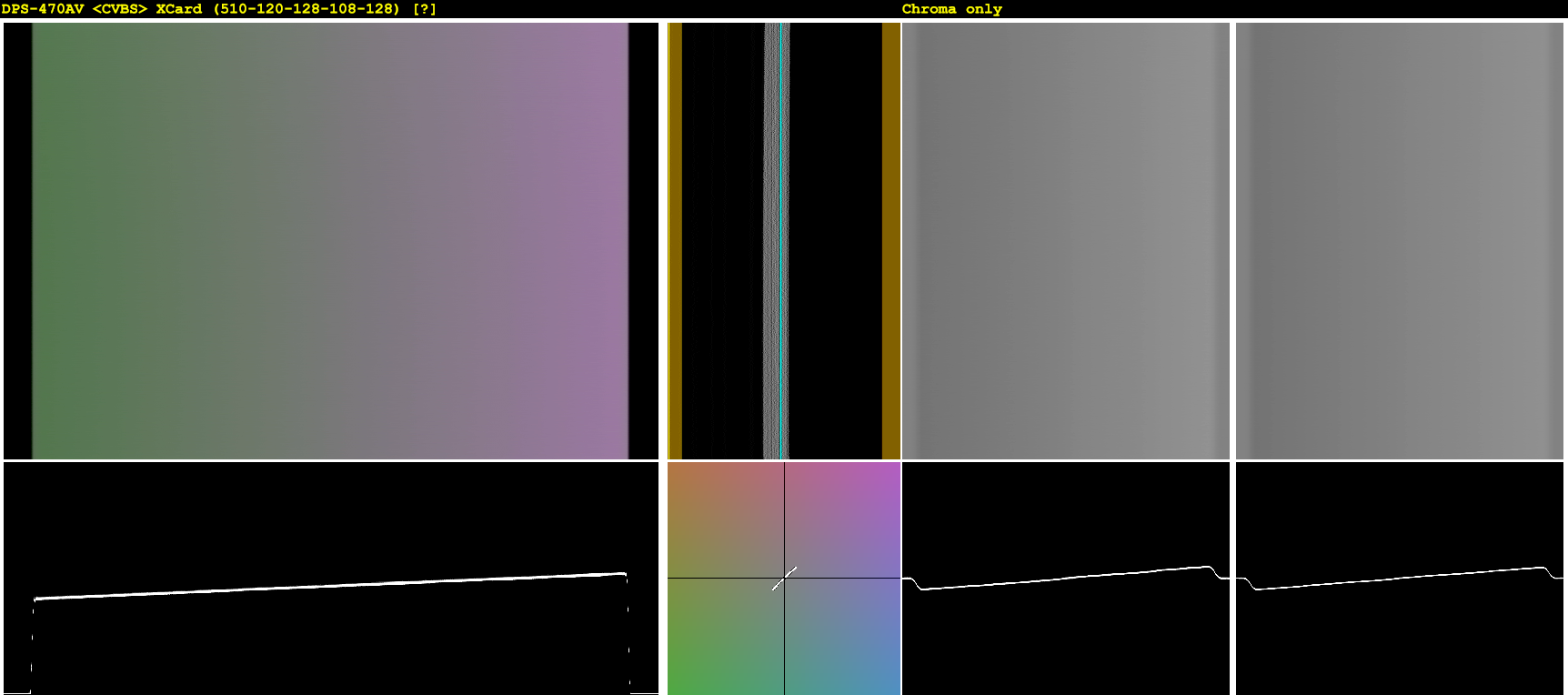

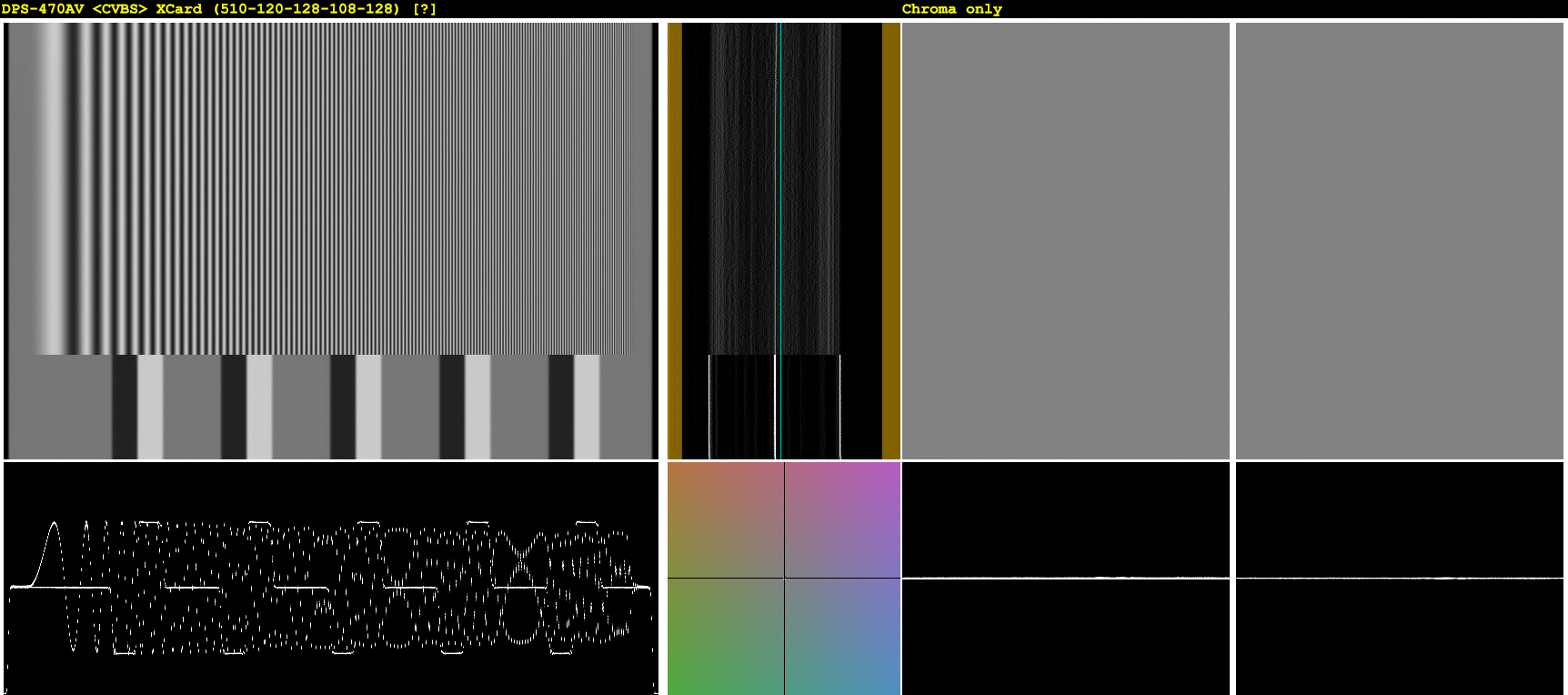

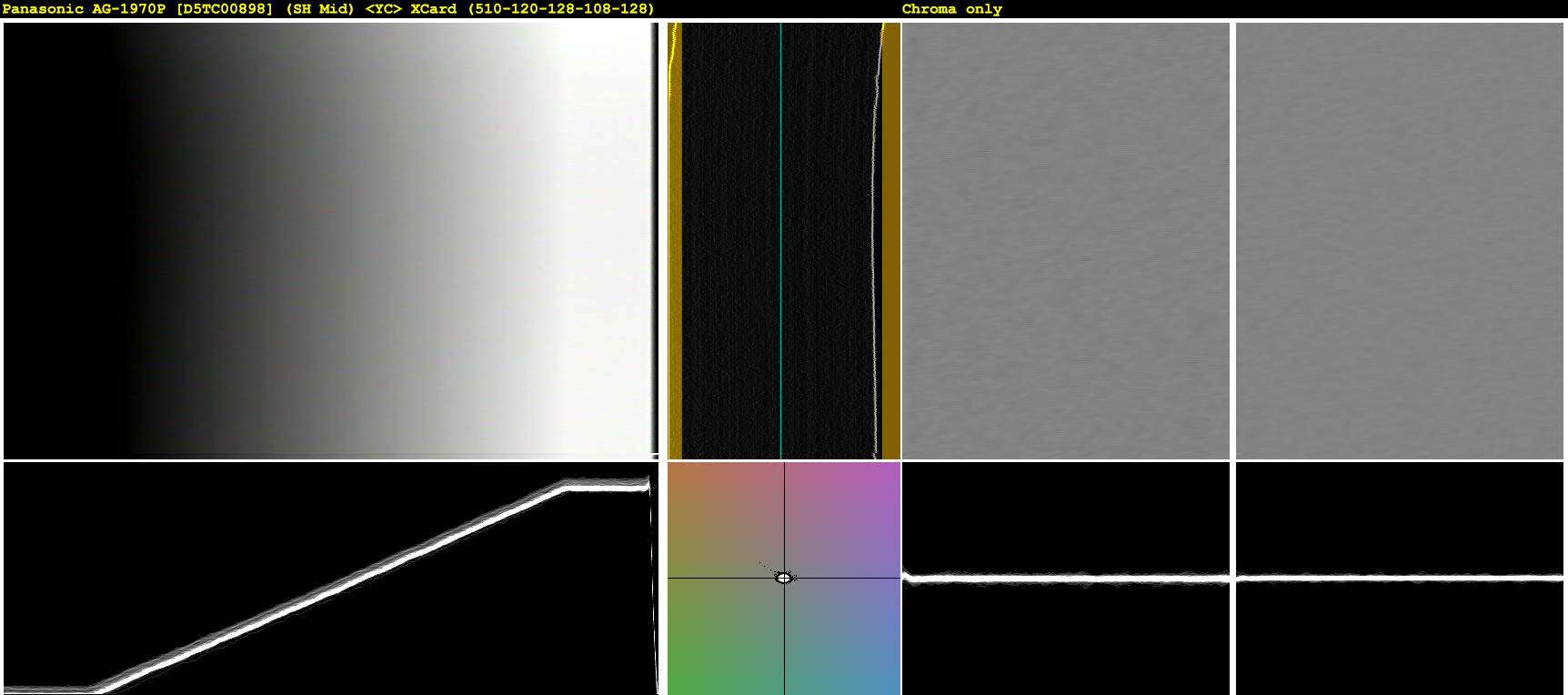

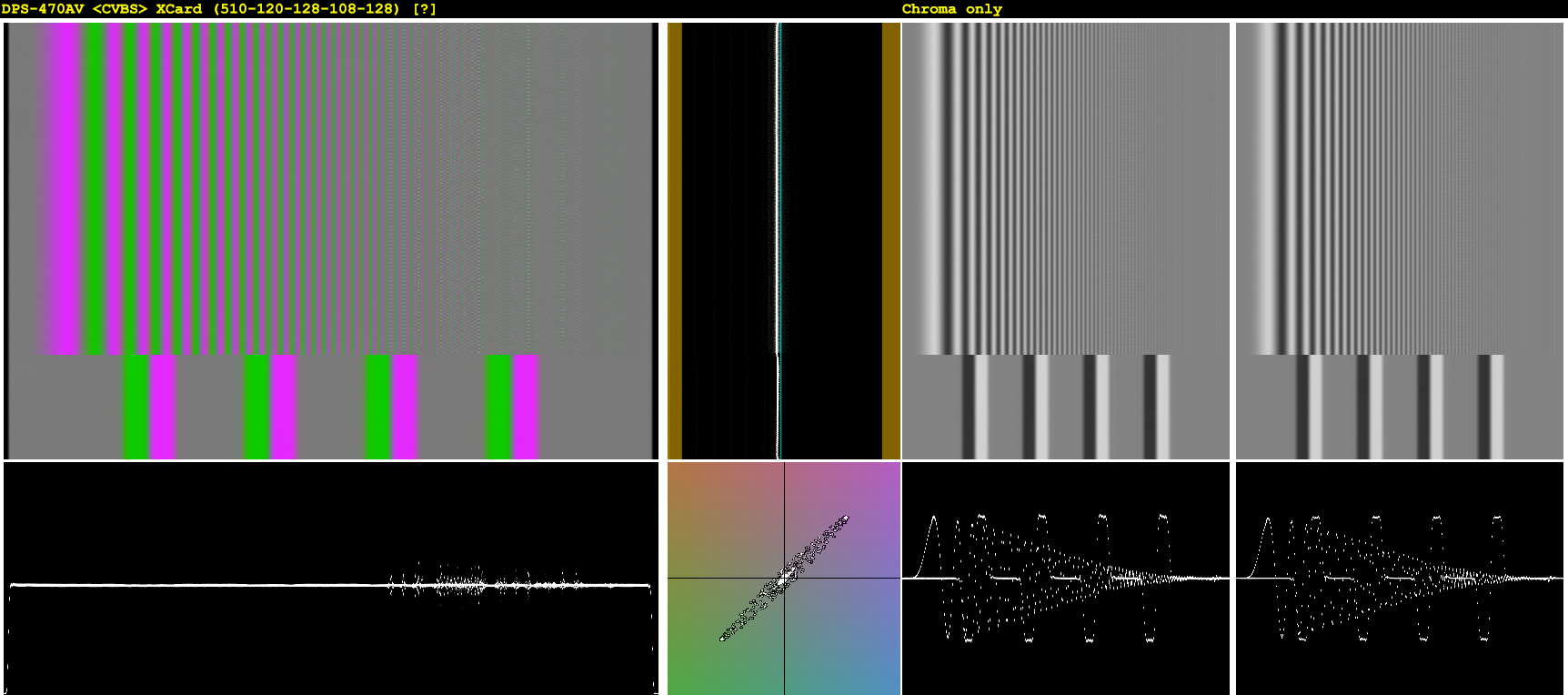

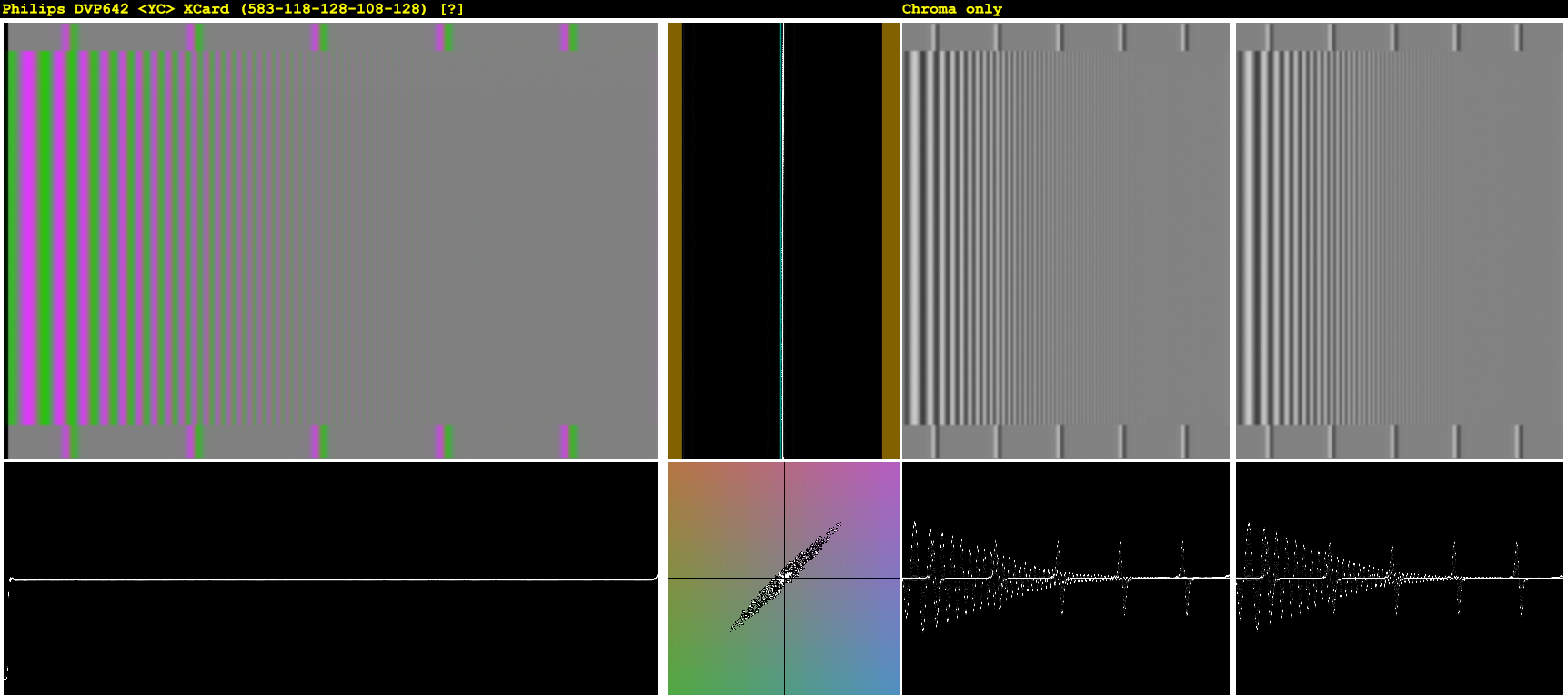

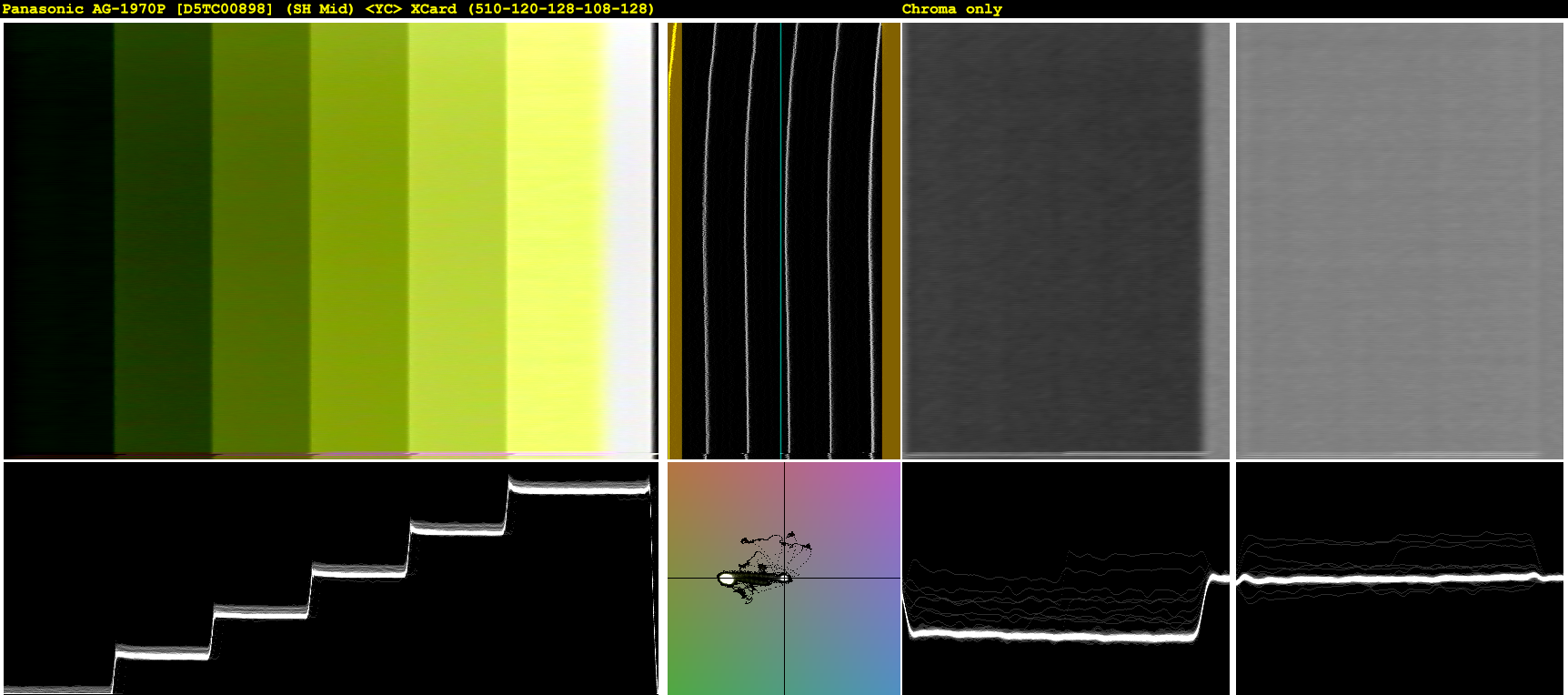

    danno78 XCard (AVerMedia hardware)
    Click image for larger version

Name:	DPS-470AV_XCard_1.png
Views:	3079
Size:	335.5 KB
ID:	21601 Click image for larger version

Name:	DPS-470AV_XCard_4.png
Views:	2955
Size:	277.0 KB
ID:	22008 Click image for larger version

Name:	DPS-470AV_XCard_5.png
Views:	2958
Size:	327.5 KB
ID:	22005 Click image for larger version

Name:	DPS-470AV_XCard_8.png
Views:	2896
Size:	347.1 KB
ID:	22009 Click image for larger version

Name:	DPS-470AV_XCard_3.png
Views:	2891
Size:	274.8 KB
ID:	22004 Click image for larger version

Name:	DPS-470AV_XCard_9.png
Views:	2908
Size:	279.1 KB
ID:	22007 Click image for larger version

Name:	DPS-470AV_XCard_6.png
Views:	2893
Size:	482.1 KB
ID:	21615 Click image for larger version

Name:	DPS-470AV_XCard_7.png
Views:	2935
Size:	556.7 KB
ID:	21609 Click image for larger version

Name:	DPS-470AV_XCard_2.png
Views:	2818
Size:	358.2 KB
ID:	22006

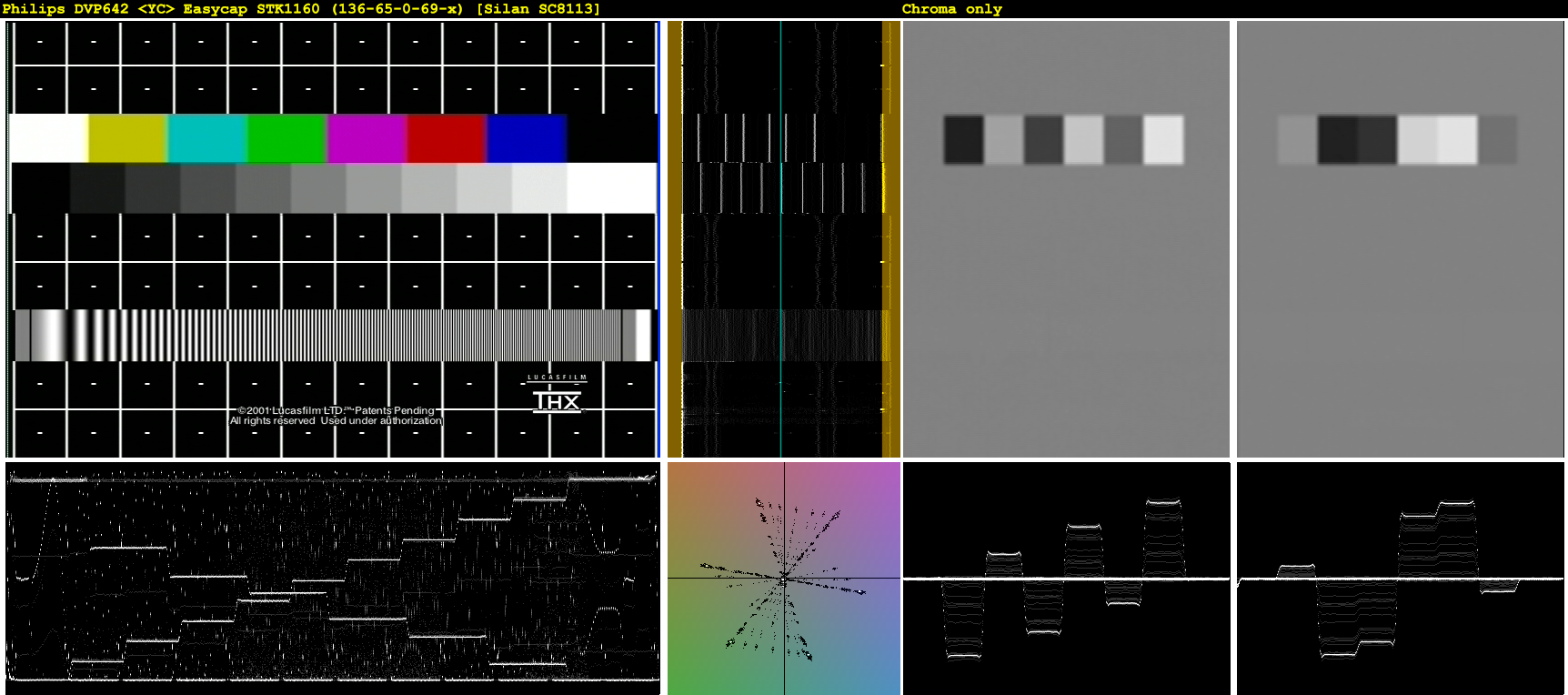

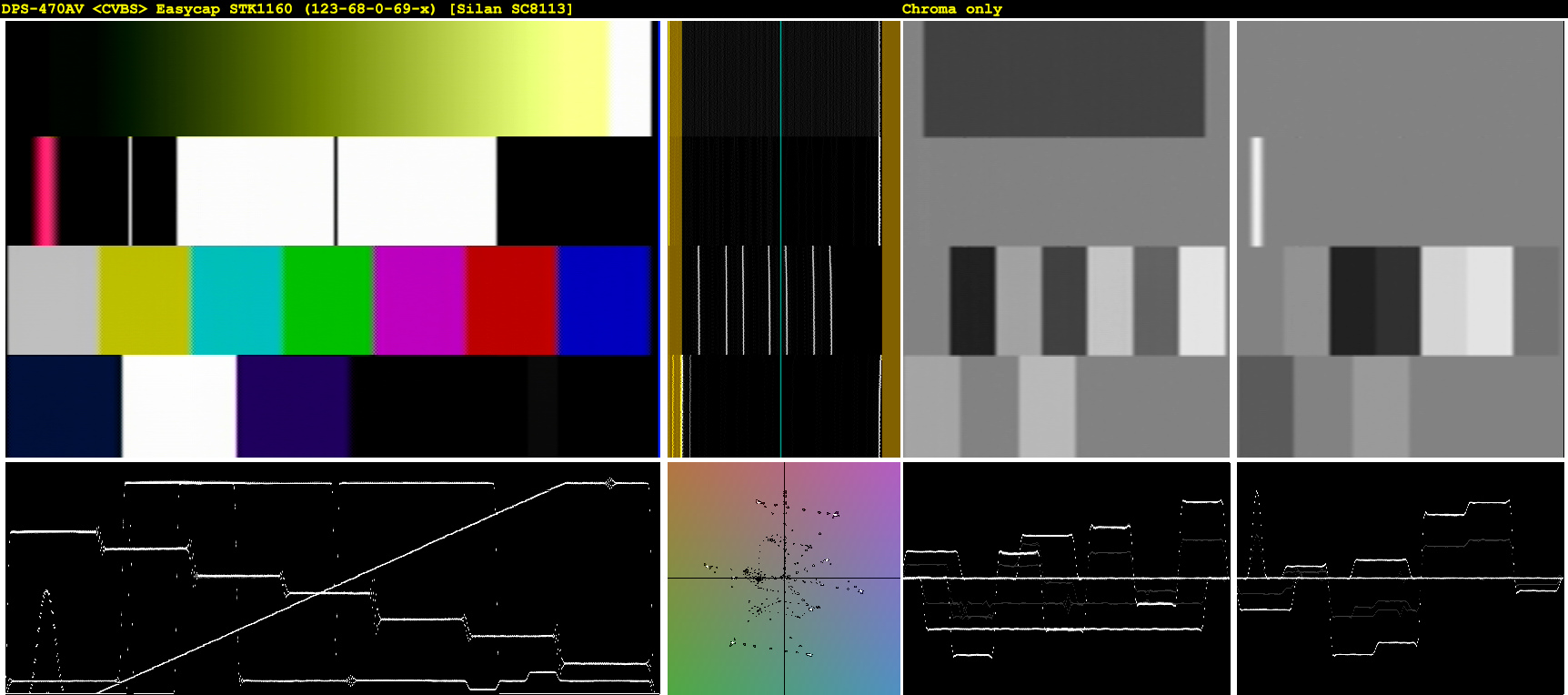

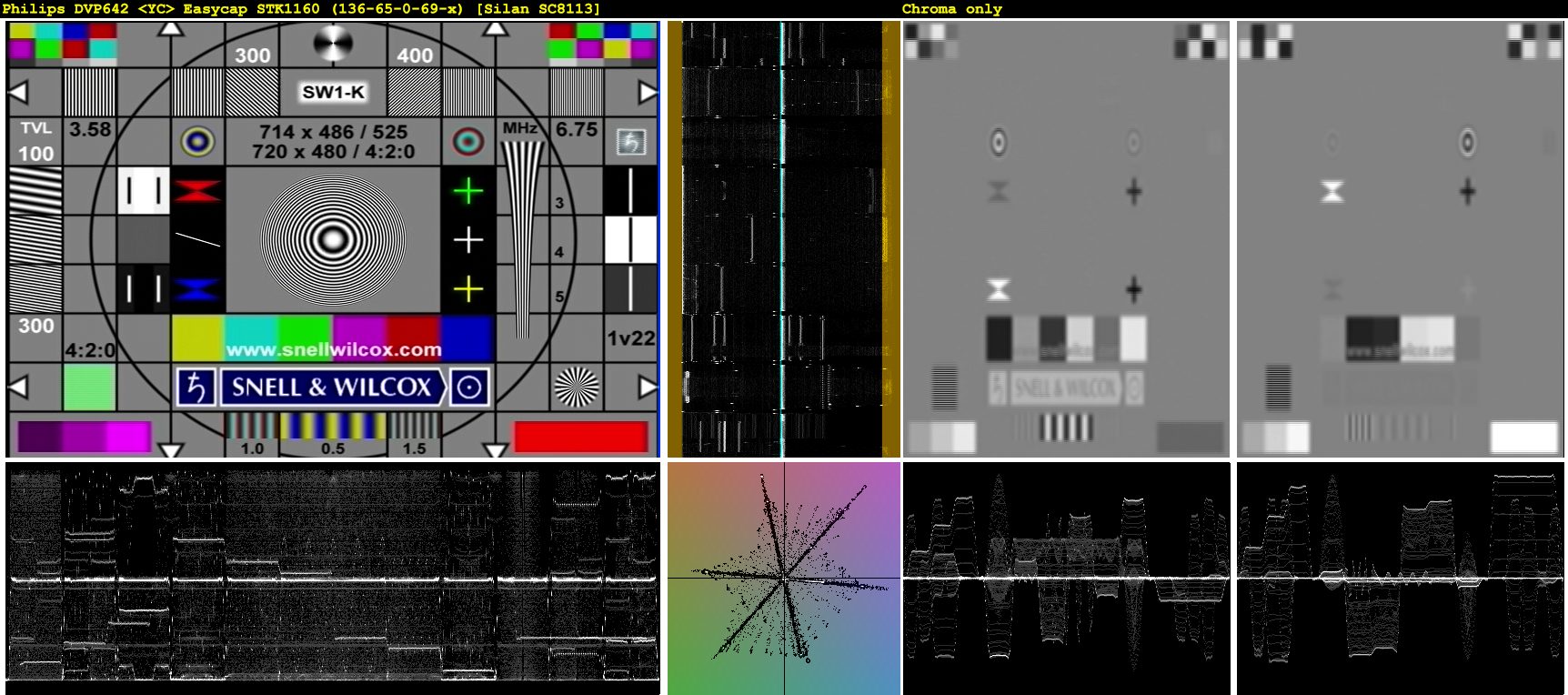

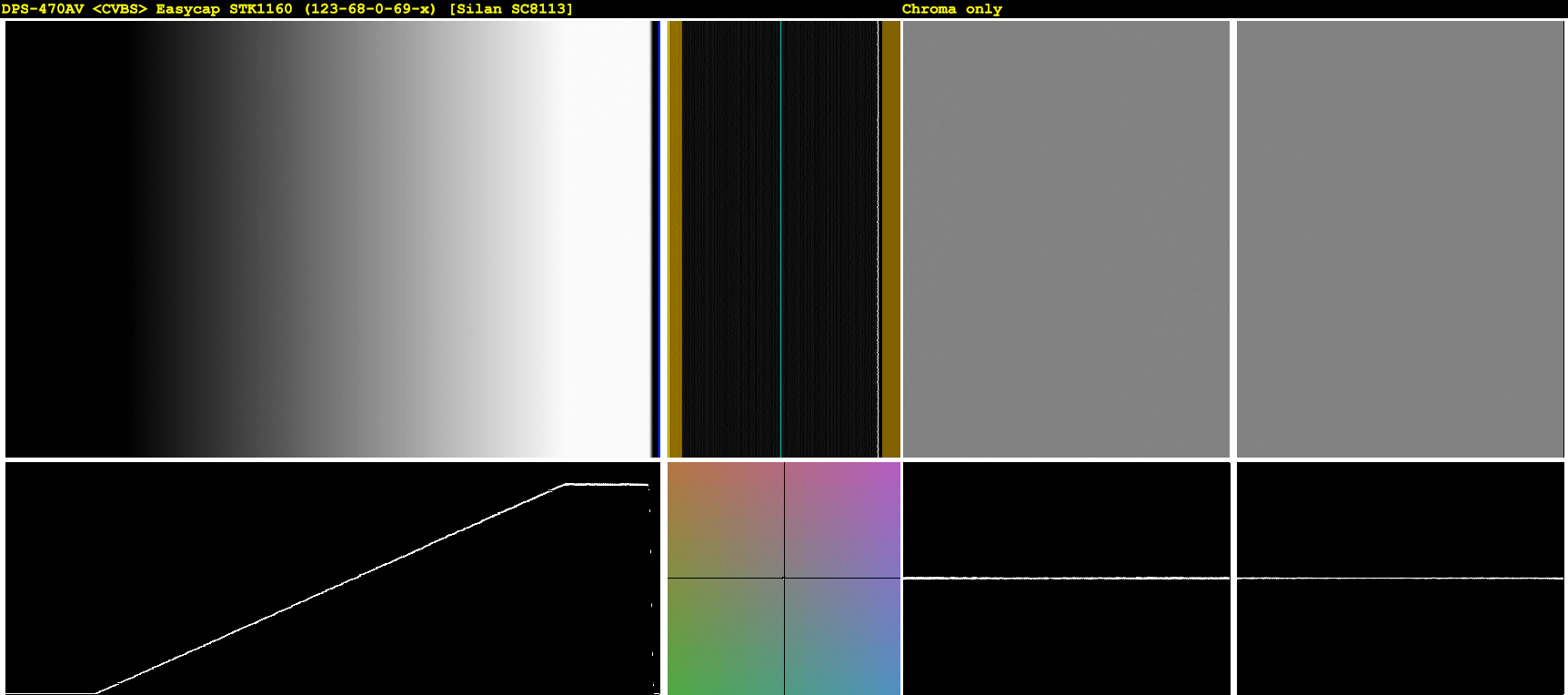

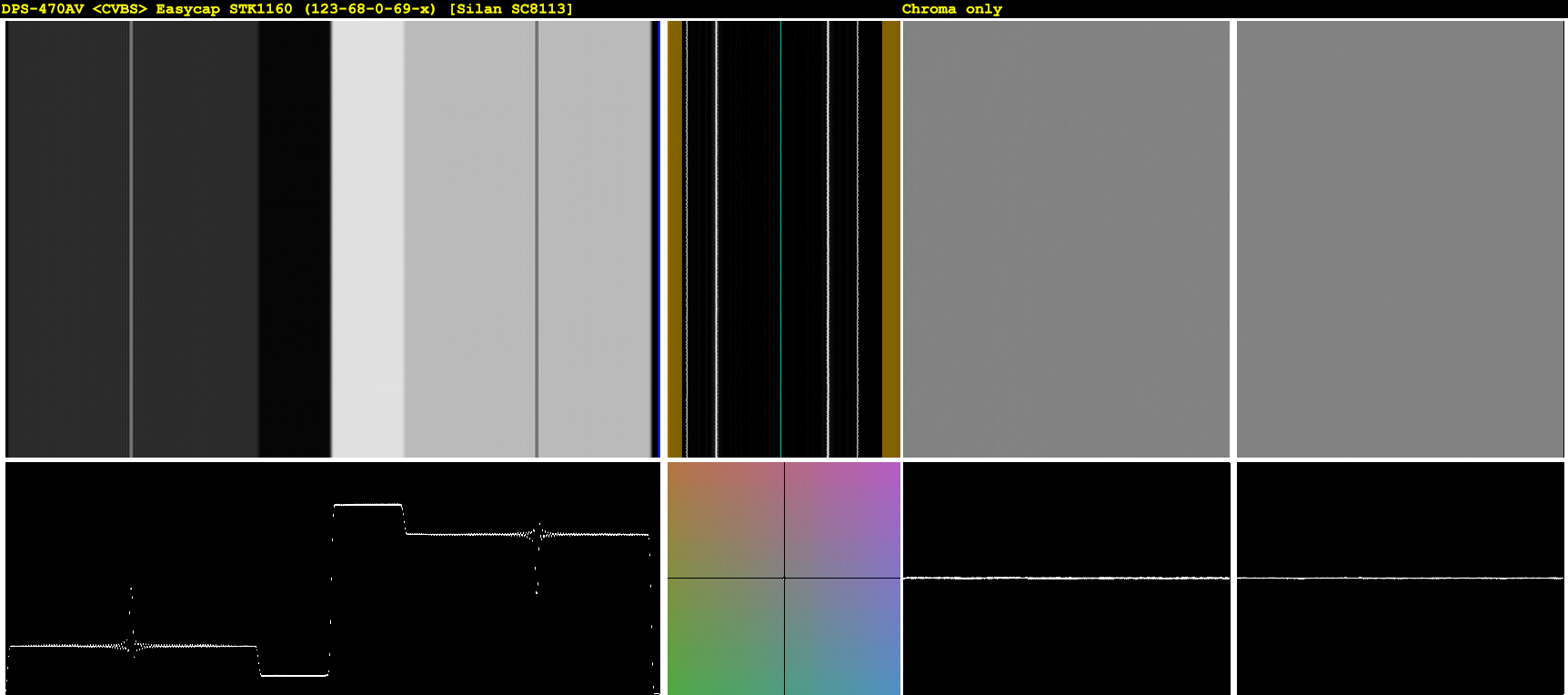

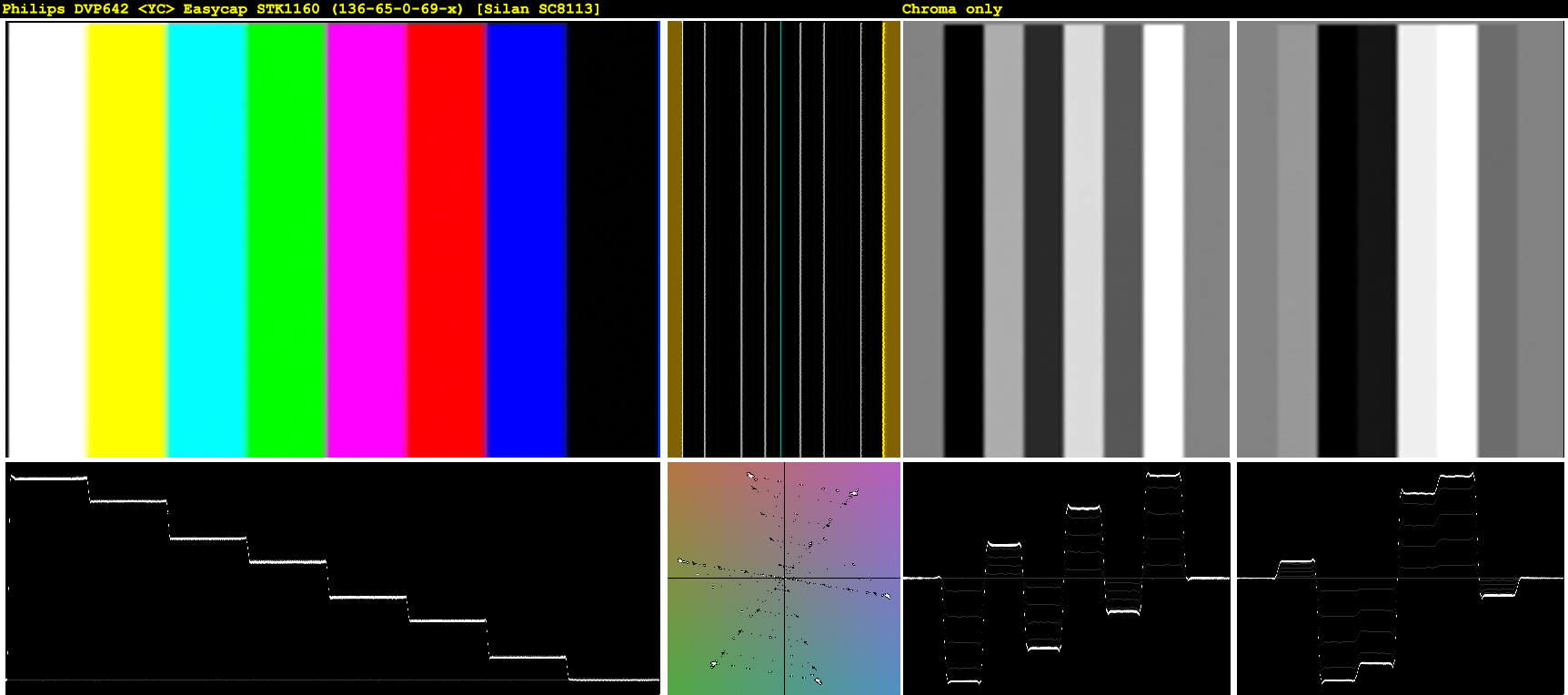

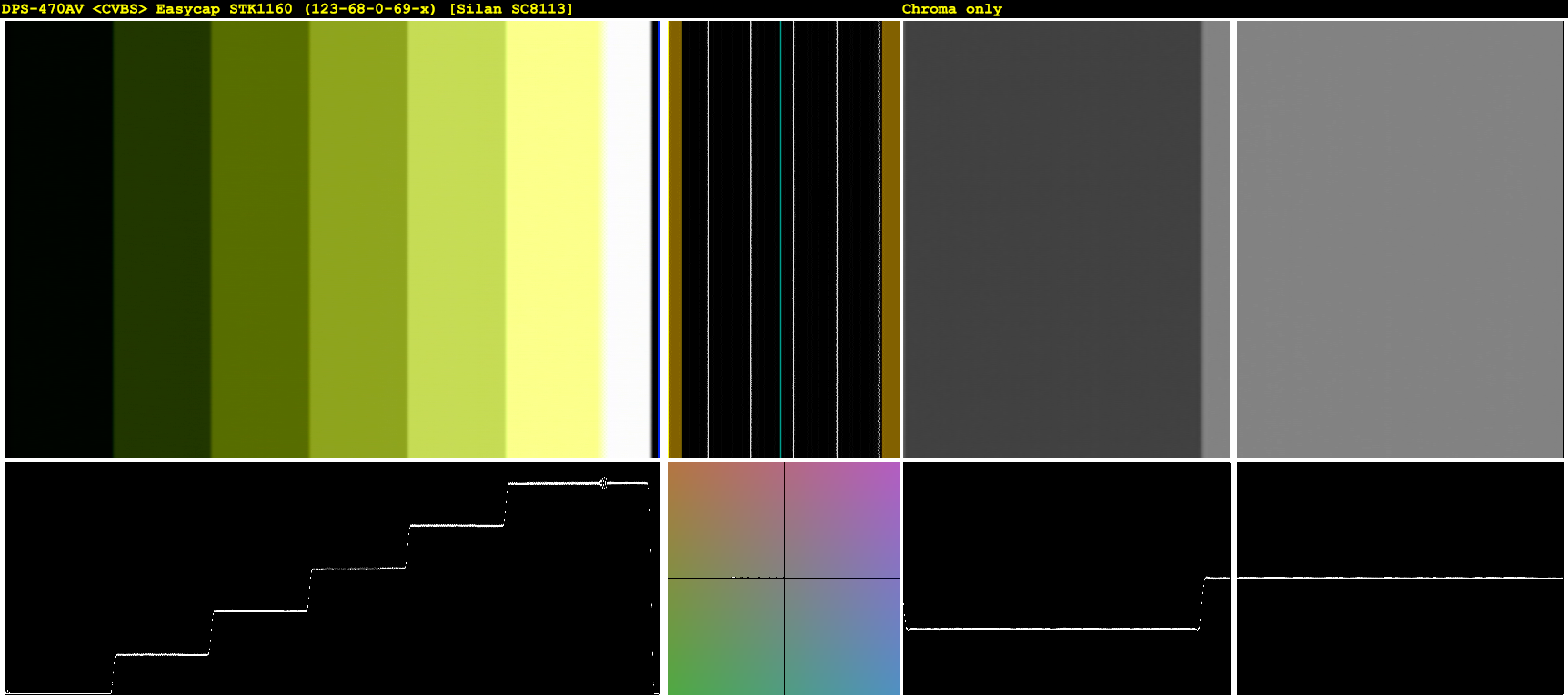

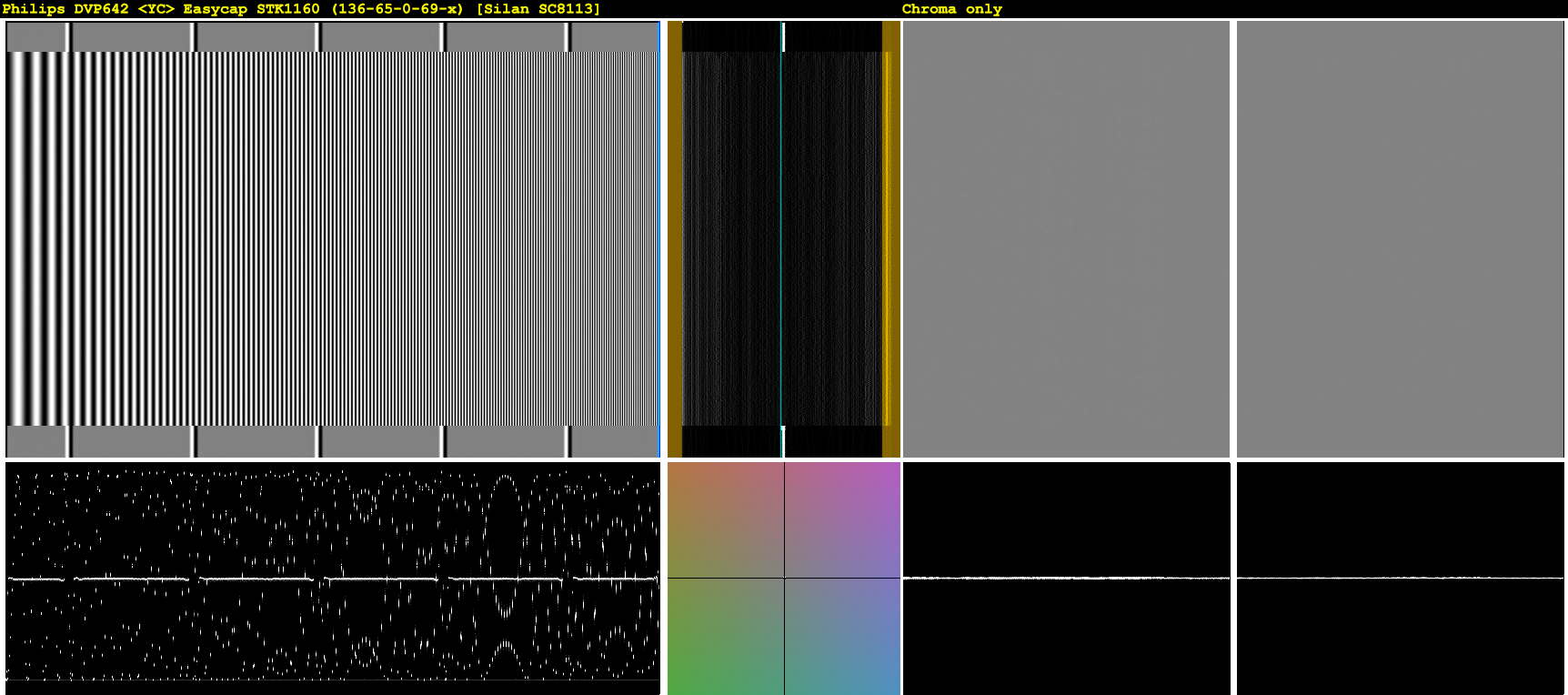

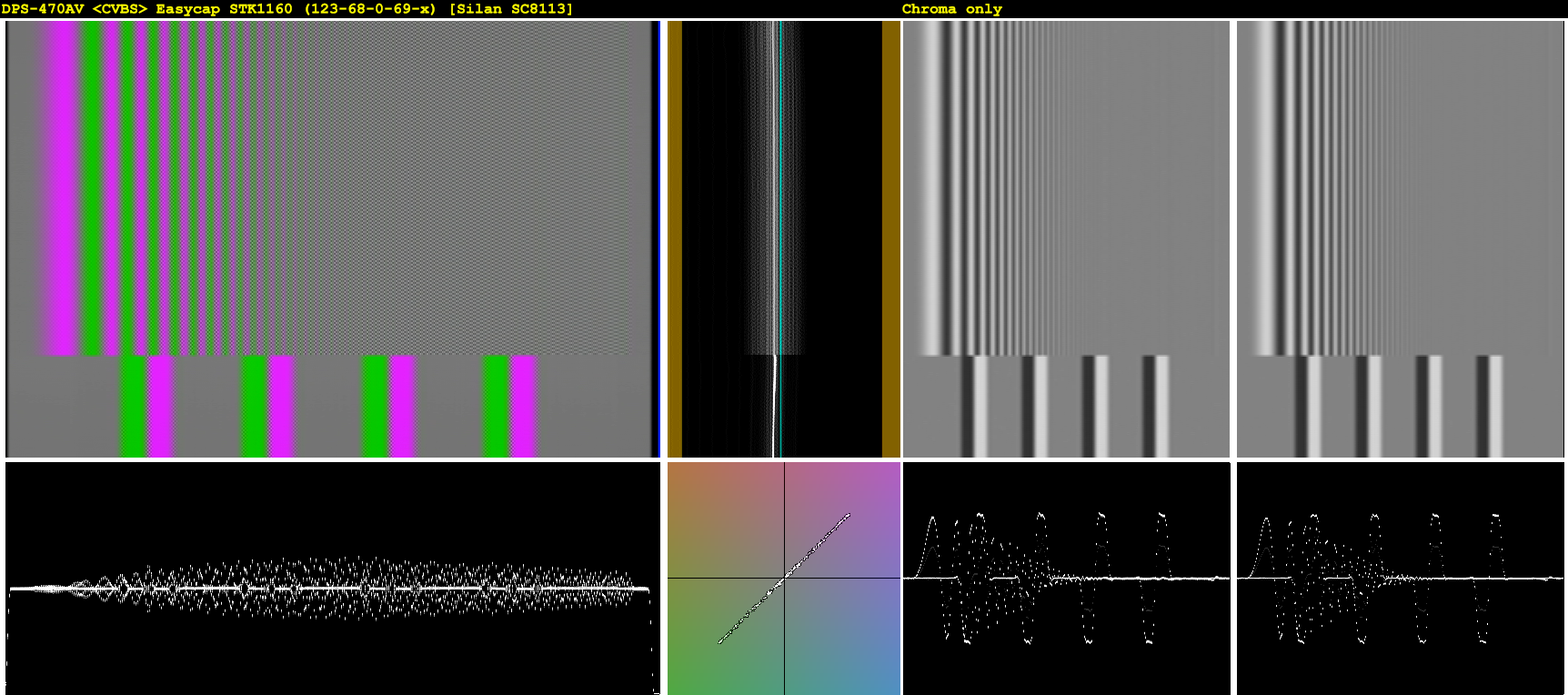

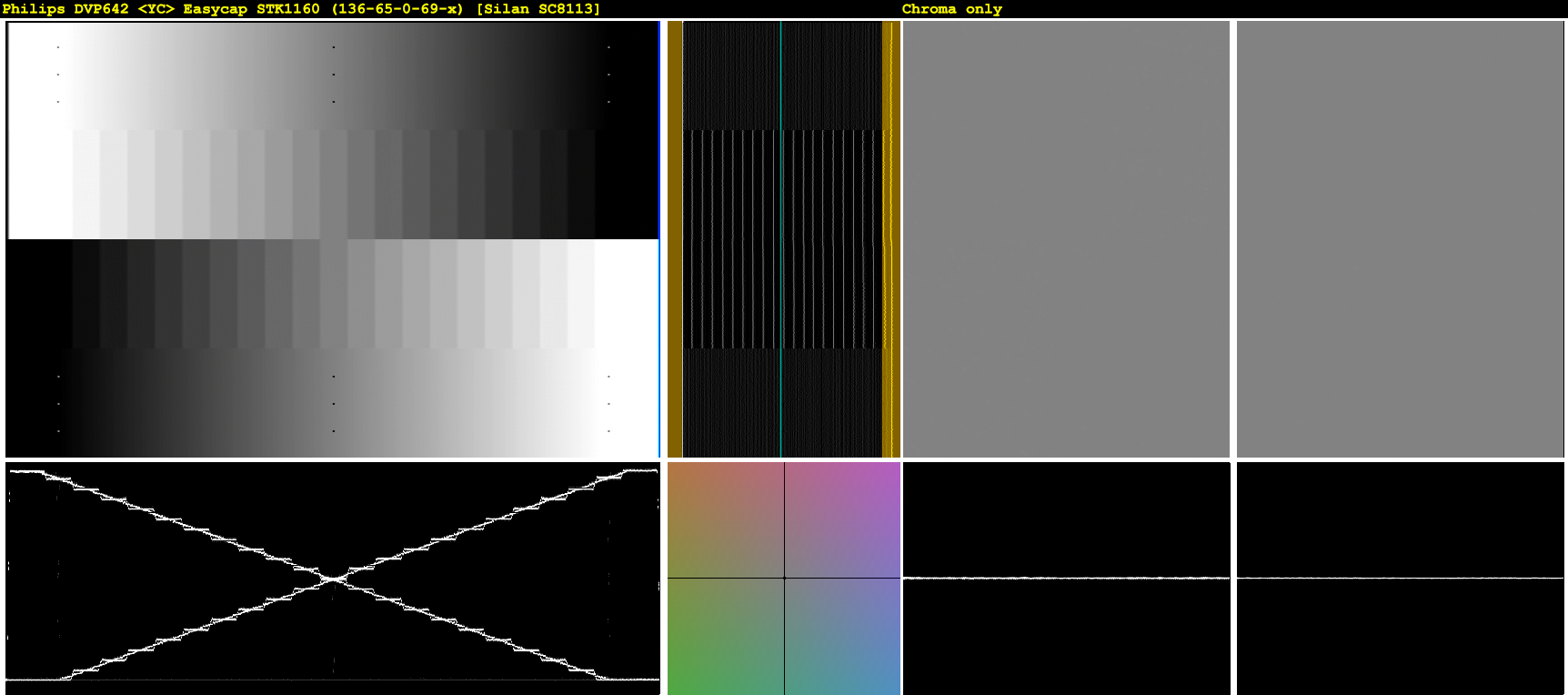

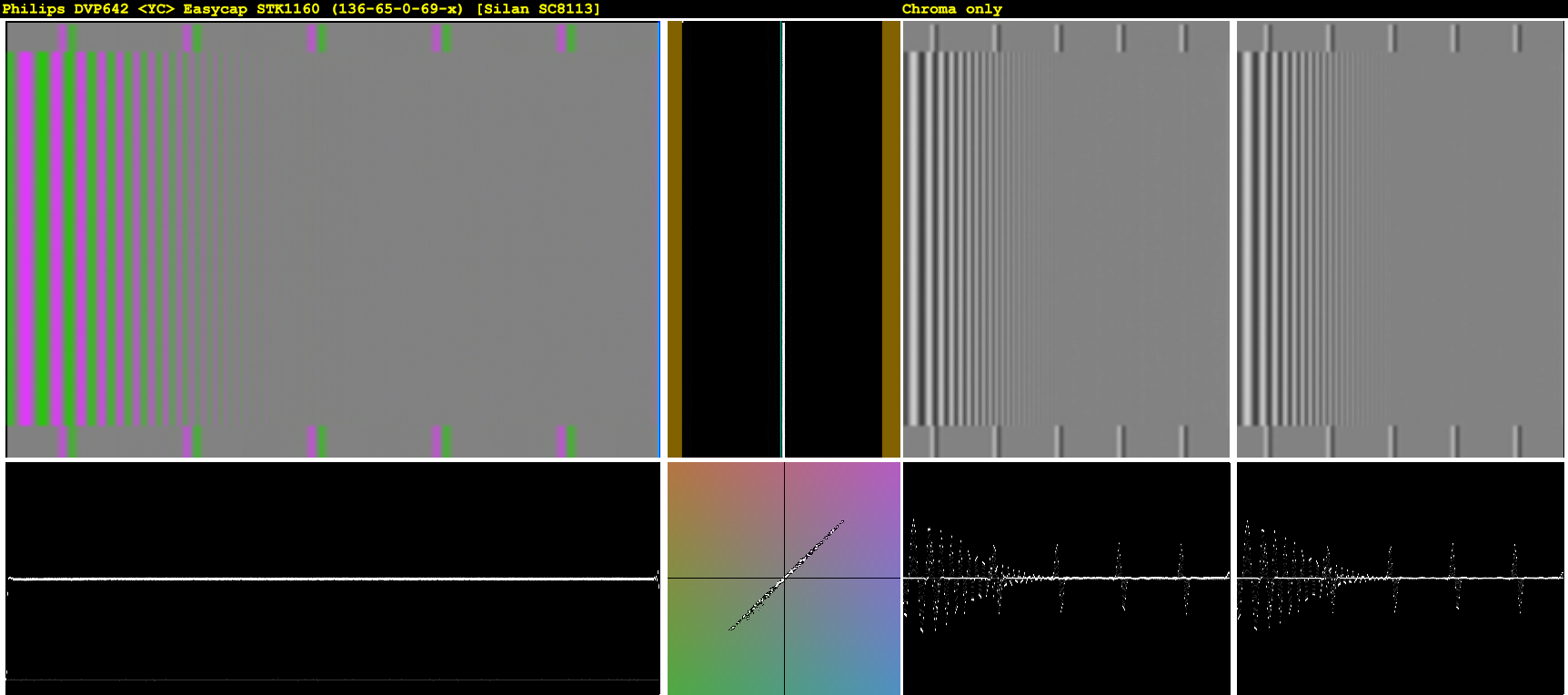

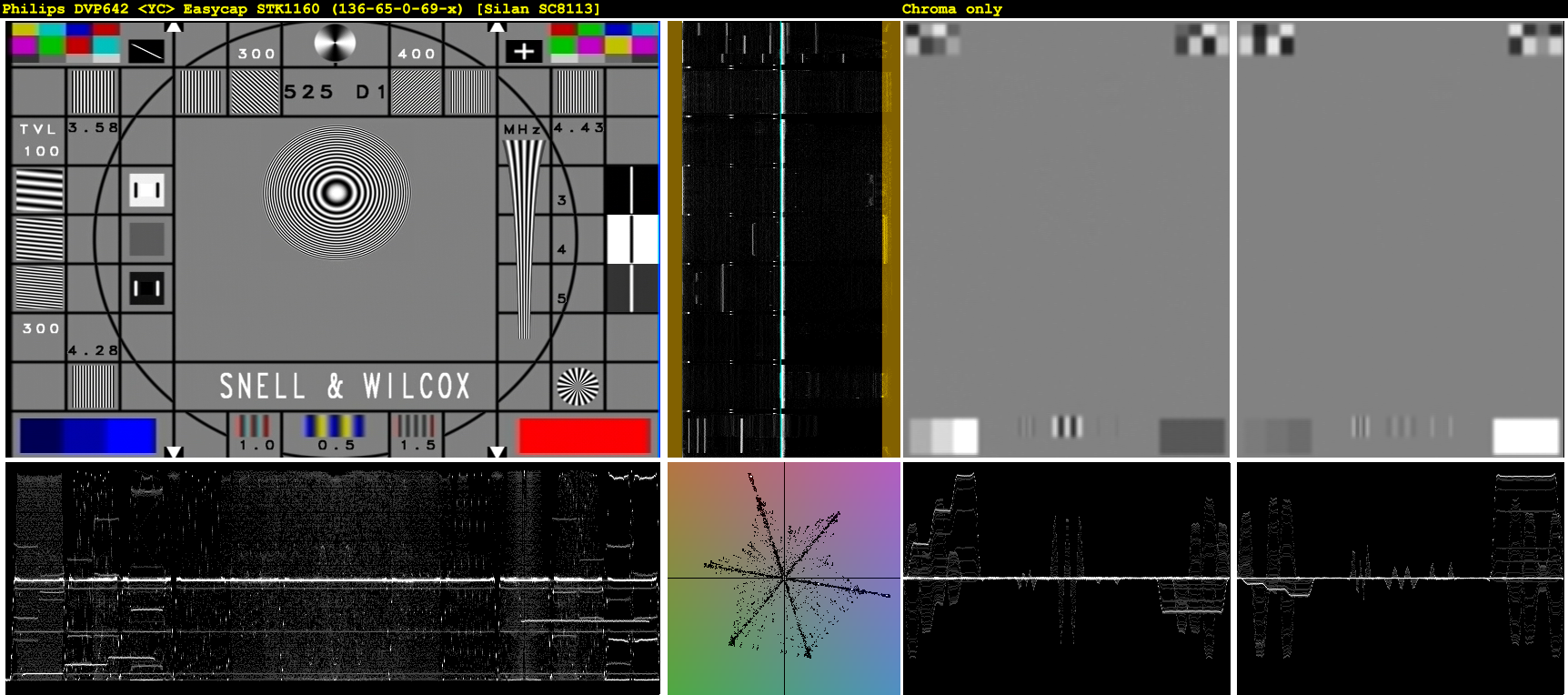

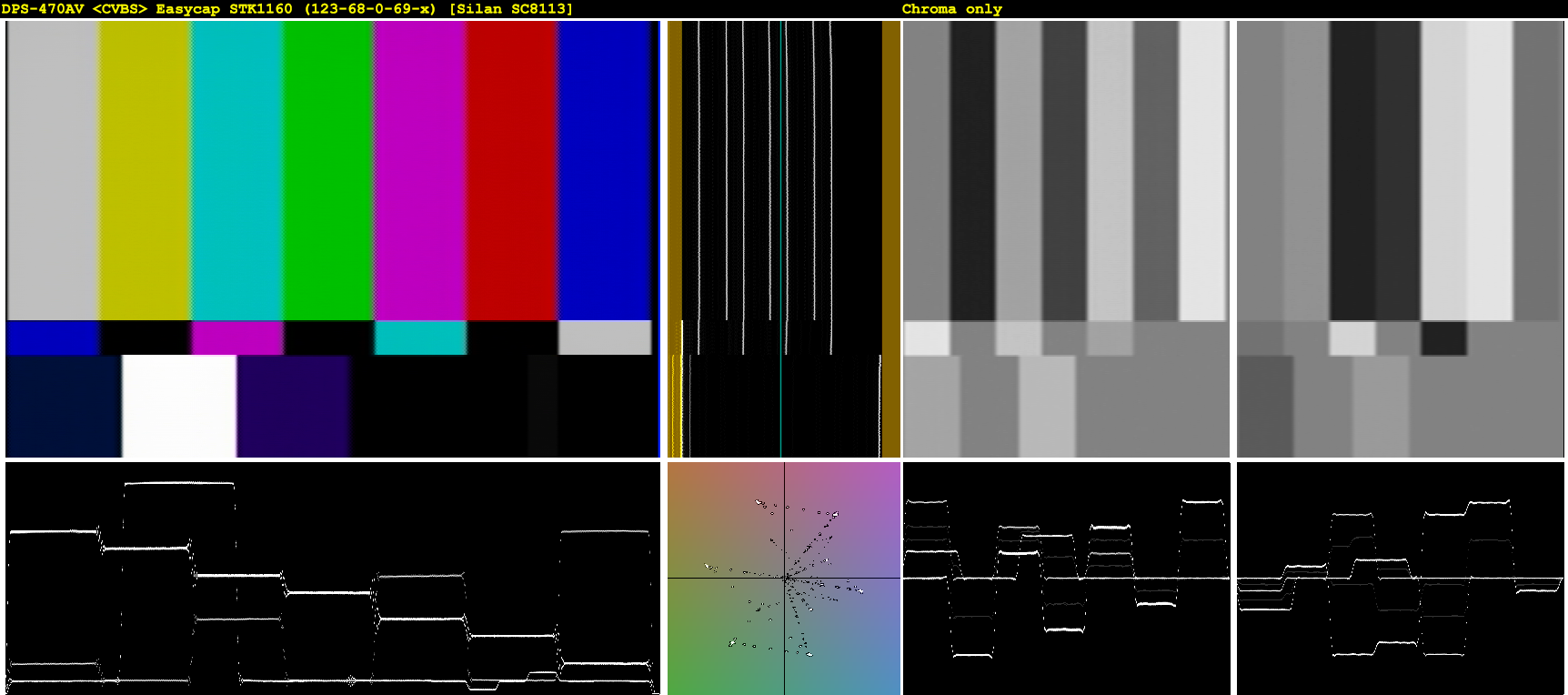

    Easycap STK1160
    Click image for larger version

Name:	DPS-470AV_STK1160_1.png
Views:	3053
Size:	416.0 KB
ID:	21599 Click image for larger version

Name:	DPS-470AV_STK1160_4.png
Views:	2985
Size:	289.3 KB
ID:	21996 Click image for larger version

Name:	DPS-470AV_STK1160_5.png
Views:	2858
Size:	320.9 KB
ID:	21993 Click image for larger version

Name:	DPS-470AV_STK1160_8.png
Views:	2904
Size:	268.4 KB
ID:	21997 Click image for larger version

Name:	DPS-470AV_STK1160_3.png
Views:	2876
Size:	277.6 KB
ID:	21992 Click image for larger version

Name:	DPS-470AV_STK1160_9.png
Views:	2851
Size:	347.7 KB
ID:	21995 Click image for larger version

Name:	DPS-470AV_STK1160_6.png
Views:	2919
Size:	398.0 KB
ID:	21604 Click image for larger version

Name:	DPS-470AV_STK1160_7.png
Views:	3059
Size:	717.2 KB
ID:	21606 Click image for larger version

Name:	DPS-470AV_STK1160_2.png
Views:	3013
Size:	480.3 KB
ID:	21994

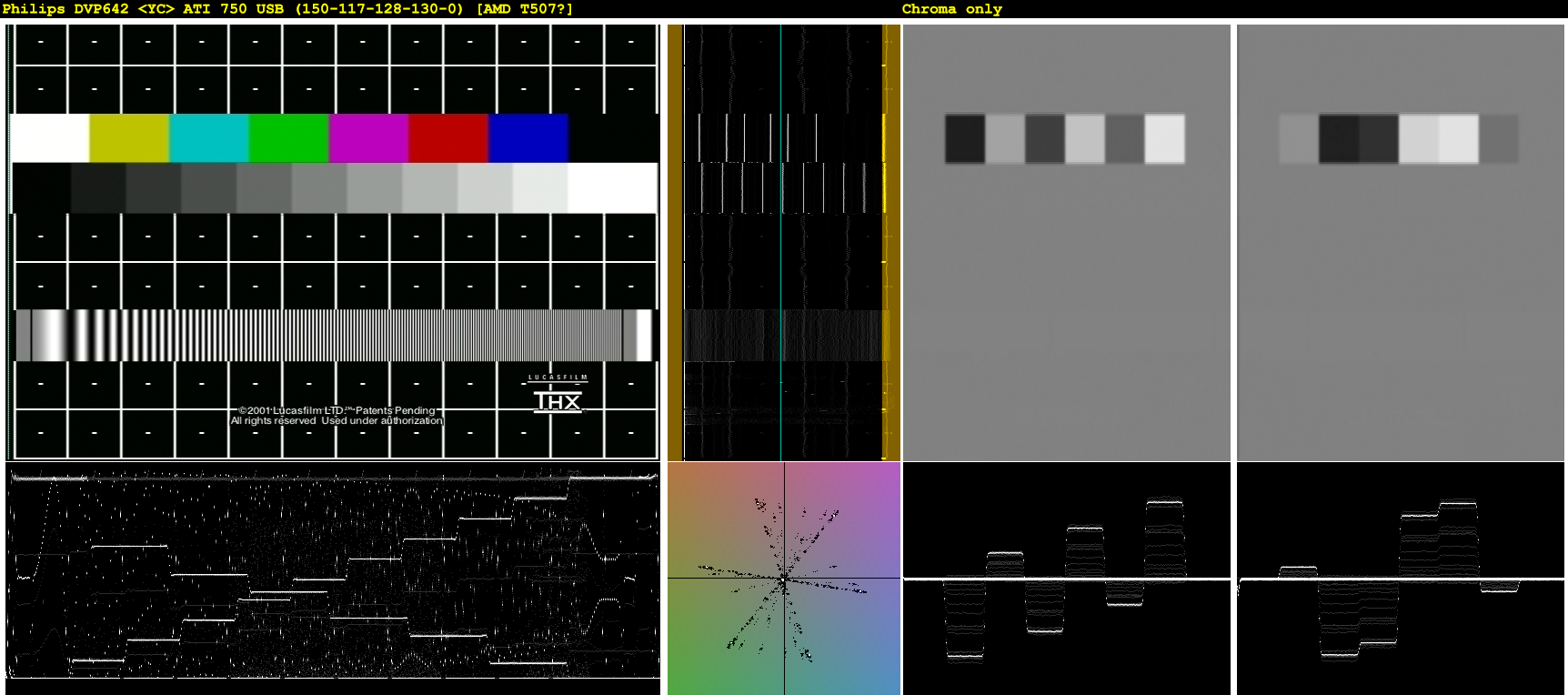

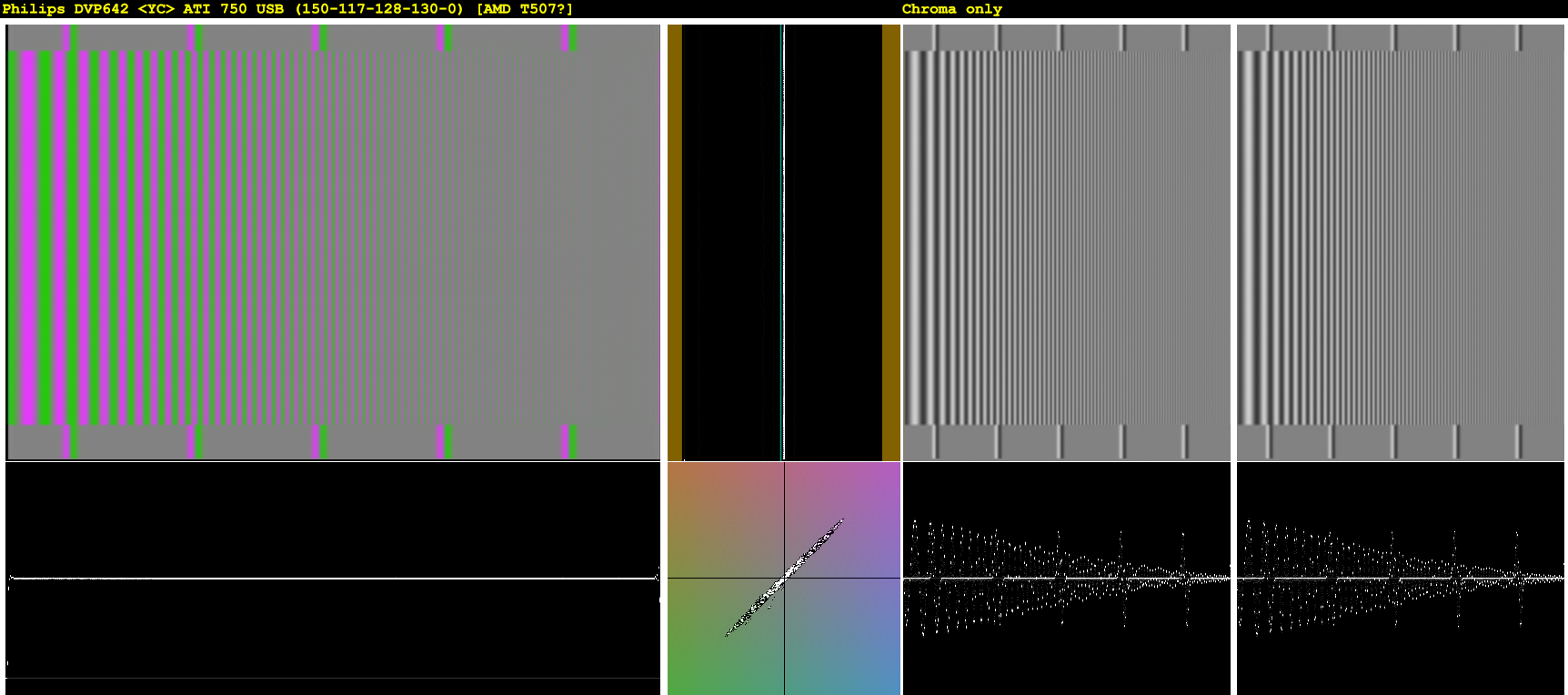

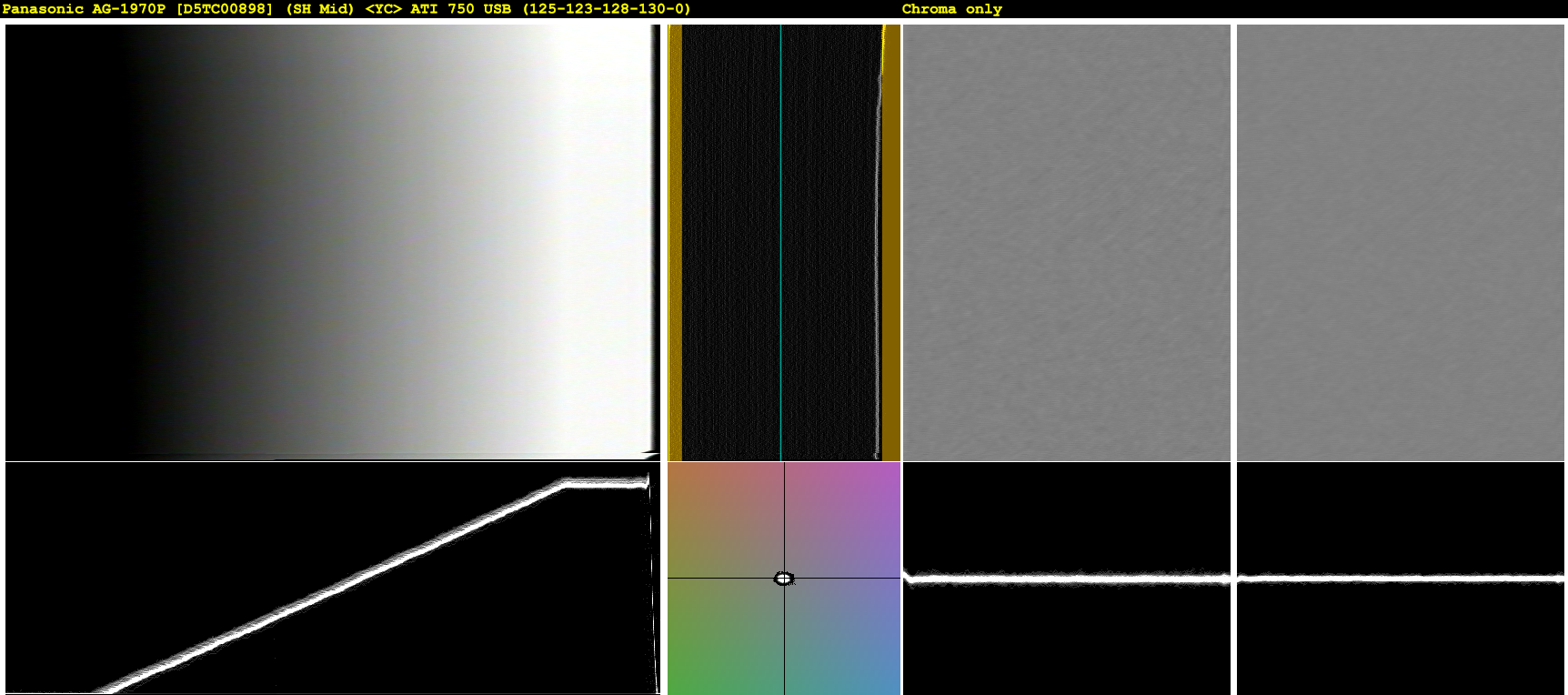

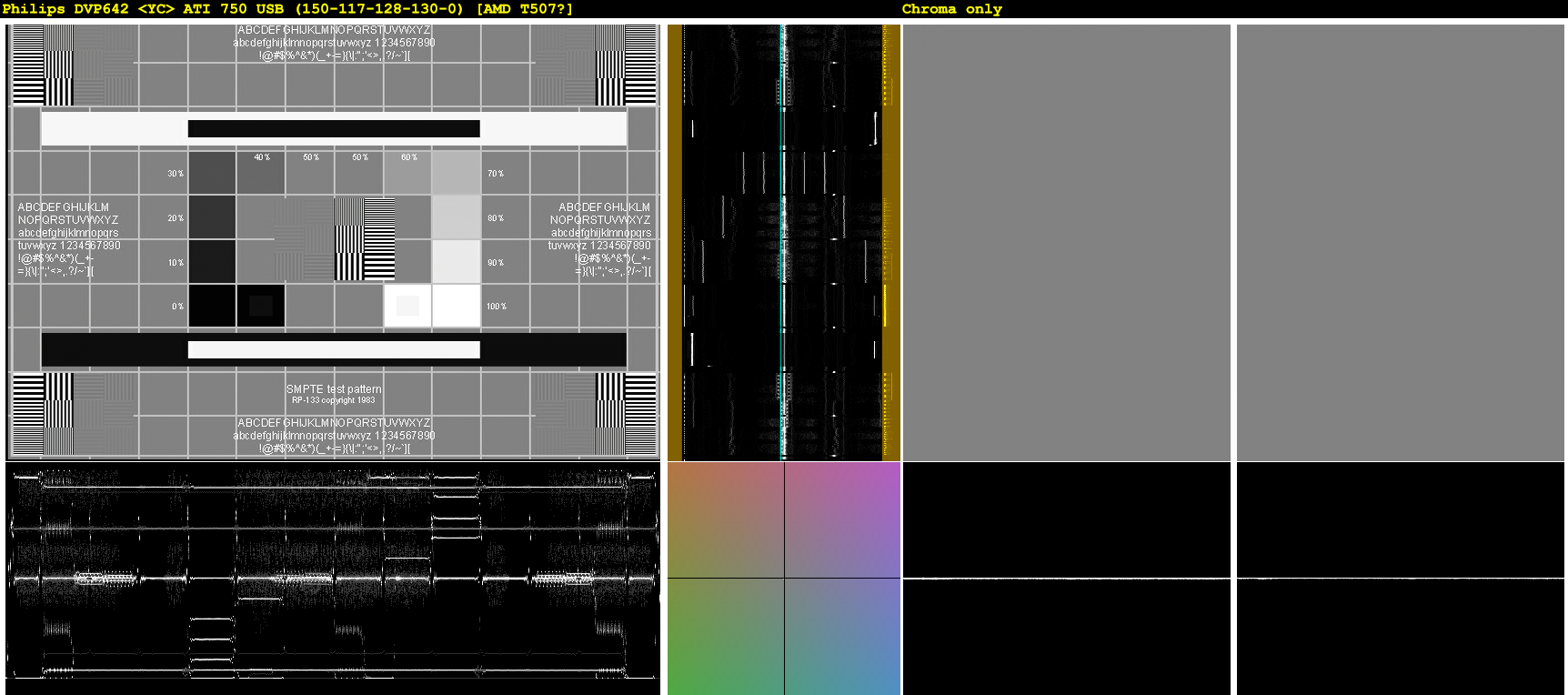

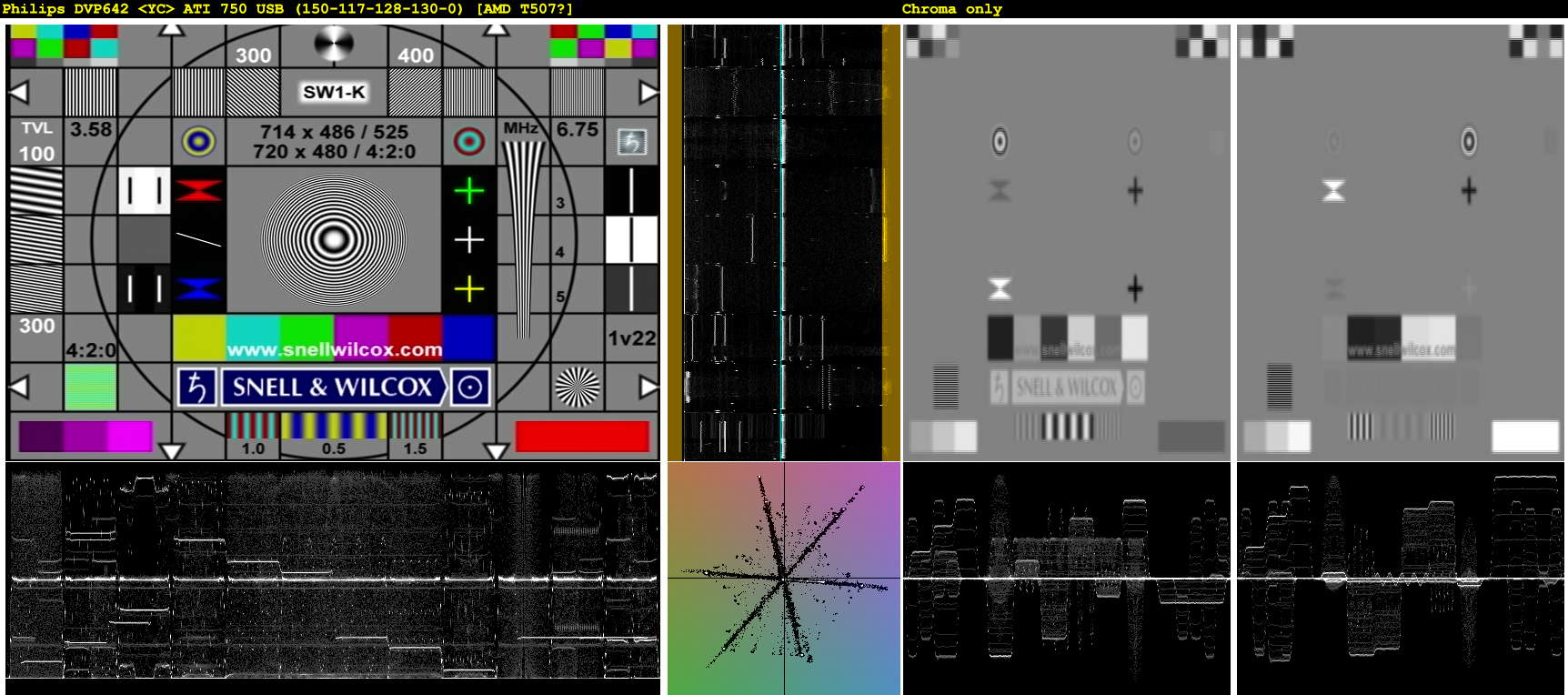

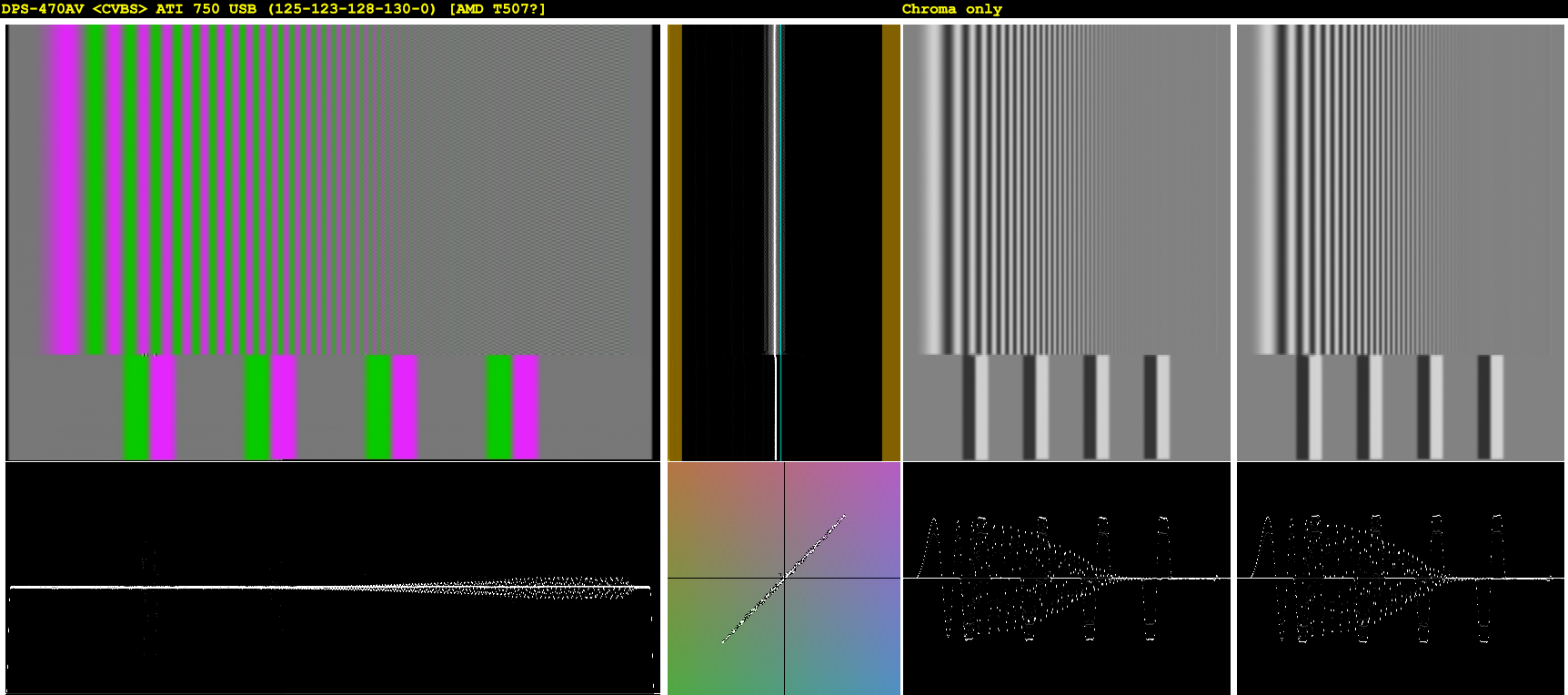

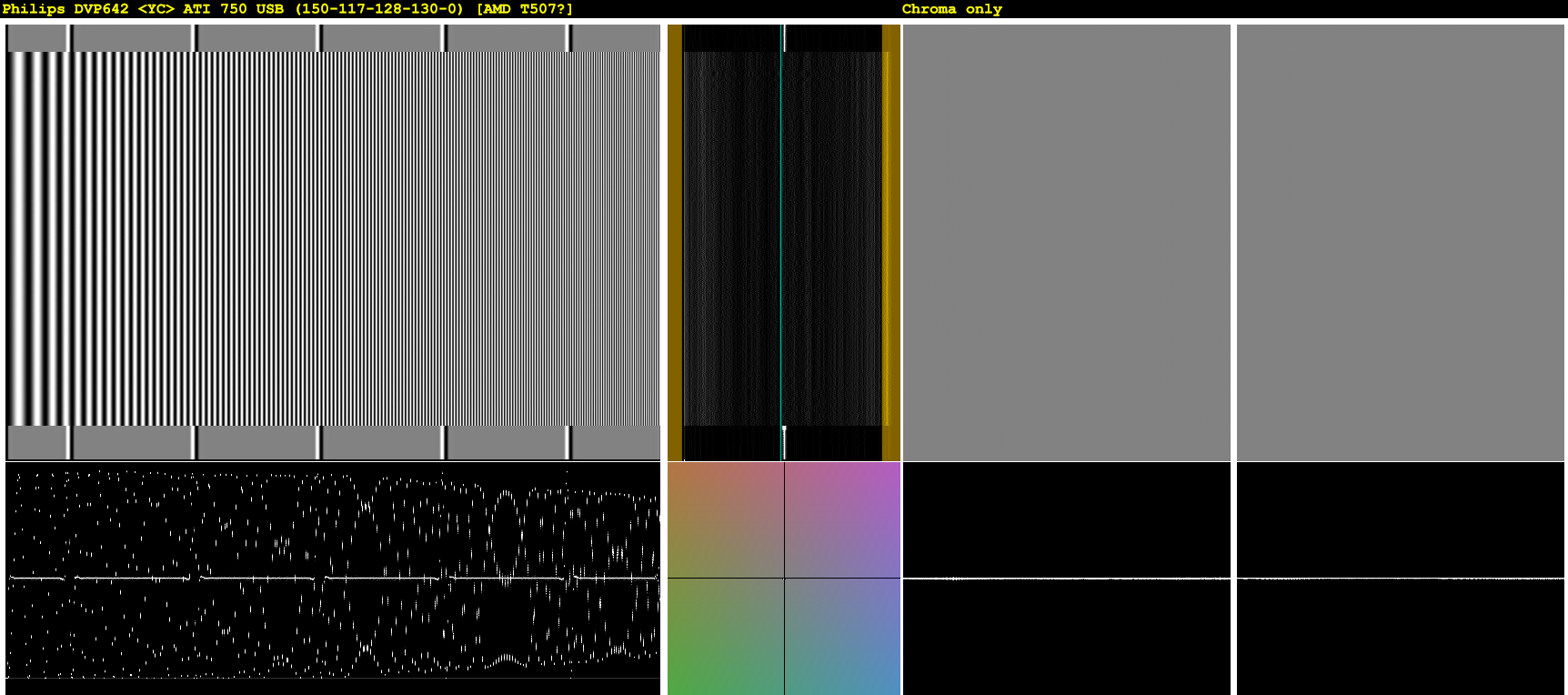

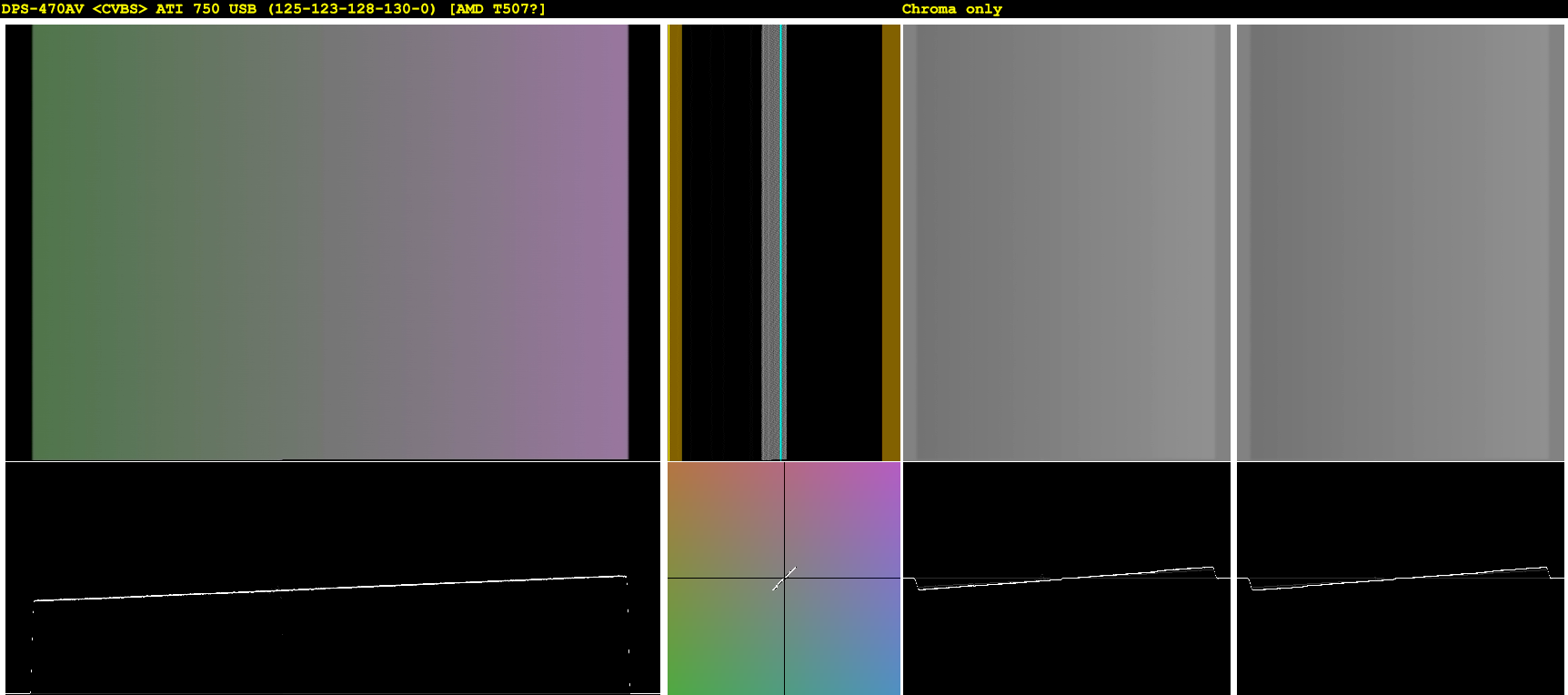

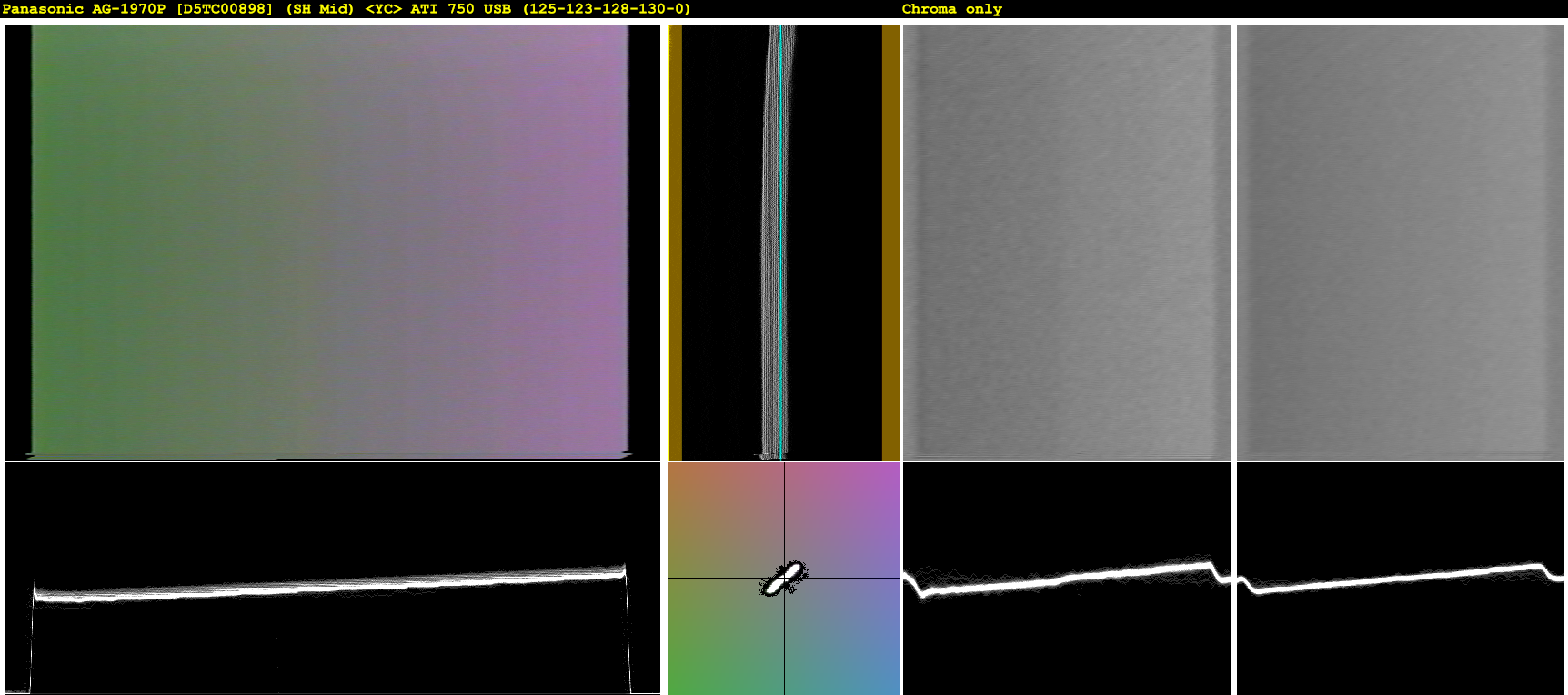

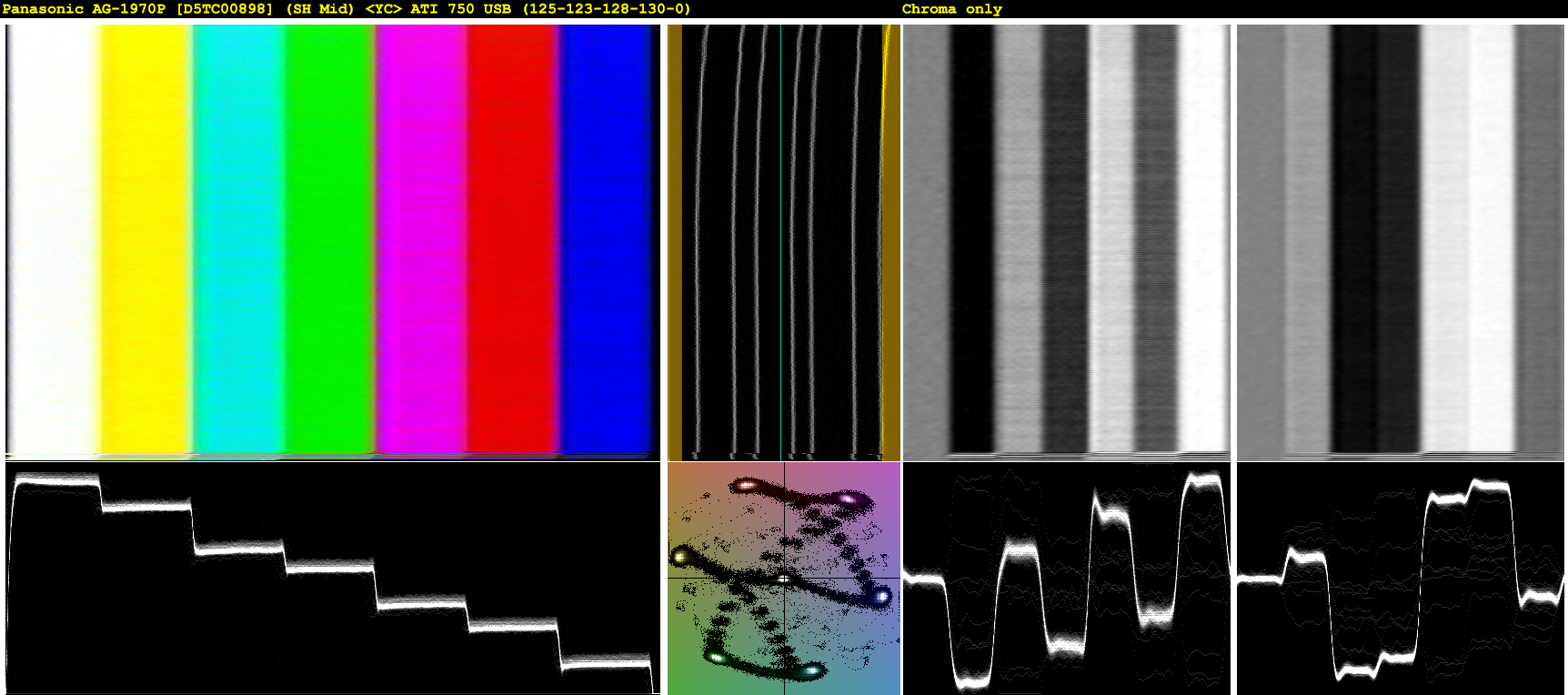

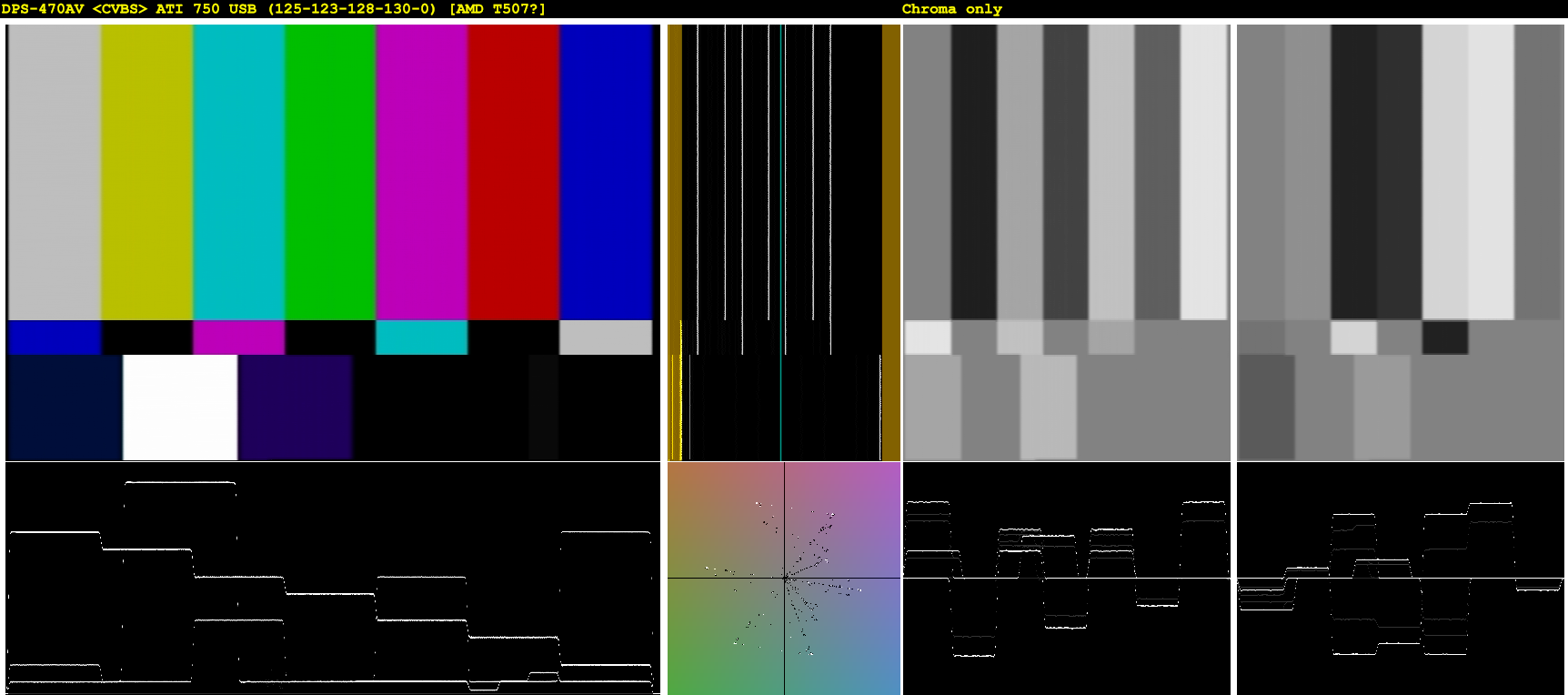

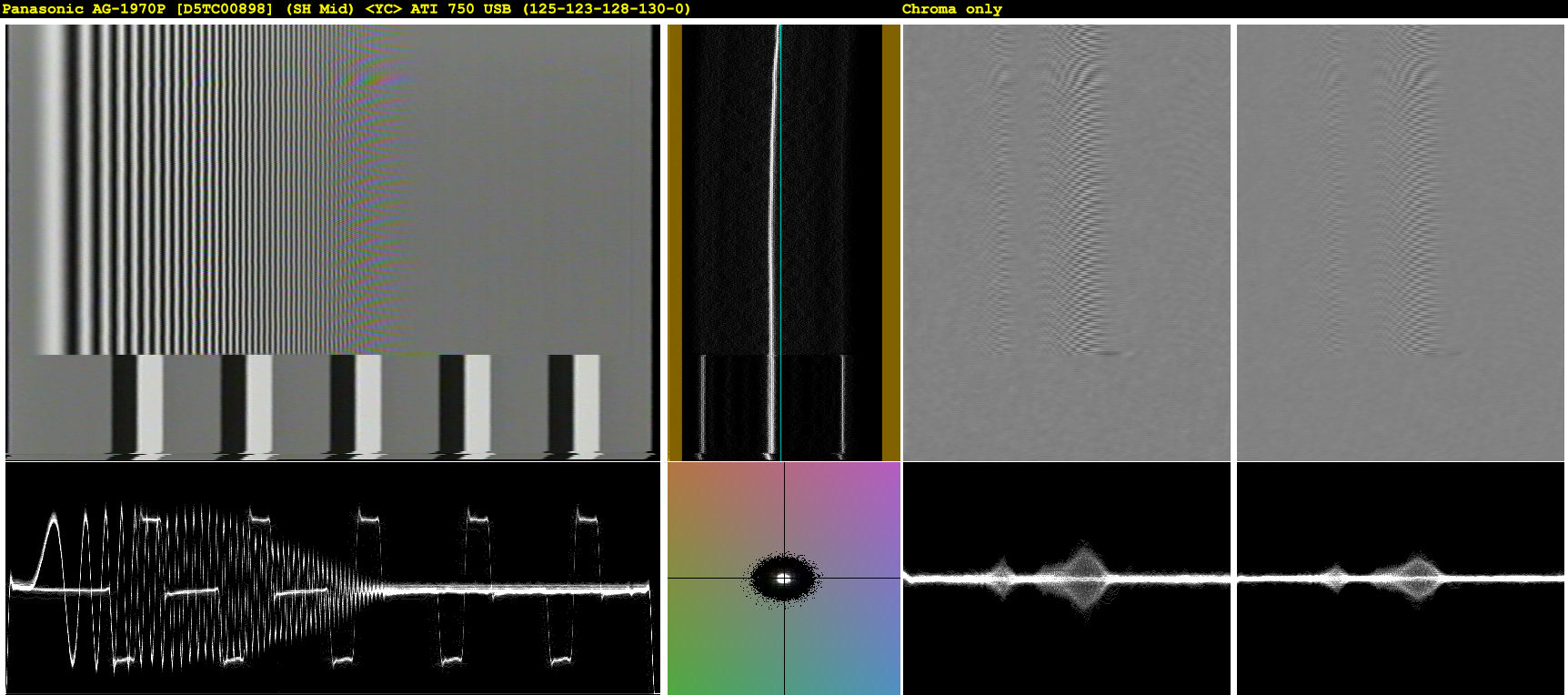

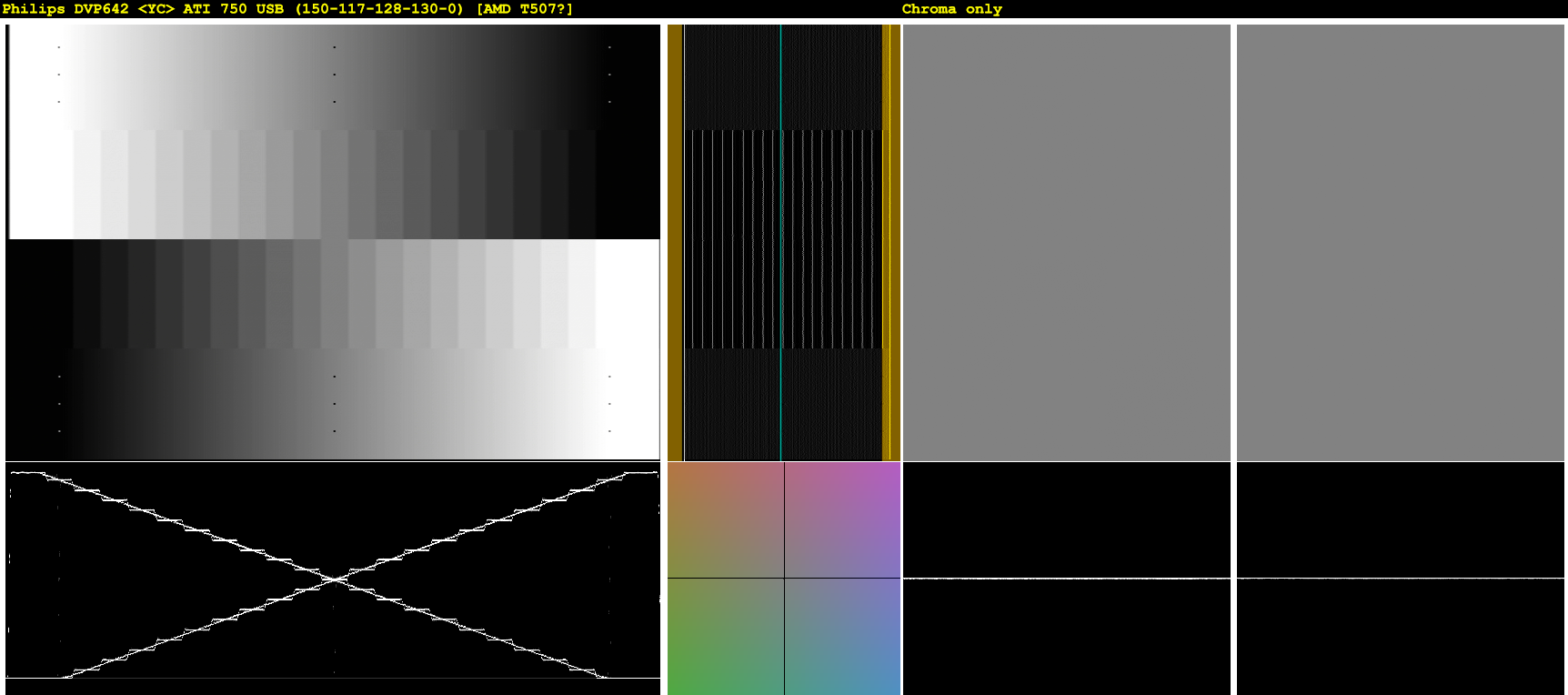

    ATI 750 USB
    Click image for larger version

Name:	DPS-470AV_ATI750_1.png
Views:	3011
Size:	234.8 KB
ID:	21597 Click image for larger version

Name:	DPS-470AV_ATI750_4.png
Views:	2907
Size:	206.4 KB
ID:	21962 Click image for larger version

Name:	DPS-470AV_ATI750_5.png
Views:	2844
Size:	221.9 KB
ID:	21960 Click image for larger version

Name:	DPS-470AV_ATI750_8.png
Views:	2906
Size:	173.9 KB
ID:	21978 Click image for larger version

Name:	DPS-470AV_ATI750_3.png
Views:	2931
Size:	134.2 KB
ID:	21963 Click image for larger version

Name:	DPS-470AV_ATI750_9.png
Views:	2861
Size:	212.8 KB
ID:	21979 Click image for larger version

Name:	DPS-470AV_ATI750_6.png
Views:	2866
Size:	253.0 KB
ID:	21605 Click image for larger version

Name:	DPS-470AV_ATI750_7.png
Views:	2856
Size:	405.2 KB
ID:	21614 Click image for larger version

Name:	DPS-470AV_ATI750_2.png
Views:	2927
Size:	276.0 KB
ID:	21961

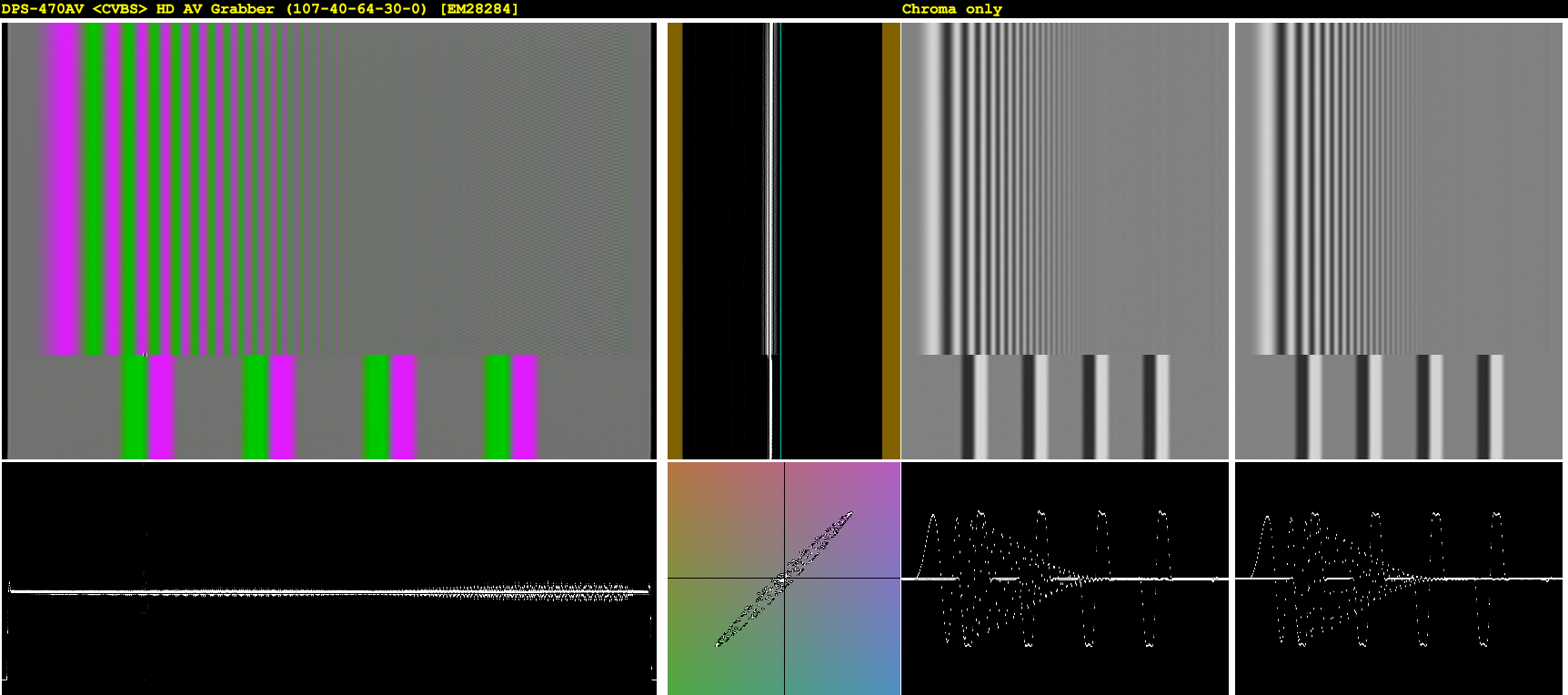

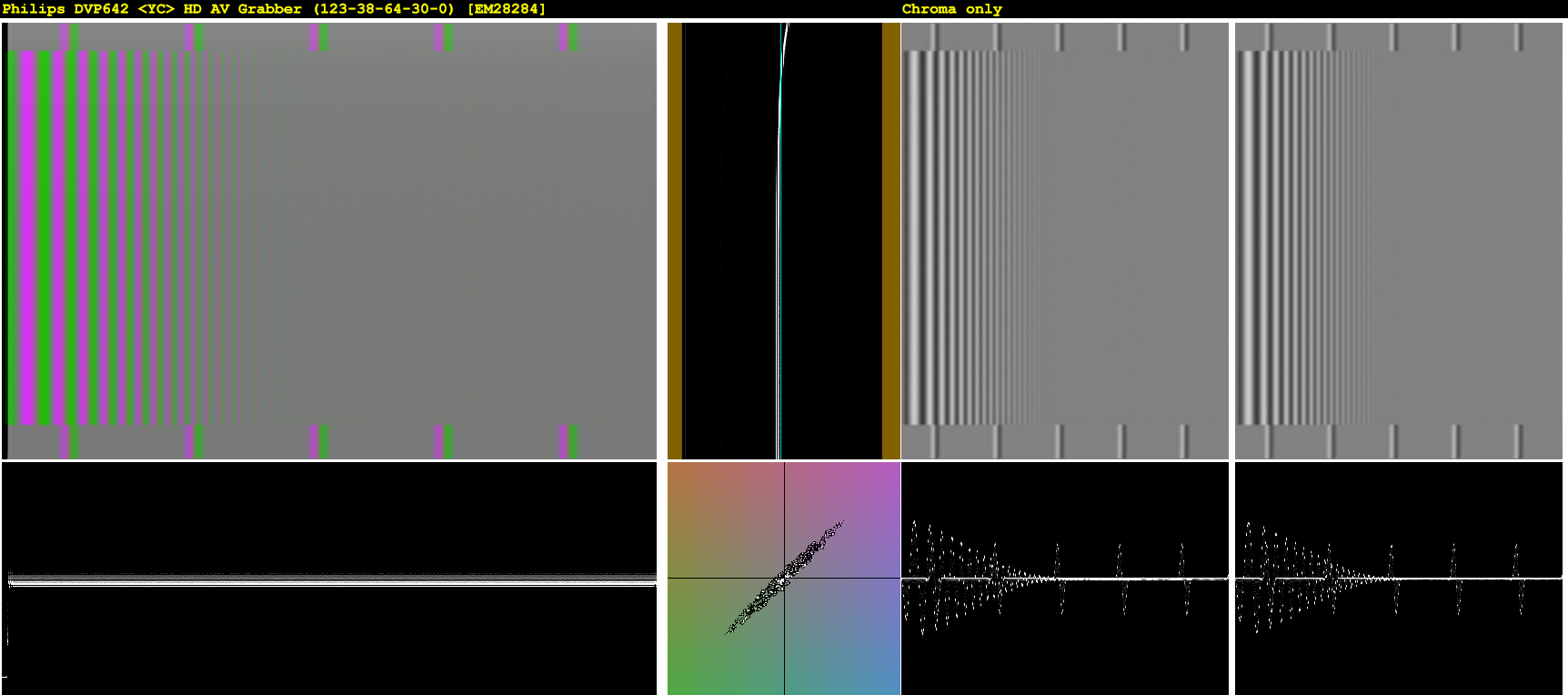

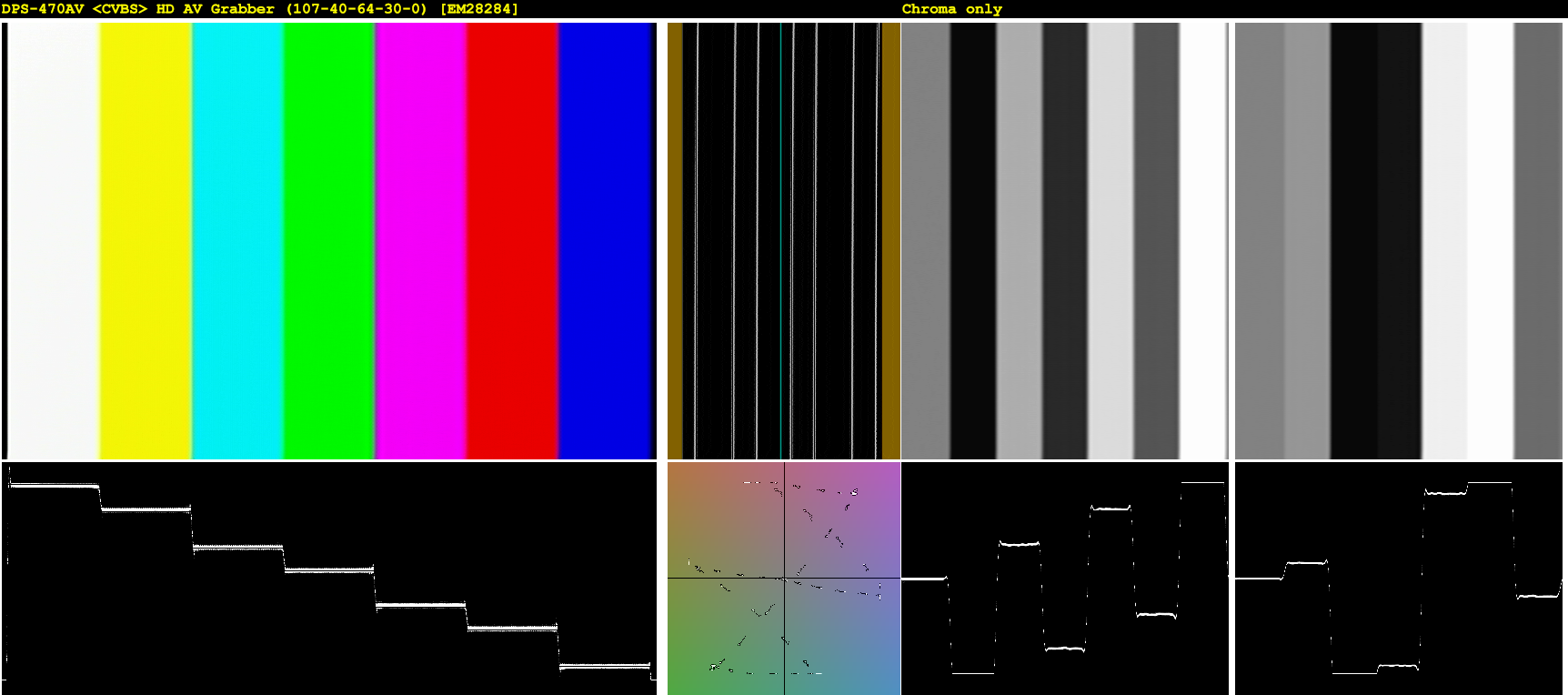

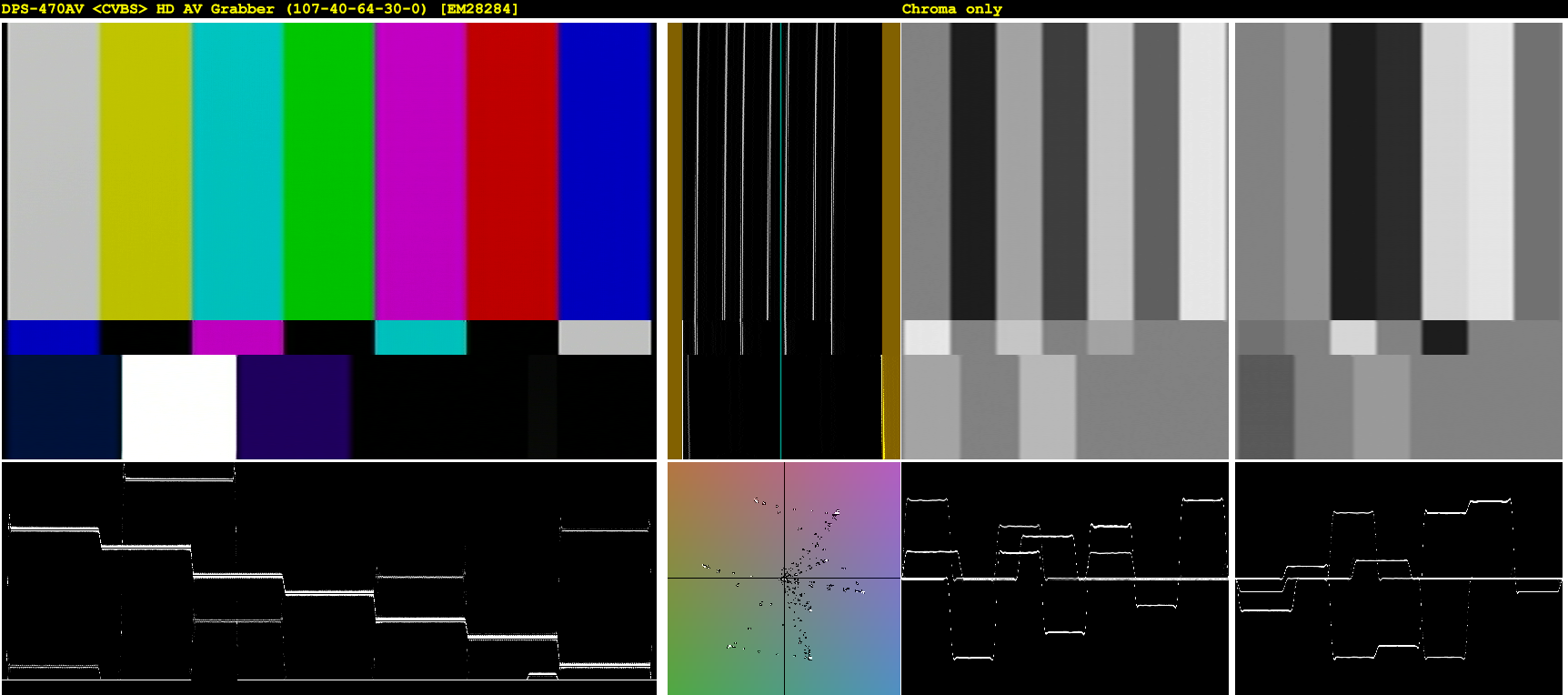

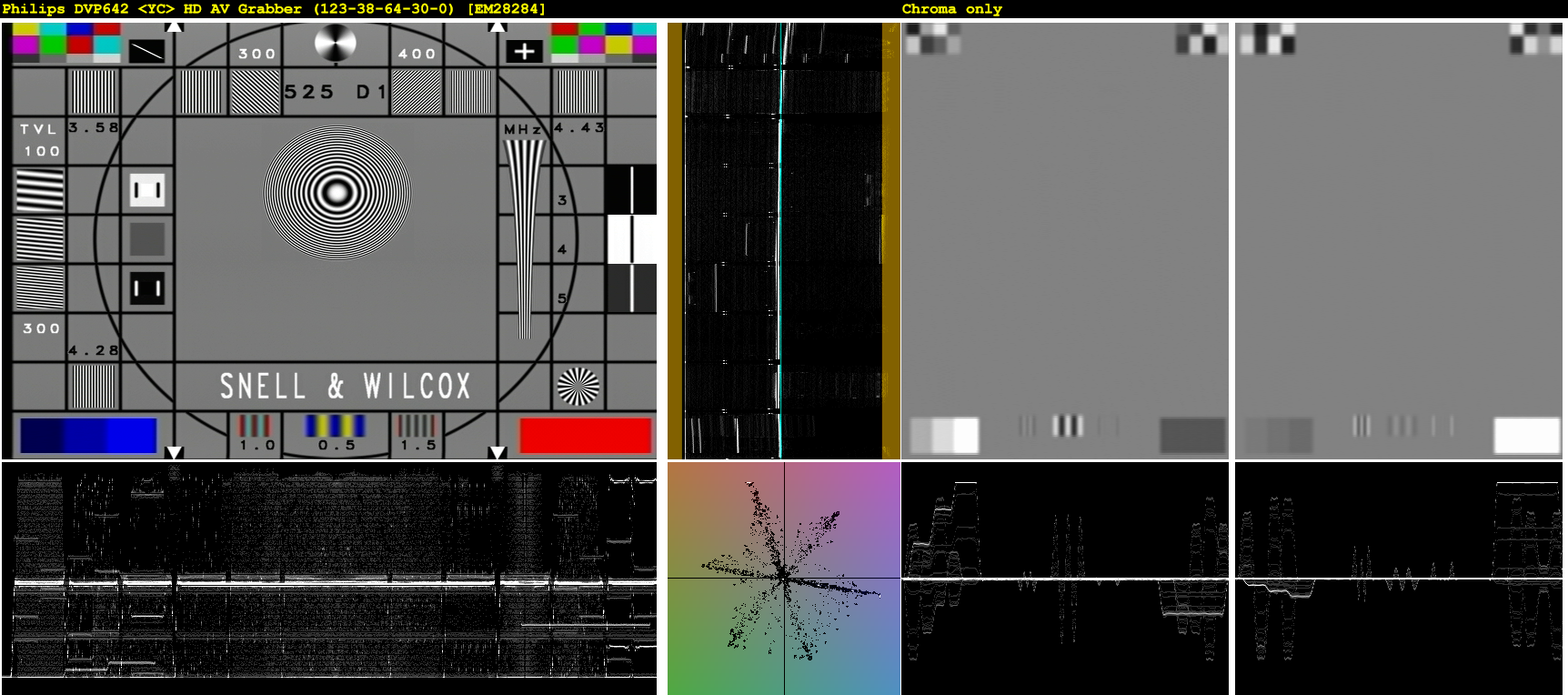

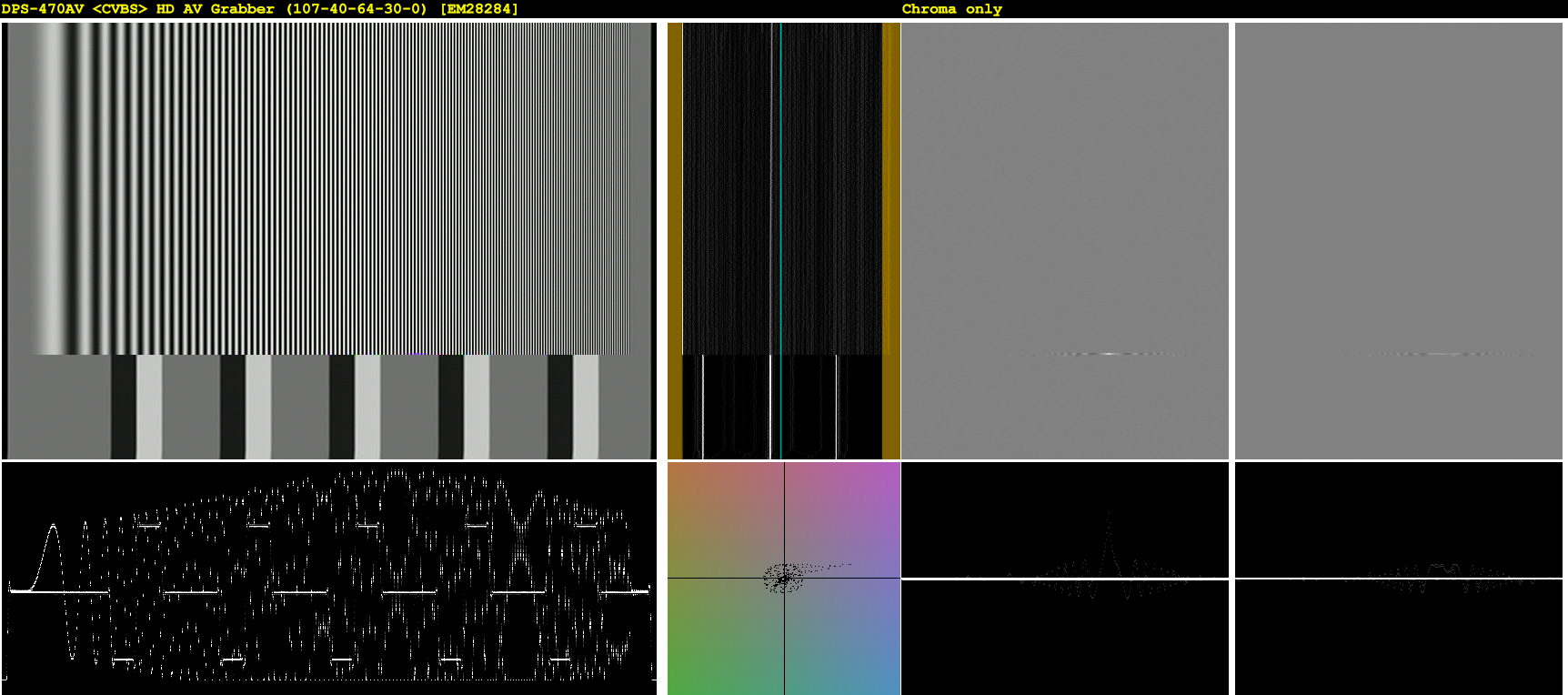

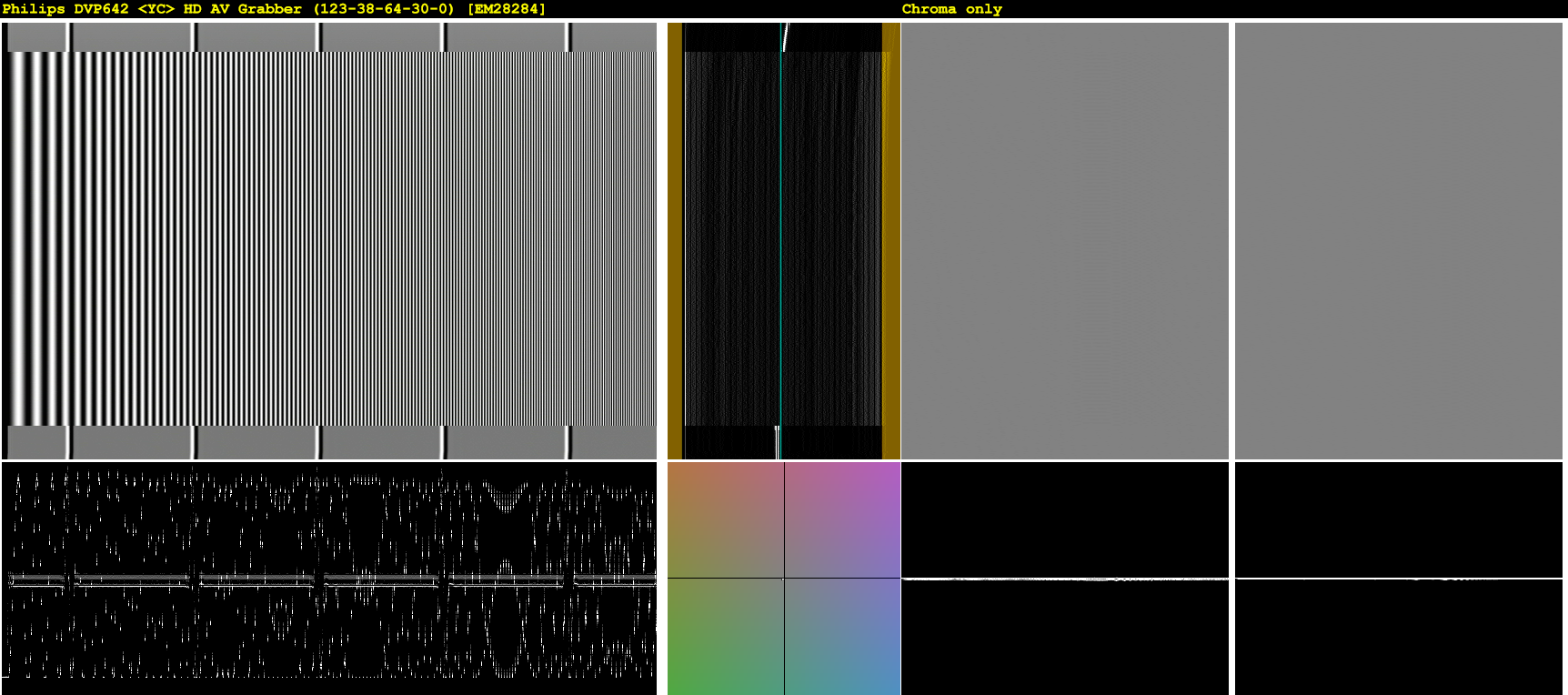

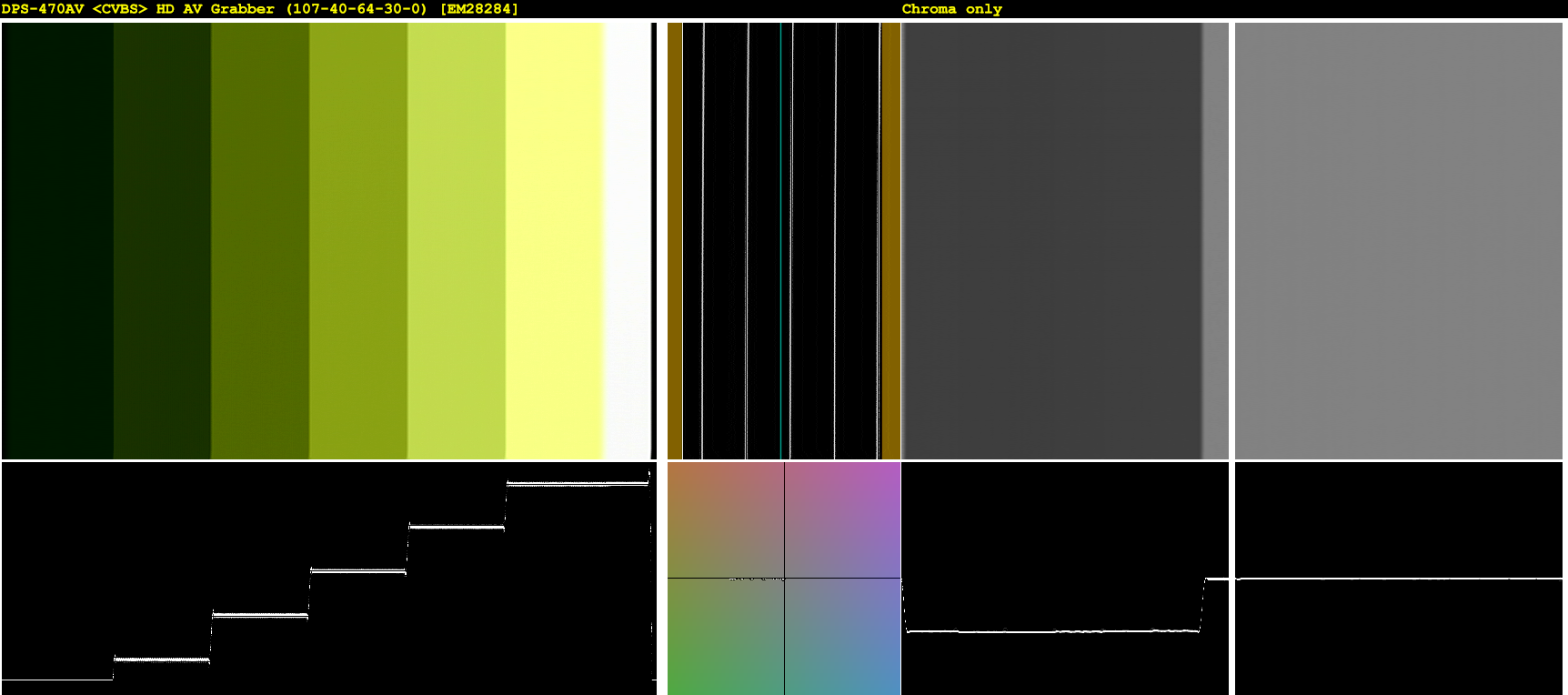

    HD AV Grabber
    Click image for larger version

Name:	DPS-470AV_HDAVGrabber_1.png
Views:	2961
Size:	400.9 KB
ID:	21594 Click image for larger version

Name:	DPS-470AV_HDAVGrabber_4.png
Views:	2788
Size:	379.8 KB
ID:	21974 Click image for larger version

Name:	DPS-470AV_HDAVGrabber_5.png
Views:	2841
Size:	387.5 KB
ID:	21972 Click image for larger version

Name:	DPS-470AV_HDAVGrabber_8.png
Views:	2970
Size:	499.3 KB
ID:	21984 Click image for larger version

Name:	DPS-470AV_HDAVGrabber_3.png
Views:	2990
Size:	460.3 KB
ID:	21975 Click image for larger version

Name:	DPS-470AV_HDAVGrabber_9.png
Views:	2977
Size:	382.3 KB
ID:	21985 Click image for larger version

Name:	DPS-470AV_HDAVGrabber_6.png
Views:	2905
Size:	654.8 KB
ID:	21603 Click image for larger version

Name:	DPS-470AV_HDAVGrabber_7.png
Views:	3041
Size:	609.9 KB
ID:	21613 Click image for larger version

Name:	DPS-470AV_HDAVGrabber_2.png
Views:	2913
Size:	437.4 KB
ID:	21973

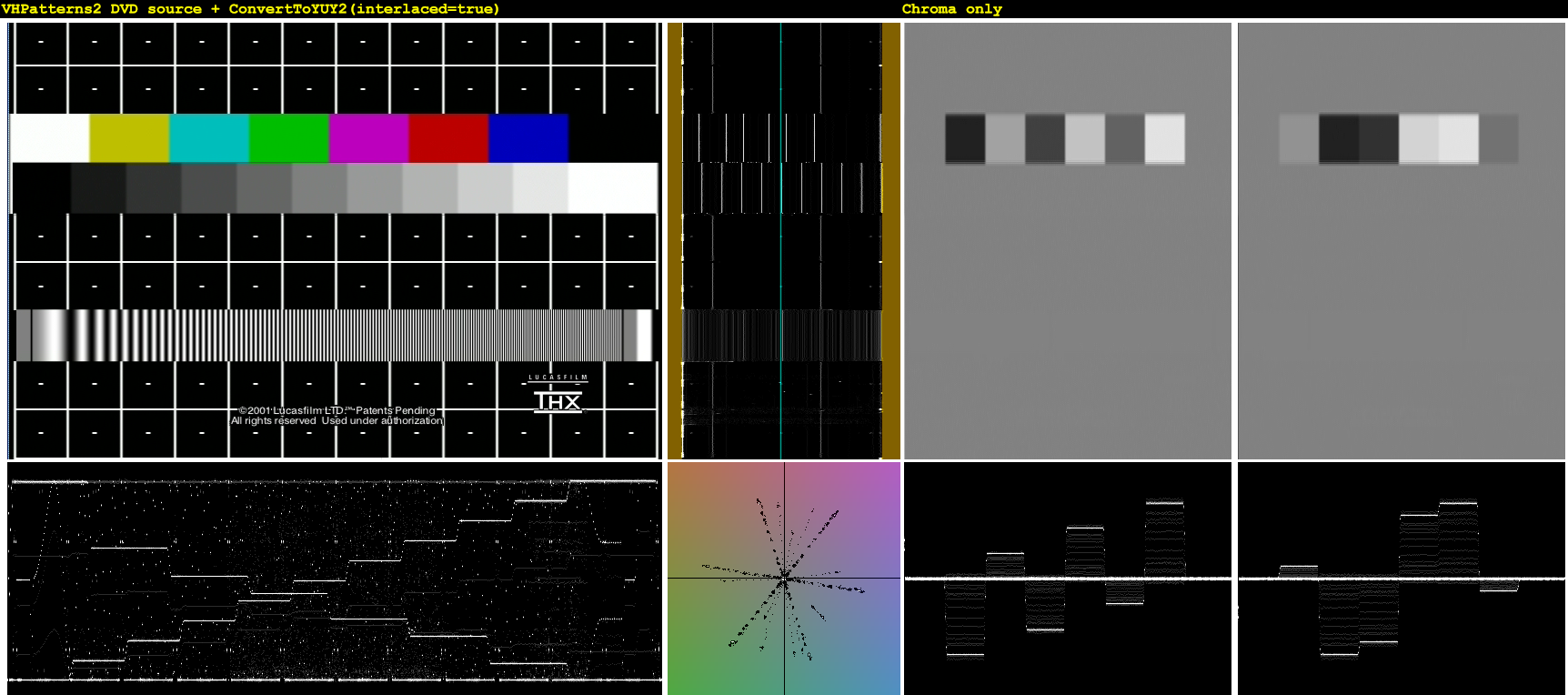

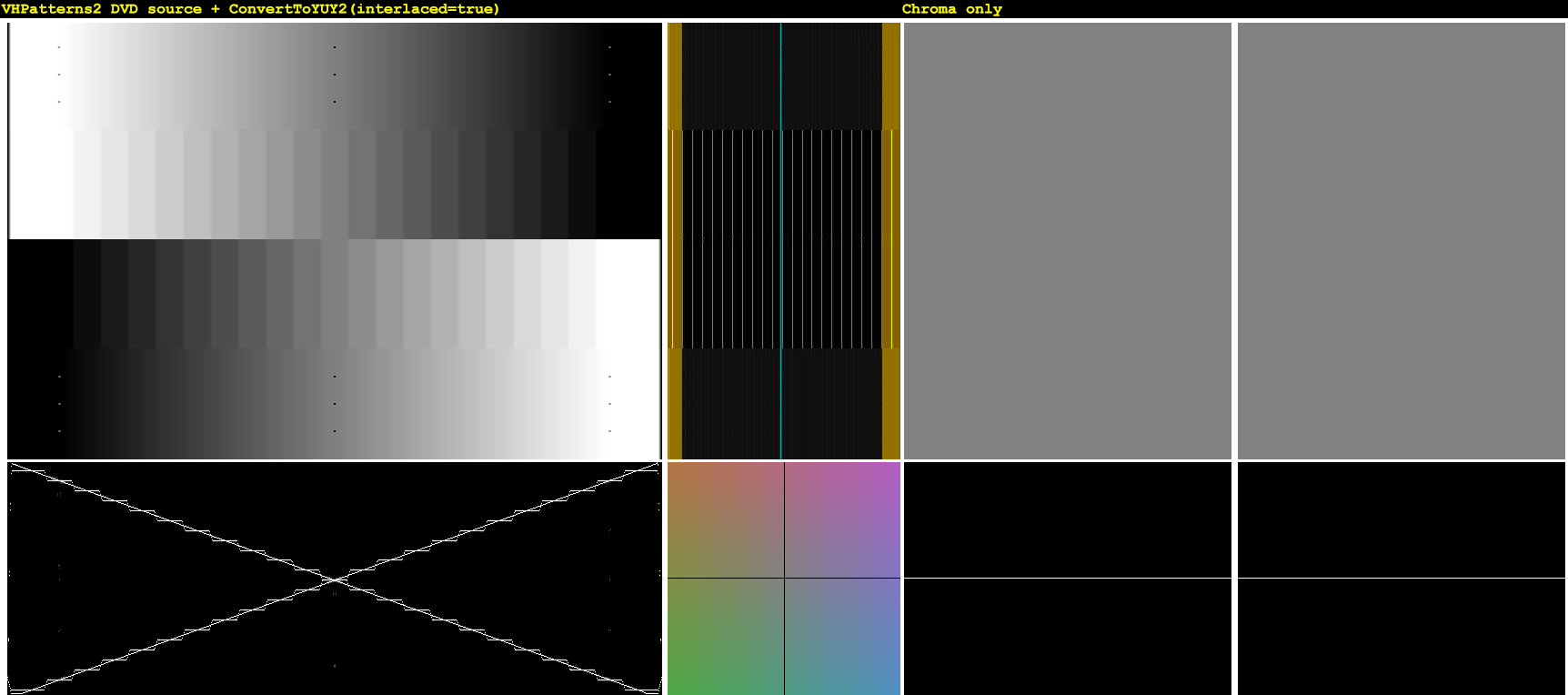

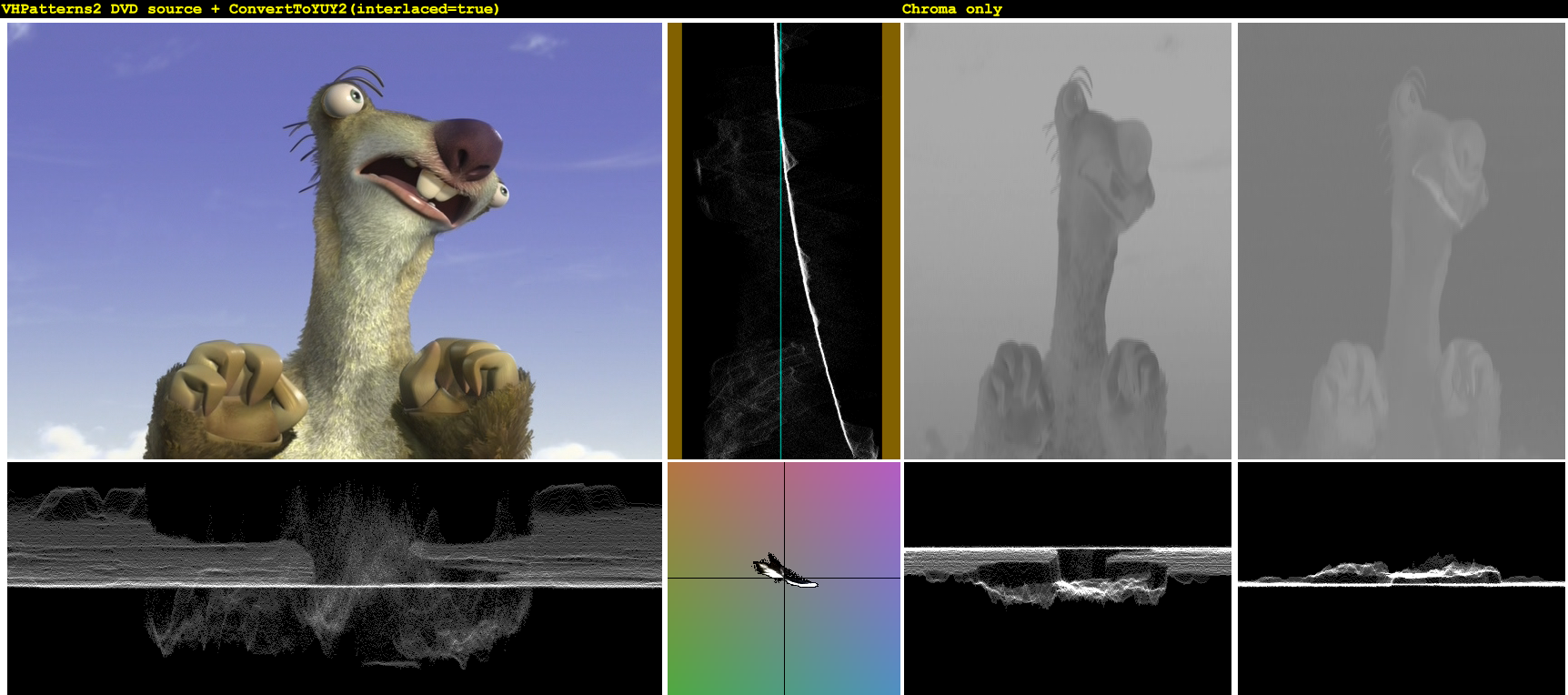

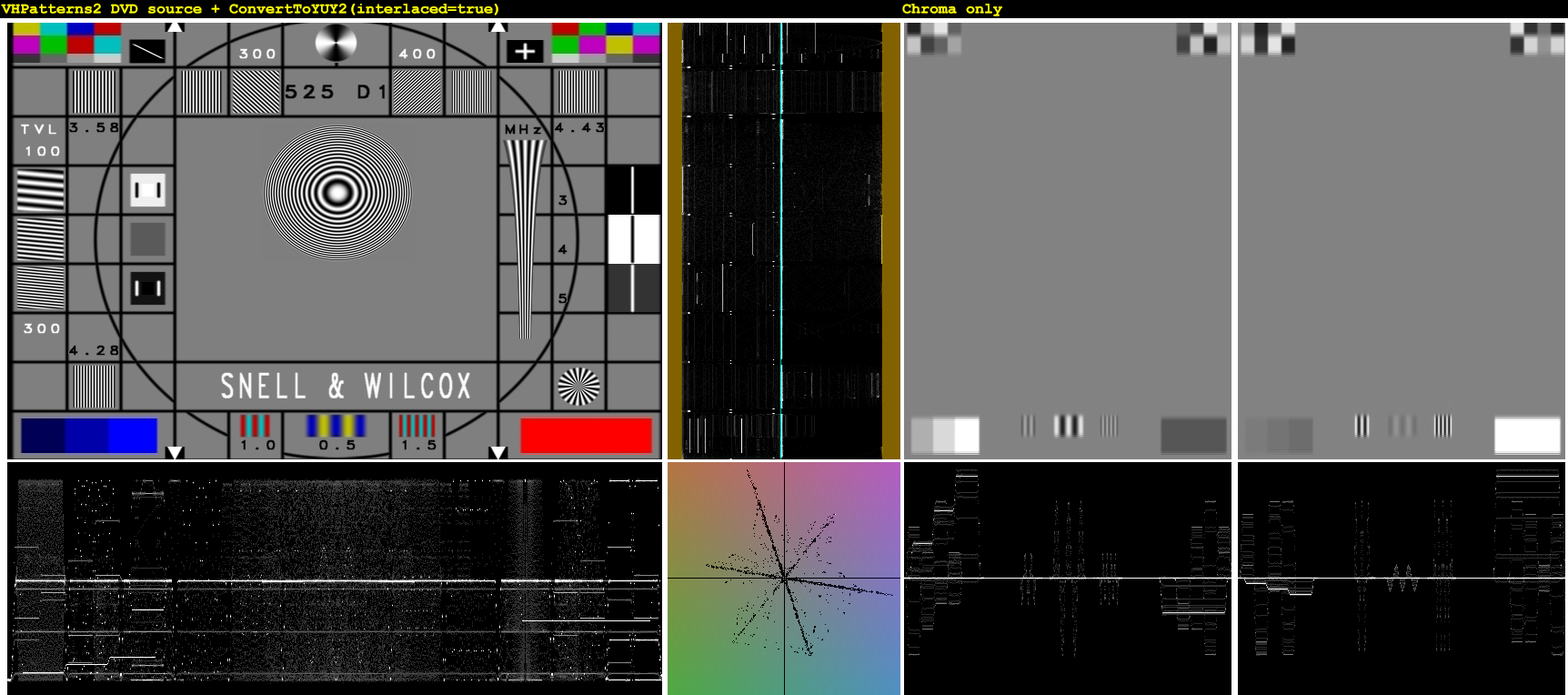

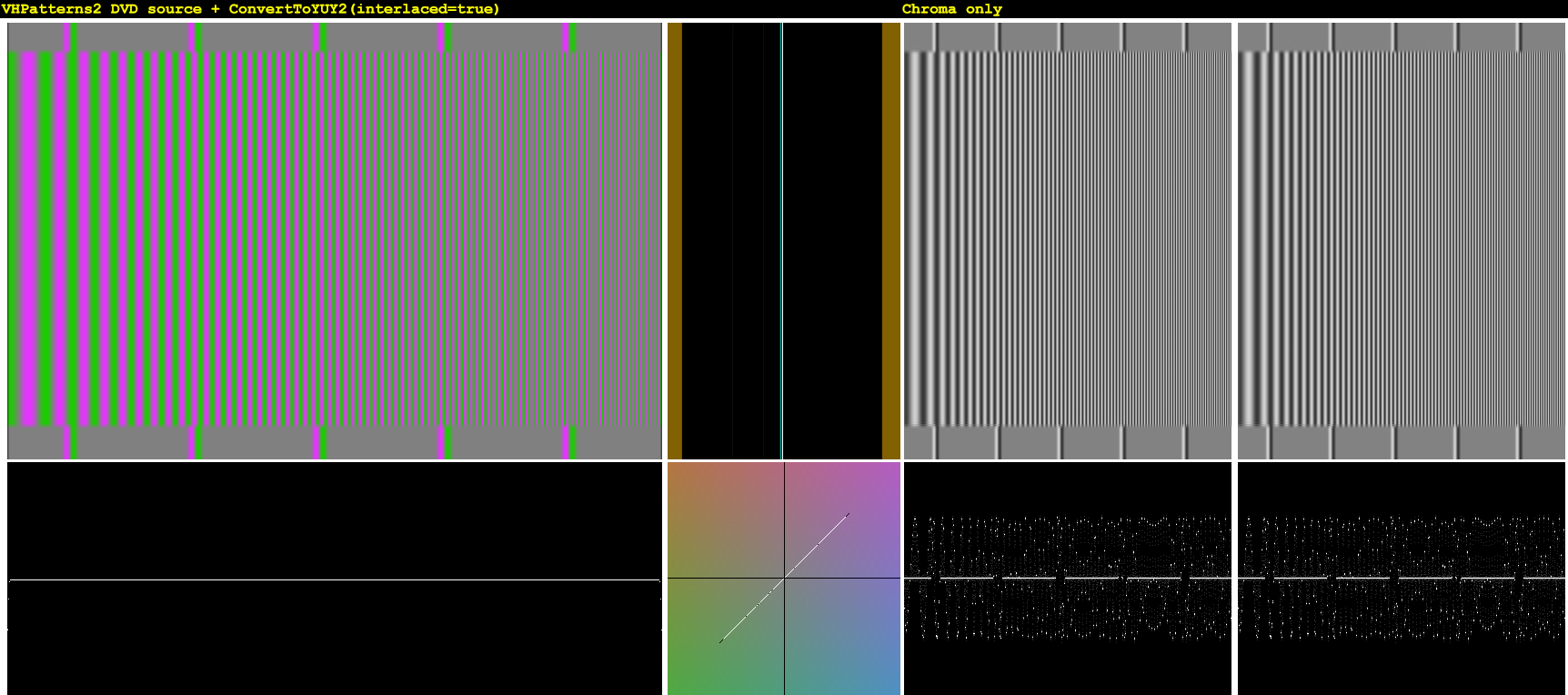

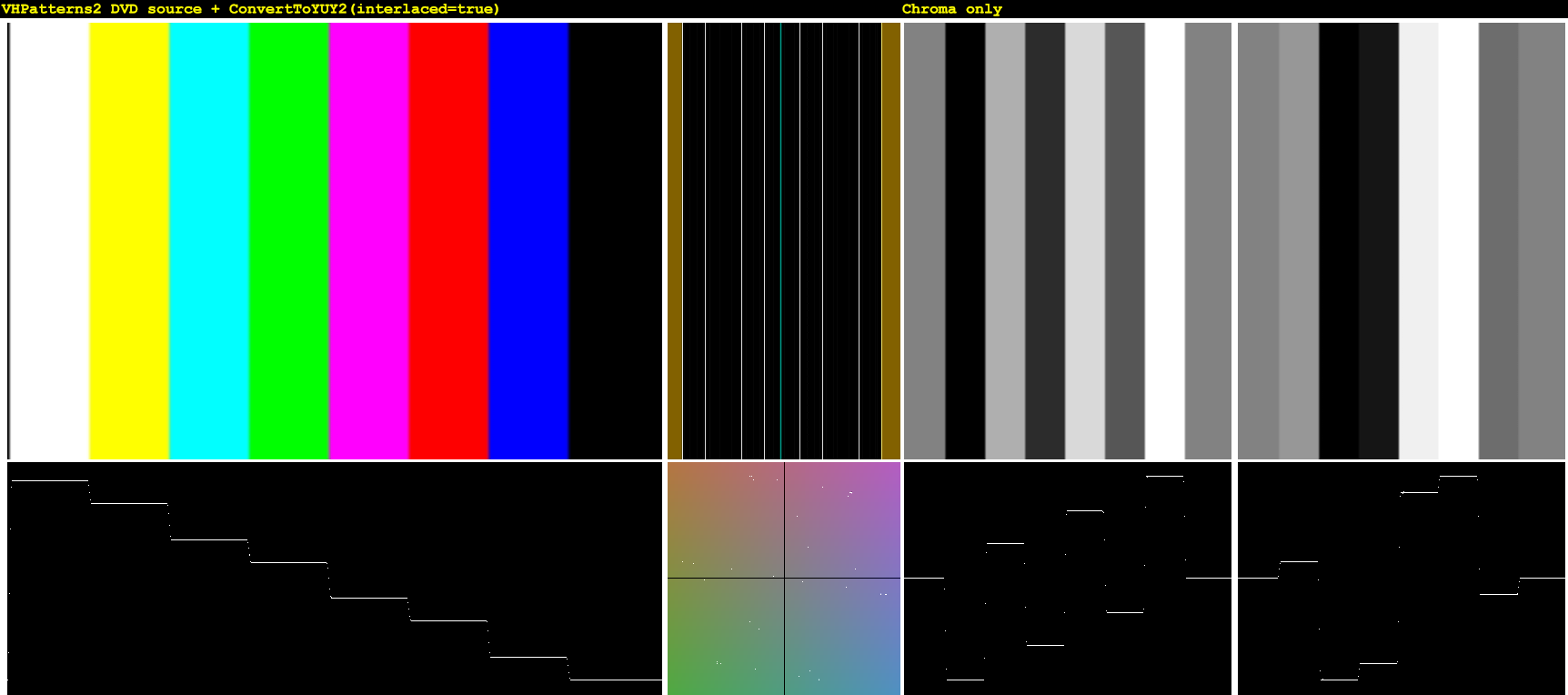

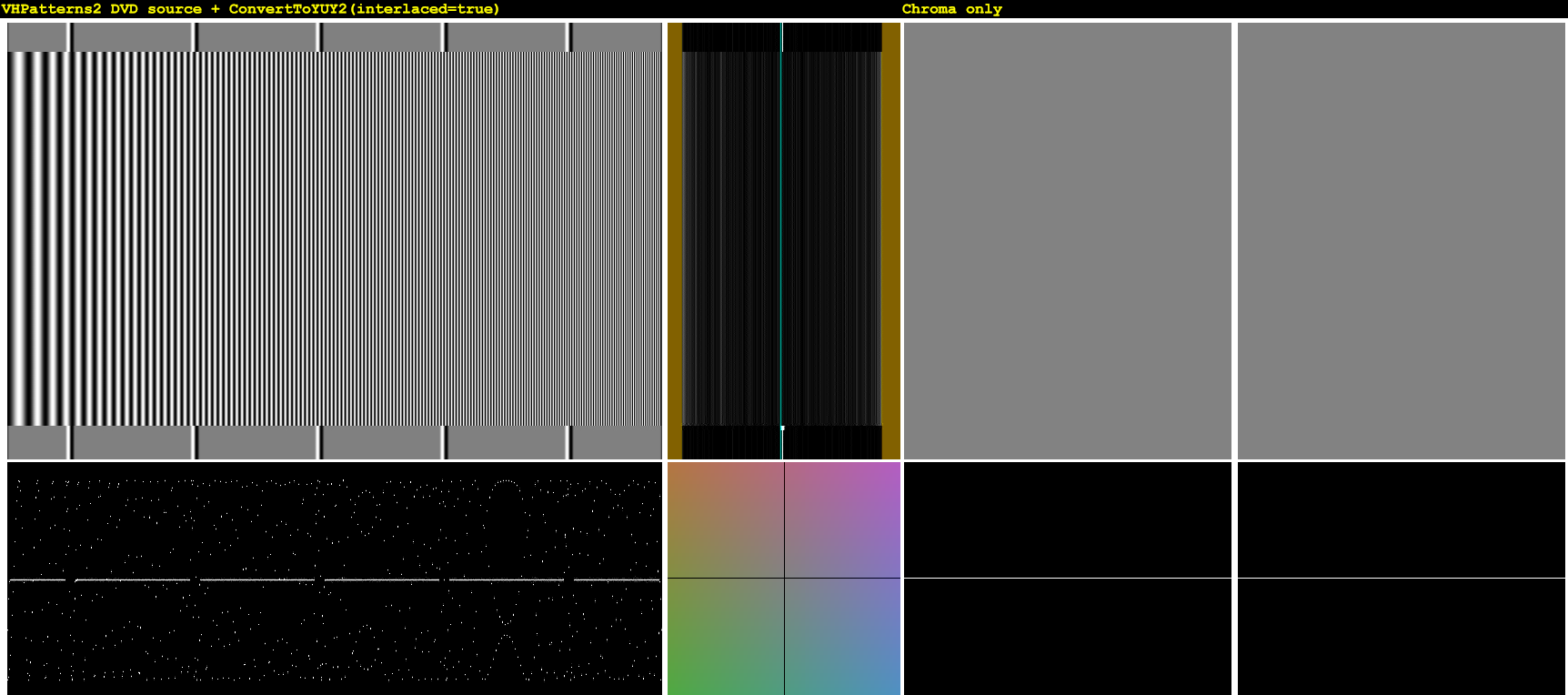

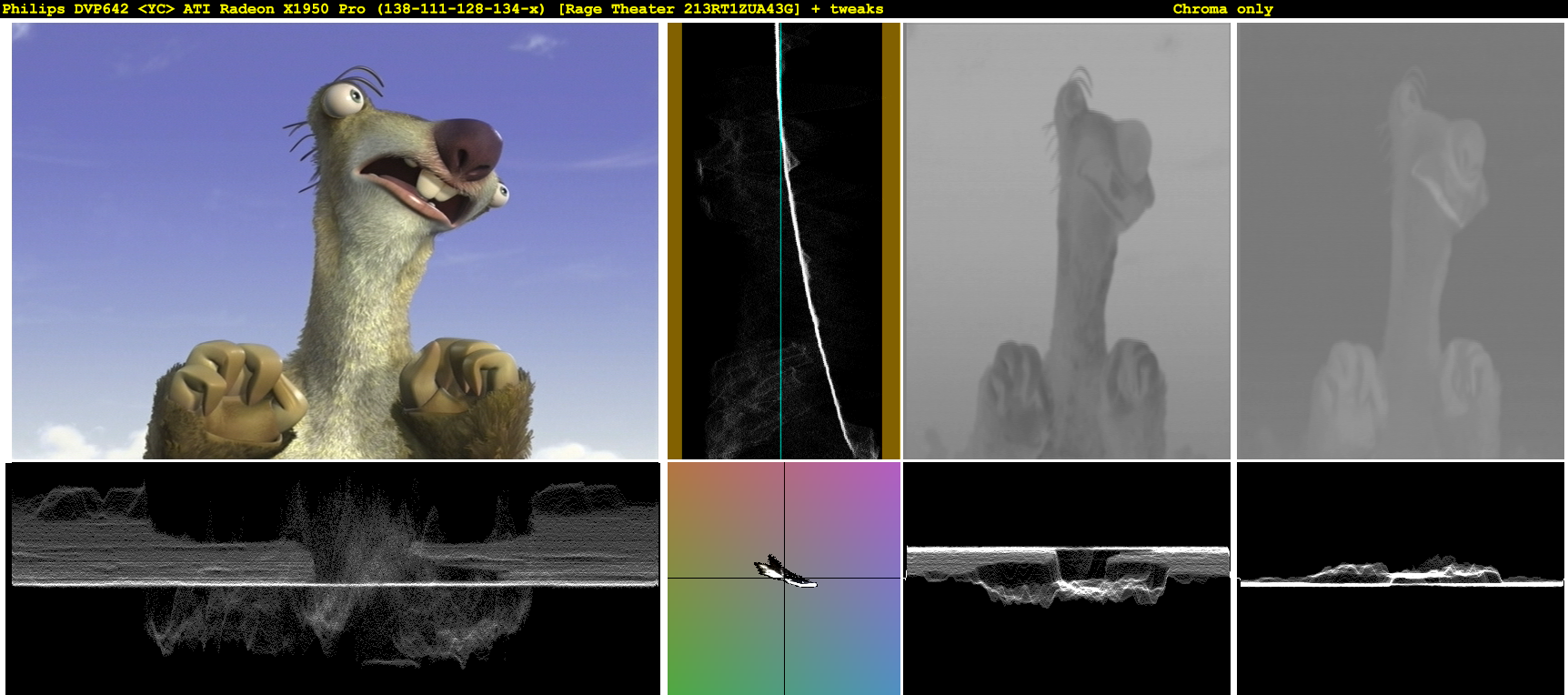

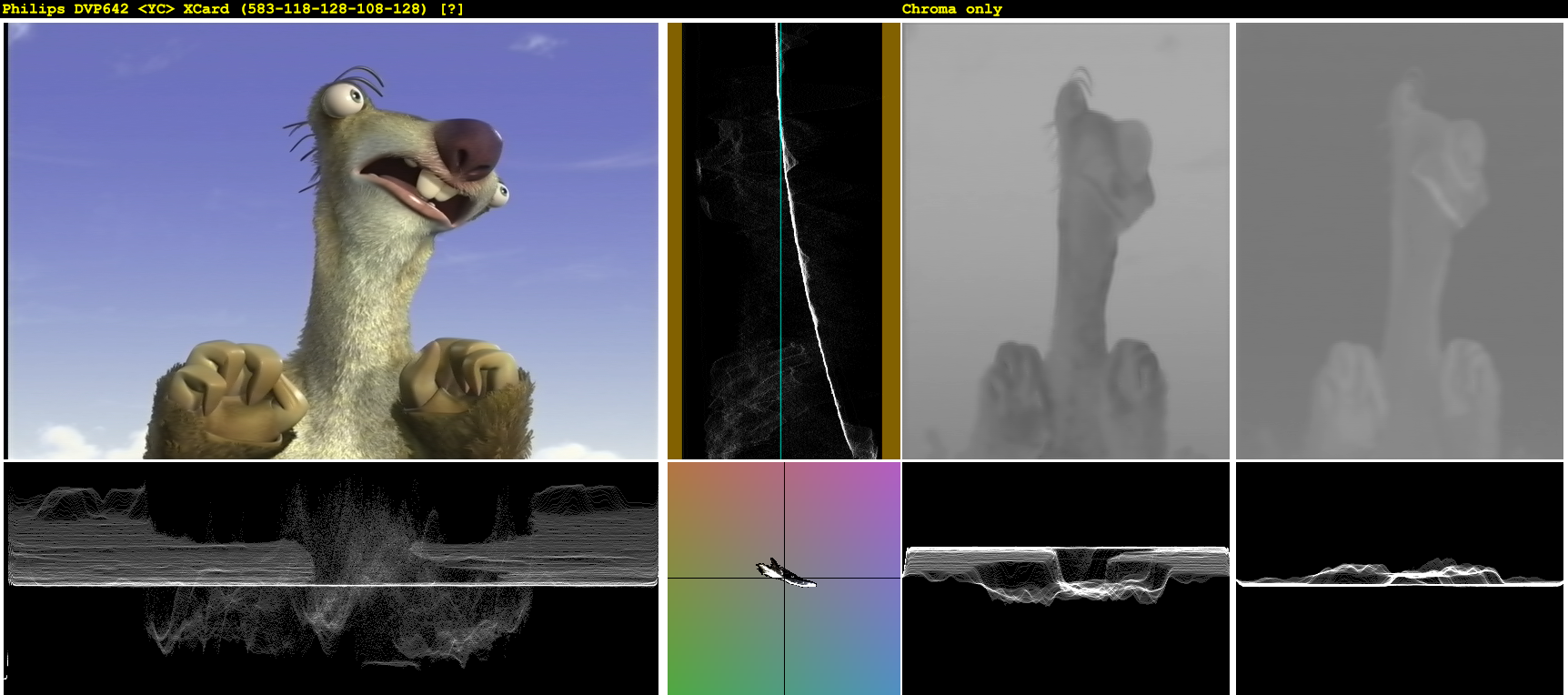

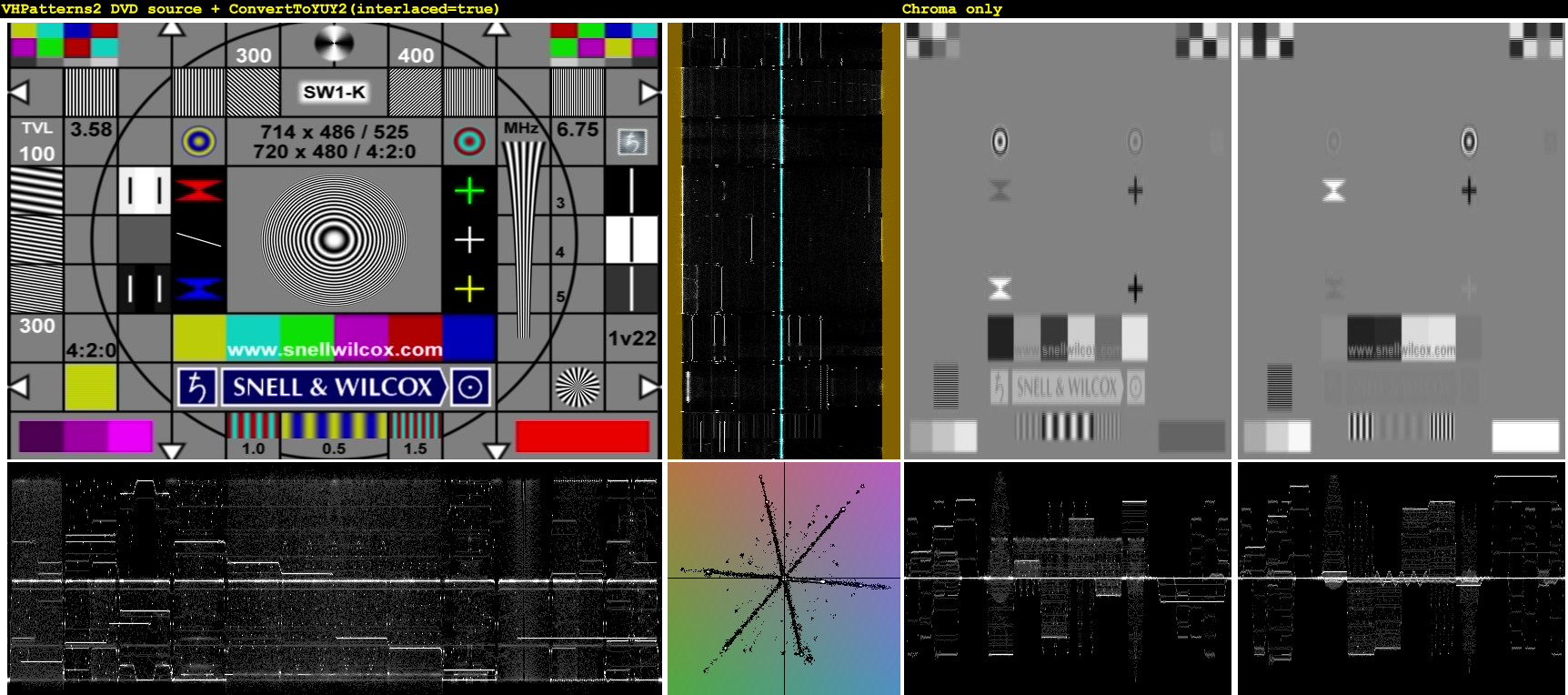

    Source: VHPatterns2 test DVDR (DVE + Ice Age THX test patterns)

    Reference: DVDYUY2 (interlaced chroma)
    Click image for larger version

Name:	VHPatterns2_DVD_1.png
Views:	2928
Size:	406.4 KB
ID:	21648 Click image for larger version

Name:	VHPatterns2_DVD_2.png
Views:	2841
Size:	650.0 KB
ID:	21650 Click image for larger version

Name:	VHPatterns2_DVD_3.png
Views:	2874
Size:	450.5 KB
ID:	21644 Click image for larger version

Name:	VHPatterns2_DVD_4.png
Views:	2834
Size:	769.7 KB
ID:	21643 Click image for larger version

Name:	VHPatterns2_DVD_5.png
Views:	2803
Size:	44.6 KB
ID:	21642 Click image for larger version

Name:	VHPatterns2_DVD_6.png
Views:	2759
Size:	156.6 KB
ID:	21645 Click image for larger version

Name:	VHPatterns2_DVD_7.png
Views:	2810
Size:	71.8 KB
ID:	21647 Click image for larger version

Name:	VHPatterns2_DVD_8.png
Views:	2763
Size:	113.1 KB
ID:	21646 Click image for larger version

Name:	VHPatterns2_DVD_9.png
Views:	2798
Size:	22.2 KB
ID:	21649

    Diamond VC500
    Click image for larger version

Name:	VHPatterns2_VC500_1.png
Views:	2884
Size:	630.8 KB
ID:	21656 Click image for larger version

Name:	VHPatterns2_VC500_2.png
Views:	2852
Size:	812.3 KB
ID:	21655 Click image for larger version

Name:	VHPatterns2_VC500_3.png
Views:	2750
Size:	536.6 KB
ID:	21653 Click image for larger version

Name:	VHPatterns2_VC500_4.png
Views:	2788
Size:	763.1 KB
ID:	21651 Click image for larger version

Name:	VHPatterns2_VC500_5.png
Views:	2478
Size:	302.9 KB
ID:	21658 Click image for larger version

Name:	VHPatterns2_VC500_6.png
Views:	2431
Size:	430.7 KB
ID:	21657 Click image for larger version

Name:	VHPatterns2_VC500_7.png
Views:	2401
Size:	599.2 KB
ID:	21652 Click image for larger version

Name:	VHPatterns2_VC500_8.png
Views:	2484
Size:	433.9 KB
ID:	21659 Click image for larger version

Name:	VHPatterns2_VC500_9.png
Views:	2422
Size:	377.5 KB
ID:	21654

    Mygica EZGrabber2
    Click image for larger version

Name:	VHPatterns2_EZGrabber2_1.png
Views:	2394
Size:	738.8 KB
ID:	21661 Click image for larger version

Name:	VHPatterns2_EZGrabber2_2.png
Views:	2444
Size:	904.1 KB
ID:	21660 Click image for larger version

Name:	VHPatterns2_EZGrabber2_3.png
Views:	2434
Size:	618.4 KB
ID:	21662 Click image for larger version

Name:	VHPatterns2_EZGrabber2_4.png
Views:	2477
Size:	793.2 KB
ID:	21666 Click image for larger version

Name:	VHPatterns2_EZGrabber2_5.png
Views:	2378
Size:	388.5 KB
ID:	21665 Click image for larger version

Name:	VHPatterns2_EZGrabber2_6.png
Views:	2531
Size:	559.3 KB
ID:	21664 Click image for larger version

Name:	VHPatterns2_EZGrabber2_7.png
Views:	2437
Size:	707.7 KB
ID:	21663 Click image for larger version

Name:	VHPatterns2_EZGrabber2_8.png
Views:	2417
Size:	476.9 KB
ID:	21668 Click image for larger version

Name:	VHPatterns2_EZGrabber2_9.png
Views:	2354
Size:	481.7 KB
ID:	21667

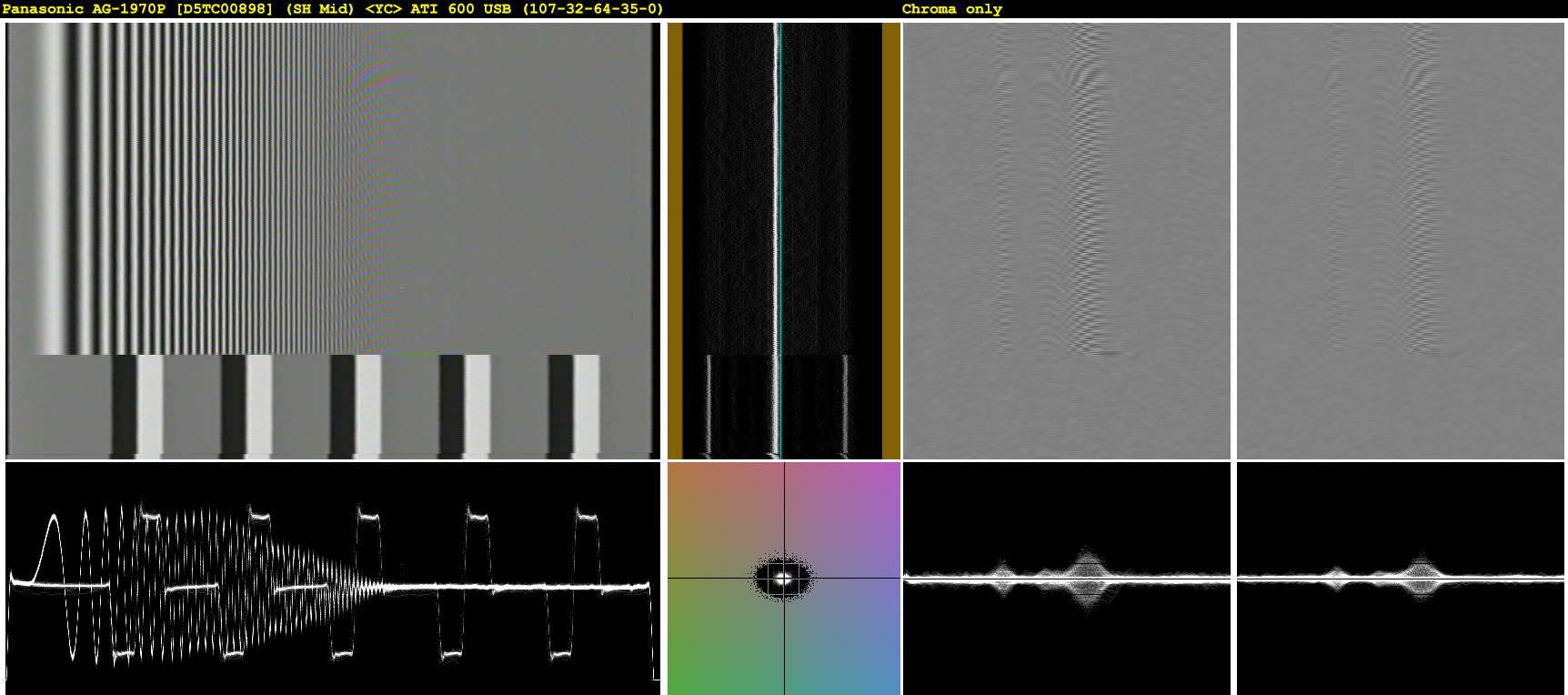

    ATI 600 USB
    Click image for larger version

Name:	VHPatterns2_ATI600_1.png
Views:	2535
Size:	750.8 KB
ID:	21680 Click image for larger version

Name:	VHPatterns2_ATI600_2.png
Views:	2396
Size:	872.8 KB
ID:	21679 Click image for larger version

Name:	VHPatterns2_ATI600_3.png
Views:	2367
Size:	404.5 KB
ID:	21677 Click image for larger version

Name:	VHPatterns2_ATI600_4.png
Views:	2456
Size:	738.4 KB
ID:	21675 Click image for larger version

Name:	VHPatterns2_ATI600_5.png
Views:	2416
Size:	528.1 KB
ID:	21682 Click image for larger version

Name:	VHPatterns2_ATI600_6.png
Views:	2332
Size:	626.6 KB
ID:	21681 Click image for larger version

Name:	VHPatterns2_ATI600_7.png
Views:	2351
Size:	600.9 KB
ID:	21676 Click image for larger version

Name:	VHPatterns2_ATI600_8.png
Views:	2333
Size:	495.8 KB
ID:	21683 Click image for larger version

Name:	VHPatterns2_ATI600_9.png
Views:	2332
Size:	246.3 KB
ID:	21678

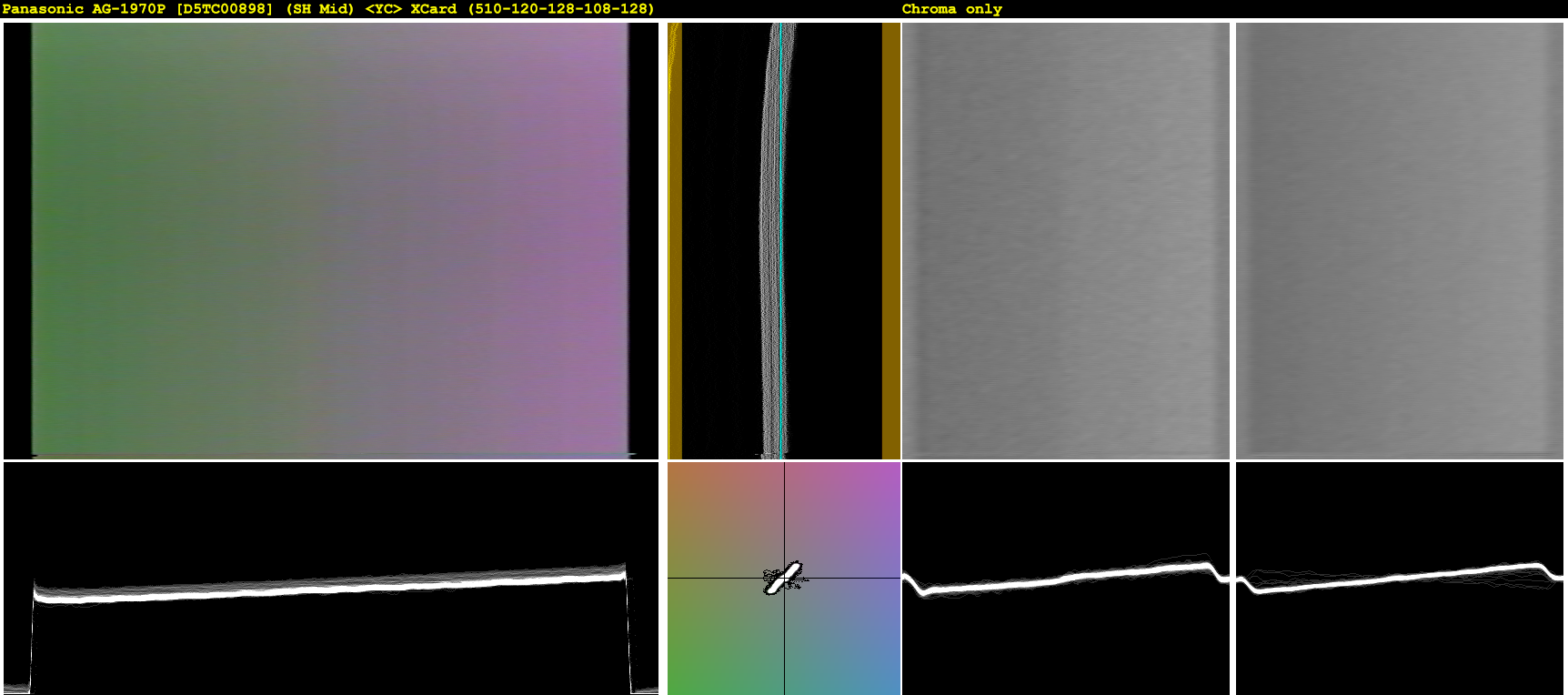

    danno78 XCard (AVerMedia hardware)
    Click image for larger version

Name:	VHPatterns2_XCard_1.png
Views:	2334
Size:	536.0 KB
ID:	21672 Click image for larger version

Name:	VHPatterns2_XCard_2.png
Views:	2357
Size:	722.2 KB
ID:	21671 Click image for larger version

Name:	VHPatterns2_XCard_3.png
Views:	2339
Size:	352.8 KB
ID:	21670 Click image for larger version

Name:	VHPatterns2_XCard_4.png
Views:	2335
Size:	596.0 KB
ID:	21669 Click image for larger version

Name:	VHPatterns2_XCard_5.png
Views:	2423
Size:	215.5 KB
ID:	21674 Click image for larger version

Name:	VHPatterns2_XCard_6.png
Views:	2387
Size:	362.2 KB
ID:	21673 Click image for larger version

Name:	VHPatterns2_XCard_7.png
Views:	2356
Size:	482.7 KB
ID:	21684 Click image for larger version

Name:	VHPatterns2_XCard_8.png
Views:	2317
Size:	350.2 KB
ID:	21686 Click image for larger version

Name:	VHPatterns2_XCard_9.png
Views:	2329
Size:	289.6 KB
ID:	21685

    Easycap STK1160
    Click image for larger version

Name:	VHPatterns2_STK1160_1.png
Views:	2395
Size:	597.5 KB
ID:	21692 Click image for larger version

Name:	VHPatterns2_STK1160_2.png
Views:	2339
Size:	771.6 KB
ID:	21691 Click image for larger version

Name:	VHPatterns2_STK1160_3.png
Views:	2351
Size:	455.7 KB
ID:	21714 Click image for larger version

Name:	VHPatterns2_STK1160_4.png
Views:	2364
Size:	718.2 KB
ID:	21687 Click image for larger version

Name:	VHPatterns2_STK1160_5.png
Views:	2284
Size:	294.2 KB
ID:	21694 Click image for larger version

Name:	VHPatterns2_STK1160_6.png
Views:	2312
Size:	406.0 KB
ID:	21693 Click image for larger version

Name:	VHPatterns2_STK1160_7.png
Views:	2307
Size:	462.7 KB
ID:	21688 Click image for larger version

Name:	VHPatterns2_STK1160_8.png
Views:	2282
Size:	409.2 KB
ID:	21695 Click image for larger version

Name:	VHPatterns2_STK1160_9.png
Views:	2259
Size:	342.8 KB
ID:	21690

    ATI 750 USB
    Click image for larger version

Name:	VHPatterns2_ATI750_1.png
Views:	2408
Size:	597.8 KB
ID:	21703 Click image for larger version

Name:	VHPatterns2_ATI750_2.png
Views:	2302
Size:	767.5 KB
ID:	21704 Click image for larger version

Name:	VHPatterns2_ATI750_3.png
Views:	2264
Size:	549.9 KB
ID:	21696 Click image for larger version

Name:	VHPatterns2_ATI750_4.png
Views:	2380
Size:	795.9 KB
ID:	21697 Click image for larger version

Name:	VHPatterns2_ATI750_5.png
Views:	2275
Size:	257.8 KB
ID:	21698 Click image for larger version

Name:	VHPatterns2_ATI750_6.png
Views:	2416
Size:	398.3 KB
ID:	21699 Click image for larger version

Name:	VHPatterns2_ATI750_7.png
Views:	2323
Size:	475.9 KB
ID:	21700 Click image for larger version

Name:	VHPatterns2_ATI750_8.png
Views:	2265
Size:	430.9 KB
ID:	21701 Click image for larger version

Name:	VHPatterns2_ATI750_9.png
Views:	2287
Size:	260.7 KB
ID:	21702

    HD AV Grabber
    Click image for larger version

Name:	VHPatterns2_HDAVGrabber_1.png
Views:	2283
Size:	662.3 KB
ID:	21711 Click image for larger version

Name:	VHPatterns2_HDAVGrabber_2.png
Views:	2298
Size:	811.3 KB
ID:	21713 Click image for larger version

Name:	VHPatterns2_HDAVGrabber_3.png
Views:	2236
Size:	567.9 KB
ID:	21707 Click image for larger version

Name:	VHPatterns2_HDAVGrabber_4.png
Views:	2255
Size:	755.4 KB
ID:	21706 Click image for larger version

Name:	VHPatterns2_HDAVGrabber_5.png
Views:	2269
Size:	381.2 KB
ID:	21705 Click image for larger version

Name:	VHPatterns2_HDAVGrabber_6.png
Views:	2231
Size:	538.1 KB
ID:	21708 Click image for larger version

Name:	VHPatterns2_HDAVGrabber_7.png
Views:	2229
Size:	589.6 KB
ID:	21710 Click image for larger version

Name:	VHPatterns2_HDAVGrabber_8.png
Views:	2246
Size:	488.9 KB
ID:	21709 Click image for larger version

Name:	VHPatterns2_HDAVGrabber_9.png
Views:	2254
Size:	406.2 KB
ID:	21712
    Last edited by Brad; 19th Jul 2014 at 23:27.
    Quote Quote
  3. Formerly 'vaporeon800' Brad's Avatar
    Join Date
    Apr 2001
    Location
    Vancouver, Canada
    Search PM
    [VHS screenshots go here]

    This particular VCR's CVBS input has some issues, so we can't trust the measurements too precisely.

    The VC500's luma is a lot more stable on these still patterns frame-to-frame than the ATI 600, while its hue is a lot less stable. But the ATI 600's saturation "wobbles" as well.


    Diamond VC500
    Click image for larger version

Name:	VHS_DPS-470AV_VC500_1.png
Views:	2296
Size:	826.6 KB
ID:	22257 Click image for larger version

Name:	VHS_DPS-470AV_VC500_4.png
Views:	2243
Size:	688.2 KB
ID:	22256 Click image for larger version

Name:	VHS_DPS-470AV_VC500_5.png
Views:	2237
Size:	687.4 KB
ID:	22260 Click image for larger version

Name:	VHS_DPS-470AV_VC500_8.png
Views:	2167
Size:	757.8 KB
ID:	22252 Click image for larger version

Name:	VHS_DPS-470AV_VC500_3.png
Views:	2265
Size:	714.0 KB
ID:	22259 Click image for larger version

Name:	VHS_DPS-470AV_VC500_9.png
Views:	2196
Size:	766.6 KB
ID:	22254 Click image for larger version

Name:	VHS_DPS-470AV_VC500_6.png
Views:	2206
Size:	1,014.3 KB
ID:	22258 Click image for larger version

Name:	VHS_DPS-470AV_VC500_7.png
Views:	2252
Size:	853.1 KB
ID:	22253 Click image for larger version

Name:	VHS_DPS-470AV_VC500_2.png
Views:	2227
Size:	911.2 KB
ID:	22255

    Mygica EZGrabber2


    ATI 600 USB
    Click image for larger version

Name:	VHS_DPS-470AV_ATI600_1.png
Views:	2247
Size:	831.8 KB
ID:	22266 Click image for larger version

Name:	VHS_DPS-470AV_ATI600_4.png
Views:	2172
Size:	665.8 KB
ID:	22265 Click image for larger version

Name:	VHS_DPS-470AV_ATI600_5.png
Views:	2197
Size:	656.0 KB
ID:	22269 Click image for larger version

Name:	VHS_DPS-470AV_ATI600_8.png
Views:	2172
Size:	724.9 KB
ID:	22261 Click image for larger version

Name:	VHS_DPS-470AV_ATI600_3.png
Views:	2149
Size:	686.0 KB
ID:	22268 Click image for larger version

Name:	VHS_DPS-470AV_ATI600_9.png
Views:	2153
Size:	758.3 KB
ID:	22263 Click image for larger version

Name:	VHS_DPS-470AV_ATI600_6.png
Views:	2269
Size:	933.9 KB
ID:	22267 Click image for larger version

Name:	VHS_DPS-470AV_ATI600_7.png
Views:	2186
Size:	816.9 KB
ID:	22262 Click image for larger version

Name:	VHS_DPS-470AV_ATI600_2.png
Views:	2183
Size:	890.4 KB
ID:	22264

    danno78 XCard (AVerMedia hardware)
    Click image for larger version

Name:	VHS_DPS-470AV_XCard_1.png
Views:	2176
Size:	713.0 KB
ID:	22284 Click image for larger version

Name:	VHS_DPS-470AV_XCard_4.png
Views:	2111
Size:	542.9 KB
ID:	22283 Click image for larger version

Name:	VHS_DPS-470AV_XCard_5.png
Views:	2237
Size:	507.5 KB
ID:	22287 Click image for larger version

Name:	VHS_DPS-470AV_XCard_8.png
Views:	2252
Size:	587.3 KB
ID:	22279 Click image for larger version

Name:	VHS_DPS-470AV_XCard_3.png
Views:	2091
Size:	542.8 KB
ID:	22286 Click image for larger version

Name:	VHS_DPS-470AV_XCard_9.png
Views:	2160
Size:	642.5 KB
ID:	22281 Click image for larger version

Name:	VHS_DPS-470AV_XCard_6.png
Views:	2143
Size:	841.2 KB
ID:	22285 Click image for larger version

Name:	VHS_DPS-470AV_XCard_7.png
Views:	2111
Size:	729.7 KB
ID:	22280 Click image for larger version

Name:	VHS_DPS-470AV_XCard_2.png
Views:	2176
Size:	756.7 KB
ID:	22282

    Easycap STK1160


    ATI 750 USB
    Click image for larger version

Name:	VHS_DPS-470AV_ATI750_1.png
Views:	2146
Size:	813.2 KB
ID:	22275 Click image for larger version

Name:	VHS_DPS-470AV_ATI750_4.png
Views:	2117
Size:	699.8 KB
ID:	22274 Click image for larger version

Name:	VHS_DPS-470AV_ATI750_5.png
Views:	2067
Size:	698.5 KB
ID:	22278 Click image for larger version

Name:	VHS_DPS-470AV_ATI750_8.png
Views:	2064
Size:	780.5 KB
ID:	22270 Click image for larger version

Name:	VHS_DPS-470AV_ATI750_3.png
Views:	2197
Size:	713.0 KB
ID:	22277 Click image for larger version

Name:	VHS_DPS-470AV_ATI750_9.png
Views:	2079
Size:	723.9 KB
ID:	22272 Click image for larger version

Name:	VHS_DPS-470AV_ATI750_6.png
Views:	2096
Size:	997.0 KB
ID:	22276 Click image for larger version

Name:	VHS_DPS-470AV_ATI750_7.png
Views:	2136
Size:	876.8 KB
ID:	22271 Click image for larger version

Name:	VHS_DPS-470AV_ATI750_2.png
Views:	2086
Size:	889.7 KB
ID:	22273

    HD AV Grabber


    ----

    Diamond VC500


    Mygica EZGrabber2


    ATI 600 USB


    danno78 XCard (AVerMedia hardware)


    Easycap STK1160


    ATI 750 USB


    HD AV Grabber
    Last edited by Brad; 22nd Dec 2013 at 01:29.
    Quote Quote
  4. Formerly 'vaporeon800' Brad's Avatar
    Join Date
    Apr 2001
    Location
    Vancouver, Canada
    Search PM
    ATI Radeon X1950 Pro
    Click image for larger version

Name:	VHPatterns2_ATIX1950_1.png
Views:	1783
Size:	851.9 KB
ID:	35310 Click image for larger version

Name:	VHPatterns2_ATIX1950_2.png
Views:	1824
Size:	986.7 KB
ID:	35308 Click image for larger version

Name:	VHPatterns2_ATIX1950_3.png
Views:	1775
Size:	686.8 KB
ID:	35306 Click image for larger version

Name:	VHPatterns2_ATIX1950_4.png
Views:	1790
Size:	800.5 KB
ID:	35313 Click image for larger version

Name:	VHPatterns2_ATIX1950_5.png
Views:	1767
Size:	677.6 KB
ID:	35307 Click image for larger version

Name:	VHPatterns2_ATIX1950_6.png
Views:	1743
Size:	747.4 KB
ID:	35312 Click image for larger version

Name:	VHPatterns2_ATIX1950_7.png
Views:	1796
Size:	816.2 KB
ID:	35309 Click image for larger version

Name:	VHPatterns2_ATIX1950_8.png
Views:	1764
Size:	648.8 KB
ID:	35305 Click image for larger version

Name:	VHPatterns2_ATIX1950_9.png
Views:	1807
Size:	627.1 KB
ID:	35311

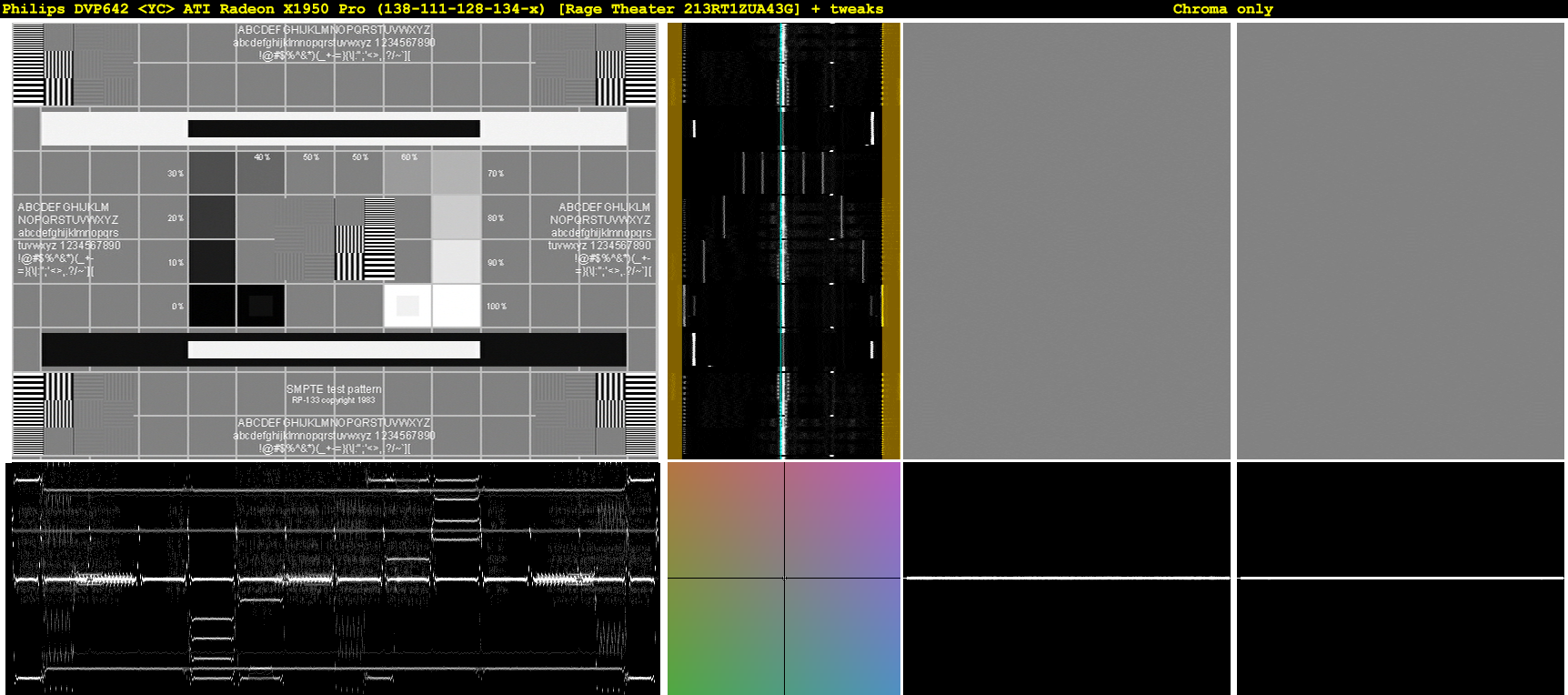

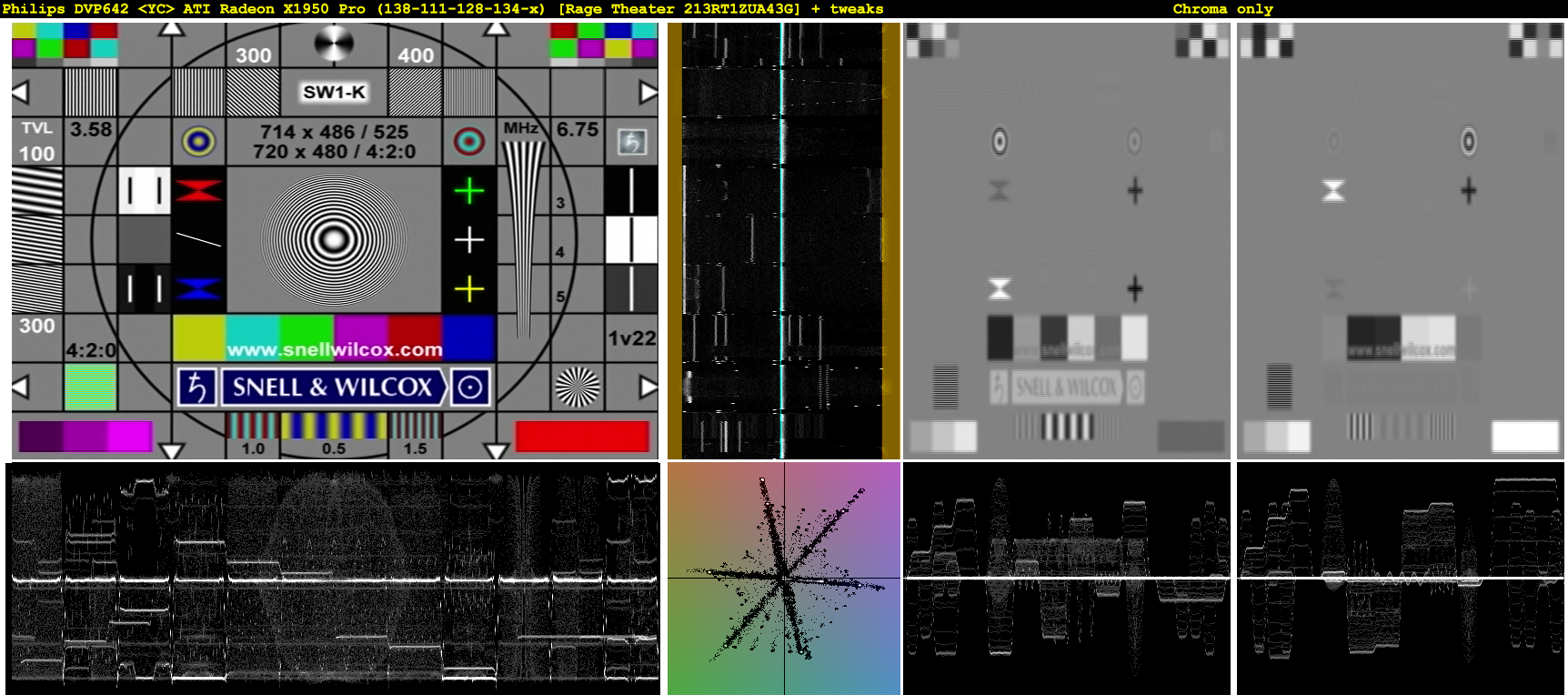

    Here are VHPatterns2 captures made using the the "VIVO (Video In/Video Out)" feature of the ATI Radeon X1950 Pro (2006). I didn't include it previously because the GPU part of my card is pretty messed up, but I had reasons to install it in a machine again, so I figured I would grab some captures while it's in.

    The "ATI T200 AVStream Analog Capture" name imparted by the driver implies that it uses the Theater 200 chip, but evidently ATI's device naming is not to be trusted. I'm not about to tear the cooler off to inspect the chip myself, but images in reviews all agree that it's marked "ATI Rage Theater 213RT1ZUA43G". The non-AIW version of the 9600XT (2003) uses "ATI Rage Theater 213RT1ZUA43", i.e. the same code minus the "G" revision at the end. Its driver names it correctly as "ATI WDM Rage Theater Video", according to images in reviews. Meanwhile, the "ATI Theater200 213T20ZQA12" as seen on the AIW Radeon 9x00 series used this same "ATI WDM Rage Theater Video" name and NOT "T200", at least in the initial driver versions. Yeah...

    The 720x480 mode of the X1950 Pro is cropped and stretched; restoring the proper dimensions requires a downsize to 711x480 (i.e. the "capture window" of the card is non-standard). Since 4:2:2 images can only have even widths, I had to convert to 4:4:4 and then back after padding (VideoScope only supports YUY2). I carefully picked the chroma resampler, and there are no visible artifacts added. The resize down to 711 did add a tiny amount of ringing and a very tiny resolution loss on the most closely-spaced vertical lines. The luma rolloff that's immediately visible is part of the original capture, not an artifact of my resize.

    The 9600XT VIVO mentioned above apparently suffers from the same stretch.

    Note, there are other versions of Rage Theater: AIW 128 AGP 32MB (1999) is "213RT1ZUA32" and AIW 128 Pro AGP (2000) is "213RT1ZUA41". I suppose this different ADC explains why my 128 Pro captures are all the way down at a very-cropped ~689x480 stretched to 720x480 rather than matching the dimensions seen here. I had thought that perhaps a driver difference was to blame.
    Quote Quote



Similar Threads

Visit our sponsor! Try DVDFab and backup Blu-rays!
