  1. In my simple opinion, it was the PotPlayer using various external filters.

    Now came the version with support for Hevc:

    Version History of the PotPlayer

    ----------------------------------------------------------
    [1.5.40766] 2013/10/18
    ----------------------------------------------------------
    + Added support for HEVC(H.265) video format

    - Added the ability to play HLS (HTTP Live Streaming) via FFmpeg
    - Fixed seeking problem when playing AVCHD files

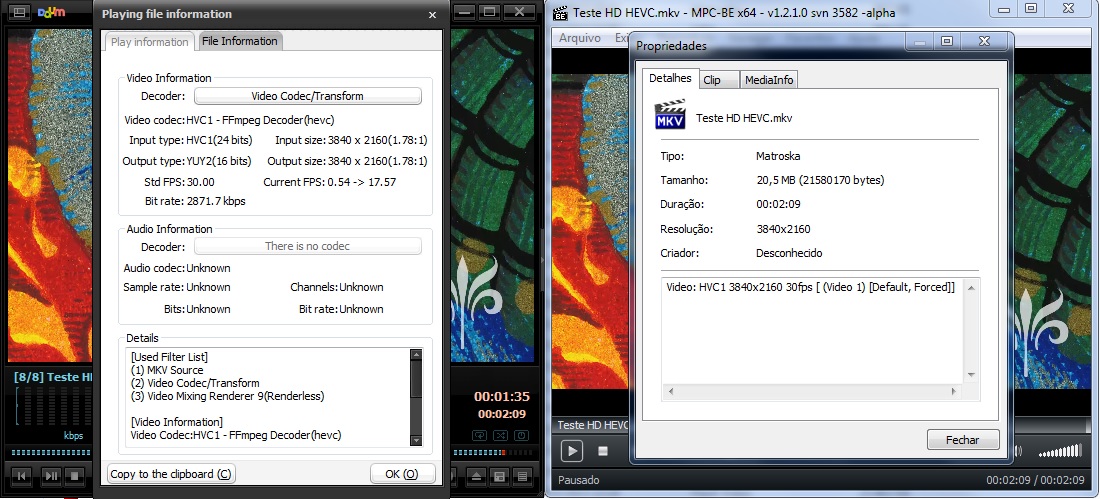

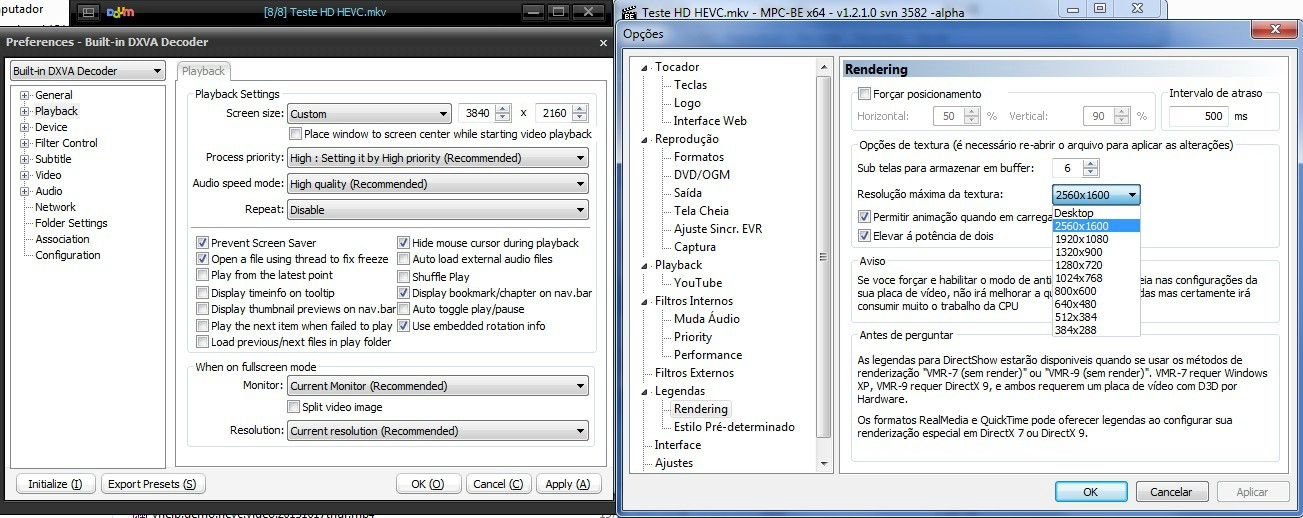

    Taking advantage of this new support for Hevc, tested it to the extreme, where one coded sample of 3840x2160 via Hybrid and compared with the player MPC-BE 64Bit (1.2.1.0 - Build 3582 - MSVC 2010 SP1), and obtained the following results with DivX265 :

    PotPlayer worked fine, no crashes or Slags.
    MPC-BE rotated but began to catch every second of the sample. (Test no external filters).
    PS: MPC-BE is a very good player and powerful, only for heavy files like this, WITH RESOLUTIONS UP TO 2560X1600 - limit the player, there is still a few tweaks to run cool.

    Test yourself with my sample 3840x2160 (20,1mb): https://shared.com/mqognh9v8x

    Complete name : C:\Users\Marchand\Videos\Teste HD HEVC.mkv
    Format : Matroska
    Format version : Version 4 / Version 2
    File size : 20.6 MiB
    Duration : 2mn 9s
    Overall bit rate : 1 335 Kbps
    Encoded date : UTC 2013-10-20 01:36:53
    Writing application : mkvmerge v6.2.0 ('Promised Land Rovi v1.0.4') built on Aug 29 2013 13:59:38
    Writing library : libebml v1.3.0 + libmatroska v1.4.0
    Encoding Gui : Hybrid 2013.09.17.1

    Video
    ID : 1
    Format : V_MPEGH/ISO/HEVC
    Codec ID : V_MPEGH/ISO/HEVC
    Duration : 2mn 9s
    Bit rate : 1 308 Kbps
    Width : 3 840 pixels
    Height : 2 160 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Constant
    Frame rate : 30.000 fps
    Bits/(Pixel*Frame) : 0.005
    Stream size : 20.2 MiB (98%)
    Default : Yes
    Forced : Yes



    2 more videos converted samples (1920x1080) for testing:

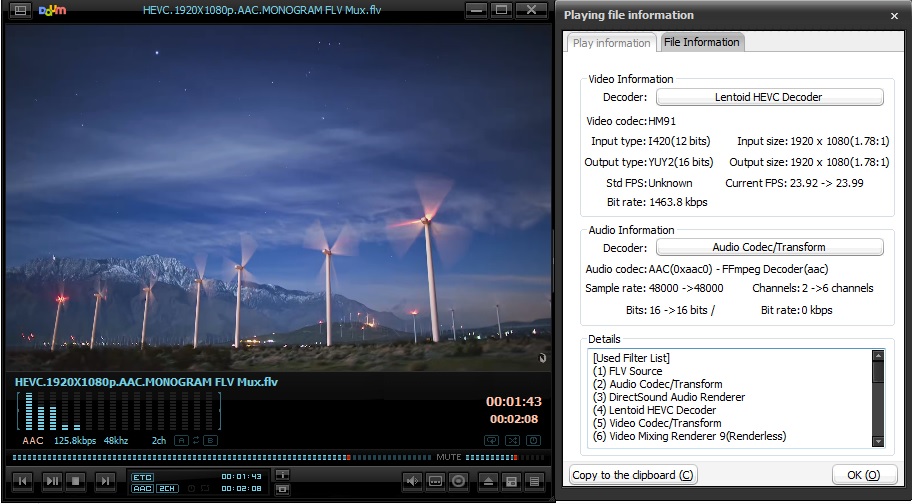

    https://shared.com/wk98d14024 - HEVC.1920X1080p.AAC.MONOGRAM FLV Mux

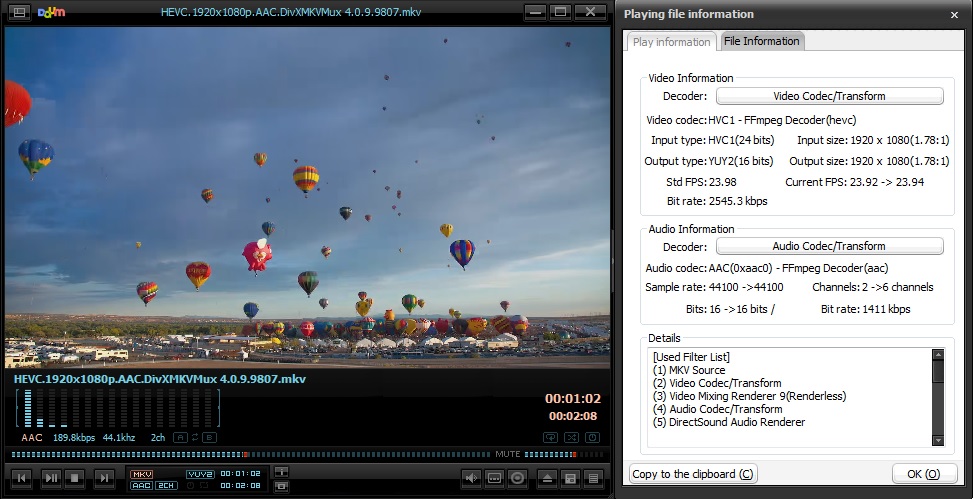

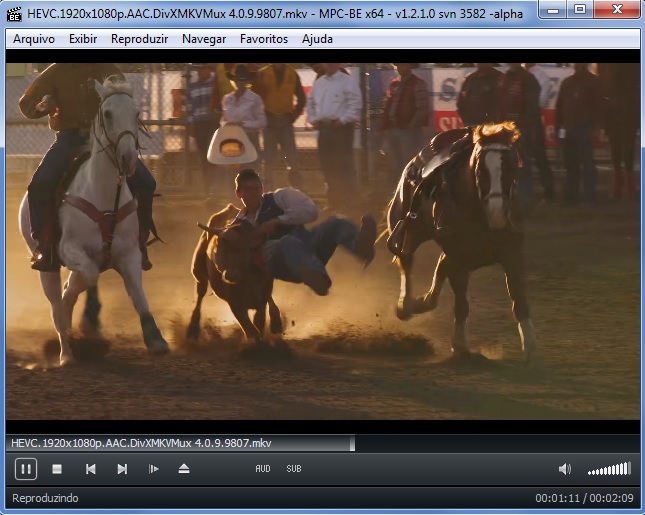

    https://shared.com/nrqjngjbup - HEVC.1920x1080p.AAC.DivXMKVMux 4.0.9.9807

    The two files above usually rolled in PotPlayer

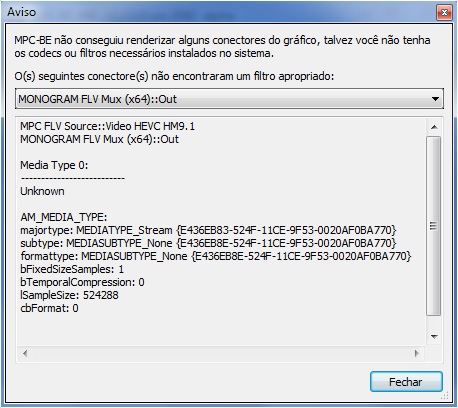

    The MPC-BE only failed to run HEVC.1920X1080p.AAC.MONOGRAM FLV Mux.




    Testing of samples produced by the file-users Videohelp:

    User Vhelp:

    https://shared.com/22h7hhjnrj - vhelp.demo.hevc.video.20131017thur.mp4

    Works with:

    Video: BE-MPC, WMP, MPC-HC Team, Osmo4Player.
    Audio: was not tested because the sample does not.


    General
    Complete name : C:\Users\Marchand\Videos\vhelp.demo.hevc.video.201 31017thur.mp4
    Format : MPEG-4
    Format profile : Base Media
    Codec ID : iso4
    File size : 1.06 MiB
    Duration : 5s 88ms
    Overall bit rate : 1 751 Kbps
    Encoded date : UTC 2013-10-18 04:50:49
    Tagged date : UTC 2013-10-18 04:50:49

    Video
    ID : 1
    Format : HEVC
    Format/Info : High Efficiency Video Coding
    Format profile : Main@L9.0
    Codec ID : hvc1
    Codec ID/Info : High Efficiency Video Coding
    Duration : 5s 88ms
    Bit rate : 1 748 Kbps
    Maximum bit rate : 2 661 Kbps
    Width : 720 pixels
    Height : 480 pixels
    Display aspect ratio : 3:2
    Frame rate mode : Constant
    Frame rate : 23.976 fps
    Standard : NTSC
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Bits/(Pixel*Frame) : 0.211
    Stream size : 1.06 MiB (100%)
    Title : hm10:fmt=hevc:@GPAC0.5.1-DEV-rev4663
    Encoded date : UTC 2013-10-18 04:50:49
    Tagged date : UTC 2013-10-18 04:50:49
    https://shared.com/1nq6klljky - video.hm10

    General
    Complete name : C:\Users\Marchand\Videos\video.hm10
    Format : HEVC
    Format/Info : High Efficiency Video Coding
    File size : 2.88 MiB

    Video
    Format : HEVC
    Format/Info : High Efficiency Video Coding
    Format profile : Main@L9.0
    Width : 720 pixels
    Height : 480 pixels
    Display aspect ratio : 3:2
    Standard : NTSC
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits

    Works with:

    Video: MPC-HC Team, KMPlayer, WMP.
    Audio: was not tested because the sample does not.


    User El Heggunte:

    https://shared.com/5eeo1ytzx3 - Sintel-Trailer_[H265+AC3].avi

    General
    Complete name : C:\Users\Marchand\Videos\Sintel-Trailer_[H265+AC3].avi
    Format : AVI
    Format/Info : Audio Video Interleave
    File size : 4.36 MiB
    Duration : 52s 250ms
    Overall bit rate : 700 Kbps
    Writing library : VirtualDub build 32842/release

    Video
    ID : 0
    Format : HM10
    Codec ID : HM10
    Duration : 52s 250ms
    Bit rate : 434 Kbps
    Width : 848 pixels
    Height : 480 pixels
    Display aspect ratio : 16:9
    Frame rate : 24.000 fps
    Bits/(Pixel*Frame) : 0.044
    Stream size : 2.70 MiB (62%)

    Audio
    ID : 1
    Format : AC-3
    Format/Info : Audio Coding 3
    Mode extension : CM (complete main)
    Format settings, Endianness : Big
    Codec ID : 2000
    Duration : 52s 0ms
    Bit rate mode : Constant
    Bit rate : 256 Kbps
    Channel(s) : 2 channels
    Channel positions : Front: L R
    Sampling rate : 48.0 KHz
    Bit depth : 16 bits
    Compression mode : Lossy
    Stream size : 1.59 MiB (36%)
    Alignment : Aligned on interleaves
    Interleave, duration : 42 ms (1.01 video frame)
    Interleave, preload duration : 512 ms
    Works with:

    Video: MPC-HC Team, PotPlayer, KMPlayer, WMP, XMP-Player (Xunlei).
    Audio:
    MPC-HC Team, PotPlayer, KMPlayer, XMP-Player (Xunlei).

    https://shared.com/kxeeb7ydvn - Sintel-Trailer_[H265+MP2].mkv

    General
    Unique ID : 208665670876332100020280198466297486607 (0x9CFB8BE041C0DA858B9F97FD78955D0F)
    Complete name : C:\Users\Marchand\Videos\Sintel-Trailer_[H265+MP2].mkv
    Format : Matroska
    Format version : Version 4 / Version 2
    File size : 4.71 MiB
    Duration : 52s 250ms
    Overall bit rate : 756 Kbps
    Encoded date : UTC 2010-02-22 21:41:31
    Writing application : mkvmerge v5.8.0 ('No Sleep / Pillow') built on Sep 30 2012 10:57:14
    Writing library : libebml v1.3.0 + libmatroska v1.4.0

    Video
    ID : 1
    Format : HM10
    Codec ID : V_MS/VFW/FOURCC / HM10
    Duration : 52s 250ms
    Bit rate : 421 Kbps
    Width : 848 pixels
    Height : 480 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Constant
    Frame rate : 24.000 fps
    Bits/(Pixel*Frame) : 0.043
    Stream size : 2.62 MiB (56%)
    Default : Yes
    Forced : No

    Audio
    ID : 2
    Format : MPEG Audio
    Format version : Version 1
    Format profile : Layer 2
    Codec ID : A_MPEG/L2
    Codec ID/Hint : MP2
    Duration : 52s 250ms
    Bit rate mode : Constant
    Bit rate : 320 Kbps
    Channel(s) : 2 channels
    Sampling rate : 48.0 KHz
    Compression mode : Lossy
    Stream size : 1.99 MiB (42%)
    Language : English
    Default : Yes
    Forced : No
    Works with:

    Video: MPC-HC Team, PotPlayer, KMPlayer, XMP-Player (Xunlei).
    Audio:
    MPC-HC Team, PotPlayer, KMPlayer, XMP-Player (Xunlei).

    https://shared.com/f0j6kvo915 - Successful-Mission[HEVC+AC3].asf

    General
    Complete name : C:\Users\Marchand\Videos\Successful-Mission[HEVC+AC3].asf
    Format : Windows Media
    File size : 10.4 MiB
    Duration : 1mn 31s
    Overall bit rate mode : Variable
    Overall bit rate : 951 Kbps
    Maximum Overall bit rate : 959 Kbps
    Encoded date : UTC 2013-08-07 08:38:09.620

    Video
    ID : 1
    Format : HEVC
    Format/Info : High Efficiency Video Coding
    Codec ID : HEVC
    Duration : 1mn 31s
    Bit rate mode : Variable
    Bit rate : 736 Kbps
    Width : 640 pixels
    Height : 480 pixels
    Display aspect ratio : 4:3
    Frame rate : 23.976 fps
    Bits/(Pixel*Frame) : 0.100
    Stream size : 8.02 MiB (77%)
    Language : English (US)

    Audio
    ID : 2
    Format : AC-3
    Format/Info : Audio Coding 3
    Codec ID : 2000
    Duration : 1mn 31s
    Bit rate mode : Constant
    Bit rate : 192 Kbps
    Channel(s) : 2 channels
    Sampling rate : 48.0 KHz
    Bit depth : 32 bits
    Compression mode : Lossy
    Stream size : 2.09 MiB (20%)
    Language : English (US)
    Works with:

    Video: ?
    Audio:
    ?

    https://shared.com/8m07e2pccl - Sexy-Film-Leader[HVC1+ALAC].dsm (shameless)

    Geral
    Nome completo : C:\Users\Marchand\Videos\Sexy-Film-Leader[HVC1+ALAC].dsm
    Formato : HEVC
    Formato/Informações : High Efficiency Video Coding
    Tamanho do arquivo : 2.56 MiB

    Vídeo
    Formato : HEVC
    Formato/Informações : High Efficiency Video Coding
    Perfil do Formato : Main@L9.3
    Largura : 1 280 pixels
    Altura : 720 pixels
    Proporção da imagem : 16:9
    ColorSpace : YUV
    ChromaSubsampling : 4:2:0
    BitDepth/String : 8 bits
    Works with:

    Video: BE-MPC, MPC-HC Team, PotPlayer.
    Audio: was not tested because the sample does not.


    I will do more tests with other players and the other branches of Hevc - H265 and post the results here.
    Last edited by Marchand; 20th Oct 2013 at 19:32.
    Quote Quote
  2. DECEASED
    Join Date
    Jun 2009
    Location
    Heaven
    Search Comp PM
    Question: Which player would you recommend for playing files HEVC - H265 - DivX265?

    Answer: The one that supports the files you have

    Reasoning: not all containers and *muxing modes* are equally supported among the available options (sadly).

    MPC-BE seems to be limited to H.265-in-MP4 only.

    As for the latest PotPlayer --- could you please test it with the sample files
    (HEVC in AVI, in MKV, in ASF)
    that I uploaded to the x265.exe thread

    https://forum.videohelp.com/threads/357754-%5BHEVC%5D-x265-EXE-mingw-builds?p=2257383&v...=1#post2257383

    https://forum.videohelp.com/threads/357754-%5BHEVC%5D-x265-EXE-mingw-builds?p=2258785&v...=1#post2258785

    <Portuguese>Não vale usar os filtros que funcionam com o MPC-HC,
    nada de truques </Portuguese>

    I can be wrong this time, but I think there won't be a good future for HEVC wrapped in the FLV container
    Last edited by El Heggunte; 20th Oct 2013 at 17:21. Reason: add links
    Quote Quote
  3. DECEASED
    Join Date
    Jun 2009
    Location
    Heaven
    Search Comp PM
    @ Marchand --- many Many MANY thanks for the exhaustive testing

    For the curious: now LAV Filters have HEVC support (I've not tested this yet):

    http://roy.orz.hm/lavf-w32-nightlies/
    Quote Quote
  4. Originally Posted by El Heggunte View Post
    @ Marchand --- many Many MANY thanks for the exhaustive testing

    For the curious: now LAV Filters have HEVC support (I've not tested this yet):

    http://roy.orz.hm/lavf-w32-nightlies/


    * Copyright (C) 2010-2013 Hendrik Leppkes
    * http://www.1f0.de
    *
    * This program is free software; you can redistribute it and/or modify
    * it under the terms of the GNU General Public License as published by
    * the Free Software Foundation; either version 2 of the License, or
    * (at your option) any later version.
    *
    * This program is distributed in the hope that it will be useful,
    * but WITHOUT ANY WARRANTY; without even the implied warranty of
    * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
    * GNU General Public License for more details.
    *
    * You should have received a copy of the GNU General Public License along
    * with this program; if not, write to the Free Software Foundation, Inc.,
    * 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.
    */


    #pragma once


    // {FA40D6E9-4D38-4761-ADD2-71A9EC5FD32F}
    DEFINE_GUID(IID_ILAVVideoSettings,
    0xfa40d6e9, 0x4d38, 0x4761, 0xad, 0xd2, 0x71, 0xa9, 0xec, 0x5f, 0xd3, 0x2f);


    // {1CC2385F-36FA-41B1-9942-5024CE0235DC}
    DEFINE_GUID(IID_ILAVVideoStatus,
    0x1cc2385f, 0x36fa, 0x41b1, 0x99, 0x42, 0x50, 0x24, 0xce, 0x2, 0x35, 0xdc);




    // Codecs supported in the LAV Video configuration
    // Codecs not listed here cannot be turned off. You can request codecs to be added to this list, if you wish.
    typedef enum LAVVideoCodec {
    Codec_H264,
    Codec_VC1,
    Codec_MPEG1,
    Codec_MPEG2,
    Codec_MPEG4,
    Codec_MSMPEG4,
    Codec_VP8,
    Codec_WMV3,
    Codec_WMV12,
    Codec_MJPEG,
    Codec_Theora,
    Codec_FLV1,
    Codec_VP6,
    Codec_SVQ,
    Codec_H261,
    Codec_H263,
    Codec_Indeo,
    Codec_TSCC,
    Codec_Fraps,
    Codec_HuffYUV,
    Codec_QTRle,
    Codec_DV,
    Codec_Bink,
    Codec_Smacker,
    Codec_RV12,
    Codec_RV34,
    Codec_Lagarith,
    Codec_Cinepak,
    Codec_Camstudio,
    Codec_QPEG,
    Codec_ZLIB,
    Codec_QTRpza,
    Codec_PNG,
    Codec_MSRLE,
    Codec_ProRes,
    Codec_UtVideo,
    Codec_Dirac,
    Codec_DNxHD,
    Codec_MSVideo1,
    Codec_8BPS,
    Codec_LOCO,
    Codec_ZMBV,
    Codec_VCR1,
    Codec_Snow,
    Codec_FFV1,
    Codec_v210,
    Codec_JPEG2000,
    Codec_VMNC,
    Codec_FLIC,
    Codec_G2M,
    Codec_ICOD,
    Codec_THP,
    Codec_HEVC,
    Codec_VP9,


    Codec_VideoNB // Number of entries (do not use when dynamically linking)
    };
    Quote Quote
  5. Member
    Join Date
    Jan 2003
    Location
    India
    Search Comp PM
    flv files encoded by me using Strongene Lentoid HEVC encoder and Monogram flv mux in graph studio, play perfectly OK in latest version of MPC-BE I downloaded. I do have the Lentoid HEVC decoder installed.
    Quote Quote
  6. ExMplayer http://exmplayer.sourceforge.net/index.html seems to be working well for me. Pretty full featured player/converter with 3d support as well.
    Quote Quote
  7. DAUM PotPlayer worked best for me. For lower resolution videos (e.g. 720x404 24-30fps), VLC 2.1.5 worked fine. I had problems with another HEVC encoded video at 1920x1080 30fps. It sorta played on VLC, but worked perfectly on PotPlayer. I think it may be due to the hardware decoding support. It seems like PotPlayer supports three different hardware decoding methods (CUDA, DXVA). I just used the defaults and the high res video played perfectly for me.

    I've been using VLC for years, but unless they can play 1920x1080 HEVC videos, I will have to switch to PotPlayer as a default.

    I also tried MPC-HC. It played the 1920x1080 HEVC video okay, but I noticed a lot of frame drops and stutter. It worked better than VLC 2.1.5, but not as good as DAUM PotPlayer.
    Quote Quote
