MPEG2 decoder

[marcorocchini]

Hi

in attach I have a .avi mpeg2 file, but I can not find any suitable decoder to read it in virtualdub and on windows, but I need load it on virtualdub. VTag=Mpg2

I'm on windows xp 32 bit, please where I can find a codec for it?

Thank you

[Baldrick]

Tried the mpeg2 plugin ?
http://gral.y0.pl/~fcchandler/Plugins/MPEG2/


If it fails try then remux the avi to a mpg file with for example ffmpeg,

ffmpeg -i video.avi -acodec copy -vcodec copy newvideo.mpg

and open the mpg in virtualdub.

[El Heggunte]

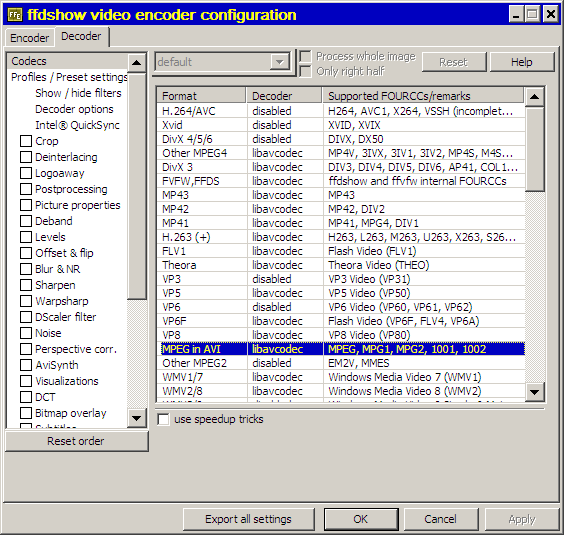

ffdshow VfW interface.

[marcorocchini]

thanks, now I have continued here https://forum.videohelp.com/threads/359578-Virtualdub-as-frameserver?p=2274637#post2274637

hoewver using ffdshow in virtualdub it open my mpeg2 video file wrong: because it use mpeg1 decoder in place of mpeg2. It's strange because the vtag into the .avi files is correctly mpeg2 and original files are mpeg2 hd file

I have transcode with: ffmpeg -i c0020.mxf -vcodec copy -an output.avi

so output.avi have to be a mpeg2... mediainfo says:

General
Complete name : D:\ouput.avi
Format : AVI
Format/Info : Audio Video Interleave
File size : 219 MiB
Duration : 36s 600ms
Overall bit rate : 50.1 Mbps
Writing application : FFmbc 0.7

Video
ID : 0
Format : MPEG Video
Format version : Version 2
Format profile : 4:2:2@High
Format settings, BVOP : Yes
Format settings, Matrix : Custom
Format settings, GOP : M=3, N=12
Codec ID : mpg2
Codec ID/Info : (MPEG-1/2) FFmpeg
Codec ID/Hint : Ffmpeg
Duration : 36s 600ms
Bit rate : 50.0 Mbps
Width : 1 920 pixels
Height : 1 080 pixels
Display aspect ratio : 16:9
Frame rate : 25.000 fps
Standard : Component
Color space : YUV
Chroma subsampling : 4:2:2
Bit depth : 8 bits
Scan type : Interlaced
Scan order : Top Field First
Compression mode : Lossy
Bits/(Pixel*Frame) : 0.965
Stream size : 219 MiB (100%)
Color primaries : BT.709
Transfer characteristics : BT.709
Matrix coefficients : BT.709


This is original mxf:

General
Complete name : d:\C0020.mxf
Format : MXF
Commercial name : XDCAM HD422
Format profile : OP-1a
Format settings : Closed / Complete
File size : 263 MiB
Duration : 36s 600ms
Overall bit rate : 60.3 Mbps
Encoded date : 2013-05-24 22:12:18.000
Writing application : SONY Opt 1.22
Writing library : SONY Opt 1.22

Video
ID : 2
Format : MPEG Video
Commercial name : XDCAM HD422
Format version : Version 2
Format profile : 4:2:2@High
Format settings, BVOP : Yes
Format settings, Matrix : Custom
Format settings, GOP : M=3, N=12
Format_Settings_Wrapping : Frame
Duration : 36s 600ms
Bit rate : 50.0 Mbps
Width : 1 920 pixels
Height : 1 080 pixels
Display aspect ratio : 16:9
Frame rate : 25.000 fps
Standard : Component
Color space : YUV
Chroma subsampling : 4:2:2
Bit depth : 8 bits
Scan type : Interlaced
Scan order : Top Field First
Compression mode : Lossy
Bits/(Pixel*Frame) : 0.965
Stream size : 218 MiB (83%)
Color primaries : BT.709
Transfer characteristics : BT.709
Matrix coefficients : BT.709

Audio #1
ID : 3
Format : PCM
Format settings, Endianness : Little
Format_Settings_Wrapping : Frame (AES)
Duration : 36s 600ms
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 5.03 MiB (2%)

Audio #2
ID : 4
Format : PCM
Format settings, Endianness : Little
Format_Settings_Wrapping : Frame (AES)
Duration : 36s 600ms
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 5.03 MiB (2%)

Audio #3
ID : 5
Format : PCM
Format settings, Endianness : Little
Format_Settings_Wrapping : Frame (AES)
Duration : 36s 600ms
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 5.03 MiB (2%)

Audio #4
ID : 6
Format : PCM
Format settings, Endianness : Little
Format_Settings_Wrapping : Frame (AES)
Duration : 36s 600ms
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 5.03 MiB (2%)

Audio #5
ID : 7
Format : PCM
Format settings, Endianness : Little
Format_Settings_Wrapping : Frame (AES)
Duration : 36s 600ms
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 5.03 MiB (2%)

Audio #6
ID : 8
Format : PCM
Format settings, Endianness : Little
Format_Settings_Wrapping : Frame (AES)
Duration : 36s 600ms
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 5.03 MiB (2%)

Audio #7
ID : 9
Format : PCM
Format settings, Endianness : Little
Format_Settings_Wrapping : Frame (AES)
Duration : 36s 600ms
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 5.03 MiB (2%)

Audio #8
ID : 10
Format : PCM
Format settings, Endianness : Little
Format_Settings_Wrapping : Frame (AES)
Duration : 36s 600ms
Bit rate mode : Constant
Bit rate : 1 152 Kbps
Channel(s) : 1 channel
Sampling rate : 48.0 KHz
Bit depth : 24 bits
Stream size : 5.03 MiB (2%)

Other #1
ID : 1
Type : Time code
Format : MXF TC
Time code of first frame : 01:34:21:15
Time code settings : Striped

Other #2
Type : Time code
Format : SMPTE TC
Muxing mode : SDTI
Time code of first frame : 01:34:21:15


Using -vcodec copy it have certainly a mpeg2... how is possible it have to be a mpeg1 file?

Maybe is ffdshow load the wrong decoder

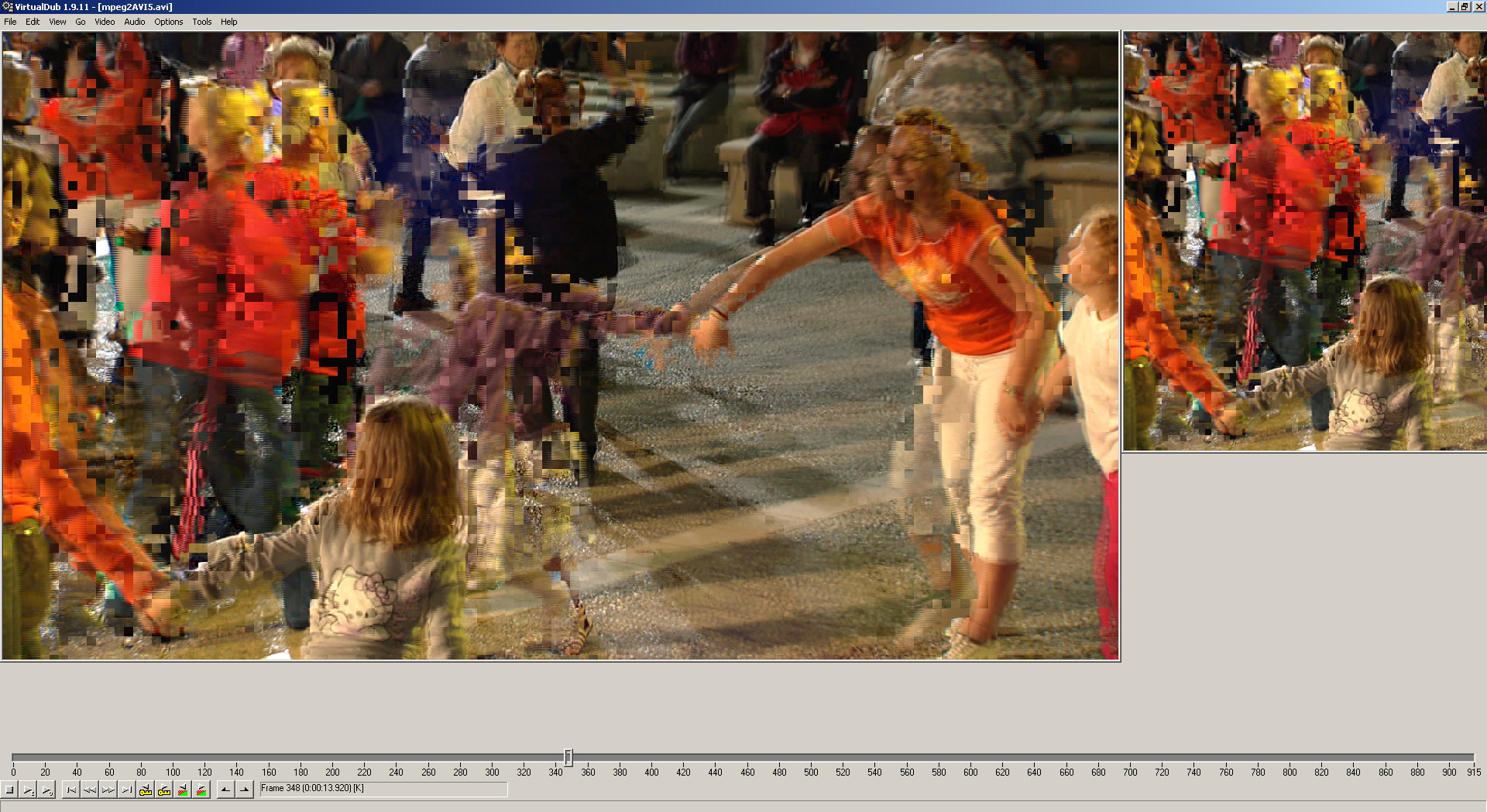

Using mpeg1 image are pixelated, jerky video, 1° first frame blak, bad result


[Attachment 20614 - Click to enlarge]
