AVStoDVD menu problem?

[wingfan]

Just noticed that if I create a motion menu if i use a video file for background which includes audio the playback of the menu audio is sped up like 4X.. the video file used is an mp4. Sound works fine if i play the mp4 without the menu. My workaround was strip the audio from the mp4 and save it as mp3 and then include that into the menu wizard without background audio checked in the wizard. If i do this, the motion menu plays audio fine.

Is this a bug or something?

[_MrC_]

Could you upload the mp4 file anywhere (mediafire, sendfile, etc.) to replicate the issue?



Bye

[wingfan]

the file is 70Mb so pretty big but here are the details of it?

Format : MPEG-4
Format profile : Base Media / Version 2
Codec ID : mp42
File size : 68.3 MiB
Duration : 2mn 19s
Overall bit rate : 4 098 Kbps
Encoded date : UTC 2013-05-04 17:51:45
Tagged date : UTC 2013-05-04 17:51:45

Video
ID : 2
Format : AVC
Format/Info : Advanced Video Codec
Format profile : Main@L3.1
Format settings, CABAC : Yes
Format settings, ReFrames : 5 frames
Codec ID : avc1
Codec ID/Info : Advanced Video Coding
Duration : 2mn 19s
Bit rate mode : Variable
Bit rate : 3 902 Kbps
Width : 1 280 pixels
Height : 720 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 29.970 fps
Standard : NTSC
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.141
Stream size : 65.1 MiB (95%)
Language : English
Encoded date : UTC 2013-05-04 17:51:45
Tagged date : UTC 2013-05-04 17:51:45

Audio
ID : 1
Format : AAC
Format/Info : Advanced Audio Codec
Format profile : LC
Codec ID : 40
Duration : 2mn 19s
Bit rate mode : Constant
Bit rate : 192 Kbps
Channel(s) : 2 channels
Channel positions : Front: L R
Sampling rate : 48.0 KHz
Compression mode : Lossy
Stream size : 3.20 MiB (5%)
Language : English
Encoded date : UTC 2013-05-04 17:51:45
Tagged date : UTC 2013-05-04 17:51:45

[_MrC_]

The source mkv seems quite "normal" both the video and audio streams. W/o a sample it is hard to replicate the issue and understand what's going on.

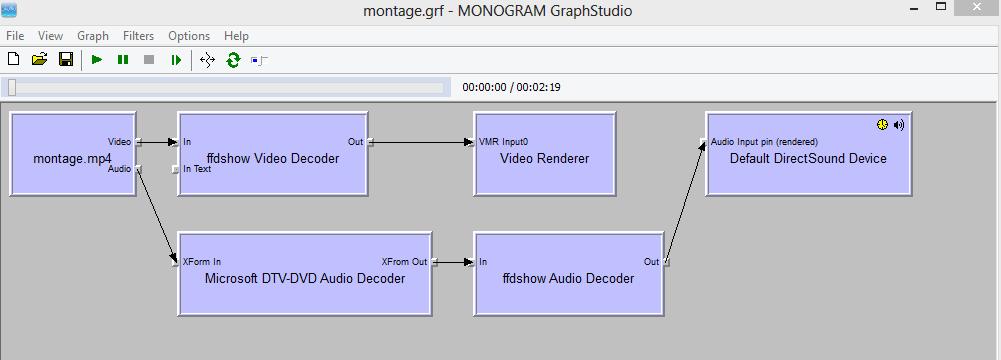

If you load the mkv directly in AVStoDVD and select 'Codecs'/'Build DirectShow Filters graph', what is the resulting filters graph? Report here the image.



Bye

[wingfan]

here it is

[_MrC_]

There is a redundancy in the audio decoding path.

Download Win7DSFilterTweaker, install it, select ffdshow as audio AAC preferred direcshow decoder.



Bye

[wingfan]

There is a redundancy in the audio decoding path.

Download Win7DSFilterTweaker, install it, select ffdshow as audio AAC preferred direcshow decoder.



Bye

thanks that worked!!!
