    Hi All,

    I'd appreciate some pointers for processing Rec.601 YV12 footage for Rec.709 MPEG-2 encoding. Much of it is shot outdoors with the background over-exposed to compensate for a darker foreground. According to Histrogram() most frames have invalidly high luma values. Here's a 2-frame sample clip.

    Whenever RGB conversion becomes necessary in the process, for this kind of luma range which would be the best matrix to convert back and forth with - Rec601 or PC.601? Although I've been able to generate terrible results, I'm not sure how to gauge the better-looking ones, being displayed on a PC monitor at PC range I presume.

    In this case which matrix would be best for converting Rec.601 YV12 to Rec.709 for final output - Rec709 or PC.709?

    How does one actually convert Rec.601 YV12 to Rec.709 YV12? With Rec.601 YV12 input, ConvertToYV12(matrix="Rec709") fails with
    ConvertToYV12: invalid "matrix" parameter (RGB data only)
    Does that mean converting Rec.601 YV12 -> Rec.709 YV12 can't be done without an intermediate conversion to say RGB?

    Many thanks in advance,
    Francois
    Quote Quote
  2. You can't go directly from rec.601 YV12 to rec.709 YV12 with ConvertToYV12(). You could ConvertToRGB(matrix="rec601") followed by ConvertToYV12(matrix="rec709"). But doing that directly on your overblown brights will kill the detail in the sky. You want go tame those brights first. You could use ColorMatrix(mode="Rec.601->Rec.709") to avoid that. But you should really tame those brights before encoding anyway. Something like ColorYUV(gain_y=-20). So

    Code:
    ColorYUV(gain_y=-20)
    ConvertToRGB(matrix="rec601")
    ConvertToYV12(matrix="rec709")
    or

    Code:
    ColorYUV(gain_y=-20)
    ColorMatrix(mode="Rec.601->Rec.709")
    should both give the same result (aside from rounding errors).

    Look for darker shots and make sure ColorYUV(gain_y=-20) doesn't cause the darks to get too dark. If so, you have reduce the contrast and change the offset too.
    Last edited by jagabo; 11th Mar 2013 at 07:56.
    Quote Quote
  3. Member 2Bdecided's Avatar
    Join Date
    Nov 2007
    Location
    United Kingdom
    Search Comp PM
    Why do you need to convert it? My recollection is that you can encode and flag Rec.601 colour to MPEG-2 just fine. IIRC if you don't specify what the colour is, SD video defaults to Rec.601. I could be wrong.


    btw, I used to think using matrix="PC.601" etc instead of "Rec601" was the way to preserve superwhites/blacks, but it's not quite correct...
    http://forum.doom9.org/showthread.php?t=164981
    ...which would be unfortunate when doing a colour conversion.


    This will bring over-bright luma in range quite simply, without affecting black...
    levels(0,1.0,255,2,235,coring=false)
    ...but there are other ways.

    Cheers,
    David.
    Quote Quote
  4. Member
    Join Date
    Aug 2007
    Location
    Isle of Man
    Search Comp PM
    Looks like I've opened myself a can of worms...

    If I leave the levels alone, is there anybody downstream who's expected to clip them? Or does it depend on the implementation of the particular encoder, renderer etc?

    edit: Is there some tool that can tell with which matrix a particular clip has been encoded with?
    Quote Quote
  5. Originally Posted by fvisagie View Post
    If I leave the levels alone, is there anybody downstream who's expected to clip them? Or does it depend on the implementation of the particular encoder, renderer etc?
    Encoders usually pass them along. But when converted to RGB for display (all displays are RGB) the out-of-spec darks and brights will be crushed. Your original sample on the left, after ColorYUV(gain_y=-20) on the right:

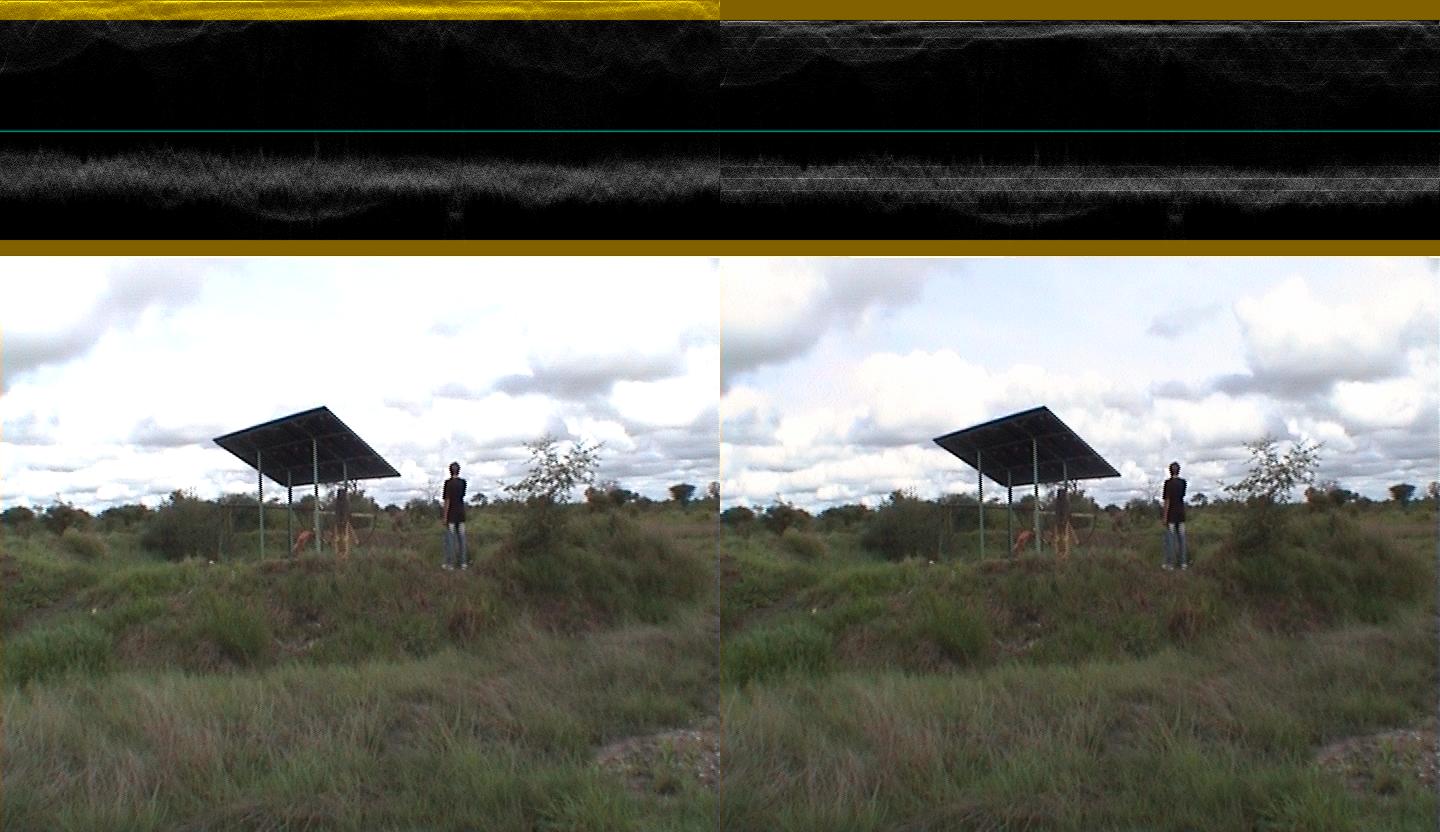

    Click image for larger version

Name:	samp.jpg
Views:	371
Size:	123.1 KB
ID:	16688

    Originally Posted by fvisagie View Post
    edit: Is there some tool that can tell with which matrix a particular clip has been encoded with?
    It depends on the container and codec. MediaInfo shows some. DgIndex for MPEG 2 video. Sometimes it isn't flagged and you have to guess. The general rule is rec.601 for SD, rec.709 for HD.
    Quote Quote
  6. Member 2Bdecided's Avatar
    Join Date
    Nov 2007
    Location
    United Kingdom
    Search Comp PM
    Originally Posted by jagabo View Post
    Originally Posted by fvisagie View Post
    If I leave the levels alone, is there anybody downstream who's expected to clip them? Or does it depend on the implementation of the particular encoder, renderer etc?
    Encoders usually pass them along. But when converted to RGB for display (all displays are RGB) the out-of-spec darks and brights will be crushed.
    ...but not all displays will crush them.

    Also, non-PC-centric RGB video over HDMI is always black=16 white=235, not the highlight-clipping black=0 white=255 that is most commonly found on PCs. (By preference, non-PC-centric video is YUV over HDMI if both devices support it - but if one doesn't, you get 16/235 RGB instead).


    That said, it is far better to ensure the video is legal and valid (and preferably NOT just by hard-clipping it to the limits) - i.e. luma sits between 16-235 except for sharpening overshoots, and luma+chroma point to real RGB values.

    Cheers,
    David.
    Quote Quote
  7. Originally Posted by 2Bdecided View Post
    Originally Posted by jagabo View Post
    Originally Posted by fvisagie View Post
    If I leave the levels alone, is there anybody downstream who's expected to clip them? Or does it depend on the implementation of the particular encoder, renderer etc?
    Encoders usually pass them along. But when converted to RGB for display (all displays are RGB) the out-of-spec darks and brights will be crushed.
    ...but not all displays will crush them.
    Of course. It depends on the display and it's settings. A properly calibrated display will crush them. Y=16 should be as dark as the device can display. Y=235 should be as bright as the device can display. You can usually fiddle with the brightness and contrast settings to bring out details outside those regions (when YUV is transmitted). But who want's to fiddle with the settings for every video they play? Encode to the standard and you won't have to.

    Originally Posted by 2Bdecided View Post
    Also, non-PC-centric RGB video over HDMI is always black=16 white=235, not the highlight-clipping black=0 white=255 that is most commonly found on PCs.
    Most devices I have have settings for YUV output or RGB output. And the RGB output has settings for how the YUV is converted to RGB. Usually a "high" and "low" settings for YUV 16-235 -> RGB 0-255 or YUV 0-255 -> RGB 0-255. But the standard is the former.
    Quote Quote
  8. Member 2Bdecided's Avatar
    Join Date
    Nov 2007
    Location
    United Kingdom
    Search Comp PM
    Originally Posted by jagabo View Post
    A properly calibrated display will crush them. Y=16 should be as dark as the device can display. Y=235 should be as bright as the device can display.
    That depends on the display, the room, and the taste of the viewer. It's certainly one way ot set them up without proper calibration, but some TVs will deliver retina burning levels of brightness. Some rooms are very bright, others are intentionally very dark. The calibration reference is certainly not "as bright as the device can display".

    You can usually fiddle with the brightness and contrast settings to bring out details outside those regions (when YUV is transmitted). But who want's to fiddle with the settings for every video they play?
    I wouldn't dream of doing that.

    Encode to the standard and you won't have to.
    Well, indeed. I do.

    Problem is, some old camcorder videos look far better if you let all the illegal values through and watch them on a sympathetic TV. Once fixed, they look too dark and too desaturated. Example...
    http://forum.doom9.org/showthread.php?t=135248

    That's not the problem here.

    Originally Posted by 2Bdecided View Post
    Also, non-PC-centric RGB video over HDMI is always black=16 white=235, not the highlight-clipping black=0 white=255 that is most commonly found on PCs.
    Most devices I have have settings for YUV output or RGB output. And the RGB output has settings for how the YUV is converted to RGB. Usually a "high" and "low" settings for YUV 16-235 -> RGB 0-255 or YUV 0-255 -> RGB 0-255. But the standard is the former.[/QUOTE]Most I've seen just trust the EDID. I've seen manual YUV/RGB selection for fault-fixing (i.e. the EDID is wrong), but not seen high/low. It is the HDMI standard itself which specifies the behaviour I described. I'd probably get shot for copying a chunk here, but trust me, it's pretty clear.

    I am talking about BluRay players and TVs, not PCs and graphics cards.

    Cheers,
    David.
    Quote Quote
  9. Originally Posted by 2Bdecided View Post
    The calibration reference is certainly not "as bright as the device can display".
    OK, I agree with that. I should change it to "as bright as you intend the TV to display". Most displays need to be run at less than full brightness (best done by turning down the backlight) under most conditions. But the intention of the spec is that the picture content should be between Y=16 and Y=235 (you, of course, know this). The areas outside that range are for overshoot and should not be used routinely, and you shouldn't rely on TVs being set up to show them. Commercial discs and broadcasts almost all conform to that standard -- even when they have crushed darks and brights from bad processing. If you set your TV up to show up to Y=255 then normal video will be a bit dark at the high end, and may appear more posterized in the middle range.

    Originally Posted by 2Bdecided View Post
    It is the HDMI standard itself which specifies the behaviour I described.
    You're saying the HDMI standard specifies that RGB should range from 16-235?

    Originally Posted by 2Bdecided View Post
    I'd probably get shot for copying a chunk here, but trust me, it's pretty clear.
    I'd love to see the quote!

    In any case, the OP should fix the levels in his video before encoding, it's a trivial task. There's no need to go into all the myriad ways he might be able work around bad levels using his DVD/BD player's or TV's settings.
    Last edited by jagabo; 11th Mar 2013 at 13:25.
    Quote Quote
  10. David is correct regarding consumer electronics RGB over HDMI, the exception is 640x480 which is always full range according to the spec .

    But CE almost never is set to RGB, since all consumer formats are YCbCr

    The bottom line , as everyone agrees, is just to use legal range YCbCr
    Last edited by poisondeathray; 11th Mar 2013 at 13:38.
    Quote Quote
  11. Member
    Join Date
    Aug 2007
    Location
    Isle of Man
    Search Comp PM
    This has been a most... illuminating discussion!

    Originally Posted by jagabo View Post
    You could ConvertToRGB(matrix="rec601") followed by ConvertToYV12(matrix="rec709"). But doing that directly on your overblown brights will kill the detail in the sky.
    Do I understand correctly that YUV->RGB conversion involves amongst others scaling luma values to the range [0,255] from the range [16,235], i.e. any values outside that range in the original video are lost (similarly for U & V from range [16,240] etc.)?

    Originally Posted by 2Bdecided View Post
    Why do you need to convert it? My recollection is that you can encode and flag Rec.601 colour to MPEG-2 just fine. IIRC if you don't specify what the colour is, SD video defaults to Rec.601. I could be wrong.
    Good question. The answer is statements like this, but I'm not sure how authorative that is either.

    Originally Posted by 2Bdecided View Post
    ...it is far better to ensure the video is legal and valid (and preferably NOT just by hard-clipping it to the limits) - i.e. luma sits between 16-235 except for sharpening overshoots, and luma+chroma point to real RGB values.
    Originally Posted by jagabo View Post
    In any case, the OP should fix the levels in his video before encoding
    Is there a better way of checking for out-of-range YUV values than scrubbing through the clip with Histogram(mode="Levels")? Even if overkill at this point but just to help my understanding, is it possible for individually valid Y, U and V values to represent invalid RGB values in combination, which is the impression I formed from David's discussion? [Edit: actually from this specific post: "Even using PC-range, not all YUV combinations are 'valid'"] And how to check for such illegal combinations?

    Thanks very much for the suggestions (and another helpful illustration from jagabo), I'm going to try them out.
    Last edited by fvisagie; 11th Mar 2013 at 14:10.
    Quote Quote
  12. Originally Posted by fvisagie View Post
    This has been a most... illuminating discussion!

    Originally Posted by jagabo View Post
    You could ConvertToRGB(matrix="rec601") followed by ConvertToYV12(matrix="rec709"). But doing that directly on your overblown brights will kill the detail in the sky.
    Do I understand correctly that YUV->RGB conversion involves amongst others scaling luma values to the range [0,255] from the range [16,235], i.e. any values outside that range in the original video are lost (similarly for U & V from range [16,240] etc.)?
    Yes. Alternatively you could use the PC matrices which avoid the scaling:

    Code:
    ConvertToRGB(matrix="PC.601").ConvertToYV12(matrix="PC.709")
    Originally Posted by fvisagie View Post
    Is there a better way of checking for out-of-range YUV values than scrubbing through the clip with Histogram(mode="Levels")?
    Not that I know of.

    Originally Posted by fvisagie View Post
    is it possible for individually valid Y, U and V values to represent invalid RGB values in combination

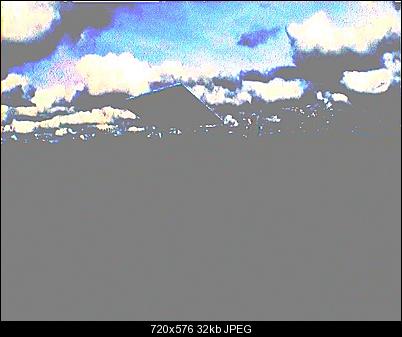

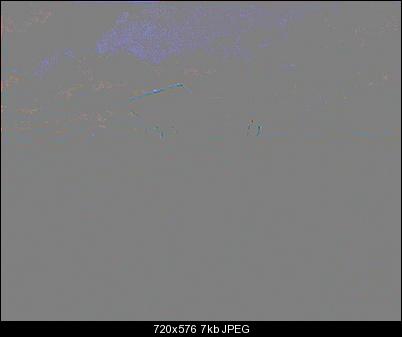

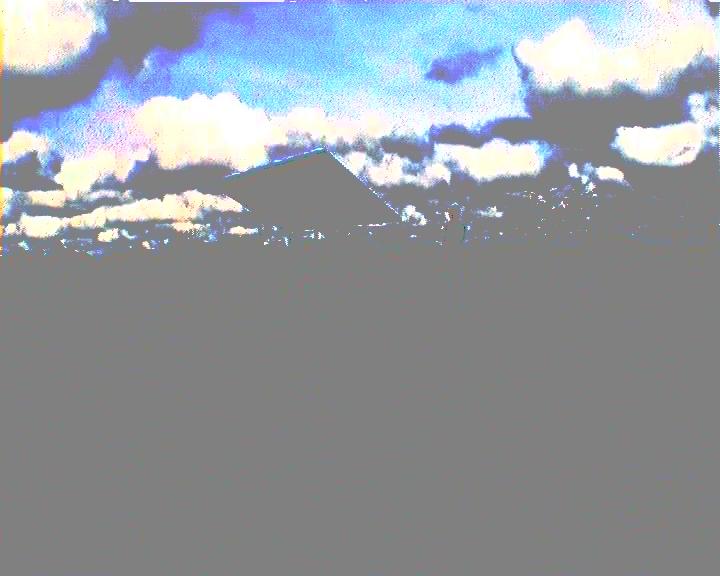

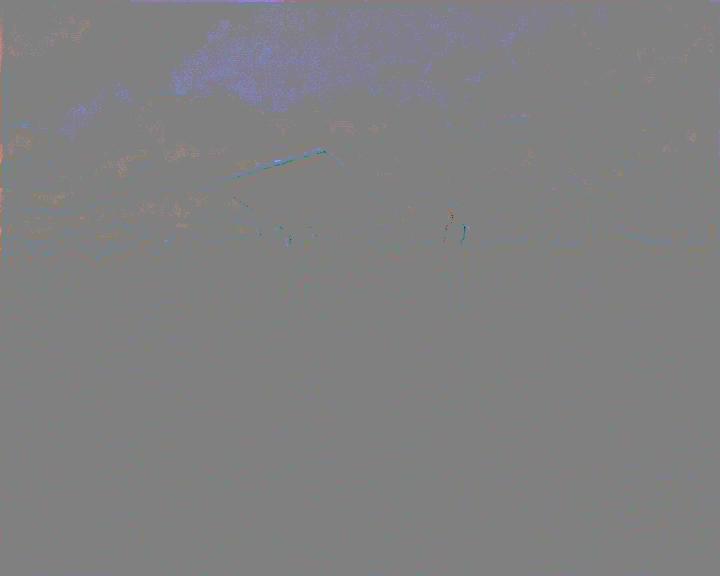

    Yes. I wrote a script a few months ago that highlights exactly such pixels by converting YUV to RGB and back, subtracting the result from the original, and amplifying the result.
    Quote Quote
  13. Member 2Bdecided's Avatar
    Join Date
    Nov 2007
    Location
    United Kingdom
    Search Comp PM
    Originally Posted by fvisagie View Post
    Originally Posted by 2Bdecided View Post
    Why do you need to convert it? My recollection is that you can encode and flag Rec.601 colour to MPEG-2 just fine. IIRC if you don't specify what the colour is, SD video defaults to Rec.601. I could be wrong.
    Good question. The answer is statements like this, but I'm not sure how authorative that is either.
    It is not even discussing the same issue. The poster also made a fairly monumental typo. What he's trying to say is correct though: when decoding DV for DVD authoring, either use YUY2, or YV12 with the MPEG-2 chroma sample placement, not YV12 with the native DV sample placement (which is different). This has nothing to do with 601 or 709. DV is always SD, and always 601.

    is it possible for individually valid Y, U and V values to represent invalid RGB values in combination
    Yes.

    You are over complicating this. Your camcorder is just like 99% of recent consumer camcorders: it records luma 16-255. Just use the levels line I provided above (or the equivalent smoothlevels line if you want) to map it to 16-235, and leave it at that. No need to worry about illegal colours. No need to worry about 601/709.

    If you wish to do manual per-shot colour correction in your NLE, then go for it, but that's a separate issue.

    Cheers,
    David.
    Quote Quote
  14. Member
    Join Date
    Aug 2007
    Location
    Isle of Man
    Search Comp PM
    Originally Posted by 2Bdecided View Post
    What he's trying to say is correct though: when decoding DV for DVD authoring, either use YUY2, or YV12 with the MPEG-2 chroma sample placement, not YV12 with the native DV sample placement (which is different).
    OK, having introduced that term here, you'll now have to tell me where I can learn more about it .

    Originally Posted by 2Bdecided View Post
    You are over complicating this. Your camcorder is just like 99% of recent consumer camcorders: it records luma 16-255. Just use the levels line I provided above (or the equivalent smoothlevels line if you want) to map it to 16-235, and leave it at that. No need to worry about illegal colours. No need to worry about 601/709.
    That's a relief! Many thanks for your advice, and that of the others.

    Kind regards,
    Francois
    Quote Quote
  15. Originally Posted by fvisagie View Post
    Originally Posted by 2Bdecided View Post
    What he's trying to say is correct though: when decoding DV for DVD authoring, either use YUY2, or YV12 with the MPEG-2 chroma sample placement, not YV12 with the native DV sample placement (which is different).
    OK, having introduced that term here, you'll now have to tell me where I can learn more about it .
    http://avisynth.org/mediawiki/Sampling
    http://avisynth.org/mediawiki/ConvertToYUY2
    http://www.mir.com/DMG/chroma.html
    Quote Quote
  16. Member 2Bdecided's Avatar
    Join Date
    Nov 2007
    Location
    United Kingdom
    Search Comp PM
    Yes, that last link has the pretty pictures I recall.

    You don't need to learn about it (except for curiosity) - just use Cedocida DV codec, and either force YUY2 (either using the control panel for the codec, or using pixel_type="YUY2" in the AVIsource command in AVIsynth), or forec YV12 and select "MPEG 2 interlaced" as the decoder option in the Cedocida control panel.

    If you do it incorrectly, it's quite hard to see any difference, and very hard to say for certain that it's "wrong" just by looking at the result.

    Cheers,
    David.
    Quote Quote
  17. Yes, not worth worrying about. Just keep track of interlaced vs. progressive issues. Eg., ConvertToYV12(interlaced=true) for interlaced video, ConvertToYV12() for progressive.
    Quote Quote
  18. Member
    Join Date
    Aug 2007
    Location
    Isle of Man
    Search Comp PM
    Thanks, guys.

    Back to 601 vs. 709 one last time, if I mix this DVCAM with HD content, is it advisable to convert one's format to that of the other, say the DVCAM to Rec.709?

    edit: I notice that when normalising levels bright horizontal lines appear in the histogram, also visible in jagabo's picture above. They're present with both of ColorYUV() and levels(); their number and position just vary in each case. What do those lines represent?
    Last edited by fvisagie; 12th Mar 2013 at 09:39.
    Quote Quote
  19. With mixed content you usually convert to whatever the final format is going to be. e.g. if it's an HD timeline intended for HD export, you convert the SD material to Rec709 using colormatrix

    Everything else still applies - you need to either "legalize" values in YCbCr before converting to RGB, or use a full range matrix before converting to RGB, otherwise the "Rec" matrices will clip your overbrights
    Quote Quote
  20. Originally Posted by fvisagie View Post

    edit: I notice that when normalising levels bright horizontal lines appear in the histogram, also visible in jagabo's picture above. They're present with both of ColorYUV() and levels(); their number and position just vary in each case. What do those lines represent?
    Those lines represent quantization. You will see banding along gradients, because your manipulations were done in 8bit, and this is an 8bit format. You can dither (essentially add noise to hide it)

    e.g. either use smoothlevels() instead of levels, or use levels() with dither=true (only available in avisynth 2.6.x) , or you can add dithering separately with the dither tools (e.g. gradfun3 or related filters)
    Quote Quote
  21. Going from 240 (255-16+1) shades of grey to 220 (236-16+1) shades of gray results in some adjacent Y values become mapping to the same Y value in the output because you are working with integers. For example say you have 4 possible Y values 0, 1, 2, 3, and you want to reduce the range from 4 to 3. You multiply every Y value by 3/4 (0.75) to generate the new value: 0.00, 0.75, 1.50, 2.25. But you're working in integers so you have to round those number to the nearest integer: 0, 1, 2, 2. The original values 2 and 3 both mapped to 2 in the final output. That's what those horizontal lines in the histogram represent.
    Quote Quote
  22. Member 2Bdecided's Avatar
    Join Date
    Nov 2007
    Location
    United Kingdom
    Search Comp PM
    Originally Posted by fvisagie View Post
    Back to 601 vs. 709 one last time, if I mix this DVCAM with HD content, is it advisable to convert one's format to that of the other, say the DVCAM to Rec.709?
    Yes, as part of the conversion from SD to HD. Your NLE will do it for you (but probably badly). AVIsynth can do it very well.

    Several NLEs say they let you mix formats within one project, but the ones I've tried do the conversion pretty poorly.

    When working in HD, I used AVIsynth to convert SD to HD before rendering a project. If I know I'll use most of the SD clips, I might convert them all before I start. If I'll only use a small fraction, then I'll use the SD versions in the NLE to start with, and create HD versions in AVIsynth only of the ones that survive to the final edit. Some NLEs make it easy to replace a clip with a better quality version without messing with the edit.

    Cheers,
    David.
    Quote Quote
  23. Member
    Join Date
    Aug 2007
    Location
    Isle of Man
    Search Comp PM
    Originally Posted by 2Bdecided View Post
    This will bring over-bright luma in range quite simply, without affecting black...
    levels(0,1.0,255,2,235,coring=false)
    ...but there are other ways.
    Originally Posted by 2Bdecided View Post
    Your camcorder is just like 99% of recent consumer camcorders: it records luma 16-255. Just use the levels line I provided above (or the equivalent smoothlevels line if you want) to map it to 16-235, and leave it at that.
    Thanks for that example - I'd have handled the 16 wrong on my own! Mapping 0->2 leaves some leeway one imagines, but for what?
    Quote Quote
  24. Banned
    Join Date
    Oct 2004
    Location
    New York, US
    Search Comp PM
    Originally Posted by fvisagie View Post
    This has been a most... illuminating discussion!
    Indeed. Off of the mention of TV's that crush invalid colors, and those that don't, and setting displays properly...

    I note that a YUV histogram is often used to check these values for correction. Well and good, but IMO Avisynth's Levels histogram is OK for luma levels but rather useless for color ranges -- and I read in Doom9 somewhere that the U and V panels in that histogram are inaccurate.

    I use that histogram for a preliminary luma check, but I convert the video to RGB (using 601 or 709, whichever applies) and then use the ColorTools histogram in VirtualDub to check the color range, or use the RGB histograms in Photoshop Pro or AfterEffects. I do this because I feel that YUV tells me how the data is stored, but RGB tells me how it will be interpreted and displayed. I've seen a great many YUV histograms with perfectly fine 16-235 luma levels, but colors were smashed against all sides of the RGB histograms. Often, my eyes can see these effects without reverting to 'grams and 'scopes. I make preliminary corrections for legal values in both luma and chroma using Avisynth tools (ColorYUV, etc.).

    A contrast/brightness technique mentioned is the use of pluges and contrast bars, in versions for both PC and TV. These are OK for general quickie setup, but there are more precise methods. Because of the way PC monitor brightness and contrast controls work (or don't work), a pluge is often the only tool available other than colorimeter/software kits designed for PC hardware. The kits are far more accurate than either the controls or the eyeball. But for TV I have EyeOne colorimeters and HCFR software to set black and white levels, which at the same time serves as a gamma setup.

    For TV calibration, I use IRE-0 to IRE-100 gray test patches from the GetGray calibration disc. GetGray itself is an SD tool, but gray patches for SD and HD are the same for RGB setup of SD and HD alike. For color, you'd use the GetGray color patches for SD but go for the AVSHD709 disc for HD color tests. For SD and HD grayscale-only, either of the gray patch sets will work.

    Setting TV white level: Mount the colorimeter on the TV, plug its USB cable to a computer, and start the HCFR software. Begin by displaying a 100% (IRE-100 bright white) gray panel. Adjust TV contrast until the IRE-100 panel gives a "reasonable" luminance reading in the range of 30 to 40 cd/m2 for LCD/plasma/CRT. This cd/m2 figure is not arbitrary: it corresponds to a universally accepted brightness level for viewing in average indoor lighting without smashing brights all over the place. I like a fairly punchy image, so I set for a white level of 40 cd/m2. You can go higher or lower, but doing so will affect the target gamma of 2.0 or 2.2 (I shoot for 2.0).

    Setting TV black level: Next, display an IRE-10 dark gray panel (not IRE-0). Adjust the Brightness control until you get an IRE-10 luminance reading that is 0.65% of the IRE-100 reading. If the IRE-100 was 40, then the IRE-10 reading should be in the neighborhood of 0.26 cd/m2 (40 X .0065 = 0.26). Because Contrast and Brightness tend to interact, you likely should repeat the readings and readjust until you get the 40 and 0.26 readings. You have now set a gamma in the area of 2.0 or so. Later, after grayscale calibration, the overall gamma will have been modified, so it's a good idea to check those black and white levels again. Some TV's are not capable of a 2.0-2.2 gamma; in that case, the plug pattern will verify the set's capabilities and allow tweaking.

    A saturation setting should follow the levels and grayscale calibration. Some experts contend that Saturation is best set using a 100% or 75% Red color patch (use Rec601 color patches for SD, Rec709 color patches for HD -- although, in fact, there's not that much difference between them). Display a 100% or 75% light gray patch, take a reading with HCFR, and note the Y-level reading. HCFR gives x,y, and Y' (the same as YUV "Y") for that patch. You want to note the Y color luminance reading from that patch. Next, display a matching 100% or 75% Red patch, careful to match 100% or 75%, whichever you're using. Set the saturation control until the Red Y-level reads 21% of the white patch.

    Some experts suggest that primary Green is a better base (especially if you're viewing a Panasonic TV with its volcano-level Reds). For a Green patch, set saturation to 70% of the white Y-level. Or of you want to get picky, SD Green should be 70% of the white patch, HD should be 71%. If you can see the difference, you're pretty damn good. If you use other colors, the percentage of white-to-color Y readings goes along these lines:

    Red 21%
    Green 70-71%
    Blue 8-7%
    Yellow 9%
    Cyan 78%
    Magenta 29%
    White 100%

    Setting Tint is far more complicated. To do it precisely, you need HCFR and its Rec601 or Rec709 CIE test matrix to adjust Blue and Green CMS matrix levels -- not possible if you don't have individual CMS controls on your TV, and most TV's don't have them. In that case, the old blue viewing filter and the Tint test screen from the GetGray or AVSHD disc will have to suffice.

    These methods can't be used on a PC. For one thing, many PC monitors don't have accurate RGB controls; their effects vary widely across the RGB range, and it's not possible to adjust Y-saturation levels on anything except pricey pro monitors. For a PC, the XRite calibration kits are quite accurate and thorough. One begins by following the software prompts, which usually involve setting brightness to 120 cd/m2 or so. Most monitors have settings far beyond this value, which means they are bright as hell. The software gives you a grid in which to align a cursor when brightness/contrast are properly set. The rest is automated, acting mostly on the graphic card's LUT to make 38 RGB grayscale x, y, Y', and gamma corrections.

    Not long ago I posted some HCFR images showing how close these PC calibration kits can get: https://forum.videohelp.com/threads/335402-VHS-capture-critique?p=2083260&viewfull=1#post2083260. This post used HCFR's sRGB panels.

    Here are two articles that describe the TV and projector calibration process:
    http://www.curtpalme.com/forum/viewtopic.php?t=10457&start=0&postdays=0&postorder=asc&highlight=
    http://www.avsforum.com/t/852536/basic-guide-to-color-calibration-using-a-cms-updated-and-enhanced
    Here is a link to sample PC calibration:
    http://www.tftcentral.co.uk/reviews/eye_one_display2.htm

    Following these guides for PC/TV, bad video processing becomes immediately obvious, and proper video looks....well, the way it's supposed to.
    Last edited by sanlyn; 25th Mar 2014 at 20:02.
    Quote Quote
  25. You can use a sequence like:

    Code:
    WhateverSource()
    Subtract(last, ConvertToRGB(last).ConvertToYUY2()).Levels(112,1,144,0,255)
    to check for illegal YUV combinations. A flat medium grey image means there are no problems. Real world video may show a few pixels or edges here and there (the conversion to RGB and back isn't perfect) but should not show big areas of color or bright patches. That script with your original video:

    Click image for larger version

Name:	org.jpg
Views:	996
Size:	32.0 KB
ID:	16709

    Your video after ColorYUV(gain_y=-20):

    Click image for larger version

Name:	adj.jpg
Views:	1081
Size:	7.5 KB
ID:	16710
    Quote Quote
  26. Banned
    Join Date
    Oct 2004
    Location
    New York, US
    Search Comp PM
    Nice little tool. Yet another addition to my jagabo tips folder.
    Last edited by sanlyn; 25th Mar 2014 at 20:02.
    Quote Quote
  27. I should have pointed out that you should use the interlace flags for interlaced video; the right matrix for the YUV/RGB conversions; and the right conversion back to YUV (YV12 or YUY2). The code as written above is for progressive rec.601 YUY2.

    For example, with interlaced rec.709 YV12 you would use:

    Code:
    WhateverSource()
    Subtract(last, ConvertToRGB(last, interlaced=true, matrix="rec709").ConvertToYV12(interlaced=true, matrix="rec709")).Levels(112,1,144,0,255)
    Last edited by jagabo; 12th Mar 2013 at 11:19.
    Quote Quote
  28. Member
    Join Date
    Aug 2007
    Location
    Isle of Man
    Search Comp PM
    Originally Posted by poisondeathray View Post
    You can dither (essentially add noise to hide it)

    e.g. either use smoothlevels() instead of levels, or use levels() with dither=true (only available in avisynth 2.6.x) , or you can add dithering separately with the dither tools (e.g. gradfun3 or related filters)
    I take it you and David are referring to SmoothAdjust's Smoothlevels() function, not the earlier SmoothLevels script?

    For me Avisynth 2.6.x won't be an option yet for a while. How would you chiefly contrast smoothlevels() vs. separate dither tools like gradfun3, e.g. when would one generally prefer the one over the other?
    Quote Quote
  29. Originally Posted by fvisagie View Post
    Originally Posted by poisondeathray View Post
    You can dither (essentially add noise to hide it)

    e.g. either use smoothlevels() instead of levels, or use levels() with dither=true (only available in avisynth 2.6.x) , or you can add dithering separately with the dither tools (e.g. gradfun3 or related filters)
    I take it you and David are referring to SmoothAdjust's Smoothlevels() function, not the earlier SmoothLevels script?
    Yes, Lato has re-written it, smoothadjust.dll comes as a .dll now, not an avs(i) script. The avisynth call is still smoothlevels() as before


    How would you chiefly contrast smoothlevels() vs. separate dither tools like gradfun3, e.g. when would one generally prefer the one over the other?
    On content like this you won't notice much of a difference. I doubt you would be able to see the "banding" changes reflected in the waveform (the histogram() is really a Y' waveform) manifest in the actual image. But with smooth gradients in content like CGI, anime, maybe shots of a clear blue sky, you can notice a difference in the actual image , and the type of dithering used makes a difference. There is more control over the type of dithering with separate plugins like flashkyuu_deband, and the dither package . The dither package has uses for other related operations, such as dithering for colorspace conversions, (fake, stacked) higher bit depth support

    You originally mentioned converting for RGB (presumably for use in other programs). Some of the problems with RGB plugins in avisynth /vdub is that they work at lower 8 bit depth an in non linear sRGB - so the conversion math isn't as accurate, and you get more banding with gamma error (1+1 doesn't equal 2). The "correct" way would be to linearize everything using a linear workflow when doing color corrections in RGB
    Quote Quote
  30. If you are going to do any kind of spacial or temporal filtering there's no reason to bother using SmoothLevels or whatever. Because of the noise in the video, the loss of precision is evenly spread over the entire image. Adjust the levels, then do the other filtering.
    Quote Quote



Similar Threads
