  1. 20th Feb 2013 01:38 #1
    Dogway
    Dogway is offline
    Member
    Join Date
    Jan 2012
    Search PM
    Hello, I'm struggling to make a capturer work through graphstudio.

    It's a Pinnacle 510 USB. I managed to make it work through S-Video with AmCap, and also VirtualDub (but without preview), the files save as YUY2 lossless. I'm trying to make it work now with graphstudio but I don't see anything at preview and it won't let me change resolution to 720x576 either. What am I doing wrong?

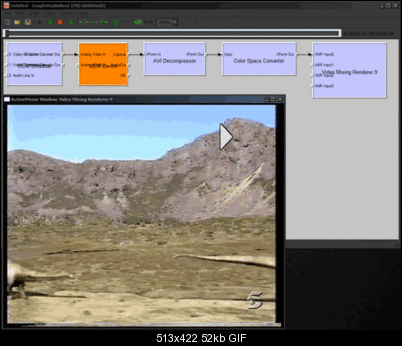

    Click image for larger version Name: Untitled-1.gif Views: 947 Size: 37.8 KB ID: 16370
    Last edited by Dogway; 21st Feb 2013 at 06:14.
    Quote Quote
  2. 20th Feb 2013 04:43 #2
    Dogway
    Dogway is offline
    Member
    Join Date
    Jan 2012
    Search PM
    For comparison I tested with another capturer, a fake EasyCap with chipset UTV007. And this one works without problems in graphedit, funnily enough it doesn't work in AmCap, and as the Pinnacle it captures in Vdub, but can't preview.

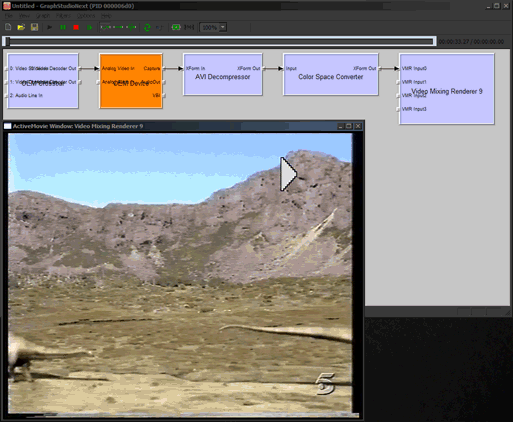

    Click image for larger version Name: Untitled-1.gif Views: 1215 Size: 52.1 KB ID: 16372
    Last edited by Dogway; 21st Feb 2013 at 06:14.
    Quote Quote
  3. 2nd Mar 2013 06:28 #3
    Dogway
    Dogway is offline
    Member
    Join Date
    Jan 2012
    Search PM
    In one of my attempts I got to make the graph work, but after a few seconds video was choppy and still couldn't change resolution.
    In the meanwhile I found this useful post. It says that it can be a conflict with USB saturation.
    I'm wondering if any of these cards are bt8xx chip based. In which case i should capture to 368 (instead of 352 or 720) as I read on another thread.
    Quote Quote
