DV AVI Files Stop Playing At 4:26

[leebo]

I have a Panasonic HD camcorder (AG-130A) that is tapeless. It can record SD DV AVI files, or HD AVCHD files.
For work, I shoot SD DV AVI files. When I copy those files to my Win 7 64 bit PC, WMP and VLC both open and play the files, but both stop at 4mins and 26 secs into the videos. This is for ALL VIDEOS shot with this camera, so it's not a problem specific to one file.

Also, I tried playing these files on my laptop (also a Win 7 64 bit), and they stop in the exact same place.
I have another PC running Win XP, and that system plays the files just fine. So this must be specific to Win 7.

If it were a codec issue, I would expect the files to not play at all.

What am I looking for?

[aedipuss]

try using mediainfo in text mode on the video and copy/paste it here

[jagabo]

I have DV AVI files over 4 minutes and 26 seconds and they play fine in Windows 7, 64 bit. With WMP, MPCHC, VLC etc. 4:26 is very close to the 1 GB mark. Some systems used to have problems there. How are the files getting from your camcorder to your computer? Maybe they are using the AVI 1.0 spec, not ODML? Try opening them in VirtualDub. See if it can get beyond the problematic time. If so, set Video -> Direct Stream Copy and save as a new file. See if that new file works.

[leebo]

try using mediainfo in text mode on the video and copy/paste it here

General
Complete name : K:\001HU00.AVI
Format : AVI
Format/Info : Audio Video Interleave
Commercial name : DV
Format profile : OpenDML
File size : 3.78 GiB
Duration : 17mn 47s
Overall bit rate mode : Constant
Overall bit rate : 30.4 Mbps
Recorded date : 2012-11-01 09:35:49.000
Comment : SHOTMARK=OFF,TIMEZONE=-08:00,RECMODE= ,

Video
ID : 0
Format : DV
Codec ID : dvsd
Codec ID/Hint : Sony
Duration : 17mn 47s
Bit rate mode : Constant
Bit rate : 24.4 Mbps
Encoded bit rate : 28.8 Mbps
Width : 720 pixels
Height : 480 pixels
Display aspect ratio : 4:3
Frame rate mode : Constant
Frame rate : 29.970 fps
Standard : NTSC
Color space : YUV
Chroma subsampling : 4:1:1
Bit depth : 8 bits
Scan type : Interlaced
Scan order : Bottom Field First
Compression mode : Lossy
Bits/(Pixel*Frame) : 2.357
Stream size : 3.58 GiB (94%)
Encoding settings : wb mode= / white balance= / fcm=manual focus

Audio
ID : 1
Format : PCM
Format settings, Endianness : Little
Format settings, Sign : Signed
Codec ID : 1
Duration : 17mn 47s
Bit rate mode : Constant
Bit rate : 1 536 Kbps
Channel(s) : 2 channels
Sampling rate : 48.0 KHz
Bit depth : 16 bits
Stream size : 196 MiB (5%)
Interleave, duration : 33 ms (1.00 video frame)

[leebo]

I have DV AVI files over 4 minutes and 26 seconds and they play fine in Windows 7, 64 bit. With WMP, MPCHC, VLC etc. 4:26 is very close to the 1 GB mark. Some systems used to have problems there. How are the files getting from your camcorder to your computer? Maybe they are using the AVI 1.0 spec, not ODML? Try opening them in VirtualDub. See if it can get beyond the problematic time. If so, set Video -> Direct Stream Copy and save as a new file. See if that new file works.

I record to chips in the camera (SDXC) and copy them directly to the computer with a card reader. But like I said, these files play fine on my Win XP machine.

[aedipuss]

how are the memory cards formatted? fat, fat32, exfat, ntsc, etc. maybe your computer can't handle the format type.

[leebo]

how are the memory cards formatted? fat, fat32, exfat, ntsc, etc. maybe your computer can't handle the format type.

Yes, but I believe the way the chip is formatted isn't relevant, because I'm playing the files from the hard drive, not from the chips.

Anyway, Win 7 can handle exfat natively (ntsc doesn't refer to any disc format. Maybe you meant NTFS?).

[aedipuss]

ntfs, it was the end of a long day.

it's close to dvavi but little things like the total bitrate are off. "real" dvavi has no problem playing any time/size on win7. i'd check all the settings on the cam to see if somethings amiss there.

[leebo]

Ok. Thanks.

[jagabo]

Did you try the remux with VirtualDub?

[leebo]

Not yet, I will.
But I need to fix the issue in my camera or pc, because this will be an ongoing issue.

[jagabo]

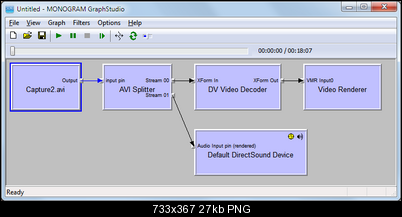

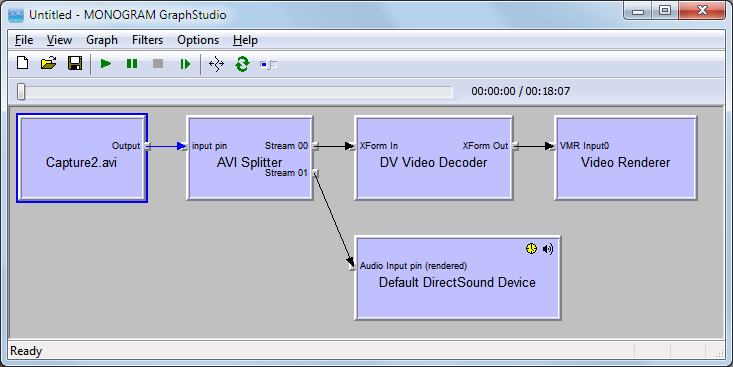

Try installing GraphStudio. Select File -> Render Media File... to build a graph for one of your problematic DV AVI files. What filters are being used? In mine I see:



You can right click an any of the filters (boxes) and select Properties. In the above graph Capture2.AVI is Windows 7's built in AVI reader (quartz.dll), AVI Splitter is Windows' built in AVI Splitter (quartz.dll), DV Video Decoder is Windows' built in DV decoder (qdv.dll). Press the play button. Does it play past the 4:27 mark?

I suspect you may have a different AVI file reader or splitter and the problem is there.
