    I am using mkvmerge version 5.8.0.

    I try to merge a mkv video file with a subtitle. The original mkv video file has 1 video and 2 audios.

    Steps to merge:
    1. Run mkvmerge.
    2. Add the mkv video file to mkvmerge.
    3. Add the subtitle to mkvmerge.
    4. Change the output file name.
    5. Click the "Start muxing" button to start muxing.

    During the merging process, mkvmerge shows no error.

    After merging, I tried to play the output file with Media Player Classic Home Cinema version 1.6.4. The subtitle not being displayed even though it had been enabled. And, the weird thing is that the size of the output file a few hundreds KB smaller than the original mkv video file.

    Why is that?
    Quote Quote
  2. Member Budman1's Avatar
    Join Date
    Jul 2012
    Location
    NORTHWEST ILLINOIS, USA
    Search Comp PM

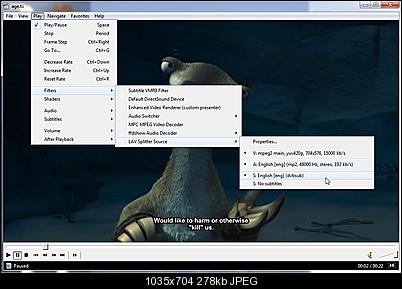

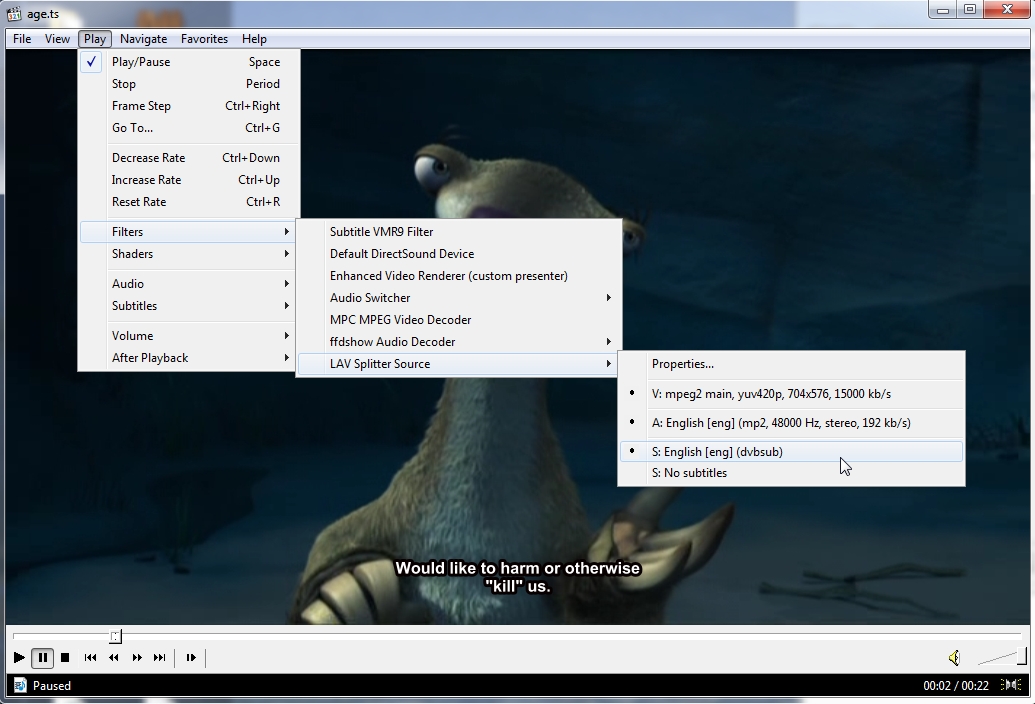

    Use Mediainfo to see what it says about your finished file. It should list the subtitles if they are included. If they are, then they may need to be turned on in MPC-HC in the filters area:

    Click image for larger version

Name:	ScreenHunter_281 Nov. 06 23.23.jpg
Views:	1664
Size:	277.6 KB
ID:	14615.

    Some types of subtitles need to be selected this way, at least on my MPC-HC, while others play normally by default. This example shows LAV since my computer is using the LAV Splitter but the Haali filter is similar in setup.
    Quote Quote
  3. Member
    Join Date
    Jan 2006
    Location
    Malaysia
    Search Comp PM
    Originally Posted by Budman1 View Post
    Use Mediainfo to see what it says about your finished file. It should list the subtitles if they are included. If they are, then they may need to be turned on in MPC-HC in the filters area:

    [Attachment 14615 - Click to enlarge]
    .

    Some types of subtitles need to be selected this way, at least on my MPC-HC, while others play normally by default. This example shows LAV since my computer is using the LAV Splitter but the Haali filter is similar in setup.
    Here are the information displayed by mediainfo for the output file:
    Code:
    General
    Unique ID                                : 220441732075143068527102479662521272767 (0xA5D788850337407F879B337869A449BF)
    Complete name                            : C:\Users\cshong\Desktop\New folder\trialvideo.mkv
    Format                                   : Matroska
    Format version                           : Version 2
    File size                                : 273 MiB
    Duration                                 : 24mn 9s
    Overall bit rate                         : 1 583 Kbps
    Encoded date                             : UTC 2012-11-07 06:53:08
    Writing application                      : mkvmerge v5.8.0 ('No Sleep / Pillow') built on Sep  2 2012 15:37:04
    Writing library                          : libebml v1.2.3 + libmatroska v1.3.0

    Video
    ID                                       : 1
    Format                                   : AVC
    Format/Info                              : Advanced Video Codec
    Format profile                           : High@L3.0
    Format settings, CABAC                   : No
    Format settings, ReFrames                : 1 frame
    Muxing mode                              : Header stripping
    Codec ID                                 : V_MPEG4/ISO/AVC
    Duration                                 : 24mn 9s
    Bit rate                                 : 1 296 Kbps
    Width                                    : 768 pixels
    Height                                   : 576 pixels
    Display aspect ratio                     : 4:3
    Frame rate mode                          : Constant
    Frame rate                               : 25.000 fps
    Color space                              : YUV
    Chroma subsampling                       : 4:2:0
    Bit depth                                : 8 bits
    Scan type                                : Progressive
    Bits/(Pixel*Frame)                       : 0.117
    Stream size                              : 224 MiB (82%)
    Title                                    : J2
    Default                                  : Yes
    Forced                                   : No

    Audio #1
    ID                                       : 2
    Format                                   : AC-3
    Format/Info                              : Audio Coding 3
    Mode extension                           : CM (complete main)
    Format settings, Endianness              : Big
    Muxing mode                              : Header stripping
    Codec ID                                 : A_AC3
    Duration                                 : 24mn 9s
    Bit rate mode                            : Constant
    Bit rate                                 : 128 Kbps
    Channel(s)                               : 2 channels
    Channel positions                        : Front: L R
    Sampling rate                            : 48.0 KHz
    Bit depth                                : 16 bits
    Compression mode                         : Lossy
    Stream size                              : 22.1 MiB (8%)
    Title                                    : 粵語
    Language                                 : Chinese
    Default                                  : Yes
    Forced                                   : No

    Audio #2
    ID                                       : 3
    Format                                   : AC-3
    Format/Info                              : Audio Coding 3
    Mode extension                           : CM (complete main)
    Format settings, Endianness              : Big
    Muxing mode                              : Header stripping
    Codec ID                                 : A_AC3
    Duration                                 : 24mn 9s
    Bit rate mode                            : Constant
    Bit rate                                 : 128 Kbps
    Channel(s)                               : 2 channels
    Channel positions                        : Front: L R
    Sampling rate                            : 48.0 KHz
    Bit depth                                : 16 bits
    Compression mode                         : Lossy
    Stream size                              : 22.1 MiB (8%)
    Title                                    : 日語
    Language                                 : Japanese
    Default                                  : No
    Forced                                   : No

    Text
    ID                                       : 4
    Format                                   : VobSub
    Muxing mode                              : zlib
    Codec ID                                 : S_VOBSUB
    Codec ID/Info                            : The same subtitle format used on DVDs
    Language                                 : Chinese
    Default                                  : Yes
    Forced                                   : No
    For the filter, I use Media Player Classic's built-in filter. The filter cannot be used to enable or disable subtitles.
    Quote Quote
  4. Member Budman1's Avatar
    Join Date
    Jul 2012
    Location
    NORTHWEST ILLINOIS, USA
    Search Comp PM

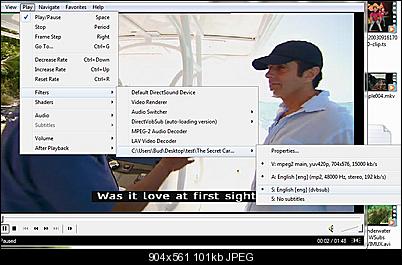

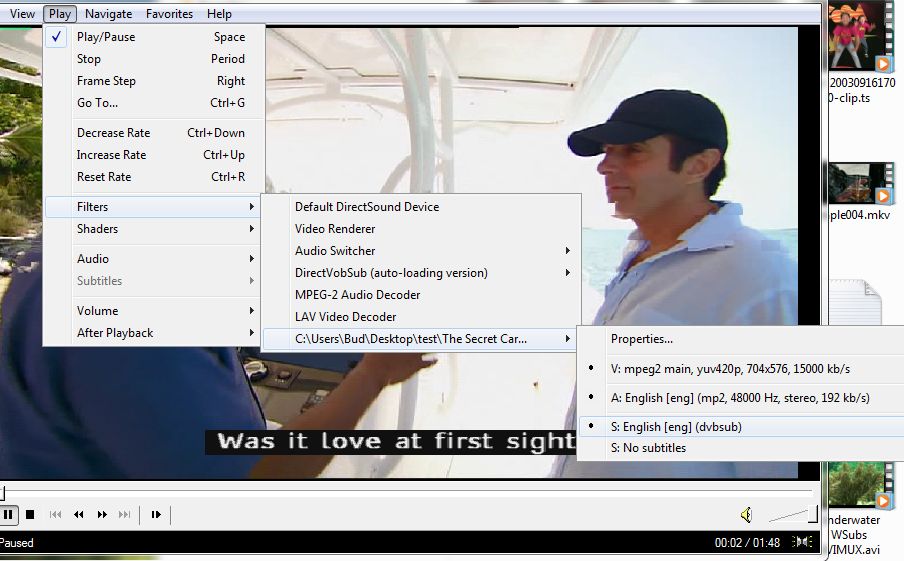

    Might want to Try MPC-HC instead since it has more features but, if you like MPC best, I installed MPC and turned on subtitles in same way but slightly different place:
    Click image for larger version

Name:	MPC.jpg
Views:	1690
Size:	101.3 KB
ID:	14622

    Do you have DirectVOBSub installed? It allows most subtitles to be played automatically if included in file or such as SRT, SSA, or ASS if named the same and placed in same folder with the video. Not sure if it's needed by MPC for S_vobsubs or not but I do have it installed on my machine and subs play in Windows Media player, MPC and MPC-HC, MOST automatic but some need to be turned on depending on type and encoding.
    Quote Quote
  5. Member
    Join Date
    Jan 2006
    Location
    Malaysia
    Search Comp PM
    Originally Posted by Budman1 View Post
    Might want to Try MPC-HC instead since it has more features but, if you like MPC best, I installed MPC and turned on subtitles in same way but slightly different place:
    [Attachment 14622 - Click to enlarge]


    Do you have DirectVOBSub installed? It allows most subtitles to be played automatically if included in file or such as SRT, SSA, or ASS if named the same and placed in same folder with the video. Not sure if it's needed by MPC for S_vobsubs or not but I do have it installed on my machine and subs play in Windows Media player, MPC and MPC-HC, MOST automatic but some need to be turned on depending on type and encoding.
    The subtitles play just fine if I did not merge it. The original subtitle files have the same name as the video file. MPC-HC load it automatically when I play the file and the subtitles displayed without any problem. The only problem is, after merging the subtitles with the video file by using mkvmerge, the subtitles not displayed when playing the output file, even though I enabled subtitle.

    The only temporary workaround is that before merging the subtitle file, edit the idx file, set the "custom colors" to "OFF". If the value of "custom colors" is "OFF", the subtitles will be displayed when playing the original video file and the merged output video file. If the "custom colors" is "ON", the subtitles will only be displayed when playing the original video file, and won't be displayed when playing the merged output file. However, I want the "custom colors" to be "ON".
