  1. I have had a Blu Ray burner for 3 days now, and have been burning files and movies to it just fine. However, the past day, it simply refuses to burn anything to a blu ray disc at all. I can still burn DVD's just fine, but anytime I try to burn to a Blu Ray disc, it just gives me the following error:

    COULD NOT PERFORM WRITE
    LOGIC UNIT TIMEOUT

    I am using a Sony BD RW BWU-500s burner, and like I said, it is brand new, only 3 days old. I am using Nero to burn and have tried lots of other software too, all with the same results. I have also tried to change my DMA to ON, but I cannot find the settings for it device manager in Windows 7. Below I will post the error log file from Nero 11 in-case it helps some peoople to help me resolve this. Many thanks!

    Also forgot to mention.... when it has failed to0 write to the Blu Ray and I take the disc out, the disc has what appears to be deep scratches on it all over the disc... but when I wipe the disc these scratches go away and the disc is as good as new, and when i reinsert the disc to write to it, the disc comes up as blank and is ready to be written to. :s

    ----ERROR LOG FILE-----


    9004-027E-UM18-71C6-57TK-P034-****-****
    5K00-5078-01K5-5130-A82C-****-****
    KC00-9039-1983-284A-2A45-****-****

    Windows 7 6.1
    IA32
    Nero Version: 11.0.23.100
    Internal Version: 11,0,23,100

    Recorder: <SONY BD RW BWU-500S> Version: 2.63 - HA 1 TA 4 - 11.0.23.100
    Adapter driver: <Serial ATA> HA 1
    Drive buffer : 8192kB
    Bus Type : via Inquiry data
    Connected to MMC as unknown drive with class-nr : 1
    Drive is autodetected - recorder class: Std. MMC recorder
    CD-ROM: <ELBY CLONEDRIVE >Version: 1.4 - HA 1 TA 2 - 11.0.23.100
    Adapter driver: <SCSI> HA 1

    === Scsi-Device-Map ===
    : ST3160812AS 3.AA nvstor Port 2 ID 0 DMA: Off
    : SONY BD RW BWU-500S 2.61 nvstor Port 3 ID 1 DMA: Off
    CdRomPeripheral : ELBY CLONEDRIVE 1.4 VClone Port 4 ID 0 DMA: Off

    === CDRom-Device-Map ===
    PHILIPS DVD8801 D: CdRom0
    ELBY CLONEDRIVE E: CdRom2
    SONY BD RW BWU-500S F: CdRom4
    =======================

    AutoRun : 1
    Excluded drive IDs:
    WriteBufferSize: 83886080 (0) Byte
    BUFE : 0
    Physical memory : 2047MB (2096440kB)
    Free physical memory: 1113MB (1140040kB)
    Memory in use : 45 %
    Uncached PFiles: 0x0
    Global Bus Type: default (0)
    Check supported media : Disabled (0)

    13.6.2012
    UDF compilation
    16:50:25 #1 Text 0 File SCSIPTICommands.cpp, Line 464
    LockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL

    16:50:25 #2 Text 0 File Isodoc.cpp, Line 7164
    UDF document burn settings
    ------------------------------------------
    Determine maximum speed : FALSE
    Simulate : FALSE
    Write : TRUE
    Finalize CD : TRUE
    Multisession : FALSE
    Burning mode : DAO
    Mode : 1
    UDF Mode : pure
    UDF Options : automatic
    UDF Revision : 1.02
    UDF Partition Type : physical

    16:50:26 #3 Text 0 File compose.cpp, Line 969
    GenUDF2: 1 transfer items prepared.

    16:50:26 #4 Text 0 File Burncd.cpp, Line 3609
    Turn on Disc-At-Once, using CD-R/RW, DVD R/RW, DVD DL, DVD-RAM, BD-R/RE, BD DL media

    16:50:26 #5 Text 0 File DlgWaitCD.cpp, Line 333
    [F: BD RW BWU-500S ] Total disc capacity: 12219392 23866MB
    User data to be written: 5377280 10502MB
    Free space on disc: 12219392 23866MB

    16:50:26 #6 Text 0 File DlgWaitCD.cpp, Line 345
    [F: BD RW BWU-500S ] Write in overburning mode: NO (enabled: CD)

    16:50:26 #7 Text 0 File DlgWaitCD.cpp, Line 2970
    Recorder: SONY BD RW BWU-500S, Media type: BD-R (seq)

    16:50:26 #8 Text 0 File DlgWaitCD.cpp, Line 525
    [F: BD RW BWU-500S ] >>> Protocol of DlgWaitCD activities: <<<
    =========================================

    16:50:26 #9 Text 0 File ThreadedTransferInterface.cpp, Line 878
    Setup items (after recorder preparation)
    0: TRM_DATA_MODE1 ()
    2 indices, index0 (150) not provided
    original disc pos #0 + 5377280 (5377280) = #5377280/1194:57.5
    relocatable, disc pos for caching/writing not required/ required
    -> TRM_DATA_MODE1, 2048, config 0, wanted index0 0 blocks, length 5377280 blocks [F: SONY BD RW BWU-500S]
    --------------------------------------------------------------

    16:50:26 #10 Text 0 File ThreadedTransferInterface.cpp, Line 1094
    Prepare [F: SONY BD RW BWU-500S] for write in CUE-sheet-DAO
    DAO infos:
    ==========
    MCN: ""
    TOCType: 0x00; Session Closed, disc fixated
    Tracks 1 to 1: Idx 0 Idx 1 Next Trk
    1: TRM_DATA_MODE1, 2048/0x00, FilePos 0 0 11012669440, ISRC ""
    DAO layout:
    ===========
    ___Start_|____Track_|_Idx_|_CtrlAdr_|_____Size_|__ ____NWA_|_RecDep__________
    0 | lead-in | 0 | 0x41 | 0 | 0 | 0x00
    0 | 1 | 0 | 0x41 | 0 | 0 | 0x00
    0 | 1 | 1 | 0x41 | 5377280 | 0 | 0x00
    5377280 | lead-out | 1 | 0x41 | 0 | 0 | 0x00
    MediaType: BD-R

    16:50:26 #11 Text 0 File SCSIPTICommands.cpp, Line 251
    SPTILockVolume - completed successfully for FSCTL_LOCK_VOLUME

    16:50:26 #12 Text 0 File Burncd.cpp, Line 4462
    Caching options: cache CDRom or Network-Yes, small files-No (<64KB)

    16:50:26 #13 PHASE 24 File dlgbrnst.cpp, Line 2030
    Caching of files started

    16:50:26 #14 Text 0 File Burncd.cpp, Line 4584
    Cache writing successful.

    16:50:26 #15 PHASE 25 File dlgbrnst.cpp, Line 2030
    Caching of files completed

    16:50:26 #16 PHASE 36 File dlgbrnst.cpp, Line 2030
    Burn process started at 4x (17,980 KB/s)

    16:50:27 #17 Text 0 File ThreadedTransferInterface.cpp, Line 2924
    Verifying disc position of item 0 (relocatable, disc pos, no patch infos, orig at #0): write at #0

    16:50:27 #18 Text 0 File Cdrdrv.cpp, Line 10673
    ---- Disc Structure (BD): Disc Information on BD (00h) ----
    Media Type: 1, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 4098
    --- Header ---
    Disc Information Identifier: <DI>
    Disc Information Format: 01 h
    Number of DI Units/Aux Frames in each DI block: 3
    Number of (recording) layer to which this DI Unit applies: 0
    DI unit Sequence Number in DI Block: 0
    Continuation flag: Next DI Unit is the start of a new set of parameters (0)
    Number of DI bytes in use in this DI unit: 98
    --- Body ---
    Disc Type Identifier: <BDR>
    Disc Size/Class/Version: 1
    DI Unit Format dependent contents:
    BD Structure: 18 (12 h):
    1 recording layer (SL), BD-R
    Hybrid Disc identifier/Channel bit length: 1 (1 h):
    no DVD layer present, no CD layer present
    channel bit length of 74,5 nm (25.0 GB max. per layer)
    Push-Pull polarity flag bits: 00 h
    Recorded mark polarity flag bits: 00 h
    BCA descriptor: BCA-code present (1)
    Maximum transfer rate needed by the application: 0 Mbit/s
    Data zone allocation:
    First Physical ADIP Address of the Data Zone of the related layer (FAA): 00020000 h (131072)
    Last Physical ADIP Address of the Data Zone of the related layer (LAA): 00194E7E h (1658494)
    Recording velocities:
    Nominal Recording Velocity: 4.92 m/s (1EC h)
    Maximum Recording Velocity: 4.92 m/s (64 h -> 100/100)=1
    Minimum Recording Velocity: 4.92 m/s (64 h -> 100/100)=1
    ...
    12 01 00 00 01 00 00 00 - 00 00 00 00 00 02 00 00
    00 19 4E 7E 01 EC 64 64 - 28 28 28 28 23 23 23 23
    00 00 00 00 48 43 74 04 - 04 58 17 94 A0 18 18 18
    18 18 18 18 18 20 20 20 - 20 70 00 70 00 70 00 70
    00 70 00 70 00 70 00 70 - 00 70 00 70 00 70 00 70
    00 A0 A0 C0 C0 C0 00 00
    --- Trailer ---
    Disc Manufacturer ID: 50 48 49 4C 49 50 h <PHILIP>
    Media Type ID: 52 30 34 <R04>
    Time Stamp [m:y]: 0 : 0000 (00 00 h)
    Product Revision Number: 0

    16:50:27 #19 Text 0 File BD.cpp, Line 414
    Allocated spare area size on disc 620000h
    BD: Start write address at LBA 0, Recording mode: unknown Recording Mode (0),
    spare area allocation: default (no action) (0), Stream recording: NO (0); return code 0

    16:50:27 #20 Text 0 File CUDFTransferItem2.cpp, Line 712

    GenUDF2 FS Layout:
    =-=-=-=-=-=-=-=-=-=-
    Sectors to be written: 5377280
    Session Start: Sector 0
    Volume Structure: Sector [0, 256] (257 Sectors)
    Meta Data: Sector [257, 260] (4 Sectors)
    Data: Sector [261, 5376941] (5376681 Sectors)
    After Data: Sector [5376942, 5376959] (18 Sectors)
    Trailer Track: Sector [5376960, 5377279] (320 Sectors)

    GenUDF2 Parameters:
    =-=-=-=-=-=-=-=-=-=-
    PrepTime: 06-13-2012 16:50:26
    UDF Revision: 1.02
    UDF Partition Type: Physical
    UDF Special Mode: None
    Bytes per Sector: 2048
    Session Start: 0
    Physical Partition Start: -1
    Total Capacity: 12219392
    Multi Session Mode: None
    Disc Type: BD-R
    OS Class: 0
    Volume ID: WrathTitansBD
    Allow Unicode Labels: 0
    Duplicate Meta Data: 1
    MS Info File: 00000000
    VMS Rollback File: 00000000
    Create ISO bridge: 0
    ECC Block Length: 32
    Sparing Packet Length: 32
    Allocation Unit Size: 32
    Alignment Unit Size: 32
    Make Writable: 0
    Access Type: Read-only

    16:50:27 #21 Text 0 File ThreadedTransfer.cpp, Line 273
    Pipe memory size 83836800

    16:50:29 #22 Text 0 File Cdrdrv.cpp, Line 1274
    : Queue again later
    - 16:50:29.730

    16:50:46 #23 SPTI -1 File SCSIPassThrough.cpp, Line 224
    CdRom4: SCSIStatus(x02) WinError(0) NeroError(-1)
    CDB Data: 0x2A 00 00 00 0B 00 00 00 20 00 00 00
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x73
    Sense Qual: 0x00
    Sense Area: 0x71 00 03 00 00 00 00 0A 00 00 00 00 73
    Buffer x10a31640: Len x10000
    0xFE A2 57 7E 92 32 09 50 C5 EC B8 CD 35 C2 4B 70
    0xA7 BA C3 12 0D F1 D0 54 38 8B 94 52 B0 AA 17 47
    0x3A B6 BE E3 23 50 7B B9 57 DE F0 2E 08 F5 B7 39

    16:50:46 #24 TRANSFER -20 File ThreadedTransfer.cpp, Line 1222
    Could not perform Write

    16:50:46 #25 CDR -1 File Writer.cpp, Line 339

    16:51:09 #26 SPTI -1511 File SCSIPassThrough.cpp, Line 224
    CdRom4: SCSIStatus(x02) WinError(0) NeroError(-1511)
    CDB Data: 0x35 02 00 00 00 00 00 00 00 00 00 00
    Sense Key: 0x04 (KEY_HARDWARE_ERROR)
    Sense Code: 0x3E
    Sense Qual: 0x02
    Sense Area: 0x70 00 04 00 00 00 00 0A 00 00 00 00 3E 02

    16:51:09 #27 CDR -1511 File WriterStatus.cpp, Line 315
    Logical unit timeout
    F: SONY BD RW BWU-500S

    16:51:09 #28 TRANSFER -24 File ThreadedTransfer.cpp, Line 1222
    Could not perform end of Disc-at-once

    16:51:09 #29 Text 0 File DVDPlusDualLayer.cpp, Line 1462
    SetDriveCaps: Set LAST LBA of layer 1 to 0

    16:51:09 #30 PHASE 38 File dlgbrnst.cpp, Line 2030
    Burn process failed at 4x (17,980 KB/s)

    16:51:09 #31 Text 0 File SCSIPTICommands.cpp, Line 301
    SPTIDismountVolume - completed successfully for FSCTL_DISMOUNT_VOLUME

    16:51:09 #32 Text 0 File Cdrdrv.cpp, Line 12125
    DriveLocker: UnLockVolume completed

    16:51:09 #33 Text 0 File SCSIPTICommands.cpp, Line 464
    UnLockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL

    16:51:09 #34 Text 0 File SCSIPTICommands.cpp, Line 251
    SPTILockVolume - completed successfully for FSCTL_LOCK_VOLUME

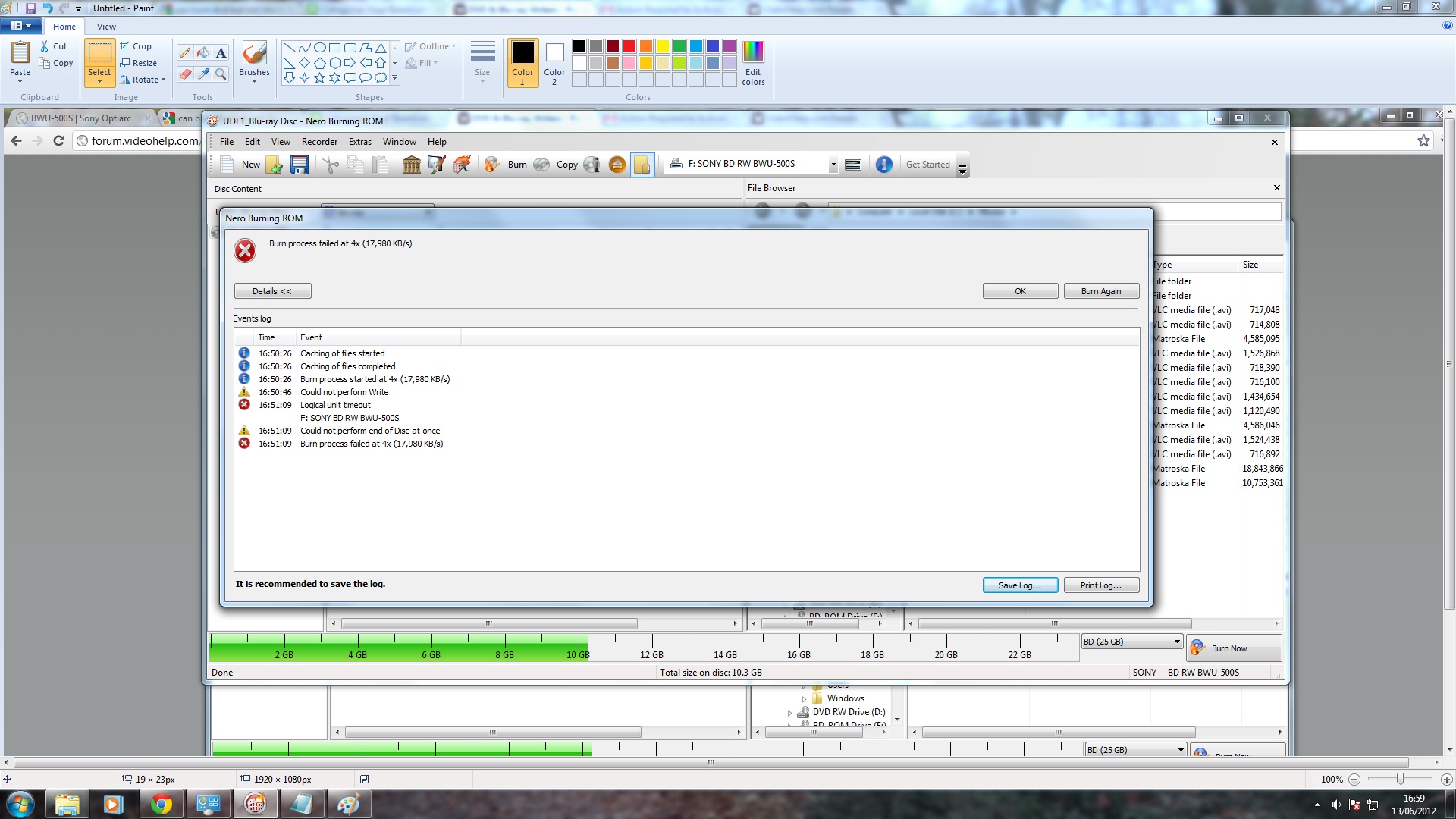

    Image Attached Thumbnails Click image for larger version

Name:	error.jpg
Views:	1278
Size:	402.7 KB
ID:	12746

    Quote Quote
  2. 1. Use ImgBurn to burn.
    2. You might have a bad batch of BD, try another brand.
    3. The laser in your writer might be bad and those scratches are not normal, get an exchange.
    Quote Quote
  3. Banned
    Join Date
    Jun 2004
    Location
    ®Inside My Avatar™© U.S.
    Search Comp PM
    Originally Posted by MOVIEGEEK View Post
    1. Use ImgBurn to burn.
    ABSOLUTELY!!!
    Dump Nero!!!

    Originally Posted by MOVIEGEEK View Post
    2. You might have a bad batch of BD, try another brand.
    Again, Absolutely!!
    It's funny how the OP gave so much info and a log yet never bothered to state what brand of media he is using
    Although I did notice this in the log,
    Disc Manufacturer ID: 50 48 49 4C 49 50 h <PHILIP>
    Use Verbatim!!

    Originally Posted by MOVIEGEEK View Post
    3. The laser in your writer might be bad and those scratches are not normal, get an exchange.
    But he stated,
    Originally Posted by reeveer View Post
    Also forgot to mention.... when it has failed to0 write to the Blu Ray and I take the disc out, the disc has what appears to be deep scratches on it all over the disc... but when I wipe the disc these scratches go away and the disc is as good as new,
    So obviously they are "not" scratches if they go away..

    Originally Posted by reeveer View Post
    and when i reinsert the disc to write to it, the disc comes up as blank and is ready to be written to.
    Are you checking your disc's BEFORE you put them in ?
    "Scratches" do not magically appear then disappear by wiping them.
    And if they show as being blank and ready to be written to, then obviously they have not been.

    Get some good media and use a good Bluray burning program....

    I can't even count or remember all the Bluray's I have backed up in the last 8 months since I started doing Bluray's, and the 2-3 that were bad, was because of the software used to rip (Dvdfab), and it was NOT because of Imgburn the media (Verbatim LTH) or the software (BDRB) used to compress down to BD25 from BD50.
    Quote Quote
  4. Renegade gll99's Avatar
    Join Date
    May 2002
    Location
    Canadian Tundra
    Search Comp PM
    UDF Options : automatic
    UDF Revision : 1.02
    I don't have a BD burner but shouldn't it be set to udf 2.50? I thought that was a better format for BD video. That's what I use to burn DVD5 and DVD9 AVCHD for compatibility with my PS3.

    edit:
    Sorry excuse my lack of experience with these. I did a bit of checking and surprisingly on quick read it looks like BD data disks can still be burned to the old udf 1.02 format so it shouldn't affect the writing part even if the format might not be compatible with all BD players..

    Although I have a BDrom I've been on the fence about getting a burner. I saw the Philips discs yesterday at about $35 for 25 discs in store at Canada Computers. Cheaper than D/L discs in my area. I'm interested to see if they really are cr@p I can't justify paying over $5 per 25gb disc and that's why I haven't taken the plunge to BD writing yet. Please let us know if it turns out to be your Philips media.
    Last edited by gll99; 14th Jun 2012 at 03:44.
    There's not much to do but then I can't do much anyway.
    Quote Quote
  5. Banned
    Join Date
    Oct 2004
    Location
    Freedonia
    Search Comp PM
    Yes, gll99. You have done well in noticing that. The original poster needs to tell us if he is trying to burn a BluRay format disc (ie. a movie) that he wants to play in a BluRay player. UDF 1.02 is completely wrong for this. This makes me wonder if he ended up trying to make a data disc somehow.

    Yes, he should use ImgBurn (it's free) and better media would be nicer, but fix the software issue first. Burn with ImgBurn, use UDF 2.50 for BluRay movie burning (you can find guides on the internet in how to use ImgBurn) and do NOT burn above 4x with your discs. These should help you to get burns that work.
    Quote Quote
  6. Good catch. Had the OP been using ImgBurn, it would have prompted him/her to use the correct file system. Something along the lines of, and paraphrasing:

    "I can't help but notice that the files you want to burn appear to be a Blu-Ray structure. The proper file system setting for BD is udf 2.50, not udf 1.02 as you have selected. Do you want me to change it for you?"
    Pull! Bang! Darn!
    Quote Quote
  7. Member
    Join Date
    Aug 2002
    Location
    South Florida
    Search Comp PM
    You may have LTH Blu-Ray discs. My burner will not accept them.
    Quote Quote
  8. Banned
    Join Date
    Jun 2004
    Location
    ®Inside My Avatar™© U.S.
    Search Comp PM
    Yep, I never even noticed the UDF issue.
    I am so used to only using Imgburn & as fritzi93 stated, if something is amiss Imgburn automatically set's it for you, as it does for me all the time.
    LOL!
    Quote Quote
  9. I'd be willing to bet large amounts of money the burner is faulty. Don't Bluray burners use a different laser for burning Bluray discs than DVDs?

    I've had a couple of DVD burners in the past which would happily burn one type of disc but not another. One burner would burn DVDs fine but never successfully burned a CD from the day it was new. I took it back for a replacement.

    16:51:09 #27 CDR -1511 File WriterStatus.cpp, Line 315
    Logical unit timeout
    F: SONY BD RW BWU-500S


    Looks like a hardware problem to me. You could try updating the burner's firmware (if an update is available) but if a drive has happily burned away for a couple of days then suddenly won't any more I'd be thinking it's faulty.
    Quote Quote
  10. Member [_chef_]'s Avatar
    Join Date
    Nov 2002
    Location
    Germany
    Search Comp PM
    Yep, already mentioned, the used media is a bad batch or really crap.

    But from the other errors shown in the log, the drive or its controller is badly ISSUED!
    Try to clean the drive properly first!!!
    *** Now that you have read me, do some other things. ***
    Quote Quote
  11. Video Restorer lordsmurf's Avatar
    Join Date
    Jun 2003
    Location
    dFAQ.us/lordsmurf
    Search Comp PM
    Originally Posted by [_chef_] View Post
    a bad batch
    Remembering that a "batch" is 10's or 100's of thousands of discs. Bad batches tend to get widespread attention, including official acknowledge by the larger ethical manufacturers.

    Too many people think of a sheet of cookies as a "batch" -- just a few spindles, bad luck, etc.

    Bad batches are rare.

    Consistently bad/crappy media, however, is very common.
    Want my help? Ask here! (not via PM!)
    FAQs: Best Blank DiscsBest TBCsBest VCRs for captureRestore VHS
    Quote Quote
  12. Member [_chef_]'s Avatar
    Join Date
    Nov 2002
    Location
    Germany
    Search Comp PM
    Yeah, but no idea where he bought them....

    Seems in the first case a drive/hardware/software glitch.
    You can only find out by experimenting...
    *** Now that you have read me, do some other things. ***
    Quote Quote



Similar Threads

Visit our sponsor! Try DVDFab and backup Blu-rays!
