Hybrid(Windows/Linux/Mac): Input -> x264/x265/Xvid/VP8/VP9

[Selur]

What happens if you call:

"C:\PROGRA~1\Hybrid\mkvmerge.exe" --ui-language en -o "\\vboxsvr\temp\test_new.mkv" --disable-track-statistics-tags --global-tags "\\vboxsvr\temp\test_new_18_59_36_1710__04.xml" --default-track 0:yes --sync 0:-43 --forced-track 0:no -a 0 --compression -1:none --no-video --no-subtitles --no-chapters "\\vboxsvr\temp\iId_1_aid_0_DELAY_-43ms_18_59_36_1710_02.aac"

[omelette]

What happens if you call:

"C:\PROGRA~1\Hybrid\mkvmerge.exe" --ui-language en -o "\\vboxsvr\temp\test_new.mkv" --disable-track-statistics-tags --global-tags "\\vboxsvr\temp\test_new_18_59_36_1710__04.xml" --default-track 0:yes --sync 0:-43 --forced-track 0:no -a 0 --compression -1:none --no-video --no-subtitles --no-chapters "\\vboxsvr\temp\iId_1_aid_0_DELAY_-43ms_18_59_36_1710_02.aac"

As I'd deleted the files in question, I re-ran the job on Hybrid to re-create the files. Below is what I get after running the above (with file-names changed).

mkvmerge v7.1.0 ('Good Love') 32bit built on Jul 27 2014 12:59:18
'\\vboxsvr\temp\iId_1_aid_0_DELAY_-43ms_16_55_38_4510_02.aac': Using the demulti
plexer for the format 'AAC'.
Warning: AAC files may contain HE-AAC / AAC+ / SBR AAC audio. This can NOT be de
tected automatically. Therefore you have to specifiy '--aac-is-sbr 0' manually f
or this input file if the file actually contains SBR AAC. The file will be muxed
in the WRONG way otherwise. Also read mkvmerge's documentation.
'\\vboxsvr\temp\iId_1_aid_0_DELAY_-43ms_16_55_38_4510_02.aac' track 0: Using the
output module for the format 'AAC'.
The file '\\vboxsvr\temp\test_new.mkv' has been opened for writing.
Progress: 100%
The cue entries (the index) are being written...
Error: Could not write to the output file: 87 (The parameter is incorrect.)
Error: Could not write to the output file: 87 (The parameter is incorrect.)

[Selur]

my guess is that mkvmerge doesn't like the path to the file, try mounting the path beforehand to a drive letter

[Leo99]

Hybrid 2014.8.6.1 successful installed on my WinXP, but I got message:
Log Messages
Ignoring mplayers libbluray support since it's too old (version < 36902)
Finished initialization, finished after 4.25s

[Selur]

okay, that's a new one, seems like they changed the version string (and therefore Hybrid interprets is at zero) -> will look into it

[Leo99]

Good job Selur!

[Leo99]

Hi Selur, your qaac.exe is too old 1.01 MB, the current is 1.30 MB (1,334 KB).
Please see Inbox for the attachment.

[Selur]

Haven't updated qaac in a while since afaik. there hasn't been any update which influences aac encoding in Hybrid.

[Leo99]

Correction, your version is quite right. Sorry.. a long time I'm not visit there at google.cabinet... Yes, current version is 2.42, whereas mine is 2.27.
Many thanks, Selur!

[Selur]

No problem, I normally update the tools Hybrid uses before each release to make sure the latest version still work, so the tools which come with Hybrid should normally be not too old.

[Leo99]

Good job Selur. Lately rampant people talk about HEVC.
I saw there is x265 GUI, I want to install this. Is is good for the first launch.. any ideas what should I install others..?

[Selur]

afaik MPEG-4 H.265/AVC encoders out there are:
1. x265
2. DivX265
3. Kvazaar
4. f265
5. the JCTV reference implementation HM
x265 is the most feature complete, but some users prefer the DivX265 encoder over it. (-> use search forum)

[Leo99]

Hmm interesting.. I'll take a look, thanks!

[VideoFanatic]

Hi, could you please tell me if it's possible to do batch encodes with Avisynth & Hybrid? I've tried MeGUI, it works however it crashes a lot making it pointless to use. When using a non-batch program I don't get any crashes so it seems like MeGUI is the problem.

Basically I want to tell Hybrid to encode a folder of 1080i 25fps AC3 audio h264 mkv files to 720p 50fps with AC3 passthrough. When using a non-batch program this is the script I use:

AssumeTFF()
DeGrainMedian(limitY=2, limitUV=3, mode=1, interlaced=true)
Yadif(mode=1, order=1)
Vinverse()
Lanczos4Resize(1280,720)

Could you please tell me what settings I would need to do that.

[Selur]

Sorry, not possible since Hybrid doesn't support DeGrainMedian atm.

[VideoFanatic]

Do you have a similar filter. If so could you advise of the settings please.

[Selur]

busy atm, so best look at the denoisers and check the Avisynth preview
(+ can't advise an alternative to DeGrainMedian with the settings you use, since I don't use it normally)

[Leo99]

Selur, I had a strange experience maybe you can help: What's up JPEG decoder in ffdshow..?

What happens with my ffdshow? After a long time not to use this ffdshow on my PC, today I tried using but so strange...
I start streaming an AVI video 8.5 MB in VirtualDub, but the result makes me dumbfounded... A wonder, when I choose "ffdshow video codec" it was converted by Decompressor: Internal Motion JPEG decoder (MJPG).. what's up? Also it makes me crazy huge file that comes with 132.5 MB.. (almost 16x ??).
I don't know exactly what's applications that I installed that makes this conflict...

Notes:
What may be caused by Nero burning rom contains Nero MediaHome the last time I installed?
Or maybe the MainConcept MPEG demultiplexer in Winamp that I've seen one of the videos property (don't know where it comes from - I never installed this application!).

Sorry for many questions. Any suggestions please? Thanks in advance.

[Selur]

Decompressor = used for decoding, unless you select an encoder in VirtualDub your output will be uncompressed,...

[Leo99]

Actually, I want to choose MPEG-4 with FOURCC XviD in the encoder option, but now is gone. There was only MJPEG, HuffYUV (FFmpeg variant), FFV1, DV, and Uncompressed. Then, I try to select MJPEG just want to know.
I don't know why is missing, formerly one of them has an option of MPEG-4.

Do you know what the cause is..?

[z-machine95]

hello selur!

i'm using your gui for a long time, but now i can't make x265 -2pass work... it crashes on the matroska muxing... i don't know why.. seems that the .265 file is very little (some Kb). it's a known problem or you have a fix for it?

this are my options :

Hybrid: homepage
Forum: public forum
Regarding problems please read: needed infos
Donate: via PayPal
Current defaultOutputPath: is empty!
Set it under Config->Path
Finished initialization, finished after 3.877s

Loading: C:\Users\Administrator\AppData\Roaming\hybrid\prof iles\global\Zmachine.xml
Finished loading GlobalProfil C:\Users\Administrator\AppData\Roaming\hybrid\prof iles\global\Zmachine.xml, after 1.531s
Filtering input files,..
analyzing: Skyfall-001.mkv
checking a/v ids in ffmpeg,...
analyzing Skyfall-001.mkv
grabbing audio ids for: C:\Users\Administrator\Desktop\Skyfall-001.mkv
-> audio ids found: 0
analyzing audio streams...
analyzing audio stream: 0
analyzing audio stream with mplayer
grabbing audio data and delay infos with MediaInfo for C:\Users\Administrator\Desktop\Skyfall-001.mkv
grabbing video ids for: Skyfall-001.mkv
-> video ids found: 0
analyzing video streams...
analyzing video stream: 0
starting auto routines for source number: 1
-> finished auto routines for source number 1.
Input is completely analysed,...
Extracting attachments from C:\Users\Administrator\Desktop\Skyfall-001.mkv
to C:\Users\Administrator\AppData\Roaming\hybrid\font s
Creating jobs for 1 sources,...
-> Creating jobs for source 1,...
-> Generating calls for: C:\Users\Administrator\Desktop\Skyfall-001_new.mkv
adding x265 calls for source: 1
createJobs for C:\Users\Administrator\Desktop\Skyfall-001_new.mkv
optimizing the subJobs
added new job with id 11_25_00_2110

Starting Main@12:36:22.991:
"C:\PROGRA~1\Hybrid\x265.exe" --input - --input-res 1920x1080 --fps 23.976 --frames 1444 --no-high-tier --tu-intra-depth 3 --tu-inter-depth 3 --me 2 --subme 6 --merange 20 --rect --max-merge 5 --no-open-gop --bframes 5 --b-intra --ref 9 --rc-lookahead 60 --pass 2 --bitrate 3000 --rd 5 --psy-rd 1 --colormatrix bt470bg --stats "C:\Users\ADMINI~1\Desktop\Skyfall-001_new_11_58_18_7210_01.stats" --output "C:\Users\ADMINI~1\Desktop\Skyfall-001_new_11_58_18_7210_02.265"
x265 [info]: HEVC encoder version 1.3+20-6e6756f94b27
x265 [info]: build info [Windows][GCC 4.9.1][64 bit] 8bpp
x265 [info]: using cpu capabilities: MMX2 SSE2Fast SSSE3 SSE4.2 AVX
x265 [info]: WPP streams / pool / frames : 17 / 24 / 5
x265 [warning]: level 5 detected, but NumPocTotalCurr (total references) is non-compliant
x265 [info]: NONE profile, Level-NONE (Main tier)
x265 [info]: CU size : 64
x265 [info]: Max RQT depth inter / intra : 3 / 3
x265 [info]: ME / range / subpel / merge : umh / 20 / 6 / 5
x265 [info]: Keyframe min / max / scenecut : 23 / 250 / 40
x265 [info]: Lookahead / bframes / badapt : 60 / 5 / 2
x265 [info]: b-pyramid / weightp / weightb / refs: 1 / 1 / 0 / 9
x265 [info]: Rate Control / AQ-Strength / CUTree : ABR-3000 kbps / 1.0 / 1
x265 [info]: tools: rect rd=5 psy-rd=1.00 lft sao-lcu signhide stats-read
x265 [error]: 2nd pass has more frames than 1st pass (1444 vs 1442)
finished after 00:00:00.198
Created C:\Users\ADMINI~1\Desktop\Skyfall-001_new_11_58_18_7210_02.265 (0.000908852 MB)

Starting Main@12:36:23.243:
"C:\PROGRA~1\Hybrid\mkvmerge.exe" --ui-language en -o "C:\Users\Administrator\Desktop\Skyfall-001_new.mkv" --disable-track-statistics-tags --global-tags "C:\Users\Administrator\Desktop\Skyfall-001_new_11_58_18_7210__04.xml" -d 0 --default-track 0:yes --default-duration 0:24000/1001fps --aspect-ratio-factor 0:1/1 --no-chapters --compression -1:none --forced-track 0:yes --no-audio --no-subtitles "C:\Users\ADMINI~1\Desktop\Skyfall-001_new_11_58_18_7210_02.265"
Error:
finished after 00:00:00.063 with exitCode 2
-> 11_58_18_7210_05_muxing crashed:ERROR: C:\Users\Administrator\Desktop\Skyfall-001_new.mkv was not created!
Job 11_58_18_7210 finished!

please help me!!!!!

[jediry]

I am also stumbling over the "2nd pass has more frames than 1st pass" issue that z-machine95 reported. Is this a bug in x265.exe?

[Selur]

was a bug in Hybrid, got it fixed locally for some time now, but got a lot of stress (the last three weeks) and didn't find the time to make a new release, hope to do new release next weekend.

[Gravitator]

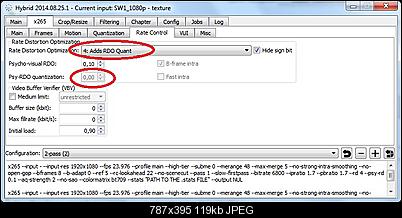

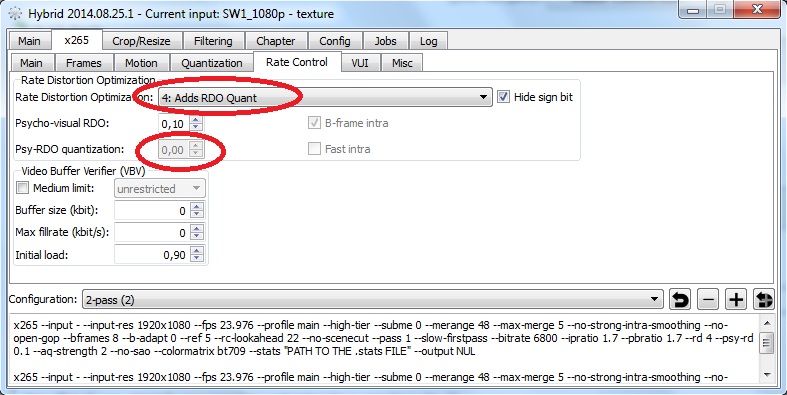

Not active mode settings Psy-RDO quant

[Stears555]

The x264 encoding of Mediacoder (with the exactly same options) is two times faster than Hybrid. How is it possible?

[Gravitator]

Perhaps that OpenCL provides growth.

[Stears555]

Perhaps that OpenCL provides growth.

But Hybrid has OpenCL option too.

[Stears555]

The situation is the same with x265 codec. The transcoding is 2X faster with Mediacoder. Something must be do, it is a huge disadvantage for Hybrid.

[Selur]

@Graviator: will fix, it's an index error (it's enabled for 5+ instead of 4+ )

[Gravitator]

Maybe deinterlacing slows and decoder
