Thread: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

  1. #1
    I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date
    Aug 2000
    Location
    Sweden
    Posts
    43,722

    How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    How to rip and convert a Blu-ray main movie to a single MP4, M4V or MKV using free software. Presets for iPhone and Android.


    Tools
    DVDFab HD Decrypter
    VidCoder



    Ripping
    Rip your Blu-ray to your HDD using DVD HD Decrypter.

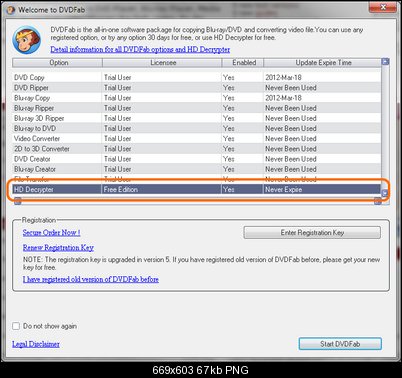

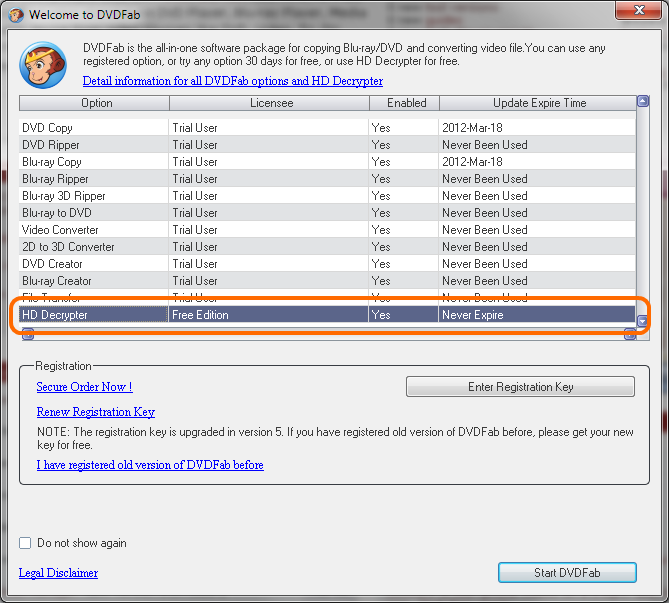

    Start DVDFAB HD Decrypter and select HD Decrypter Free Edition.
    Click image for larger version

Name:	dvdfab1.png
Views:	104587
Size:	67.4 KB
ID:	11003

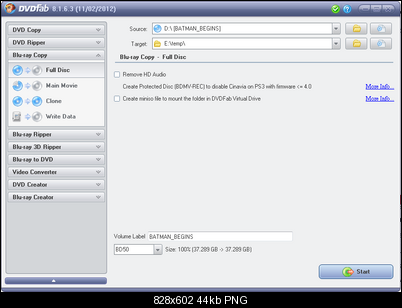

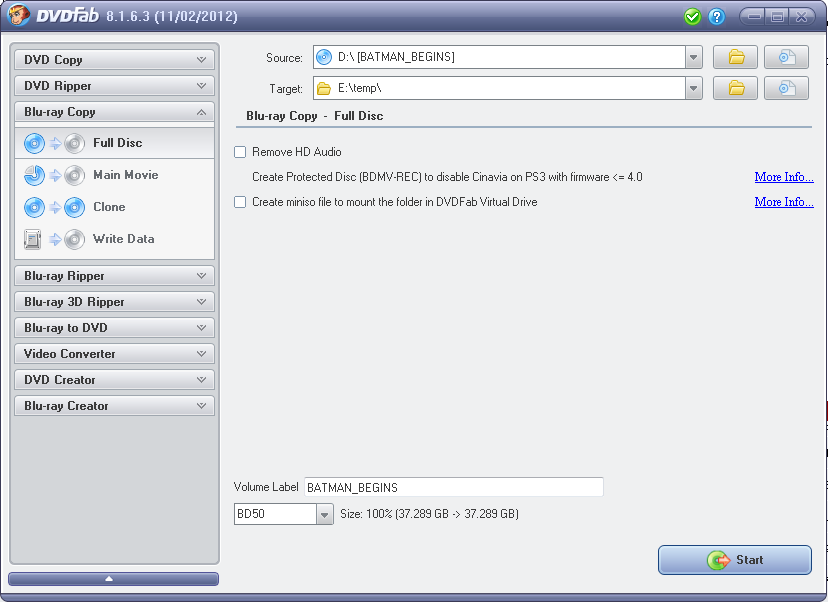

    Select the blu-ray drive and set the target. You need a lot of HDD Space, 20-50GB!
    Click image for larger version

Name:	dvdfab2.png
Views:	7300
Size:	44.5 KB
ID:	11005



    Conversion
    In VidCoder select Open DVD/Blu-ray folder and select the BDMV\STREAM folder that you ripped DVDFab HD Decrypter.
    Select the main title and audio source.

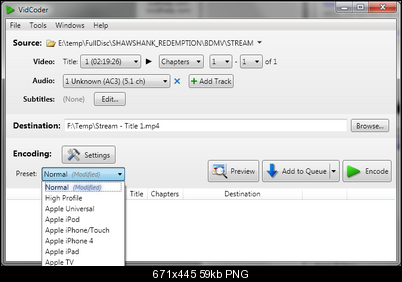

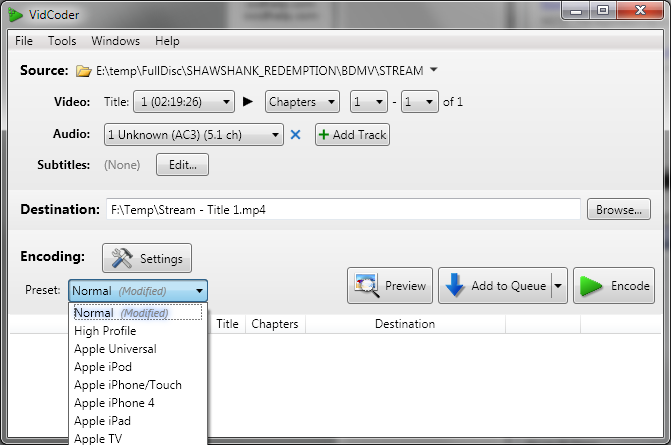

    You can now select Preset, like Apple iPod, iPhone, Android or customize your own settings.
    Click image for larger version

Name:	vidcoder1.png
Views:	102280
Size:	59.2 KB
ID:	11006

    Click on Settings to adjust your own settings.

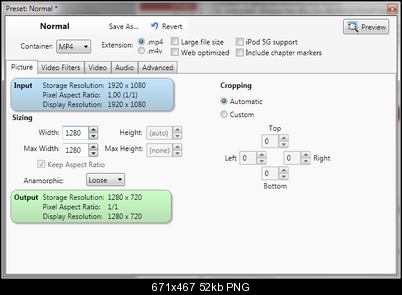

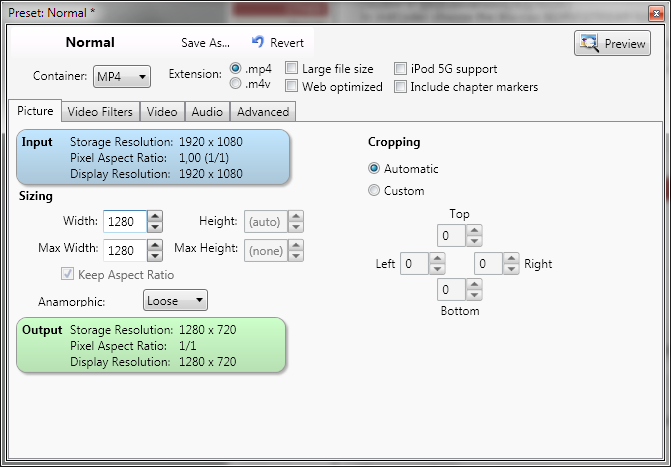

    Under the Picture tab can you adjust the video size/resolution. I usually resize to 1280x720/576p.
    Click image for larger version

Name:	vidcoder3.png
Views:	102110
Size:	51.7 KB
ID:	11004

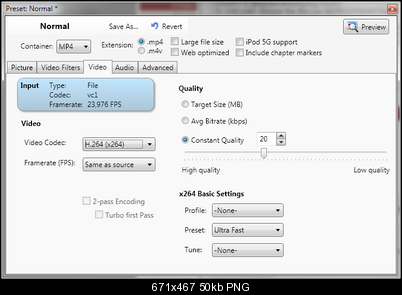

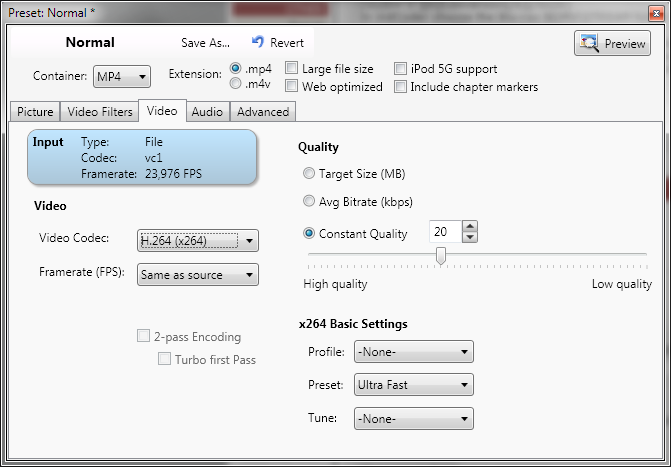

    Under the Video tab can you adjust the output/target file size(use around 1-2GB/hour video) or use constant quality encoding( use 20 for very good quality). You can also choose x264 Preset, select example Ultra fast for fastest conversion but then not best quality.
    Click image for larger version

Name:	vidcoder4.png
Views:	101627
Size:	49.7 KB
ID:	11002

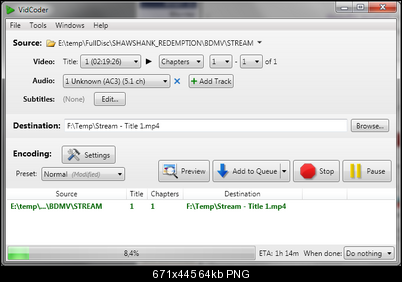

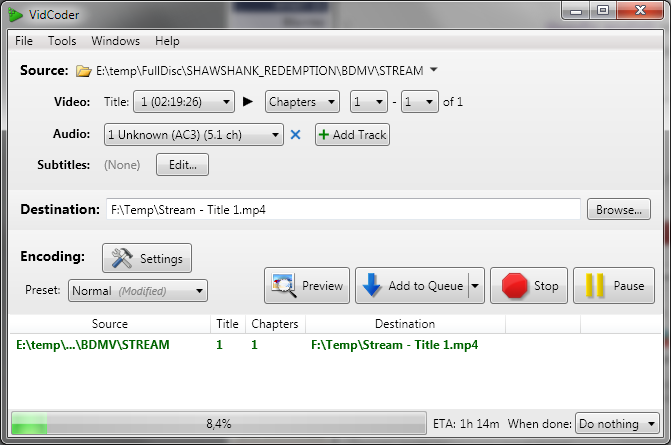

    Encode.
    Click image for larger version

Name:	vidcoder2.png
Views:	101169
Size:	64.0 KB
ID:	11001

    Done! Test play with VLC Media Player



    Problems
    If you want burned in subtitles use Ripbot264 instead of VidCoder.
    Last edited by Baldrick; 17th Feb 2012 at 12:37.
    Quote Quote

  2. #2
    Member
    Join Date
    Nov 2005
    Location
    United States
    Posts
    795

    Re: How to easily convert a Blu-ray to MP4/MKV using free tools

    lol...baldrick I thought this was a post asking for help and I was gonna mention the exact tools you bring up

    simple and effective guide...nice job
    Quote Quote

  3. #3
    I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date
    Aug 2000
    Location
    Sweden
    Posts
    43,722

    Re: How to easily convert a Blu-ray to MP4/MKV using free tools

    Vidcoder is amazing...I hope they fix subtitle support from blu-ray also.
    Quote Quote

  4. #4
    Member
    Join Date
    Nov 2005
    Location
    United States
    Posts
    795

    Re: How to easily convert a Blu-ray to MP4/MKV using free tools

    I got tired of the lack of BR apps that don't have presets or filters/options. Most are just set the speed of the encode and resolution or what not. BD Rebuilder I can't get to work for the life of me and the only one I found thats similar to BD Rebuilder (in that it has quite a few quality settings options) was Vidcoder. It's an amazing little piece of software. Wish it had more filters though.

    As it is it's a great app to have around.
    Quote Quote

  5. #5

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    I wanted to ask the question about converting VC1 files to MP4 or AVI or TS
    I convert HD videos on my windows 7 64 computer and also laptop
    Everything converts with No problems except the VC1 videos; I know I have read VC1 is tough to work with on Windows 7
    All other formats like h264, MP4, AVI all convert and work fine; using softwares like Xilisoft, Wondershare, Mediavatar,etc
    I can play VC1 using some video playing softwares but when I want to convert it to MP4 or AVI, TS etc , none of the Softwares can input the file
    When you put the file in, the softwares will not show the video in the preview box and then if you convert it will only do the audio
    I know this has to do with the Video Codecs but I can’t see to get this to work
    I have also tried win7ds filter tweaker and tried to disable media foundation
    I was wondering if you have any ideas on how to get this to work. All my softwares work on all the other types of files for HD Converting or even DVD converting
    Quote Quote

  6. #6
    I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date
    Aug 2000
    Location
    Sweden
    Posts
    43,722

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    Vidcoder supports blu-rays with vc1. If you want to discuss something else then make a NEW thread and don't hijack this thread about vidcoder and blu-ray sources.
    Quote Quote

  7. #7

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    I just tried vidcoder and it converted the file BUT the video in the file is all shaky so you it is unwatchable
    I would say vidcoder has been the closest to converting but it still is not right

    vidcoder is probably great for all other conversions and it seemed fast
    Quote Quote

  8. #8
    Member
    Join Date
    Oct 2011
    Location
    Malaysia
    Posts
    7

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    VidCoder is quite an improvement over ease-of-use when compared to RIPBOT. BUt i agree; could do some work with the subtitle part. Plus; it doesnt create and leave behind a 50GB temp folder like RIPBOT.
    Quote Quote

  9. #9
    Member
    Join Date
    Jun 2010
    Location
    Out there
    Posts
    132

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    Yes Handbrake is amazing!
    Quote Quote

  10. #10
    Member
    Join Date
    Aug 2008
    Location
    Greece
    Posts
    405

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    How i can play at first and then convert/transform the bluray 3d movies into mkv or m2ts file with out loosing any quality.

    The 3d movies has ssif file types....
    Quote Quote

  11. #11
    Member ejai's Avatar
    Join Date
    Jun 2001
    Location
    New York USA
    Posts
    855

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    I love using VidCoder, it's awesome. I tried so many other free encoders and none have come close to the video quality of this encoder. Freemake and other encoders have a way of blurring the edges and masking too much of the detail. Handbrake and VidCoder are a wonderful combination.

    My encodes show very little difference, even when using a DVD as the source material. I usually use the Universal profile to encode my videos.
    Do unto others....with a vengeance!
    Quote Quote

  12. #12
    Member
    Join Date
    Aug 2008
    Location
    Greece
    Posts
    405

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    Any light and combatible player with i can play all kind of bluray movies?
    Even if it is at iso file...
    Quote Quote

  13. #13

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    whats the difference between vidcoder and handbrake?
    Quote Quote

  14. #14
    Member
    Join Date
    Oct 2012
    Location
    USA
    Posts
    12

    how do i cancel this reply?
    Last edited by ot_welder; 9th Oct 2012 at 05:15.
    Quote Quote

  15. #15
    I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date
    Aug 2000
    Location
    Sweden
    Posts
    43,722

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    You can't. You just edit your post like you did.
    Quote Quote

  16. #16
    Member
    Join Date
    Jun 2004
    Location
    California,United States
    Posts
    822

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    My first experience with Vidcoder was as a result of a Baldrick post where he indicated... He Liked It.

    Well, after that I started using it more and more because it is easy to use really works well and even when it produces an exception error at the end the MKV it generated the file still seems to play perfectly. However, I've not been able to have it accept VC1 MKVs. For VC1 MKVs I use Staxrip which always works with VC1.

    Maybe I'm just doing it wrong. But it just wont accept the VC1 files for me.

    Any advice on how to input a VC1 mkv?

    Tony
    Quote Quote

  17. #17

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    3 questions (after a BluRay Disk was ripped complete to HD):

    1. how can I find out which Chapter is the main movie?
    2. can I with these programs convert only the main movie to (for example) MKV (keeping all or at least 1 subtitle)?
    3. If not, how can I do that (for example with other tools)?

    Did not found any possibility in the tools mentioned here (processing the ripped BluRay from the HD)

    My source are multiply m2ts files, I can clearly identify the main movie (3 files of each 7 Gig), I do not have anymore the original BluRay disk.
    Grtz, JRE
    Quote Quote

  18. #18

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    Yes, DVDfab is great. But I don't think they update their programs as usually. Their domain changed to .cn. I think something wrong with them. Handbrake is one of the best free software to do that.
    Quote Quote

  19. #19

    Re: How to easily convert a Blu-ray to MP4/M4V/MKV using free tools

    Quote Originally Posted by JRE99 View Post
    3 questions (after a BluRay Disk was ripped complete to HD):

    1. how can I find out which Chapter is the main movie?
    2. can I with these programs convert only the main movie to (for example) MKV (keeping all or at least 1 subtitle)?
    3. If not, how can I do that (for example with other tools)?

    Did not found any possibility in the tools mentioned here (processing the ripped BluRay from the HD)

    My source are multiply m2ts files, I can clearly identify the main movie (3 files of each 7 Gig), I do not have anymore the original BluRay disk.
    Grtz, JRE
    Hey,
    Generally speaking, the longest chapter is the main movie on a Blu-ray disc. You can easily find the longest chapter to rip. Most blu ray ripping software allows you to select which chapter to rip.
    Quote Quote
