how to convert video to my Philips gogear vibe

[phoenixa]

I have got gogear vibe mp3, i want to watch video on mp3 but i cant convert beacuse i lost the cd so now i have WINFF and i need a code for WINFF
MJPEG (.mp4): 128x128 pixels, 30 fps, 512 kbps

[Baldrick]

See https://forum.videohelp.com/threads/331937-Need-to-convert-to-mp4-with-these-specificat...=1#post2136738

And then make a custom preset in winff, see http://code.google.com/p/winff/wiki/HowToMakePresets


Like in WinFF under File -> Edit Preset:

Under Preset Command Line Parameters add

-f mov -vf "scale=160:trunc(ow/a/2)*2" -c:v mjpeg -b:v 512k -r 25 -c:a adpcm_ima_wav -b:a 192k -ar 22050 -ac 2

And under Output file

mp4

And Save

[bat999]

...

[phoenixa]

i dont understand but i cant do it

[Baldrick]

What exactly do you don't understand? Are you using the winff edit preset?

[phoenixa]

im just begining i dont how to start with winff

[phoenixa]

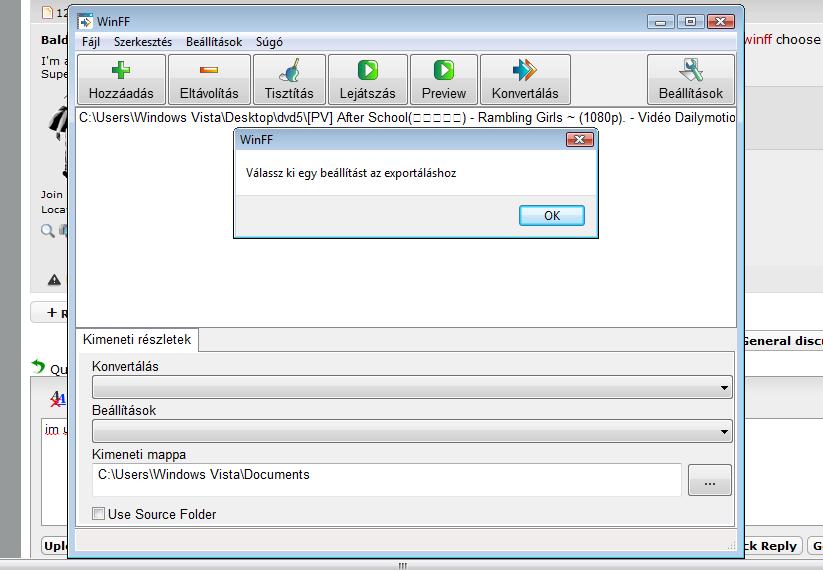

when i write this code after i convert winff write that choose a edit export (something like).

[Baldrick]

I made a preset for you, download the zip file, extract the philipsgogearvibe.wff and in winff choose File->Import preset. You should then be able to select Philips gogear vibe.

[phoenixa]

im using ur preset but winff dont let

[Baldrick]

You haven't selected it under "Konvertalas" and "Beallitasok". It should say Philips gogear vibe there.

[phoenixa]

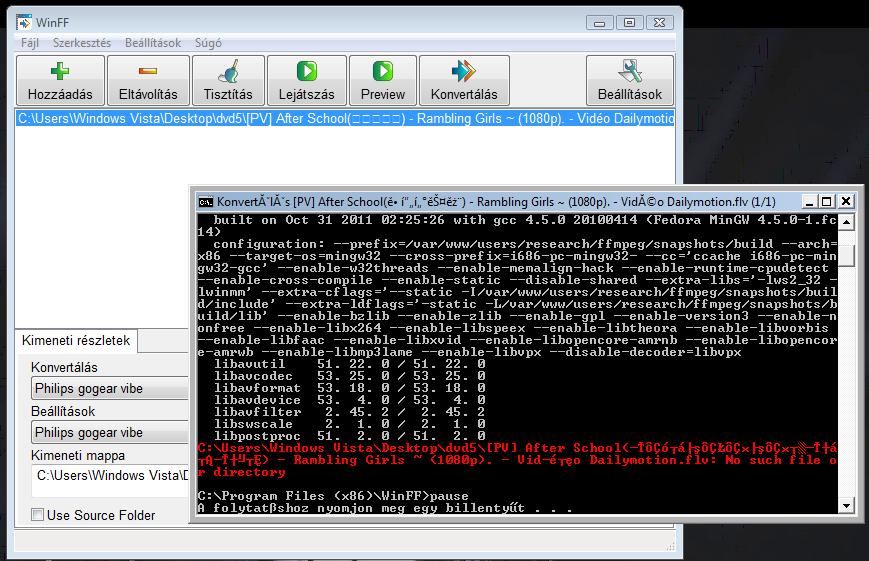

im solected now but

[Baldrick]

Try rename your files and folders so they don't use any special characters like
C:\Users\Windows Vista\Desktop\dvd5\video.flv

[phoenixa]

thanks for ur help

[phoenixa]

i have got one question, how can i do full screen? beacuse video has 2 bands bottom and above and i want to watch in full screen

[Baldrick]

You must crop and resize it so it matches your display aspect ratio. No I don't know how to do it easily with ffmpeg or winff.

[phoenixa]

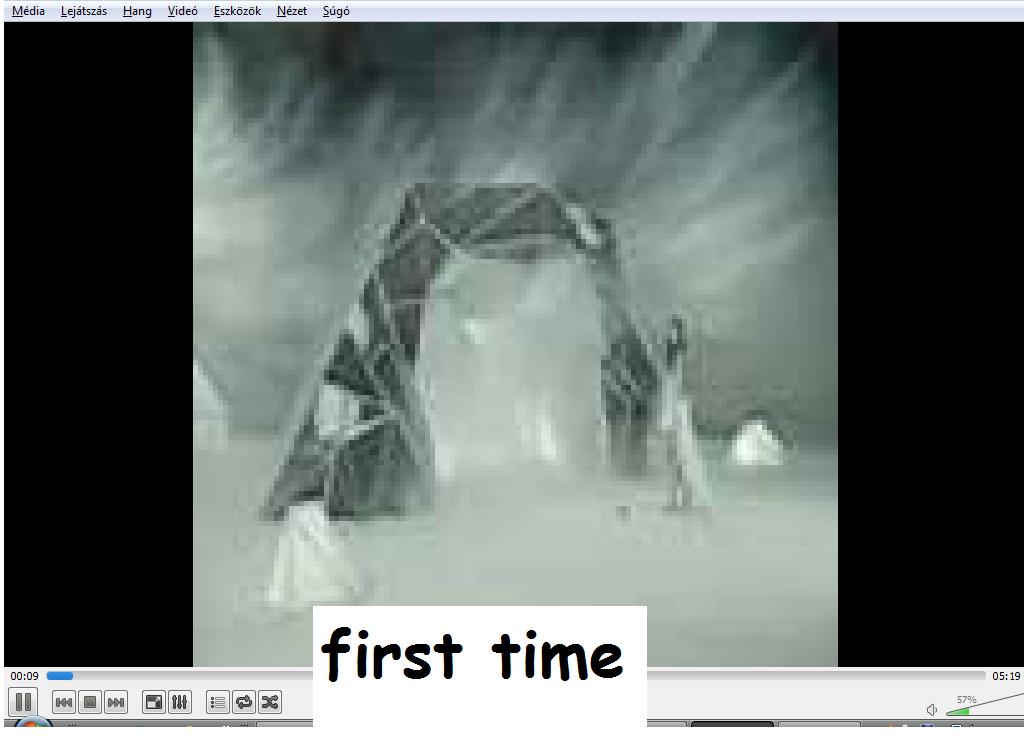

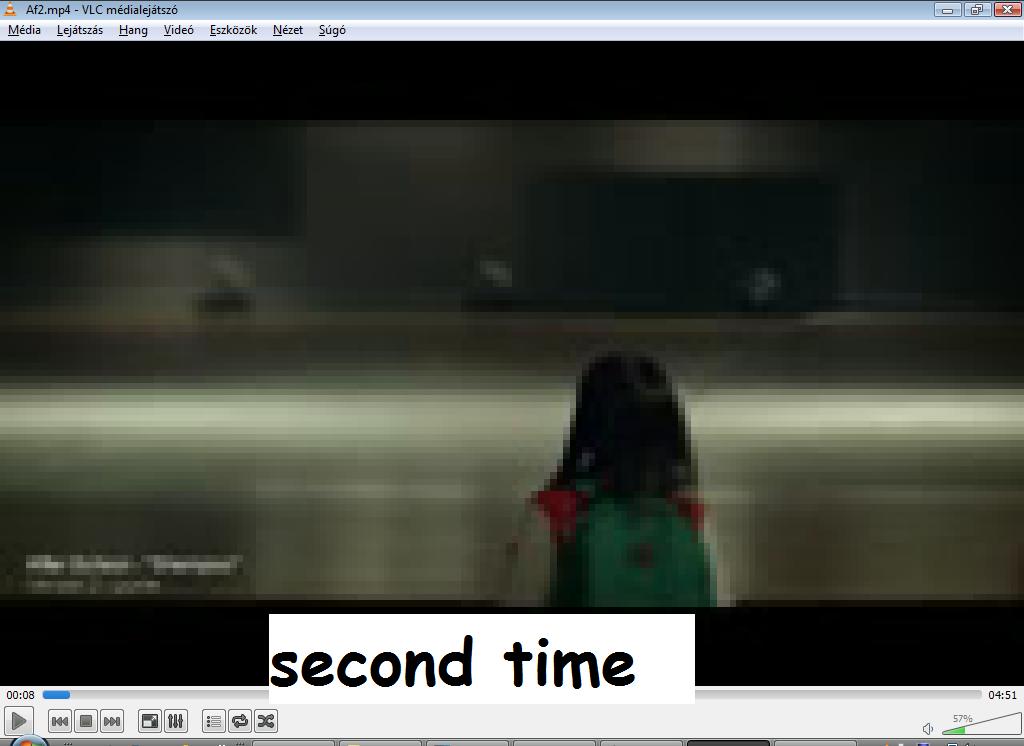

what can i do now if the first was full screen in mp3 but now dont wanna ?

[phoenixa]

i used resize but it is unuseful

[phoenixa]

so that is

[Baldrick]

You should adjust the scale=160... value see http://ffmpeg.org/ffmpeg.html#scale .


Or get a new portable media player with 16:9 display and better media file support....

[phoenixa]

can u help with scale beacuse i dont know how to make, sorry but my english is really terrible

[Baldrick]

It might be easier to use a separate tool to crop and resize to 1:1 aspect ratio(640x640,128x128,etc), like avidemux see tutorial: http://www.youtube.com/watch?v=KhqnwE9_dHI . Export the video and then use winff to convert it.

[teib5230]

hi,
my daughter has a philips gogear vibe mp4, and I try to get some videos for her.
the specifications requested are similar to those below:

General
Complete name : ../../Formula 1.mp4
Format : MPEG-4
Format profile : QuickTime
Codec ID : qt
File size : 9.18 MiB
Duration : 1mn 52s
Overall bit rate mode : Variable
Overall bit rate : 687 Kbps
Movie name : Formula 1 (160x128)
Encoded date : UTC 2011-01-25 09:03:17
Tagged date : UTC 2011-01-25 09:03:17
Writing application : VirtualDubMod 1.6.0.0 SURROUND (build 2560/release)
Video
ID : 2
Format : JPEG
Codec ID : jpeg
Duration : 1mn 52s
Bit rate mode : Variable
Bit rate : 507 Kbps
Width : 160 pixels
Height : 128 pixels
Display aspect ratio : 5:4
Frame rate mode : Constant
Frame rate : 24.000 fps
Compression mode : Lossy
Bits/(Pixel*Frame) : 1.032
Stream size : 6.78 MiB (74%)
Language : English
Encoded date : UTC 2011-01-25 09:03:17
Tagged date : UTC 2011-01-25 09:03:17
Audio
ID : 1
Format : ADPCM
Codec ID : 11
Codec ID/Hint : Intel
Duration : 1mn 51s
Bit rate mode : Constant
Bit rate : 176.4 Kbps
Channel(s) : 2 channels
Sampling rate : 22.05 KHz
Stream size : 2.35 MiB (26%)
Language : English
Encoded date : UTC 2011-01-25 09:03:17
Tagged date : UTC 2011-01-25 09:03:17

I use winff and
I got a preset for 128*128 video files, but our mp4 player reads 160*128 files.
could someone explain to me what to do to change into the right format???

thanks a lot (and I apologize for my uncorrect english!!)
Thizerry

[teib5230]

hello!

rectifiaction: the winff preset I have, convert video files in quicktime 160*88 pixels 16/9 screen format.
What I need is 160*128 pixels 4/3 format.

could you help me?

thanks tu you
Thierry

[teib5230]

Oh, I'm wrong again!!!

what I need is 160*128 pixels, 5/4 format

[teib5230]

anybody here??

[bat999]

the winff preset I have, convert video files in quicktime 160*88 pixels 16/9 screen format

Which preset is this?

[teib5230]

it 's Baldrick's preset for philips gogearvibe. he posted it on 12th febvruary 2012, but it is not based on the same specifications as my vibe.
I need a preset for 160x128 with 5/4 ratio.
This preset wprks correctly, but the videos on the vibe screen, appears with black parts, instead on being displayed on the whole screen.

I think I just need a small change on one line command of the preset, but, even with investigations on forums ond manuals, I am not able to find what is to be changed...

could you help ???

[bat999]

it 's Baldrick's preset for philips gogearvibe...

This preset wprks correctly...

could you help ???

Hi
That preset makes the output video width 160 pixels.
And it calculates the output video height to keep the same aspect ratio as the source video.
I can't help.

[teib5230]

ok, I understand.
the size is even smaller than it could be, but nervermind,...it works, at least!

yhanks for your answers
