Need Original Drivers for Avermedia AverTV HD DVR (c027)

[vahnx]

I also encounter a green screen in XSplit using the modified AMC & old drivers on my PS3 and a green bar on consoles that use composite cables. So I've currently ordered a component cable for my PS3 and I'll probably use my Wii U on HDMI. While I'm waiting for that, what I have been doing is just using XSplit to capture the AMC window which works.

I am running Windows 8.1 x64 if that has anything to do with this green issue.

[brianmanga]

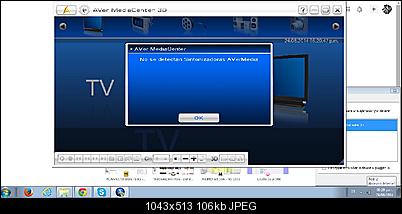

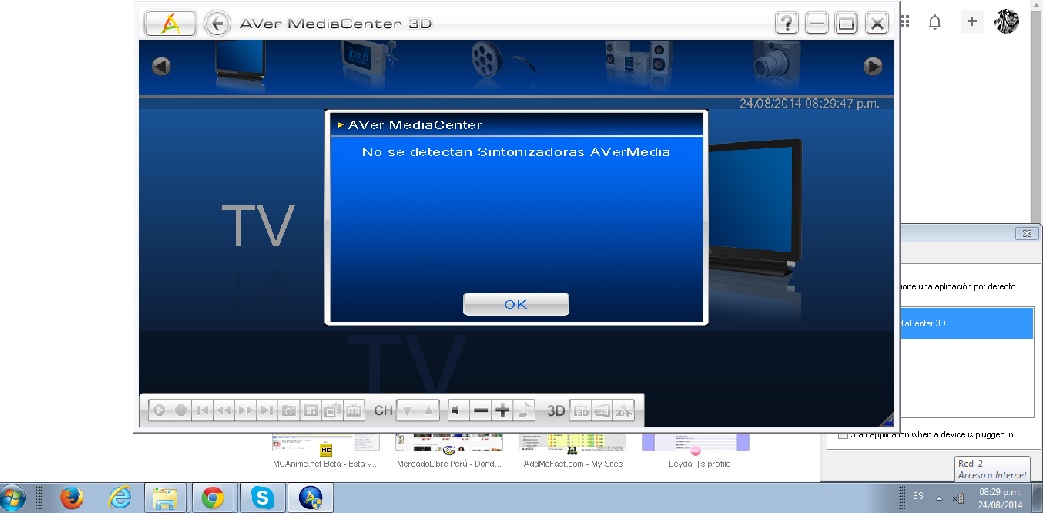

Hi, what happens is that a few days ago I miss my pc detect the video capture avermedia c027 receive this message, be obliged if someone help me if you know how to fix it greetingsgreetings https://fbcdn-sphotos-d-a.akamaihd.net/hphotos-ak-xap1/v/t1.0-9/10613118_1020476854784...09e7c7132e7b4a

[filmakr1]

Hello Cauptain, I' used your trick to bypass HDMI TV with no problems! Thank you! But I'm also trying to record some scenes from my Blu Ray Discs, but I get intermittent picture. HDMI capture window shows the movie for a fe seconds, then the video and audio goes blank. If I unplug the HDMI cable, it comes back, then goes blank again. Would there be a separate fix for Blu Ray HDCP?

[Brad]

No. Sounds like a cable problem...

[Cauptain]

Hi, what happens is that a few days ago I miss my pc detect the video capture avermedia c027 receive this message, be obliged if someone help me if you know how to fix it greetingsgreetings
https://fbcdn-sphotos-d-a.akamaihd.net/hphotos-ak-xap1/v/t1.0-9/10613118_1020476854784...09e7c7132e7b4a

Hi brianmanga,

Sometimes Aver C027 get problem in Windows.

The easy way to solve this is:

- Uninstall all avermedia driver/software.
- Reboot.
- Run any registry clean, my fav is CCLEANER.
- Install only driver and check in Virtualdub or AmarecTV
- If work, install Avermedia software. Enjoy.

Tell me if work.

Hello Cauptain, I' used your trick to bypass HDMI TV with no problems! Thank you! But I'm also trying to record some scenes from my Blu Ray Discs, but I get intermittent picture. HDMI capture window shows the movie for a fe seconds, then the video and audio goes blank. If I unplug the HDMI cable, it comes back, then goes blank again. Would there be a separate fix for Blu Ray HDCP?

Hello filmakr1,

Vaporeon800 already answered. No fix or tip for specific device.

Test another cable? Set stereo for BD output.

Test & reply.

[filmakr1]

Yes, you were both right, it was the HDMI cable. thank you both!

filmakr1

[filmakr1]

Hello all, just curious, is there an Adobe Premiere plug in that can be used with the AVERTV HD DVD card to capture with? It looks like there might have been one a while back to work with CS4, but I can't find anything now.

Anything?

Thanks,

filmakr1

[DjTony]

Cauptain hello! i try 2 years now ( U have helped me before some years ) to break HDCP on my H727 and i cant... any help please ?

[sellmemory]

Hi, what happens is that a few days ago I miss my pc detect the video capture avermedia c027 receive this message, be obliged if someone help me if you know how to fix it greetingsgreetings
https://fbcdn-sphotos-d-a.akamaihd.net/hphotos-ak-xap1/v/t1.0-9/10613118_1020476854784...09e7c7132e7b4a

Hi brianmanga,

Sometimes Aver C027 get problem in Windows.

The easy way to solve this is:

- Uninstall all avermedia driver/software.
- Reboot.
- Run any registry clean, my fav is CCLEANER.
- Install only driver and check in Virtualdub or AmarecTV
- If work, install Avermedia software. Enjoy.

Tell me if work.

Hello Cauptain, I' used your trick to bypass HDMI TV with no problems! Thank you! But I'm also trying to record some scenes from my Blu Ray Discs, but I get intermittent picture. HDMI capture window shows the movie for a fe seconds, then the video and audio goes blank. If I unplug the HDMI cable, it comes back, then goes blank again. Would there be a separate fix for Blu Ray HDCP?

Hello filmakr1,

Vaporeon800 already answered. No fix or tip for specific device.

Test another cable? Set stereo for BD output.

Test & reply.

get the same problem here, when i install the avermediacenter by your "AVERTV HD HDMI HDCP PROTECT REMOVE" file, it says that the capture card cannot be found i use the latest driver from the officail website

[HardCoded]

I got around the HDMI recording by using a RadioShack HDMI to Component Converter part number 1500549. We were having an issue recording anything that used the HDMI input, and this circumvented it for us.

[Cauptain]

get the same problem here, when i install the avermediacenter by your "AVERTV HD HDMI HDCP PROTECT REMOVE" file, it says that the capture card cannot be found i use the latest driver from the officail website

Avermedia release a new PCB in 2012/13 for this card. Maybe HDCP Remove pack not work.

Buy a CVID BG-550 splitter. Its solve all problems.

[Stibi_CZ]

Hi Cauptain,
can You help me please with settings for recording over HDMI?
I have H727 card purchased in 2011 and I am not able to record from HDMI due HDCP.
With second method I am able to record via AMC. But I have sound issue (sound is second later than video and some voices are deeper). This issue I have during watching too.
First method I tested without success.
I want to record from HDMI. It doesnt matter which SW I will use. Can You offer me the solution with step by step instructions please?
I am little bit lost
Thx

[Cauptain]

Stibi I send u a PM. Look and reply.

[MystiqueMyth]

Well, I'm looking to buy H727 for recording from my dth(HDCP Protected).. does this method still work with new cards.. at least work through composite/component cables??

[johnythepoor]

Hi there

I have also Η727 and put the tricky drivers for C027 ! Yes HDCP works but i have green-purple picture ... Is any way for solve this? Maybe if change some files from folder drivers of c027 put for H727 etc ... ?

My system is on Windows 10 if help this... Also dont care about AMC, cause i want capture in OBS

Thanks in advance

[insipod]

Hi there

I have also Η727 and put the tricky drivers for C027 ! Yes HDCP works but i have green-purple picture ... Is any way for solve this? Maybe if change some files from folder drivers of c027 put for H727 etc ... ?

My system is on Windows 10 if help this... Also dont care about AMC, cause i want capture in OBS

Thanks in advance

They don't work well in win 10. You're better off getting an HDMI stripper.

[johnythepoor]

Hi there

I have also Η727 and put the tricky drivers for C027 ! Yes HDCP works but i have green-purple picture ... Is any way for solve this? Maybe if change some files from folder drivers of c027 put for H727 etc ... ?

My system is on Windows 10 if help this... Also dont care about AMC, cause i want capture in OBS

Thanks in advance

They don't work well in win 10. You're better off getting an HDMI stripper.

You mean that if run on Windows 7 will be ok? I feel its very close for solve this issue...with some way...cause already play but with green-purple picture...

[johnythepoor]

If could be help, on OBS and on the CONFIGURE VIDEO => i see on "signal who found" the number 3 instead of 1 usually... and below "find lines" are 750

I think on "signal who found" must be number 1 and NOT 3 ... Maybe this is the issue with green-purple color on picture ? Maybe comfuse with 3 color systems (PAL,SECAM,NTSC) ?

And if this is happen... is any way for solve this ? Maybe REPLACE any file driver (dll or sys) from H727 over of C027 drivers ,... ?

[Brad]

I think 3 is what it says when the incoming signal is progressive. Not sure exactly, but it is normal.

[johnythepoor]

I think 3 is what it says when the incoming signal is progressive. Not sure exactly, but it is normal.

No, its no normal, cause when i connect every other HDMI source says "1" ! So, propably on this is the problem with green-purple picture ...

[Brad]

I'm telling you that I capture HDMI using the C027 all the time, and it says 3 for me.

[Cauptain]

If could be help, on OBS and on the CONFIGURE VIDEO => i see on "signal who found" the number 3 instead of 1 usually... and below "find lines" are 750

I think on "signal who found" must be number 1 and NOT 3 ... Maybe this is the issue with green-purple color on picture ? Maybe comfuse with 3 color systems (PAL,SECAM,NTSC) ?

And if this is happen... is any way for solve this ? Maybe REPLACE any file driver (dll or sys) from H727 over of C027 drivers ,... ?

Hi johnythepoor,

The latest HDMI AMC TRICKED works fine in C027 on Windows 10.

The 727 variant maybe work, but never tested.

Download WDM Miscutils: wdmmiscutils2.73.zip

Opem AMC and run WDMMU and change in realtime the video signal.

If dont work, just get a HDMI SPLITTER with HDCP bypass, better solution.



Claudio

[johnythepoor]

Hi Claudio

Thank you for your answer !

Yoy have any suggestion for HDMI splitter ? But have to work with the latest HDCP 2.2 ... Is anyone who work with this version of HDCP ?

[Cauptain]

Hi Claudio

Thank you for your answer !

Yoy have any suggestion for HDMI splitter ? But have to work with the latest HDCP 2.2 ... Is anyone who work with this version of HDCP ?

I have 2 CVID Splitter (BG520 and BG550). Work on PS3, X360, Xone, Net Cable, PS4...All devices.

Look this tread: HDMI SPLITTER



Claudio

[johnythepoor]

hi, there

Well, i was bought a new C027 DARKCRYSTAL HD CAPTURE (at back says H727 ver.E C027 ver.E) but NOT solve the problem ! Its other version, maybe...needs the oldest C027 cards ? It succefull NO HDCP but...picture with GREEN and PURPLE color ...

[johnythepoor]

Also, i do this in my pc with TWO CARDS H727

Drivers for these two H727 cards are Win8_x64_V1.54.64.42_Install_AVerMCE_EncodersV3016 .exe. These drivers solve HDCP but not new versions of HDCP !

so... i change the drivers only for one card with drivers of C027 and... it WORKS for newest HDCP !! All OK !!! But on the other H727 card also works OK with NO HDCP...but...with GREEN-PURPLE color !!!

If i will change BOTH with C027 drivers, then, BOTH they have NO HDCP but... picture with GREEN-PURPLE color !!!

Any idea... ?

[Brad]

I think I need several diagrams to understand those posts.

[johnythepoor]

I think I need several diagrams to understand those posts.

What is u dont understand ?

[johnythepoor]

Hi Claudio

Thank you for your answer !

Yoy have any suggestion for HDMI splitter ? But have to work with the latest HDCP 2.2 ... Is anyone who work with this version of HDCP ?

I have 2 CVID Splitter (BG520 and BG550). Work on PS3, X360, Xone, Net Cable, PS4...All devices.

Look this tread: HDMI SPLITTER



Claudio

These are NOT UNLOCK my device here (has latest version of HDCP)

* But my try to #176 post DONE this !!!

[Brad]

Your claim is that the AVerMedia H727 (first released in 2009) supports HDCP 2.2 (specified in Feb 2013)?

How long have you been using the two cards in one PC? I don't think AVerMedia officially supports that. I encountered issues with C027 + C127 together in one PC.
