Encoding in XVID causes horizontal stripes on standalone player

[deadp0et]

Hi all.

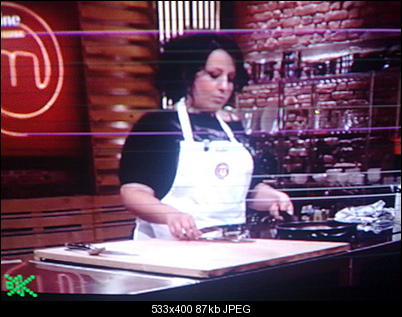

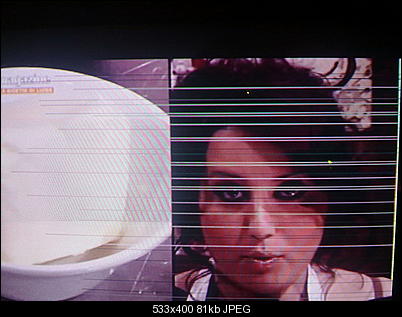

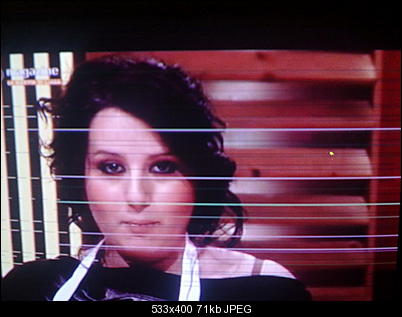

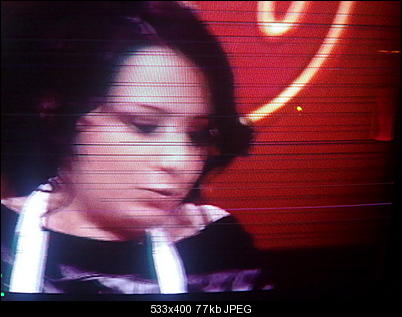

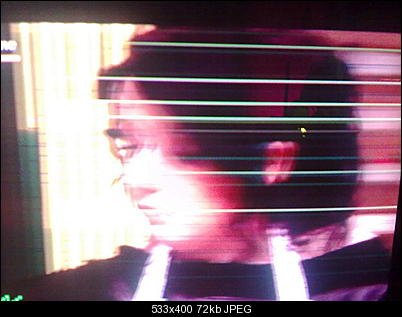

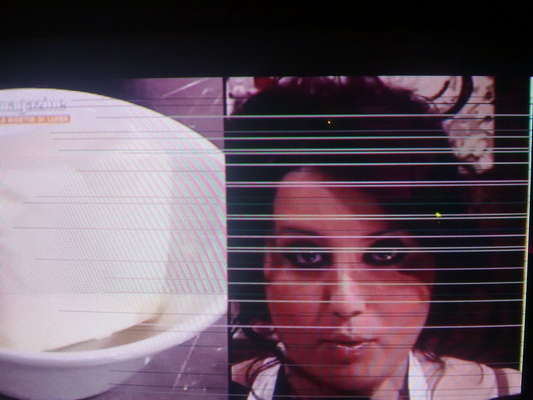

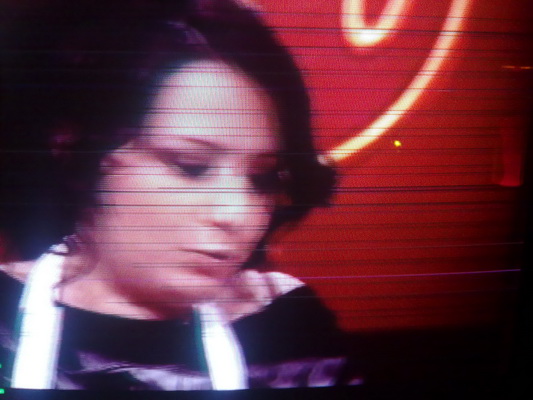

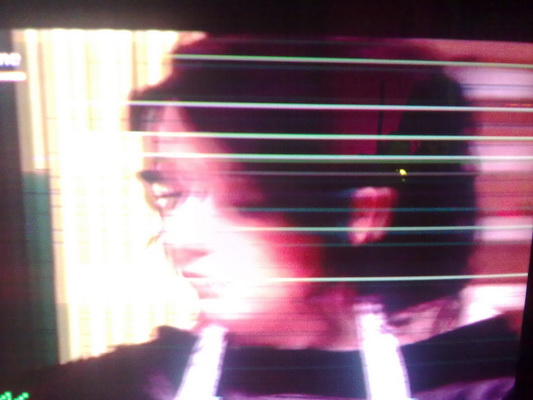

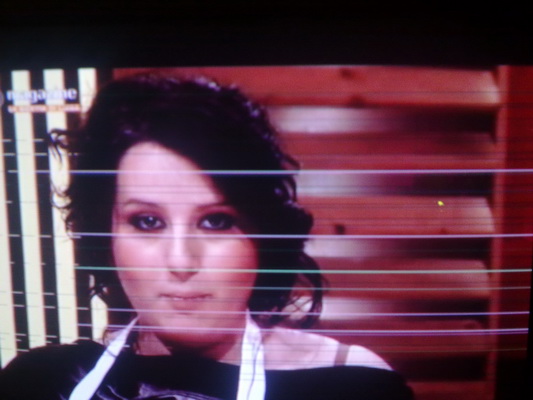

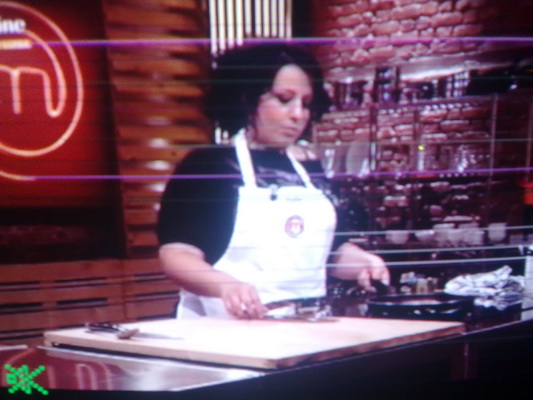

I use my standalone player to play AVI vids taken from the net and never had any problem. Recentely I had to encode my own videos, but I keep running into this problem: whenever my standalone player plays my videos they present a lot of dancing horizontal stripes. Here are some photos of them:



The stripes DO NOT show up if playing the videos on my computer, for example with Windows Media Player or VLC. They just show up on my standalone player.

I tried to encode my videos using ffdshow, then I tried XVid, and I tried to fiddle with their settings, but all to no avail. The stripes are always there. Sometimes I can get rid of them by clicking several times on the play/pause button of the standalone player, sometimes they just won't go away.

They DO NOT appear if playing a third-party vid, for example AVI videos downloaded from the net

Any suggestion on how to encode my videos to get rid of them?

Thanks
Davide

[jagabo]

Post a MediaInfo report of one of the files.

[deadp0et]

Here it is:

General
Complete name : C:\masterchef8.avi
Format : AVI
Format/Info : Audio Video Interleave
File size : 130 MiB
Duration : 15mn 45s
Overall bit rate : 1 149 Kbps
Writing library : VirtualDub build 32842/release

Video
ID : 0
Format : MPEG-4 Visual
Format profile : Advanced Simple@L5
Format settings, BVOP : 2
Format settings, QPel : No
Format settings, GMC : No warppoints
Format settings, Matrix : Default (H.263)
Muxing mode : Packed bitstream
Codec ID : XVID
Codec ID/Hint : XviD
Duration : 15mn 45s
Bit rate : 1 011 Kbps
Width : 864 pixels
Height : 480 pixels
Display aspect ratio : 16:9
Frame rate : 25.000 fps
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Compression mode : Lossy
Bits/(Pixel*Frame) : 0.098
Stream size : 114 MiB (88%)
Writing library : XviD 64

Audio
ID : 1
Format : MPEG Audio
Format version : Version 1
Format profile : Layer 3
Mode : Joint stereo
Mode extension : MS Stereo
Codec ID : 55
Codec ID/Hint : MP3
Duration : 15mn 45s
Bit rate mode : Constant
Bit rate : 128 Kbps
Channel(s) : 2 channels
Sampling rate : 44.1 KHz
Compression mode : Lossy
Stream size : 14.4 MiB (11%)
Alignment : Split accross interleaves
Interleave, duration : 40 ms (1.00 video frame)
Interleave, preload duration : 501 ms


The following one, instead, is from a file who plays without problems

General
Complete name : D:\MCUS02\masterchef.us.201.hdtv-lol.avi
Format : AVI
Format/Info : Audio Video Interleave
File size : 349 MiB
Duration : 42mn 1s
Overall bit rate mode : Variable
Overall bit rate : 1 161 Kbps
Writing application : Lavf53.2.0

Video
ID : 0
Format : MPEG-4 Visual
Format profile : Advanced Simple@L5
Format settings, BVOP : 2
Format settings, QPel : No
Format settings, GMC : No warppoints
Format settings, Matrix : Default (H.263)
Codec ID : XVID
Codec ID/Hint : XviD
Duration : 42mn 1s
Bit rate : 1 024 Kbps
Width : 624 pixels
Height : 352 pixels
Display aspect ratio : 16:9
Frame rate : 23.976 fps
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Compression mode : Lossy
Bits/(Pixel*Frame) : 0.195
Stream size : 308 MiB (88%)
Writing library : XviD 1.2.1 (UTC 2008-12-04)

Audio
ID : 1
Format : MPEG Audio
Format version : Version 1
Format profile : Layer 3
Mode : Joint stereo
Mode extension : MS Stereo
Codec ID : 55
Codec ID/Hint : MP3
Duration : 42mn 1s
Bit rate mode : Variable
Bit rate : 124 Kbps
Channel(s) : 2 channels
Sampling rate : 48.0 KHz
Compression mode : Lossy
Stream size : 37.2 MiB (11%)
Alignment : Aligned on interleaves
Interleave, duration : 24 ms (0.58 video frame)




I already tried to disable the Packing bitstream option but the stripes still show up.

[poisondeathray]

maybe your standalone has problems with the width > 720 ? Try a small test encoding to smaller dimensions

[deadp0et]

No, I have already tried encoding a file whose width is 624 and the stripes did show up all the same.

[jagabo]

Are you sure? I don't see anything else unusual. The only other major difference is the 25 fps vs 23.976. But every player I've seen plays both.

[poisondeathray]

Writing library : XviD 64

What is this?

Try 32bit xvid in vdub

[deadp0et]

Are you sure?

No I was mistaken. You are right! The video I thought was 624 pixel wide, had actually a width of 852.

I think you nailed it!

Tomorrow I'll make a test reducing the width of my files and let you all know.

Thanks
Davide


PS: I don'k know why that XviD 64 tag, that was actually the 32bit vdub

[deadp0et]

Ok made a test and encoded one file < 720 width.
Then played on my standalone player.
Result: no stripes whatsoever! :P

Thanks guys, thanks for your help.

Ciao from Italy,
Davide

[jagabo]

Glad it worked out. That was a very unusual symptom though.

[Bonie81]

@deadpOet

Glad to know that you figured-out and it worked.
The problem was
Width : 864 pixels <----- should be equal or less than 720px for stand-alone DVD players.
Height : 480 pixels <----- should be equal or less than 480px for stand-alone DVD players.

hope you are in Italy which follows DVB-T or DVB-T2 standards for bradcast.
so your final encode must not exceed 720X480i@29.97FPS NTSC-SD SPECS for DVD Players.
and must not exceed 1920X1080i@30.00FPS NTSC-HD SPECS for BD Players.
PC Monitor will play and rescale anything within certain limits.

[deadp0et]

Ok. Thanks again.

[jagabo]

Most player can handle up to 576 lines tall because that's the PAL standard. A quick experiment will tell you for sure about your player.
