Motion Interpolation (VidFIRE) Software?

[goodiesguy]

I've looked everywhere but with no luck.

I have Power DVD 10, and using it's Motion Interpolation (Truetheater Motion), I am able to make old shows that only exist on 16mm look like they are on video ("the video look").

The problem is, i want to be able to not just watch it, but to be able to apply The motion interpolation to, say an Mpeg-2 file and then render/ save it, so i can put it on a dvd and watch the Motion interpolated footage on my tv.

I basically want something that will let me apply motion interpolation to a normal clip (not Slow Motion, standard speed) and then render it, so i can put it to a dvd.

I'm basically wanting to do what the BBC do with the Doctor Who restorations. I know this can be done, as i have seen "home made" examples.

I've also noticed that VirtualDub has an Interpolation filter, but i have had no luck with it. A VirtualDub Plugin would be the best for me, but i'm willing to accept anything.

I tried some software called "motion perfect" but that failed, and would not render any of my files.

Please help

[manono]

Since DVD is very restrictive in the allowed framerates (25fps for your PAL DVDs), I'm not quite sure how you figure to make a DVD out of something for which you've multiplied the framerate. Sure, for other formats it's possible, just not for DVD.

AviSynth's MVTools can usually do a pretty decent job with this sort of thing:

http://avisynth.org/mediawiki/MVTools

[goodiesguy]

I want to save the motion interpolated video as an interlaced mpeg2. the problem is finding something that will save a motion interpolated video. I can only watch motion interpolation in real time (powerdvd) at the moment.

[manono]

OK, you want to (for example) motion interpret the framerate to 50p and then reinterlace it to 25i? Also easy enough using AviSynth.

Me, I think it's a waste of time, but since you didn't ask if anyone thought it was a good idea...

[goodiesguy]

OK, you want to (for example) motion interpret the framerate to 50p and then reinterlace it to 25i? Also easy enough using AviSynth.

That's exactly what i want to do.

Is there any tutorial on how to do it with AviSynth? I tried avisynth once before and found it mind boggling (and im usually good at this kinda stuff)

[manono]

The reinterlacing is easy:

SeparateFields()
SelectEvery(4,0,3)
Weave()

As for the motion interpolation, wait until poisondeathray or jagabo or someone that's done it before comes around. I've never used MVTools myself in a script I didn't copy from somewhere else and am far from an expert on it.

[jagabo]

Something like this:

function DoubleFPS(clip source)
{
super = MSuper(source, pel=2, hpad=0, vpad=0, rfilter=4)
backward_1 = MAnalyse(super, chroma=false, isb=true, blksize=16, searchparam=3, plevel=0, search=3, badrange=(-24))
forward_1 = MAnalyse(super, chroma=false, isb=false, blksize=16, searchparam=3, plevel=0, search=3, badrange=(-24))
backward_2 = MRecalculate(super, chroma=false, backward_1, blksize=8, searchparam=1, search=3)
forward_2 = MRecalculate(super, chroma=false, forward_1, blksize=8, searchparam=1, search=3)
backward_3 = MRecalculate(super, chroma=false, backward_2, blksize=4, searchparam=0, search=3)
forward_3 = MRecalculate(super, chroma=false, forward_2, blksize=4, searchparam=0, search=3)
MBlockFps(source, super, backward_3, forward_3, num=2*FramerateNumerator(source), den=FramerateDenominator(source), mode=0)
}

WhateverSource("25p.ext")
DoubleFPS()
SeparateFields()
SelectEvery(4,0,3)
Weave()

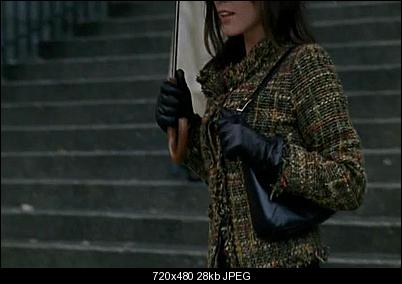

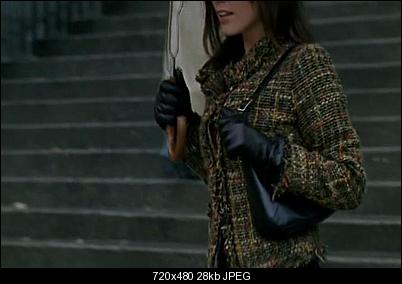

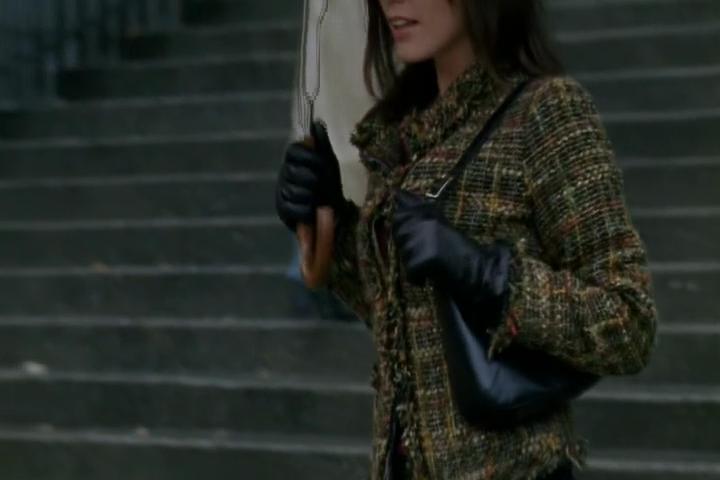

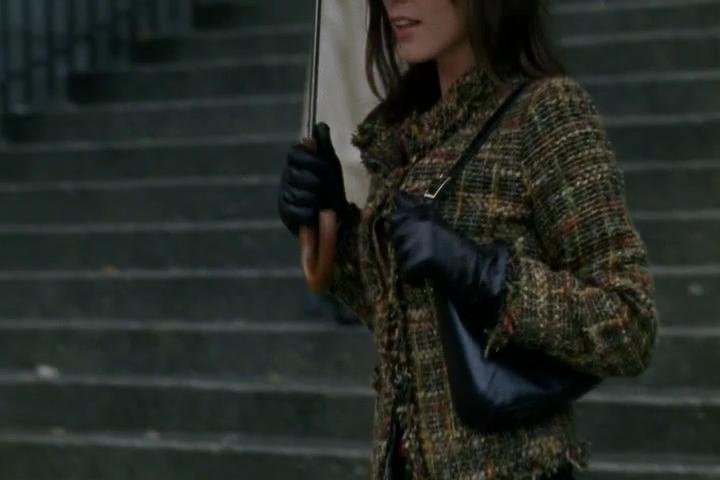

That works well on panning shots but can screw up with complex motions. Here's an example where it screws up. Three consecutive frames, the two original frames with the motion interpolated frame in the middle:

[manono]

About all I see wrong is the umbrella bar thing. If that's all, in full motion while watching the video I don't know how noticeable that would be, and I think it looks pretty good. If you had a whole sequence where every other frame was slightly messed up like that, of course that would be more noticeable. One wonders if the motion interpolation of the TV sets or the PowerDVD goodiesguy mentioned earlier can do a better job.

[jagabo]

If you had a whole sequence where every other frame was slightly messed up like that, of course that would be more noticeable.

That often happens.

One wonders if the motion interpolation of the TV sets or the PowerDVD goodiesguy mentioned earlier can do a better job.

Not from what I've seen. Though I haven't really looked in the last few years.

A bad case example (from Tron) is attached. It's usually subtler than this. Usually you just notice that's something's not quite right with the video.

[goodiesguy]

So how do i actually use AviSynth?

[jagabo]

1) Install avisynth.
2) Install the third party MvTools filter. http://avisynth.org.ru/mvtools/mvtools.html
3) Create a text file with the indicated script* with notepad, use .AVS as the extension, not .TXT.
4) Open the AVS script as if it was a video file in and editor that supports AviSynth. VirtualDub for example.

http://avisynth.org/mediawiki/Getting_started

* change WhateverSource() to the appropriate command for the type of source file you have. AviSource("filename.avi") for example.

[goodiesguy]

Sweet, i understand now.

Do you know a good codec that will encode interlaced mpeg2? as at the moment i've got no idea what codec to use.

[jagabo]

Do you know a good codec that will encode interlaced mpeg2?

I use HcEnc via HcGUI. It accepts AVS scripts -- requires them, in fact.

[goodiesguy]

Well nothing worked, the avs file woulnt even open in virtualdub (error line 1, colum 22).

[jagabo]

Post the full script (copy and paste).

[goodiesguy]

how do i install mvtools?

and when trying to open the script in vdub, it still gives me errors and wont open.

Is there anyway i can just use Vdubs built in Interpolate plugin to do the same thing?

[manono]

You didn't post your script as requested. Nor have you told us what the error messages are. You don't install MVTools, you just stick the DLL in the AviSynth Plugins folder.

[goodiesguy]

I was never asked to post any sort of script?

[goodiesguy]

won't it just be easier to find a plugin for Vdub or something? as this avisynth stuff is a pain in the arse.

[manono]

I was never asked to post any sort of script?

Post the full script (copy and paste).

won't it just be easier to find a plugin for Vdub or something?

No.

[davexnet]

See post #15. If you post the full script, someone here could probably spot the problem.

[goodiesguy]

function DoubleFPS("C:\Users\Nathan\Desktop\Hullabaloo_Dec 6, 1965.avi")
{
super = MSuper(source, pel=2, hpad=0, vpad=0, rfilter=4)
backward_1 = MAnalyse(super, chroma=false, isb=true, blksize=16, searchparam=3, plevel=0, search=3, badrange=(-24))
forward_1 = MAnalyse(super, chroma=false, isb=false, blksize=16, searchparam=3, plevel=0, search=3, badrange=(-24))
backward_2 = MRecalculate(super, chroma=false, backward_1, blksize=8, searchparam=1, search=3)
forward_2 = MRecalculate(super, chroma=false, forward_1, blksize=8, searchparam=1, search=3)
backward_3 = MRecalculate(super, chroma=false, backward_2, blksize=4, searchparam=0, search=3)
forward_3 = MRecalculate(super, chroma=false, forward_2, blksize=4, searchparam=0, search=3)
MBlockFps(source, super, backward_3, forward_3, num=2*FramerateNumerator(source), den=FramerateDenominator(source),

mode=0)
}

DirectShowSource("C:\Users\Nathan\Desktop\Hullabal oo_Dec 6, 1965.avi")
DoubleFPS(60)
SeparateFields(2)
SelectEvery(0,3)
Weave()

This is it here. I get all sorts of errors

[hello_hello]

Convert videos to 60fps

[Gavino]

I get all sorts of errors

It would be more helpful if you told us the actual error message.
Strange you are saying errors, since Avisynth stops on the first error and won't report more than one.

Regarding your script, the lines

SeparateFields(2)
SelectEvery(0,3)

should be:
SeparateFields()
SelectEvery(4,0,3)

The SelectEvery line was wrong in jagabo's original post (typo).

[jagabo]

The SelectEvery line was wrong in jagabo's original post (typo).

You're right. I'll fix it.

[jagabo]

how do i install mvtools?

Extract the dll file into AviSynth's plugins folder.

and when trying to open the script in vdub, it still gives me errors and wont open.

You should say what the error is. Be sure you open the script using File -> Open Video File. Not, File -> Run Script. The latter is for VirtualDub scripts, not AviSynth scripts.

Is there anyway i can just use Vdubs built in Interpolate plugin to do the same thing?

I'm not aware of any such filter for VirtualDub.

[goodiesguy]

error, line 3, line 13. "I dont know what source is"

[jagabo]

The first line of your script should read:

 function DoubleFPS(clip source)

[Cornucopia]

Also, IIRC, isn't "Hullabaloo" from the UK? That means it ought to be PAL (25/50 fps) source, so you'd also have to deal with correct PAL->NTSC conversion first/instead.

Scott

[goodiesguy]

Also, IIRC, isn't "Hullabaloo" from the UK? That means it ought to be PAL (25/50 fps) source, so you'd also have to deal with correct PAL->NTSC conversion first/instead.

Scott

Nope, Hullabaloo is an NTSC show for the NBC in USA.
