  1. Banned
    Join Date
    Dec 2010
    Location
    New York
    Search Comp PM
    If it is any at all possible (as I know most [not all] people in this forum can't help themselves) can someone please direct me to a decent avisynth plugin or script (that I would obviously need to tweak) to reduce color bleed in animation. Now, hold on...before most of you let your asses catch on fire at such a "foolish, n00bish, simple-minded" question, here's the hard part:

    I need this question answered straight to the point. Without arrogance, obnoxious and unecessary video jargon, and I can also do without you trying to prove to me that your video dick is bigger than mine (as it most likely is, otherwise I wouldn't be asking such a question here). Now, is this possible? Can someone just answer the question direct to the point, without coming off as a jerk? Is it possible for this pixelated miracle to occur once in videohelp.com? Good.

    Now ladies, on your mark...get set.....post!
    Quote Quote
  2. Member
    Join Date
    Dec 2010
    Location
    quebec
    Search Comp PM
    usually it's a color space conversion problem from the encoder

    what was your source format and destination format and what did you use to convert it ??

    MeGui has a good script creator engin and FitCd too ..

    do the color conversion within avisynth may solve the problem
    Quote Quote
  3. aBigMeanie aedipuss's Avatar
    Join Date
    Oct 2005
    Location
    666th portal
    Search Comp PM
    well it might help if you spend less time whining about the help here and provided a bit more on the details of the video you're trying to work on.

    your needs are meaningless here, it's all voluntary, and if you f with the people with the answers, you deserve none.
    --
    "a lot of people are better dead" - prisoner KSC2-303
    Quote Quote
  4. Banned
    Join Date
    Dec 2010
    Location
    New York
    Search Comp PM
    smartel, the source is a professional, retail DVD and it was, unfortunately, already like this. I cleaned it up in virtualdub, exported as AVI and am using Windows DVD Maker (as it gives me the highest, equal to the source picture quality) to encode and author. But yeah, it's already in the source. I was just trying to correct it.

    hi aedipuss, honey!
    Quote Quote
  5. Member
    Join Date
    Dec 2010
    Location
    quebec
    Search Comp PM
    virtualdub is known to have it's own color space problem maybe try virtualdubmod
    Last edited by smartel; 31st Jul 2011 at 23:43.
    Quote Quote
  6. Banned
    Join Date
    Dec 2010
    Location
    New York
    Search Comp PM
    or virtualdub mpeg2, right?
    Quote Quote
  7. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    How exactly do you expect to correct a DVD source?

    Maybe if you provide some source frame caps showing the issue.

    Generally, color bleed (color smear?) is the result of poor mastering. Is the chroma h shifted linearly or spread wide? If the former, it can be fixed. If the latter, the production path probably passed through analog NTSC or PAL. Both have narrow chroma bandwidth (0.5-1.5 MHz). 0.5 MHz (e.g. VHS) allows only 40 color changes across a line. A properly mastered 4:2:0 DVD can show up to 300 color changes across a line.

    Maybe an HD version exists.
    Last edited by edDV; 1st Aug 2011 at 00:41.
    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
    Quote Quote
  8. Member AlanHK's Avatar
    Join Date
    Apr 2006
    Location
    Hong Kong
    Search Comp PM
    Originally Posted by unclescoob View Post
    Can someone just answer the question direct to the point, without coming off as a jerk? Is it possible for this pixelated miracle to occur once in videohelp.com?
    If there are people here who annoy you, instead of insulting everyone preemptively, just add them to your ignore list.
    -- click on their name next to their post, go to their profile, and click on "Add to Ignore List".
    As I've just done for you.

    Good luck.
    Quote Quote
  9. Member M Bruner's Avatar
    Join Date
    Oct 2008
    Location
    United States
    Search Comp PM
    Originally Posted by AlanHK View Post
    Originally Posted by unclescoob View Post
    Can someone just answer the question direct to the point, without coming off as a jerk? Is it possible for this pixelated miracle to occur once in videohelp.com?
    If there are people here who annoy you, instead of insulting everyone preemptively, just add them to your ignore list.
    -- click on their name next to their post, go to their profile, and click on "Add to Ignore List".
    As I've just done for you.

    Good luck.
    Did he just knock UncleScoob's video d*ck in the dirt?
    There are no problems - only chances to excel.
    -- Unknown
    Quote Quote
  10. aBigMeanie aedipuss's Avatar
    Join Date
    Oct 2005
    Location
    666th portal
    Search Comp PM
    But yeah, it's already in the source. I was just trying to correct it.
    wow, another one who thinks he's better than a movie studio. may as well re-draw&paint each cell yourself while you're at it.

    bye, have a nice day!
    --
    "a lot of people are better dead" - prisoner KSC2-303
    Quote Quote
  11. AviSynth:
    ChromaShift() #shift chroma
    MergeChroma(awarpsharp2(depth=48)) #sharpen chroma

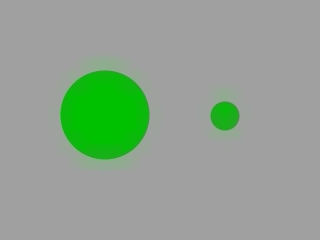

    Original image:
    Name:  orig.png
Views: 530
Size:  4.6 KB

    After blurring and shifting of colors (common with VHS):
    Name:  blurshift.png
Views: 542
Size:  13.7 KB

    Fixed with ChromaShift(c=-12,l=-4) and MergeChroma(awarpsharp2(depth=64)):
    Name:  fixed.png
Views: 540
Size:  10.2 KB
    Last edited by jagabo; 1st Aug 2011 at 10:07.
    Quote Quote
  12. Banned
    Join Date
    Dec 2010
    Location
    New York
    Search Comp PM
    Thank you Jagabo. That's exactly what I needed. I appreciate that!
    Quote Quote
