Thread: Virtual Dub: Unable to decompress avc1 file format

  1. #1
    Member s_joy09's Avatar
    Join Date
    Mar 2010
    Location
    Dhaka, Bangladesh
    Posts
    37

    Virtual Dub: Unable to decompress avc1 file format

    Hi!
    I have obtained a video file, which is an MP4 file. I wanted to convert it to AVI using Virtual Dub but, when I try to open this file VD reports " Unable to locate a video codec to decompress the video format 'avc1' (unknown)".

    I have used MediaInfo to create a INFO.txt of this video file and I am attaching it.

    Please help me learn how I should deal with this format if I needed to convert them.

    Thanks & T.C.
    Bye!
    Attached Files
    Quote Quote

  2. #2
    I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date
    Aug 2000
    Location
    Sweden
    Posts
    43,733

    Re: Virtual Dub: Unable to decompress avc1 file format

    Try install the x264 vfw encoder/decoder, http://komisar.gin.by/old/1924/x264vfw.1924kMod.x86.exe


    Or just convert to avi with avidemux, xmedia recode or winff.
    Quote Quote

  3. #3
    Member s_joy09's Avatar
    Join Date
    Mar 2010
    Location
    Dhaka, Bangladesh
    Posts
    37

    Re: Virtual Dub: Unable to decompress avc1 file format

    Thanks " Baldrick " I have installed http://komisar.gin.by/old/1924/x264vfw.1924kMod.x86.exe. The first one did not run when I tried to install it. Is that one required or can I do without it?

    Now when I load the video file on Virtual Dub, I'm not getting the massage anymore, but I cannot view or preview the file either. All I'm getting is a black screen. In fact two black screens. And if I try to convert the file to Xvid the VD crashes. I am attaching the crash report. I don't know much about these and I hope you would be able to retrieve the cause.

    Thanks & T.C.

    Bye!
    Attached Files
    Quote Quote

  4. #4
    VH Wanderer Ai Haibara's Avatar
    Join Date
    Jan 2006
    Location
    Somewhere on VideoHelp...
    Posts
    4,756

    Re: Virtual Dub: Unable to decompress avc1 file format

    I think ffdshow has some support for AVC1 video, but you may have to enable it in the VfW video settings/codecs section. (I'm not at a system with ffdshow installed, so I apologize for being a little vague. )
    If cameras add ten pounds, why would people want to eat them?
    Quote Quote

  5. #5
    Lone soldier Cauptain's Avatar
    Join Date
    Jan 2006
    Location
    Brazil
    Posts
    1,376

    Re: Virtual Dub: Unable to decompress avc1 file format

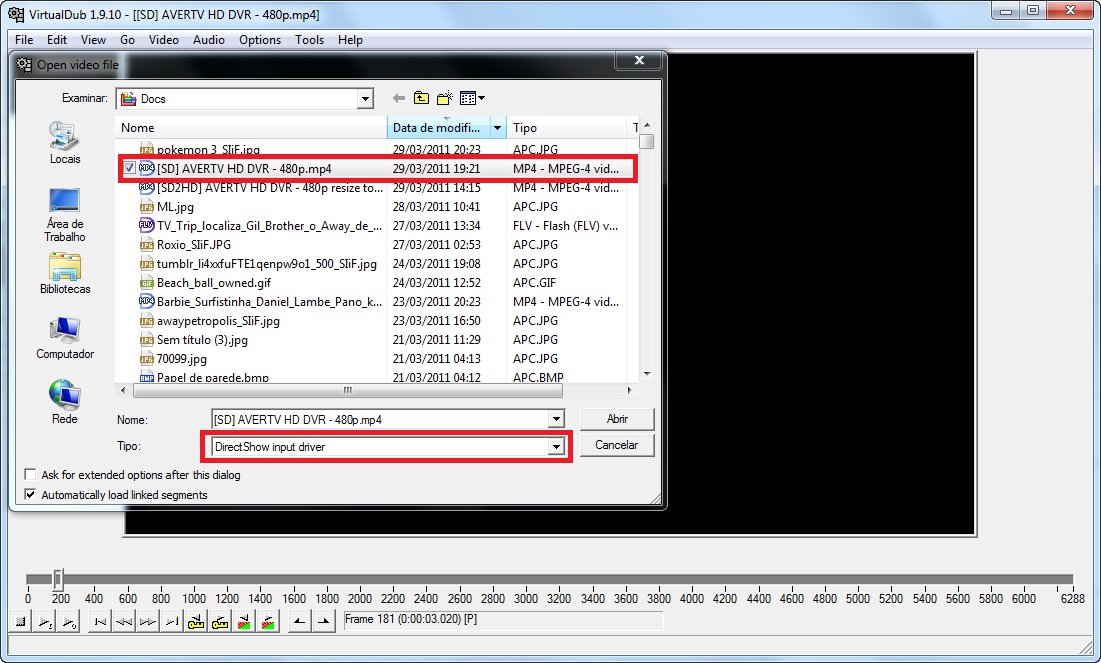

    Have you DS INPUT plugin for Virtualdub??

    Get it: http://www.virtualdub.org/beta/DShowInputDriver-0.8.zip

    Place in plugins32 folder under VirtualDub program directory.



    Claudio
    Quote Quote

  6. #6
    VH Wanderer Ai Haibara's Avatar
    Join Date
    Jan 2006
    Location
    Somewhere on VideoHelp...
    Posts
    4,756

    Re: Virtual Dub: Unable to decompress avc1 file format

    I thought I recalled reading (on this forum, at least) that the DirectShow input plugin is broken/not recommended, and that the Quicktime plugin is recommended for MP4s, instead.
    If cameras add ten pounds, why would people want to eat them?
    Quote Quote

  7. #7
    Lone soldier Cauptain's Avatar
    Join Date
    Jan 2006
    Location
    Brazil
    Posts
    1,376

    Re: Virtual Dub: Unable to decompress avc1 file format

    Quote Originally Posted by Ai Haibara View Post
    I thought I recalled reading (on this forum, at least) that the DirectShow input plugin is broken/not recommended, and that the Quicktime plugin is recommended for MP4s, instead.

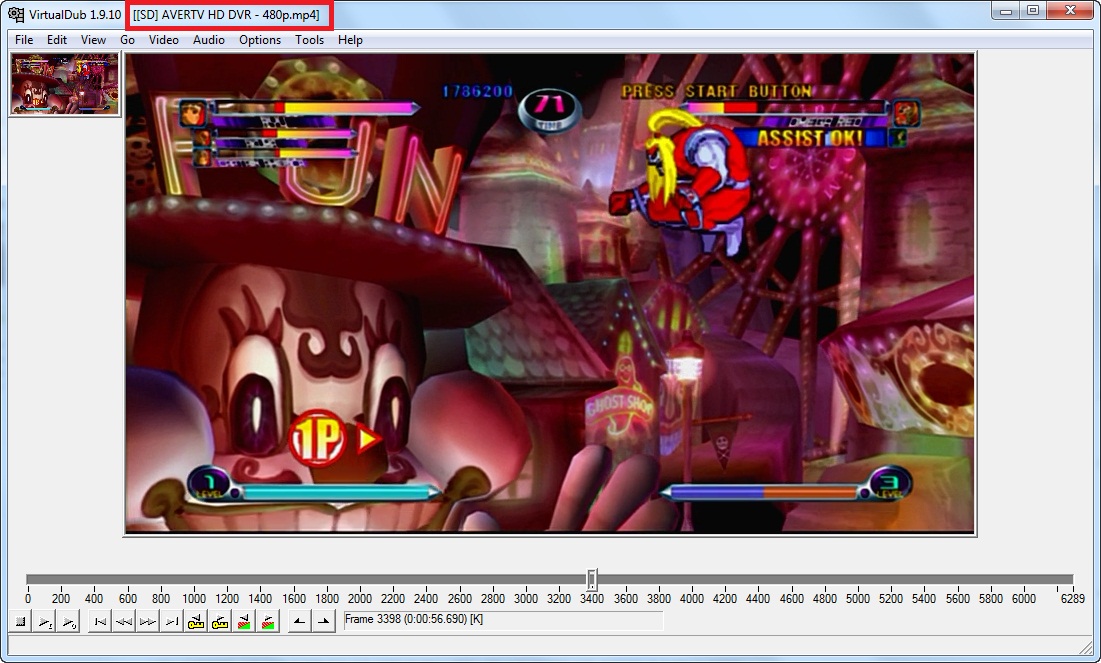

    Always worked for me, never had problems with it.

    Try, its a possible solution..



    Claudio
    Quote Quote

  8. #8
    VH Wanderer Ai Haibara's Avatar
    Join Date
    Jan 2006
    Location
    Somewhere on VideoHelp...
    Posts
    4,756

    Re: Virtual Dub: Unable to decompress avc1 file format

    I'm willing to admit I could be mistaken and thinking about the MP4 plugin, instead. I don't really use the input plugins - I'm just way too used to doing it the 'old way,' with AVISynth.

    Ah, MvC2?
    If cameras add ten pounds, why would people want to eat them?
    Quote Quote

  9. #9
    Lone soldier Cauptain's Avatar
    Join Date
    Jan 2006
    Location
    Brazil
    Posts
    1,376

    Re: Virtual Dub: Unable to decompress avc1 file format

    Quote Originally Posted by Ai Haibara View Post
    I'm willing to admit I could be mistaken and thinking about the MP4 plugin, instead. I don't really use the input plugins - I'm just way too used to doing it the 'old way,' with AVISynth.

    Ah, MvC2?

    Avisynth is certainly more practice at these times.

    My 2D games to Record tests are MVC2 and SFHDR.
    Quote Quote

  10. #10
    Member s_joy09's Avatar
    Join Date
    Mar 2010
    Location
    Dhaka, Bangladesh
    Posts
    37

    Re: Virtual Dub: Unable to decompress avc1 file format

    Hi!
    First of all I'd like to thank everyone for the info.

    Cauptain, I have downloaded the Direct show Input driver, but I couldn't find any file named Plugins32 in my VD's directory there's a Plugin folder where all my plugins are kept.
    After I had extracted the DirectShowInput Driver I found three items there :-

    1. Folder Named "Release"
    2. Folder named "X64"
    3. Document named "Copying".

    Now I assume that its the folder named "release" is what I need but where shall I put it.

    Thanks again & T.C.
    Bye!
    Quote Quote

  11. #11
    Lone soldier Cauptain's Avatar
    Join Date
    Jan 2006
    Location
    Brazil
    Posts
    1,376

    Re: Virtual Dub: Unable to decompress avc1 file format

    Quote Originally Posted by s_joy09 View Post
    Hi!
    First of all I'd like to thank everyone for the info.

    Cauptain, I have downloaded the Direct show Input driver, but I couldn't find any file named Plugins32 in my VD's directory there's a Plugin folder where all my plugins are kept.
    After I had extracted the DirectShowInput Driver I found three items there :-

    1. Folder Named "Release"
    2. Folder named "X64"
    3. Document named "Copying".

    Now I assume that its the folder named "release" is what I need but where shall I put it.

    Thanks again & T.C.
    Bye!
    No problem Sir.

    First of all download this plugin pack: Virtualdub Pack Extra Plugins

    In VD diretory make a folder "plugins32" and extract the Pack above and your OS version plugin Directshouinput (32 or 64 bits).

    Open VirtualDub and you'l be able to load all most common types of files (.wmv, .mpg or mpeg2, .flv, .mp4).

    Try and reply.



    Claudio
    Last edited by Cauptain; 31st Mar 2011 at 07:24.
    Quote Quote

  12. #12
    Member s_joy09's Avatar
    Join Date
    Mar 2010
    Location
    Dhaka, Bangladesh
    Posts
    37

    Re: Virtual Dub: Unable to decompress avc1 file format

    Well sir, I have done as you had recomended, and now the file seems to load as it had after I had installed the " komisar's x264vfw.1924kMod ". With the same result, nothing is seen or heard on the VD's display but black screen.

    What do you think I'll have to do to get picture and sound on the VD.

    Thanks & T.C.
    Bye!
    Quote Quote

  13. #13
    DECEASED
    Join Date
    Jun 2009
    Location
    Heaven
    Posts
    5,142

    Re: Virtual Dub: Unable to decompress avc1 file format

    I have obtained a video file, which is an MP4 file

    ...

    With the same result, nothing is seen or heard on the VD's display but black screen.
    It appears the MP4 file was incorrectly muxed and/or encoded...
    Quote Quote

  14. #14
    Lone soldier Cauptain's Avatar
    Join Date
    Jan 2006
    Location
    Brazil
    Posts
    1,376

    Re: Virtual Dub: Unable to decompress avc1 file format

    Quote Originally Posted by s_joy09 View Post
    Well sir, I have done as you had recomended, and now the file seems to load as it had after I had installed the " komisar's x264vfw.1924kMod ". With the same result, nothing is seen or heard on the VD's display but black screen.

    What do you think I'll have to do to get picture and sound on the VD.

    Thanks & T.C.
    Bye!

    NP again

    You can post a piece of video(10seconds) here? Use Avidemux to cut.



    Claudio
    Quote Quote

  15. #15
    Member s_joy09's Avatar
    Join Date
    Mar 2010
    Location
    Dhaka, Bangladesh
    Posts
    37

    Re: Virtual Dub: Unable to decompress avc1 file format

    First of all I'd like to make it clear to all of you masters that I've never used Avidemux [ just because the saved file is not a video file and can only be played with Avidemux].

    I need a lesson on using this program that so many say's to be very usefull, but for now after google' ing I was able to cut a clip from the video and that is what I'm up loading.

    Here I should inform you all that while trying to load the video to cut a clip, Avidemix informed me that the video has used B frame ?! and it could use a certain method. At this point I ignored the suggestion first and Avidemux crashed. Later after accepting the suggestion I was able to cut the clip. Thou I don't know why there is no audio in the clip.!?

    So here goes..

    Thanks!

    At first I wasn't able to upload the attachment as I didn't know the file format of Avidemux. Then I tried using .avs extension while saving the clip and that was my first uploaded attachment. The idea of using the .mp4 extension while saving the clip came after that.
    Attached Files
    Last edited by s_joy09; 31st Mar 2011 at 14:22. Reason: To change the attachment
    Quote Quote

  16. #16
    Lone soldier Cauptain's Avatar
    Join Date
    Jan 2006
    Location
    Brazil
    Posts
    1,376

    Re: Virtual Dub: Unable to decompress avc1 file format

    Quote Originally Posted by s_joy09 View Post
    First of all I'd like to make it clear to all of you masters that I've never used Avidemux [ just because the saved file is not a video file and can only be played with Avidemux].

    I need a lesson on using this program that so many say's to be very usefull, but for now after google' ing I was able to cut a clip from the video and that is what I'm up loading.

    Here I should inform you all that while trying to load the video to cut a clip, Avidemix informed me that the video has used B frame ?! and it could use a certain method. At this point I ignored the suggestion first and Avidemux crashed. Later after accepting the suggestion I was able to cut the clip. Thou I don't know why there is no audio in the clip.!?

    So here goes..

    Thanks!

    At first I wasn't able to upload the attachment as I didn't know the file format of Avidemux. Then I tried using .avs extension while saving the clip and that was my first uploaded attachment. The idea of using the .mp4 extension while saving the clip came after that.
    Strange...In Videolan I got normal video but no sound. In WMP I got slagged sound but no video. In VD I got nothing, plugin or AVS (audio + video). In MPC same to VD.

    I will install CoreAVC to test, Back in minutes.


    Claudio
    Quote Quote

  17. #17
    Member
    Join Date
    Nov 2002
    Location
    United States
    Posts
    3,227

    Re: Virtual Dub: Unable to decompress avc1 file format

    MediaInfo is showing this file as an AVI with AVC/AAC. Using Avidemux in copy mode, I can save to MP4 or MKV and the video plays but the audio is corrupt. Everything I've tried to demux the audio and video crashes. I was able to get the video with Yamb but nothing could read it and it did not see the audio at all. I was able to get the audio with GDSMUX but it was corrupt. It crashed while trying to get the video.

    Goldwave shows the audio but nothing is there. Audacity can't open the file. Nero Wave Editor can't open the file. DBpoweramp crashes with a corrupt audio message.
    Quote Quote

  18. #18
    Lone soldier Cauptain's Avatar
    Join Date
    Jan 2006
    Location
    Brazil
    Posts
    1,376

    Re: Virtual Dub: Unable to decompress avc1 file format

    CoreAVC + many players = No success.




    Claudio
    Last edited by Cauptain; 31st Mar 2011 at 15:49. Reason: You was posted the info...
    Quote Quote

  19. #19
    Member
    Join Date
    Mar 2008
    Location
    United States
    Posts
    7,617

    Re: Virtual Dub: Unable to decompress avc1 file format

    I've had good luck with ffvideosource and ffaudiosource. Especially with the multi-threaded version of ffms2.dll.
    Simple to use in AVIsynth script.

    If you want to force ac3 5.1 > stereo conversion on the fly use ffvideosource for video and directshowsource for audio.
    Set the mixer in FFDShow to 2/0/0 (regular stereo).

    Simple script looks like this:

    LoadPlugin("J:\ffmpegsource-2.15-mt\ffms2.dll")
    Audio = directshowsource("K:\k-temp\#other shows\Wonders of the Universe.mkv", video=no)
    Video = FFVideoSource("K:\k-temp\#other shows\Wonders of the Universe.mkv", track=-1, seekmode=0)
    Video = Video.ConvertToYV12

    Video = Video.BicubicResize(656,368,b=0,c=0.5)
    AudioDub(Video, Audio)
    Quote Quote

  20. #20
    Member
    Join Date
    Mar 2011
    Location
    Paris, France
    Posts
    618

    Re: Virtual Dub: Unable to decompress avc1 file format

    Hello

    I tried several of the plug-ins mentionned above to open an MP4 file (AVC1 + MP4A), but VirtualDub still says "MISSING CODEC (AVC1)".

    Here's the first 20 seconds of the file.

    VLC and ffplay.exe have no problem playing the whole file.


    I'm no video expert and would appreciate any idea about what other plug-in to try and edit the video (mainly keeping only some parts of it). I prefer VirtualDub to AviDemux.


    Thank you.
    Quote Quote

  21. #21
    DECEASED
    Join Date
    Jun 2009
    Location
    Heaven
    Posts
    5,142

    Re: Virtual Dub: Unable to decompress avc1 file format

    ^ yetanotherlogin, your sample.mp4 opens and plays fine under VirtualDub 1.9.11.

    Using fccHandler's Quicktime plugin ++ komisar's VfW codec r2245.
    Attached Thumbnails Click image for larger version

Name:	vdsample-mp4.png
Views:	24680
Size:	72.2 KB
ID:	20399

    Quote Quote

  22. #22
    Member
    Join Date
    Mar 2008
    Location
    United States
    Posts
    7,617

    Re: Virtual Dub: Unable to decompress avc1 file format

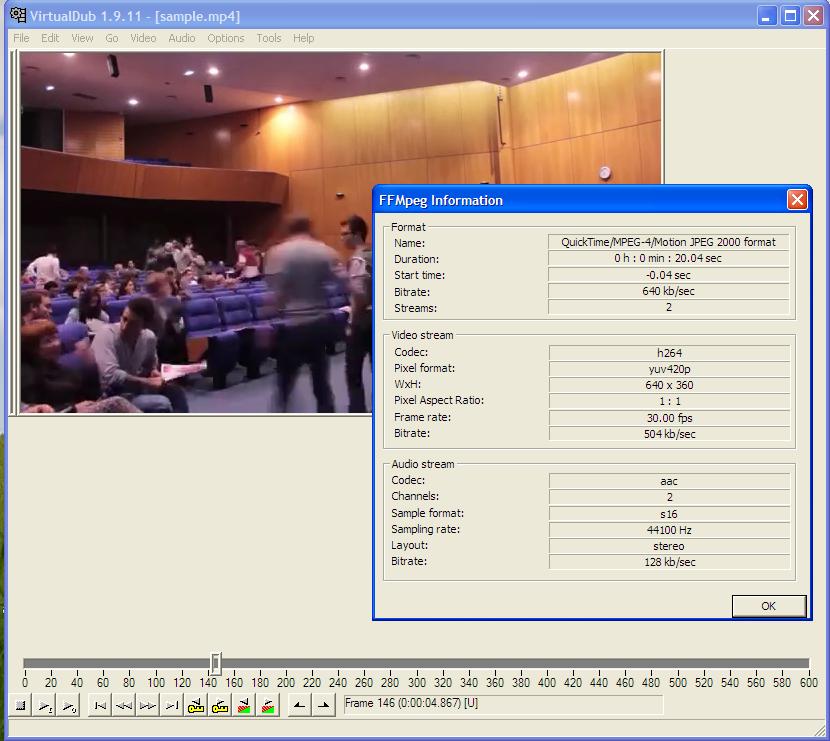

    Also works with the ffmpeg input plugin.
    Attached Thumbnails Click image for larger version

Name:	ff1.JPG
Views:	1545
Size:	88.0 KB
ID:	20401

    Quote Quote

  23. #23
    Member Budman1's Avatar
    Join Date
    Jul 2012
    Location
    NORTHWEST ILLINOIS, USA
    Posts
    1,463

    Re: Virtual Dub: Unable to decompress avc1 file format

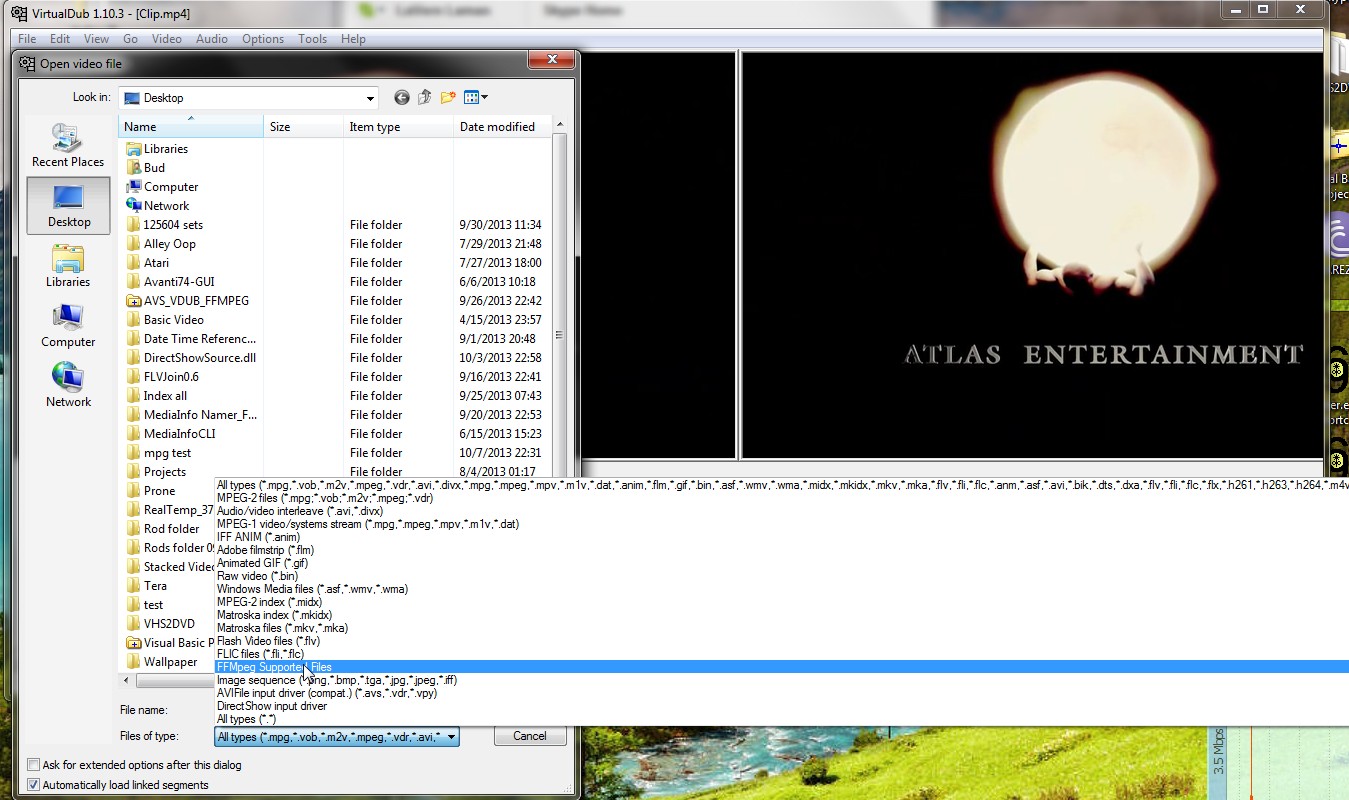

    Yes, I concur, it works also with the ffmpeg plugin. Don't forget to select it in file open dialog as type. Also I am using the FFDshow VFW
    plugin for H264 AVC;
    Click image for larger version

Name:	ScreenHunter_34 Oct. 07 23.47.jpg
Views:	4987
Size:	213.0 KB
ID:	20403
    Quote Quote

  24. #24
    Member
    Join Date
    Mar 2011
    Location
    Paris, France
    Posts
    618

    Re: Virtual Dub: Unable to decompress avc1 file format

    Thanks for the info. I'm confused about what plug-in I need to edit that video:


    fccHandler's Quicktime plugin
    komisar's VfW codec r2245
    ffmpeg plugin
    FFDshow VFW plugin
    Quote Quote

  25. #25
    Member Budman1's Avatar
    Join Date
    Jul 2012
    Location
    NORTHWEST ILLINOIS, USA
    Posts
    1,463

    Re: Virtual Dub: Unable to decompress avc1 file format

    My system uses ffdshow where I turn on avc1 codec in VFW (ThATS VFW codecs NOT video codecs) and in Virtualdub use the ffmpeg plugin (in virtualdub/plugins32 folder) .
    Select file open and select type drop down ffmpeg. It loads fine.
    Quote Quote

  26. #26
    Member
    Join Date
    Mar 2011
    Location
    Paris, France
    Posts
    618

    Re: Virtual Dub: Unable to decompress avc1 file format

    Thanks. I downloaded ffdshow, checked its VfW Configuration option and simply clicked on OK.

    Is the VirtualDub plugin part of this set? http://ffmpeg.zeranoe.com/builds/


    Code:
    Directory of c:\ffmpeg-20131006-git-ee3d03b-win32-shared\bin


    07/10/2013  00:07        15,624,704 avcodec-55.dll
    07/10/2013  00:07         1,180,160 avdevice-55.dll
    07/10/2013  00:07         1,928,192 avfilter-3.dll
    07/10/2013  00:07         5,104,640 avformat-55.dll
    07/10/2013  00:07           399,872 avutil-52.dll
    07/10/2013  00:07           293,376 ffmpeg.exe
    07/10/2013  00:07           463,360 ffplay.exe
    07/10/2013  00:07           136,192 ffprobe.exe
    07/10/2013  00:07           120,320 postproc-52.dll
    07/10/2013  00:07           270,848 swresample-0.dll
    07/10/2013  00:07           368,128 swscale-2.dll
    Quote Quote

  27. #27
    Quote Quote

  28. #28
    Member
    Join Date
    Mar 2011
    Location
    Paris, France
    Posts
    618

    Re: Virtual Dub: Unable to decompress avc1 file format

    Thanks. I simply downloaded ffinputdriver-bin-0.7-32.zip into VD's \Plugins32 and the file opens.

    What are fcchandler's files for? Neither MP4 nor AVC1 are mentioned in the list.
    Quote Quote

  29. #29
    DECEASED
    Join Date
    Jun 2009
    Location
    Heaven
    Posts
    5,142

    Re: Virtual Dub: Unable to decompress avc1 file format

    Quote Originally Posted by yetanotherlogin View Post
    What are fcchandler's files for? Neither MP4 nor AVC1 are mentioned in the list.
    Quote Originally Posted by El Heggunte View Post
    Using fccHandler's Quicktime plugin ++ komisar's VfW codec r2245.

    yetanotherlogin
    Quote Quote

  30. #30
    Member
    Join Date
    Mar 2011
    Location
    Paris, France
    Posts
    618

    Re: Virtual Dub: Unable to decompress avc1 file format

    I still don't understand what all those files are and when they're needed, but it's OK now that MP4 file opens in VirtualDub just using FFInputDriver.vdplugin and its DLLs.

    The left window is green when stopping the video, but it doesn't prevent me from slicing the video.


    Thank you.
    Quote Quote

+ Reply to Thread

Similar Threads

  1. Virtual Dub say's No audio decompressor to decompress source audio
    By s_joy09 in forum Newbie / General discussions
    Replies: 10
    Last Post: 25th Dec 2011, 14:03
  2. How do I get the exact file size I want with Virtual Dub ?
    By Simmons in forum Video Conversion
    Replies: 3
    Last Post: 21st Jul 2011, 01:32
  3. Replies: 2
    Last Post: 17th Jan 2011, 09:37
  4. Replies: 21
    Last Post: 16th Dec 2010, 10:29
  5. how to batch file in virtual dub?
    By warlock110 in forum Video Conversion
    Replies: 2
    Last Post: 17th May 2007, 00:56

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
