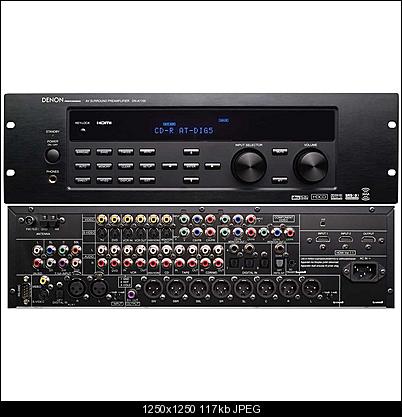

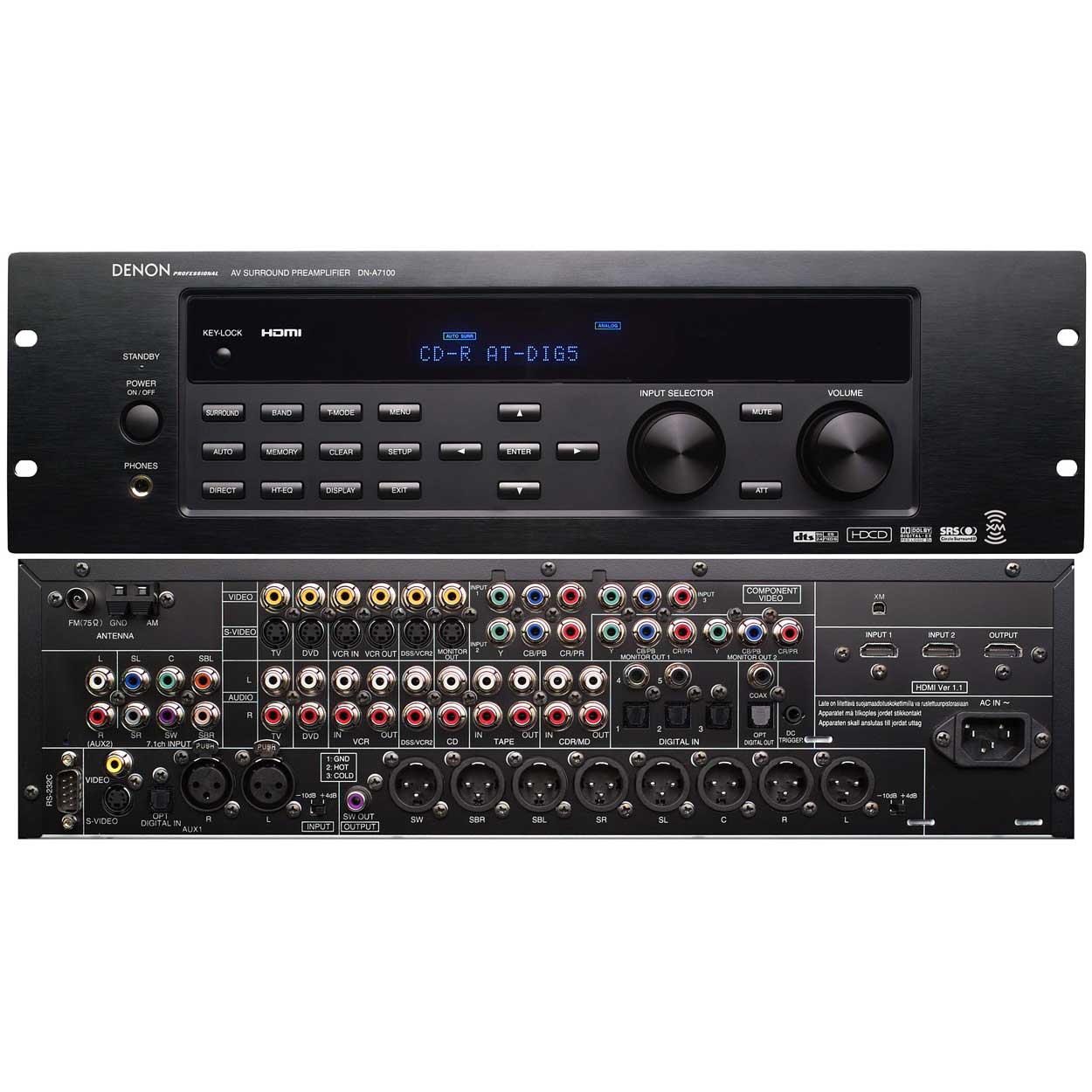

  1. Hi I need to hook a pair of speakers up to a Denon amplifier. The outputs on the back of the amp are:

    Click image for larger version

Name:	67426_l.jpg
Views:	985
Size:	117.3 KB
ID:	4822

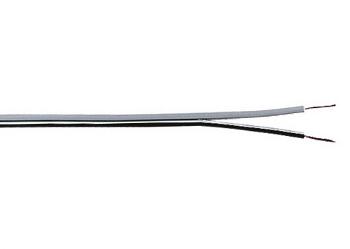

    And on the back of the speakers is just standard speaker wire:

    Name:  spk_wire.jpg
Views: 6105
Size:  2.7 KB

    As there are just RCA's etc on the back of the amp what adapter do I need, or how's best to hook them up?

    (Sorry for asking I just couldn't find an answer by googling 'rca to speaker wire')
    Quote Quote
  2. Member
    Join Date
    Jan 2007
    Location
    Republic of Texas
    Search Comp PM
    You do not list the country of your location. If it's the US, I'd say Radio Shack is your friend. Speaker wire configurations like this are just about as common as dirt. (Did nothing come with the amp itself?) You could even buy speaker wire with RCA connections on both ends and just cut off one connector and strip the wire a bit. Trust me, this ain't no biggie.
    Quote Quote
  3. I'm in the UK. I asked in Maplins and all they said they do is RCA's or speaker wire. I know it's no biggie but I thought that there would be a single wire readily available that would solve this for me.
    Last edited by flamy; 23rd Dec 2010 at 10:22.
    Quote Quote
  4. I've never seen XLR connectors for speakers before.

    http://en.wikipedia.org/wiki/XLR_connector

    It looks like you want to connect the two speaker wires to pins 2 and 3.

    http://www.bhphotovideo.com/c/product/134182-REG/Comprehensive_XLRJ_PJ_XLRJ_PJ_Female_RCA_to.html
    Last edited by jagabo; 23rd Dec 2010 at 10:50.
    Quote Quote
  5. Don't you mean pins 1 and 2? For positive and ground? I've found an XLR that had a 1/4" jack on the other end that I'm just stripping now..
    Quote Quote
  6. Technically, pin 1 is chassis ground, not signal ground (return). It's probably the same thing anyway.
    Quote Quote
  7. Member
    Join Date
    Dec 2006
    Location
    United States
    Search Comp PM
    A glance at the small print on the front panel of your unit reveals that this is a preamplifier/selector only. It is not intended to drive loudspeakers. You need to get a separate audio power amplifier.
    Quote Quote
  8. Member
    Join Date
    Jan 2007
    Location
    Republic of Texas
    Search Comp PM
    Holy cats -- when I posted earlier, I was responding to your "Speaker wire to RCA" thread title. After the comments of others, I actually took a closer look at the photo (zooming in on the back panel). Boardbuilder is correct. This appears to be a pro AV preamp/source selector. Do you have a manual for this thing? There is an Output label beside those XLR ports at the bottom. I wouldn't be arbitrarily hooking those up to any speakers just yet. Even if you made a proper connection, you need to consider the impedence range, or you could blow out your speakers.

    Better do some homework.
    Quote Quote
  9. Originally Posted by filmboss80 View Post
    Boardbuilder is correct. This appears to be a pro AV preamp/source selector.
    Yes, after looking closely at the front, I agree too: it's a preamp, not a power amp. That would explain the use of XLR connectors.

    Originally Posted by filmboss80 View Post
    Even if you made a proper connection, you need to consider the impedence range, or you could blow out your speakers.
    I think it's more likely he'd blow out the pre-amp. Though it's probably protected against that.
    Quote Quote
  10. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    Yes a pro level Pre-Amp with balanced 600 ohm XLR line level out. The advantage of the balanced 600ohm out is the cable runs to the power amp can be long (hundreds of feet). The manual should describe connections.

    If you have an existing 5.1 receiver/power amp, the preamp does have optical and coax S/PDIF output so you can run one cable instead of 6+ but this unit is intended to feed all the cables for best performance.

    Why did you buy this?
    Amazon sells them for $999.
    http://www.amazon.com/Denon-DN-A7100-Professional-Surround-Preamplifer/dp/B000Z8GUT2

    Here is a matching Denon power amp $429
    http://www.amazon.com/Denon-Professional-Integrated-Amplifier/dp/B001DFQMFI/ref=pd_sim_sbs_e_4
    Last edited by edDV; 23rd Dec 2010 at 20:09.
    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
    Quote Quote
  11. Originally Posted by edDV View Post
    And you'll need three of them.
    Quote Quote
  12. Yes it's just an av preamp not a power amp, I have powered speakers just needed to run an output from the above amp to them.. thanks for all your help
    Quote Quote
  13. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    Originally Posted by flamy View Post
    Yes it's just an av preamp not a power amp, I have powered speakers just needed to run an output from the above amp to them.. thanks for all your help
    If just a stereo pair, run them off "Tape Out" or "VCR Out" or "CDR/MD Out".

    If 5.1 speakers, run them off S/PDIF.
