  1. Hi all!

    I have an annoying problem with my dvd burner. I use only Verbatim DVDs and my writer is only 1,5 years old (not used much), but it just doesn't want to burn. The strange symptom for me is, that it reads everything properly, but cannot burn.
    Here I copy my Nero log:

    NT-SPTI used
    Nero Version: 8.0.3.0
    Internal Version: 8, 0, 3, 0
    (Nero Express)
    Recorder: <HL-DT-ST DVDRAM GSA-T50N>Version: RP05 - HA 1 TA 0 - 8.0.3.0
    Adapter driver: <IDE> HA 1
    Drive buffer : 2048kB
    Bus Type : default
    CD-ROM: <HL-DT-ST DVDRAM GSA-T50N >Version: RP05 - HA 1 TA 0 - 8.0.3.0
    Adapter driver: <IDE> HA 1

    === Scsi-Device-Map ===
    CdRomPeripheral : LOXGD 1U7SDEZ4XUR 1.03 a08gg7u1 Port 4 ID 0 DMA: Off

    === CDRom-Device-Map ===
    HL-DT-ST DVDRAM GSA-T50N E: CdRom0
    LOXGD 1U7SDEZ4XUR F: CdRom1
    =======================

    AutoRun : 1
    Excluded drive IDs:
    WriteBufferSize: 83886080 (0) Byte
    BUFE : 0
    Physical memory : 2047MB (2097151kB)
    Free physical memory: 2047MB (2097151kB)
    Memory in use : 30
    Uncached PFiles: 0x0
    Use Inquiry : 1
    Global Bus Type: default (0)
    Check supported media : Disabled (0)

    4.10.2010
    DVD-kép írása
    18:50:37 #1 Text 0 File SCSIPTICommands.cpp, Line 424
    LockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL

    18:50:38 #2 Text 0 File Burncd.cpp, Line 3520
    Turn on Disc-At-Once, using DVD media

    18:50:39 #3 Text 0 File DlgWaitCD.cpp, Line 307
    Last possible write address on media: 2295103 (510:01.28, 4482MB)
    Last address to be written: 1475007 (327:46.57, 2880MB)

    18:50:39 #4 Text 0 File DlgWaitCD.cpp, Line 319
    Write in overburning mode: NO (enabled: CD)

    18:50:39 #5 Text 0 File DlgWaitCD.cpp, Line 2972
    Recorder: HL-DT-ST DVDRAM GSA-T50N, Media type: DVD+RW
    Disc Manufacturer ID: RITEK, Media Type ID: 004, Product revision number: 48
    Disc Application Code: 0, Extended Information Indicators: 1

    18:50:39 #6 Text 0 File DlgWaitCD.cpp, Line 493
    >>> Protocol of DlgWaitCD activities: <<<
    =========================================

    18:50:39 #7 Text 0 File ThreadedTransferInterface.cpp, Line 795
    Setup items (after recorder preparation)
    0: TRM_DATA_MODE1 (2 - CD-ROM Mode 1, ISO 9660)
    2 indices, index0 (150) not provided
    original disc pos #0 + 1475008 (1475008) = #1475008/327:46.58
    not relocatable, disc pos for caching/writing not required/not required
    -> TRM_DATA_MODE1, 2048, config 0, wanted index0 0 blocks, length 1475008 blocks [E: HL-DT-ST DVDRAM GSA-T50N]
    --------------------------------------------------------------

    18:50:39 #8 Text 0 File ThreadedTransferInterface.cpp, Line 997
    Prepare [E: HL-DT-ST DVDRAM GSA-T50N] for write in CUE-sheet-DAO
    DAO infos:
    ==========
    MCN: ""
    TOCType: 0x00; Session Closed, disc fixated
    Tracks 1 to 1: Idx 0 Idx 1 Next Trk
    1: TRM_DATA_MODE1, 2048/0x00, FilePos 0 0 3020816384, ISRC ""
    DAO layout:
    ===========
    ___Start_|____Track_|_Idx_|_CtrlAdr_|_____Size_|__ ____NWA_|_RecDep__________
    0 | lead-in | 0 | 0x41 | 0 | 0 | 0x00
    0 | 1 | 0 | 0x41 | 0 | 0 | 0x00
    0 | 1 | 1 | 0x41 | 1475008 | 1475008 | 0x00
    1475008 | lead-out | 1 | 0x41 | 0 | 0 | 0x00

    18:50:39 #9 Text 0 File SCSIPTICommands.cpp, Line 215
    SPTILockVolume - completed successfully for FSCTL_LOCK_VOLUME

    18:50:39 #10 Text 0 File Burncd.cpp, Line 4306
    Caching options: cache CDRom or Network-Yes, small files-Yes (<64KB)

    18:50:39 #11 Phase 24 File dlgbrnst.cpp, Line 1762
    Caching of files started

    18:50:39 #12 Text 0 File Burncd.cpp, Line 4425
    Cache writing successful.

    18:50:39 #13 Phase 25 File dlgbrnst.cpp, Line 1762
    Caching of files completed

    18:50:39 #14 Phase 36 File dlgbrnst.cpp, Line 1762
    Burn process started at 4x (5 540 KB/s)

    18:50:39 #15 Text 0 File ThreadedTransferInterface.cpp, Line 2723
    Verifying disc position of item 0 (not relocatable, no disc pos, no patch infos, orig at #0): write at #0

    18:50:39 #16 Text 0 File Cdrdrv.cpp, Line 9918
    ---- Disc Structure: Physical Format Information (00h) ----
    Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
    Book Type: DVD+RW (9), Part Version: 1.1x (2)
    Disc Size: 120 mm, Maximum Rate: <not specified> (F h)
    Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: re-writable
    Linear Density: 0,267 um/bit, Track Density: 0,74 um/track
    Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW)
    End Sector Number in Layer 0: 0 h (LBN: FFFD0000 h, 4193920 MB)
    Data in Burst Cutting Area (BCA) does not exist
    Disc Application Code: 0 / 0 h
    Extended Information indicators: 1 h
    Disc Manufacturer ID: RITEK...
    Media type ID: 004
    Product revision number: 48
    Number of Physical format information bytes in use in ADIP up to byte 63: 57
    Media Specific [16..63]:
    00 00 01 52 49 54 45 4B - 00 00 00 30 30 34 30 39 ...RITEK...00409
    23 00 9C 81 5C 02 28 00 - 96 8A 70 02 28 00 9C 81 #...\.(...p.(...
    68 02 28 04 04 20 E0 00 - F0 00 00 00 00 00 00 00 h.(.............

    18:50:39 #17 Text 0 File DVDPlusRW.cpp, Line 675
    Start write address at LBA 0
    DVD high compatibility mode: Yes

    18:50:39 #18 Text 0 File ThreadedTransfer.cpp, Line 269
    Pipe memory size 83836800

    18:50:49 #19 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x5C 00 00 00 00 00 00 00 0C 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x0501e480: Len xc

    18:50:51 #20 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x5C 00 00 00 00 00 00 00 0C 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x0501e480: Len xc

    18:50:54 #21 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x5C 00 00 00 00 00 00 00 0C 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x0501e480: Len xc

    18:50:56 #22 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x5C 00 00 00 00 00 00 00 0C 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x0501e480: Len xc

    18:50:59 #23 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x5C 00 00 00 00 00 00 00 0C 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x0501e480: Len xc

    18:51:01 #24 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x5C 00 00 00 00 00 00 00 0C 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x0501e480: Len xc

    18:51:04 #25 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x5C 00 00 00 00 00 00 00 0C 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x0501e480: Len xc

    18:51:06 #26 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x5C 00 00 00 00 00 00 00 0C 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x0501e480: Len xc

    18:51:09 #27 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x5C 00 00 00 00 00 00 00 0C 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x0501e480: Len xc

    18:51:12 #28 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x5C 00 00 00 00 00 00 00 0C 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x0501e480: Len xc

    18:51:14 #29 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x2A 00 00 00 01 60 00 00 20 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x19160300: Len x10000
    0x00 19 08 00 01 00 08 25 21 20 83 00 08 00 82 8C
    0x80 10 02 00 21 10 02 02 08 00 82 AC 14 00 E3 8C
    0x2A 18 03 01 F6 FF 60 54 18 00 E4 8C 70 A9 83 8F

    18:51:14 #30 CDR -1135 File Writer.cpp, Line 312
    Write error
    E: HL-DT-ST DVDRAM GSA-T50N

    18:51:14 #31 SPTI -1135 File SCSIPassThrough.cpp, Line 181
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    Sense Code: 0x0C
    Sense Qual: 0x00
    CDB Data: 0x51 00 00 00 00 00 00 00 20 00 00 00
    Sense Area: 0x71 00 03 00 00 00 00 0A 35 2D 03 0F 0C
    Buffer x05038580: Len x20

    18:51:14 #32 Text 0 File DVDPlusRW.cpp, Line 935
    EndDAO: Last written address 352

    18:51:14 #33 Phase 38 File dlgbrnst.cpp, Line 1762
    Burn process failed at 4x (5 540 KB/s)

    18:51:15 #34 Text 0 File SCSIPTICommands.cpp, Line 261
    SPTIDismountVolume - completed successfully for FSCTL_DISMOUNT_VOLUME

    18:51:17 #35 Text 0 File Cdrdrv.cpp, Line 11159
    DriveLocker: UnLockVolume completed

    18:51:17 #36 Text 0 File SCSIPTICommands.cpp, Line 424
    UnLockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL


    Existing drivers:

    Registry Keys:
    HKLM\Software\Microsoft\Windows NT\CurrentVersion\WinLogon
    ====== *** Nero Burning ROM, History File *** ======

    Should I buy a new writer (lens problem) or it's something else (firmware upgrade...etc.)?!?!?! Help me please!
    Quote Quote
  2. Mod Neophyte redwudz's Avatar
    Join Date
    Sep 2002
    Location
    USA
    Search Comp PM
    CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1135)
    Sense Key: 0x03 (KEY_MEDIUM_ERROR)
    You've got a DVD medium error. Try a different brand of disc. For some reason your burner doesn't seem to want to recognize the Ritek/Verbatim? discs. I would also use ImgBurn as it is much more dependable for DVD burning than Nero.

    But be aware that DVD burners use different lasers for CD and DVD burning and playback. The DVD burning part of the laser usually dies first, though it may still work for playback as that requires lower power. If the burning laser is dying, you usually would get a power calibration error. Power calibration is done before each burn in a special area near the inside of the disc to set the power level of the burn for that disc. Odd that a fairly new burner would have a bad laser, but not unheard of.

    EDIT: I have created a new thread for you. Please don't hijack others threads unless you are replying to the OPs question.

    And welcome to our forums.

    EDIT:EDIT: Corrected information about DVD lasers.
    Last edited by redwudz; 9th Oct 2010 at 20:27.
    Quote Quote
  3. Member
    Join Date
    Feb 2004
    Location
    Australia
    Search Comp PM
    Note:

    There is only ONE laser period ... it is controlled by two diodes which supply two different voltages to the circuitry which enable it to determine between cd or dvd media , given they use different light frequencies.

    ====

    Burning faults where media may be ruled as last possibility.

    A: Check the data cable between the unit and motherboard ... use a new one and beware if using 80pin ide cables ... they can only be fitted in one direction ... unlike the old 40pin cables ... cables can wear out.

    B: Outdated firmware ... update , reboot , then try burning again.

    C: A defective drive ... they do occur once in a while.
    Quote Quote
  4. Thank you for your answer.

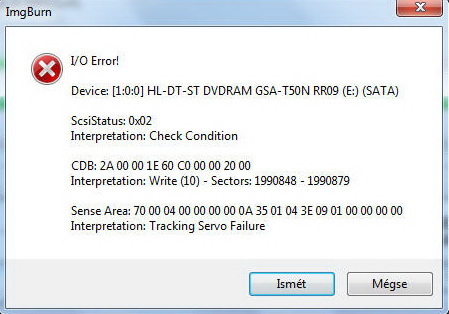

    I've upgraded my driver firmware, and tried to write a Verbatim DVD+R DL with ImgBurn, but I got an error message too.

    Click image for larger version

Name:	Snap2.jpg
Views:	4178
Size:	47.8 KB
ID:	3784

    And my log file is:

    I 18:19:31 ImgBurn Version 2.5.1.0 started!
    I 18:19:31 Microsoft Windows 7 Ultimate Edition (6.1, Build 7600)
    I 18:19:32 Total Physical Memory: 3 140 468 KB - Available: 2 131 228 KB
    I 18:19:32 Initialising SPTI...
    I 18:19:32 Searching for SCSI / ATAPI devices...
    I 18:19:32 -> Drive 1 - Info: HL-DT-ST DVDRAM GSA-T50N RR09 (E (SATA)
    I 18:19:32 Found 1 DVD±RW/RAM!
    I 18:28:00 Operation Started!
    I 18:28:00 Source File: C:\!!mytemp\sr-mw2a.iso
    I 18:28:00 Source File Sectors: 4 126 018 (MODE1/2048)
    I 18:28:00 Source File Size: 8 450 084 864 bytes
    I 18:28:00 Source File Volume Identifier: Disk_1
    I 18:28:00 Source File Application Identifier: UltraISO V9.3 CD & DVD Creator, (c) EZB Systems, Inc.
    I 18:28:00 Source File Implementation Identifier: ULTRAISO v9.3.5.2716
    I 18:28:00 Source File File System(s): ISO9660; Joliet
    I 18:28:00 Destination Device: [1:0:0] HL-DT-ST DVDRAM GSA-T50N RR09 (E (SATA)
    I 18:28:00 Destination Media Type: DVD+R DL (Disc ID: MKM-003-00) (Speeds: 2,4x; 4x; 6x)
    I 18:28:00 Destination Media Sectors: 4 173 824
    I 18:28:00 Write Mode: DVD
    I 18:28:00 Write Type: DAO
    I 18:28:00 Write Speed: 2,4x
    I 18:28:00 Link Size: Auto
    I 18:28:00 Lock Volume: Yes
    I 18:28:00 Test Mode: No
    I 18:28:00 OPC: No
    I 18:28:00 BURN-Proof: Enabled
    I 18:28:00 Write Speed Successfully Set! - Effective: 3 324 KB/s (2,4x)
    I 18:28:00 Book Type Setting: N/A
    I 18:28:00 Optimal L0 Data Zone Capacity: 2 063 024
    I 18:28:00 Optimal L0 Data Zone Method: ECC Block Boundary
    I 18:29:10 Set L0 Data Zone Capacity Succeeded!
    I 18:29:11 Filling Buffer... (40 MB)
    I 18:29:12 Writing LeadIn...
    I 18:29:17 Writing Session 1 of 1... (1 Track, LBA: 0 - 4126017)
    I 18:29:17 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 4126017)
    I 18:29:17 Writing Layer 0... (LBA: 0 - 2063023)
    W 18:49:53 Failed to Write Sectors 1990848 - 1990879 - Reason: Tracking Servo Failure
    W 18:49:53 Retrying (1 of 20)...
    W 18:49:53 Retry Failed - Reason: Tracking Servo Failure
    W 18:49:53 Retrying (2 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (3 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (4 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (5 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (6 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (7 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (8 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (9 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (10 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (11 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (12 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (13 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (14 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (15 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (16 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (17 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (18 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (19 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (20 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:53:07 Retrying (21)...
    W 18:53:07 Retry Failed - Reason: Invalid Address For Write
    W 18:53:08 Retrying (22)...
    W 18:53:08 Retry Failed - Reason: Invalid Address For Write
    W 18:53:09 Retrying (23)...
    W 18:53:09 Retry Failed - Reason: Invalid Address For Write
    W 18:53:10 Retrying (24)...
    W 18:53:10 Retry Failed - Reason: Invalid Address For Write
    W 18:53:10 Retrying (25)...
    W 18:53:10 Retry Failed - Reason: Invalid Address For Write
    W 18:53:11 Retrying (26)...
    W 18:53:11 Retry Failed - Reason: Invalid Address For Write
    W 18:53:19 Retrying (27)...
    W 18:53:19 Retry Failed - Reason: Invalid Address For Write
    W 18:53:20 Retrying (28)...
    W 18:53:20 Retry Failed - Reason: Invalid Address For Write
    W 18:53:20 Retrying (29)...
    W 18:53:20 Retry Failed - Reason: Invalid Address For Write
    E 18:53:21 Failed to Write Sectors 1990848 - 1990879 - Reason: Tracking Servo Failure
    E 18:53:21 Next Writable Address: 1990320
    I 18:53:21 Synchronising Cache...
    I 18:53:38 Closing Track...
    I 18:53:39 Finalising Disc...
    W 18:54:04 Potential 'WaitImmediateIO' Deferred Error - (0%, 0/3) - Tracking Servo Failure
    W 18:54:04 Finalise Disc Failed! - Reason: Tracking Servo Failure
    W 18:54:04 Retrying (1 of 3)...
    E 18:54:05 Failed to Write Image!
    I 18:54:05 Exporting Graph Data...
    I 18:54:05 Graph Data File: C:\Users\Norbi\AppData\Roaming\ImgBurn\Graph Data Files\HL-DT-ST_DVDRAM_GSA-T50N_RR09_2010-OKTÓBER-9-_18-28_MKM-003-00_2,4x.ibg
    I 18:54:05 Export Successfully Completed!
    E 18:54:05 Operation Failed! - Duration: 00:26:04
    I 18:54:05 Average Write Rate: 2 759 KB/s (2.0x) - Maximum Write Rate: 3 376 KB/s (2.4x)

    What's the problem now??

    Thanks!
    Quote Quote
  5. Member
    Join Date
    Nov 2004
    Location
    Las Vegas
    Search Comp PM
    roomgrey,

    Out of curiosity, did that drive previously burn okay, or has it always had problems?

    The two logs have different errors, from burns with different media. The errors may, or may not be connected, but tend to indicate the drive isn't exactly robust in it's abilities.

    In the first log, as redwudz pointed out, the drive reported the problem was atapi error 030C00, which generally means a media error...in that case from the RITEK 004 disk.

    In the second log, the the drive reported the problem was atapi error 040901 (Tracking Servo Failure), which generally is the drive, itself.

    Upgrading the firmware would be the first thing to try, which you said you already did, and the drive does report that the firmware was updated from RP05 (in the first log) to RR09 (in the second log). If that's the newest firmware your computer manufacturer offers, that pretty much ends that course of action.

    The drive reports that it's current firmware has write strategies (for the media in the second log) for 2.4x, 4x, and 6x. Since you already failed at 2.4x, you could try burning at 4x and/or 6x, but that isn't all that likely to help.

    The only remaining path would be to burn with a different drive. You could have the current drive replaced, but I've never had much luck with those little slimline drives, so if it was me, I'd just get an external full size burner.
    Quote Quote
  6. Member
    Join Date
    Nov 2004
    Location
    Las Vegas
    Search Comp PM
    There is only ONE laser period ... it is controlled by two diodes which supply two different voltages to the circuitry...
    Generally, dvd burners use two separate laser diodes...one that emits light in the red (~650 nm) part of the spectrum for dvds, and one that emits light in the infrared (~780 nm) part of the spectrum for cds.

    Probably the best demonstration of that is the overabundance of morons on the web giving instructions on extracting the two (red and IR) laser diodes from dvd burners and using them in all manner of incredibly stupid and dangerous experiments.
    Quote Quote
  7. Member [_chef_]'s Avatar
    Join Date
    Nov 2002
    Location
    Germany
    Search Comp PM
    You should not ask for help with illegal obtained copyrighted material.............
    To be precise, "sr-mw2a.iso" is "Call.of.Duty.Modern.Warfare.2.PROPER-SKIDROW" ......


    As for:
    "Recorder: HL-DT-ST DVDRAM GSA-T50N, Media type: DVD+RW
    Disc Manufacturer ID: RITEK, Media Type ID: 004, Product revision number: 48"
    Your drive doesnt recognize that Ritek 004 media properly, "DVD+RW" media is no good choice with such drives...



    Originally Posted by roomgrey View Post
    Thank you for your answer.

    I've upgraded my driver firmware, and tried to write a Verbatim DVD+R DL with ImgBurn, but I got an error message too.

    [Attachment 3784 - Click to enlarge]


    And my log file is:

    I 18:19:31 ImgBurn Version 2.5.1.0 started!
    I 18:19:31 Microsoft Windows 7 Ultimate Edition (6.1, Build 7600)
    I 18:19:32 Total Physical Memory: 3 140 468 KB - Available: 2 131 228 KB
    I 18:19:32 Initialising SPTI...
    I 18:19:32 Searching for SCSI / ATAPI devices...
    I 18:19:32 -> Drive 1 - Info: HL-DT-ST DVDRAM GSA-T50N RR09 (E (SATA)
    I 18:19:32 Found 1 DVD±RW/RAM!
    I 18:28:00 Operation Started!
    I 18:28:00 Source File: C:\!!mytemp\sr-mw2a.iso
    I 18:28:00 Source File Sectors: 4 126 018 (MODE1/2048)
    I 18:28:00 Source File Size: 8 450 084 864 bytes
    I 18:28:00 Source File Volume Identifier: Disk_1
    I 18:28:00 Source File Application Identifier: UltraISO V9.3 CD & DVD Creator, (c) EZB Systems, Inc.
    I 18:28:00 Source File Implementation Identifier: ULTRAISO v9.3.5.2716
    I 18:28:00 Source File File System(s): ISO9660; Joliet
    I 18:28:00 Destination Device: [1:0:0] HL-DT-ST DVDRAM GSA-T50N RR09 (E (SATA)
    I 18:28:00 Destination Media Type: DVD+R DL (Disc ID: MKM-003-00) (Speeds: 2,4x; 4x; 6x)
    I 18:28:00 Destination Media Sectors: 4 173 824
    I 18:28:00 Write Mode: DVD
    I 18:28:00 Write Type: DAO
    I 18:28:00 Write Speed: 2,4x
    I 18:28:00 Link Size: Auto
    I 18:28:00 Lock Volume: Yes
    I 18:28:00 Test Mode: No
    I 18:28:00 OPC: No
    I 18:28:00 BURN-Proof: Enabled
    I 18:28:00 Write Speed Successfully Set! - Effective: 3 324 KB/s (2,4x)
    I 18:28:00 Book Type Setting: N/A
    I 18:28:00 Optimal L0 Data Zone Capacity: 2 063 024
    I 18:28:00 Optimal L0 Data Zone Method: ECC Block Boundary
    I 18:29:10 Set L0 Data Zone Capacity Succeeded!
    I 18:29:11 Filling Buffer... (40 MB)
    I 18:29:12 Writing LeadIn...
    I 18:29:17 Writing Session 1 of 1... (1 Track, LBA: 0 - 4126017)
    I 18:29:17 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 4126017)
    I 18:29:17 Writing Layer 0... (LBA: 0 - 2063023)
    W 18:49:53 Failed to Write Sectors 1990848 - 1990879 - Reason: Tracking Servo Failure
    W 18:49:53 Retrying (1 of 20)...
    W 18:49:53 Retry Failed - Reason: Tracking Servo Failure
    W 18:49:53 Retrying (2 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (3 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (4 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (5 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (6 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (7 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (8 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (9 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (10 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (11 of 20)...
    W 18:49:53 Retry Failed - Reason: Invalid Address For Write
    W 18:49:53 Retrying (12 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (13 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (14 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (15 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (16 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (17 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (18 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (19 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:49:54 Retrying (20 of 20)...
    W 18:49:54 Retry Failed - Reason: Invalid Address For Write
    W 18:53:07 Retrying (21)...
    W 18:53:07 Retry Failed - Reason: Invalid Address For Write
    W 18:53:08 Retrying (22)...
    W 18:53:08 Retry Failed - Reason: Invalid Address For Write
    W 18:53:09 Retrying (23)...
    W 18:53:09 Retry Failed - Reason: Invalid Address For Write
    W 18:53:10 Retrying (24)...
    W 18:53:10 Retry Failed - Reason: Invalid Address For Write
    W 18:53:10 Retrying (25)...
    W 18:53:10 Retry Failed - Reason: Invalid Address For Write
    W 18:53:11 Retrying (26)...
    W 18:53:11 Retry Failed - Reason: Invalid Address For Write
    W 18:53:19 Retrying (27)...
    W 18:53:19 Retry Failed - Reason: Invalid Address For Write
    W 18:53:20 Retrying (28)...
    W 18:53:20 Retry Failed - Reason: Invalid Address For Write
    W 18:53:20 Retrying (29)...
    W 18:53:20 Retry Failed - Reason: Invalid Address For Write
    E 18:53:21 Failed to Write Sectors 1990848 - 1990879 - Reason: Tracking Servo Failure
    E 18:53:21 Next Writable Address: 1990320
    I 18:53:21 Synchronising Cache...
    I 18:53:38 Closing Track...
    I 18:53:39 Finalising Disc...
    W 18:54:04 Potential 'WaitImmediateIO' Deferred Error - (0%, 0/3) - Tracking Servo Failure
    W 18:54:04 Finalise Disc Failed! - Reason: Tracking Servo Failure
    W 18:54:04 Retrying (1 of 3)...
    E 18:54:05 Failed to Write Image!
    I 18:54:05 Exporting Graph Data...
    I 18:54:05 Graph Data File: C:\Users\Norbi\AppData\Roaming\ImgBurn\Graph Data Files\HL-DT-ST_DVDRAM_GSA-T50N_RR09_2010-OKTÓBER-9-_18-28_MKM-003-00_2,4x.ibg
    I 18:54:05 Export Successfully Completed!
    E 18:54:05 Operation Failed! - Duration: 00:26:04
    I 18:54:05 Average Write Rate: 2 759 KB/s (2.0x) - Maximum Write Rate: 3 376 KB/s (2.4x)

    What's the problem now??

    Thanks!
    Last edited by [_chef_]; 19th Oct 2010 at 13:48.
    *** Now that you have read me, do some other things. ***
    Quote Quote



Similar Threads

Visit our sponsor! Try DVDFab and backup Blu-rays!
