    I am capturing my VHS tapes using Dazzle 100 into mpeg-2 videos.

    When I play the videos .. only the left side has sound .. the right is completely silent/flat (checked with program).

    What can be the cause of this? And how can I fix it so both sides of the sound get captured?

    Thanks.
    Quote Quote
  2. Always Watching guns1inger's Avatar
    Join Date
    Apr 2004
    Location
    Miskatonic U
    Search Comp PM
    Does your VHS output stereo ?
    Are you using a two channel audio cable (usually white and red or black and red plugs) ?
    Read my blog here.
    Quote Quote

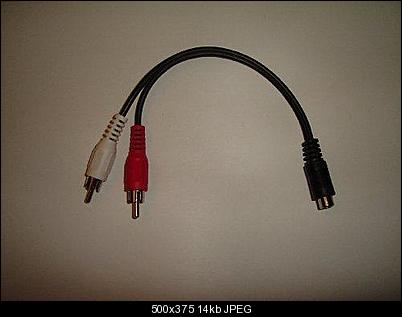

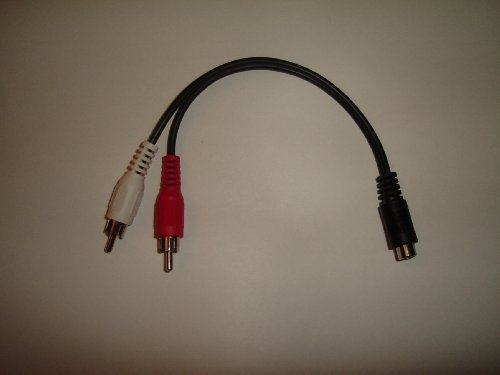

  3. Use a y-adapter to split the mono audio to both the left and right audio inputs on you capture device.
    Click image for larger version

Name:	adapt.jpg
Views:	314
Size:	13.8 KB
ID:	3638
    Quote Quote
  4. Member yic17's Avatar
    Join Date
    Oct 2005
    Location
    Los Angeles
    Search Comp PM
    my VHS player only has yellow and white - no red.

    so with that "y-adapter", I suppose I will plug the white into the black end and connect the white and red to my Dazzle?

    EDIT: I found one here, will this work? http://www.buy.com/prod/cables-to-go-value-series-audio-y-cable-mini-phone-female-ster...208181495.html

    btw, thanks for the replies =)
    Quote Quote
  5. Originally Posted by yic17 View Post
    my VHS player only has yellow and white - no red.

    so with that "y-adapter", I suppose I will plug the white into the black end and connect the white and red to my Dazzle?
    Yes.

    Originally Posted by yic17 View Post
    No, that one has a mini phone plug at the the single end. You need a female RCA plug.
    http://www.buy.com/prod/rca-ah201n-a-v-cable-6-splitter-cable-rca-female-audio-video-r.../90112006.html
    Quote Quote
  6. Member yic17's Avatar
    Join Date
    Oct 2005
    Location
    Los Angeles
    Search Comp PM
    okay, thanks for the info.
