Screen Capture for 30fps Playback

[Deluge]

I'm using CamStudio to capture my screen. I would like to capture it for somewhat smooth playback at 30fps, but mathematically my brain does not work.

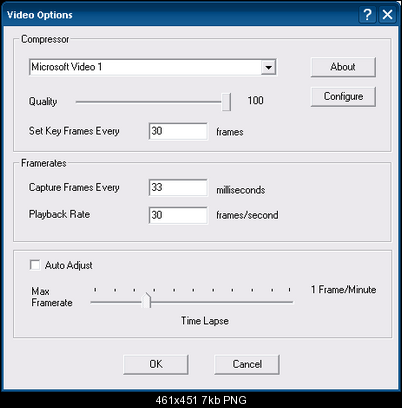

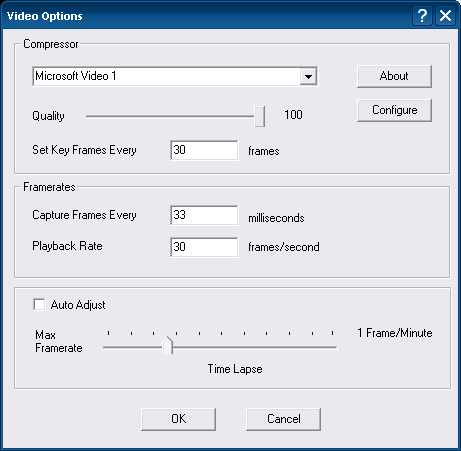

How often should it capture frames? "Capture Frames Every ??? milliseconds"

[jagabo]

30 fps = 33.333... milliseconds per frame (1000/30).

[Deluge]

Okay, that is what it set itself to if I used the "Auto Adjust", but it still looked a little choppy. I guess either my system is not fast enough for smooth capturing or it is an issue with CamStudio.

[jagabo]

30 fps is a little jerky or flickery to start with. But you may have another problem: what is the refresh rate your monitor is set at? If it's not an integer multiple of 30 you will have a problem with judder. For example, if you're running at 75 fps and capturing at 30 fps you will be capturing frames at unequal intervals -- there won't be equal motion between frames. This will introduce a judder on top of the inherent jerkiness of 30 fps.

And, yes, your system may not be fast enough to capture 30 fps smoothly. Try using a lower resolution or capture only a portion of the screen -- at least as a test.

[El Heggunte]

And please, capture with a fast lossless codec, such as Camstudio 1.0 .

Only later you should worry about choosing the "best" lossy codec for your video

("Microsoft Video 1" is definitely a big no-no).
