Used Deshaker on a footage, but bad result. Please help.

[namphong0612]

Hello everyone,

I have a footage of a live stage show, and it is quite shaky.
I tried to use Deshaker to fix it, but the result was just... as shaky.
Not sure what's wrong with it, here's the settings I used:

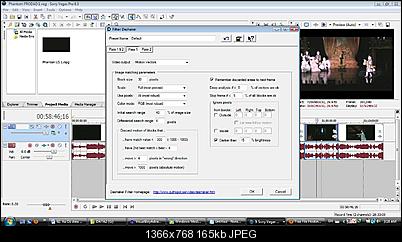

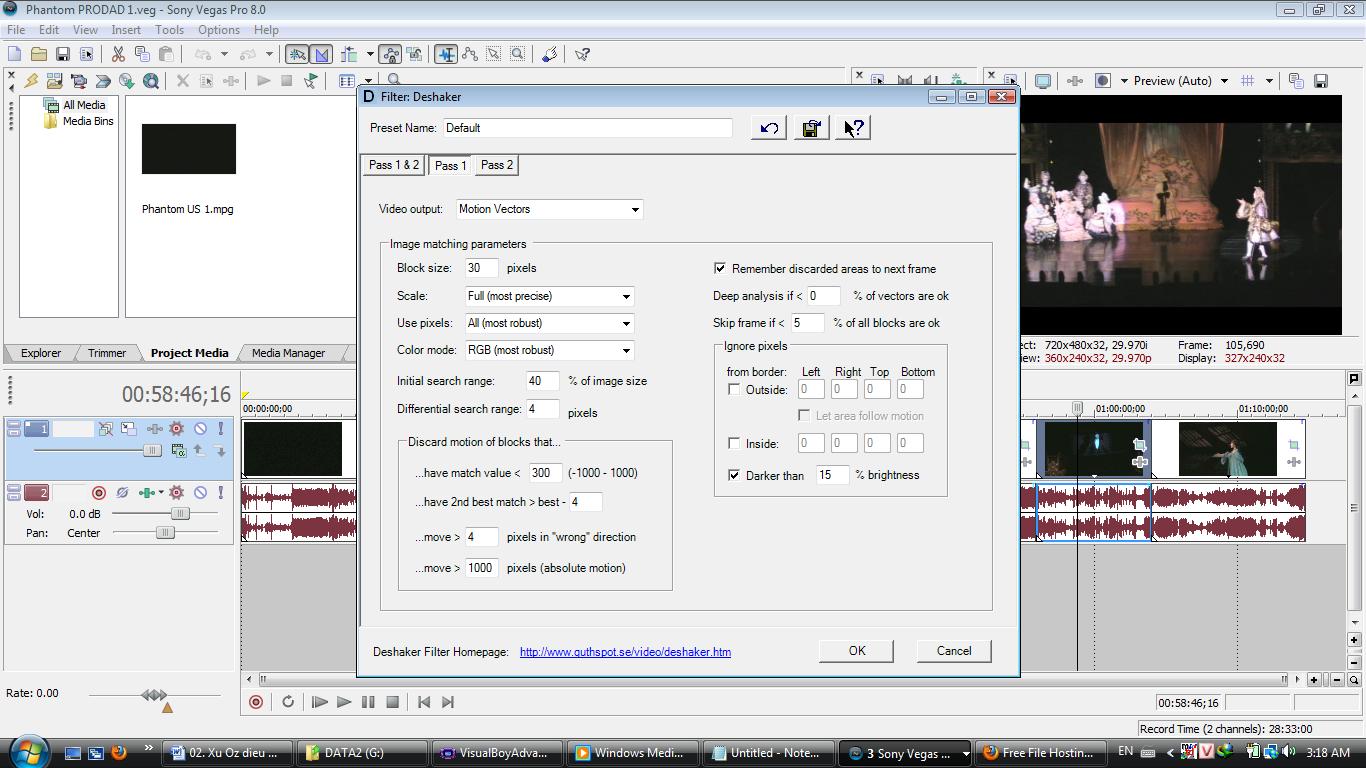

*PASS 1

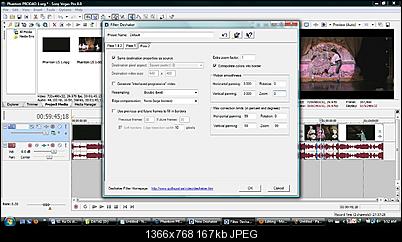

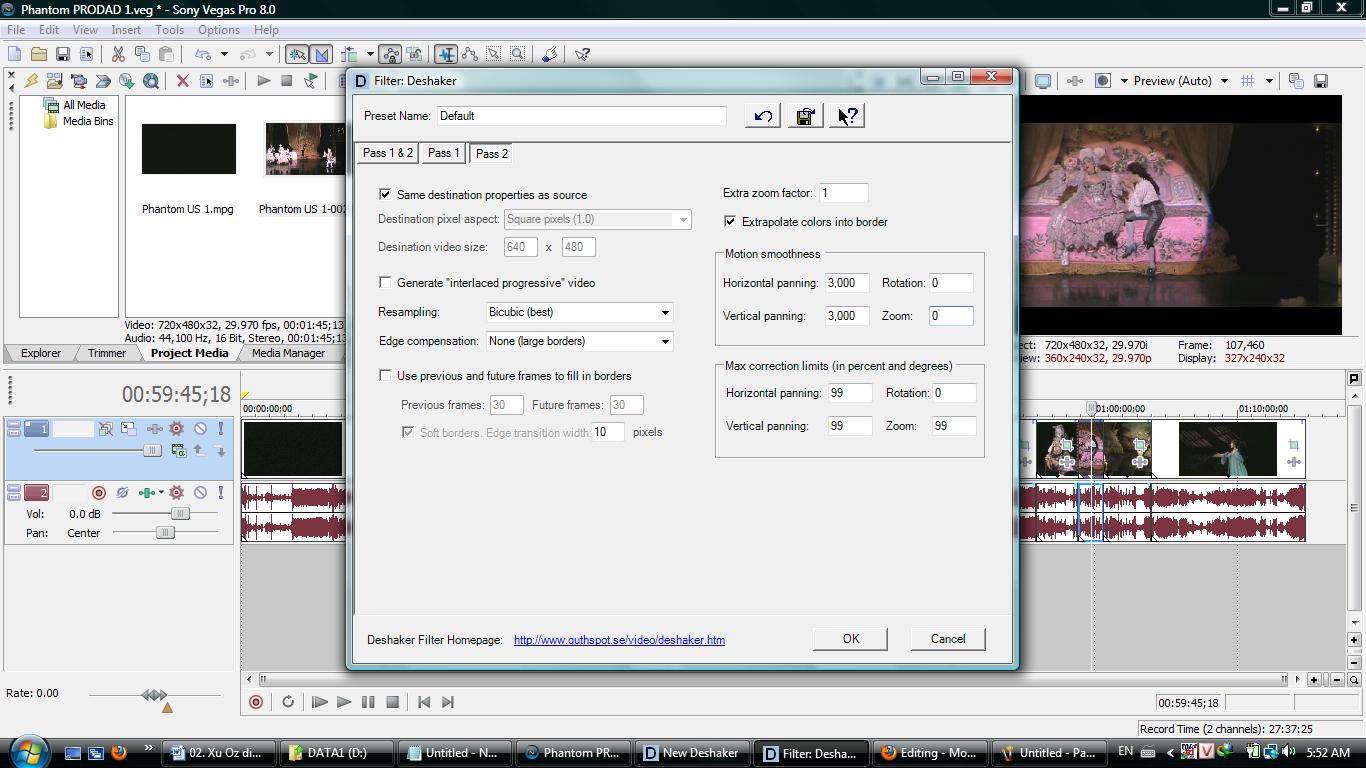

*PASS 2


And below, I have uploaded the sample clips:

- Before:
http://www.mediafire.com/file/pgn72fqlr7esnpq/Il%20Muto%20original.mpg
- After:
http://www.mediafire.com/file/sq5nbra5xhox3aw/Il%20Muto%20deshake.mpg

I usually use Sony Vegas to do some simple edit, and luckily I've found a script to link Sony Vegas to Virtual Dub and Deshaker, so that everytime I want to deshake a clip, and I do it in Vegas.
But maybe it has nothing to do with here :P

I just want some advice from you (I'm just an amateur).
What is the best possible in this case to improve the stableness of the clip?
I have used Deshaker on other outdoor footage before, and I believe it can do better than this.
Have I done something wrong with the settings?

Any help would be greatly appreciated!

[poisondeathray]

I am by no means an expert on using deshaker, but there 2 things that I am 100% sure of:

1) deshaker works better with no black borders . You should crop the footage before inputing

2) deshaker works better with progressive footage. There's pros/cons to deinterlacing, deshaking, then re-interlacing, and the arguments for either side are fairly solid. I will say that if you use a good avisynth deinterlacer, you will get better results overall on most footage

You havent posted the other settings used pass 1&2 tab (interlaced, aspect ratio etc...)

Consider using the edge compensation modes , because your "deshaken" video has fairly ugly edges IMO. Deshaker's edge compensation is one of the big features that sets it apart from other stabilizers

There are a lot of tips on the author's homepage
http://www.guthspot.se/video/deshaker.htm

[pirej]

I never used deshaker, but avisynth could help.
Try this code, but maybe you should increase maxstabH/V and crop value's.

LoadPlugin(\\"C:\Program Files\AviSynth 2.5\plugins\DePan.dll\\")
LoadPlugin(\\"C:\Program Files\AviSynth 2.5\plugins\DePanEstimate.dll\\")
#v1=MPEG2Source(\\"C:\Desktop\stab test\Il Muto original.d2v\\", cpu=0)
V=MPEG2Source(\\"C:\Desktop\stab test\Il Muto original.d2v\\", cpu=0).AssumeBFF().SeparateFields()

#SIZE, CROP AND BORDERS PARAMETERS
#----------------------------------------------------------------------------------------------------------------------------
CLeft=6  CTop=4  CRight=4  CBottom=6  #crop values after Depan and before final resizing
W=720  H=240 #final size after cropping

#STABILISING PARAMETERS
#----------------------------------------------------------------------------------------------------------------------------
maxstabH=20
maxstabV=20 #maximum values for the stabiliser (in pixels), 20 is a good start value
est_left=20   est_top=20  est_right=20  est_bottom=20  est_cont=1.0  #crop and contast values for special Estimate clip
#--------------
source1= v
#STABILIZING
#....................................................................................................................................................................
stab_reference= source1.crop(est_left,est_top,-est_right,-est_bottom).tweak(cont=est_cont).MT_binarize(threshold=80).greyscale().invert()

mdata=DePanEstimate(stab_reference,trust=1.0,dxmax=maxstabH,dymax=maxstabV)
stab=DePanStabilize(source1,data=mdata,cutoff=0.5,dxmax=maxstabH,dymax=maxstabV,method=1,mirror=15)
stab2= stab.crop(CLeft,CTop,-CRight,-CBottom).deflicker(border=20)
stab3=DePanStabilize(source1,data=mdata,cutoff=0.5,dxmax=maxstabH,dymax=maxstabV,method=1,info=true)

WS= width(stab)
HS= height(stab)
stab4= stab3.addborders(10,10,10,10,$B1B1B1).Lanczos4Resize(WS,HS)
stab5= Lanczos4Resize(stab2,W,H)#.sharpen(0.5)

Stabilized=stab5.AssumeBFF().AssumeFieldBased().Weave()
#........................................................
#StackHorizontal(v1,Stabilized)
Return Stabilized

[namphong0612]

I am by no means an expert on using deshaker, but there 2 things that I am 100% sure of:

1) deshaker works better with no black borders . You should crop the footage before inputing

2) deshaker works better with progressive footage. There's pros/cons to deinterlacing, deshaking, then re-interlacing, and the arguments for either side are fairly solid. I will say that if you use a good avisynth deinterlacer, you will get better results overall on most footage

You havent posted the other settings used pass 1&2 tab (interlaced, aspect ratio etc...)

Consider using the edge compensation modes , because your "deshaken" video has fairly ugly edges IMO. Deshaker's edge compensation is one of the big features that sets it apart from other stabilizers

There are a lot of tips on the author's homepage
http://www.guthspot.se/video/deshaker.htm

Thanks for the suggestion.
Yes the edges are ugly :P
I choose Edge Compensation: None (Large Borders) in Deshaker, because when I'm satisfied with the result, I can use Vegas to crop it later.
The Fixed Zoom option is not really useful with long clips, the pictures keep zooming in and out

[namphong0612]

I never used deshaker, but avisynth could help.
Try this code, but maybe you should increase maxstabH/V and crop value's.

Thanks a lot. I have never used Avisynth, but after hearing so many good words about, maybe I will give it a try

[poisondeathray]

I choose Edge Compensation: None (Large Borders) in Deshaker, because when I'm satisfied with the result, I can use Vegas to crop it later.
The Fixed Zoom option is not really useful with long clips, the pictures keep zooming in and out

By cropping (and presumably upscaling later to fill the frame size), you are losing active image area - i.e. you're losing pixels

Deshaker has ability to use information from past & future frames to fill those edge pixels, it's uncheckmarked in your screenshot - but it works well in most cases.

You can use the adaptive zoom or adaptive + fixed combination. If you use it in vdub, you can preview the result after the analysis pass

Also, what are your expectations? Deshaker just "smooths" everything over. It's not a stabilizer meant for rigid shots (as if shot on a tripod or locked down shot)

[jagabo]

When video has a lot of dark background I find it helps to set Scale to Full, and Use Pixels to All -- it looks like you've used those settings. I would also turn off Detect Zoom and Detect Rotation. I just tried it on your clip and it worked pretty well. As poisondeathray pointed out, at default settings it does not remove the low frequency wandering, just the high frequency shakes. If you crank the Smoothness settings up to 10000 a lot of the wandering will go away.

Note a new version of DeShaker for VirtualDub was released just a week or two ago.

[smartel]

would doing 2 complete passes of deshaker ((analysis+encode)X2) blur too much ?

[jagabo]

The video will get less sharp with each use of deshaker. I don't imagine multiple deshaker passes will do anything that can't be done with a single pass and "wider" settings.

[smartel]

ouch 9h analysis and 9h encoding for 25 min clip

[smartel]

i tried your script and modified theses lines :

AVISource("G:\FNM\FNM_Jam06.avi", audio=true).AssumeFPS(30.000).Converttoyv12()
V=AVISource("G:\FNM\FNM_Jam06.avi", audio=true).AssumeFPS(30.000).Converttoyv12()

on a progressive source and gave me 15 fps ... how come ?

I never used deshaker, but avisynth could help.
Try this code, but maybe you should increase maxstabH/V and crop value's.

LoadPlugin(\\"C:\Program Files\AviSynth 2.5\plugins\DePan.dll\\")
LoadPlugin(\\"C:\Program Files\AviSynth 2.5\plugins\DePanEstimate.dll\\")
#v1=MPEG2Source(\\"C:\Desktop\stab test\Il Muto original.d2v\\", cpu=0)
V=MPEG2Source(\\"C:\Desktop\stab test\Il Muto original.d2v\\", cpu=0).AssumeBFF().SeparateFields()

#SIZE, CROP AND BORDERS PARAMETERS
#----------------------------------------------------------------------------------------------------------------------------
CLeft=6  CTop=4  CRight=4  CBottom=6  #crop values after Depan and before final resizing
W=720  H=240 #final size after cropping

#STABILISING PARAMETERS
#----------------------------------------------------------------------------------------------------------------------------
maxstabH=20
maxstabV=20 #maximum values for the stabiliser (in pixels), 20 is a good start value
est_left=20   est_top=20  est_right=20  est_bottom=20  est_cont=1.0  #crop and contast values for special Estimate clip
#--------------
source1= v
#STABILIZING
#....................................................................................................................................................................
stab_reference= source1.crop(est_left,est_top,-est_right,-est_bottom).tweak(cont=est_cont).MT_binarize(threshold=80).greyscale().invert()

mdata=DePanEstimate(stab_reference,trust=1.0,dxmax=maxstabH,dymax=maxstabV)
stab=DePanStabilize(source1,data=mdata,cutoff=0.5,dxmax=maxstabH,dymax=maxstabV,method=1,mirror=15)
stab2= stab.crop(CLeft,CTop,-CRight,-CBottom).deflicker(border=20)
stab3=DePanStabilize(source1,data=mdata,cutoff=0.5,dxmax=maxstabH,dymax=maxstabV,method=1,info=true)

WS= width(stab)
HS= height(stab)
stab4= stab3.addborders(10,10,10,10,$B1B1B1).Lanczos4Resize(WS,HS)
stab5= Lanczos4Resize(stab2,W,H)#.sharpen(0.5)

Stabilized=stab5.AssumeBFF().AssumeFieldBased().Weave()
#........................................................
#StackHorizontal(v1,Stabilized)
Return Stabilized

[Gavino]

i tried your script and modified theses lines :

AVISource("G:\FNM\FNM_Jam06.avi", audio=true).AssumeFPS(30.000).Converttoyv12()
V=AVISource("G:\FNM\FNM_Jam06.avi", audio=true).AssumeFPS(30.000).Converttoyv12()

on a progressive source and gave me 15 fps ... how come ?

I assume you mean you changed this line:

V=MPEG2Source(\\"C:\Desktop\stab test\Il Muto original.d2v\\", cpu=0).AssumeBFF().SeparateFields()

to this:

V=AVISource("G:\FNM\FNM_Jam06.avi", audio=true).AssumeFPS(30.000).Converttoyv12()

In that case, you also need to change this line:

Stabilized=stab5.AssumeBFF().AssumeFieldBased().Weave()

to this:

Stabilized=stab5

In other words, since you are no longer separating the fields, you need to remove the weave operation which puts them back together (and halves the frame rate).

[smartel]

ohhh i think i'll have to resize that somehow

in my preview, my frames have lost half of it's vertical resolution
the scipts is made for fields (720x240 ) not whole frames (720v480)

so my first wyld guess is to change :

W=720 H=240 #final size after cropping

to

W=720 H=480


trouble compressing with huffy utput compressor error , source image format is not acceptable code -2

works with mjpeg ....
