Aspect ratio problem with mencoder / mplayer

[wipp]

I'm trying to cut some commercials in some h264 avi files. Sometimes the P frames aren't exactly at the beginning of the commercial part, so I cut and reencode the surrounding part (using avidemux). This way I limit the quality loss to this part.

Then I rejoin the avi files using mencoder. The resulting video looks fine, at least up to mplayer SVN-r29796-4.4.3.
But with mplayer SVN-r30554-4.4.3, the reencoded parts of the video play with a different aspect ratio than the rest (not reencoded), i.e. mplayer changes the aspect ratio during the playback.

Since I don't want to reencode all my files, I'm searching for a method to get rid of the aspect ratios stored in the files.

mencoder -ovc copy -oac copy -force-avi-aspect 16:9 -o outfile infile

doesnt help, even if I split the avi, apply this command to each segment and rejoin it.
The funny thing is that i can set the correct aspect ratio for each single segment. But after joining them, their "original" / wrong aspect ratios come back.

Is somebody familiar with this behaviour?

[ricardouk]

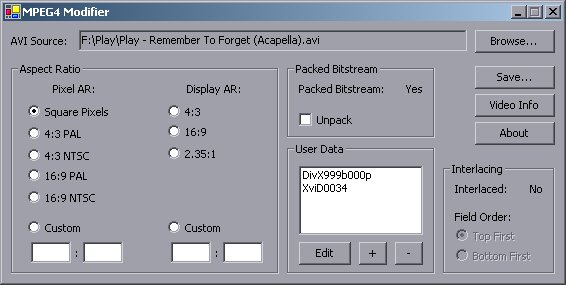

i think you can change aspect ratio after with MPEG4 Modifier

have you tried removing the force-avi-aspect 16:9 from the script and let mencoder do that on its own, i think it detects aspect ratio, fps, resolution without the user specifying it.

try another player that doesnt use mplayer, mpc-hc or vlc

[wipp]

Thanks for your reply!

i think you can change aspect ratio after with MPEG4 Modifier

I can't test MPEG4 Modifier since I have to create a mp4 first and my MP4Box reports that my raw videos are corrupt (importing them into a mkv file works).
By the way: if I put the merged video in a mkv the same change of aspect ratio occurs (even if I first put all parts in different mkv with correct aspect ratio and then merge them).

have you tried removing the force-avi-aspect 16:9 from the script and let mencoder do that on its own, i think it detects aspect ratio, fps, resolution without the user specifying it.

Leaving out the -force-aspect-ratio option has no effect on the output file (at least mplayer keeps changing the aspect ratio).

try another player that doesnt use mplayer, mpc-hc or vlc

vlc doesn't change the aspect ratio. It plays the video in 4:3 if I leave it as an avi, but it plays it in 16:9 if I put it in a mkv container.

[ricardouk]

I can't test MPEG4 Modifier since I have to create a mp4 first

you can open avi files with it

[ricardouk]

another solution would be to convert the commercials to DV and then use virtualdub to edit/join at will without reconverting.

ffmpeg -i video.mkv -target pal-dv video.dv

1- convert each video to dv and put in a folder called DV
2- cut edit each video from folder DV with virtualdub and save it again (without reconverting it) to folder EDITED
3- join all dv files from folder EDITED with virtualdub and save it (no recompression) to Folder FINAL
4- convert the video from the FINAL folder to avi with virtual dub

[wipp]

OK, but with my file or with one segment, I get "This is not a valid MPEG-4 video (startcode not found at beginning of frame). Codec: H264."

[ricardouk]

so I cut and reencode the surrounding part (using avidemux). This way I limit the quality loss to this part.

ah i thought you were converting to avi (xvid+mp3) i don't normally associate avi with h264...

try to convert them to dv (minimal quality loss) and then edit/join with virtualdub and then convert the final dv to your favourite format, with the DV format you can cut and join without worrying about special keyframes.

[wipp]

OK, thanks. I'll give this a try.
