Hi,Originally Posted by vanished001
I just want to make sure everyone's on the 7.7.1 driver as some of the early shipment of Intensity Shuttle ship with 7.7.0. We ship a single CD with drivers for all our other products, that's why you'll find other installers on the CD. Just install the one you need and ignore the others.
Media Express is designed to work in a 1920x1200 or 1280x800 screen so if you screen is smaller than 1920x1200, change the size of the interface from the menu bar.
Did you enable the audio channels you want to capture by clicking on the numbers above each audio channel?
+ Reply to Thread
Results 61 to 90 of 490
-
Blackmagic Design
-
[Attachment 2711 - Click to enlarge]

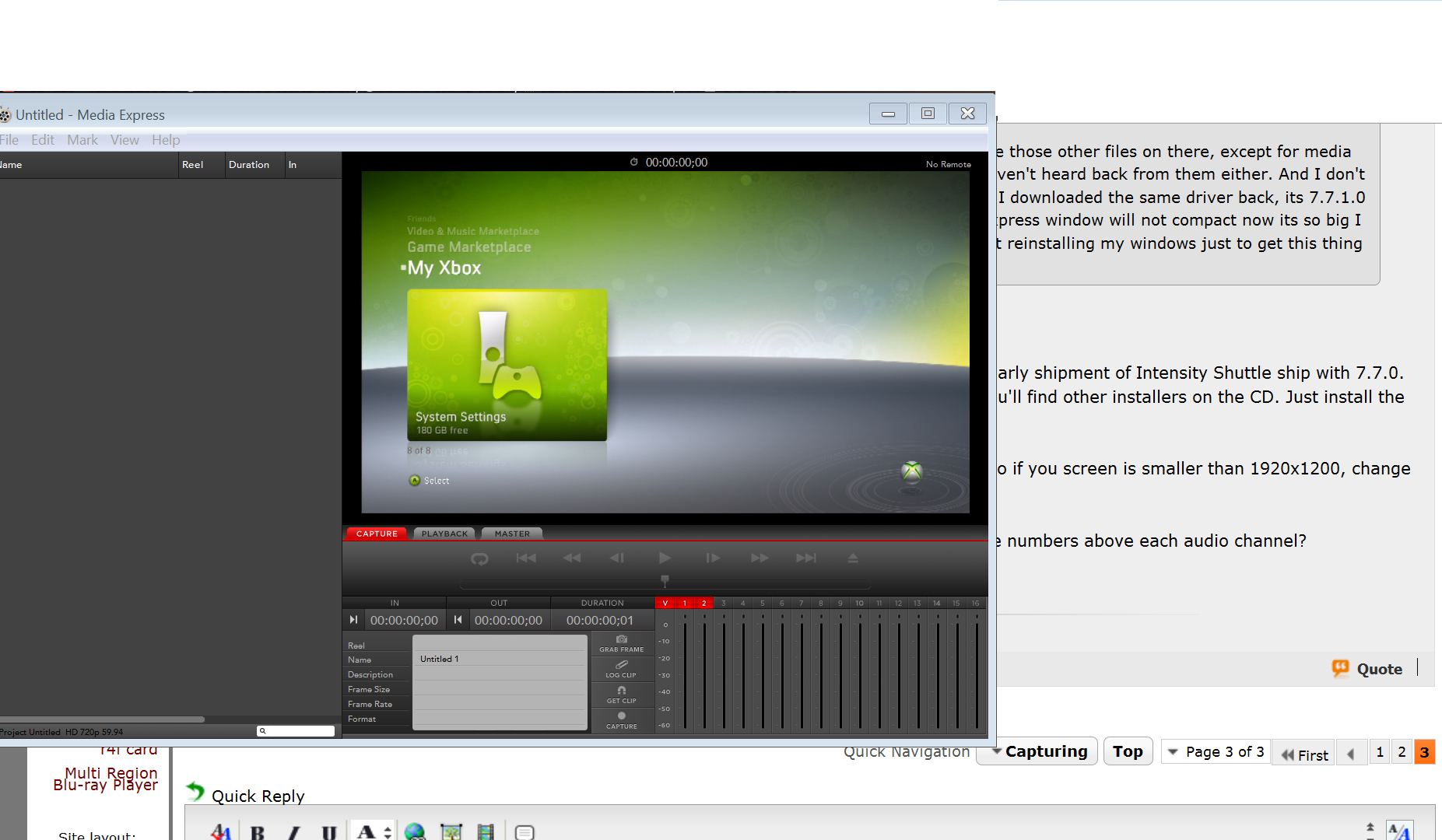

Yes both audio channels are highlighted (picture above) I have my resolution at 1080p on my pc but it works if I have windows classic theme on not one of my custom ones I have full picture and audio on my AV channel on my television running through the shuttle but no audio on my pc or in captures Ive taken.
Ok I have seen my mistake and come back to edit this ... You can't have audio on play back unless you are still on the av channel your 360 is on I have been trying it through my pc on playback but as soon as i clicked playback on my av channel i could hear all audio from the capture I just didnt realize that was necessary.Last edited by vanished001; 19th Jul 2010 at 03:11.
-
Hi Kristian,Originally Posted by Kristian Lam
will you ever update driver/firmware so that we can use the intensity shuttle even with USB 3.0 with other chipsets? I know the bandwidth is the problem but why don't you support smaller resolutions like AJA do with their "IO Express"?
That would be wonderfull.
Otherwise I consider to buy another capture solution because I need to have a HD Capture device solution for my PC Laptop. I want to use the capture device as input for custom software. Wouldn't mind to buy a new Laptop but the Envy is a consumer Laptop and seems to be no good as it has serious heating problems (several ppl had damages due to heating) so it's no good recommondation IMHO.
It's funny right now there is no real Laptop solution to do live video input in HD on a Laptop:
Matrox MXO2:
Works with Expresscard but cannot be used as a capture device in Windows (lack of drivers: no directshow filter, no WMP)
On Mac it does work but not with the current 15 inch MacBook Pro as that has no Expresscard slot.
+ works on MAC/PC
- but offers no capture device support for Windows
- no SDK
Blackmagic Intensity Shuttle:
Does work with Envy 15 from HP but I can't order it right now in Germany and as I said before there seems to be serious heating problems which make the system quiet unstable.
Apparently the Capture Device driver for Windows does not work yet either.
+ Directshow support
+ SDK available
- nearly no support for current Laptops. Just ENVY 15 is supported (which you can't get in Germany. HP says they will never sell this Germany - funny isn't it??!?)
- still lot of problems with the driver
AJA IO Express:
Seems to work with Expresscard (still limited HD) Havn't tested yet. Just have the MXO2 and the Intensity Shuttle here.Last edited by visionlabz; 19th Jul 2010 at 08:38.
-
7.7.1 is the only version I have ever used -- I never even bothered with the drivers on the CD that came with the Shuttle.Originally Posted by Kristian Lam
The problem I am having and many folks are posing here is that the "Decklink Video Capture" device does not work. Pretty much most programs outside of Media Express require this to use the Shuttle as a video source. One such application is LiveKey, which says "Can't create Decklink Video Capture filter" when you try to launch it. So far I have yet to hear of anyone being able to sucessfully run LiveKey without getting this error. It carries over to other apps, like the Flash Media Encoder -- when I try selecting "Decklink Video Capture" as the video source, it says "Problem with this video device. Please verify that the video capture device is working correctly and is not already in use."
The Shuttle appears to be working flawlessly in Media Express, which leads me to believe the problem is software/driver related with the "Decklink Video Capture" device. When I try using FME the Shuttle is not in use by anything that I can tell -- I have all programs closed including Media Express. -
I have the shuttle working fine now a few things that weren't in the instructions had to worked out with trail and error mainly error on my part. One thing I have noticed is I can run Media express in 1920x1080 res only if I use the windows classic theme as soon as I try my custom theme the program goes out of proportion nothing major just a little annoying
-
I sold my Intensity Pro and bought the Shuttle for the sole purpose to continuing to stream gameplay in 720p, but play in 1080p. Needless to say that I am extremely disappointed. Doesn't support 1080p59 and isn't detected by VHMultiCam, Flash Media Encoder, or Wirecast.
-
Amen brother. It would not support the 1080p put out by my Sony HandyCam, had to downscale to 1080i. Not only that, but it definitely does not work with Flash Media Encoder for me either.Originally Posted by S1ayer
I heard back from support today and their response was not helpful at all. Here is what I got: "No real tips on Flash as this is not an app that we test on a regular basis (normally tested with NLEs like Premiere or Final Cut)"
If that is the case, why is it on their webpage for the Shuttle here http://www.blackmagic-design.com/products/intensity/software/ that at the bottom it says "Live Streaming" and even has a picture of the Flash streaming software box?Last edited by ronaldjeremy; 19th Jul 2010 at 20:38.
-
What model is your Sony handycam? If there are no options in your camera to toggle the HDMI output settings and you only get video (in Media Express's preview window) when you've setup a 1080i project, then the camera is sending out 1080i video via HDMI. Also, when you talk about 1080p, what frame rate are you referring to?Originally Posted by ronaldjeremy
As the the issue with Flash Media Encoder, I'm looking into it right now.Blackmagic Design -
My friend got his today and he was able to use VHMultiCam with it. Interesting. Our computers are almost the same except his USB 3.0 ports are built into his motherboard.
-
It is an HDR-CX110. In the camera's settings i first had output set to 1080p, and in Media Express none of the available 1080p options worked for showing the video. If I hooked the camera up to my HDTV's HDMI input, the picture would display just fine. So then I went into the camera's settings and selected 1080i, and the "1080i 59.94" in Media Express worked.Originally Posted by Kristian Lam
Really though I am content with 1080i -- the only thing I really care about is streaming with Flash Media Encoder. But its not just FME that wont work -- the "Decklink Video Capture" video source does not work with ANY program. The only program that will show video is Media Express, which I'm guessing accesses the video from the Shuttle in some other way than the "Decklink Video Capture" other programs must use. I have another video surveillance program called PTZCam that gives pretty much an identical error as FME when I try selecting the "Decklink Video Capture" source. -
wow the fact that it doesn't work with Flash Media Encoder is a deal breaker for me. I wanted to be able to stream in 720p while playing in 1080p. really is no reason for me to bother with the shuttle until that is fixed.
-
Hi Kristian,
will you ever update driver/firmware so that we can use the intensity shuttle even with USB 3.0 with other chipsets? I know the bandwidth is the problem but why don't you support smaller resolutions like AJA do with their "IO Express"?
That would be wonderfull.
Otherwise I consider to buy another capture solution because I need to have a HD Capture device solution for my PC Laptop. I want to use the capture device as input for custom software. Wouldn't mind to buy a new Laptop but the Envy is a consumer Laptop and seems to be no good as it has serious heating problems (several ppl had damages due to heating) so it's no good recommondation IMHO.
It's funny right now there is no real Laptop solution to do live video input in HD on a Laptop:
Matrox MXO2:
Works with Expresscard but cannot be used as a capture device in Windows (lack of drivers: no directshow filter, no WMP)
On Mac it does work but not with the current 15 inch MacBook Pro as that has no Expresscard slot.
+ works on MAC/PC
- but offers no capture device support for Windows
- no SDK
Blackmagic Intensity Shuttle:
Does work with Envy 15 from HP but I can't order it right now in Germany and as I said before there seems to be serious heating problems which make the system quiet unstable.
Apparently the Capture Device driver for Windows does not work yet either.
+ Directshow support
+ SDK available
- nearly no support for current Laptops. Just ENVY 15 is supported (which you can't get in Germany. HP says they will never sell this Germany - funny isn't it??!?)
- still lot of problems with the driver
AJA IO Express:
Seems to work with Expresscard (still limited HD) Havn't tested yet. Just have the MXO2 and the Intensity Shuttle here.[/QUOTE]
It seems to me that the intensity shuttle promised a lot and fell short of expectations. As it is, its lack of laptop compatibility simply reduces it to being another desktop capture solution. I thought the whole point of USB 3.0 was portability... until Blackmagic can resolve these issues I do not think the shuttle will actually bring anything new to the market. Perhaps the product was released to early? -
Originally Posted by Replay01
Yes, it has been released too early. Well so we are beta testers I guess
Great idea. Sell the product to the market and get testers for free, yeah!
BTW I really think blackmagic has a nice and well done website. Just a forum is missing. Please blackmagic get yourself an own forum - makes the testing phase a lot easier - for you and us... -
Blackmagic has a forum here.
http://forums.creativecow.net/blackmagicdesigndecklink
I recently recieved two of the Shuttles, one for work, Universal Studios Florida, and one for my home studio.
I don't have a raid array to test the 10 bit uncompressed, but I have tested all inputs and outputs with the Motion JPEG format and have been sucsessful.
HDMI in was the hardest to get working. The capture settings has to be the same resolution and frame rate as the source settings, unlesss you are using the upconvert option in the control panel. For example, if your trying to capture from an HDV 1080i camera imager, set it for 1080i 59.94.
The upconverter is pretty good with this device. I captured from a SD dvd player composite out, set to upconvert to 1080i in the control panel, set Media Express preferences to 1080i 59.94 and it gives me a good quality video, not as good as real HD but better than SD.
I also tried it on my laptop w/ express slot adapter and got the same errors as you all, not enough bandwidth, install failed.
I read somewhere the HP envy 15 is compatible, but I also read that no laptops are compatible yet for this device.
DPX files, That is a Frame sequence,(Image sequence) not a video stream. It is used by highend video servers like DVS.
http://www.dvs.de/products/video-systems.html
We us them in several atractions at work. It's basiclly a folder full of pictures, .dpx, .tga files.
Sony Vegas 9 supports the .dpx file format. I am one of the Sony Vegas forum leaders at Creativecow forums.
I only got the shuttles less than a week ago, and will continue posting my findings on the Creativecow Blackmagic forum.
I hope this was some help to some of you. Danny Hays -
Apparently the HP Envy 15 does support the shuttle. That's what blackmagic says. But they did not mention that there are two versions of the HP Envy 15. One is called 1090xx and the other one is 1100. Just the 1100 seems to have USB 3.0. Therefore don't buy the one 1090! It is also very important to know that the Envy 15 1100 does not get sold in Germany (don't know about other countries). In the US you can get it. But still it seems to have serious problems with heating and I have read a lot of postings from users complaining about crashes due to overheating.Originally Posted by Danny Hays
@ Danny: Thanks for link to the creativecow forum! -
Ok cool. So the issue with FME is that the Directshow filters were not registering correctly during the installation. Apologies about that. We will fix this in the next driver update but this can be manually registered via the command line. I'm don't have access to a Windows machine right now but if you navigate to the location of the Blackmagic Desktop Video directory within Program Files, you should see 2 filesOriginally Posted by ronaldjeremy
It is an HDR-CX110. In the camera's settings i first had output set to 1080p, and in Media Express none of the available 1080p options worked for showing the video. If I hooked the camera up to my HDTV's HDMI input, the picture would display just fine. So then I went into the camera's settings and selected 1080i, and the "1080i 59.94" in Media Express worked.Originally Posted by Kristian Lam
Really though I am content with 1080i -- the only thing I really care about is streaming with Flash Media Encoder. But its not just FME that wont work -- the "Decklink Video Capture" video source does not work with ANY program. The only program that will show video is Media Express, which I'm guessing accesses the video from the Shuttle in some other way than the "Decklink Video Capture" other programs must use. I have another video surveillance program called PTZCam that gives pretty much an identical error as FME when I try selecting the "Decklink Video Capture" source.
1) decklink.dll
2) decklink64.dll
Type "regsvr32 decklink.dll" <enter>
Type "regsvr32 decklink64.dll" <enter>
That will manually register the filters. Restart FME if it was open when you typed the commands and you should be good to go.
As for 1080p60 support. It was never an advertised feature but the hardware is definitely capable of support that frame rate. However, current USB 3.0 implementation on the computers have not realised the full bandwidth promised by SuperSpeed USB 3.0 which is why we've not advertised support for 1080p60, only up to 1080p30. However, once they overcome this limitation, Intensity Shuttle will be able to support 1080p60.Blackmagic Design -
The Envy is only recommended for use with the Pocket UltraScope which is another USB 3.0 device.Originally Posted by visionlabz
Apparently the HP Envy 15 does support the shuttle. That's what blackmagic says. But they did not mention that there are two versions of the HP Envy 15. One is called 1090xx and the other one is 1100. Just the 1100 seems to have USB 3.0. Therefore don't buy the one 1090! It is also very important to know that the Envy 15 1100 does not get sold in Germany (don't know about other countries). In the US you can get it. But still it seems to have serious problems with heating and I have read a lot of postings from users complaining about crashes due to overheating.Originally Posted by Danny Hays
@ Danny: Thanks for link to the creativecow forum!
We found that the Envy 15" model with USB 3.0 has enough bandwidth for captures but not so reliable for playback. As UltraScope is used only in capture mode, the Envy 15 is fine with it. We do not currently recommend it for Intensity Shuttle.Blackmagic Design -
It's not a matter of us updating support, it's really the fact that a lot of USB 3.0 devices out there don't have the USB chipset wired to a bus that allows the full bandwidth to realised.Originally Posted by Replay01
I also don't understand what you mean by "smaller resolutions".
It seems to me that the intensity shuttle promised a lot and fell short of expectations. As it is, its lack of laptop compatibility simply reduces it to being another desktop capture solution. I thought the whole point of USB 3.0 was portability... until Blackmagic can resolve these issues I do not think the shuttle will actually bring anything new to the market. Perhaps the product was released to early?
We believe that once USB 3.0 becomes more prevalent in portables, the manufacturers will realise that it's not simply for external hard drives. Until then, it is still a viable solution as an external box for capturing and playing back uncompressed professional quality video. It may need a full PC right now instead of a laptop but it's only a matter of time.Blackmagic Design -
Originally Posted by Kristian Lam
What I mean is: It would be helpfull if I could use it to capture SD formats which should have no problems with the bandwidth. Maybe it would even be possible to capture 720p with 8bit per channel. That should be possible as well. If I could use the device already at 720p I would be happy enough for now.
See there are a lot of interactive artists and VJs who would love to have a great capture solution for their laptops. We need such device to get live input from other devices like cam or computer. At the moment there is no satisfying solution around and I am sure there are many ppl who would buy the shuttle as soon as it would run with laptops.
BTW I heard Intel is not planning to have USB 3.0 in their chipsets till mid-end 2011!! Their newest chipsets don't support further pcie 2 connections so the NEC chip can't be connected with sufficant bandwidth. To be honest I don't like to wait till then. As I said I "heard" that, don't know if that's true.
Also heard the MacBook Pro will have USB 3.0. But god knows if that would work (after providing a driver of course).
Please guys this device will rock if you make better hardware support available (even if resolution would be limited). I will spread my word if you do... -
I'm glad to see the FME problem can be fixed without waiting for a update. I will probably pick up a shuttle now. Kristian can you confirm that the intensity shuttle works with AMD boards with USB 3.0 on board? like the crosshair IV and a few other boards. would be weird if the shuttle was only exclusively for Intel platforms.
-
Hi Kristian Lam
If the required IO bandwidth is for the uncompressed formats, Why don't you have a version of media Express that only captures as the MJPEG format, and allow it to install on a machine with less bandwidth, like my laptop with a PCI express slot adapter? I believe the bandwith for this is lower than HDV and DV. 13 mbps MJPEG vs 25 mbps HDV and DV.
Danny Hays Universal Orlando Show Systems Dept. -
Have you tried the keyboard shortcuts to "Fullscreen = alt +1, Alt +2 for compact?
Also I have had my computer upon rebooting with the shuttle connected, saying driver not installed right. I unplugged it and pluged it back in to fix the problem. Pretty Annoying bug if it continues. Danny Hays -
I think BlackMagic doesn't get a huge portion of it's Intensity users. Alot of us just want to be able to see 1080p59.94/60 and not record it. We just want it passed through to our TV screen so we can play in 1080p, but still stream it on streaming websites like Justin.TV, UStream, and Livestream in 720p.Originally Posted by Kristian Lam
Does the USB limit still apply in that situation?
If it does, I think that is a huge market that BlackMagic needs to tap. Make a product that assists the user in streaming and not capturing. -
I think the shuttle just outputs the same resoulution and framerate comming in while in capture mode, I'm using the HDMI output to a Sharp Aquos 46" that tells me in the corner when the resoultion changes. If I setup to capture 480i, set to upconvert to 1080i in the control panel, put it in capture mode set it for 1080i 59.94 the passed through video is still 480i, untill I capture it and then in playback mode it is then 1080i. If your source is 1080i, it will not capture 1080P from that source from my experience. The capture settings need to be set same as the source coming in, unless your upconverting. If I'm wrong I want to know how to capture 1080p, even at 30 frames a second from a 1080i sorce. Danny Hays
-
I'm gonna try this tonight. If it works!!Originally Posted by Kristian Lam
-
Please Help me i keep getting the error for the video codecs so i get audio but no video in the Media Express i just got a new
USB 3.0 pci card today. really need help. -
I can confirm this works. Awesome!Originally Posted by AEYST
I'm gonna try this tonight. If it works!!Originally Posted by Kristian Lam
-
nice. just need to find out if the shuttle will work with AM3 motherboards with built in usb 3.0 now. Black Magic has forgotten that AMD makes motherboards as well.
-
Thanks for the command prompt info Kristian Lam. I thought I'd be waiting a few more months for the functionality.
AAA -
I myself am an interactive artist and would buy more than one suttle if it could run on our laptops. In terms of lower "resolutions", 720p would be quite enough for us; I personally know quite a few others that would buy the shuttle if you could use an expresscard adapter or simply any USB 3.0 laptop.Originally Posted by visionlabz
