    Whew.

    I recently picked up one of these for cheap, but it didn't include a power supply. The side of the thing has the polarity information, but it doesn't specify the amount of amps required for this to run. All I've been able to find says that it needs a 110V AC Power Supply, but it doesn't specify the amps. I've already searched on Google but nobody seems to know what amps this needs.

    Can anyone help? Do I have to use a power supply with these exact specs or can I use one that's got more power?
    Quote Quote
  2. Member
    Join Date
    May 2001
    Location
    United States
    Search Comp PM
    More power is fine. But, it also depends whether or not there is an internal voltage regulator on the unit.

    If you can, go to a nearby Radio Shack and see what is included in a new unit. If you can't, then a 12V, 200mA DC supply would be a good place to start. Mind you, too much voltage applied without an internal regulator, will quickly burn up the unit.
    ICBM target coordinates:
    26° 14' 10.16"N -- 80° 16' 0.91"W
    Quote Quote
  3. Member Verify's Avatar
    Join Date
    Oct 2008
    Location
    United States
    Search Comp PM
    Found one at: http://www.smcelectronics.com/acadapt.htm

    Model: 15-1172.
    (Stock #: ACADRS50) Rated at 9 VDC/100 Ma.
    $5.00 Each
    Andrew Jackson: "It's a poor mind that can only think of one way to spell a word."
    Quote Quote
  4. Member
    Join Date
    Nov 2009
    Location
    Mexico
    Search Comp PM
    There's a problem. See... I'm in uh. Mexico. And there's no such things as Radio Shacks down here. (Radio Cabaņas? Ha ha.)

    Verify, I did stumble upon that, but the product page mentions that the power has to be 110V AC. Wouldn't that one be too weak for the item to work?

    I'm sorry, I'm new at this and don't understand all these fancy electronics things.
    Quote Quote
  5. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    Power bricks are spec'd for input and output voltage, amps and plug polarity.

    In your case the input voltage would be 110vac 60 Hz.

    Output voltage and amps need to be known. That unit will probably consume less than 0.5 amps but we can't guess the voltage.

    Maybe somebody owns one and can read the specs off the power brick.

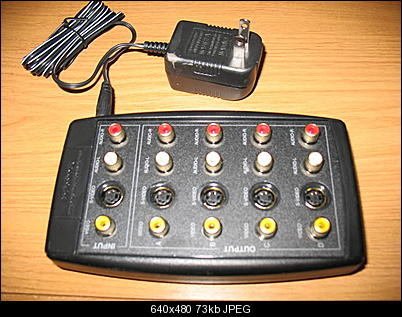

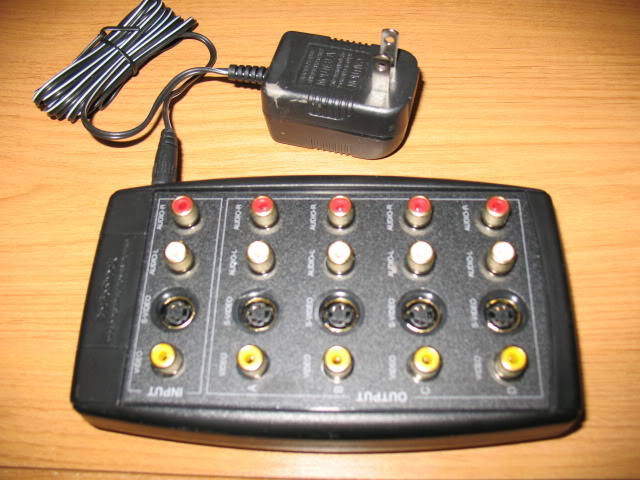

    You can almost read the PS spec in this Google search picture.
    Click image for larger version

Name:	IMG_0806.jpg
Views:	2746
Size:	73.3 KB
ID:	193
    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
    Quote Quote
  6. Member
    Join Date
    Nov 2009
    Location
    Mexico
    Search Comp PM
    Originally Posted by edDV View Post
    Maybe somebody owns one and can read the specs off the power brick.
    Which is exactly what I'm hoping.
    Quote Quote
  7. Member Verify's Avatar
    Join Date
    Oct 2008
    Location
    United States
    Search Comp PM
    The link that I provided states that it is an original Radio Shack unit for the Radion Shack 11-1172 distribution amplifier and is available for $5.00.

    It accepts 110V 60Hz AC from a wall socket and outputs 9V DC at 100mA to the amplifier.
    Andrew Jackson: "It's a poor mind that can only think of one way to spell a word."
    Quote Quote
  8. Mod Neophyte redwudz's Avatar
    Join Date
    Sep 2002
    Location
    USA
    Search Comp PM
    Just to add, 9VDC @ 100MA is a very small amount of power. If you aren't able to get that particular unit, most any 9VDC battery eliminator would work. But the connector might be wrong. Apparently the polarity is marked on the unit and you would need a adapter or plug that has the same polarity with either + 9VDC on the center conductor and the outside conductor being ground, or the opposite setup. And it would need to be the correct size to fit the socket on the device.

    Worst case is you could get a 9VDC battery eliminator and get someone to solder the correct connector on the output lead, with the correct polarity. But I would try to find a power unit with the right connector and polarity before you do that.
    Quote Quote
  9. Member
    Join Date
    Nov 2009
    Location
    Mexico
    Search Comp PM
    Yeah, luckily, the polarity is noted next to the power connector (positive center). Why they didn't note the power requirements is a mystery, though.

    So tomorrow I'm gonna go look around at some flea markets and pawn shops in hopes of finding something that will work. I'll take the device with me and hopefully I'll get one that fits.

    Thanks for your help, everyone.
    Quote Quote
  10. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    If 9VDC, you can test it with a 9V battery. Good for 2-5 hours (alkaline ~550mAh).
    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
    Quote Quote
  11. Member
    Join Date
    Nov 2009
    Location
    Mexico
    Search Comp PM
    I have no idea how to do that, though.

    Anyway, I ended up using a 150mA converter (I couldn't find anything lower than that) and the item works... but it didn't do anything to the video signal I was trying to boost.

    I appreciate the help. Too bad I couldn't do much of anything with it.
    Quote Quote
  12. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    Originally Posted by Foxhack View Post
    I have no idea how to do that, though.

    Anyway, I ended up using a 150mA converter (I couldn't find anything lower than that) and the item works... but it didn't do anything to the video signal I was trying to boost.

    I appreciate the help. Too bad I couldn't do much of anything with it.
    A normal passive 4 to 1 splitter would attenuate each output to 1/4 amplitude and change source impedance at each output. A distribution amplifier is an active splitter that delivers unity gain with consistent impedance and frequency response. If is not intended for boosting gain.

    There are special video distribution amps intended to compensate gain/equalization for extremely long video cable runs. Those are only needed for coax runs longer than 150 to 300 feet depending on cable type.

    High impedance "RCA" consumer audio is only good for ~25 ft even with well shielded cables. noise rises with cable length. If you want long analog audio runs, you would use balanced low impedance "600 ohm" line or mic level connections.
    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
    Quote Quote
  13. Member
    Join Date
    Nov 2009
    Location
    Mexico
    Search Comp PM
    I didn't understand a word you just typed. Sorry, I'm not very good at understanding these things. But here's the issue I'm having, though.

    http://www.youtube.com/watch?v=qDUczlMR9Ng

    In short: The Sega Genesis outputs video to a TV just fine, but some video capture cards can't process it properly, and only get a heavily distorted signal. I hoped that the device would in fact fix this, but it hasn't. I got a suggestion to plug my system into a VCR (or in my case, a DVD recorder) and then run the video feed through it, and it worked, but the resulting video was very fuzzy. Stable, but fuzzy.

    So I think I'm stuck like this unless someone manages to find a fix for it, at the hardware level.

    Thanks anyway.
    Quote Quote
  14. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    Originally Posted by Foxhack View Post
    I didn't understand a word you just typed. Sorry, I'm not very good at understanding these things. But here's the issue I'm having, though.

    http://www.youtube.com/watch?v=qDUczlMR9Ng

    In short: The Sega Genesis outputs video to a TV just fine, but some video capture cards can't process it properly, and only get a heavily distorted signal. I hoped that the device would in fact fix this, but it hasn't. I got a suggestion to plug my system into a VCR (or in my case, a DVD recorder) and then run the video feed through it, and it worked, but the resulting video was very fuzzy. Stable, but fuzzy.

    So I think I'm stuck like this unless someone manages to find a fix for it, at the hardware level.

    Thanks anyway.
    Your problem is loss of horizontal sync. A distribution amp just maintains levels when you split video and audio.
