  1. Roa Production Films
    Join Date
    Feb 2010
    Location
    Kissimmee, FL
    Search Comp PM
    Hi, I'm new to this awesome forum dedicated to video help, and I am a student taking Video Production Classes. I have a Sony HandyCam DCR-HC52 and I was wondering what the heck is wrong with my footage. This always happens when I'm shooting outside some sample footage. Is it the lighting? The camera? The Computer? The Video Card? It just doesn't look right. Here's a link to the original footage that I shot: http://www.mediafire.com/?hgrgmiinyod
    Thanks in advance!
    Quote Quote
  2. Member Soopafresh's Avatar
    Join Date
    Jan 2004
    Location
    United States
    Search Comp PM
    This? That is called interlacing. It's normal with DV cameras. If you want you can de-interlace using your editing program. However, deinterlacing makes the picture less sharp and the movement in the video less smooth.



    Deinterlaced


    "Quality is cool, but don't forget... Content is King!"
    Quote Quote
  3. Roa Production Films
    Join Date
    Feb 2010
    Location
    Kissimmee, FL
    Search Comp PM

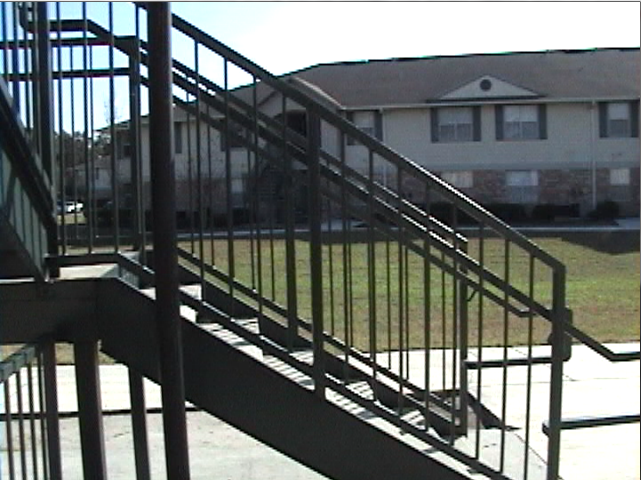

    Umm... I don't know how, but your screenshot of it looks pretty good. This is a screenshot I took. Look at the white areas and the roof of the houses. They look a little bad. Can I fix this?
    Image Attached Thumbnails Click image for larger version

Name:	Untitled.png
Views:	106
Size:	602.0 KB
ID:	191

    Quote Quote
  4. Member Soopafresh's Avatar
    Join Date
    Jan 2004
    Location
    United States
    Search Comp PM
    What editor are you using?

    What you're seeing is interlace artifacts and you can pretty much smooth out the jagged edges if you use a good deinterlacer.
    "Quality is cool, but don't forget... Content is King!"
    Quote Quote
  5. Roa Production Films
    Join Date
    Feb 2010
    Location
    Kissimmee, FL
    Search Comp PM
    I use Sony Vegas 9.0 Pro on Windows 7 and it is a 64 bit program running in a 64 bit computer
    Quote Quote
  6. Member Soopafresh's Avatar
    Join Date
    Jan 2004
    Location
    United States
    Search Comp PM
    Make sure your settings are like this

    "Quality is cool, but don't forget... Content is King!"
    Quote Quote
  7. Roa Production Films
    Join Date
    Feb 2010
    Location
    Kissimmee, FL
    Search Comp PM
    Thanks Lucien. But I don't see any difference in the footage.
    Quote Quote
  8. Member Soopafresh's Avatar
    Join Date
    Jan 2004
    Location
    United States
    Search Comp PM
    Um, Soopafresh. No deinterlacer is perfect. Want progressive footage? Get a Flip HD camera for $200 and a preferably a tripod. Voila, no interlacing artifacts. You can make the quality of your camera's footage better if you shoot on a tripod.

    "Quality is cool, but don't forget... Content is King!"
    Quote Quote
  9. Unfortunately vegas' deinterlacer (either in blend or interpolate mode) both suck

    You can learn about avisynth deinterlacers, but the learning curve is a bit steep. The high quality ones take a lot of CPU (=slow)

    DV is usually meant to stay interlaced, for DVD and broadcast

    Better to shoot progressive, if your intended goal is progressive
    Quote Quote
  10. Information about interlaced video and some deinterlacing techniques: http://www.100fps.com/ As poisondeathray points out, the best deinterlacers are for AviSynth.
    Quote Quote
  11. Member craigarta's Avatar
    Join Date
    Jun 2001
    Location
    Cascade Mountains
    Search Comp PM

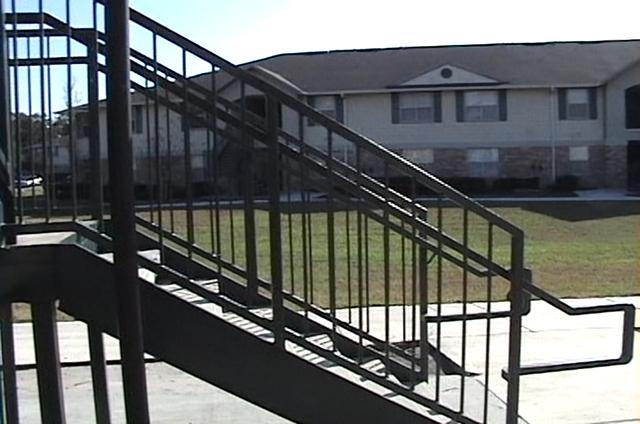

    Well I kinda played with it a bit and got this.
    Used XVID4PSp to make the AviSynth file. I hate typing alot

    Sample script used
    import("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\functions\AudioFunctions.avs")
    import("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\functions\ VideoFunctions.avs")
    loadplugin("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\plugins\ya difmod.dll")
    loadplugin("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\plugins\nn edi2.dll")
    loadplugin("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\plugins\MS U_FRC.dll")

    DirectShowSource("C:\Users\Tony\Desktop\Test Video.avi", fps=29.970, convertfps=true)

    AutoYV12()
    yadifmod(order=-1, field=-1, mode=0, edeint=nnedi2())
    Lanczos4Resize(640, 424)

    #Load plugins
    LoadPlugin("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\plugins\FF T3dGPU.dll")
    LoadPlugin("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\plugins\Re pairSSE3.dll")
    LoadPlugin("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\plugins\Ma skTools.dll")
    LoadPlugin("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\plugins\Wa rpSharp.dll")
    LoadPlugin("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\plugins\mt _masktools-25.dll")
    LoadPlugin("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\plugins\Re moveGrainSSE3.dll")
    Import("C:\Program Files (x86)\Winnydows\XviD4PSP5\dlls\AviSynth\plugins\Li mitedSharpenFaster Mod.avs")

    #Remove noise
    FFT3DGPU(bw=16,bh=16,oh=8,ow=8,bt=4,sigma=2.75,sig ma2=2.2,sigma3=1.5,sigma4=0.7,plane=4,interlaced=f alse)

    #Enhance sharpness
    LSFmod(defaults="slow")
    Image Attached Thumbnails Click image for larger version

Name:	test.jpg
Views:	358
Size:	44.3 KB
ID:	195

    Image Attached Files
    Quote Quote
  12. Roa Production Films
    Join Date
    Feb 2010
    Location
    Kissimmee, FL
    Search Comp PM
    How did you do that? That's perfect. Please tell me how you did that. Thanks!
    Quote Quote
  13. Member craigarta's Avatar
    Join Date
    Jun 2001
    Location
    Cascade Mountains
    Search Comp PM
    I just loaded the video file into XVID4PSP. Set the filter to FFT3DGPU.
    Quote Quote
  14. Roa Production Films
    Join Date
    Feb 2010
    Location
    Kissimmee, FL
    Search Comp PM
    Is that ALL you did? Are you sure?
    Quote Quote
  15. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    Can you explain this line? I haven't used yadif in this way. What are the variables?

    yadifmod(order=-1, field=-1, mode=0, edeint=nnedi2())



    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
    Quote Quote
  16. the switches are the same for yadifmod, as "vanilla" yadif

    order=-1 means internal avisynth parity (so bff, unless otherwise specified) (order=0 bff, order=1 tff)
    field=-1 means use set equal to order (field=0 bff, field=1 tff)
    mode=0 means single rate (mode=1 means double)

    the only difference is the edimode used for interpolation for spatial predictions, in this case NNEDI2() was specfied. If you don't use edimode, it's the same as vanilla yadif. The values for NNEDI2 have to match yadifmod's mode as well. So if you set yadifmod to bob, bff, you would need to set NNEDI2() to bob, bff as well e.g. Yadifmod(order=0, mode=1, edeint=NNEDI2(field=2)) . Quality is much better than vanilla yadif, the interpolation usually gets rid of most of those "marching ants" residual deinterlacing artifacts, but at the expense of speed (many times slower)
    Quote Quote
  17. Originally Posted by roaproductions View Post
    How did you do that? That's perfect. Please tell me how you did that. Thanks!
    Beware that he lost half the temporal resolution (30 different pictures per second vs 60 different (half) pictures per second). Motion will not be as smooth when viewed on TV. As was mentioned earlier, if you are going to make a DVD you should leave the video interlaced and let the DVD player or TV deal with it.
    Quote Quote
  18. Member craigarta's Avatar
    Join Date
    Jun 2001
    Location
    Cascade Mountains
    Search Comp PM
    Originally Posted by roaproductions View Post
    Is that ALL you did? Are you sure?
    As you can see by the script that XVID4PSP made yes that is all.
    All of the setting where left alone

    I got the snapshot from AvsP

    Yes I would listen to jagbo, he has pointed me in the right direction too many times to count. He knows his scripting
    Quote Quote
  19. If your computer will play 60 fps xvid files smoothly watch the attached video. The top is a full 60 fps TempGaussMC_beta1mod() conversion, the bottom is a 30 fps conversion. Note how the vertical bars in the railing of the 30 fps portion flicker during the pan -- especially if you watch it full screen.
    Image Attached Files
    Quote Quote
  20. Roa Production Films
    Join Date
    Feb 2010
    Location
    Kissimmee, FL
    Search Comp PM
    Yes, I do notice that... Okay, so let's say that this was going to be put into a dvd and played in a dvd player at home. What settings would best benefit the video quality of the DVD?
    Quote Quote
  21. Member 2Bdecided's Avatar
    Join Date
    Nov 2007
    Location
    United Kingdom
    Search Comp PM
    You don't deinterlace for DVD!
    Quote Quote
  22. Do not deinterlace. Encode as interlaced MPEG 2, bottom field first. Interlaced video, especially shaky, jerky, noisy, handheld camcorder footage does not compress as well as film so use bitrates in the 8000 to 9000 kpbs range.
    Quote Quote
  23. Member Abas-Avara's Avatar
    Join Date
    Aug 2009
    Location
    Azerbaijan
    Search Comp PM
    As jagoba says, follow that setting. The DVD player will automatically deinterlace.
    The flag once raised will never fall!
    Quote Quote
  24. Roa Production Films
    Join Date
    Feb 2010
    Location
    Kissimmee, FL
    Search Comp PM
    Oh okay, and one more question, I also have DVD Architect, how should I export from Sony Vegas to DVD Architect and achieve good results? Can you give me the settings I should choose?
