    I'm trying to modify a DVD menu by loading it into VirtualDub and masking with a logo filter.
    Saving it with Lagareth, Huffy or Uncompressed then converting back to DVD using FAVC.
    I wanted to use a lossless method to get the best input for FAVC.

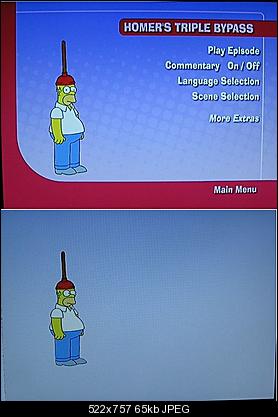

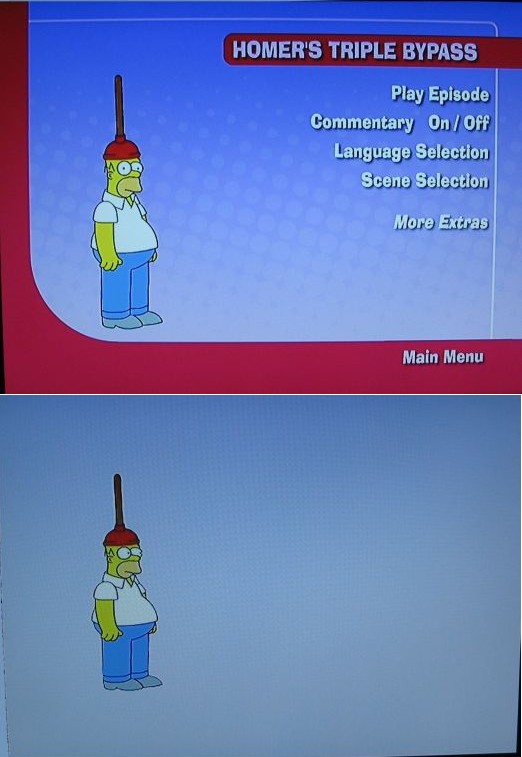

    The image of Homer in the final DVD looks squished down (shorter and fatter) - screenshots from TV attached.

    From GSpot, the original and final DVD video is SAR 1.5 PAR .889 DAR 1.333
    The AVI is SAR 1.5 PAR 1.00 DAR 1.5

    I tried using Mpeg4Modifier on the AVI - it won't accept it.

    Click image for larger version

Name:	two.jpg
Views:	467
Size:	64.9 KB
ID:	186
    Quote Quote
  2. It doesn't matter what the AVI 's AR is, avisynth and vdub both assume square pixel.

    It's up to your editor or authoring application to put the AR flag in when making a DVD. (In this case 4:3)

    I haven't used FAVC in a few years, but I suspect it's not passing the flag through, or at least for that menu portion.

    Also , there are better ways to replace just the menu - there are guides on this site; I suspect FAVC will re-encode everything => quality loss

    If you are re-encoding everything, AVStoDVD is a better program and should pass the flag through
    Quote Quote
  3. Member
    Join Date
    Dec 2005
    Location
    Canada
    Search Comp PM
    I don't was to replace the menu as such.
    I want the animated figure to use in my own menu - in my own video.
    Quote Quote
  4. I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date
    Aug 2000
    Location
    Sweden
    Search Comp PM
    Avstodvd can convert the avi to mpg like FAVC. Try it.


    Or you could just export the avi as a 4:3 resolution like 640x480 and then encode it as 720x480 with 4:3.
    Quote Quote
  5. Member
    Join Date
    Dec 2005
    Location
    Canada
    Search Comp PM
    I shall try both;much obliged.
    Quote Quote
  6. Member
    Join Date
    Dec 2005
    Location
    Canada
    Search Comp PM
    Avstodvd can convert the avi to mpg like FAVC. Try it.
    The same result as FAVC using the 720x480 AVI.

    Or you could just export the avi as a 4:3 resolution like 640x480 and then encode it as 720x480 with 4:3.
    That worked with both AvstoDVD and FAVC.
    Thank you.
