virtualdub dv type 2 problems

[sander815]

i want to convert a dv type 2 with staxrip into an xvid file, but i ran into an error when staxrip creates the avs files:
DirectShowSource("D:\deel1.avi", audio=false, convertfps=true)

Avisynth open failure:
DirectShowSource: couldn't open file D:\deel1.avi:
No combination of filters could be found to render the stream.
(D:\deel1 temp files\deel1_Source.avs, line 1)

when i open the DV in VDmod directly it opens normally
i have the panasonic dv codec installed
gspot: DV Types 2 AVI

some codec missing?

[Baldrick]

Can you play the dv-avi in windows media player?

[sander815]

yes, it plays in windows media player
i tried in stalling cedocida.dll as dv decompressor, but then i get The source image format is not acceptable (error code -2)

[filmboss80]

By any chance, did you crop the DV video to change the aspect ratio? Or perhaps, could there be any other issues that no longer make your source a legal DV avi file? What else does GSpot say about the source?

[jagabo]

VirtualDub uses VFW decoders. DirectShowSource() uses DirectShow decoders. Try using AviSource() instead of DirectShowSource(). Get rid of Panasonic DV codec it's full of bugs. Use Cedocida instead. Enable RGB output in Cedocida if you wan't to open DV AVI files directly with VirtualDub. VirtualDub doesn't like YUV output from DV AVI files. It doesn't mind YUV if you use AviSynth instead.

Windows includes a DirectShow DV decoder (part of quartz.dll) so DirectShowSource() should work. But something else may have messed it up. Re-registering quartz.dll may fix the problem. Open a CLI and type:

regsvr32 c:\windows\system32\quartz.dll

[sander815]

ok
how do i Enable RGB output in Cedocida?

with AviSource()[*] AVI: Opening file "D:\deel1 temp files\deel1_Source.avs"

[E] Error: Avisynth open failure:
AviSource: Could not decompress frame 0
(D:\deel1 temp files\deel1_Source.avs, line 1)

[Gavino]

ok
how do i Enable RGB output in Cedocida?

On XP:
Control Panel -> System -> Hardware -> Device Manager -> Sound, video and game controllers -> Video Codecs -> Properties -> Cedocida DV Codec -> Properties -> Settings

However, unless you specifically requested pixel_type="RGB32" or "RGB24" in your AviSource call, your error message

Error: Avisynth open failure:
AviSource: Could not decompress frame 0
(D:\deel1 temp files\deel1_Source.avs, line 1)

suggests a more general problem with the file rather than failure to obtain RGB.

[sander815]

1 have 2 pcs, the first everything works ok with the panasonic dv codec and staxrip or manually loading the avs script into VD
i changed to Cedocida on that pc, disabled yuy2 and yv12, but then i get The source image format is not acceptable (error code -2) when i load the DV avi into VD

on the second pc i changed the same regarding Cedocida and i get the same error in VD:[*] AVI: Opening file "D:\deel 4.avi"
Error: VideoSourceAVI error: The source image format is not acceptable.
(error code -2)

and loading the avs scripts still doesn't work



the dv's are standard dv avi's from avid liquid

[jagabo]

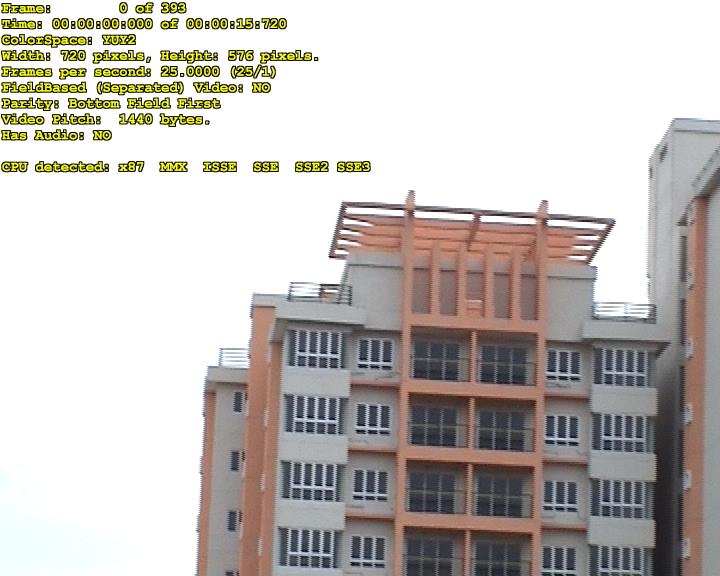

Add Info() to your AVS script and open in a media player. See what it says.

AviSource("DV.AVI")
Info()

Note: since you are using AviSynth to open the DV AVI you don't need to force RGB in Cedocida. I avoid YUV to RGB conversion whenever possible so I force Cedocida to output YUY2.

[sander815]

[jagabo]

Are you sure Cedocida is being used in AviSource()? Maybe some other decoder is interfering? I know that Panasonic DV codec will sometimes claim it can decode a file that it can't (like an MJPEG file). This causes symptoms like your first error message. But since your file is DV AVI that shouldn't be the case here. Did you completely remove the Panasonic DV codec?

The second error indicates there is no DirectShow decoder for DV. This is unusual because Windows has a built in DV decoder.

Are you using a 64 bit version of Windows? If so you have to be careful not to mix 32 bit and 64 bit software in your pipeline. And some 32 bit codecs need to be installed with an alternate procedure.

[sander815]

i have no idea
i am using 32bit OS

i decided to reinstall the system, after that i install staxrip, install cedocida, no other codecs, and still:
[i] Starting up: VirtualDubMod build 2540/release
[*] AVI: Opening file "E:\deel 1.avi"

[i] AVI: OpenDML hierarchical index detected on stream 0.

[i] AVI: OpenDML hierarchical index detected on stream 1.
[*] Beginning dub operation.

[E] Error: VideoSourceAVI error: The source image format is not acceptable.
(error code -2)

[jagabo]

I can't duplicate your error. After the error, can you select File -> File Information? What does it say?

Did you set up Cedocida to output RGB only?

[sander815]

i am running server2003 btw, on the pc that i want to use for conversion
(it needs server2003 for its normal, but its most of the time doing nothing)

file: file information



cedocida is setup as the image above

[jagabo]

It looks like everything is set up correctly. I can't duplicate your problem here. Are you sure there isn't something wrong with that particular file? Try this DV AVI file:

http://rapidshare.com/files/308803949/PalDv.avi.html

Also try using VirtualDub instead of VirtualDubMod. Aside from being more up to date, it has a built in DV decoder that you can enable.

[JohnnyMalaria]

Export the following registry keys and post them here.

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\drivers.desc

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Drivers32

[sander815]

It looks like everything is set up correctly. I can't duplicate your problem here. Are you sure there isn't something wrong with that particular file? Try this DV AVI file:

http://rapidshare.com/files/308803949/PalDv.avi.html

Also try using VirtualDub instead of VirtualDubMod. Aside from being more up to date, it has a built in DV decoder that you can enable.

that DV file opens fine in Virtualdubmod with cedocida

Staxrip uses virtualdubmod, i don't know if i can change that

[sander815]

Key Name:          HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\drivers.desc
Class Name:        <NO CLASS>
Last Write Time:   11/18/2009 - 3:27 PM
Value 0
  Name:            msaud32.acm
  Type:            REG_SZ
  Data:            Windows Media Audio Codec

Value 1
  Name:            sl_anet.acm
  Type:            REG_SZ
  Data:            Sipro Lab Telecom Audio Codec

Value 2
  Name:            C:\WINDOWS\system32\l3codeca.acm
  Type:            REG_SZ
  Data:            Fraunhofer IIS MPEG Layer-3 Codec

Value 3
  Name:            cedocida.dll
  Type:            REG_SZ
  Data:            Cedocida DV Codec

Value 4
  Name:            xvidvfw.dll
  Type:            REG_SZ
  Data:            Xvid MPEG-4 Video Codec

Value 5
  Name:            mciavi32.dll
  Type:            REG_SZ
  Data:            (MCI) Microsoft Video for Windows

Value 6
  Name:            mcicda.dll
  Type:            REG_SZ
  Data:            (MCI) CD Audio

Value 7
  Name:            mciseq.dll
  Type:            REG_SZ
  Data:            (MCI) Midi Sequencer

Value 8
  Name:            mciwave.dll
  Type:            REG_SZ
  Data:            (MCI) Sound

Value 9
  Name:            mciqtz32.dll
  Type:            REG_SZ
  Data:            mciqtz32.dll

Value 10
  Name:            midimap.dll
  Type:            REG_SZ
  Data:            MIDI Mapper

Value 11
  Name:            imaadp32.acm
  Type:            REG_SZ
  Data:            IMA ADPCM  Audio CODEC

Value 12
  Name:            msadp32.acm
  Type:            REG_SZ
  Data:            Microsoft ADPCM Audio CODEC

Value 13
  Name:            msg711.acm
  Type:            REG_SZ
  Data:            Microsoft CCITT G.711 Audio CODEC

Value 14
  Name:            msgsm32.acm
  Type:            REG_SZ
  Data:            Microsoft GSM 6.10  Audio CODEC

Value 15
  Name:            tssoft32.acm
  Type:            REG_SZ
  Data:            DSP Group TrueSpeech(TM) Audio CODEC

Value 16
  Name:            msh263.drv
  Type:            REG_SZ
  Data:            msh263.drv

Value 17
  Name:            iyuv_32.dll
  Type:            REG_SZ
  Data:            iyuv_32.dll

Value 18
  Name:            msrle32.dll
  Type:            REG_SZ
  Data:            Microsoft RLE Codec

Value 19
  Name:            msvidc32.dll
  Type:            REG_SZ
  Data:            Microsoft Video 1

Value 20
  Name:            msyuv.dll
  Type:            REG_SZ
  Data:            msyuv.dll

Value 21
  Name:            tsbyuv.dll
  Type:            REG_SZ
  Data:            tsbyuv.dll

Value 22
  Name:            msacm32.drv
  Type:            REG_SZ
  Data:            Microsoft Audio Compression Manager

Value 23
  Name:            msg723.acm
  Type:            REG_SZ
  Data:            msg723.acm

Value 24
  Name:            msh261.drv
  Type:            REG_SZ
  Data:            msh261.drv

Value 25
  Name:            C:\WINDOWS\system32\xvidvfw.dll
  Type:            REG_SZ
  Data:            xvidvfw.dll

drivers32

Key Name:          HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Drivers32
Class Name:        <NO CLASS>
Last Write Time:   11/18/2009 - 3:27 PM
Value 0
  Name:            midimapper
  Type:            REG_SZ
  Data:            midimap.dll

Value 1
  Name:            msacm.imaadpcm
  Type:            REG_SZ
  Data:            imaadp32.acm

Value 2
  Name:            msacm.msadpcm
  Type:            REG_SZ
  Data:            msadp32.acm

Value 3
  Name:            msacm.msg711
  Type:            REG_SZ
  Data:            msg711.acm

Value 4
  Name:            msacm.msgsm610
  Type:            REG_SZ
  Data:            msgsm32.acm

Value 5
  Name:            msacm.trspch
  Type:            REG_SZ
  Data:            tssoft32.acm

Value 6
  Name:            vidc.I420
  Type:            REG_SZ
  Data:            msh263.drv

Value 7
  Name:            vidc.iyuv
  Type:            REG_SZ
  Data:            iyuv_32.dll

Value 8
  Name:            vidc.mrle
  Type:            REG_SZ
  Data:            msrle32.dll

Value 9
  Name:            vidc.msvc
  Type:            REG_SZ
  Data:            msvidc32.dll

Value 10
  Name:            vidc.uyvy
  Type:            REG_SZ
  Data:            msyuv.dll

Value 11
  Name:            vidc.yuy2
  Type:            REG_SZ
  Data:            msyuv.dll

Value 12
  Name:            vidc.yvu9
  Type:            REG_SZ
  Data:            tsbyuv.dll

Value 13
  Name:            vidc.yvyu
  Type:            REG_SZ
  Data:            msyuv.dll

Value 14
  Name:            wavemapper
  Type:            REG_SZ
  Data:            msacm32.drv

Value 15
  Name:            msacm.msg723
  Type:            REG_SZ
  Data:            msg723.acm

Value 16
  Name:            vidc.M263
  Type:            REG_SZ
  Data:            msh263.drv

Value 17
  Name:            vidc.M261
  Type:            REG_SZ
  Data:            msh261.drv

Value 18
  Name:            msacm.msaudio1
  Type:            REG_SZ
  Data:            msaud32.acm

Value 19
  Name:            msacm.sl_anet
  Type:            REG_SZ
  Data:            sl_anet.acm

Value 20
  Name:            msacm.l3acm
  Type:            REG_SZ
  Data:            C:\WINDOWS\system32\l3codeca.acm

Value 21
  Name:            vidc.dvsd
  Type:            REG_SZ
  Data:            cedocida.dll

Value 22
  Name:            vidc.XVID
  Type:            REG_SZ
  Data:            xvidvfw.dll

Value 23
  Name:            VIDC.YV12
  Type:            REG_SZ
  Data:            C:\WINDOWS\system32\xvidvfw.dll


Key Name:          HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Drivers32\Terminal Server
Class Name:        <NO CLASS>
Last Write Time:   11/13/2009 - 1:58 PM

Key Name:          HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Drivers32\Terminal Server\RDP
Class Name:        <NO CLASS>
Last Write Time:   11/13/2009 - 1:58 PM
Value 0
  Name:            wave
  Type:            REG_SZ
  Data:            rdpsnd.dll

Value 1
  Name:            mixer
  Type:            REG_SZ
  Data:            rdpsnd.dll

Value 2
  Name:            MaxBandwidth
  Type:            REG_DWORD
  Data:            0x56b9

Value 3
  Name:            wavemapper
  Type:            REG_SZ
  Data:            msacm32.drv

Value 4
  Name:            midimapper
  Type:            REG_SZ
  Data:            midimap.dll

[sander815]

it must be a wrong dv file, i have new dv files to encode, and they load fine

only error i now get is this:
DirectShowSource: couldn't open file E:\week46\uitz.avi:
No combination of filters could be found to render the stream.
(E:\week46\uitz temp files\uitz.avs, line 1)

what do i need now?

[sander815]

fixed that with avisource in staxrip

another problem: i am cutting the avi in different, but after that the 16:9 flag is changed into 4:3. Is that a setting in virtualdub that converts the 16:9 to 4:3

[jagabo]

As far as I know, there is no VFW (what VirtualDub uses) DV encoder that lets you specify 16:9 DAR. What you usually do is override the source DAR in whatever editor you use later.

[Gavino]

In VirtualDub, doesn't Direct Stream Copy mode (which is all you need for cuts) preserve the DAR data from the DV stream?

[sander815]

this is the log from staxrip with one of the dv files:
Video
ID : 0
Format : Digital Video
Codec ID : dvsd
Codec ID/Hint : Sony
Duration : 3mn 58s
Bit rate : 28.8 Mbps
Width : 720 pixels
Height : 576 pixels
Display aspect ratio : 5:4
Original display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 25.000 fps
Standard : PAL
Resolution : 24 bits
Colorimetry : 4:2:0
Scan type : Interlaced
Bits/(Pixel*Frame) : 2.778
Stream size : 819 MiB (95%)

why is the DAR at 5:4 instead og 16:9

[JohnnyMalaria]

It's simply calculating it from the specified width and height (i.e., 720 / 576 = 5/4). I don't know what staxrip reads from the file but unless it is pulling it directly from the DV data inside the file and not the AVI header then it may be incorrect, especially for Type 2. AVI headers for Type 2 DV are rarely entirely correct.

[sander815]

is there a way to get that corrected?
we up all videos to dailymotion, and now they all get black bars instead of showing widescreen

[jagabo]

Is there any reaons to believe that Dailymotion will pay any attention to DV DAR flags? Most upload sites don't. Try resizing to a 16:9 frame size and uploading that.

[stax76]

IIRC for AVI sources StaxRip reads the DAR using MediaInfo so it's likely a problem with MediaInfo or the AVI file.
