AVStoDVD problem
Trying to convert and burn a .mkv file to DVD using AVStoDVD.

Seems to work fine until approx 60% of the way through this error occurs: Process aborted during DVD AUTHORING operations! Check the following files more details:....

The FFmpeg converter also stops working.
Files:
<24/06/2009 5:40:46 PM>
START PROCESS
<>

<24/06/2009 5:40:46 PM>
DVD SETTINGS
DVD Titles number: 2
DVD Video Standard: PAL
DVD Chapters Interval: 5 min
DVD Menu: Static DVD Menu
DVD Size: 4434/4435 MB (100%)
DVD Output Setup: DVD Folder

Delete Temp Process Files: Yes
Delete Working Files: Yes
Edit Command Parameters: No
Save Log file: Yes
Output Folder: C:\Users\Chris\Desktop\DVD
<>

<24/06/2009 5:40:46 PM>
TITLE 1 SOURCE FILES
Video: C:\Users\Chris\Desktop\Downloads\Movies\Watched\My Blueberry Nights 2007 DVDRip x264\My Blueberry Nights [2007].mkv
Info: AVC - 0 kbps - 672x288 - DAR 2.333 - 23.976 fps - PPF - 1:34:56 hours - 136705 frames
Audio: C:\Users\Chris\Desktop\Downloads\Movies\Watched\My Blueberry Nights 2007 DVDRip x264\My Blueberry Nights [2007].mkv
Info: AAC LC - 0 kbps - - 48000Hz - 2ch - 1:35:01 hours
Subs:
[]
<>

<24/06/2009 5:40:46 PM>
AVISYNTH SCRIPT
Import("C:\Users\Chris\Desktop\Downloads\AVS\Lib\A 2DSource.avsi")

Video = A2DVideoSource("C:\Users\Chris\Desktop\Downloads\M ovies\Watched\My Blueberry Nights 2007 DVDRip x264\My Blueberry Nights [2007].mkv", CacheFolder = "C:\Users\Chris\AppData\Local\Temp")
Video = Video.ConvertToYV12
#Using DGPulldown to upsize FPS
Video = Video.AddBorders(0,45,0,45)
Video = Video.Lanczos4Resize(720,576)

Audio = A2DAudioSource("C:\Users\Chris\Desktop\Downloads\M ovies\Watched\My Blueberry Nights 2007 DVDRip x264\My Blueberry Nights [2007].mkv", CacheFolder = "C:\Users\Chris\AppData\Local\Temp")

AudioDub(Video, Audio)
<>

<24/06/2009 5:40:46 PM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: HCenc VBR 2-pass
Target Video FileSize: 2015.3 MB
HCenc Parameters: -ini "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 1_My Blueberry Nights [2007].HCenc.ini"
HCenc ini file:
*INFILE C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_01 _My Blueberry Nights [2007].avs
*AVSRELOAD
*OUTFILE C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_01_My Blueberry Nights [2007].m2v
*LOGFILE C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_01 _My Blueberry Nights [2007].HCenc.log
*MAXBITRATE 9000
*BITRATE 2968
*PROFILE BEST
*ASPECT 16:9
*PROGRESSIVE
*BIAS 30
*DC_PREC 8
*MATRIX MPEG
*AQ 1
*LUMGAIN 0
*SMP
*PRIORITY IDLE
*WAIT 2
<>

<24/06/2009 6:33:19 PM>
END VIDEO ENCODING OPERATIONS
Created File: C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_01_My Blueberry Nights [2007].m2v (2018.3 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 3018 kbps - 720x576 - DAR 1.778 - 23.976 fps - PPF - 1:34:56 hours - 136568 frames
<>

<24/06/2009 6:36:16 PM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_01_My Blueberry Nights [2007].m2v (2018.3 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 3015 kbps - 720x576 - DAR 1.778 - 25 fps - PPF - 1:35:01 hours - 142543 frames
<>

<24/06/2009 6:36:16 PM>
START AUDIO ENCODING OPERATIONS
Wavi (WAV) Parameters: "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 1_My Blueberry Nights [2007].avs" "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 1_My Blueberry Nights [2007].wav"
Aften (AC3) Parameters: -b 192 "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 1_My Blueberry Nights [2007].wav" "C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_01_M y Blueberry Nights [2007].ac3"
<>

<24/06/2009 6:38:30 PM>
END AUDIO ENCODING OPERATIONS
Created File: C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_01_My Blueberry Nights [2007].ac3 (130.5 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 48000Hz - 2ch - 0 seconds
<>

<24/06/2009 6:38:30 PM>
TITLE 2 SOURCE FILES
Video: C:\Users\Chris\Desktop\Downloads\Movies\Watched\On e.Week.2008.DVDRip.x264.utkuemre\One Week [2008].mkv
Info: AVC - 0 kbps - 720x400 - DAR 1.8 - 23.976 fps - PPF - 1:34:02 hours - 135430 frames
Audio: C:\Users\Chris\Desktop\Downloads\Movies\Watched\On e.Week.2008.DVDRip.x264.utkuemre\One Week [2008].mkv
Info: AAC LC-SBR - 0 kbps - - 48000Hz - 2ch - 1:34:08 hours
Subs:
[]
<>

<24/06/2009 6:38:30 PM>
AVISYNTH SCRIPT
Import("C:\Users\Chris\Desktop\Downloads\AVS\Lib\A 2DSource.avsi")

Video = A2DVideoSource("C:\Users\Chris\Desktop\Downloads\M ovies\Watched\One.Week.2008.DVDRip.x264. utkuemre\One Week [2008].mkv", CacheFolder = "C:\Users\Chris\AppData\Local\Temp")
Video = Video.ConvertToYV12
#Using DGPulldown to upsize FPS
Video = Video.AddBorders(0,2,0,2)
Video = Video.Lanczos4Resize(720,576)

Audio = A2DAudioSource("C:\Users\Chris\Desktop\Downloads\M ovies\Watched\One.Week.2008.DVDRip.x264. utkuemre\One Week [2008].mkv", CacheFolder = "C:\Users\Chris\AppData\Local\Temp")

AudioDub(Video, Audio)
<>

<24/06/2009 6:38:30 PM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: HCenc VBR 2-pass
Target Video FileSize: 1996.6 MB
HCenc Parameters: -ini "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 2_One Week [2008].HCenc.ini"
HCenc ini file:
*INFILE C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_02 _One Week [2008].avs
*AVSRELOAD
*OUTFILE C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_02_One Week [2008].m2v
*LOGFILE C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_02 _One Week [2008].HCenc.log
*MAXBITRATE 9000
*BITRATE 2968
*PROFILE BEST
*ASPECT 16:9
*PROGRESSIVE
*BIAS 30
*DC_PREC 8
*MATRIX MPEG
*AQ 1
*LUMGAIN 0
*SMP
*PRIORITY IDLE
*WAIT 2
<>

<24/06/2009 7:28:51 PM>
END VIDEO ENCODING OPERATIONS
Created File: C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_02_One Week [2008].m2v (1999.5 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 3018 kbps - 720x576 - DAR 1.778 - 23.976 fps - PPF - 1:34:02 hours - 135295 frames
<>

<24/06/2009 7:31:44 PM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_02_One Week [2008].m2v (1999.5 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 3015 kbps - 720x576 - DAR 1.778 - 25 fps - PPF - 1:34:08 hours - 141214 frames
<>

<24/06/2009 7:31:44 PM>
START AUDIO ENCODING OPERATIONS
Wavi (WAV) Parameters: "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 2_One Week [2008].avs" "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 2_One Week [2008].wav"
Aften (AC3) Parameters: -b 192 "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 2_One Week [2008].wav" "C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_02_O ne Week [2008].ac3"
<>

<24/06/2009 7:34:22 PM>
END AUDIO ENCODING OPERATIONS
Created File: C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_02_One Week [2008].ac3 (129.3 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 48000Hz - 2ch - 0 seconds
<>

<24/06/2009 7:35:02 PM>
START DVD AUTHORING OPERATIONS
BatchMux Parameters: -arglist "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_BatchMu x.ini"
BatchMux ini file:
-d "C:\Users\Chris\Desktop\DVD\MBNOW_0\VIDEO_TS"
-mxp "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_MuxMan. mxp"
-l "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_MuxMan. log"
-muxman "C:\Users\Chris\Desktop\Downloads\AVS\MuxMan"
-prio LOW
-v "C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_01_M y Blueberry Nights [2007].m2v"
-vidmode LB
-a1 "C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_01_M y Blueberry Nights [2007].ac3"
-a1lang en
-cellfr "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 1_My Blueberry Nights [2007]_MuxMan.txt"
-progfr "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 1_My Blueberry Nights [2007]_MuxMan.txt"
-chapfr "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 1_My Blueberry Nights [2007]_MuxMan.txt"
-SEG2v "C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_02_O ne Week [2008].m2v"
-SEG2vidmode LB
-SEG2a1 "C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_02_O ne Week [2008].ac3"
-SEG2a1lang en
-SEG2cellfr "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 2_One Week [2008]_MuxMan.txt"
-SEG2progfr "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 2_One Week [2008]_MuxMan.txt"
-SEG2chapfr "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_0 2_One Week [2008]_MuxMan.txt"
-SEG3v "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Menu.bm p"
-SEG3vidmode LB
-SEG3a1 "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Menu.ac 3"
-SEG3s1 "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Menu.ss t"
-SEG3s1dmode WIDE_LB
-SEG3hlmnu "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Buttons .mnu"
-SEG3hlcsm "C:\Users\Chris\Desktop\Downloads\AVS\Menu\Highlig ht_Scheme.csm"
-hcn "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_BatchMu x.hcn"
<>

<24/06/2009 7:47:12 PM>
PROCESS ABORTED DURING DVD AUTHORING OPERATIONS!

CHECK FOLLOWING FILES FOR MORE DETAILS:

AVSTODVD LOG FILE <C:\USERS\CHRIS\DESKTOP\DVD\MBNOW_0.LOG>
BATCHMUX LOG FILE <C:\USERS\CHRIS\DESKTOP\DVD\MBNOW_0_BATCHMUX.LOG >
<>

<24/06/2009 7:47:16 PM>
Log file created by AVStoDVD Release 2.1.4
<>




BatchMux version --> 1.3
Destination Folder --> C:\Users\Chris\Desktop\DVD\MBNOW_0\VIDEO_TS
MuxMan Script File --> C:\Users\Chris\AppData\Local\Temp\MBNOW_0_MuxMan.m xp
MuxMan Log String --> -l "C:\Users\Chris\AppData\Local\Temp\MBNOW_0_MuxMan. log"
Folder of the MuxMan executable --> C:\Users\Chris\Desktop\Downloads\AVS\MuxMan
Check presence of MuxMan.exe --> PASSED
Segment #1 - Video File #1 --> C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_01_My Blueberry Nights [2007].m2v
Checking asset for importing as --> M2V, M1V, MPV
Video Coding Mode --> MPEG-2
Video Resolution (Nominal) --> (720x576)
MPEG-2 Aspect Ratio (DAR) --> 16:9
Video Frame Rate --> 25 fps
Video Bitrate (Nominal, Kbps) --> 8789
VBV Buffer Size (Kbyte) --> 224
Segment #1 - Video Display Mode --> LB
Segment #1 - Audio #1 File #1 --> C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_01_My Blueberry Nights [2007].ac3
Segment #1 - Audio Lang Code #1 --> en
Segment #1 - Timeframe file --> C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_01 _My Blueberry Nights [2007]_MuxMan.txt
Segment #1 - Total Nr of Cells --> 19
Segment #1 - Timeframe file --> C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_01 _My Blueberry Nights [2007]_MuxMan.txt
Segment #1 - Total Nr of Programs --> 19
Segment #1 - Timeframe file --> C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_01 _My Blueberry Nights [2007]_MuxMan.txt
Segment #1 - Total Nr of Chapters --> 19
Segment #2 - Video File #1 --> C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_02_One Week [2008].m2v
Checking asset for importing as --> M2V, M1V, MPV
Video Coding Mode --> MPEG-2
Video Resolution (Nominal) --> (720x576)
MPEG-2 Aspect Ratio (DAR) --> 16:9
Video Frame Rate --> 25 fps
Video Bitrate (Nominal, Kbps) --> 8789
VBV Buffer Size (Kbyte) --> 224
Segment #2 - Video Display Mode --> LB
Segment #2 - Audio #1 File #1 --> C:\Users\Chris\Desktop\DVD\MBNOW_0_Title_02_One Week [2008].ac3
Segment #2 - Audio Lang Code #1 --> en
Segment #2 - Timeframe file --> C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_02 _One Week [2008]_MuxMan.txt
Segment #2 - Total Nr of Cells --> 19
Segment #2 - Timeframe file --> C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_02 _One Week [2008]_MuxMan.txt
Segment #2 - Total Nr of Programs --> 19
Segment #2 - Timeframe file --> C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Title_02 _One Week [2008]_MuxMan.txt
Segment #2 - Total Nr of Chapters --> 19
Segment #3 - Video File #1 --> C:\Users\Chris\AppData\Local\Temp\MBNOW_0_Menu.bmp
Checking asset for importing as --> BMP
Image size --> (760x80)
Segment memory resources --> RELEASED
Local Stack memory --> RELEASED
File i/o structures --> DEALLOCATED

----------------
Now playing: Joey Eppard - Vinegar Hill
via FoxyTunes

[_MrC_]

For some strange reason, the menu page background image has been resized to 760x80 pixels, that is not DVD compliant.

Could you please run the same project with AVStoDVD 2.2.0 Alpha build 090616, which has several menu improvements?

Let me know



Bye

[Comrie19]

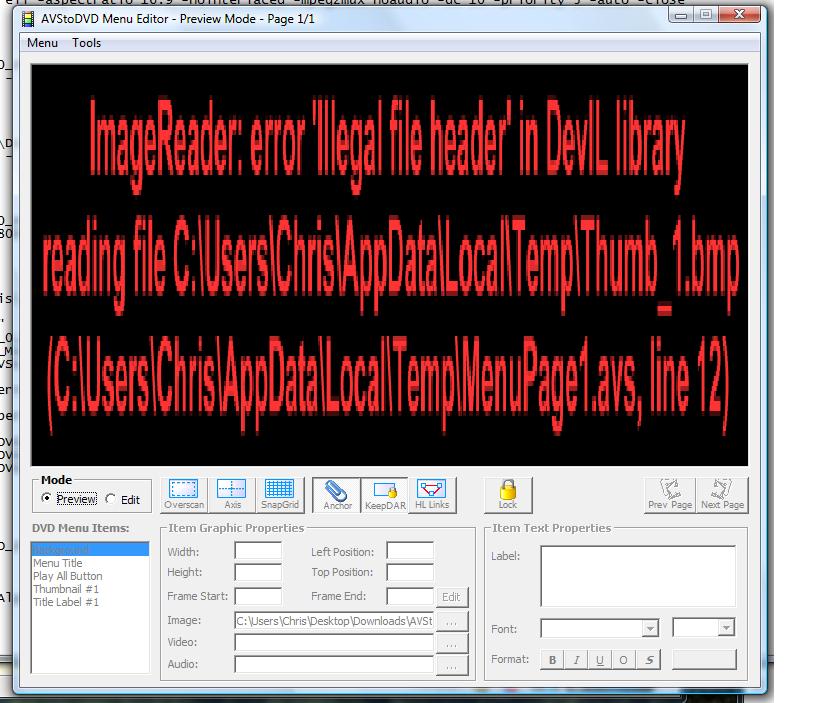

Run using new version. Seems to work up until the menu part in which case an error message like " FFMpeg video converter has stopped working." Closed that and the attached image appears. Following is the log.

<27/06/2009 3:46:24 AM>
START PROCESS
<>

<27/06/2009 3:46:24 AM>
PROJECT SETTINGS

DVD Video Standard: PAL
DVD Titles number: 1
DVD Size: 4435/4435 MB (100%)
DVD Output Setup: DVD Folder
DVD Label: DVD
DVD Menu: No Menu
Output Folder: C:\Users\Chris\Documents
Save Log file: Yes
Delete Temp Process Files: Yes
Delete Working Files: Yes
Edit Command Parameters: No
Post Process Task: Show Progress Status window

<>

<27/06/2009 3:46:24 AM>
TITLE 1 SOURCE FILES
Video: C:\Users\Chris\Desktop\Downloads\Movies\Watched\My Blueberry Nights 2007 DVDRip x264\My Blueberry Nights [2007].mkv
Info: AVC - 0 kbps - 672x288 - DAR 2.333 - 23.976 fps - Progressive - 1:34:56 hours - 136705 frames
Audio: C:\Users\Chris\Desktop\Downloads\Movies\Watched\My Blueberry Nights 2007 DVDRip x264\My Blueberry Nights [2007].mkv
Info: AAC LC - 0 kbps - - 48000Hz - 2ch - 1:35:01 hours
Subs:
[MediaInfoLib - v0.7.16]
<>

<27/06/2009 3:46:24 AM>
AVISYNTH SCRIPT
Import("C:\Users\Chris\Desktop\Downloads\AVStoDVD\Lib\A2DSource.avsi")

Video = A2DVideoSource("C:\Users\Chris\Desktop\Downloads\M ovies\Watched\My Blueberry Nights 2007 DVDRip x264\My Blueberry Nights [2007].mkv", CacheFolder = "C:\Users\Chris\AppData\Local\Temp")
Video = Video.ConvertToYV12
#Using DGPulldown to upsize FPS
Video = Video.AddBorders(0,45,0,45)
Video = Video.Lanczos4Resize(720,576)

Audio = A2DAudioSource("C:\Users\Chris\Desktop\Downloads\M ovies\Watched\My Blueberry Nights 2007 DVDRip x264\My Blueberry Nights [2007].mkv", CacheFolder = "C:\Users\Chris\AppData\Local\Temp")

AudioDub(Video, Audio)
<>

<27/06/2009 3:46:24 AM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: QuEnc CBR 1-pass
Target Video FileSize: 4211.9 MB
QuEnc Parameters: -i "C:\Users\Chris\AppData\Local\Temp\DVD_0_My Blueberry Nights [2007].avs" -o "C:\Users\Chris\Documents\DVD_0_My Blueberry Nights [2007].m2v" -b 6203 -1 -hq -novbr -scene -trell -aspectratio 16:9 -nointerlaced -mpeg2mux noaudio -dc 10 -priority 5 -auto -close
<>

<27/06/2009 4:38:12 AM>
END VIDEO ENCODING OPERATIONS
Created File: C:\Users\Chris\Documents\DVD_0_My Blueberry Nights [2007].m2v (4216.1 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 6313 kbps - 720x576 - DAR 1.778 - 23.976 fps - Progressive - 1:34:56 hours - 136568 frames
<>

<27/06/2009 4:46:26 AM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Chris\Documents\DVD_0_My Blueberry Nights [2007].m2v (4216.1 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 6307 kbps - 720x576 - DAR 1.778 - 25 fps - Progressive - 1:35:01 hours - 142543 frames
<>

<27/06/2009 4:49:31 AM>
END AUDIO ENCODING OPERATIONS
Created File: C:\Users\Chris\Documents\DVD_0_My Blueberry Nights [2007].ac3 (130.5 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 48000Hz - 2ch - 1:35:01 hours
<>

<27/06/2009 4:49:32 AM>
START DVD AUTHORING OPERATIONS
BatchMux Parameters: -arglist "C:\Users\Chris\AppData\Local\Temp\DVD_0_BatchMux. ini"
BatchMux ini file:
-d "C:\Users\Chris\Documents\DVD_0\VIDEO_TS"
-mxp "C:\Users\Chris\AppData\Local\Temp\DVD_0_MuxMan.mx p"
-l "C:\Users\Chris\AppData\Local\Temp\DVD_0_MuxMan.lo g"
-muxman "C:\Users\Chris\Desktop\Downloads\AVStoDVD\MuxMan"
-prio LOW
-v "C:\Users\Chris\Documents\DVD_0_My Blueberry Nights [2007].m2v"
-vidmode LB
-a1 "C:\Users\Chris\Documents\DVD_0_My Blueberry Nights [2007].ac3"
-a1lang en
-cellfr "C:\Users\Chris\AppData\Local\Temp\DVD_0_My Blueberry Nights [2007]_MuxMan.txt"
-progfr "C:\Users\Chris\AppData\Local\Temp\DVD_0_My Blueberry Nights [2007]_MuxMan.txt"
-chapfr "C:\Users\Chris\AppData\Local\Temp\DVD_0_My Blueberry Nights [2007]_MuxMan.txt"

<>

<27/06/2009 4:55:29 AM>
END DVD AUTHORING OPERATIONS
Created Folder: C:\Users\Chris\Documents\DVD_0 (4426.3 MB)
<>

<27/06/2009 4:55:33 AM>
Log file created by AVStoDVD Release 2.2.0 Alpha build 090616
<>

[Comrie19]

Looking in the file directory I see that the Audio_TS folder is empty.

----------------
Now playing: Rpwl - Gentle Art of Swimming
via FoxyTunes

[_MrC_]

From the log file, I can understand that you made a "no menu" dvd and process ended without errors. Can you play the resulting DVD? Do not bother if AUDIO_TS is empty: it *must* be empty for DVD-Video.

About the menu creation error: if you have installed ffdshow as codec suite, please be sure that Video Decoder is setup as follow:
http://avstodvd.googlepages.com/ffdshow_video_decoder_config_1.png
http://avstodvd.googlepages.com/ffdshow_video_decoder_config_2.png

Now you can download and use AVStoDVD 2.2.0 Final.



Bye

[Comrie19]

I'll try that DVD. I tried another .mkv file and seemed to have no problems. I'll burn both tonight and see the final result. Thanks for your help.

[Comrie19]

DVD's work, thank you very much.

Now I have some questions about menu's. I added music to a menu but it only last about 5-10 seconds. Is there a way to make it go longer.
