Subtitles !! work horrible !!!

[philparis]

I have a question that may have been answered already but only on certain aspects

I am trying to burn subtitles on a dvd

I start with a vob and use the "decode with mplayer" option, but here i have a choice: either i click on VOB subtitles and validate the "burn" option and in this case i get subtitles burned in the picture with a cottage cheese like texture effect (ugly really!!)
or if i use the import .srt function i have perfect subs in preview but nothing burnt in the end.

I even tied to use the two 2005 binaries instead of the last ones, with non difference in the result

Did i do something wrong ?


Thanks for any help


Philippe, Paris

[Case]

The "VOB subtitles" checkbox is for taking the subtitle stream from the source file VOB. It should look just like the original. For strange visual results ("cottage cheese"), please provide a screenshot.

If you import subtitles from an SRT file, and not burn them onto the video, the subs should be selectable (off/on), but turned off in the default state. Use the subtitle feature of your DVD player to activate them.

[philparis]

Case
many thanks for the answer, what if i want to replace the subtitles from the vob by the .srt and want to "burn" them on the picture
What should i do ?
I really think that i am becoming crazy with this
I could use a little help

Philippe, Paris

[philparis]

To add to my last post
this happens when you select VOB subtitles AND the burn option

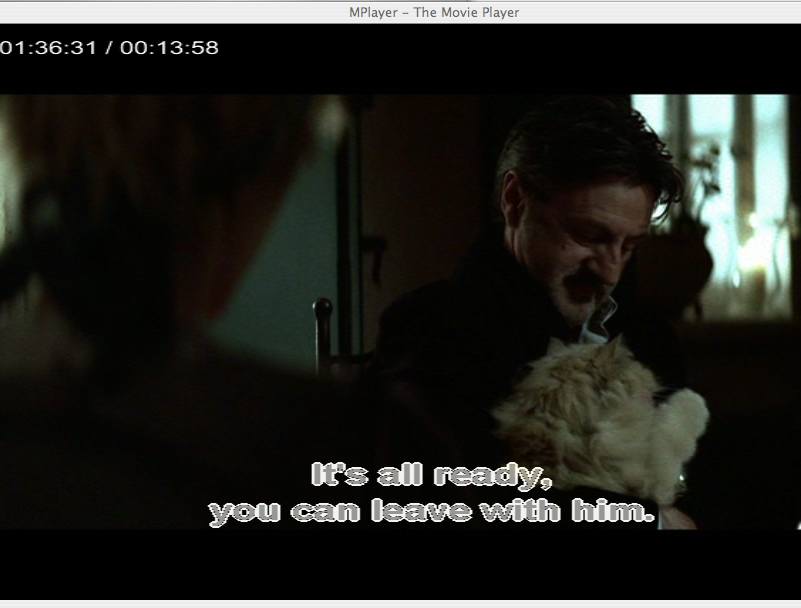

Have a look at the attached preview

Philippe, Paris

[Case]

The "cottage cheese" issue seems to be related to the IFO color palette. The color palette for subtitle streams in VOB files is defined in VTS_01_0.IFO in the DVD's VIDEO_TS folder (for VTS 01).
For this very purpose, ffmpegX's Filters tab has a field to load the IFO palette by selecting the matching .IFO file.

DVD subtitles have just four color values, but these four can be mapped to "any" color by use the the color palette. If the original color palette is not used, then ffmpegX will use a default palette. That may be totally different than the original author of the DVD intended. In result, you will see weird things happen to the subtitles.

[Case]

what if i want to replace the subtitles from the vob by the .srt and want to "burn" them on the picture?

Do not check "VOB Subtitles",
load the .srt file,
and "Decode with mplayer" (to burn the subs onto the video).

[philparis]

Thanks a lot Case
i will keep you posted with the results !!

Philippe
