  1. 3rd Nov 2008 20:08 #1
    sdsumike619
    sdsumike619 is offline
    Member
    Join Date
    Jan 2004
    Location
    United States
    Search Comp PM
    In order to get at least a rough correct brightness level, I'm using Sony Vegas 8.0, open a new project and drop the SMPTE Bars test pattern onto the timeline. I then enable the external monitor which is firewire to my DV camera, and then S-Video out from the camera to a regular samsung TV. Can I use this setup and use the pluge bars procedure (adjust so that left two bars have no difference and the third bar is only slightly lighter) to get a roughly correct black level?
    Quote Quote
  2. 4th Nov 2008 00:29 #2
    edDV
    edDV is offline
    Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    Originally Posted by sdsumike619
    In order to get at least a rough correct brightness level, I'm using Sony Vegas 8.0, open a new project and drop the SMPTE Bars test pattern onto the timeline. I then enable the external monitor which is firewire to my DV camera, and then S-Video out from the camera to a regular samsung TV. Can I use this setup and use the pluge bars procedure (adjust so that left two bars have no difference and the third bar is only slightly lighter) to get a roughly correct black level?

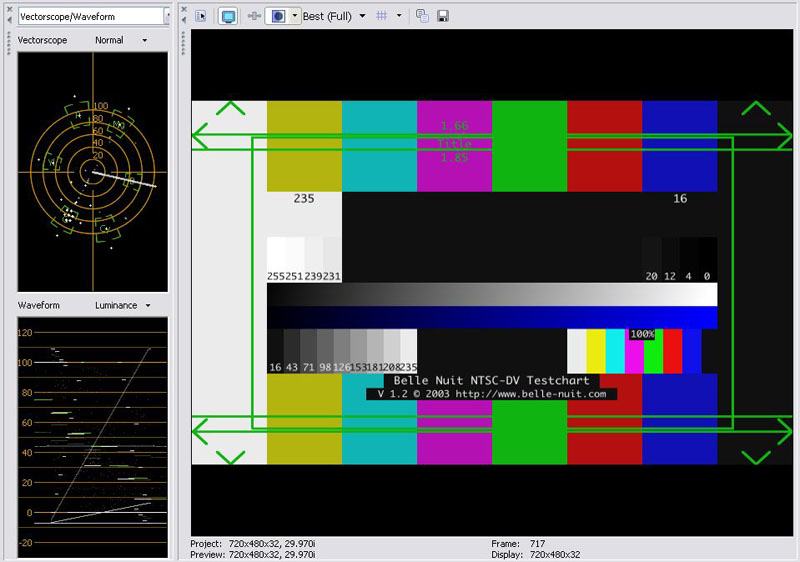

    Yes that is what I do routinely. If you want similar for white level try the Belle Nuit DV color bar available as a tiff.

    http://www.belle-nuit.com/testchart.html
