? Dulled Colors on Convert to XviD

[Synetech]

Hi,

I have noticed that when I convert a video to XviD, the result is that the colors get noticibly dulled, as though someone turned down the contrast. Here are screenshots of the original and converted videos:

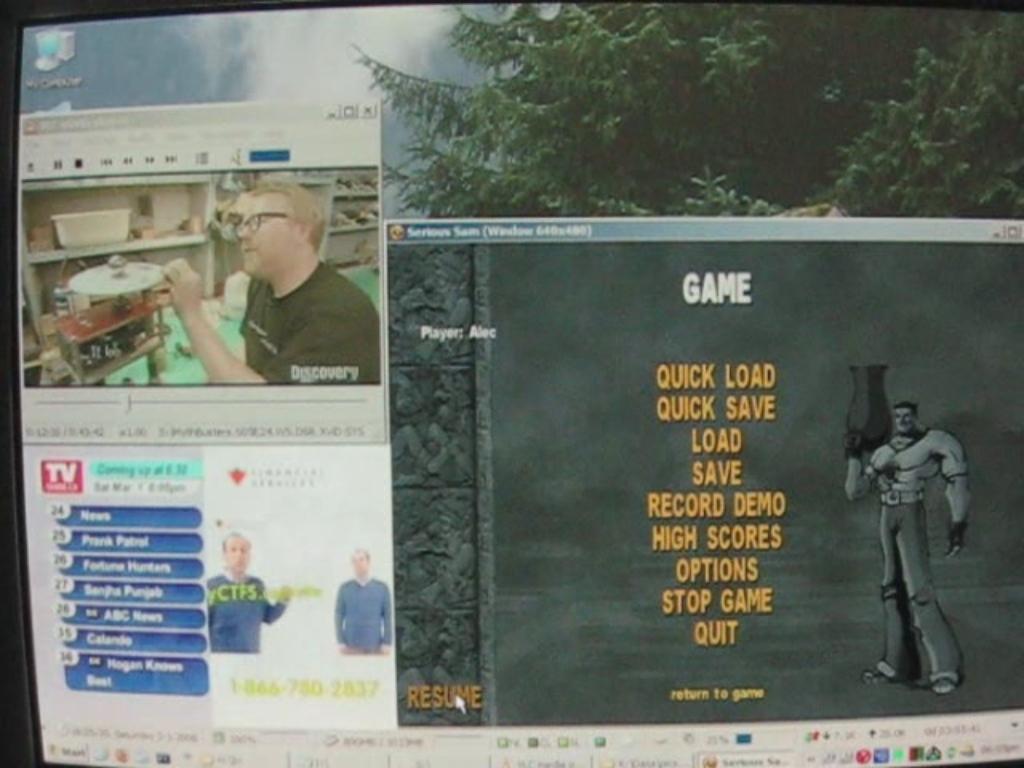

You’ll notice that the XviD one is decidedly duller, and even more confusing, it has an extra line at the bottom that the original does not seem to display.

I encoded it using XviD’s default settings (Q4, etc.). I understand that if you encode a video badly, you could encouter degredation (which there seems to be very little of in this case), but I did not realize that the colors could get so dulled.

Any idea on what happened and how to avoid it?


Thanks.



[freebird73717]

While I have no answer for your problem I can offer this bit of advice. Those pictures of your computer screen are hard to see. You would be better off taking a screenshot.

Here is how to guide

Hopefully when you get some better screenshots ,so people can actually see what is going on, someone with experience encoding in xvid will be able to help you.

[jagabo]

Xvid doesn't dull the colors. You have a colorspace or black level problem somewhere along your conversion path. You will have to outline your procedure.

One other thing to consider: How did you compare the two? Opening both at the same time in media players (looks like VLC)? If you did, it's likely one player is using video overlay and the other isn't. Video overlay has it's own brightness, contrast, and color controls. So that could be the source of the differences.

[Synetech]

While I have no answer for your problem I can offer this bit of advice. Those pictures of your computer screen are hard to see. You would be better off taking a screenshot.

I don’t understand. What’s hard to see? There are supposed to be two thumbnails which lead to imageshack’s page where the full 1024x768 pics are stored (but for some reason the board is not displaying them anymore). I also uploaded them as attachments.

Xvid doesn't dull the colors. You have a colorspace or black level problem somewhere along your conversion path. You will have to outline your procedure.

I open the video in VirtualDub, select Video->Full Compression, Video->Compression->Xvid MPEG-4 Codec (there are two in there, one has a FOURCC code of xvid, the other yv12), Save as AVI. I tried using the Load Defaults option with the same results. I’ve got GraphEdit if that can help narrow it down.

One other thing to consider: How did you compare the two? Opening both at the same time in media players (looks like VLC)? If you did, it's likely one player is using video overlay and the other isn't. Video overlay has it's own brightness, contrast, and color controls. So that could be the source of the differences.

I was wondering if someone would bring that up. You can’t take screenshots of the overlay surface, so I figured that it would be obvious that I had made sure to occupy the overlay beforehand. I use Karsten Sperling’s great Alpha program which not only provides a cool feature, but is an easy way to both test for overlay usage (it gives an error if it’s in use) as well as occupying it for testing purposes.

I compared them by using MPC to load the two videos and seeking to the same frame, then taking a screenshot, then flipping between the caps with IrfanView.

[freebird73717]

What is hard to see is it looks like you took a digital camera and took a picture of your computer screen. You can get a shot of just the active window (i.e. what ever player you used to play the xvid) and it would be much easier to see details.

Have a look at the link I provided and you will see what I mean.

By the way I applaud you for at least trying to give screen shots. Lots of people don't even try.

[Noahtuck]

It looks like the EXACT same photo to me....
Just one was dulled a little more... overall, not just the little video window on the desktop.....

[jagabo]

To tell the truth, I didn't know what part of your sample images I was supposed to be looking at. Beyond that, photographing the screen isn't a good technique because it's hard to control what the camera does. In your samples, the desktop background is lighter in one of the pictures too.

To grab a frame in VirtualDub navigate to the frame of interest and select Video -> Copy Source Frame To Clipboard. Then open a paint program, paste the data into an image, and save it.

The procedure you described to convert your video with VirtualDub sounds correct. One possible problem I see is in colorspace conversions. I believe VirtualDub always uses the rec.601 matrix to convert YUV video to RGB. MPG files (I don't think you said what your source was) can specify whether the video is rec.601 or rec.709. This would cause color shifts but not black level problems. HD video usually uses rec.709. The difference is usually very subtle. Note the differences in the red background:



There could be decoding issues within MPC. It can use internal decoders or external decoders. It's possible the different decoders are handling the two codecs differently (rec.601 vs pc.601 for example).

[Synetech]

What is hard to see is it looks like you took a digital camera and took a picture of your computer screen.

Oh, that’s what you mean. It looks like that because that’s what the video is of, a video of the screen. I played the video back with MPC and took a screenshot of the full-screen frame.

It looks like the EXACT same photo to me....
Just one was dulled a little more... overall, not just the little video window on the desktop.....

That’s the point, the encoded video is dull. However, it is not EXACTLY the same, there are slight difference beyond just the overall contrast reduction.

To tell the truth, I didn't know what part of your sample images I was supposed to be looking at. Beyond that, photographing the screen isn't a good technique because it's hard to control what the camera does. In your samples, the desktop background is lighter in one of the pictures too.

It didn’t photograph the screen, I recorded a video of it, encoded the video to XviD (the original form the camer was >60MB, the comrpessed one was <10MB), then played the video in MPC and did a screencap of the frame.

To grab a frame in VirtualDub navigate to the frame of interest and select Video -> Copy Source Frame To Clipboard. Then open a paint program, paste the data into an image, and save it.

I can do that, but the result will be the same.

The procedure you described to convert your video with VirtualDub sounds correct. One possible problem I see is in colorspace conversions. I believe VirtualDub always uses the rec.601 matrix to convert YUV video to RGB. MPG files (I don't think you said what your source was) can specify whether the video is rec.601 or rec.709. This would cause color shifts but not black level problems. HD video usually uses rec.709.

Sorry, I forgot to say that the original was an MJPG encoded AVI from a digital camera.

[jagabo]

It didn’t photograph the screen, I recorded a video of it, encoded the video to XviD (the original form the camer was >60MB, the comrpessed one was <10MB), then played the video in MPC and did a screencap of the frame.

Why didn't you spell all this out in the original post instead of making us guess what you were doing? You could have saved all of us a bunch of time.

The procedure you described to convert your video with VirtualDub sounds correct. One possible problem I see is in colorspace conversions. I believe VirtualDub always uses the rec.601 matrix to convert YUV video to RGB. MPG files (I don't think you said what your source was) can specify whether the video is rec.601 or rec.709. This would cause color shifts but not black level problems. HD video usually uses rec.709.

Sorry, I forgot to say that the original was an MJPG encoded AVI from a digital camera.

The issues are the same. Given the latest information above I would guess you have black level and colorspace issues in your MJPEG decoder. Note that VirtualDub uses VFW codecs. MPC uses directshow or internal (I don't think it includes an MJPEG decoder) codecs. What MJPEG decoders do you have installed?

[Noahtuck]

It didn’t photograph the screen, I recorded a video of it, encoded the video to XviD (the original form the camer was >60MB, the comrpessed one was <10MB), then played the video in MPC and did a screencap of the frame.

Why didn't you spell all this out in the original post instead of making us guess what you were doing? You could have saved all of us a bunch of time.

Ya just gotta love it

[Synetech]

It didn’t photograph the screen, I recorded a video of it, encoded the video to XviD (the original form the camer was >60MB, the comrpessed one was <10MB), then played the video in MPC and did a screencap of the frame.

Why didn't you spell all this out in the original post instead of making us guess what you were doing?

Same reason that everyone does this sort of thing: because it was obvious to me since it was already in my head and it didn’t occur to me that you wouldn’t understand since you don’t have the same information in yours. Haven’t you ever said something to someone using the term “it”, “he”, etc. where you knew what it/he/etc. was, but they didn’t?

The procedure you described to convert your video with VirtualDub sounds correct. One possible problem I see is in colorspace conversions. I believe VirtualDub always uses the rec.601 matrix to convert YUV video to RGB. MPG files (I don't think you said what your source was) can specify whether the video is rec.601 or rec.709. This would cause color shifts but not black level problems. HD video usually uses rec.709.

Sorry, I forgot to say that the original was an MJPG encoded AVI from a digital camera.

The issues are the same. Given the latest information above I would guess you have black level and colorspace issues in your MJPEG decoder. Note that VirtualDub uses VFW codecs. MPC uses directshow or internal (I don't think it includes an MJPEG decoder) codecs. What MJPEG decoders do you have installed?

That sounds logical. Here’s what GSpot gives:

MJPG		MEDIATYPE_Video {73646976-0000-0010-8000-00aa00389b71}	MEDIASUBTYPE_MJPG {47504a4d-0000-0010-8000-00aa00389b71}

--------------------

DSH	MJPG	MJPEG Decompressor	{301056D0-6DFF-11D2-9EEB-006008039E37}	0x00600000	quartz.dll

- -	Type	DSH
- -	Function	Decoder
DSH	4CC	MJPG
DSH	Friendly Name	MJPEG Decompressor
DSH	DirectShow CLSID	CLSID_MjpegDec {301056D0-6DFF-11D2-9EEB-006008039E37}
REG	Driver File	C:\WINDOWS\System32\quartz.dll
REG	Merit	0x00600000
--------------------
DSH	MJPG	AVI Draw	{A888DF60-1E90-11CF-AC98-00AA004C0FA9}	0x00600064	quartz.dll

- -	Type	DSH
- -	Function	Other
DSH	4CC	MJPG
DSH	Friendly Name	AVI Draw
DSH	DirectShow CLSID	CLSID_AVIDraw {A888DF60-1E90-11CF-AC98-00AA004C0FA9}
REG	Driver File	C:\WINDOWS\System32\quartz.dll
REG	Merit	0x00600064

[Synetech]

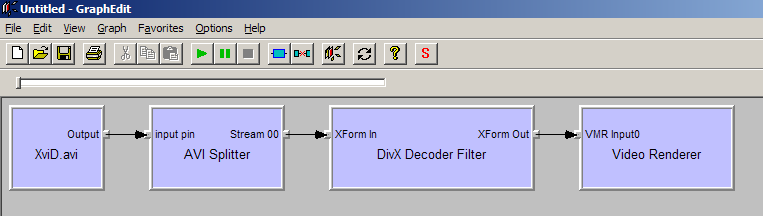

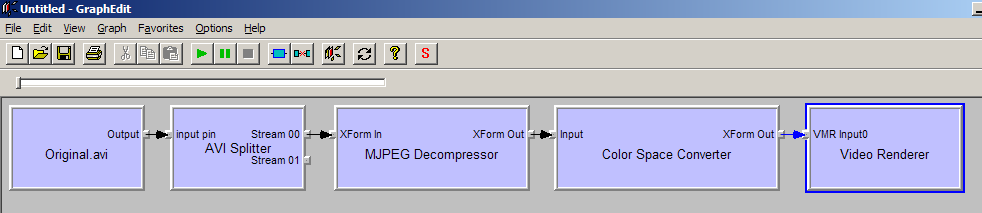

Hmmm, looks like you’re on the right track. GraphEdit is giving a clue (I cut out the audio filters from the original to make the cap smaller):

[jagabo]

VirtualDub's internal MJPEG decoder uses a PC.601 matrix to convert to RGB. That results in a higher black level than the rec.601 matrix used for most video. You can verify that VirtualDub is using its internal MJPEG decoder by selecting File -> File Information after opening your MJPEG file.

You can get around the PC.601 issue by using an MJPEG decoder that outputs RGB converted with the rec.601 matrix. Or you can use AviSynth to open the file with:

DirectShowSource("filename.avi")
ConvertToRGB() #default is rec.601

Or you can just use VirtualDub's Levels filter to do the contrast stretch.

Another issue is which matrix is right. Your "original" sample contains blacks near zero and whites over 240. So VirtualDub PC.601 matrix may be correct. Even if it is, you may want to adjust the contrast to your liking.

[Synetech]

VirtualDub's internal MJPEG decoder uses a PC.601 matrix to convert to RGB. That results in a higher black level than the rec.601 matrix used for most video. You can verify that VirtualDub is using its internal MJPEG decoder by selecting File -> File Information after opening your MJPEG file.

Yes, you’re right. It says Internal Motion JPEG decoder.

You can get around the PC.601 issue by using an MJPEG decoder that outputs RGB converted with the rec.601 matrix.

You mean find another MJPG decoder? I took a quick look and there don’t seem to be many around and pretty much none that are free. I’ll check my camera’s CD to see if there is some software or something.

Or you can use AviSynth to open the file with:

DirectShowSource("filename.avi")
ConvertToRGB() #default is rec.601

I tried that (in VDubMod) but it looked the same.

Or you can just use VirtualDub's Levels filter to do the contrast stretch…Even if it is, you may want to adjust the contrast to your liking.

I’d rather not customize the video at this point. I only want to compress it and save the modifications for later.

Another issue is which matrix is right. Your "original" sample contains blacks near zero and whites over 240. So VirtualDub PC.601 matrix may be correct.

The original was what was actually recorded, so it should be what is right.


If it is an incompatibility between the matrix used to decode the MJPG video, then it should not be a problem if I re-encode other videos like DivX or MPEG with VDub right? I was worrying that all the videos I had compressed to XviD with VDub were duller.

[jagabo]

You can get around the PC.601 issue by using an MJPEG decoder that outputs RGB converted with the rec.601 matrix.

You mean find another MJPG decoder? I took a quick look and there don’t seem to be many around and pretty much none that are free. I’ll check my camera’s CD to see if there is some software or something.

ffdshow contains MJPEG decoders for both VFW and DirectShow.

Or you can use AviSynth to open the file with:

DirectShowSource("filename.avi")
ConvertToRGB() #default is rec.601

I tried that (in VDubMod) but it looked the same.

As it turns out, Microsoft's MJPEG decoder converts to RGB when using AviSynth. And it uses the PC.601 matrix. If you install ffdshow and enable its DirectShow MJPEG decoder (decodes to YV12) you will see a difference.

Or you can just use VirtualDub's Levels filter to do the contrast stretch…Even if it is, you may want to adjust the contrast to your liking.

I’d rather not customize the video at this point. I only want to compress it and save the modifications for later.

You would only be matching the rec.601 matrix. And if you're not doing any filtering you should be using Fast Recompress mode.

Another issue is which matrix is right. Your "original" sample contains blacks near zero and whites over 240. So VirtualDub PC.601 matrix may be correct.

The original was what was actually recorded, so it should be what is right.

No, you have never seen the YUV data. You have only seen it converted to RGB by different programs. Some use the rec.601 matrix, some use PC.601.

If it is an incompatibility between the matrix used to decode the MJPG video, then it should not be a problem if I re-encode other videos like DivX or MPEG with VDub right? I was worrying that all the videos I had compressed to XviD with VDub were duller.

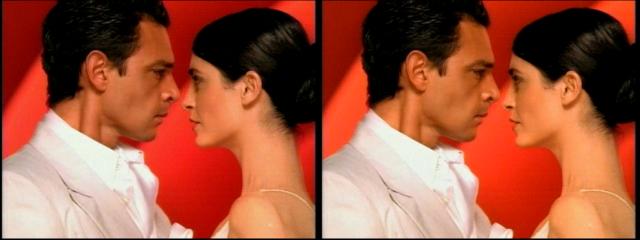

No. Just about every standard definition codec uses rec.601. VirtualDub normally uses rec.601. MJPEG seems to be the exception.

Here's a thread about the same problem:
https://www.videohelp.com/forum/archive/mjpeg-to-mpg2-color-issue-t342710.html

And lastly, try using AviDemux. It has it's own built in MJPEG decoder and uses the rec.601 matrix (or passes the YUV data directly to the encoder).

[Synetech]

Another issue is which matrix is right. Your "original" sample contains blacks near zero and whites over 240. So VirtualDub PC.601 matrix may be correct.

The original was what was actually recorded, so it should be what is right.

No, you have never seen the YUV data. You have only seen it converted to RGB by different programs. Some use the rec.601 matrix, some use PC.601.

What I meant was that the original video had encoded what came through the lens, rather than output from another program.


Thanks for the suggestions. I haven’t used Avidemux for a month or two, so I forgot to try that out. Hopefully that will be an easy way to handle these camera videos.

I’m sure it fits with your analysis, but it seems that the difference is only present when played back (it’s the same in VLC and WMP as in MPC), because they look the same when I load the original and XviD versions into VDub.


*UPDATE*

I just encoded it with Avidemux and it was perfect. The results looked the same in media players as in VDub. The only issue was that the resulting video from Avidemux was 64% larger than the one from VDub (also, it used Q4 even though I set it to Q1, it won’t seem to accept Q1). At first I thought the problem was that I can’t figure out how to encode a video with no audio in Avidemux, so the extra space was due to the audio, but that turned out to be very small (less than a 1MB). GSpot shows that it has a higher bitrate than the VDub encode. I tried another encode, specifically setting it to Q4 and it still ended up 64% bigger.

I was converting a DVD clip to AVI today, so since I had AutoGK running, I gave it a go at this video. I suppose it’s not a shock that it resulted in a dulled video since it uses VDubMod.


Thanks a lot. Avidemux is a nice, easy solution to compressing the videos from this camera, and I learned some useful information.

[jagabo]

Another issue is which matrix is right. Your "original" sample contains blacks near zero and whites over 240. So VirtualDub PC.601 matrix may be correct.

The original was what was actually recorded, so it should be what is right.

No, you have never seen the YUV data. You have only seen it converted to RGB by different programs. Some use the rec.601 matrix, some use PC.601.

What I meant was that the original video had encoded what came through the lens, rather than output from another program.

You may still be misunderstanding. Obviously, the file you have is what was output by the camera. But you have only ever seen that file converted to RGB for display. It might be that the software you used to view the original was using the wrong YUV->RGB conversion matrix. VirtualDub's handling of the video may in fact be correct (I suspect it is although I haven't found any definitive references on MJPEG colorspace) and the Xvid result is the first time you've seen the video displayed correctly. Just because the others look better doesn't mean they're right.

[Synetech]

That makes sense. It would also explain why they both look the same in VDub, but not in players.
