AVStoDVD Support Thread

[davexnet]

@dave

'Preferences'/'Authoring' is the right place to select primary and secondary audio and subs languages. What are you using to play the resulting DVD? Are you sure there is no default setting to English language in that player? Finally... post here the project log file.



Bye

Thanks - I'll check. It's an old software player, Cyberlink Powerdvd version 5 on an XP PC.
Appreciate the new version, will test shortly.

Dave

[davexnet]

Here's the log. I wasn't able to determine if the Powerdvd I used had a default language or not. (I couldn't find it)

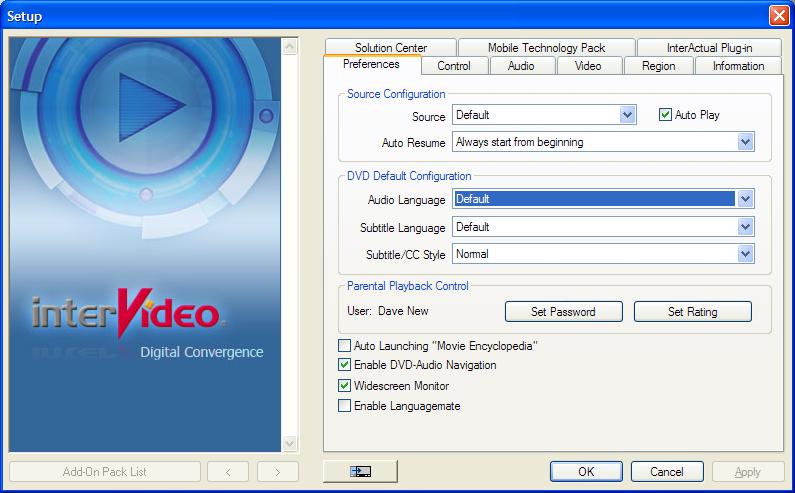

Used a different XP, WinDVD installed, this showed that the "audio language" was set to default.
The default language on the DVD appears to be English, despite my best effort to make it Japanese.

I tried "yes" and "no" when it asked about changing the default language, didn't affect the problem.

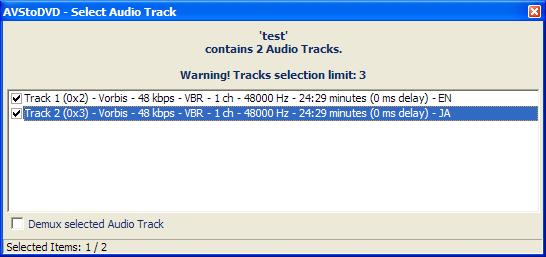

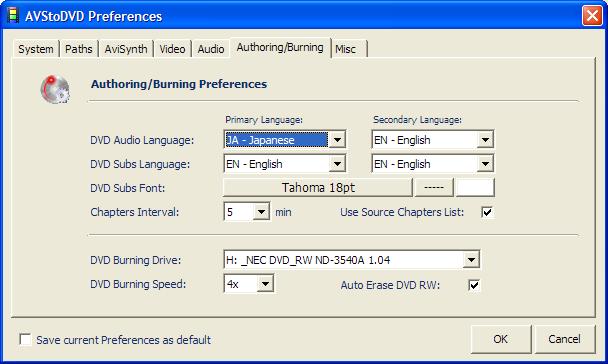

See these images for things that came up.

[soneca]

AVStoDVD release 2.7.1 is available.

Change log:

- Some bugs fixed
- Added errors check just after IDX/SUB and SRT subtitles external files loading
- Added 'Fix IDX' routine for IDX/SUB subtitles
- Added assets folder free disc space check at project start up
- Added 'Full Preview' option in DVD Menu Editor
- Replaced Avs2Avi with FFmpeg for NULL encoding purposes (Avs2Avi has been actually removed from AVStoDVD package)
- Improved ReadAVSInfo routine
- Improved 'Open Project' routine (now it detects media files as wrong input and switch to 'Add Title' routine)
- Improved 'Fix SRT' routine for authored subtitles
- Improved ASS subtitles parsing routine
- Improved log activity



Bye

Thanks!!!

[_MrC_]

@dave

from the log file there is a discrepancy. See Preferences:

DVD Audio Language (Primary): JA - Japanese
DVD Audio Language (Secondary): EN - English

Then see the source info:

TITLE 1 SOURCE FILES
Video: I:\temp_ut_complete\Durarara\test.mkv
Info: AVC - 700 kbps - 1280x720 - DAR 1.778 - 23.976 fps (CFR) - Progressive - 24:29 minutes - 35235 frames
Audio 1: I:\temp_ut_complete\Durarara\test.mkv
Info: Vorbis - 48 kbps - VBR - 1 ch - 48000 Hz - 24:29 minutes (0 ms delay) - EN
Audio 2: I:\temp_ut_complete\Durarara\test.mkv
Info: Vorbis - 48 kbps - VBR - 1 ch - 48000 Hz - 24:29 minutes (0 ms delay) - JA

Then see the BatchMux authoring settings:

-a1 "K:\Temp\DVD_1_test_1.ac3"
-a1lang ja
-a2 "K:\Temp\DVD_1_test_2.ac3"
-a2lang en

Hence the track flagged as JA is actually the EN track and viceversa.

If you want to have the EN track as primary and JA track as secondary, just swap the languages in the Preferences.

If you want to have the JA track as primary track and EN track as secondary, the best way is to remux the mkv (using i.e. mkvmerge) and moving the JA track before the EN track. Then feed AVStoDVD with the remuxed mkv. Keep the Preferences with JA as primary and EN as secondary.



Bye

[davexnet]

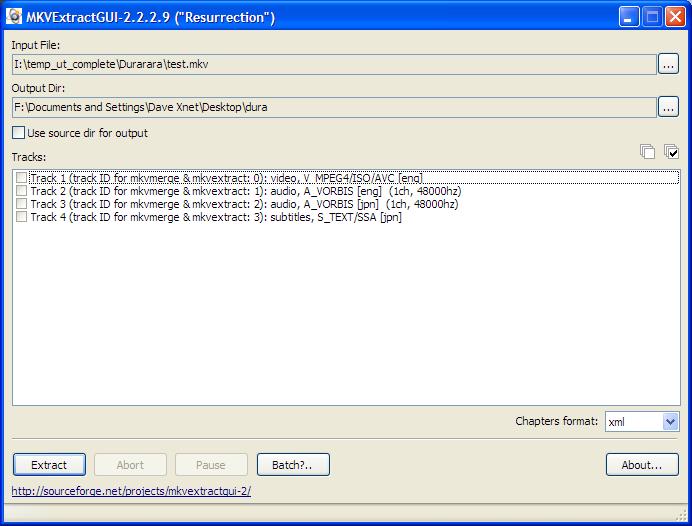

I think I see what you mean. Within the MKV file itself, the streams are numbered as you can see below.
ENG is the first stream JPN s the second.

I thought AVStoDVD could re-order the tracks so that JPN would play by default, by changing the preferences.
But you're saying it cannot, you have to recreate the MKV with the streams in the opposite order.

Would it be possible to have AVStoDVD use some method to re-prioritize these streams?
Perhaps by dragging and dropping the lower stream to the top, in the main window.
Or allow a stream to be set as default on the title/audio tab ?
(or something similar?)

Thanks,
Dave

[Seeker47]

Gave 2.7.1 a spin last night. New subs fix routine reported fixing 31 errors in the .Srt file. Seems to have gone well. Off to a promising start . . . .

[cholla]

This is a bug report:
If I change the DPI from the default 96 in Windows Vista to custom or 120DPI.
The AVStoDVD icons change to the basic red,yellow,& green film strip icons for all buttons in the GUI.

There was a workaround with older versions even though the raw icons are still not quite as good.
The newer version doesn't have the Icons.7z for the workaround.

It would be nice if AVStoDVD accepted the DPI change without a workaround.
I have an older version so I was able to do the workaround in the new version .

If this isn't the correct thread for this bug report please move it to where it should be.

[_MrC_]

@cholla

The "Installer" version does still have the Icons.7z files. In the next release I will add them to the "NoInstall" version too.

BTW you can download all the available AVStoDVD skins from http://sourceforge.net/projects/avstodvd/files/avstodvd_addons/More%20Skins/



Bye

[cholla]

@ _MrC_ , With the "NoInstall" version the Icons.7z files need to be in the folder for the Skin choice to work.
For example Skins/Default .
If they are just in the Skins folder they don't work for the workaround.

Do you plan on fixing the icon bug or will the workaround be the permanant fix ?
So far I haven't had this bug in other GUIs . I haven't opened every software I have to check that but the ones I have are OK.
So far only AVStoDVD has shown this bug from a DPI increase .
The other software authors must be doing something different .

Just to note I do use & like your program . If I didn't I wouldn't bother to post this bug.

[steptoe]

Any possibility of changing the avisynth script window to be resizable, so when adding external avisynth filters that have a long filename they don't drop onto the next line. Just makes for reading/editing the avisynth scripts a bit easier

Thanks

[_MrC_]

@cholla

how to handle the Icons.7z file, in case of troubles with the icons, is explained in the Help/FAQ/GUI/Q2.6

Anyway I will make that workaround more "automatic" in the next release.


@steptoe

ok, I will think about that. Meanwhile, I suggest you to use a better external text editor, such as Notepad++, and then copy & paste the script into AVStoDVD window.




Bye

[Rudel]

Hi MrC... I'm usually lurking, searching for my problems, but today I had to sign-up. I haven't authored a DVD in quite some time. I mostly work with BDs now.

I downloaded your latest package v2.7.1. I have AVSynth and Haali Splitter already installed, so I un-checked them during installation. I selected FFDShow for my encoders.

With my searches, I may have an issue with Muxman during the authoring process. I'm authoring to an ISO from MKV files.

It appears my video and audio encoding was successful. The output DVD folder layout looks normal and seems to have successfully encode one of my DAR 1.5 videos to 1.3.

For the past 5 hours (6 now) I've been stuck at 82% and 96% with Muxman. I haven't received any error messages yet, and 4 of my cores are still going strong. I'd show you a Muxman log, but it hasn't produced one yet.

Any thoughts?

Cheers.

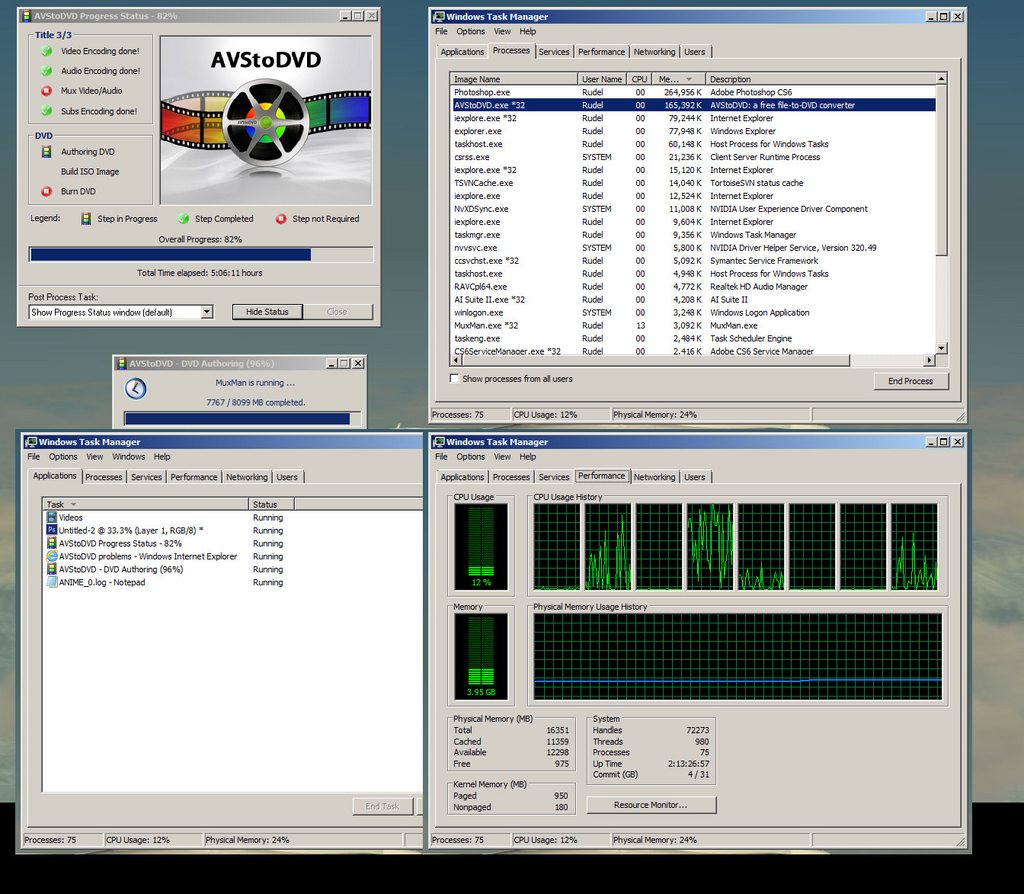

Here is a screenshot:



The DVD_0.log

<8/4/2013 10:20:21 AM>
START PROCESS
<>
<8/4/2013 10:20:21 AM>
PROJECT SETTINGS
DVD Video Standard: NTSC
DVD Titles number: 3
DVD Size: 8099/8100 MB (100%)
DVD Output Setup: ISO UDF Image
DVD Label: DVD
DVD Menu: Static Menu
Output Folder: C:\Users\Rudel\Videos
Delete Temp Assets Files: Yes
Delete Temp Working Files: Yes
Edit Command Parameters: No
Post Process Task: Show Progress Status window
PREFERENCES
MultiThread: 1
AVS Video Source Filter: A2DSource
AVS Audio Source Filter: A2DSource
AVS UpSize/DownSize Filter: Lanczos4Resize/Spline16Resize
Frame Adjust Strategy: 1
PAL SpeedUp: 0
Video Resolution: 0
Video BitRate Min: 2500
Video BitRate Level 1: 2500
Video Profile Level 2: 2500
Video BitRate Max: 8500
Keep DVD Compliant Video: 1
AC3 Audio Encoder: 2
Force FFmpeg for Long Audio: 1
DVD Audio Format: 0
DVD Audio BitRate: 192
Keep DVD Compliant Audio: 1
Normalize Audio: 0
Auto Delay Audio: 1
DVD Audio Language (Primary): EN - English
DVD Audio Language (Secondary): EN - English
DVD Subs Language (Primary): EN - English
DVD Subs Language (Secondary): EN - English
DVD Subs Font: Tahoma 18pt (255,255,255)
Chapters Interval: 5
Use Source Chapters: 1
DVD Burning Drive: D:\
DVD Burning Speed: 4x
Auto Erase DVD RW: 1
Unload ActiveMovie library: 0
Adjust ffdshow at runtime: 1
Save General Settings: 0
<>
<8/4/2013 10:20:21 AM>
TITLE 1 SOURCE FILES
Video: G:\HD Content\Production_01.mkv
Info: AVC - 3000 kbps - 720x480 - DAR 1.5 - 23.976 fps (CFR) - Progressive - 2:13:37 hours - 192228 frames
Audio 1: G:\HD Content\Production_01.mkv
Info: AC3 - 384 kbps - CBR - 6 ch - 48000 Hz - 16 bit - 2:13:37 hours (20 ms delay) - JA
Audio 2: G:\HD Content\Production_01.mkv
Info: AC3 - 384 kbps - CBR - 6 ch - 48000 Hz - 16 bit - 2:13:37 hours (20 ms delay) - EN
Subs 1: G:\HD Content\Production_01.mkv
Info: Advanced SubStation (ASS) - EN
[MediaInfoLib - v0.7.61]
<>
<8/4/2013 10:20:21 AM>
AVISYNTH SCRIPT
Import("C:\Program Files (x86)\AVStoDVD\Lib\A2DSource.avsi")
Video = A2DVideoSource("G:\HD Content\Production_01.mkv", CacheFolder="C:\Users\Rudel\AppData\Local\Temp", FrameRate=23.976, VFR=false)
# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = A2DAudioSource("G:\HD Content\Production_01.mkv", CacheFolder="C:\Users\Rudel\AppData\Local\Temp")
Video = Video.ConvertToYV12()
Video = Video.AddBorders(0,30,0,30)
Video = Video.Spline16Resize(720,480)
#Using DGPulldown/HCenc to upsize FPS
AudioDub(Video, Audio)
<>
<8/4/2013 10:20:21 AM>
AVISYNTH SCRIPT (Audio Track 2)
Import("C:\Program Files (x86)\AVStoDVD\Lib\A2DSource.avsi")
LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")
Video = A2DVideoSource("G:\HD Content\Production_01.mkv", CacheFolder="C:\Users\Rudel\AppData\Local\Temp", FrameRate=23.976, VFR=false)
# Audio is frameserved by AviSynth just for Preview and Edit purposes.
# Forced 'FFAudioSource' to encode secondary Audio Tracks
Audio = FFAudioSource("G:\HD Content\Production_01.mkv", track=2, cachefile="C:\Users\Rudel\AppData\Local\Temp\A2DFFA_" + String(Rand()) + ".cache")
Video = Video.ConvertToYV12()
Video = Video.AddBorders(0,30,0,30)
Video = Video.Spline16Resize(720,480)
#Using DGPulldown/HCenc to upsize FPS
AudioDub(Video, Audio)
<>
<8/4/2013 10:20:21 AM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: FFmpeg CBR 1-pass
Target Video FileSize: 2441.2 MB
Encoding Parameters: -i "C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_01_Production_01_1.avs" -threads 8 -aspect 4:3 -c:v mpeg2video -b:v 2554k -minrate 2554k -maxrate 2554k -bufsize 2000k -dc 8 -y "C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01.m2v"
<>
<8/4/2013 10:29:27 AM>
END VIDEO ENCODING OPERATIONS
Video Source Filter: A2DSource (DirectShowSource)
Created File: C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01.m2v (2440.8 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 2554 kbps - 720x480 - DAR 1.333 - 23.976 fps (CFR) - Progressive - 2:13:29 hours - 192024 frames
<>
<8/4/2013 10:29:27 AM>
START PULLDOWN OPERATIONS
DGPulldown Parameters: "C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01.m2v" -srcfps 23.976 -destfps 29.97 -inplace -tff
<>
<8/4/2013 10:30:02 AM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01.m2v (2440.8 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 2554 kbps - 720x480 - DAR 1.333 - 23.976 fps (CFR) - Progressive (2:3 Pulldown) - 2:13:37 hours - 192216 frames
<>
<8/4/2013 10:30:02 AM>
START AUDIO DEMUXING OPERATIONS (Track 1)
FFmpeg Parameters: -i "G:\HD Content\Production_01.mkv" -acodec copy -map 0:1 "C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01_1.ToFix.ac3"
<>
<8/4/2013 10:30:54 AM>
END AUDIO DEMUXING OPERATIONS (Track 1)
Created File: C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01_1.ac3 (367 MB)
OUTPUT AUDIO INFO: AC3 - 384 kbps - CBR - 6 ch - 48000 Hz - 16 bit - 2:13:37 hours (0 ms delay)
<>
<8/4/2013 10:30:54 AM>
START AUDIO DEMUXING OPERATIONS (Track 2)
FFmpeg Parameters: -i "G:\HD Content\Production_01.mkv" -acodec copy -map 0:2 "C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01_2.ToFix.ac3"
<>
<8/4/2013 10:31:22 AM>
END AUDIO DEMUXING OPERATIONS (Track 2)
Created File: C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01_2.ac3 (367 MB)
OUTPUT AUDIO INFO: AC3 - 384 kbps - CBR - 6 ch - 48000 Hz - 16 bit - 2:13:37 hours (0 ms delay)
<>
<8/4/2013 10:31:22 AM>
START SUBS EXTRACTING OPERATIONS (Track 1)
MKVExtract Parameters: tracks "G:\HD Content\Production_01.mkv" 0:"C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_01_Production_01.ass"
<>
<8/4/2013 10:31:36 AM>
END SUBS EXTRACTING OPERATIONS (Track 1)
Created File: C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_01_Production_01.ass (94.8 KB)
<>
<8/4/2013 10:31:37 AM>
START SUBS ENCODING OPERATIONS (Track 1)
SSA/ASS to SRT conversion routine applied (1074 subtitles converted)
SRT fixing routine applied (0 lines fixed).
SubtitleCreator Parameters: "C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_01_Production_01.srt" -p3 -i"C:\Program Files (x86)\AVStoDVD\SubtitleCreator\Examples\VTS_01_1.IFO"
<>
<8/4/2013 10:31:41 AM>
END SUBS ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01_1.sup (1.51 MB)
<>
<8/4/2013 10:31:41 AM>
TITLE 2 SOURCE FILES
Video: G:\HD Content\Production_02.mkv
Info: AVC - 4000 kbps - 1920x1080 - DAR 1.778 - 23.976 fps (CFR) - Progressive - 1:26:19 hours - 124173 frames
Audio 1: G:\HD Content\Production_02.mkv
Info: FLAC - 0 kbps - VBR - 2 ch - 48000 Hz - 24 bit - 1:26:19 hours (81 ms delay) - JA
Subs 1: G:\HD Content\Production_02_Sub.sup
Info: IfoEdit (SUP) - G:\HD Content\Production_02_Sub.sup
[MediaInfoLib - v0.7.61]
<>
<8/4/2013 10:31:41 AM>
AVISYNTH SCRIPT
Import("C:\Program Files (x86)\AVStoDVD\Lib\A2DSource.avsi")
Video = A2DVideoSource("G:\HD Content\Production_02.mkv", CacheFolder="C:\Users\Rudel\AppData\Local\Temp", FrameRate=23.976, VFR=false)
Audio = A2DAudioSource("G:\HD Content\Production_02.mkv", CacheFolder="C:\Users\Rudel\AppData\Local\Temp")
Video = Video.ConvertToYV12()
Video = Video.Spline16Resize(720,480)
#Using DGPulldown/HCenc to upsize FPS
Audio = Audio.DelayAudio(0.081)
AudioDub(Video, Audio)
<>
<8/4/2013 10:31:41 AM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: FFmpeg CBR 1-pass
Target Video FileSize: 1576.8 MB
Encoding Parameters: -i "C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_02_Production_02_1.avs" -threads 8 -aspect 16:9 -c:v mpeg2video -b:v 2554k -minrate 2554k -maxrate 2554k -bufsize 2000k -dc 8 -y "C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02.m2v"
<>
<8/4/2013 10:49:58 AM>
END VIDEO ENCODING OPERATIONS
Video Source Filter: A2DSource (DirectShowSource)
Created File: C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02.m2v (1576.8 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 2554 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive - 1:26:13 hours - 124048 frames
<>
<8/4/2013 10:49:58 AM>
START PULLDOWN OPERATIONS
DGPulldown Parameters: "C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02.m2v" -srcfps 23.976 -destfps 29.97 -inplace -tff
<>
<8/4/2013 10:50:20 AM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02.m2v (1576.8 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 2554 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive (2:3 Pulldown) - 1:26:18 hours - 124170 frames
<>
<8/4/2013 10:50:20 AM>
START AUDIO ENCODING OPERATIONS (Track 1)
FFmpeg Parameters: -i "C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_02_Production_02_1.avs" -threads 8 -y -vn -acodec ac3 -ab 192k "C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02_1.ac3"
<>
<8/4/2013 10:51:13 AM>
END AUDIO ENCODING OPERATIONS (Track 1)
Audio Source Filter: A2DSource (DirectShowSource)
Created File: C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02_1.ac3 (118.5 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 1:26:19 hours (0 ms delay)
<>
<8/4/2013 10:51:13 AM>
START SUBS ENCODING OPERATIONS (Track 1)
Copy Source SUP file
<>
<8/4/2013 10:51:13 AM>
END SUBS ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02_1.sup (12.05 MB)
<>
<8/4/2013 10:51:13 AM>
TITLE 3 SOURCE FILES
Video: G:\HD Content\Production_03.mkv
Info: AVC - 3000 kbps - 1920x1080 - DAR 1.778 - 29.97 fps (CFR) - Progressive - 2:04:25 hours - 223735 frames
Audio 1: G:\HD Content\Production_03.mkv
Info: AC3 - 448 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 2:04:25 hours (0 ms delay) - JA
Subs 1: G:\HD Content\Production_03.mkv
Info: VobSub (IDX) - JA
Subs 2: G:\HD Content\Production_03.mkv
Info: VobSub (IDX) - EN
[MediaInfoLib - v0.7.61]
<>
<8/4/2013 10:51:13 AM>
AVISYNTH SCRIPT
Import("C:\Program Files (x86)\AVStoDVD\Lib\A2DSource.avsi")
Video = A2DVideoSource("G:\HD Content\Production_03.mkv", CacheFolder="C:\Users\Rudel\AppData\Local\Temp", FrameRate=29.97, VFR=false)
# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = A2DAudioSource("G:\HD Content\Production_03.mkv", CacheFolder="C:\Users\Rudel\AppData\Local\Temp")
Video = Video.ConvertToYV12()
Video = Video.Spline16Resize(720,480)
AudioDub(Video, Audio)
<>
<8/4/2013 10:51:13 AM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: FFmpeg CBR 1-pass
Target Video FileSize: 2272.8 MB
Encoding Parameters: -i "C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_03_Production_03_1.avs" -threads 8 -aspect 16:9 -c:v mpeg2video -b:v 2554k -minrate 2554k -maxrate 2554k -bufsize 2000k -dc 8 -y "C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03.m2v"
<>
<8/4/2013 11:23:20 AM>
END VIDEO ENCODING OPERATIONS
Video Source Filter: A2DSource (DirectShowSource)
Created File: C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03.m2v (2272.8 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 2554 kbps - 720x480 - DAR 1.778 - 29.97 fps (CFR) - Progressive - 2:04:25 hours - 223735 frames
<>
<8/4/2013 11:23:20 AM>
START AUDIO DEMUXING OPERATIONS (Track 1)
FFmpeg Parameters: -i "G:\HD Content\Production_03.mkv" -acodec copy -map 0:0 "C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_1.ToFix.ac3"
<>
<8/4/2013 11:24:18 AM>
END AUDIO DEMUXING OPERATIONS (Track 1)
Created File: C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_1.ac3 (398.7 MB)
OUTPUT AUDIO INFO: AC3 - 448 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 2:04:25 hours (0 ms delay)
<>
<8/4/2013 11:24:18 AM>
START SUBS EXTRACTING OPERATIONS (Track 1)
MKVExtract Parameters: tracks "G:\HD Content\Production_03.mkv" 1:"C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_03_Production_03.idx"
<>
<8/4/2013 11:24:57 AM>
END SUBS EXTRACTING OPERATIONS (Track 1)
Created File: C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_03_Production_03.idx (74.6 KB)
<>
<8/4/2013 11:24:57 AM>
START SUBS ENCODING OPERATIONS (Track 1)
IDX fixing routine applied (0 errors fixed).
VSConv Parameters: -f sup -i "C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_03_Production_03.idx" -o "C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_1" -id 0
<>
<8/4/2013 11:24:57 AM>
END SUBS ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_1.sup (3.24 MB)
<>
<8/4/2013 11:24:57 AM>
START SUBS EXTRACTING OPERATIONS (Track 2)
MKVExtract Parameters: tracks "G:\HD Content\Production_03.mkv" 2:"C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_03_Production_03.idx"
<>
<8/4/2013 11:25:36 AM>
END SUBS EXTRACTING OPERATIONS (Track 2)
Created File: C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_03_Production_03.idx (44.1 KB)
<>
<8/4/2013 11:25:36 AM>
START SUBS ENCODING OPERATIONS (Track 2)
IDX fixing routine applied (0 errors fixed).
VSConv Parameters: -f sup -i "C:\Users\Rudel\AppData\Local\Temp\DVD_0_Title_03_Production_03.idx" -o "C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_2" -id 0
<>
<8/4/2013 11:25:37 AM>
END SUBS ENCODING OPERATIONS (Track 2)
Created File: C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_2.sup (2.25 MB)
<>
<8/4/2013 11:25:37 AM>
START DVD MENU BUILDING OPERATIONS
DVD Menu settings:
Style: 0
Aspect Ratio: 1
Titles Format: 1
Template: Menu in Black
Max Titles Page: 12
Enable Play All: 1
Force Play All: 0
Background Audio: 0
Max Thumbs Row: 4
Thumb Image Source: 0
Thumb Frame Position: 10%
HL Frame Format: 0
HL Selection Color: 5
HL Play Color: 0
Menu Video BitRate: 6000 kbps
Motion Menu Duration: 15 seconds
Thumb Drop Shadow: 2
Play All Shadow: 2
Arrows Shadow: 0
<>
<8/4/2013 11:25:40 AM>
END DVD MENU BUILDING OPERATIONS
Created File (Menu Page 1): C:\Users\Rudel\Videos\DVD_0_MenuPage1.bmp (1 MB)
<>
<8/4/2013 11:25:40 AM>
START DVD AUTHORING OPERATIONS
BatchMux Parameters: -arglist "C:\Users\Rudel\AppData\Local\Temp\DVD_0_BatchMux.ini"
BatchMux ini file:
-d "C:\Users\Rudel\Videos\DVD_0\VIDEO_TS"
-mxp "C:\Users\Rudel\AppData\Local\Temp\DVD_0_MuxMan.mxp"
-l "C:\Users\Rudel\AppData\Local\Temp\DVD_0_MuxMan.log"
-muxman "C:\Program Files (x86)\AVStoDVD\MuxMan"
-prio LOW
-palette "C:\Users\Rudel\AppData\Local\Temp\DVD_0_Palette.txt"
-v "C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01.m2v"
-vidmode 4:3
-a1 "C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01_1.ac3"
-a1lang en
-a2 "C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01_2.ac3"
-a2lang en
-s1 "C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01_1.sup"
-s1lang en
-s1ext 1
-cellfr "C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01_Chapters.txt"
-progfr "C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01_Chapters.txt"
-chapfr "C:\Users\Rudel\Videos\DVD_0_Title_01_Production_01_Chapters.txt"
-SEG2v "C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02.m2v"
-SEG2vidmode LB
-SEG2a1 "C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02_1.ac3"
-SEG2a1lang en
-SEG2s1 "C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02_1.sup"
-SEG2s1lang en
-SEG2s1ext 1
-SEG2cellfr "C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02_Chapters.txt"
-SEG2progfr "C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02_Chapters.txt"
-SEG2chapfr "C:\Users\Rudel\Videos\DVD_0_Title_02_Production_02_Chapters.txt"
-SEG3v "C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03.m2v"
-SEG3vidmode LB
-SEG3a1 "C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_1.ac3"
-SEG3a1lang en
-SEG3s1 "C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_1.sup"
-SEG3s1lang en
-SEG3s1ext 1
-SEG3s2 "C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_2.sup"
-SEG3s2lang en
-SEG3s2ext 1
-SEG3cellfr "C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_Chapters.txt"
-SEG3progfr "C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_Chapters.txt"
-SEG3chapfr "C:\Users\Rudel\Videos\DVD_0_Title_03_Production_03_Chapters.txt"
-SEG4v "C:\Users\Rudel\Videos\DVD_0_MenuPage1.bmp"
-SEG4vidmode LB
-SEG4s1 "C:\Users\Rudel\Videos\DVD_0_Menu.sst"
-SEG4s1dmode WIDE_LB
-SEG4hlmnu "C:\Users\Rudel\AppData\Local\Temp\DVD_0_MenuPage1_Buttons.mnu"
-SEG4hlcsm "C:\Users\Rudel\AppData\Local\Temp\DVD_0_HighlightScheme.csm
-hcn "C:\Users\Rudel\AppData\Local\Temp\DVD_0_BatchMux.hcn"
<>

[_MrC_]

@Rudel

to understand if the issue is Muxman related, I would suggest you to try with only each single title and create 3 separate DVD-5 with them (with and without DVD menu). Then report back the errors, if any, or the success and we will continue the troubleshooting.

And attach the log file, not copy and paste it, better for the forum reading ease...



Bye

[ganymede]

I installed v. 2.71 a few of days ago and tried to convert a webM file to MPEG2. However, the program aborted the operation after about 30 seconds with the message "Process aborted during Title 1 video encoding operations." I'm puzzled as to what happened as the settings I used are similar to what I've used quite successfully in the past. Could it be that the program doesn't support webM files? I figure I must be doing something wrong. I'm running Windows 7 with a quad-core processor running at 2.8 GHz, 4GB RAM with more than 100 GB of hard drive space. I looked at the log file but since I'm no expert at this, I didn't see anything that helped me to understand what happened. Hopefully someone here can take a look at the file and give me a clue as to what I'm doing wrong. Thanks for your help. The log file is posted below.

LOG FILE

<8/8/2013 12:33:45 AM>
START PROCESS
<>

<8/8/2013 12:33:45 AM>
PROJECT SETTINGS

DVD Video Standard: NTSC
DVD Titles number: 1
DVD Size: 4450/4450 MB (100%)
DVD Output Setup: MPEG2 File
DVD Label: DVD
DVD Menu: No Menu
Output Folder: I:\Video
Delete Temp Assets Files: Yes
Delete Temp Working Files: Yes
Edit Command Parameters: No
Post Process Task: Show Progress Status window

PREFERENCES

MultiThread: 1
AVS Video Source Filter: A2DSource
AVS Audio Source Filter: A2DSource
AVS UpSize/DownSize Filter: Lanczos4Resize/Spline16Resize
Frame Adjust Strategy: 1
PAL SpeedUp: 0
Video Resolution: 0
Video BitRate Min: 2500
Video BitRate Level 1: 8500
Video Profile Level 2: 8500
Video BitRate Max: 8500
Keep DVD Compliant Video: 1
AC3 Audio Encoder: 1
Force FFmpeg for Long Audio: 1
DVD Audio Format: 0
DVD Audio BitRate: 192
Keep DVD Compliant Audio: 1
Normalize Audio: 0
Auto Delay Audio: 1
DVD Audio Language (Primary): EN - English
DVD Audio Language (Secondary): EN - English
DVD Subs Language (Primary): EN - English
DVD Subs Language (Secondary): EN - English
DVD Subs Font: Tahoma 18pt (255,255,255)
Chapters Interval: 5
Use Source Chapters: 1
DVD Burning Drive: J:\
DVD Burning Speed: 4x
Auto Erase DVD RW: 1
Unload ActiveMovie library: 0
Adjust ffdshow at runtime: 1
Save General Settings: 0
<>

<8/8/2013 12:33:45 AM>
TITLE 1 SOURCE FILES
Video: G:\Video\First Love.webm
Info: V_VP8 - 521 kbps - 496x360 - DAR 1.378 - 29.97 fps (CFR) - 1:36:42 hours - 173906 frames
Audio 1: G:\Video\First Love.webm
Info: Vorbis - 128 kbps - VBR - 2 ch - 44100 Hz - 16 bit - 1:36:42 hours (0 ms delay)
[MediaInfoLib - v0.7.61]
<>

<8/8/2013 12:33:45 AM>
AVISYNTH SCRIPT
Import("E:\Program Files (x86)\AVStoDVD\Lib\A2DSource.avsi")

Video = A2DVideoSource("G:\Video\First Love.webm", CacheFolder="C:\Users\Roy\AppData\Local\Temp", FrameRate=29.97, VFR=false)
Audio = A2DAudioSource("G:\Video\First Love.webm", CacheFolder="C:\Users\Roy\AppData\Local\Temp")

Video = Video.ConvertToYV12()
Video = Video.AddBorders(0,6,0,6)
Video = Video.Lanczos4Resize(720,480)

Audio = Audio.SSRC(48000)

AudioDub(Video, Audio)
<>

<8/8/2013 12:33:45 AM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: HCenc VBR 2-pass
Target Video FileSize: 4223.3 MB
Encoding Parameters: -ini "C:\Users\Roy\AppData\Local\Temp\DVD_4_First Love.HCenc.ini"
HCenc ini file:
*INFILE C:\Users\Roy\AppData\Local\Temp\DVD_4_First Love_1.avs
*AVSRELOAD
*OUTFILE C:\Users\Roy\Videos\DVD_4_First Love.m2v
*LOGFILE C:\Users\Roy\AppData\Local\Temp\DVD_4_First Love.HCenc.log
*MAXBITRATE 9000
*BITRATE 6105
*PROFILE BEST
*ASPECT 4:3
*PROGRESSIVE
*TFF
*BIAS 60
*DC_PREC 10
*MATRIX MPEG
*AQ 1
*LUMGAIN 1
*SMP
*PRIORITY IDLE
*DBPATH C:\Users\Roy\AppData\Local\Temp
*WAIT 2
<>

<8/8/2013 12:34:28 AM>
Process aborted during Title 1 VIDEO encoding operations.

For Video issues troubleshooting see Help/FAQ/Video section.
<>

<8/8/2013 12:34:28 AM>
Log file created by AVStoDVD Release 2.7.1
<>

[_MrC_]

Hi ganymede,

to understand if your system can decode the V_VP8 codec (video stream in the webm file) using a DirectShow approach, use the 'Codecs'/'Build DirectShow Filter Graph' option from AVStoDVD. Then report here the resulting graph.



Bye

[ganymede]

Hi MrC,

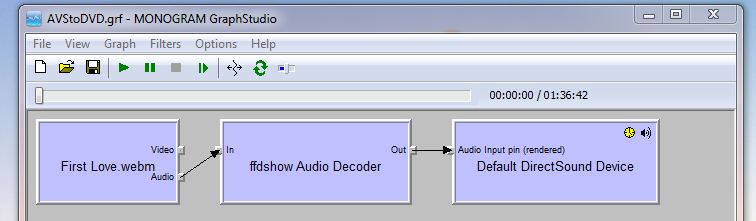

Below is a screen copy of the graph created by AVStoDVD. Although VLC plays the video on my system, from looking at the graph it doesn't look like any video is being decoded in AVStoDVD. When I played the GraphStudio file it was only audio, no video.

[theewizard]

five titles, with motion menu
first time i ever attempted a motion menu

aborted during authoring process , at what appears to be near the very end

batchmux log

BatchMux version --> 1.3
Destination Folder --> C:\Users\Mr Wizard\Videos\Season 3, D-1_0\VIDEO_TS
MuxMan Script File --> C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_MuxMan.mxp
MuxMan Log String --> -l "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_MuxMan.log"
Folder of the MuxMan executable --> C:\Program Files (x86)\AVStoDVD\MuxMan
Check presence of MuxMan.exe --> PASSED
Palette File --> C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_Palette.txt
Default Palette --> SUCCESSFULLY REDEFINED
Segment #1 - Video File #1 --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1.m2v
Checking asset for importing as --> M2V, M1V, MPV
Video Coding Mode --> MPEG-2
Video Resolution (Nominal) --> (720x480)
MPEG-2 Aspect Ratio (DAR) --> 16:9
Video Frame Rate --> 29,97 fps
Video Bitrate (Nominal, Kbps) --> 3906
VBV Buffer Size (Kbyte) --> 224
Segment #1 - Video Display Mode --> LB
Segment #1 - Audio #1 File #1 --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1_1.ac3
Segment #1 - Audio Lang Code #1 --> en
Segment #1 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1_Chapters.txt
Segment #1 - Total Nr of Cells --> 17
Segment #1 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1_Chapters.txt
Segment #1 - Total Nr of Programs --> 17
Segment #1 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1_Chapters.txt
Segment #1 - Total Nr of Chapters --> 17
Segment #2 - Video File #1 --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2.m2v
Checking asset for importing as --> M2V, M1V, MPV
Video Coding Mode --> MPEG-2
Video Resolution (Nominal) --> (720x480)
MPEG-2 Aspect Ratio (DAR) --> 16:9
Video Frame Rate --> 29,97 fps
Video Bitrate (Nominal, Kbps) --> 3906
VBV Buffer Size (Kbyte) --> 200
Segment #2 - Video Display Mode --> LB
Segment #2 - Audio #1 File #1 --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2_1.ac3
Segment #2 - Audio Lang Code #1 --> en
Segment #2 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2_Chapters.txt
Segment #2 - Total Nr of Cells --> 10
Segment #2 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2_Chapters.txt
Segment #2 - Total Nr of Programs --> 10
Segment #2 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2_Chapters.txt
Segment #2 - Total Nr of Chapters --> 10
Segment #3 - Video File #1 --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3.m2v
Checking asset for importing as --> M2V, M1V, MPV
Video Coding Mode --> MPEG-2
Video Resolution (Nominal) --> (720x480)
MPEG-2 Aspect Ratio (DAR) --> 16:9
Video Frame Rate --> 29,97 fps
Video Bitrate (Nominal, Kbps) --> 3906
VBV Buffer Size (Kbyte) --> 224
Segment #3 - Video Display Mode --> LB
Segment #3 - Audio #1 File #1 --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3_1.ac3
Segment #3 - Audio Lang Code #1 --> en
Segment #3 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3_Chapters.txt
Segment #3 - Total Nr of Cells --> 9
Segment #3 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3_Chapters.txt
Segment #3 - Total Nr of Programs --> 9
Segment #3 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3_Chapters.txt
Segment #3 - Total Nr of Chapters --> 9
Segment #4 - Video File #1 --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4.m2v
Checking asset for importing as --> M2V, M1V, MPV
Video Coding Mode --> MPEG-2
Video Resolution (Nominal) --> (720x480)
MPEG-2 Aspect Ratio (DAR) --> 16:9
Video Frame Rate --> 29,97 fps
Video Bitrate (Nominal, Kbps) --> 3906
VBV Buffer Size (Kbyte) --> 224
Segment #4 - Video Display Mode --> LB
Segment #4 - Audio #1 File #1 --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4_1.ac3
Segment #4 - Audio Lang Code #1 --> en
Segment #4 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4_Chapters.txt
Segment #4 - Total Nr of Cells --> 9
Segment #4 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4_Chapters.txt
Segment #4 - Total Nr of Programs --> 9
Segment #4 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4_Chapters.txt
Segment #4 - Total Nr of Chapters --> 9
Segment #5 - Video File #1 --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5.m2v
Checking asset for importing as --> M2V, M1V, MPV
Video Coding Mode --> MPEG-2
Video Resolution (Nominal) --> (720x480)
MPEG-2 Aspect Ratio (DAR) --> 16:9
Video Frame Rate --> 29,97 fps
Video Bitrate (Nominal, Kbps) --> 3906
VBV Buffer Size (Kbyte) --> 224
Segment #5 - Video Display Mode --> LB
Segment #5 - Audio #1 File #1 --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5_1.ac3
Segment #5 - Audio Lang Code #1 --> en
Segment #5 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5_Chapters.txt
Segment #5 - Total Nr of Cells --> 9
Segment #5 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5_Chapters.txt
Segment #5 - Total Nr of Programs --> 9
Segment #5 - Timeframe file --> C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5_Chapters.txt
Segment #5 - Total Nr of Chapters --> 9
Segment memory resources --> RELEASED
Local Stack memory --> RELEASED
File i/o structures --> DEALLOCATED

log file

<8/11/2013 3:31:56 PM>
START PROCESS
<>

<8/11/2013 3:31:56 PM>
PROJECT SETTINGS

DVD Video Standard: NTSC
DVD Titles number: 5
DVD Size: 7804/8100 MB (96%)
DVD Output Setup: DVD Folder
DVD Label: Season 3, D-1
DVD Menu: Motion Menu
Output Folder: C:\Users\Mr Wizard\Videos
Delete Temp Assets Files: Yes
Delete Temp Working Files: Yes
Edit Command Parameters: No
Post Process Task: Show Progress Status window

PREFERENCES

MultiThread: 1
AVS Source Filter: FFMpegSource
AVS UpSize/DownSize Filter: BilinearResize/BilinearResize
Frame Adjust Strategy: 0
PAL SpeedUp: 0
Video Resolution: 1
Video BitRate Min: 3000
Video BitRate Level 1: 4000
Video Profile Level 2: 4000
Video BitRate Max: 6000
Keep DVD Compliant Video: 1
AC3 Audio Encoder: 4
Force FFmpeg for Long Audio: 1
DVD Audio Format: 0
DVD Audio BitRate: 192
Keep DVD Compliant Audio: 0
Normalize Audio: 0
Auto Delay Audio: 1
DVD Audio Language (Primary): EN - English
DVD Audio Language (Secondary): EN - English
DVD Subs Language (Primary): EN - English
DVD Subs Language (Secondary): EN - English
DVD Subs Font: Verdana 11pt (255,255,255)
Chapters Interval: 5
Use Source Chapters: 0
DVD Burning Drive: G: HL-DT-ST DVDRAM GSA-E30L VE01
DVD Burning Speed: 4x
Auto Erase DVD RW: 1
Save Log file: 1
Unload ActiveMovie library: 0
Adjust ffdshow at runtime: 1
Save General Settings: 1
<>

<8/11/2013 3:31:56 PM>
TITLE 1 SOURCE FILES
Video: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e1.mp4
Info: AVC - 1068 kbps - 720x404 - DAR 1.782 - 23.976 fps (CFR) - Progressive - 1:23:40 hours - 120367 frames
Audio 1: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e1.mp4
Info: AAC LC - 123 kbps - VBR - 2 ch - 48000 Hz - 1:23:40 hours (83 ms delay) - Internal
[MediaInfoLib - v0.7.61]
<>

<8/11/2013 3:31:56 PM>
AVISYNTH SCRIPT
LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")

# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = FFAudioSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e1.mp4", track=-1)
Video = FFVideoSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e1.mp4", track=-1, seekmode=0)

Video = Video.ConvertToYV12()
Video = Video.BilinearResize(720,480)
#Using DGPulldown/HCenc to upsize FPS

Audio = Audio.DelayAudio(0.083)

AudioDub(Video, Audio)
<>

<8/11/2013 3:31:59 PM>
TITLE 1 AVISYNTH FRAMESERVING CHECK
Check passed successfully.
<>

<8/11/2013 3:31:59 PM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: QuEnc CBR 1-pass
Target Video FileSize: 2393.7 MB
Encoding Parameters: -i "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_Title_01_Falling Skies s3-e1_1.avs" -o "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1.m2v" -b 4000 -1 -hq -novbr -scene -trell -aspectratio 16:9 -nointerlaced -mpeg2mux noaudio -dc 8 -priority 5 -auto -close
<>

<8/11/2013 3:46:32 PM>
END VIDEO ENCODING OPERATIONS
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1.m2v (2393.8 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive - 1:23:35 hours - 120247 frames
<>

<8/11/2013 3:46:32 PM>
START PULLDOWN OPERATIONS
DGPulldown Parameters: "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1.m2v" -srcfps 23.976 -destfps 29.97 -inplace -tff
<>

<8/11/2013 3:49:33 PM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1.m2v (2393.8 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive (2:3 Pulldown) - 1:23:40 hours - 120366 frames
<>

<8/11/2013 3:49:33 PM>
START FFMPEG (SAFE MODE) AUDIO ENCODING OPERATIONS (Track 1)
FFmpeg Parameters: -threads 4 -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e1.mp4" -y -vn -acodec ac3 -ar 48000 -ab 192k "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1_1.ac3"
<>

<8/11/2013 3:50:27 PM>
END AUDIO ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1_1.ac3 (114.9 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 1:23:40 hours (0 ms delay)
<>

<8/11/2013 3:50:27 PM>
TITLE 2 SOURCE FILES
Video: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg
Info: MPEG-2 Video - 2912 kbps - 720x480 - DAR 1.778 - 29.97 fps (CFR) - Progressive - 48:36 minutes - 87404 frames
Audio 1: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg
Info: MPEG-1 Audio layer 2 - 256 kbps - CBR - 2 ch - 48000 Hz - 48:36 minutes (0 ms delay) - Internal
[MediaInfoLib - v0.7.61]
<>

<8/11/2013 3:50:27 PM>
AVISYNTH SCRIPT
LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")

# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = FFAudioSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg", track=-1)
# Video is frameserved by AviSynth just for Preview and Edit purposes.
Video = FFVideoSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg", track=-1, seekmode=0)

Video = Video.ConvertToYV12()

AudioDub(Video, Audio)
<>

<8/11/2013 3:50:27 PM>
START VIDEO DEMUXING OPERATIONS
Target Video FileSize: 1012.3 MB
FFmpeg Parameters: -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg" -vcodec copy "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2.m2v"
<>

<8/11/2013 3:51:05 PM>
END VIDEO DEMUXING OPERATIONS
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2.m2v (1014.5 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 2917 kbps - 720x480 - DAR 1.778 - 29.97 fps (CFR) - Progressive - 48:36 minutes - 87405 frames
<>

<8/11/2013 3:51:05 PM>
START FFMPEG (SAFE MODE) AUDIO ENCODING OPERATIONS (Track 1)
FFmpeg Parameters: -threads 4 -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg" -y -vn -acodec ac3 -ar 48000 -ab 192k "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2_1.ac3"
<>

<8/11/2013 3:51:31 PM>
END AUDIO ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2_1.ac3 (66.8 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 48:36 minutes (0 ms delay)
<>

<8/11/2013 3:51:31 PM>
TITLE 3 SOURCE FILES
Video: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Fallings 3-3.mp4
Info: AVC - 866 kbps - 720x404 - DAR 1.782 - 23.976 fps (CFR) - Progressive - 41:59 minutes - 60399 frames
Audio 1: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Fallings 3-3.mp4
Info: AAC LC - 113 kbps - VBR - 2 ch - 48000 Hz - 41:59 minutes (83 ms delay) - Internal
[MediaInfoLib - v0.7.61]
<>

<8/11/2013 3:51:31 PM>
AVISYNTH SCRIPT
LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")

# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = FFAudioSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Fallings 3-3.mp4", track=-1)
Video = FFVideoSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Fallings 3-3.mp4", track=-1, seekmode=0)

Video = Video.ConvertToYV12()
Video = Video.BilinearResize(720,480)
#Using DGPulldown/HCenc to upsize FPS

Audio = Audio.DelayAudio(0.083)

AudioDub(Video, Audio)
<>

<8/11/2013 3:51:34 PM>
TITLE 3 AVISYNTH FRAMESERVING CHECK
Check passed successfully.
<>

<8/11/2013 3:51:34 PM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: QuEnc CBR 1-pass
Target Video FileSize: 1201.2 MB
Encoding Parameters: -i "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_Title_03_Fallings 3-3_1.avs" -o "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3.m2v" -b 4000 -1 -hq -novbr -scene -trell -aspectratio 16:9 -nointerlaced -mpeg2mux noaudio -dc 8 -priority 5 -auto -close
<>

<8/11/2013 3:58:40 PM>
END VIDEO ENCODING OPERATIONS
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3.m2v (1201.2 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive - 41:56 minutes - 60340 frames
<>

<8/11/2013 3:58:40 PM>
START PULLDOWN OPERATIONS
DGPulldown Parameters: "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3.m2v" -srcfps 23.976 -destfps 29.97 -inplace -tff
<>

<8/11/2013 3:59:34 PM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3.m2v (1201.2 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive (2:3 Pulldown) - 41:59 minutes - 60397 frames
<>

<8/11/2013 3:59:34 PM>
START FFMPEG (SAFE MODE) AUDIO ENCODING OPERATIONS (Track 1)
FFmpeg Parameters: -threads 4 -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Fallings 3-3.mp4" -y -vn -acodec ac3 -ar 48000 -ab 192k "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3_1.ac3"
<>

<8/11/2013 3:59:48 PM>
END AUDIO ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3_1.ac3 (57.7 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 41:59 minutes (0 ms delay)
<>

<8/11/2013 3:59:48 PM>
TITLE 4 SOURCE FILES
Video: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e4.flv
Info: AVC - 737 kbps - 720x404 - DAR 1.782 - 23.976 fps (CFR) - Progressive - 42:02 minutes - 60474 frames
Audio 1: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e4.flv
Info: AAC LC - 115 kbps - VBR - 2 ch - 48000 Hz - 42:02 minutes (83 ms delay) - Internal
[MediaInfoLib - v0.7.61]
<>

<8/11/2013 3:59:48 PM>
AVISYNTH SCRIPT
LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")

# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = FFAudioSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e4.flv", track=-1)
Video = FFVideoSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e4.flv", track=-1, seekmode=0)

Video = Video.ConvertToYV12()
Video = Video.BilinearResize(720,480)
#Using DGPulldown/HCenc to upsize FPS

Audio = Audio.DelayAudio(0.083)

AudioDub(Video, Audio)
<>

<8/11/2013 3:59:50 PM>
TITLE 4 AVISYNTH FRAMESERVING CHECK
Check passed successfully.
<>

<8/11/2013 3:59:50 PM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: QuEnc CBR 1-pass
Target Video FileSize: 1202.6 MB
Encoding Parameters: -i "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_Title_04_Falling Skies s3-e4_1.avs" -o "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4.m2v" -b 4000 -1 -hq -novbr -scene -trell -aspectratio 16:9 -nointerlaced -mpeg2mux noaudio -dc 8 -priority 5 -auto -close
<>

<8/11/2013 4:06:34 PM>
END VIDEO ENCODING OPERATIONS
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4.m2v (1202.7 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive - 41:59 minutes - 60414 frames
<>

<8/11/2013 4:06:34 PM>
START PULLDOWN OPERATIONS
DGPulldown Parameters: "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4.m2v" -srcfps 23.976 -destfps 29.97 -inplace -tff
<>

<8/11/2013 4:07:50 PM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4.m2v (1202.7 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive (2:3 Pulldown) - 42:02 minutes - 60473 frames
<>

<8/11/2013 4:07:50 PM>
START FFMPEG (SAFE MODE) AUDIO ENCODING OPERATIONS (Track 1)
FFmpeg Parameters: -threads 4 -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e4.flv" -y -vn -acodec ac3 -ar 48000 -ab 192k "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4_1.ac3"
<>

<8/11/2013 4:08:04 PM>
END AUDIO ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4_1.ac3 (57.7 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 42:02 minutes (0 ms delay)
<>

<8/11/2013 4:08:04 PM>
TITLE 5 SOURCE FILES
Video: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling skies s3-E5.flv
Info: AVC - 1069 kbps - 720x404 - DAR 1.782 - 23.976 fps (CFR) - Progressive - 41:03 minutes - 59054 frames
Audio 1: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling skies s3-E5.flv
Info: AAC LC - 132 kbps - VBR - 2 ch - 48000 Hz - 41:03 minutes (83 ms delay) - Internal
[MediaInfoLib - v0.7.61]
<>

<8/11/2013 4:08:04 PM>
AVISYNTH SCRIPT
LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")

# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = FFAudioSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling skies s3-E5.flv", track=-1)
Video = FFVideoSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling skies s3-E5.flv", track=-1, seekmode=0)

Video = Video.ConvertToYV12()
Video = Video.BilinearResize(720,480)
#Using DGPulldown/HCenc to upsize FPS

Audio = Audio.DelayAudio(0.083)

AudioDub(Video, Audio)
<>

<8/11/2013 4:08:07 PM>
TITLE 5 AVISYNTH FRAMESERVING CHECK
Check passed successfully.
<>

<8/11/2013 4:08:07 PM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: QuEnc CBR 1-pass
Target Video FileSize: 1174.4 MB
Encoding Parameters: -i "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_Title_05_Falling skies s3-E5_1.avs" -o "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5.m2v" -b 4000 -1 -hq -novbr -scene -trell -aspectratio 16:9 -nointerlaced -mpeg2mux noaudio -dc 8 -priority 5 -auto -close
<>

<8/11/2013 4:15:09 PM>
END VIDEO ENCODING OPERATIONS
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5.m2v (1174.4 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive - 41:00 minutes - 58995 frames
<>

<8/11/2013 4:15:09 PM>
START PULLDOWN OPERATIONS
DGPulldown Parameters: "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5.m2v" -srcfps 23.976 -destfps 29.97 -inplace -tff
<>

<8/11/2013 4:16:17 PM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5.m2v (1174.4 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive (2:3 Pulldown) - 41:03 minutes - 59053 frames
<>

<8/11/2013 4:16:17 PM>
START FFMPEG (SAFE MODE) AUDIO ENCODING OPERATIONS (Track 1)
FFmpeg Parameters: -threads 4 -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling skies s3-E5.flv" -y -vn -acodec ac3 -ar 48000 -ab 192k "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5_1.ac3"
<>

<8/11/2013 4:16:31 PM>
END AUDIO ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5_1.ac3 (56.4 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 41:03 minutes (0 ms delay)
<>

<8/11/2013 4:16:32 PM>
START DVD MENU BUILDING OPERATIONS
DVD Menu settings:
Style: 1
Aspect Ratio: 1
Titles Format: 1
Template: Menu in Black
Max Titles Page: 12
Enable Play All: 1
Force Play All: 0
Background Audio: 0
Max Thumbs Row: 5
Thumb Image Source: 0
Thumb Frame Position: 10%
HL Frame Format: 0
HL Selection Color: 5
HL Play Color: 0
Menu Video BitRate: 4000 kbps
Motion Menu Duration: 173 seconds
Thumb Drop Shadow: 2
Play All Shadow: 2
Arrows Shadow: 0
<>

<8/11/2013 4:16:40 PM>
END DVD MENU BUILDING OPERATIONS
Created File (Menu Page 1): C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_MenuPage1.m2v (0 MB)
<>

<8/11/2013 4:16:40 PM>
START DVD AUTHORING OPERATIONS
BatchMux Parameters: -arglist "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_BatchMux.ini"
BatchMux ini file:
-d "C:\Users\Mr Wizard\Videos\Season 3, D-1_0\VIDEO_TS"
-mxp "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_MuxMan.mxp"
-l "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_MuxMan.log"
-muxman "C:\Program Files (x86)\AVStoDVD\MuxMan"
-prio LOW
-palette "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_Palette.txt"
-v "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1.m2v"
-vidmode LB
-a1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1_1.ac3"
-a1lang en
-cellfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1_Chapters.txt"
-progfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1_Chapters.txt"
-chapfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_01_Falling Skies s3-e1_Chapters.txt"
-SEG2v "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2.m2v"
-SEG2vidmode LB
-SEG2a1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2_1.ac3"
-SEG2a1lang en
-SEG2cellfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2_Chapters.txt"
-SEG2progfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2_Chapters.txt"
-SEG2chapfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_02_Falling Skies s3-e2_Chapters.txt"
-SEG3v "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3.m2v"
-SEG3vidmode LB
-SEG3a1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3_1.ac3"
-SEG3a1lang en
-SEG3cellfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3_Chapters.txt"
-SEG3progfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3_Chapters.txt"
-SEG3chapfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_03_Fallings 3-3_Chapters.txt"
-SEG4v "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4.m2v"
-SEG4vidmode LB
-SEG4a1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4_1.ac3"
-SEG4a1lang en
-SEG4cellfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4_Chapters.txt"
-SEG4progfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4_Chapters.txt"
-SEG4chapfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_04_Falling Skies s3-e4_Chapters.txt"
-SEG5v "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5.m2v"
-SEG5vidmode LB
-SEG5a1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5_1.ac3"
-SEG5a1lang en
-SEG5cellfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5_Chapters.txt"
-SEG5progfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5_Chapters.txt"
-SEG5chapfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Title_05_Falling skies s3-E5_Chapters.txt"
-SEG6v "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_MenuPage1.m2v"
-SEG6vidmode LB
-SEG6s1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3, D-1_0_Menu.sst"
-SEG6s1dmode WIDE_LB
-SEG6hlmnu "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_MenuPage1_Buttons.mnu"
-SEG6hlcsm "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_HighlightScheme.csm
-hcn "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3, D-1_0_BatchMux.hcn"
<>

<8/11/2013 5:00:20 PM>
Process aborted during DVD AUTHORING operations!

Check following files for more details:

AVStoDVD log file <C:\Users\Mr Wizard\Videos\Season 3, D-1_0.log>
BatchMux log file <C:\Users\Mr Wizard\Videos\Season 3, D-1_0_BatchMux.log>
<>

<8/11/2013 5:00:27 PM>
Log file created by AVStoDVD Release 2.6.0
<>

[theewizard]

same files, static background , ran all the way through authoring DVD folder

log

<8/11/2013 5:49:07 PM>
START PROCESS
<>

<8/11/2013 5:49:07 PM>
PROJECT SETTINGS

DVD Video Standard: NTSC
DVD Titles number: 5
DVD Size: 7707/8100 MB (95%)
DVD Output Setup: DVD Folder
DVD Label: Season 3....d-1
DVD Menu: Static Menu
Output Folder: C:\Users\Mr Wizard\Videos
Delete Temp Assets Files: No
Delete Temp Working Files: No
Edit Command Parameters: No
Post Process Task: Show Progress Status window

PREFERENCES

MultiThread: 1
AVS Source Filter: FFMpegSource
AVS UpSize/DownSize Filter: BilinearResize/BilinearResize
Frame Adjust Strategy: 0
PAL SpeedUp: 0
Video Resolution: 1
Video BitRate Min: 3000
Video BitRate Level 1: 4000
Video Profile Level 2: 4000
Video BitRate Max: 6000
Keep DVD Compliant Video: 1
AC3 Audio Encoder: 4
Force FFmpeg for Long Audio: 1
DVD Audio Format: 0
DVD Audio BitRate: 192
Keep DVD Compliant Audio: 0
Normalize Audio: 0
Auto Delay Audio: 1
DVD Audio Language (Primary): EN - English
DVD Audio Language (Secondary): EN - English
DVD Subs Language (Primary): EN - English
DVD Subs Language (Secondary): EN - English
DVD Subs Font: Verdana 11pt (255,255,255)
Chapters Interval: 5
Use Source Chapters: 0
DVD Burning Drive: F: HL-DT-ST DVDRAM GE24NU40 1.00
DVD Burning Speed: 4x
Auto Erase DVD RW: 1
Save Log file: 1
Unload ActiveMovie library: 0
Adjust ffdshow at runtime: 1
Save General Settings: 1
<>

<8/11/2013 5:49:07 PM>
TITLE 1 SOURCE FILES
Video: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e1.mp4
Info: AVC - 1068 kbps - 720x404 - DAR 1.782 - 23.976 fps (CFR) - Progressive - 1:23:40 hours - 120367 frames
Audio 1: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e1.mp4
Info: AAC LC - 123 kbps - VBR - 2 ch - 48000 Hz - 1:23:40 hours (83 ms delay) - Internal
[MediaInfoLib - v0.7.61]
<>

<8/11/2013 5:49:07 PM>
AVISYNTH SCRIPT
LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")

# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = FFAudioSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e1.mp4", track=-1)
Video = FFVideoSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e1.mp4", track=-1, seekmode=0)

Video = Video.ConvertToYV12()
Video = Video.BilinearResize(720,480)
#Using DGPulldown/HCenc to upsize FPS

Audio = Audio.DelayAudio(0.083)

AudioDub(Video, Audio)
<>

<8/11/2013 5:49:09 PM>
TITLE 1 AVISYNTH FRAMESERVING CHECK
Check passed successfully.
<>

<8/11/2013 5:49:09 PM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: QuEnc CBR 1-pass
Target Video FileSize: 2393.7 MB
Encoding Parameters: -i "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3....d-1_0_Title_01_Falling Skies s3-e1_1.avs" -o "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_01_Falling Skies s3-e1.m2v" -b 4000 -1 -hq -novbr -scene -trell -aspectratio 16:9 -nointerlaced -mpeg2mux noaudio -dc 8 -priority 5 -auto -close
<>

<8/11/2013 6:03:31 PM>
END VIDEO ENCODING OPERATIONS
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_01_Falling Skies s3-e1.m2v (2393.8 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive - 1:23:35 hours - 120247 frames
<>

<8/11/2013 6:03:31 PM>
START PULLDOWN OPERATIONS
DGPulldown Parameters: "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_01_Falling Skies s3-e1.m2v" -srcfps 23.976 -destfps 29.97 -inplace -tff
<>

<8/11/2013 6:04:57 PM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_01_Falling Skies s3-e1.m2v (2393.8 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive (2:3 Pulldown) - 1:23:40 hours - 120366 frames
<>

<8/11/2013 6:04:57 PM>
START FFMPEG (SAFE MODE) AUDIO ENCODING OPERATIONS (Track 1)
FFmpeg Parameters: -threads 4 -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e1.mp4" -y -vn -acodec ac3 -ar 48000 -ab 192k "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_01_Falling Skies s3-e1_1.ac3"
<>

<8/11/2013 6:05:26 PM>
END AUDIO ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_01_Falling Skies s3-e1_1.ac3 (114.9 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 1:23:40 hours (0 ms delay)
<>

<8/11/2013 6:05:26 PM>
TITLE 2 SOURCE FILES
Video: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg
Info: MPEG-2 Video - 2912 kbps - 720x480 - DAR 1.778 - 29.97 fps (CFR) - Progressive - 48:36 minutes - 87404 frames
Audio 1: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg
Info: MPEG-1 Audio layer 2 - 256 kbps - CBR - 2 ch - 48000 Hz - 48:36 minutes (0 ms delay) - Internal
[MediaInfoLib - v0.7.61]
<>

<8/11/2013 6:05:26 PM>
AVISYNTH SCRIPT
LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")

# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = FFAudioSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg", track=-1)
# Video is frameserved by AviSynth just for Preview and Edit purposes.
Video = FFVideoSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg", track=-1, seekmode=0)

Video = Video.ConvertToYV12()

AudioDub(Video, Audio)
<>

<8/11/2013 6:05:26 PM>
START VIDEO DEMUXING OPERATIONS
Target Video FileSize: 1012.3 MB
FFmpeg Parameters: -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg" -vcodec copy "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_02_Falling Skies s3-e2.m2v"
<>

<8/11/2013 6:06:00 PM>
END VIDEO DEMUXING OPERATIONS
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_02_Falling Skies s3-e2.m2v (1014.5 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 2917 kbps - 720x480 - DAR 1.778 - 29.97 fps (CFR) - Progressive - 48:36 minutes - 87405 frames
<>

<8/11/2013 6:06:00 PM>
START FFMPEG (SAFE MODE) AUDIO ENCODING OPERATIONS (Track 1)
FFmpeg Parameters: -threads 4 -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e2.mpg" -y -vn -acodec ac3 -ar 48000 -ab 192k "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_02_Falling Skies s3-e2_1.ac3"
<>

<8/11/2013 6:06:42 PM>
END AUDIO ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_02_Falling Skies s3-e2_1.ac3 (66.8 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 48:36 minutes (0 ms delay)
<>

<8/11/2013 6:06:42 PM>
TITLE 3 SOURCE FILES
Video: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Fallings 3-3.mp4
Info: AVC - 866 kbps - 720x404 - DAR 1.782 - 23.976 fps (CFR) - Progressive - 41:59 minutes - 60399 frames
Audio 1: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Fallings 3-3.mp4
Info: AAC LC - 113 kbps - VBR - 2 ch - 48000 Hz - 41:59 minutes (83 ms delay) - Internal
[MediaInfoLib - v0.7.61]
<>

<8/11/2013 6:06:42 PM>
AVISYNTH SCRIPT
LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")

# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = FFAudioSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Fallings 3-3.mp4", track=-1)
Video = FFVideoSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Fallings 3-3.mp4", track=-1, seekmode=0)

Video = Video.ConvertToYV12()
Video = Video.BilinearResize(720,480)
#Using DGPulldown/HCenc to upsize FPS

Audio = Audio.DelayAudio(0.083)

AudioDub(Video, Audio)
<>

<8/11/2013 6:06:50 PM>
TITLE 3 AVISYNTH FRAMESERVING CHECK
Check passed successfully.
<>

<8/11/2013 6:06:50 PM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: QuEnc CBR 1-pass
Target Video FileSize: 1201.2 MB
Encoding Parameters: -i "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3....d-1_0_Title_03_Fallings 3-3_1.avs" -o "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_03_Fallings 3-3.m2v" -b 4000 -1 -hq -novbr -scene -trell -aspectratio 16:9 -nointerlaced -mpeg2mux noaudio -dc 8 -priority 5 -auto -close
<>

<8/11/2013 6:14:03 PM>
END VIDEO ENCODING OPERATIONS
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_03_Fallings 3-3.m2v (1201.2 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive - 41:56 minutes - 60340 frames
<>

<8/11/2013 6:14:03 PM>
START PULLDOWN OPERATIONS
DGPulldown Parameters: "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_03_Fallings 3-3.m2v" -srcfps 23.976 -destfps 29.97 -inplace -tff
<>

<8/11/2013 6:14:22 PM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_03_Fallings 3-3.m2v (1201.2 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive (2:3 Pulldown) - 41:59 minutes - 60397 frames
<>

<8/11/2013 6:14:22 PM>
START FFMPEG (SAFE MODE) AUDIO ENCODING OPERATIONS (Track 1)
FFmpeg Parameters: -threads 4 -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Fallings 3-3.mp4" -y -vn -acodec ac3 -ar 48000 -ab 192k "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_03_Fallings 3-3_1.ac3"
<>

<8/11/2013 6:14:36 PM>
END AUDIO ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_03_Fallings 3-3_1.ac3 (57.7 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 41:59 minutes (0 ms delay)
<>

<8/11/2013 6:14:36 PM>
TITLE 4 SOURCE FILES
Video: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e4.flv
Info: AVC - 737 kbps - 720x404 - DAR 1.782 - 23.976 fps (CFR) - Progressive - 42:02 minutes - 60474 frames
Audio 1: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e4.flv
Info: AAC LC - 115 kbps - VBR - 2 ch - 48000 Hz - 42:02 minutes (83 ms delay) - Internal
[MediaInfoLib - v0.7.61]
<>

<8/11/2013 6:14:36 PM>
AVISYNTH SCRIPT
LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")

# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = FFAudioSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e4.flv", track=-1)
Video = FFVideoSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e4.flv", track=-1, seekmode=0)

Video = Video.ConvertToYV12()
Video = Video.BilinearResize(720,480)
#Using DGPulldown/HCenc to upsize FPS

Audio = Audio.DelayAudio(0.083)

AudioDub(Video, Audio)
<>

<8/11/2013 6:14:55 PM>
TITLE 4 AVISYNTH FRAMESERVING CHECK
Check passed successfully.
<>

<8/11/2013 6:14:55 PM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: QuEnc CBR 1-pass
Target Video FileSize: 1202.6 MB
Encoding Parameters: -i "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3....d-1_0_Title_04_Falling Skies s3-e4_1.avs" -o "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_04_Falling Skies s3-e4.m2v" -b 4000 -1 -hq -novbr -scene -trell -aspectratio 16:9 -nointerlaced -mpeg2mux noaudio -dc 8 -priority 5 -auto -close
<>

<8/11/2013 6:21:39 PM>
END VIDEO ENCODING OPERATIONS
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_04_Falling Skies s3-e4.m2v (1202.7 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive - 41:59 minutes - 60414 frames
<>

<8/11/2013 6:21:39 PM>
START PULLDOWN OPERATIONS
DGPulldown Parameters: "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_04_Falling Skies s3-e4.m2v" -srcfps 23.976 -destfps 29.97 -inplace -tff
<>

<8/11/2013 6:21:59 PM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_04_Falling Skies s3-e4.m2v (1202.7 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive (2:3 Pulldown) - 42:02 minutes - 60473 frames
<>

<8/11/2013 6:21:59 PM>
START FFMPEG (SAFE MODE) AUDIO ENCODING OPERATIONS (Track 1)
FFmpeg Parameters: -threads 4 -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling Skies s3-e4.flv" -y -vn -acodec ac3 -ar 48000 -ab 192k "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_04_Falling Skies s3-e4_1.ac3"
<>

<8/11/2013 6:22:12 PM>
END AUDIO ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_04_Falling Skies s3-e4_1.ac3 (57.7 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 42:02 minutes (0 ms delay)
<>

<8/11/2013 6:22:12 PM>
TITLE 5 SOURCE FILES
Video: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling skies s3-E5.flv
Info: AVC - 1069 kbps - 720x404 - DAR 1.782 - 23.976 fps (CFR) - Progressive - 41:03 minutes - 59054 frames
Audio 1: C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling skies s3-E5.flv
Info: AAC LC - 132 kbps - VBR - 2 ch - 48000 Hz - 41:03 minutes (83 ms delay) - Internal
[MediaInfoLib - v0.7.61]
<>

<8/11/2013 6:22:12 PM>
AVISYNTH SCRIPT
LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")

# Audio is frameserved by AviSynth just for Preview and Edit purposes.
Audio = FFAudioSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling skies s3-E5.flv", track=-1)
Video = FFVideoSource("C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling skies s3-E5.flv", track=-1, seekmode=0)

Video = Video.ConvertToYV12()
Video = Video.BilinearResize(720,480)
#Using DGPulldown/HCenc to upsize FPS

Audio = Audio.DelayAudio(0.083)

AudioDub(Video, Audio)
<>

<8/11/2013 6:22:35 PM>
TITLE 5 AVISYNTH FRAMESERVING CHECK
Check passed successfully.
<>

<8/11/2013 6:22:35 PM>
START VIDEO ENCODING OPERATIONS
Encoding Profile: QuEnc CBR 1-pass
Target Video FileSize: 1174.4 MB
Encoding Parameters: -i "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3....d-1_0_Title_05_Falling skies s3-E5_1.avs" -o "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_05_Falling skies s3-E5.m2v" -b 4000 -1 -hq -novbr -scene -trell -aspectratio 16:9 -nointerlaced -mpeg2mux noaudio -dc 8 -priority 5 -auto -close
<>

<8/11/2013 6:29:54 PM>
END VIDEO ENCODING OPERATIONS
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_05_Falling skies s3-E5.m2v (1174.4 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive - 41:00 minutes - 58995 frames
<>

<8/11/2013 6:29:54 PM>
START PULLDOWN OPERATIONS
DGPulldown Parameters: "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_05_Falling skies s3-E5.m2v" -srcfps 23.976 -destfps 29.97 -inplace -tff
<>

<8/11/2013 6:30:59 PM>
END PULLDOWN OPERATIONS
DGPulldown executed on File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_05_Falling skies s3-E5.m2v (1174.4 MB)
OUTPUT VIDEO INFO: MPEG-2 Video - 4000 kbps - 720x480 - DAR 1.778 - 23.976 fps (CFR) - Progressive (2:3 Pulldown) - 41:03 minutes - 59053 frames
<>

<8/11/2013 6:30:59 PM>
START FFMPEG (SAFE MODE) AUDIO ENCODING OPERATIONS (Track 1)
FFmpeg Parameters: -threads 4 -i "C:\Users\Mr Wizard\Videos\Falling Skies season 3 episodes\Falling skies s3-E5.flv" -y -vn -acodec ac3 -ar 48000 -ab 192k "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_05_Falling skies s3-E5_1.ac3"
<>

<8/11/2013 6:31:14 PM>
END AUDIO ENCODING OPERATIONS (Track 1)
Created File: C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_05_Falling skies s3-E5_1.ac3 (56.4 MB)
OUTPUT AUDIO INFO: AC3 - 192 kbps - CBR - 2 ch - 48000 Hz - 16 bit - 41:03 minutes (0 ms delay)
<>

<8/11/2013 6:31:15 PM>
START DVD MENU BUILDING OPERATIONS
DVD Menu settings:
Style: 0
Aspect Ratio: 1
Titles Format: 0
Template: Menu in Black
Max Titles Page: 12
Enable Play All: 1
Force Play All: 0
Background Audio: 0
Max Thumbs Row: 5
Thumb Image Source: 0
Thumb Frame Position: 10%
HL Frame Format: 0
HL Selection Color: 5
HL Play Color: 0
Menu Video BitRate: 4000 kbps
Motion Menu Duration: 173 seconds
Thumb Drop Shadow: 2
Play All Shadow: 2
Arrows Shadow: 0
<>

<8/11/2013 6:31:15 PM>
END DVD MENU BUILDING OPERATIONS
Created File (Menu Page 1): C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_MenuPage1.bmp (1 MB)
<>

<8/11/2013 6:31:15 PM>
START DVD AUTHORING OPERATIONS
BatchMux Parameters: -arglist "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3....d-1_0_BatchMux.ini"
BatchMux ini file:
-d "C:\Users\Mr Wizard\Videos\Season 3....d-1_0\VIDEO_TS"
-mxp "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3....d-1_0_MuxMan.mxp"
-l "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3....d-1_0_MuxMan.log"
-muxman "C:\Program Files (x86)\AVStoDVD\MuxMan"
-prio LOW
-palette "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3....d-1_0_Palette.txt"
-v "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_01_Falling Skies s3-e1.m2v"
-vidmode LB
-a1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_01_Falling Skies s3-e1_1.ac3"
-a1lang en
-cellfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_01_Falling Skies s3-e1_Chapters.txt"
-progfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_01_Falling Skies s3-e1_Chapters.txt"
-chapfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_01_Falling Skies s3-e1_Chapters.txt"
-SEG2v "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_02_Falling Skies s3-e2.m2v"
-SEG2vidmode LB
-SEG2a1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_02_Falling Skies s3-e2_1.ac3"
-SEG2a1lang en
-SEG2cellfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_02_Falling Skies s3-e2_Chapters.txt"
-SEG2progfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_02_Falling Skies s3-e2_Chapters.txt"
-SEG2chapfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_02_Falling Skies s3-e2_Chapters.txt"
-SEG3v "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_03_Fallings 3-3.m2v"
-SEG3vidmode LB
-SEG3a1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_03_Fallings 3-3_1.ac3"
-SEG3a1lang en
-SEG3cellfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_03_Fallings 3-3_Chapters.txt"
-SEG3progfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_03_Fallings 3-3_Chapters.txt"
-SEG3chapfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_03_Fallings 3-3_Chapters.txt"
-SEG4v "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_04_Falling Skies s3-e4.m2v"
-SEG4vidmode LB
-SEG4a1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_04_Falling Skies s3-e4_1.ac3"
-SEG4a1lang en
-SEG4cellfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_04_Falling Skies s3-e4_Chapters.txt"
-SEG4progfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_04_Falling Skies s3-e4_Chapters.txt"
-SEG4chapfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_04_Falling Skies s3-e4_Chapters.txt"
-SEG5v "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_05_Falling skies s3-E5.m2v"
-SEG5vidmode LB
-SEG5a1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_05_Falling skies s3-E5_1.ac3"
-SEG5a1lang en
-SEG5cellfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_05_Falling skies s3-E5_Chapters.txt"
-SEG5progfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_05_Falling skies s3-E5_Chapters.txt"
-SEG5chapfr "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Title_05_Falling skies s3-E5_Chapters.txt"
-SEG6v "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_MenuPage1.bmp"
-SEG6vidmode LB
-SEG6s1 "C:\Users\Mr Wizard\Videos\TEMP\Season 3....d-1_0_Menu.sst"
-SEG6s1dmode WIDE_LB
-SEG6hlmnu "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3....d-1_0_MenuPage1_Buttons.mnu"
-SEG6hlcsm "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3....d-1_0_HighlightScheme.csm
-hcn "C:\Users\MRWIZA~1\AppData\Local\Temp\Season 3....d-1_0_BatchMux.hcn"
<>

<8/11/2013 6:44:39 PM>
CHECK DVD SIZE
DVD Folder (actual) Size: 7515.6 MB
vs Estimated Size: 7707 MB -> 2.5% undersize
vs Assets Size: 7341 MB -> OK
<>

<8/11/2013 6:44:39 PM>
END DVD AUTHORING OPERATIONS
Created Folder: C:\Users\Mr Wizard\Videos\Season 3....d-1_0 (7515.6 MB)
<>

<8/11/2013 6:44:39 PM>
Log file created by AVStoDVD Release 2.6.0
<>

[theewizard]

@theewizard

of course you can edit the AviSynth script. If you need assistance how to build a valid script, just post here your try.

i have made minor edits

actually the question meant, how much capability is in this vr avisynth ? will filter scripts work as is
OR
do filters and plugins have to be installed in the avisynth folders

[theewizard]

i am reading the AVS2 DVD guide linked too in another post

guess i am/was confused

I want a video background ... Not motion menus

i chose the wrong term, the programs go to the author stage and aborts, when trying to create with 'video background'

the background video is 720*480 TS 168 seconds, yes i changed the time in the 'templete' section of the menu setup

[ganymede]

MrC,

Just installed VP8 codec and AVStoDVD seems to be processing that webm file with no difficulty.
Thanks for pointing out what the possible problem was.

[Heathsideboy]

Hi, MrC and everybody else. I am a complete newbie so forgive me if these questions have already been asked as I was advised to ask them in here.

I was advised to use AVStoDVD to convert my MP4's to MPEG to make them DVD compliant and not have them re-incode but have ran into some difficulties.

I went through the procedure and converted the files. Eventually all the titles were shown in my video library. It did not go smoothly as I shall explain and perhaps you can tell me why this happened.

After AVStoDVD went through each title (clip), a warning message came up each time that said the following:

WARNING! Errors found during title 2 Audio Track 1 encoding.
Audio Channels are incorrect (6 vs 2)
Do You Want to start Backup Audio Encoding routine (FFmeg Safe Mode)?

Then it gave me the choice 'Yes' or 'No' each time with a time limit so I chose 'Yes' on each separate clip. This didn't seem right to me and I was expecting the conversion to convert all the files without my intervention each time. When I eventually tried a few of the clips in my video library, they played okay but there was no sound. Does this mean that there is something wrong with the audio and if so, how do I rectify it?

Also, can you tell me what 'AviSynth' does and if I should have it checked before starting the conversion or any other settings that need checking or setting beforehand for that matter?

On a completely different subject, When I start AVStoDVD, I get a warning message as follows:

Warning! Errors Found during Skin Icons Loading.

Default AVStoDVD icon will be used.
See Help/FAQ/GUI/Q2.6 for more details.

I then click 'OK' and the error message then disappears and the AVStoDVD splash screen appears and then the program loads normally. Any ideas why this happens and what I should do to stop it?

I have attached my log for the files I converted that had no sound.

Thanks

HB

[theewizard]

i get the same warning and the same splash screen, since i seldom worry about themes or ICONS i just use it as is

[_MrC_]

@ganymede

thanks for the feedback. Glad to hear that you have fixed.

@theewizard

do you get the same authoring issue using the latest AVStoDVD release (2.7.1)? And, please, use the VideoHelp upload file utility to post the log, otherwise the forum page become a mess.

@HB

about the audio issue, take a look at Help/FAQ/Audio/Q4.1. If you have installed AC3Filter, uninstall it and have only ffdshow to manage the directshow audio channels mixer.

About the icons issue, have you tried to follow the suggestion/workaround in Help/FAQ/GUI/Q2.6?



Bye

[theewizard]

@ _MrC_
i have not tried the New ver Yet
i just successfully completed a disc with 'motion menu' icons ?

but the video bkgrd bug always aborts the program, even if using TEXT menu or still pictures menu

wil try with the new portable version

i had hoped you could point out a 'file' error in my chosen backgrd video stream

[Heathsideboy]

Hi MrC,

I have looked in Programs and Features and cannot see 'AC3Filter' anywhere in there. Should I be looking elsewhere? Where would it be if on my system?

Thanks for the other advice, I will have a look and report back.

Thanks

HB

[_MrC_]

@theewizard

let's try with 2.7.1. If you still have problem with the background video menu, upload the file you are using for the background to test it.

@HB

if AC3Filter is not listed in Programs & Features then it should be not there in your system. To understand which directshow audio filter is being used:

1. Add one of the problematic titles to AVStoDVD
2. Select 'Build Directshow Filters Graph' from 'Codecs' (main window cascade menu)
3. Take a screenshot and post it here



Bye

[theewizard]

video backrgd sample approx 20 seconds of 168 seconds

[Heathsideboy]

@_MrC,

As requested, the image you wanted to look at attached.

Thanks HB

[Seeker47]

What is the reason for the error "The detected frame rate is invalid. Please enter it manually" ?

O.K., fine, so I call up the Codec Info tool in VLC, take the frame rate it reports, then put that value in manually, and all seems to be well. (Almost all: the already-present hardcoded subs in the .MKV file still cause AVS to bomb out at the subs stage, with generation of a 0 bytes in size attempted .Sup file. So I had to delete the phantom file, then do a second pass to combine just the .m2v and .acs assets files. After that, all was well.)

The framerate value on this last one that I entered manually was 26.280518. The one before that was 26.something else. However non-standard that may be (?), it can still lead to the end result of an acceptable and viewable dvd.
