This guide will show you how to create Hi-Resolution iPod compliant MPEG-4 Videos that are of sufficient quality for TV-Out iPod use or playback on a HTPC. The created files will utilize x264 or XviD Video and aac Audio from the multi-platform workhorse encoder "ffmpeg". The cross-platform GUI batch encoding application "WinFF" has been developed by one of our own members here at Videohelp.com "Bigg Matt", you can check out his site at www.biggmatt.com. The scope of this guide will be limited to simple conversion from .MPG,.VOB or .AVI to .mp4.
iPOD VIDEO CONSTRAINTS:
Many people are under the impression that creating MPEG-4 Video for the iPod is very complicated, in truth it really isn't. Regular Windows and Open-Source MPEG-4 Codecs like DivX, 3ivX, XviD and Nero Digital can all be used to create iPod Videos under the 4 following constraints:
1. Bitrate cannot exceed 2500kbps.
2. No B frames or other ASP tweaks in the video stream.
3. Must be in a .mp4 or .mov Container with AAC Audio not exceeding 160kbps.
4. Frame Resolution Width x Height cannot exceed 307200 pixels in TOTAL.
In other words you can use ANY Width x Height as long as it is divisible by
16 (for the encoder). Common sizes that work are 640x480 for "fullscreen"
and 720x400, 704x384, or 640x352 for "widescreen"
The constraints for H.264 Video for the iPod are as follows:
1. Bitrate cannot exceed 1500kbps.
2. No B frames or CABAC in the video stream.
3. Must be in a .mp4 or .m4v container with Low Complexity AAC Audio
not exceeding 160kbps
4. Resolution cannot exceed Width of 640. So we use 640x480 for
"fullscreen" and 640x352 for "widescreen"
*NOTE* The H.264 files created by this guide playback flawlessly on the iPod itself but cannot be synced to an iPod with "iTunes", this is a peculiarity of iTunes looking for a special "uuid atom" in the .m4v/.mp4 container. Since this is a Linux guide it shouldn't be an issue, but I wanted to be clear about it. There are no difficulties with syncing these files using "Gtkpod-aac". The XviD files are compliant with iTunes on any platform. Since WinFF also runs on Windows these presets can also be used in Windows as long as iTunes is not the syncing software. So if you use "Anapod Explorer" or "Floola" for instance these presets should also work in Windows, although I haven't tested this.
A Linux OS, this guide was originally done in Ubuntu Feisty 7.04 but the software apps are common to most popular distros.
A recent build of ffmpeg with XviD, x264 lifaad and libfaac enabled. Some suggested builds that work are the "Stable/Etch" build at www.debian-multimedia.org. this build is best for Debian based distros. Ubuntu (or derivative) users may want to stay within Ubunto repos and use the medibuntu ffmpeg builds which can be found by following the instructions at www.medibuntu.org
**NOTE** If you have upgraded your ffmpeg build and discovered that the WinFF presets are no longer working, don't panic. Try these presets here: http://biggmatt.com/winff-forums/index.php?topic=93.0
Your specific distro's help forums should be able to help you with getting and setting up ffmpeg.
WinFF .33+ - This is the GUI frontend to allow us to bend ffmpeg to our will. Get it at http://biggmatt.com/home/. Select the correct package for your distro, Bigg Matt has very conveniently provided both .deb and .rpm packages.
*NOTE* WinFF now has H.264 and XviD iPod (and even PSP) presets built-in, and even more are available on the WinFF Forum here: http://biggmatt.com/winff-forums/index.php?board=3.0
gtkpod-aac 0.99.+ - This is a great Linux iPod application that will sync our videos to the iPod. The version I used is also from www.debian-multimedia.org
Floola 2.5+ - Floola is a cross platform iPod utility that also can be used for this guide both in Linux and Windows. Check it out at www.floola.com
30, 60 or 80 Gig 5th/6th Generation Apple iPod with current 1.2+ firmware
Latest gtkpod-aac (version 12) will reportly support new Nano's and Classic 80/160Gb models
iPod Touch is not supported yet
USB 2.0 Ports
OK LET'S GET COOKIN':

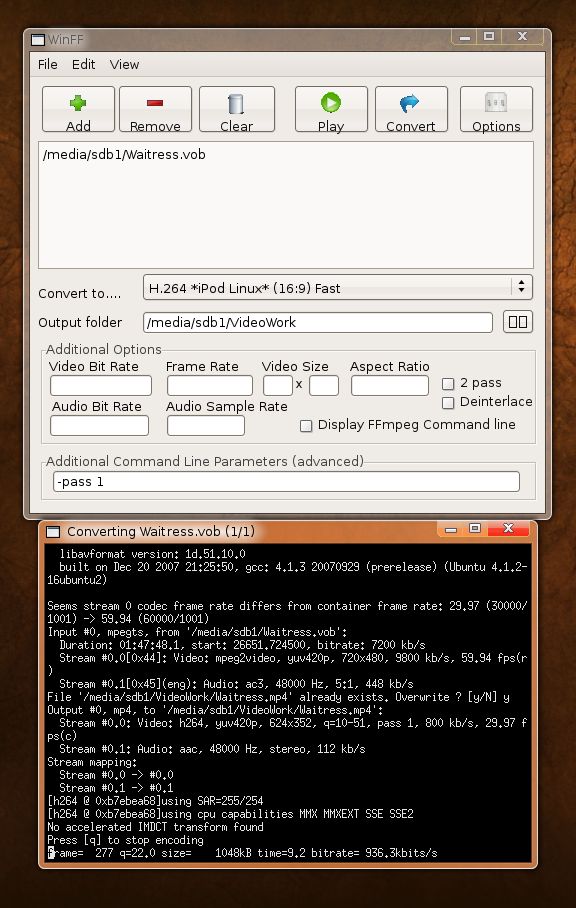

1. Launch WinFF, Click on the "Add" button or as of version 0.33 Drag n' Drop.
2. Browse to the video file(s) you want to convert.
3. I find it a good idea to click on the "Play" button to make sure ffmpeg has all the necessary decoders working to convert the file. As a rule of thumb if ffmpeg will play it then it will most likely convert it. Also this is a good time to determine the aspect ratio (Fullscreen, Widescreen, or Anamorphic) of your source so you know what preset to select.
4. Choose the format you want to convert to. If you are not sure of the difference between "Widescreen" and "Anamorphic" just use Widescreen. Also determine if you want H.264 or XviD
5. The presets for iPod are all ready to go with compliant frame resolutions and bitrates, they are optimized for TV-Out iPod use, If you want small screen presets for portable use only look here: http://biggmatt.com/winff-forums/index.php?topic=90.0
6. In the Options ->"Additional Command Line Parameters (Advanced)" field you can enter some extra useful goodies like this (don't use quotations):
"-pass 1" will tell ffmpeg you want to do the first pass of a two-pass encode
"-pass 2" will perform the second pass, you must overwrite the first pass
"-threads 2" will use both cores if you have an AMDx2 or Intel Core-Duo processor.
7. Click on the "Start Converting" button and you should see the ffmpeg terminal window open and start converting your file. If WinFF complains that it "can't find ffmpeg" you need to find the location of the ffmpeg executable file in the ->Edit ->Preferences ->Linux/Unix tab.
8. When your file has finished converting the ffmpeg terminal will close. Sync it to your iPod with gtkpod-aac or Floola.
-If you want to import DVD .VOB's then they will need to be one contiguous VOB,
This can be achieved using Mplayer by using the following terminal command:
-The 2-pass check box isn't working in the Linux version of WinFF, For two pass encodes use Step 6.Code:mplayer dvd://1 -dumpstream -dumpfile NAME.vob
-Check the deinterlace box if your source file is interlaced, (ie DV camcorder, MPEG TV Captures etc.)
-The supplied presets are tweaked for better quality results, this means slower encoding speeds but better quality. For most purposes 1 pass is sufficient especially with x264, this is a matter of personal preference of course. Speeds will vary with your hardware.
