Move parts from old computer to new computer case.

[Bronx]

I am interested in moving my computer parts to a new computer case. These are the ones I was thinking about:
http://www.newegg.com/Product/Product.aspx?Item=N82E16811144162



or

http://www.newegg.com/Product/Product.aspx?Item=N82E16811204001



This is the mother board inside my current pc:

Part / Feature Specification / Support
Motherboard description Motherboard manufacturer's name: ASUS PTGD-LA
HP/Compaq name: Goldfish3-GL8E

CPU/Processor Socket: LGA775
Supports processor up to 3.4 GHz
Supports Intel Pentium 4 HT processors

Front-side bus (FSB) 800 MHz

Chipset Northbridge: Intel 915GV Graphics Memory and Controller Hub (MCH)
Southbridge: Intel ICH6

BIOS features 4Mb FWH EEPROM
HP BIOS with enhanced ACPI, DMI, Green, and PnP Features Plus

Form factor Micro-ATX form factor, 9.6 in x 9.6 in

Memory Dual-channel memory architecture
4 x 240-pin DIMM sockets support unbuffered non-ECC 4 GB 533/400 MHZ DDR2 memory modules
Maximum HP/Compaq approved memory is 4 GB*



NOTE: *Actual available memory may be less

Expansion slots Three PCI
No AGP slot

Video graphics Integrated

Serial ATA 4 SATA connectors
Each connector supports 1 serial Ultra DMA 150 disk drive
Hot Swap function

Onboard audio Realtek ALC880 8-channel High Definition Audio CODEC
Onboard LAN Realtek RTL8101L LAN PHY (Physical Layer Protocol)
10/100 Mbps Fast Ethernet controller

Back panel I/O One PS/2 mouse port
One PS/2 keyboard port
One VGA (monitor)
One Parallel
Four USB (2.0)
One IEEE 1394
One RJ45 networking port
Six audio ports support 8-channel audio configuration
One S/PDIF in
One S/PDIF out

Internal connectors One ATX power connector
One ATX +12v power connector
One IDE connector
Four SATA connectors
One floppy drive connector
One CPU fan connector
One System fan connector (also known as duct or chassis fan)
One system indicator LEDs / power switch / reset button connector
One jumper to clear CMOS
One jumper to clear password
One optical drive audio input
One line level audio input
One front panel headphone and microphone connector
One front panel power and LED connectors
Two USB connectors supporting 4 additional USB 2.0 ports on front panel
One IEEE 1394a connector supporting one 1394a port

thanks in advance for your opinions..

[redwudz]

Well, that should work. As long as that HP motherboard uses standard mounting hole locations and a standard power supply. Some 'factory built' computers may use different methods for mounts or sizes for those. I would also make sure all the cables and drives will fit properly in the new case.

One problem you may run into is the back plate that the mouse, monitor and the rest of the external connectors stick out of. Those are not universal and may be specific to a mother board model. See this photo:



You may be able to use the HP one, or not. You can probably look at some photos of those cases and you may be able to compare the back plate with your HP back plate.

I also posted a guide for assembling a computer that may be helpful: https://forum.videohelp.com/viewtopic.php?t=315746

[ahhaa]

I can only see one of your linked models, but a couple general thoughts:

the silver HTPC 100 seems kinda pricey if that's a factor.
The cube cases have had a rep for PS failures, and 300W isn't a lot these days... wondering about for your use if you'd be happy with external HDs in the future as interior space seems limited.
I've built a couple around emachine mobos, going the other way- to get more case air & to add drives, my only prob was having to go back & get long round EIDE cables as mine wound up a inch short!:] Good Luck!

[Soopafresh]

I don't think it'll fit. I'll bet those proprietary HP motherboards will be off by a few mm, making assembly a nightmare. I know it is made by Asus, but they're specific to HP/Compaqs. Wish I was wrong, but unless you can find someone who has done it, don't waste you time.

Is this it?

http://www.mp3car.com/vbulletin/classified-archive/98681-p4-socket-775-asus-ptgd-la-mo...ml#post1028190

You'll also need a faceplate, as redwudz mentioned.

[budz]

Bronx: You've posted the same link on those htpc cases.

IMHO I'd just build a new computer since most of the HP computers are proprietary. I'd suggest getting another power supply if you're getting a case that comes with one which is usually only 300 watts. I bought a Chenming mini case the other year and replaced the 300 watt power supply w/ a ANTEC 350 watt ps. The APEVIA QPACK cases have high failure rates with the power supplies.

You'll also want to make sure your dvd burners/dvdrom is half height which would make it easier as far as having room to work inside of the case. Most newer dvd burners/dvdroms are half height but with the older models the drives are much longer in length.

Prices have dropped considerably for AMD AM2 dual core & INTEL core2duo processor as well as DDR ram.

[Bronx]

Thank you all for your replies

@redwudz

Thanks for the guide. I will look at my pc tonight and compare it to the back of the cases I was considering getting.

@ahhaa and budz

Sorry about the link error. I have corrected it.

@Soopafresh

That is the motherboard.

@budz

The Chenming mini case looks similar to the APEVIA QPACK case.

You all have given more to think about. I will keep you guys posted.

Thanks again.

[Bronx]

Update

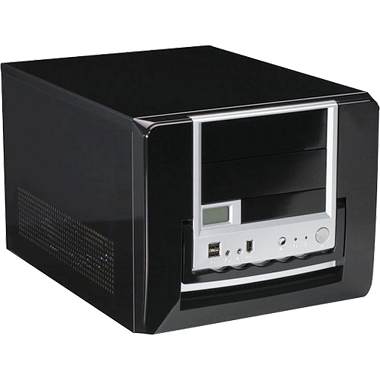

I purchased Ultra Micro-Fly ATX Case

http://www.jr.com/jrproductpage.process?product=4103599



Everything fit in this computer case.

Redwudz thanks for the great guide, it was very helpful.

I have one question. I burned a dvd and the temp in the computer case went up to 45.5 c.
I encoded a video (using fairuse wizard) and the average temp was about 51.0 c.

Are those temperatures to high or normal?

[budz]

That temp for encoding is a bit high but the norm for P4 processor. You could buy a aftermarket cpu heatsink fan to lower the temps and add a better case fan since your temp went up to 45c when you burned a dvd. But those temps aren't that bad. When you have small form factor cases finding a cpu heatsink fan is somewhat difficult because of amount of space inside the case.

What type of P4 processor do you have?

[Bronx]

Sorry about the delay:

the type of pentium my pc has :

Pentium4 630 (P) HT 3.0 GHz:
800 MHz front side bus
Socket 775

What type of fan would you recommend?

[TBoneit]

Take a look and see if you can mount a fan imn the front blowing in and a fan in the back blowing out.

[Bronx]

This case already has a fan that blows air in. Should I mount another one?

[redwudz]

That looks like a nice case, if I have the right one: http://www.ultraproducts.com/product_details.php?cPath=13&pPath=439&productID=439 It seems to be a lot better choice than that APEVIA X-QPACK case.

It appears to have intake and exhaust fans. I would also suggest you look into a better CPU cooler, though the temps are OK, it would be nice to lower them a bit. Some HP and Dell cases use ducts to direct air to the CPU cooler and that allows them to use a cheaper cooler. Space is likely tight in that case, but it won't hurt to look around a little at some of the CPU coolers listed at NewEgg.

Edit: If it doesn't have an exhaust fan, I would mount one. That would help, especially in a compact case.

[Bronx]

@redwudz.

Thats the right case. I have briefly looked at newegg for CPU cooolers and came up with plenty of options. I will make up my mind once I do some more research.

Thanks again.

[budz]

Sorry about the delay:

the type of pentium my pc has :

Pentium4 630 (P) HT 3.0 GHz:
800 MHz front side bus
Socket 775

What type of fan would you recommend?

Those P4 processors can run hot. Here are some suggestions but make sure they'll fit inside your case.

ZALMAN, $39.99
http://www.newegg.com/Product/Product.aspx?Item=N82E16835118115

ARTIC FREEZE, $59.99
http://www.newegg.com/Product/Product.aspx?Item=N82E16835186134

I use a COOLER MASTER RR-LCH-P9E1 92mm for my core2duo processor.
COOLER MASTER RR-LCH-P9E1 92mm, $34.99,
http://www.newegg.com/Product/Product.aspx?Item=N82E16835103001

If you have a COMPUSA in your area they also carry that COOLER MASTER RR-LCH-P9E1.
http://www.compusa.com/products/product_info.asp?pfp=BROWSE&N=200369+405320+4294967131...775_CPU_Cooler

[Bronx]

@budz

Thanks for your help in narrowing it down for me.

[TBoneit]

I'd say you are lucky you didn't get the silver case you posted a picture of, I did a couple and getting the optical drive just right so it open and close properly was a pain. And if you ever need a replacement power supply, more problems.

[Bronx]

I did a lot of reading before I made up my mind. I was really tempted to get just because of its looks. I am glad I didn't.

So far everything is running fine. I was afraid I was going to screw up something.
Redwudz' guide was very helpful and I have added it to my Favorites.

Whenever I need some kind of help, I come to Videohelp before I visit the products official website.

I believe I get better advice and information from this website than any other place.

Thanks everyone for your help with this project.
