Converting LPCM to AC3 problems

[chass]

Using this guide here

https://forum.videohelp.com/viewtopic.php?t=234240

when u get the new AC3 file it doesnt play well.....it feel like an empty track that has only noise .

Anyone know how i can fix it.??...softencode reports that its a bigendian LPCM (MAC) file.

cheers

[FulciLives]

So are you using SoftEncode for your AC-3 encoding?

I mean you mention SoftEncode but you also point to a guide that makes no mention of SoftEncode so ... I am confused. Actually the guide does mention it but gives no instructions on how to do it with anything but BeSweet.

So please verify if you have SoftEncode or not. If you are using SoftEncode then I can post instructions but I don't feel like doing that unless you have it.

- John "FulciLives" Coleman

[chass]

yes i am using softencode, please post the guide please .

it says you dont get a DVD compliant AC3 with besweet so i never tried it

[tinker]

I used Besweet to convert and had no problem on my DVD player. Some people claim that it will not work on all players, so I guess you just have to try.

[chass]

hello, when can i get my tutorial

[tinker]

If you want to use Besweet download BeLight GUI for Besweet.
It is easy to use.
http://www.doom9.org/
Go to Download/Audio Tools

[chass]

well i could use the softencode tutorial though

[FulciLives]

Hello !!!

Sorry but I've been busy ...

OK first off you need a 16-bit 48k 2 channel LPCM WAV audio file. Some popular audio programs include Audacity, GoldWave and SoundForge. I tend to use GoldWave myself.

Now make sure that your WAV file is normalized. You have two choices here. Some will normalize to 0.0db while other people will normalize to -3.0db

I'd go with 0.0db if the audio file has a very "wide" dynamic range meaning that there are only a few peaks here or there that actually get that "high" and most of the time it is less than that. If your WAV file doesn't have a "wide" dynamic range then you probably are better off going with a -3.0db setting for your normalize setting. I think Audacity defaults to -3.0db whereas other program like GoldWave allow you to pick whatever you want.

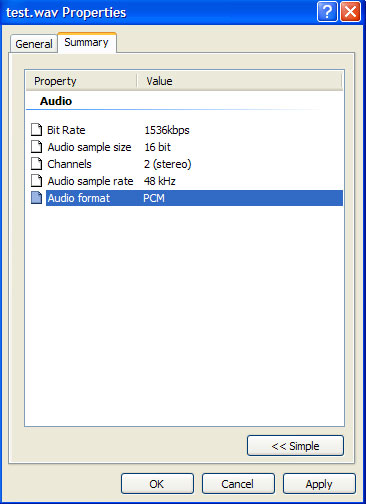

If you RIGHT CLICK on your WAV file you should see something like this:

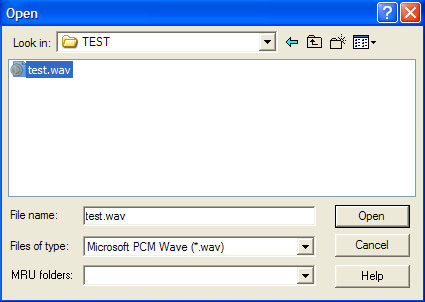

Anyways once you have your proper WAV file and it is normalized to your likely just load it into Soft Encode. You will see something like this:

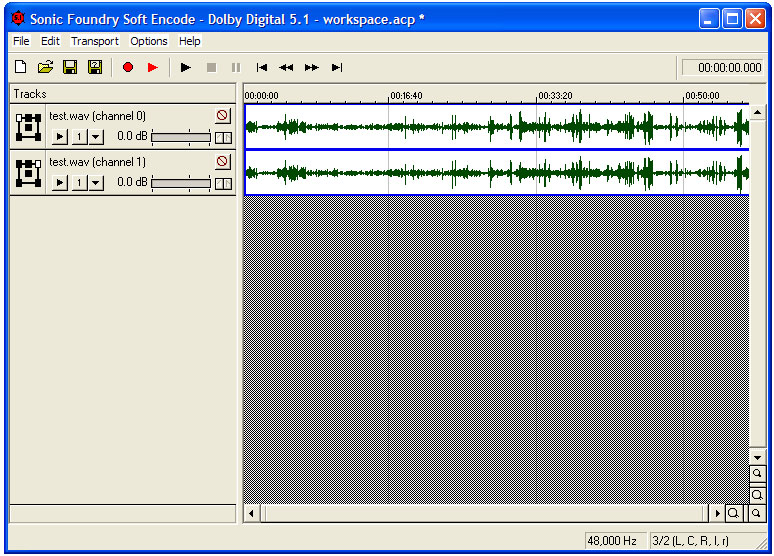

After you load it:

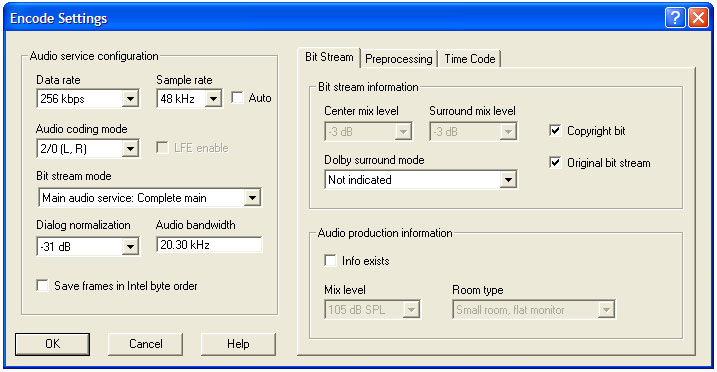

Now go to OPTIONS at the top and under that click on ENCODE SETTINGS. You will see the following:



You will want to set up your setting to match mine. The only thing in question here is what bitrate you want to use. 256kbps is the "sweet spot" for 2 channel audio. However you can use 192, 224, 256 or 320 with the higher the number the better (less compression). You can use 384 or 448 but those are really "overkill" for 2 channel audio.

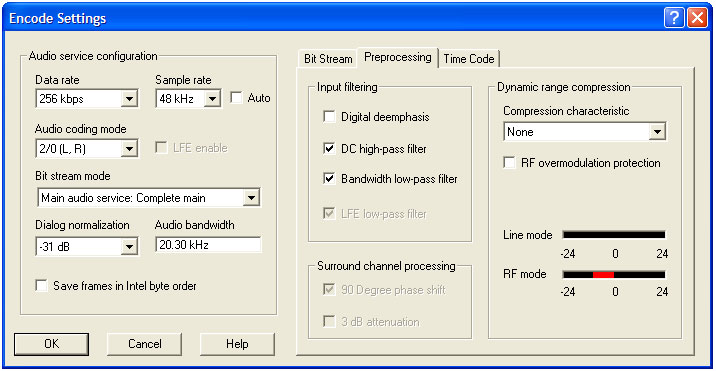

Now click on the PREPROSSING TAB and set it up as follows:

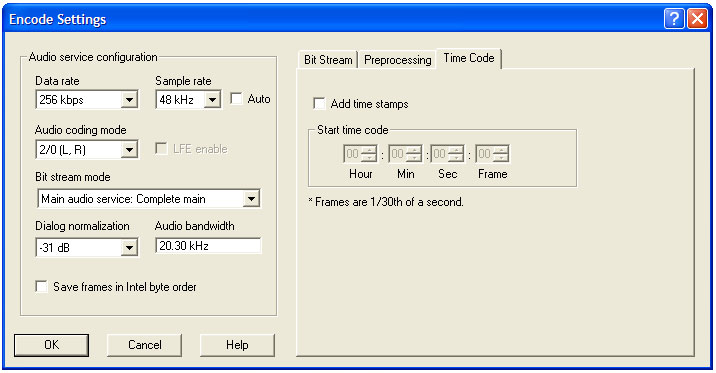

Now you shouldn't have to touch the TIME CODE TAB but for the record it should look like this:

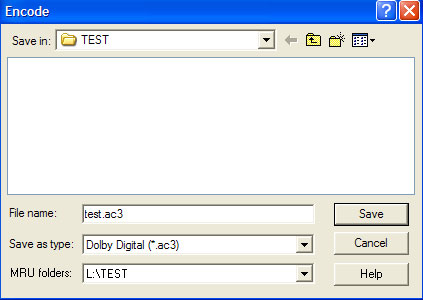

Now click on OK ... Go to FILE at the top and under that select ENCODE and do this:



That is all there is to it!

- John "FulciLives" Coleman

[chass]

hi there thanks for that...my first problem maybe i extracted a RAW PCM file......with an *.pcm extension


how can i use it in softencode?

[FulciLives]

hi there thanks for that...my first problem maybe i extracted a RAW PCM file......with an *.pcm extension


how can i use it in softencode?

Well what was the source? You said you "extracted" it ... but from what?

Can you read the PCM file using an audio editing program such as GOLDWAVE or AUDACITY or SOUNDFORGE etc.?

- John "FulciLives" Coleman

[chass]

got it from a DVD extraction program...softencode reads it.

i will post some screns asap


i think it plays becuase FFDSHOW allow it to play, BUT it doesnt seem to encode the thing !!! why??

[chass]

hey thanks a lot for that tutorial...i will post it on my forum with your permission, for useful tuts i have found or asked questions of

and i will tidy up the initial tutorial


http://impressionz.webhop.biz/

[FulciLives]

hey thanks a lot for that tutorial...i will post it on my forum with your permission, for useful tuts i have found or asked questions of

and i will tidy up the initial tutorial


http://impressionz.webhop.biz/

Sure. I mean, you know, fine by me

- John "FulciLives" Coleman
