  1. Hi,

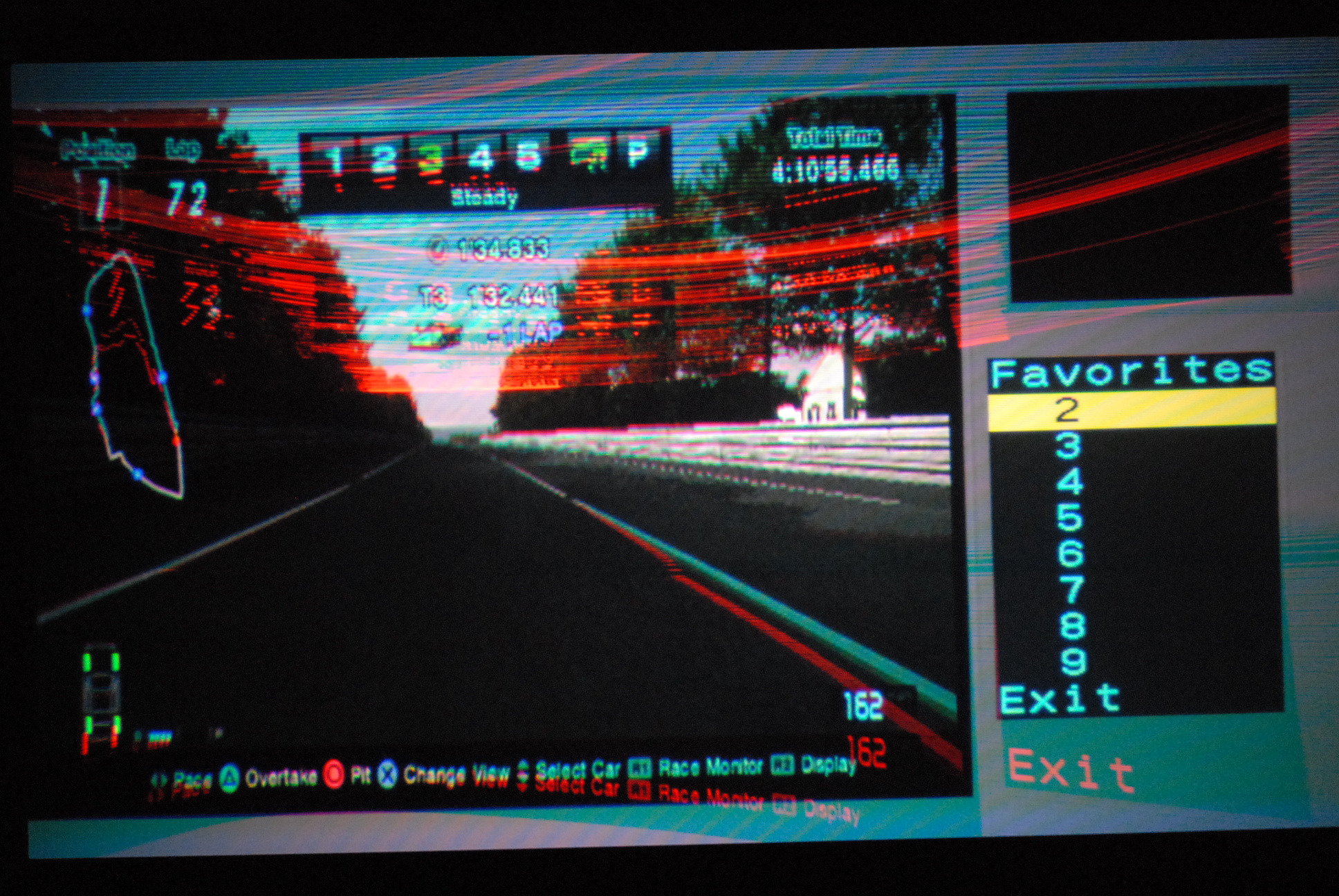

    I own a sony rear projection connected to a Harmon Kardon 101 and PS-3. Came back in tonight to watch a movie-turned on TV and display is unwatchable ( it was fine 90 mins ago). Obvious huge red bands (see photo) and red text way out of convergence towards the bottom of screen.
    No difference what channel/input - tried factory reset no difference
    Resizing tv image makes no difference, bands seem on the display itself?
    Do I need a repair?
    Will it be expensive?
    Thanks
    Russ




    Quote Quote
  2. It looks like your red has gone way out of alignment. There should be some way for you to easily adjust this. Is there anything in your manual about this?

    I have a very old rear projection TV that has adjustments for each of the color channels (one each for red, blue and green). You can turn them to move each of the colors back into alignment (meaning right on top of each other so can can't see any of the individual colors off to the side).
    Quote Quote
  3. Member GKar's Avatar
    Join Date
    Jul 2003
    Location
    In the corner, on a stool
    Search Comp PM
    It looks like some wierd electromagnetic interference, you don't have any speakers near the tv do you?
    Quote Quote
  4. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    The arc tells all

    Red is in extreme pincushion. If this happened suddenly it indicates a part failure. Time for a service call. These televisions should be aligned every year or so for optimal display anyway.

    The better you describe the problem, the more likely you can avoid the charge for the second service call*. Hopefully they bring the right modules.

    The typical service guy won't be able to locate and fix the actual failed part. He(she) will determine the major module that has failed (usually by module swap) and charge you for the big module. The more specialized and competent techs will be able to locate the subpart and replace that. Often their swap modules are cannabalized from dead sets in their shop.

    They will try to charge new module price. If you insist on receipt that the part is new, they will bargain price for the used part.

    * Better to haul the whole set to their shop to avoid the home visit charge.
    Quote Quote
  5. Hi, thanks for replies so far!
    Reply 1 - this situation happened 'immmediately' not over a period of time - can it do this? Thre is a Flash Focus feature that auto adjusts the conergence, I used this and it focused the center of screen and fixed it there but it was still out at the bottom - and of course those nasty red lines at the top half the screen are still there.
    Don't know where adjustment is - a factory reset did not fix it (so may be hardware fault?)
    Reply 2 - There ARE speakers, but only the ones that have always been there last 3 years, two polk side towers, a sub on the right and a center on the top - I did suspect the magifier aerial on top of doing something bizarre but moved it to no effect.

    Appreciate all the answers so far -would love to solve this over the weekend, the repair guy is coming out Monday at 12 and will charge me $90 just to walk thru my door, they wouldnt even look at the photo to say if it looks familiar.
    If someone can help me fix it before then I'll donate $20 to a charity of their choice - really!

    Thanks all again - I'm using my PC monitor (dell 2405w) in the place of the tv at the moment and no problems so confirmed inputs are OK

    Russ
    Quote Quote
  6. Just saw reply 3 after posting my reply - thanks for what seems to be the news I was expecting -dont mind paying service if they have to do real work - any ideas whether this is a part that is common or a special order that will take weeks?

    This pincushion can just go zap! yes? 90 mins earlier when turned off it was fine. Thanks again

    TV is a Sony KP-65WS510
    http://www.epinions.com/pr-Sony_KP-65WS510_65_in_Rear_Projection_HDTV-Ready_Television
    Quote Quote
  7. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    Originally Posted by daytonadvd
    Just saw reply 3 after posting my reply - thanks for what seems to be the news I was expecting -dont mind paying service if they have to do real work - any ideas whether this is a part that is common or a special order that will take weeks?

    This pincushion can just go zap! yes? 90 mins earlier when turned off it was fine. Thanks again

    TV is a Sony KP-65WS510
    http://www.epinions.com/pr-Sony_KP-65WS510_65_in_Rear_Projection_HDTV-Ready_Television
    You have advantage if your TV is common. They will have swap parts. Rare models need parts to be ordered.

    Regardless, the set will need a full realignment after a major module swap. This 2003 set is probably due for an alignment anyway.

    Try to find someone experienced with Sony rear projection. Sony service centers will have a flat fee (high) but fix everything (with swap modules) and realign to factory spec.

    The freelancer needs two skills. Troubleshooting will locate the bad module. Then he(she) needs to become the piano tuner to align the set for optimal display.
    Quote Quote
  8. Thanks edDV for that precise answer - I don't know the skills of my chosen service people, except that from their site they seem knowledgeable, although dont know from the Sony aspect - down here in Daytona there are no Sony centers for service I know about, just CC & BB.
    This is the place who are sending an engineer. The onlky worry I have is they come out take one look and say they cant fix it and charge me the $90. Guess I need a little more faith, eh? If you repair TV's and you don't know Sony you wouldn't get very far IMO.
    http://www.realpagessites.com/royalelectronics/page3.html

    Thanks again!
    Russ
    Quote Quote
  9. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    I've had alot of stuff fixed (business and personal). My personal experience is Sony overcharges unless you are in a hurry. Sony "authorized" follow Sony procedures and charge near equal. With local guys it is all about finding someone competent and price negotiation. They will often give you a break if you haul the set to them and accept used parts.
    Quote Quote
  10. Member
    Join Date
    Jan 2006
    Location
    United States
    Search Comp PM
    i would love to know the out come.....i have almost the same model but it is a 47" widescreen bought in March, 2004, and i also have a Sony 4:3 bought in March 2003.....i can't believe i was stupid enough to buy the 4:3...BUT, they do both have great pictures....
    Quote Quote
  11. Update:
    Service guy came out today AM - seem to know his stuff - removed circuit board to take away with him. Quoted me $395 plus call out $89 (ouch!).
    Said one of the 'IC' (capacitor?) needed replacing and said he would have to rebuild the board, testing/replacing a number of the diodes.
    Will post again when the job is done/final price is paid.

    At first the amount seemed excessive, but then again its not much to get an ($2500 in 2004) expensive HDTV (only lacking 1080p) back working as new, with a year warrantee on the repair.

    Bye for now

    Russ
    Quote Quote
  12. Member
    Join Date
    Jan 2006
    Location
    United States
    Search Comp PM
    how long did they say it would take to repair????
    Quote Quote
  13. He said if he had the part it would be back later today, if not tomorrow - otherwise if he needed to order the part i dont know.
    Fingers crossed he has the part but he hasnt phoned back in 2 hours so maybe he has.
    Quote Quote
  14. OK,
    final report here - engineer came back with fixed board 3PM same day -fitted and tested fine - wow!
    Here's the details on his report:

    Service performed:
    Disassemble trouble shoot circuit defect to the convergence circuit. Remove power supply module. To shop rebuild module. Solder connections reassemble and set up...

    Parts Replaced
    2 x STK392-560 IC 35.00 70.00
    1 x Solder & Chems WICK 12.50
    1 R.B. Convergence Circuit Rebuilt 89.50
    (the above is the service call recommendation)

    Total labor 225.00
    Total parts 172.00
    S/c 89.50
    Sales Tax 31.63
    Total 518.13

    Warranty 1 year/2 week service call

    There you all go - expensive but it looks back to new and was fixed FAST.
    Hope this may help someone else with same problem down the line
    Regards and thanks to all who responded
    Russ
    Quote Quote
  15. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    I think you got a fair deal and the guy seems to know his stuff.
    Quote Quote
  16. Member
    Join Date
    Jan 2006
    Location
    United States
    Search Comp PM
    like i said in my prior post, i think i have the 47" equivilent, cost $1599 plus $200 for the SONY Stand...would it cost the same if something like that went wrong with mine?? would it be worth repairing as it is only 47"??

    FWIW, i could replace it with a 42-47 1080DLP flat panel.....
    Quote Quote
  17. It's ALWAYS worth repairing, if you want the new tv just wheel the old one into the spare room/bedroom - you can never have enough big screen TV's in the house!

    Russ
    Quote Quote
  18. Member
    Join Date
    Oct 2009
    Location
    United States
    Search Comp PM
    Arrrgggghhh..... I hate to bring up an old topic, but this post seems the closest to what I woke up to this morning. Check out the pic It was working just fine last night, but when I woke up this morning I turned it on and it was all fubar. A 12" vertical stripe in the MIDDLE of the TV looks almost normal, but everything outside of that scope looks like crap.... Might this be something that is easily remedied by cracking the TV open and poking around??

    Suggestions are greatly appreciated!!!!
    Quote Quote
  19. Like the previous guy you have convergence problem. Probably bad STKů convergence ICs. What is the make and model?
    Quote Quote
  20. Member
    Join Date
    Oct 2009
    Location
    United States
    Search Comp PM
    Lovely lol.... It's a Sony KP-51WS510....

    Yea and watching this without my spiffy 3D glasses has done nothing but cause one hell of a headache.
    Quote Quote
  21. You need IC 8001, IC 8002, STK392-560 on D board.
    Quote Quote
  22. Member
    Join Date
    Oct 2009
    Location
    United States
    Search Comp PM
    Thank you very much for the info! Is there some place that I might purchase these online?
    Quote Quote
  23. http://www.libertye-online.com/servlet/the-1880/LOT-OF-2-(TWO)/Detail

    http://www0.shopping.com/-tv+parts+stk+392+560


    More information:
    http://www.techlore.com/forum/thread/17742/sony-KP-51WS510-convergence-ic-help/

    Also check fuses (3.15 amp) PS 8001 - PS 8006 around STK 392-560 and don't forget to apply heat sink compound on STKs.
    Quote Quote
  24. Member
    Join Date
    Oct 2009
    Location
    United States
    Search Comp PM
    OK....I was able to *finally* obtain and replace the STK392-560 ICs on the D board (no problems with that) and I got the TV powered back up....only to have it looking remotely the same (rather exactly the same). The middle of the screen is "ok" while the left and right are all distorted. Its almost as if someone has pinched the middle of my TV (where it looks correct) and then the sides are fanned out like a bow-tie.

    I'm looking through the service manual, but I don't really see where I can adjust these settings.....
    Quote Quote
  25. Member
    Join Date
    Oct 2009
    Location
    United States
    Search Comp PM
    Here's a couple pictures just to illustrate my woes....



    and

    Quote Quote
  26. Member
    Join Date
    Oct 2009
    Location
    United States
    Search Comp PM
    Hmmm...and after further investigating, I've concluded that I'll need to test the pico fuses around the ICs. Question is; where do I buy these fuses? Radioshack?
    Quote Quote
  27. Sony projection TVs are VERY famous for optical block problems. I've seen people who have replaced them 3-4 times. Their projection TVs have high breakdowns. If you can afford it you'd be a lot better off buying a flat panel that has far less breakdowns.

    Look here and maybe you'll change your mind about fixing a Sony RPTV:

    http://forum.ecoustics.com/bbs/messages/2/137540.html
    Quote Quote
  28. Member
    Join Date
    Oct 2009
    Location
    United States
    Search Comp PM
    After replacement of one 5A fuse on the G board....tada! All better
    Quote Quote
  29. I am having issue with mine a few days ago and seems that can find solution for this Powering up and blinking red light. It was working 2 days ago without any issues.
    When trying to turn on the tv, theres a clicking noise in the back and TV will not turn on. I only see the blinking red light in the front.
    Help Football Season is upon us.....Lolz
    Last edited by LionHrt88; 28th Aug 2013 at 22:17. Reason: adding and corrections
    Quote Quote
  30. I am having issue with mine a few days ago and seems that can find solution for this Powering up and blinking red light. It was working 2 days ago without any issues.
    When trying to turn on the tv, theres a clicking noise in the back and TV will not turn on. I only see the blinking red light in the front.
    Help Football Season is upon us.....Lolz
