    these machines have a pioneer -107-XA drive in them. Has anyone had any experience of using any other DVD drives in these machines?

    the problem seems to be a non-standard 2 pin ? audio plug on the XA drives ( not on standard drives)

    All suggestions gratefully received

    Nicholas robinson
    Quote Quote
  2. Member
    Join Date
    Jun 2006
    Location
    United Kingdom
    Search Comp PM
    A DVR-107 would seem to be the answer.

    I transplanted the circuit board from the dud drive to a newish 107 drive, changed the faceplates, popped it in and it works!

    the HD was upgraded to 300Gb , following the instriuctions on the board, and all iis OK

    total cost 90 ( as opposed to 240 quote for repair)
    Quote Quote
  3. Member dman_warlamas's Avatar
    Join Date
    Apr 2006
    Location
    United States
    Search Comp PM
    ndprobinson - I replaced the 106XA in my 210 with a standard 107 drive - used the service remote and disc and it works just fine. I left the Digital Audio connector disconnected (I was told that I didn't need it - may be for play back only?)

    Look at this thread and others like it:

    https://forum.videohelp.com/viewtopic.php?t=192334&postdays=0&postorder=asc&start=90

    https://forum.videohelp.com/viewtopic.php?t=298856&highlight=

    Good Luck!
    D-man
    Dman[WarLlamas]
    "Angel's Lame, his hair grows straight up, and he's bloody stupid." BimBot Buffy, BtVS 05x18 'Intervention'
    Quote Quote
  4. Member psymaster's Avatar
    Join Date
    Dec 2008
    Location
    United States
    Search PM
    Originally Posted by ndprobinson
    A DVR-107 would seem to be the answer.

    I transplanted the circuit board from the dud drive to a newish 107 drive, changed the faceplates, popped it in and it works!

    the HD was upgraded to 300Gb , following the instriuctions on the board, and all iis OK

    total cost 90 ( as opposed to 240 quote for repair)
    I ordered a replacement on ebay the listing read DVR-107 Pioneer.

    Here is the description:

    The DVR-107 is a high speed multiple format DVD/CD internal writer. The drive enables high-speed recording at 8x with high-speed DVD-R and 8x with high-speed +R media. It combines extended recording speeds with Precision Recording Technology to enhance disk compatibility and a wide range of multimedia and archiving applications.

    I just received the DVR and this is what I see. TEAC DV-W58DP April 2004 part number 19771350-12.
    I compare the cases and they look exactly the same. I opened the case and it also looks exactly the same.

    I've already replaced the DVD-burner DVR-107-XA with a DVR-107-PB (macintosh model) of course I did the Circuit board swap out. The DVR-520h didn't notice the swap, everything worked except for the finalization of discs (new stock verbatim 8x dvr-r) my old drive was doing the samething. So I'm guessing the used macintosh drive optics/laser was just as used/old as the one I'm replacing. The verbatim discs could also be the problem, I've ordered TY's 8x and will test the DVR-520h with them. If the DVR-520h functions normally with TY's I'll leave the drive replacement alone and save the drives for down the road.

    I'm going to wait until I get the TY's before I do any further dismantling/replaceing/swapping out of drive units and circuitboards.



    I have found that the Pioneer DVD burners ( DVR-107-XA ) commonly used in models 420h and 520h can easily be replaced with the Teac DV-W58DP model without needing the service disc by simply swapping the main boards of the DVD burners.

    The main circuit board to the Pioneer drive needs to be removed, and placed onto the new Teac drive. See pictures below;

    Last step is reassembly and test.


    Here are the pictures of the Teac drive i received advertised as a DVR-107 pioneer.











    More posts to follow


    STOP HERE IF YOU ARE ONLY REPLACING THE CIRCUITBOARD, (i.e. you bought a new TEAC replacement)

    The posting below is not connected to this post
    IBUYPOWER I7 16GB, Ebuntu 16 system, Pioneer DVR-520H, Pioneer DVR-225, Phillips DVR-3567H, Teac replacement drives for DVR-107xa
    Quote Quote
  5. Member psymaster's Avatar
    Join Date
    Dec 2008
    Location
    United States
    Search PM
    DO NOT CONTINUE FURTHER IF YOUR INTENTIONS ARE ONLY TO SWAP OUT THE CIRCUITBOARD

    Here is my step by step in how to strip the dvd drive down to the optic/laser.




    remove the four screws securing the protective plate in place


    protective plate removed


    turn the drive over and remove the 4 ribbons connected to circuit board.

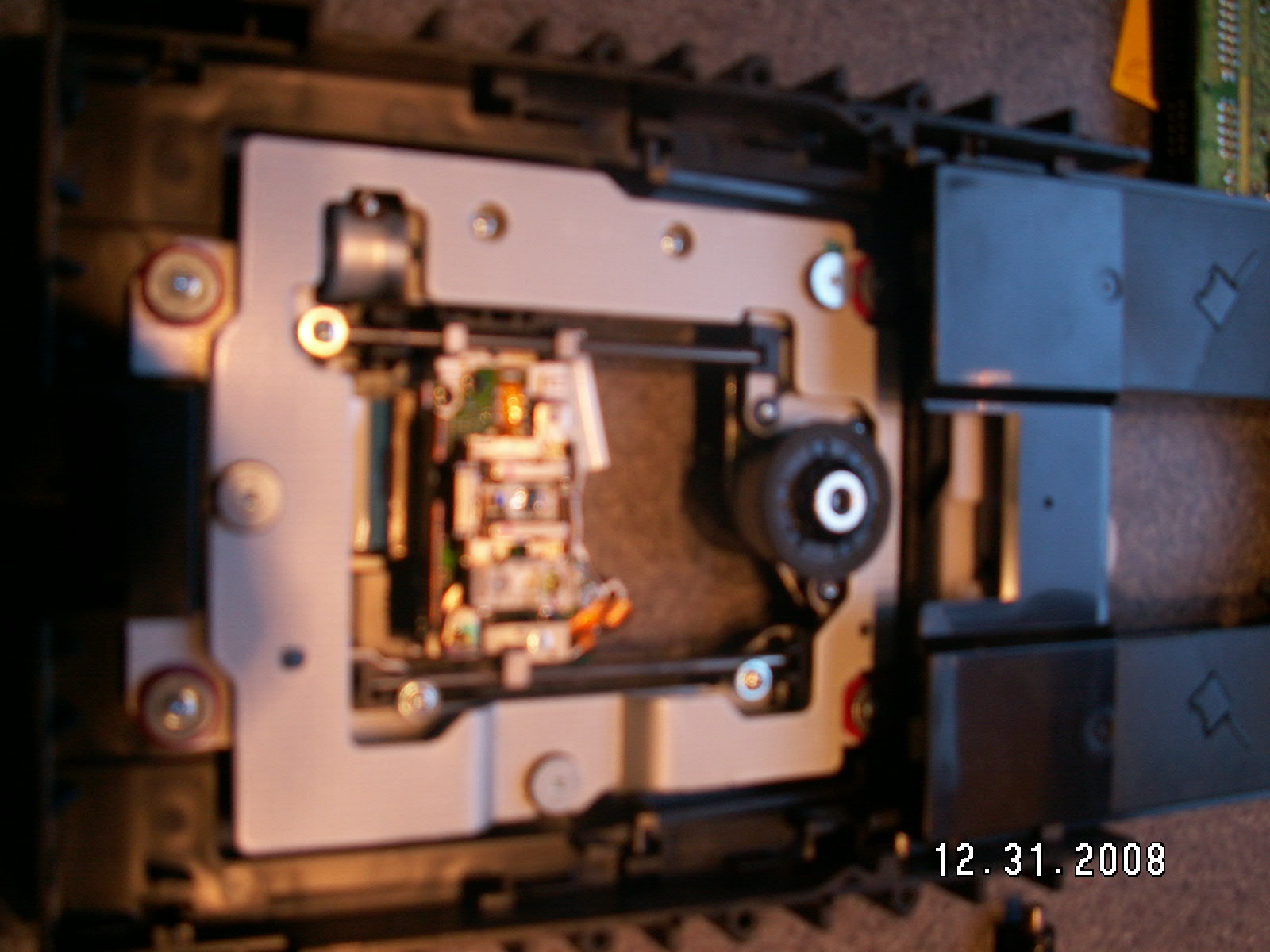

    remove the circuit board and the optic/laser is exposed (picture quality sucks)
